7495 - Loudspeaker MONOPRICE - Free user manual and instructions

Brand	Monoprice
Model	7495 (also 7496 for pair)
Product Type	2-Way Active Wall Mount Speaker
RMS Power Output	25W x 2 (into 8Ω)
Frequency Response	20Hz - 20kHz (±0.56dB tolerance)
Input Sensitivity	0.7V
Treble Control	±10dB
Bass Control	±10dB
AC Power Supply	AC 120V, 50/60Hz
Dimensions (W x H x D)	220 x 196 x 290 mm
Gross Weight	10.1 kg (22.3 lbs)
Mounting Type	Wall mount bracket with keyhole and center screw
Speaker Configuration	2-way (likely tweeter and woofer)
Amplifier Type	Built-in active amplifier
Safety	Not waterproof; avoid moisture and humid environments
Recommended Use	Indoor or protected outdoor with shelter
Included in Box	Pair of speakers, brackets, mounting screws, power cords

Frequently Asked Questions - 7495 MONOPRICE

How do I mount the Monoprice 7495 speakers to the wall?

Use the included bracket. Mark the wall using the bracket as a guide, then secure with screws through the keyhole slots or the center hole. Attach the speaker to the bracket with the provided screws. Ensure the wall can support 22.3 lbs (10.1 kg).

What power supply is required for these speakers?

The speakers require an AC power supply of 120V, 50/60Hz. Use the included power cord with an IEC C13 connector. Do not use a different voltage.

Can I use these speakers outdoors?

They are not waterproof. Avoid exposure to rain, moisture, or high humidity. For outdoor use, install under a covered area protected from the elements.

How do I adjust the treble and bass?

The speakers have treble and bass control knobs that provide ±10dB adjustment. Turn clockwise to increase, counterclockwise to decrease.

What is the maximum power handling of the 7495?

The built-in amplifier delivers 25W RMS per channel into 8 ohms. Do not connect external amplifiers; these are active speakers.

How should I clean the speakers?

Unplug the power cord. Use a soft, dry cloth to wipe the cabinet. Do not use water or cleaning solvents. Avoid getting moisture near the drivers.

Are these speakers active or passive?

They are active speakers with a built-in amplifier, so they require a power outlet and accept line-level input signals.

What is the frequency response of the Monoprice 7495?

The frequency response is 20Hz to 20kHz with a tolerance of ±0.56dB, ensuring accurate sound reproduction across the audible range.

Can I connect these speakers to my TV?

Yes, if your TV has a line-level audio output (RCA or 3.5mm). You may need an appropriate cable. Connect to the speaker input.

What are the dimensions and weight of one speaker?

Each speaker measures 220 x 196 x 290 mm (WxHxD) and weighs approximately 10.1 kg (22.3 lbs).

USER MANUAL 7495 MONOPRICE

Thank you for purchasing these Monoprice Active Speakers!

For best results, please read this manual completely before attempting to install or use these speakers. Pay extra attention to the Safety Tips and Warnings below to ensure both your own personal safety and the long-term service from of these speakers.

Safety Tips and Warnings

Do not expose these speakers to water or moisture of any kind. They are not waterproof and exposure could result in fire, electrical shock, and damage to the speakers and surrounding property.

Take care to ensure that the power cords do not become worn or damaged. Inspect the power cord for damage prior to plugging it into a live electric circuit. If the cord is damaged replace it with a standard PC power cord (IEC 60320 C13 plug to NEMA 5-15 plug).

When plugging or unplugging the power cord, grip the connector head and not the cord itself. Pulling on the cord can result in damage to the cord, which could in turn lead to an electric short and/or fire.

Never touch the power cord or speaker with wet hands or when standing in water. Doing so could lead to electric shock.

Avoid installing or using the speakers in a humid or dusty environment.

MONOPRICE®

2-Way Active Wall Mount Speakers (Pair) - 25W

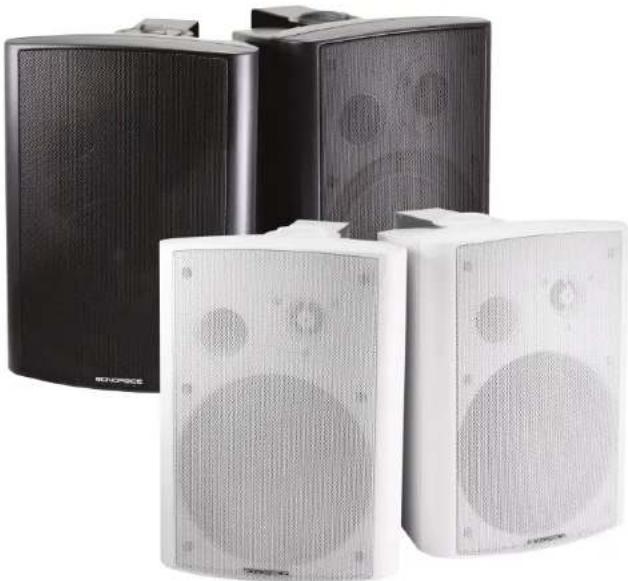

Four black and white outdoor speakers with different speaker profiles, no visible text or symbols on the devices themselves.

7495/7496

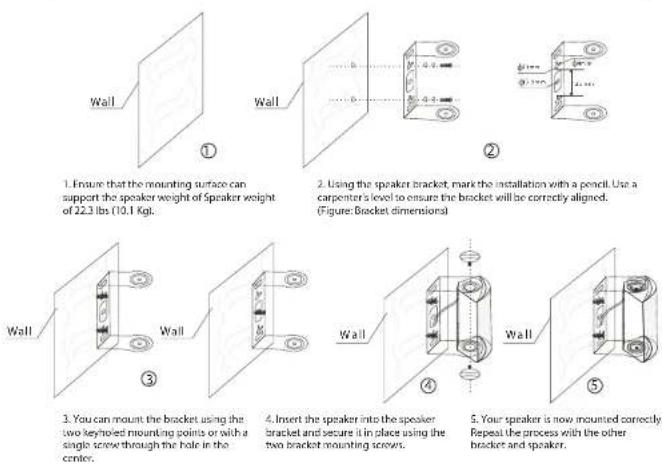

INSTALLATION

1. Ensure that the mounting surface can support the speaker weight of Speaker weight of 22.3 lbs (10.1 Kg).
2. Using the speaker bracket, mark the installation with a pencil. Use a carpenter's level to ensure the bracket will be correctly aligned. (Figure: Bracket dimensions)

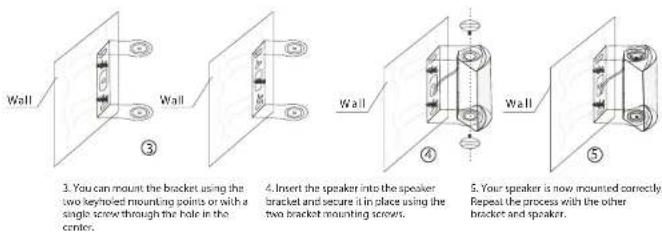

3. You can mount the bracket using the two keyholed mounting points or with a single screw through the hole in the center.
4. Insert the speaker into the speaker bracket and secure it in place using the two bracket mounting screws.
5. Your speaker is now mounted correctly. Repeat the process with the other bracket and speaker.

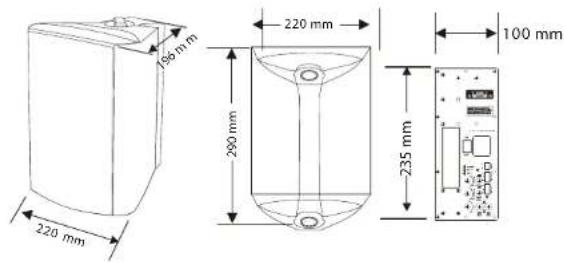

SPECIFICATIONSDIMENSION

MODEL	MFA-25.6K
RMS	25Wx2g8Ω
QUIPUT SENSITIVITY	0.7V
FREQUENCY RESPONSE	20Hz~20KHz/1W, 0.56db
AC POWER SUPPLY	AC120V/50Hz~60Hz
TREBLE CONTROL	±10db
BASS CONTROL	±10db
DIMENSION(mm)	220X196X290
GROSS WEIGHT	10.1Kg
