Product Type	Fan Heater
Brand	Ramtons
Model	RM/314
Power Supply	AC 230V, 50Hz
Power Consumption	2000W
Net Weight	1.35 kg
Protection Class	II
Thermostat Control	Adjustable, maintains set temperature
Overheat Protection	Automatic shut-off, auto restart after cooling
Select Switch	On/Off and fan speed selection
Indicator Light	Power indicator
Air-Outlet Grill	Front vent for airflow
Cleaning Instructions	Wipe housing with damp cloth; do not use water or chemicals
Safety Precautions	Do not cover, keep away from flammable objects, supervised use
User Maintenance	Regular external cleaning only; no user-serviceable parts inside
Repair	Only authorized service personnel
Cord Replacement	By manufacturer, service agent, or qualified person
Use	Indoor household use only

Frequently Asked Questions - RM/314 Ramtons

How do I set the desired temperature?

Turn the thermostat knob clockwise to maximum, then slowly anti-clockwise until you hear a 'click'. The heater will maintain that temperature.

What does the overheat protection do?

If the heater overheats, it automatically switches off and restarts once it cools down. If the issue persists, unplug and contact authorized service.

How should I clean the fan heater?

Turn off and unplug, let it cool. Wipe the housing with a damp cloth. Do not use water, detergents, or chemical agents.

Can I use the heater in a bathroom?

No, do not use in immediate surroundings of a bath, shower, or swimming pool, and not outdoors.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Is it safe to leave the heater unattended?

No, especially when children, elderly, or disabled persons are present. Always supervise and unplug when not in use.

What does the symbol 'Do not cover' mean?

It means the heater must not be covered to prevent overheating. Do not place clothing or other objects on it.

Can I use an extension cord?

The manual does not recommend extension cords. To reduce risk, plug directly into a wall outlet.

How do I know when the heater is on?

The power indicator light on the upper enclosure will illuminate when the heater is operating.

What voltage does the heater require?

It requires AC 230V, 50Hz. Always check your household voltage matches the rating.

USER MANUAL RM/314 Ramtons

1. The appliance will automatically maintain the set temperature. The thermostat will switch off the appliance when the room temperature is above and switch on if below this setting.

SECURITY SYSTEM

- The appliance has a security system, which automatically switches the appliance off, when it is overheating. And then automatically restarts it once it has cooled. - If you still notice the same defect above mentioned remove the plug from socket and have the fan heater serviced by authorized service personnel only.

MAINTENANCE

- The fan heater only needs regular cleaning on the outside. - Before you clean the unit, turn the switch to off "O". Remove the plug from socket and wait until the fan heater cool down. - Use a damp cloth to wipe the fan heater housing. - Do not use water, detergents, abrasive cleaning liquids or chemical agents (alcohol, gasoline etc.) to clean the unit.

SPECIFICATIONS

- Power supply voltage: AC230V 50Hz - Power consumption: 2000W - Protection class: I - Net weight: 1.35Kg

INSTRUCTION MANUAL

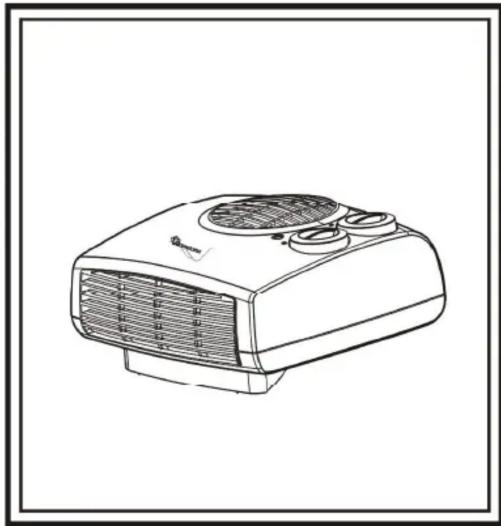

FAN HEATER MODEL RM/314

Line drawing of a heat exchanger with three fans and a cooling unit (no text or symbols)

SAFETY PRECAUTION

1. Read all instructions carefully before using the product.
2. Remove the unit from its packages and check to make sure it is in good condition before using. In case of doubt do not use the fan heater and contact with your supplier.
3. Do not let children play with parts of the packing (such as plastic bags).
4. Check the household voltage to ensure it matches the appliance's rated specification.

5. Do not use near or point the heater to furniture, curtains or other inflammable objects.

6. The symbol (F) marked on the appliance means: "WARNING:DO NOT

COVER". WARNING: In order to avoid overheating, do not cover the heater.

1. Do not insert any objects into the heater.

2. Do not use or leave the fan heater unattended when children, old or disabled people are present.

3. Always unplug heater when not in use.

4. Prevent water from getting into the housing of the heater during operation or in storage. To avoid Hazard of electric shock, Always store in dry area with no moisture.

5. Do not use in places where there are gas, paint or other inflammable goods and objects. In case of malfunction or abnormal operation, turn off the heater, unplug from socket and send the heater to the service center for repair and inspection.

6. Do not use outdoors.

7. Do not locate the appliance immediately below a socket-outlet.

8. Do not use the heater in the immediate surroundings of a bath, shower or a swimming pool.

9. The appliance is not intended for using by young children or infirm persons without supervision

10. Young children should be supervised to ensure that they do not play with the appliance.

11. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

PARTS DESCRIPTION

1) Upper enclosure
2) Indicator
3) Air-Outlet grill
4) Thermostat
5) Select switch
6) Under enclosure
7) Power cord
8) Plug

CAUTION

This appliance is for household use only. Any service other than cleaning and user maintenance should be performed by authorized service representative. Do not immerse the unit in water. To reduce the risk of fire or electric shock, do not remove the housing. No user serviceable parts inside. Only authorized service personnel shall handle repair work.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

When the appliance is switched on,

1. Turn the thermostat knob in a clockwise direction to the maximum position.
2. Once the room temperature is reached the desired temperature, turn the thermostat knob slowly in an anti-clockwise direction unit a "Click" sound and that is the setting temperature. Now, the appliance is switched off and the power indicator lights off.
