991 - Microphone MXL - Free user manual and instructions

Type	Condenser microphone
Polar Pattern	Cardioid
Diaphragm	1.25-inch gold-sputtered
Frequency Response	30 Hz - 20 kHz
Impedance	200 ohms
Sensitivity	-35 dB re 1V/Pa
Power Requirement	48V phantom power
Dimensions	1.9 in (48 mm) diameter, 5.5 in (140 mm) length
Weight	1 lb (454 g)
Connector	XLR (3-pin)
Accessories Included	Shock mount, carrying case
Construction	Metal body with mesh grille
Application	Studio recording, vocals, instruments
Maintenance	Wipe with dry cloth; avoid moisture
Safety	Do not disassemble; use only with phantom power

Frequently Asked Questions - 991 MXL

What type of microphone is the MXL 991?

The MXL 991 is a condenser microphone designed for studio recording and live sound.

Does the MXL 991 require phantom power?

Yes, it requires 48V phantom power to operate. Use a mixer or audio interface with phantom power.

What is the polar pattern of the MXL 991?

It has a cardioid polar pattern, which captures sound from the front and rejects noise from the sides and rear.

How do I clean the MXL 991 microphone?

Use a soft, dry cloth to wipe the exterior. Avoid using liquids or solvents. Do not unscrew the grille.

What accessories come with the MXL 991?

It typically includes a shock mount and a carrying case for protection and isolation.

What is the frequency response of the MXL 991?

The frequency response is 30 Hz - 20 kHz, suitable for a wide range of vocal and instrument applications.

Is the MXL 991 suitable for vocals?

Yes, its cardioid pattern and frequency response make it excellent for vocals, providing clarity and detail.

Can I use the MXL 991 with a standard XLR cable?

Yes, it uses a 3-pin XLR connector, compatible with standard XLR cables.

What is the maximum sound pressure level (SPL) for the MXL 991?

The maximum SPL is typically around 130 dB (with pad), but use a preamp with gain control to avoid distortion.

How should I store the MXL 991 when not in use?

Store it in the carrying case in a dry, cool place. Remove from shock mount if storing long-term.

USER MANUAL 991 MXL

MXL microphones are guaranteed against defects in materials and workmanship for one year from the date of purchase. If you encounter any problem with this unit, promptly contact the company from which you purchased it for assistance. The original dated sales receipt will be necessary for any warranty claim. Do not send any unit directly to us without prior authorization from our service department. Warranty coverage is limited to repair or replacement (at our option) of the microphone, and does not cover incidental damages due to use of this unit, nor damage caused by accidental misuse of this product.

990/991

Close-up of a MXL 990 audio recording device with mesh grille and external microphone (no visible text or symbols on body)

A Division of Marshall Electronics

310-333-0606 ■ 800-800-6608 ■ Fax: [phone]

www.mxlmics.com ■ [e-mail]

Classic

Recording Bundle

990/991

Classic Recording Bundle

Thank you for choosing the MXL 990/991 Classic Recording Ensemble. For best results, please take a few moments to read this manual and familiarize yourself with proper operation and care of your microphone.

General Characteristics

The 990/ 991 Classic Recording Ensemble is your one-stop mic kit for vocals, drum overheads, acoustic guitars, and more! Two studio condenser microphones are included. The 990 offers a silky, sweet high end and a tight solid bass, perfect for recording vocals; and the 991 is a superior instrument microphone designed for recording acoustic guitar and drum overheads. This bundle makes for the perfect foundation to any new microphone locker.

Contents

Unpack your MXL microphone package carefully and verify that all of the following items are included:

• Rugged Carrying Case

• MXL H-03 Mic Stand Adapter

- MXL 990 Microphone

• MXL MT-001 Mic Stand Adapter

- MXL 991 Microphone

Power Requirements

IMPORTANT - The 990 requires 48V phantom power (± 4V).

IMPORTANT – The 991 requires phantom power at 48 volts, +/- 4 volts.

Each unit has been thoroughly checked before shipping, so if you do not hear sound, check that the phantom power on your mixer or separate power supply is switched on.

Microphone Cables

Your microphone cable can have a profound effect on the sound of any microphone. Even the finest microphones will sound poor if the interconnect cable allows noise to enter, or causes distortion and loss of information. We highly recommend the Mogami® brand microphone cables.

Care

Dust and foreign material can degrade the performance of a microphone over time, so always store the unit in its box. For vocals closer than 3", use a pop filter or a foam windscreen to avoid getting moisture on the diaphragm as this can substantially degrade the microphone's performance. Store the microphone in its original packaging in a cool, dry place along with the included packet of silica gel.

990/991 Technical Specifications

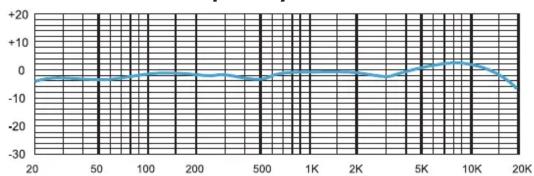

Frequency ChartPolar Pattern

990

Type:	Pressure-gradient condenser mic.
Frequency Response:	30 Hz-20 kHz
Polar Pattern:	Cardioid
Impedance:	200 ohms
Sensitivity:	15 mV/Pa
Equivalent Noise:	20 dB (A-weighted IEC 268-4)
S/N Ratio:	80 dB (Ref. 1Pa A-weighted)
Max SPL for 0.5% THD:	130 dB
Power Requirement:	48V phantom power ( ± 4V)
Current Consumption:	< 3.0mA
Size:	60mm x 130mm / 2.36 in. x 5.11 in.
Weight:	1.2 lbs / 544.3g
Metal Finish:	Champagne

Frequency ChartPolar Pattern

991

Type:	Condenser pressure gradient mic
Frequency Response:	30Hz – 18 kHz
Polar Pattern:	Cardioid
Out Impedance:	110 ohms
Sensitivity:	15mV/Pa
S/N Ratio:	78 dB (Ref. 1Pa A-weighted)
Equivalent Noise:	18dB(A weighted IEC 268-4)
Max SPL for 0.5%:	THD 137dB
Power Requirement:	48 V phantom power (+/- 4 V)
Current Consumption:	<3.0mA
Size:	22 mm x 134 mm
Weight:	0.35 lbs
Metal Finish:	Champagne
