Product Type	Infrared Connecting Block
Brand	Russound
Model	CB-140
Dimensions (W x H x D)	3.86″ x 0.75″ x 1.5″ (98 x 40 x 20 mm)
Weight	6 oz (170 g)
Power Requirements	12 VDC, 500 mA (power supply sold separately)
Number of Emitter Outputs	4 (color-coded 3.5 mm jacks)
IR Receiver Input	3-terminal 3.5 mm (tip: signal, ring: ground, sleeve: power)
IR Confirmation LED	Green LED flashes when IR signal received
Power LED Indicator	Illuminated when power is connected
Compatible IR Receivers	Standard IR sensors with 3.5 mm plug (tip signal, ring ground, sleeve power)
Compatible IR Emitters	Standard IR emitters (e.g., Russound IRE-1, IRE-2)
Mounting	Near source equipment; compact size for easy placement
Extension Capability	Supports IR receiver extension up to 50 ft with Russound Model 900
Warranty	2 years limited (defects in materials/workmanship)
Manufacturer	Russound/FMP, Inc.
Country of Origin	Not specified, but manufactured by Russound (USA-based)
Certifications	Not specified
Operating Temperature	Not specified, assume typical indoor 32°F to 104°F (0°C to 40°C)
Storage Temperature	Not specified
Included Accessories	None (power supply, receivers, emitters sold separately)
Maintenance	Clean with a soft dry cloth; avoid liquids
Safety Precautions	Use only with specified power supply; do not expose to moisture

Frequently Asked Questions - CB-140 Russound

What is the Russound CB-140 used for?

The CB-140 is an infrared connecting block that connects IR receivers, power supply, and emitters to interface an IR system with audio/video components.

What power supply is required for the CB-140?

It requires a 12 VDC, 500 mA power supply (sold separately). For high-output flashers, a 12 VDC 1A supply may be needed.

How many emitters can I connect to the CB-140?

You can connect up to 4 emitters using the color-coded 3.5mm jacks labeled 1-4.

What type of IR receiver does the CB-140 accept?

It accepts a 3-terminal 3.5mm plug common to many IR receivers, with tip as signal, ring as ground, and sleeve as power.

How do I know if the CB-140 is receiving an IR signal?

The green IR confirmation LED flashes whenever an IR signal is received.

Can I extend the IR receiver wire?

Yes, you can use the Russound Model 900 IR Receiver Extension (50 ft) or splice an extension following the diagram in the manual.

Where should I mount the CB-140?

Mount it near the source equipment to which emitters are attached, for easy connection.

What emitters are compatible with the CB-140?

Standard IR emitters like the Russound IRE-1 (single) and IRE-2 (dual) are compatible.

What is the warranty on the Russound CB-140?

It comes with a 2-year limited warranty covering defects in materials and workmanship. Warranty void if used with unauthorized sellers or excessive power.

How do I get repair service for the CB-140?

Call Russound at [phone] for a Return Authorization (RA) number, then ship the unit prepaid to Russound, ATTN: Service, 1 Forbes Road, Newmarket NH 03857 with a note describing the issue.

USER MANUAL CB-140 Russound

Power Requirements: 12VDC, 500mA

Dimensions: 3.86"W x 0.75"H x 1.5"D

(98 x 40 x 20mm)

Weight: 6oz (170g)

Limited Warranty

The Russound CB-140 Connecting Block is guaranteed for two (2) years from the date of purchase against all defects in materials and workmanship. For this warranty to apply, the unit must be installed and used according to its written instructions. During this period, Russound will replace any defective parts and correct any defect in workmanship without charge for either parts or labor. Accidental damage and shipping damage are not considered defects under the terms of this warranty. Russound assumes no responsibility for defects resulting from abuse or servicing performed by an agency or person not specifically authorized in writing by Russound. If service is necessary, it must be performed by Russound. Damage to or destruction of components due to excessive power voids the warranty. In these cases, the repair will be made at the owner's expense. To return for repairs, the unit must be shipped to Russound at the owner's expense, along with a note explaining the nature of the service required. Be sure to pack in a corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit.

Before returning a unit for repair, call Russound at [phone] for a Return Authorization number. Write the RA number on the shipping label and ship to: Russound, ATTN: Service, 1 Forbes Road, Newmarket NH 03857

Russound sells product only through authorized Dealers and Distributors to ensure that customers obtain proper support and service. Any Russound product purchased from an unauthorized dealer or other source, including retailers, mail order sellers and online sellers will not be honored or serviced under existing Russound warranty policy. Any sale of products by an unauthorized source or other manner not authorized by Russound shall void the warranty on the applicable product.

© 2015 Russound/FMP, Inc. 1 Forbes Road, Newmarket, NH 03857 tel [phone] • fax [phone] email: [e-mail] www.russound.com

28-1394 07.29.15

RRussound®

CB-140 Infrared Connecting Block Instruction Manual

The CB-140 Connecting Block is an easy-to-use universal IR connecting block with color-coded 3.5mm inputs to make wiring connections simple and efficient.

Connecting Block, Infrared Receiver, Infrared Emitter, Power Supply

Russound manufactures a variety of receivers and emitters to match system requirements. Please consult your Russound dealer or the Russound website at www.russound.com for more information.

Product Overview

The CB-140 Connecting Block connects IR receivers, power supply and emitters together to interface the IR system to the audio / video components. While designed to work as part of a complete Russound IR system, the CB-140 will work with most standard IR sensors and emitters. If using high output flooding type flashers, the use of a higher output power supply may be required (12vDC, 1A).

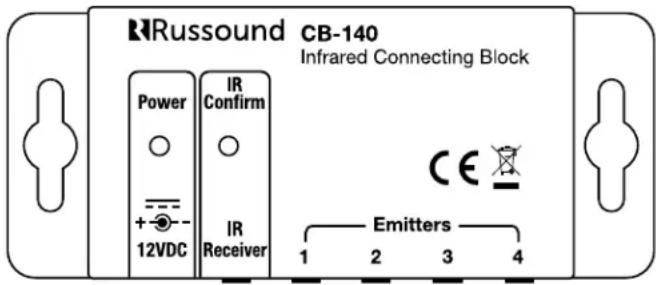

Key Features

1) Four color-coded 3.5 mm emitter output connections

2) Convenient IR confirmation LED
3) Power receptacle with LED indicator
4) Color-coded 3.5 mm IR Receiver Input
5) Compact size for mounting near audio equipment

CB-140 Connections

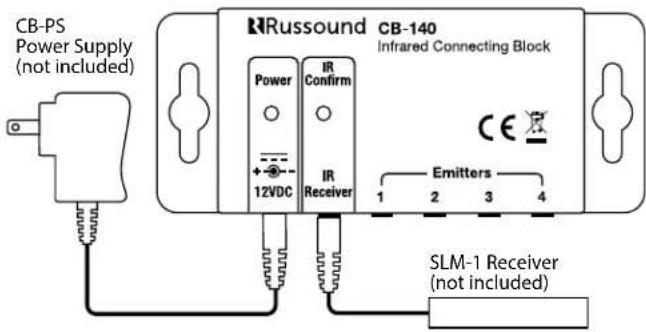

Power: Connect the Russound CB-PS Power Supply (sold separately) to the power jack. The power LED will be illuminated when powered. This power connection will power all of the IR components connected to the system.

IR Receiver In: This is a three terminal 3.5 mm plug that is common to many brands' free standing IR receivers. This will connect the power, ground and signal. Signal is tip, ground is the ring and power is the sleeve.

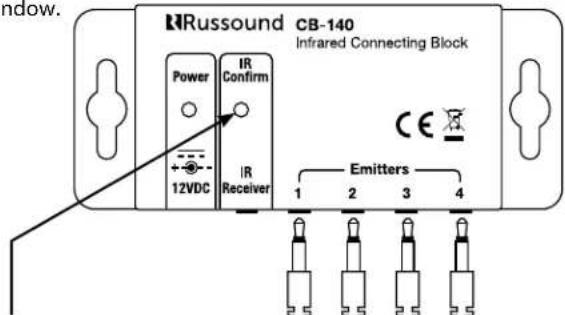

Emitter Outputs: Connect up to 4 emitters to the emitter jacks labeled 1-4, (Green connector). Place the emitters on the source equipment's IR sensor window.

IR Confirm: When an IR signal is received, the IR confirmation green LED will flash.

IRE-1 Emitters to Equipment (not included)

Mounting: Mount the CB-140 near the source equipment to which the emitters are attached.

Extending the IR Receiver wire: For applications where a longer IR receiver wire is required, Russound manufactures the Model 900, IR Receiver Extension, in 50' lengths.

Alternatively, you can use the following diagram to splice an extension:

Other Russound IR components:

IRE-1 Single Infrared Emitter

IRE-2 Dual Infrared Emitter
