FEI-20W - Anti-insectes Imarflex - Free user manual and instructions

Product Type	Electric Insect Killer
Model	FEI-20W
Brand	Imarflex
Power Supply	220-240 V ~ 50 Hz
Power Consumption	6 W
Bulb Type	UV Fluorescent Tube (6W)
Coverage Area	Up to 40 m²
Dimensions (L x W x H)	22 x 15 x 10 cm
Weight	0.5 kg
Housing Material	ABS Plastic
Safety Grid	Built-in protective grid
Mounting	Wall-mounted or tabletop
Operation	Attracts and electrocutes flying insects
Cleaning	Unplug and brush off dead insects
Replacement Bulb	6W UV tube (orderable separately)
Repairability	Bulb and fuse replaceable
Warranty	1 year

Frequently Asked Questions - FEI-20W Imarflex

How does the FEI-20W attract insects?

It uses a 6W UV fluorescent tube that emits ultraviolet light, which attracts flying insects such as mosquitos, flies, and moths.

Is the device safe for pets and children?

Yes, the FEI-20W features a protective safety grid that prevents accidental contact with the electrified mesh. It is designed for indoors and should be placed out of reach of small children.

How do I clean the insect killer?

First, unplug the device. Use a soft brush or cloth to remove dead insects from the grid and tray. Avoid using water or liquid cleaners.

What is the coverage area of the FEI-20W?

The device covers up to 40 square meters in a typical room. For larger spaces, multiple units may be needed.

How often should I replace the UV bulb?

For optimal performance, replace the UV tube every 6 to 12 months, as its intensity decreases over time.

Can I use the FEI-20W outdoors?

No, this model is designed for indoor use only. Exposure to moisture may damage the electrical components.

How do I install the device?

The FEI-20W can be hung on a wall using the keyhole slots or placed on a flat surface using the stand. Ensure it is at least 1 meter above ground.

Does it make noise during operation?

You may hear a soft hum from the UV tube and a faint sizzle when insects are electrocuted, which is normal.

What should I do if the device stops working?

Check the power cord and fuse. Replace the fuse if blown. If the bulb is dead, replace it with a new 6W UV tube. If the issue persists, contact Imarflex support.

Is the replacement bulb included in the box?

No, the FEI-20W comes with one pre-installed bulb. Replacement bulbs are sold separately.

USER MANUAL FEI-20W Imarflex

REMINDER: Please do not forget to fill up and send the warranty

card with a copy of the receipt to our email address

[e-mail]

Distributed By: Sabretech Technology Inc.

103-113 Sen Gil Puyat Ave. Pasay

Made in China

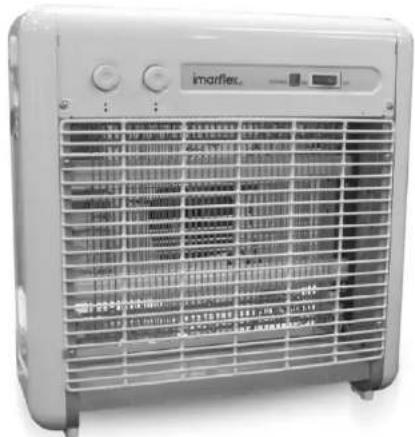

Insect Killer

Enhanced Surge Sensitivity • Durable and Consistent

Capacitor • High Effective Infrared Inducing Tube

Front view of a portable air conditioner unit with control panel and ventilation grille (no visible text or symbols)

imarflex®

In Every Home.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the insect killer, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use a two-way socket with another appliance.
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged, it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.
5. To protect against electric shock, do not immerse the unit in water.

6. Do not place the unit near gas stove, electric stove or in a heated oven.

7. Put the unit on flat stable surface, keep it away from the edge of counter to avoid accident.

8. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged in.

9. Children should be supervised to ensure that they do not play with the appliance.

10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

11. Do not touch the metal grill (inner grill) to prevent electric shock.

12. Use a non-conductor material in cleaning the metal grill (inner grill).

13. Do not use this unit other than its intended use.
14. For household use only.
15. Save this instruction for future reference.

HOW TO USE

1. The best effect is to hang the insect killer at the height of an adult and should be placed 1.5m to 3m away from the door with high ventilation environment.
2. This unit is suitable to be used in bedrooms, living rooms, restaurants, hotels and offices. Do not use in outdoors, barns, stables and similar locations.
3. Plug the unit into the convenience outlet.
4. Switch ON.
5. To prolong the life of the tube avoid switching ON and OFF simultaneously.

CLEANING AND MAINTENANCE

1. Replace the bulb when both ends of the tube become dark. To ensure high efficiency, change the bulb after 3,000-hour operation.
2. In case of malfunction, do not try to repair or change the bulb, bring the insect Killer to the nearest Imarflex Service Center.
3. How to clean the Metal Grill (inner grill): Unplug the insect Killer and discharge the remaining current by inserting a screw driver (non-conductor handle) on the metal grill (a sound will be heard indicating that the remaining current is already been discharged). Brush down accumulated dirt using round brush (wooden handle).
4. How to clean the Plastic Grill: Wipe it using damp cloth.
5. Pull out the dirt tray on the bottom of the insect killer and wash it with soap and water. Wipe it dry.
