20ASB - Household Fan KDK - Free user manual and instructions

Product Type	Domestic Fan
Brand	KDK
Model	20ASB
Fan Diameter	20 inches (approx. 50 cm)
Dimensions (Approx.)	Height: 130 cm, Width: 50 cm, Depth: 50 cm
Weight	Approx. 5 kg

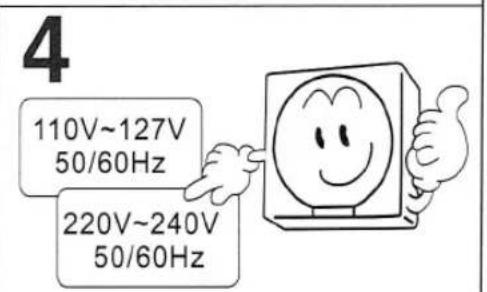

Power Supply	220-240 V, 50 Hz
Power Consumption	Approx. 50 W
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, wide oscillation
Tilt Adjustment	Adjustable tilt angle
Control Type	Push-button or rotary switch
Material	Plastic body, metal grille
Safety Features	Overheat protection, stable base
Cleaning	Wipe with a damp cloth; do not immerse in water
Maintenance	Regular cleaning of blades and grille
Spare Parts Availability	Contact KDK service center for replacements
Repairability	Repair by qualified technician recommended
Warranty	Standard 1-year limited warranty
Country of Origin	Japan

Frequently Asked Questions - 20ASB KDK

How do I assemble the KDK 20ASB fan?

Refer to the user manual for assembly steps. Typically, attach the base, insert the pole, secure the fan head, then attach the blade and front grille.

How do I clean the fan?

Unplug the fan, use a damp cloth to wipe the blades, grille, and body. Do not use harsh chemicals or immerse in water. Dry before use.

Can I use the fan outdoors?

The KDK 20ASB is designed for indoor use only. Avoid exposure to rain, moisture, or direct sunlight.

How do I adjust the speed?

Use the speed control button or knob to select Low, Medium, or High speed as desired.

Why is the fan wobbling?

Ensure the fan is placed on a level surface, and check that all screws are tight. The blade may be bent; gently straighten if needed.

Does the fan have an oscillation feature?

Yes, you can activate oscillation by pressing the oscillation button. This allows the fan to sweep side to side.

How do I adjust the tilt?

Loosen the tilt adjustment knob, tilt the fan head to the desired angle, then tighten the knob securely.

What should I do if the fan stops suddenly?

Check if it is plugged in and the outlet works. The fan may have overheated; turn it off and let it cool. If the problem persists, contact KDK support.

Are spare parts available for this model?

Yes, spare parts such as blades, grilles, and motors are available through authorized KDK service centers.

Can I replace the power cord myself?

Replacing the power cord should be done by a qualified electrician to ensure safety. Contact KDK support for assistance.

USER MANUAL 20ASB KDK

HOW TO INSTALL

Model No.	A	B	C	D	E	J	K
20ASB	300	312	240	50	90	250	200
25ASB	350	362	290	45	90	300	250
30ASB	400	412	340	45	90	350	300
