USER MANUAL ASPC20W Speco Technologies

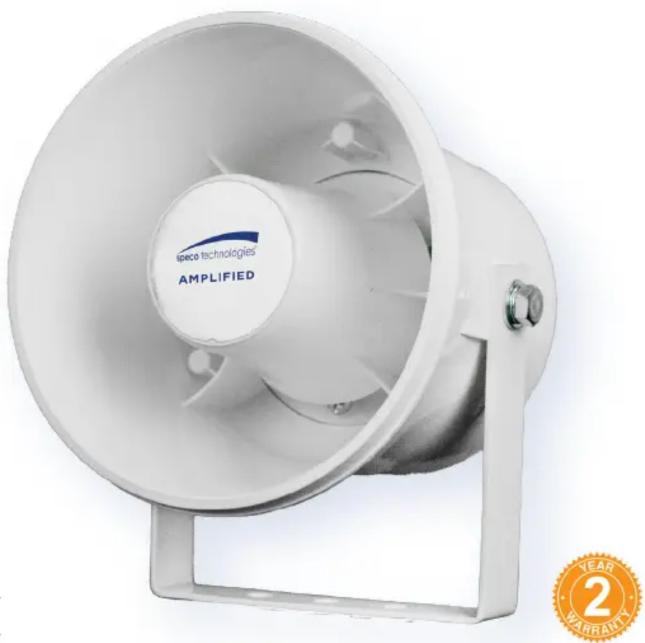

6" Amplified Weatherproof P.A. Speaker

ASPC20W

6" ABS plastic 20W amplified weatherproof P.A. Speaker

Features

• Ideal for use with Digital Deterrent® or any other application where significant cost-savings can be realized by not having a dedicated amplifier.
• 2 year warranty

Specifications

Frequency Response 500Hz-5kHz
Input Impedance 3-16 Ohms
Output Audio 20W max
Impedance 8 Ohms
Requires 10-16VDC (power supply not included)
Fuse 2A, 3AG
Dimensions 6” (W) x 6” (H) x 6.25” (L)
Weight 3 lbs.

White AMPLIFIED airship with blue logo, no visible text or symbols on the fan or background

Optional Accessories

PSDC24
12VDC
Power Supply

NDAA

COMPLIANT

*Products are in compliance with NDAA Section 889 Part B Guidelines
