AL7200ED - Washing machine ASPES - Free user manual and instructions
Find the device manual for free AL7200ED ASPES in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Washing Machine |
| Brand | Aspes |
| Model | AL7200ED |
| Dimensions (H x W x D) | 85 x 60 x 55 cm |
| Net Weight | 68 kg |
| Power Supply | 220-240 V, 50 Hz, 10 A |
| Washing Capacity | 7 kg |
| Maximum Spin Speed | 1200 rpm |
| Number of Programs | 15 |
| Display Type | LED |
| Energy Efficiency Class | A++ |
| Noise Level (Wash/Spin) | 56 dB / 76 dB |
| Water Consumption per Cycle | 50 L |
| Annual Energy Consumption | 230 kWh/year |
| Main Functions | Fuzzy Logic, Delay Start, Quick Wash, Eco Wash, Wool Program |
| Maintenance | Clean lint filter monthly; clean detergent drawer regularly |
| Safety Features | Child Lock, Door Lock, Overheat Protection, Leak Protection |
| Spare Parts Availability | Directly from manufacturer or authorized service centers |
| Repairability Index | 7.0 / 10 |
| Installation Type | Freestanding |
| Color | White |
Frequently Asked Questions - AL7200ED ASPES
How do I install the Aspes AL7200ED washing machine?
Ensure the machine is placed on a level surface. Connect the inlet hose to a cold water supply with 3/4 inch thread. Insert the drain hose into a standpipe or sink. Plug the machine into a 220-240V outlet.
What is the maximum laundry capacity?
The maximum capacity is 7 kg for cotton programs. Overloading may affect washing performance and energy consumption.
How to use the delay start function?
Select your desired program, press the Delay Start button repeatedly to set the delay time (1-24 hours). Press Start/Pause. The machine will begin the program after the set delay.
What do I do if the machine does not drain water?
Check if the drain hose is kinked or blocked. Clean the lint filter located at the bottom front. Also ensure the pump is not obstructed.
How to clean the detergent drawer?
Remove the drawer by pressing the release tab. Wash it under running water with a soft brush. Dry thoroughly before reinserting. Clean the drawer compartment inside the machine as well.
Can I wash woolens in this machine?
Yes, the Wool Program is specially designed for delicate wool garments. Use a mild detergent and do not exceed 2 kg load.
What does the child lock do?
The Child Lock disables all buttons except the Power button to prevent accidental operation. Activate it by pressing and holding the Child Lock button for 3 seconds.
How to reduce noise during spin cycle?
Ensure the machine is level by adjusting the feet. Check that transit bolts are removed. Avoid unbalanced loads by distributing clothes evenly.
Why is the door not opening after cycle?
The door lock releases after approximately 2 minutes from the end of the cycle. If not, check if there is water inside (drain issue) or temperature is high (cool down). Turn off and wait.
Where can I find spare parts?
Original spare parts are available through Aspes customer service or authorized dealers. Provide the model number AL7200ED for accurate ordering.
User questions about AL7200ED ASPES
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Washing machine in PDF format for free! Find your manual AL7200ED - ASPES and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AL7200ED by ASPES.
USER MANUAL AL7200ED ASPES

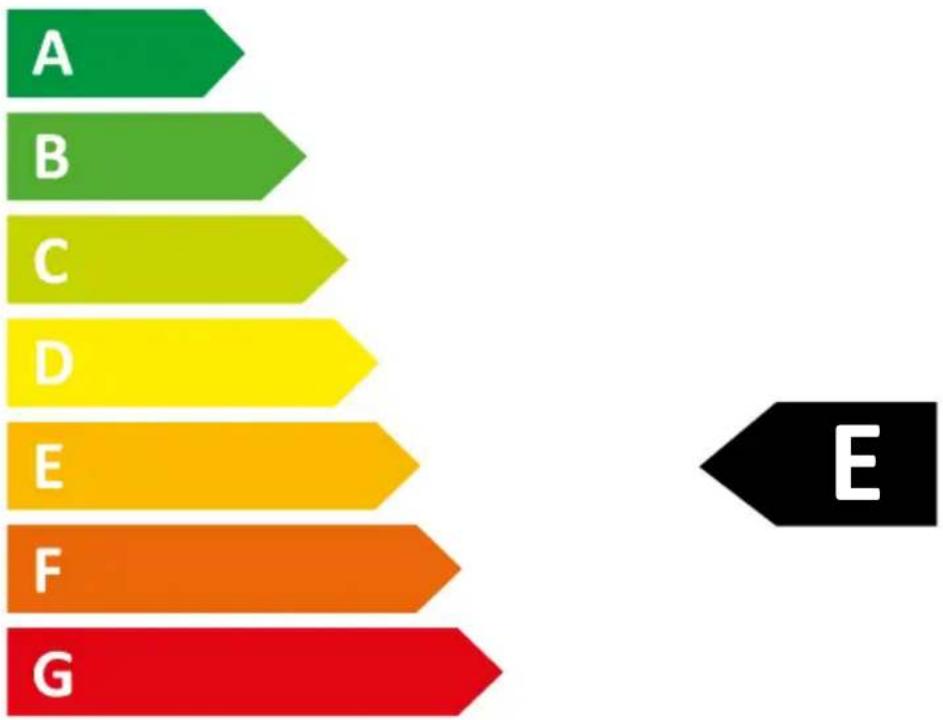

ENERG
AL7200ED
. aspes
bar
| Category | Value | |---|---| | A | 10 | | B | 20 | | C | 30 | | D | 40 | | E | 50 | | F | 60 | | G | 70 |
7,0kg
3:2445L
A B CDEFG
ABCD
