Product Type	Bass Compressor/Limiter Pedal
Brand	Whirlwind
Model	OC Bass
Category	Uncategorized
Input	1/4" Jack
Output	1/4" Jack
Power Supply	18V DC 60 mA, center negative, 2.1mm barrel jack (PS18EFX included)
Attack Switch	3-position: Fast, Medium, Slow
Output Level Knob	Controls overall volume
Limit/Compress Switch	Switches between compression and limiting modes
Input Gain Knob	Controls amount of compression/limiting
Gain Reduction LEDs	Displays amount of compression/limiting in dB
Footswitch	ON/OFF with LED indicator
Warranty	2 years from date of purchase to original purchaser
Country of Origin	Hand made in USA
Manual Languages	EN (3 pages)

Frequently Asked Questions - OC Bass Whirlwind

How do I connect the Whirlwind OC Bass pedal?

Connect your bass to the INPUT jack and run a cable from the OUTPUT jack to your amplifier. Use the included 18V DC power supply (PS18EFX) with center negative plug.

What is the difference between Limit and Compress modes?

Compress mode gently evens out loud and soft levels to help the bass 'sit in the mix'. Limit mode is a more aggressive form of compression with a distinct flavor. Experiment to find your preference.

How does the Attack switch affect the sound?

The Attack switch selects how quickly compression kicks in. Fast acts almost instantly, Medium allows some initial attack through, and Slow lets even more of the note's attack pass before compression.

What do the Gain Reduction LEDs indicate?

The Gain Reduction LEDs display the amount of compression or limiting applied to the signal in decibels (dB). More lit LEDs mean more gain reduction.

Can I use a standard 9V power supply with this pedal?

No, the Whirlwind OC Bass requires 18V DC with a minimum of 60 mA and a center negative polarity. Using a 9V supply may not power the pedal correctly. The recommended adapter is the Whirlwind PS18EFX.

What is the warranty on the OC Bass?

The product is warranted to be free from defects in materials or workmanship for 2 years from the date of purchase to the original purchaser. Return the unit postage paid with the original receipt to Whirlwind for repair or replacement.

How do I adjust the overall volume of the pedal?

Use the OUTPUT LEVEL knob to control the overall volume. Adjust the INPUT GAIN to set the amount of compression/limiting, then use OUTPUT LEVEL to match or boost your amp's input level.

Where is this pedal manufactured?

The Whirlwind OC Bass is hand made in the USA.

Does the pedal have an LED indicator when engaged?

Yes, when the footswitch is pressed to engage the effect, the LED above the footswitch illuminates.

What should I do if my pedal needs service?

Return the unit postage paid along with the original sales receipt to: Whirlwind Music Dist., Inc., 99 Ling Road, Rochester NY 14612. Include a description of the issue. The warranty does not cover abuse, unauthorized modifications, or unintended use.

USER MANUAL OC Bass Whirlwind

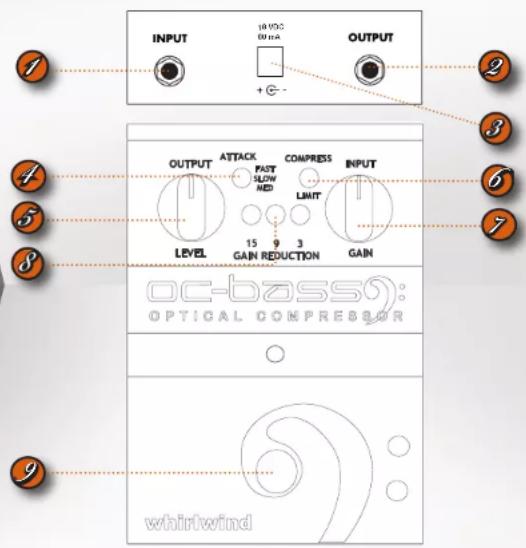

1: INPUT (JACK) - Connect your bass here.
2: OUTPUT (JACK) - Connect a cord out to your amplifier here.
3: 18 VDC 60 mA (JACK) - 2.1mm barrel jack, with the center negative for connecting an 18 Volt DC regulated supply, 60 mA capacity or greater with a center negative plug. The Whirlwind PS18EFX (included) is recommended for proper operation. + -
4: ATTACK (SWITCH) - Switches between three pre-defined attack rates. FAST causes the effect to kick in almost instantaneously, MED allows some of the note's initial attack to come through before the effect kicks in and SLOW allows even more of the initial attack to come through.
5: OUTPUT LEVEL (KNOB) - Controls the over all volume of the pedal.
6: LIMIT/COMPRESS (SWITCH) - Switches between Compression and Limit mode. Compression gently evens out the louder and softer levels in the signal and helps the bass "sit in the mix". Think of limiting as a more aggressive form of compression with a flavor all its own. Experiment!
7: INPUT GAIN (KNOB) - Controls how much compression / limiting is applied to the signal. Adjusting this control changes the overall volume of the effect. Use the OUTPUT LEVEL knob to match or even increase the overall volume feeding your amp.
8: GAIN REDUCTION (LEDs) - Displays the amount of limiting/compression in dBs.
9: ON/OFF (FOOTSWITCH) - Engages and disengages the effect. When engaged, the LED above the footswitch will illuminate.

whirlwind

Warranty:

This product is warranted to be free of defects in materials or workmanship to the original purchaser for a period of 2 years from the date of purchase. Should warranty service be required, return the unit postage paid along with the original sales receipt to:

Whirlwind Music Dist., Inc.

99 Ling Road

Rochester NY 14612

Whirlwind will, at its option, repair or replace the unit. This warranty does not cover damage resulting from abuse, unauthorized modifications or use of the product in unintended applications.

HAND MADE IN THE USA

www.whirlwindusa.com • 800-733-9473
