Product Type	Smart Switch for Philips Hue
Brand	JUNG
Model	FOHA595
Category	Uncategorized
Radio Frequency	2.402 - 2.480 GHz
Transmission Range (Free Field)	Up to 175 m
Transmission Range (Buildings)	Approx. 20 m
Transmitting Power	7 dBm / 5 mW
Ambient Temperature	-5 to +45 °C
Storage/Transport Temperature	-25 to +65 °C
Atmospheric Humidity	0 - 95% (no condensation)
Power Supply	Battery-free, energy harvesting (mechanical actuation)
Wireless Standard	ZigBee Green Power
Compatibility	Friends of Hue, Apple HomeKit, Philips Hue Bridge V2+
Channels	4 (2 rockers)
Functions	Switching, dimming, scene control
Max Configurable Scenes	4
Mounting Options	On appliance box, screw fixing, adhesive fixing on smooth surfaces
Included Accessories	Adhesive film, holder plate, rockers, radio module, frame (in set)
Safety Instructions	Installation by qualified electrician only; not for safety-related applications
Recommended Cleaning Agents	Water, degreaser, glass cleaner, methylated spirit

Frequently Asked Questions - FOHA595 JUNG

How do I install the JUNG FOHA595?

The device must be installed by a qualified electrician. Fix the holder plate using the adhesive film or screws, snap on the frame, attach the radio module (with arrow pointing up), and snap on the rockers after removing the transport lock. For detailed steps, refer to the operating instructions.

How do I pair the FOHA595 with Philips Hue?

Ensure your Philips Hue Bridge is ready and within range. In the Philips Hue app, go to Settings > Set up accessories > Add accessories > Friends of Hue switch, select 'JUNG Friends of Hue Switch', then operate the rockers as instructed to complete the teaching process.

Does the FOHA595 require batteries?

No, the FOHA595 is battery-free. It uses energy harvesting technology, generating power from the mechanical energy of pressing the rockers.

What is the wireless range of the FOHA595?

In free field, the range is up to 175 meters. In buildings, it is approximately 20 meters. Range can be extended using Philips Hue lamps as repeaters.

Can I use the FOHA595 for emergency stop or safety-critical applications?

No, the radio communication uses a non-exclusively available transmission path, so it is not suitable for safety-related applications such as emergency stop or emergency call.

How many light scenes can I configure with the FOHA595?

You can configure up to 4 light scenes. The functions of the rockers (switching, dimming, push-button) must be set in the Philips Hue app.

Is the FOHA595 compatible with Apple HomeKit?

Yes, the device is compatible with Apple HomeKit via the ZigBee Green Power standard and Philips Hue Bridge.

How do I clean the FOHA595?

For the adhesive surface, use water, degreaser, glass cleaner, or methylated spirit. Do not use bath or all-purpose cleaners, or aggressive detergents. For the device body, wipe with a dry cloth.

What is the warranty period for the FOHA595?

The warranty follows the legal framework provided by law and is handled through the specialty store where the device was purchased.

Can I mount the FOHA595 on glass?

Yes, the device can be mounted on smooth, even surfaces such as glass using the included adhesive film. Ensure the surface is dry, clean, and stable before applying.

USER MANUAL FOHA595 JUNG

Friends of Hue radio transmitter

GB

Ref.-no.: FOH A 595 ..,

FOH LS 995 .., FOH .. 2995-L

Friends of Hue radio transmitter set

Ref.-no.: FOHS A 550 595 ..,

FOHS LS 995 ..

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

The radio communication takes place via a non-exclusively available transmission path, and is therefore not suitable for safety-related applications, such as emergency stop and emergency call.

These instructions are an integral part of the product and must remain with the end customer.

2 Device components

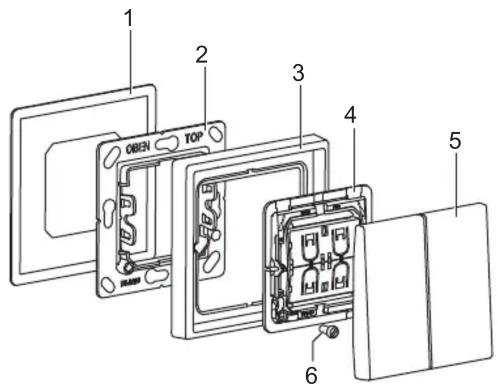

Fig. 1: Device components

(1) Adhesive film
(2) Holder plate
(3) Frame (included in set ref.-no. FOHS ..)
(4) Radio module
(5) Rockers
(6) Retaining screw

Pure architectural floor plan outline with no text, numbers, or symbols

Simple geometric diagram with a square, an octagon, and a corner detail labeled '8' (no text or symbols beyond the number)

Fig. 2 and fig. 3: Transport lock and protective film

(7) Transport lock for rockers
(8) Protective film for holder plate

3 Function

Intended use

• Smart switch for wireless remote control of Philips Hue lamps
• For switching, dimming and controlling individual light scenes
• For residential use only
• Mounting on appliance box according to EN 60670-1, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass). Adhesive film included.

Product characteristics

• Battery-free device without external power supply
• Transmitting energy is generated from mechanical energy of actuation (energy harvesting)
• Encrypted transmission with device-specific code
• Wireless standard ZigBee Green Power, compatible with Friends of Hue and Apple HomeKit
• Automatic range extension via Philips Hue lamps
• Simple commissioning and configuration via Philips Hue app and Hue Bridge V2 or higher

4 Information for electrically skilled persons

Installation and electrical connection

DANGER

Electrical shock on contact with live parts in the installation environment. Electrical shocks can be fatal.

Before working on the device, disconnect the power and cover live parts in the area!

Installation location

The radio range in buildings is approx. 20 m without wall penetration.

A maximum of one wall penetration is recommended, because it attenuates the radio signal.

Fig. 4: Installation location

If several walls have to be penetrated the receiver may not be able to receive the signal from the transmitter correctly. Metal parts at the installation site (e.g. metal door frames) or moisture (e.g. in outdoor areas) can also have a negative effect on the radio transmission. The range can be extended with Philips Hue lamps (in each room).

Fitting the device

• Fix holder plate (2) with adhesive pad (1) at the installation location. (see section „Adhesive fixing“) Alternatively, screw the holder plate onto an appliance box or directly onto the wall. Note marking „Top“.
• Push frame (3) onto holder plate.
• Snap radio module (4) onto holder plate. arrow on sticker (rear side of radio module) points upwards (or „O“ is up and „I“ is down).
• Optional: Secure the radio module with the enclosed screw (6).
• Snap on rockers (5). Note marking „Top“.
  The transport lock (7) behind the rockers must be removed beforehand. (fig. 2)

Adhesive fixing

Important:

The final strength of the adhesive is only reached after 24 hours.

• After gluing the holder plate, let the adhesive cure a little.

Important:

The installation location cannot be changed after the adhesive fixing.

- To test the range, carry out commissioning before adhesive fixing.

Prerequisite:

Surface is dry, clean, stable and even.

Suitable cleaning agents:

water, degreaser, glass cleaner, methylated spirit

Not suitable for cleaning:

Bath or all-purpose cleaner, aggressive detergents

• Remove the protective film from the back of the adhesive film (1).
• Stick the adhesive film aligned on the surface.
  Press firmly for about 10 seconds.
• Remove the protective film (8) for the holder plate (2).
  Do not remove the remaining protective films.
• Stick the holder plate onto the adhesive film.

5 Operation

Operating elements

The radio transmitter is operated via two rockers (4-channel).

The functions of the rockers (switching, push-button or dimming) are not configured in the factory settings of the device.

6 Commissioning

In the following description the commissioning of the radio transmitter is referred to as „teaching“ in the Philips Hue Bridge. The radio signal of the transmitter has to be taught in the Philips Hue Bridge as receiver. After teaching, the Philips Hue Bridge can clearly assign the signals of the transmitter.

Teaching-in the radio transmitter in the Philips Hue Bridge

Requirements:

• Philips Hue Bridge is ready for operation and is within range of the radio transmitter.
• Philips Hue app is installed.
• Select „Settings“ > „Set up accessories“ > „Add accessories“ > „Friends of Hue switch“ in Philips Hue app. All compatible Friends of Hue switches are displayed.
• Select „JUNG Friends of Hue Switch“.
• Operate rockers (5) of the radio transmitter as described in the app. The radio transmitter is taught-in and is added as accessory in the app. The radio transmitter can now be configured in the app.

7 Configuration

The functions of the rockers (switching, push-button or dimming) must be configured in the Philips Hue app. Max. 4 light scenes can be configured.

Configuring the radio transmitter in the Philips Hue app

Requirements:

• The radio transmitter is taught in the Philips Hue Bridge.
• Philips Hue lamps are ready for use.
• Assign radio transmitter to lamps and rooms as described in the app and configure them.
• Save the configuration.

8 Technical data

Radio frequency 2.402 ... 2.480 GHz

Transmission range

in free field up to 175 m

in buildings approx. 20 m

Transmitting power 7 dBm / 5 mW

Ambient temperature -5 ... +45 °C

Storage/transport temperature -25 ... +65 °C

Atmospheric humidity 0 ... 95 % (no condensation)

9 Conformity

Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. FOH A 595 .., FOH LS 995 .., FOH .. 2995-L, FOHS A 550 595 .. and FOHS LS 995 .. meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce

10 Warranty

The warranty follows about the specialty store in between the legal framework as provided for by law.
