Product Type	iPad Surface Mount Bracket
Brand	iPort
Model	70796
Color	Black
Compatible Devices	iPad 10.2-inch (7th gen) and iPad Air (3rd gen)
Material	High-grade precision machined aluminum
Mounting Type	Wall, solid surface, or glass (with optional Glass Mount Kit 70720)
Power Input (PoE)	36-57V 0.4A DC (IEEE 802.3af) via RJ-45
Auxiliary Input	18-24V, 0.8A DC via 2-pin connector
Output	5V 2.4A DC via USB-A
Max PoE Cable Length	300 ft (91.4 m)
Security Lock	Engages locking components in bezel and on surface
Access to iPad Controls	Power button, microphones, and speakers accessible
Audio Wave Guides	Included for sound enhancement
Weight	Approx. 0.5 kg (1.1 lbs)
Dimensions (Bezel)	Approx. 240 x 170 x 8 mm (9.45 x 6.69 x 0.31 in)
Package Contents	Surface Mount Bezel, mounting hardware, installation manual
Optional Accessories	Splitter (70718), Injector (70719), Glass Mount Kit (70720), Redpark Splitter & Cable (72021)
Warranty	Limited lifetime warranty
Certifications	PoE IEEE 802.3af compliant
Care Instructions	Wipe with a soft, damp cloth; avoid abrasive cleaners
Safety Features	Security lock prevents unauthorized removal; PoE compliant

Frequently Asked Questions - 70796 iPort

Is the iPort Surface Mount compatible with my iPad model?

The iPort Surface Mount model 70796 is compatible with iPad 10.2-inch (7th generation) and iPad Air (3rd generation). For other models, check bezel part numbers for your specific iPad.

How do I install the Surface Mount on a wall?

Installation involves attaching the surface mount base to the wall using provided hardware, then snapping the bezel onto the base and securing with the security lock. Detailed instructions are included in the manual.

Can I mount the iPad on glass?

Yes, with the optional Glass Mount Kit (model 70720), you can install any bezel onto glass. The kit includes a vinyl backer to hide cabling.

What power options are available?

The Surface Mount supports PoE (Power over Ethernet) with IEEE 802.3af via RJ-45, or an auxiliary 18-24V DC input. Output is 5V 2.4A DC to charge the iPad via the included USB-A port.

Can I use Ethernet for both power and data?

Yes, using iPort's PoE and a standard CAT cable, you can transmit power and data up to 300 ft. Alternatively, you can use the Redpark Splitter & Cable (model 72021) for a combined power plus data solution.

How do I secure the iPad in the mount?

The iPad is contained in a minimalist aluminum bezel with locking components that engage both in the bezel and on the surface. A security lock prevents unauthorized removal.

Is the mount compatible with iPad cases?

The mount is designed to hold the iPad without a case for a slim fit. Using a case may prevent proper insertion or locking.

What is the maximum distance from the power source?

With PoE, you can place the Surface Mount up to 300 feet (91.4 meters) from the power source using a standard CAT cable.

How do I clean the surface mount?

Wipe the aluminum bezel with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the iPad and mount are dry before use.

What accessories are available for the Surface Mount?

Available accessories include the Splitter (70718), Injector (70719), Glass Mount Kit (70720), and Redpark Splitter & Cable (72021). Each expands functionality.

USER MANUAL 70796 iPort

ELEGANTLY MOUNT IPAD ON ANY SURFACE.

IPORT Surface Mount is the most elegant way to mount iPad on a wall, solid surface or onto glass. Surface Mount allows access to the iPad power button, microphones and speakers. iPad is contained in a minimalist aluminum bezel and stays protected by engaging locking components in the bezel as well as on the surface.

By utilizing IPORT's PoE and a standard CAT cable, Surface Mount can be up to 300 ft. from a power source or can be hard-wired to a network employing Apple's USB to Ethernet.

Available in black, silver or white finishes, Surface Mount is the easiest way to install iPad on any surface while ensuring iPad blends into your space.

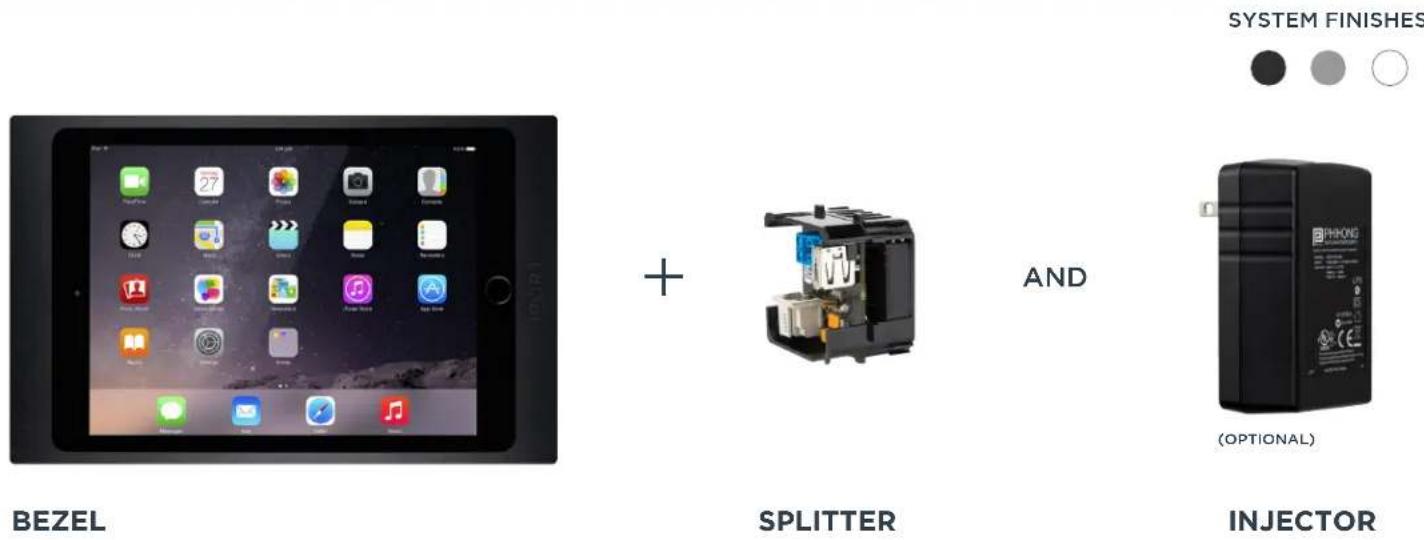

THE SYSTEM

BEZELS

Accessible power button

Security lock
Utilize iPad Microphone

High-grade precision machined aluminum

Smart tablet displaying multiple app icons on a dark screen (no readable text or symbols)

Audio wave guides

Specs, Dims, CADs and more.

iPad mini 4 | 5th gen

70722 BLACK \$300

70723 SILVER \$300

70724 WHITE \$300

iPad 5th gen | 6th gen

70703 BLACK \$355

70704 SILVER \$355

70705 WHITE \$355

iPad Air 3rd gen | iPad 10.2-inch 7th gen

70796 BLACK \$355

70797 SILVER \$355

70798 WHITE \$355

SPLITTER

Three views of an electronic device showing internal components and wiring (no visible text or symbols)

Specs, Dims, CADs and more.

POWER

INPUT: 36-57V 0.4A DC (PoE IEEE 802.3af) via RJ-45 AUX INPUT: 18-24V, 0.8A DC via 2-pin connector OUTPUT: 5V 2.4A DC Via USB-A

70718 BLACK \$130

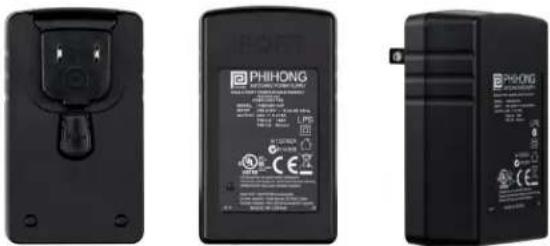

INJECTOR

Three black electronic devices with visible labels and branding, shown from front, side, and top views (no readable text or symbols beyond product names)

POWER

INPUT: 100-240V 0.8A AC OUTPUT: 56V 0.275A IEEE 802.3af via RJ-45 (PIN 3,6 +56V PIN 1,2 Return)

Specs, Dims, CADs and more.

70719 BLACK \$54

ACCESSORIES

Black rectangular device with internal port and external cable, no visible text or symbols

REDPARK SPLITTER & CABLE

Use optionally for Power + Data to iPad in one solution.

POWER

INPUT: 36-57V 0.4A DC (PoE IEEE 802.3af) via RJ-45 OUTPUT: 5V 2A DC Via USB-B

72021 BLACK \$125

Three vertical panels showing dark gray rectangular blocks with no visible text, numbers, or symbols.

GLASS MOUNT KIT

Install any Bezel onto glass. Hide cabling with vinyl backer.

70720 GRAY \$22
