UT-WETZEL40 - Juicer Ursus Trotter - Free user manual and instructions

Product Type	Juicer
Brand	Ursus Trotter
Model	UT-WETZEL40
Dimensions (H x W x D)	40 cm x 25 cm x 20 cm
Weight	4.2 kg
Power Consumption	500 W
Voltage	220-240 V, 50/60 Hz
Cord Length	1.2 m
Juice Capacity	1.0 L
Pulp Container Capacity	1.5 L
Feeding Chute Diameter	75 mm
Speed Settings	2 speeds (low and high)
Operation Type	Centrifugal
Material	Stainless steel blade, BPA-free plastic body
Dishwasher Safe Parts	Yes (except motor base)
Safety Features	Locking arm, overload protection, non-slip feet
Included Accessories	Juice jug, pulp container, cleaning brush
Warranty	2 years

Frequently Asked Questions - UT-WETZEL40 Ursus Trotter

How do I assemble the UT-WETZEL40 juicer?

Place the bowl on the motor base, insert the filter basket, then attach the lid and lock it with the arm. Ensure all parts click into place before use.

Can I juice whole fruits without cutting?

The feeding chute is 75mm wide, so small apples or oranges can be inserted whole. For larger produce, cut into pieces to fit.

How do I clean the juicer?

Disassemble all parts and rinse immediately after use. Most parts are dishwasher safe. Use the included brush to clean the filter basket.

What safety precautions should I take?

Always lock the lid before operating. Do not overload the chute. Unplug before cleaning. Keep hands away from rotating parts.

Why is the juicer not turning on?

Check that the lid is properly locked and the appliance is plugged in. If it still doesn't work, check the overload protection reset button.

Can I use the juicer for leafy greens?

Yes, it works well with kale, spinach, and wheatgrass. Use the high speed setting and alternate with harder vegetables.

How do I prevent clogging?

Feed ingredients slowly and avoid overfilling. If clogged, turn off, unplug, and clear the chute. Do not use tools while machine is on.

What is the warranty coverage?

The UT-WETZEL40 comes with a 2-year limited warranty covering manufacturing defects. Normal wear and tear is not included.

Can I wash the motor base with water?

No, only wipe the motor base with a damp cloth. Never immerse it in water or rinse under a tap.

Is the juice container BPA-free?

Yes, all plastic parts that come into contact with food are BPA-free.

USER MANUAL UT-WETZEL40 Ursus Trotter

German Engineering & Design

CITRUS EXTRACTOR

Extractor de cítricos

Product photo of a Ursus Erotter juice kit with orange juice and glass, no visible text or symbols on main objects.

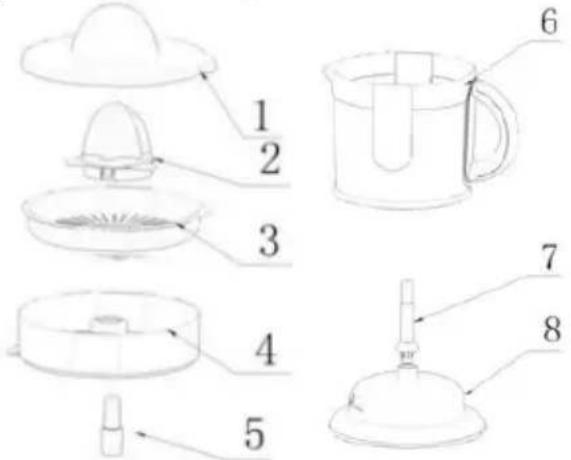

1. Cup cover 5. Juncture pole
2. Extractor 6. Cup
3. Filter 7. Drive shaft
4. Juice holder 8. Body

Important Instructions

When using electrical appliances, in order to reduce the risk of fire, electric shock, or injury to persons, basic safety precautions should also be followed, including the followings. Please kindly pay your attention to below points:

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• WARNING: Risks of injuries if you don't use this appliance correctly.
  • Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Operation

1. Place the motor body on a flat, stable surface.
2. Slide the juicer cup over the drive shaft of the motor base, making sure the cup locks in position by turning it clockwise.
3. Place the filter on the cup.
4. Place the small cone over the drive shaft.
5. Plug the appliance in the mains socket.
6. Cut the fruit to be squeezed in half.
7. Press each half firmly over the small cone or large cone and the appliance will operate automatically.

NOTE: When the large cone is used it shall fit over the small cone.

1. The juice will pass through the filter and then flow into the juice container.
2. When using juice holder, the juice will come out directly from spout.

Put juice holder on the cup, then put filter on the juice holder, and place the cones over drive shaft.

Short-time operation

The appliance is designed to process average domestic quantities of citrus fruits, it can be operated as below: max. 15 seconds on and 15 seconds off as a cycle, and max. 10 cycles is allowed.

After that, please allow it to cool down to room temperature before continuing again.

Cleanning and care

Make sure the juicer is switched off and unplugged before cleaning.

Disassemble the appliance and wash all removable parts in warm, soapy water. Rinse them thoroughly.

Wipe the motor base with a damp cloth. Do not use abrasive cleaners as they may damage the surface.

Do not immerse the motor base in water or any other liquid. Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of hot clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food.

Correct food hygiene practices should always be followed at all times to avoid possibility of food poisoning /cross contamination.

Storage

Wrap the mains cord as shown on the bottom of the motor base. Place the cover on the juice cup.

Specifications

Ratings: 220V-240V\~50Hz, 40W

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

POLIZA DE GARANTIA

Stylized emblem featuring a central eagle with a shield and wings, enclosed in a laurel wreath (no text or symbols)

Ursus Trotter
