Product Type	2.1CH Dolby Soundbar with Built-in Subwoofer
Model	KASBD60SA
Brand	Kogan
Dimensions (W x H x D)	940 x 92 x 63 mm
Weight	~2.5 kg (estimated)
Power Output	60W RMS (15W x 2 + 30W)
Power Supply	AC/DC adaptor 100-240V~50/60Hz
Speaker Frequency Range	50Hz - 15kHz
Bluetooth Version	5.0 (A2DP, AVRCP)
Bluetooth Range	Up to 10m
Inputs	HDMI (ARC), Optical, AUX (RCA), Line In (3.5mm), USB
Sound Modes	Music, Movie, Dialogue
Audio Controls	Bass, Treble adjustment via remote
Remote Control	Included (requires 1x AAA battery)
Wall Mountable	Yes (brackets and screws included)
Box Contents	Soundbar, Remote, Power Adapter, RCA Cable, Wall Mount Kit, User Guide, Warranty Card
Display	LED display for status and volume
Buttons on Unit	Power/Source, Volume +/-, Bluetooth pairing
Safety	Do not expose to water or heat; use correct voltage
Cleaning	Wipe with a soft dry cloth
Repairability	No user-serviceable parts; contact Kogan support

Frequently Asked Questions - KASBD60SA Kogan

How do I pair my phone via Bluetooth?

Turn on the soundbar; it will enter Bluetooth mode automatically. On your phone, enable Bluetooth and search for devices. Select KASBD60SA. If prompted, enter password 0000. The soundbar will confirm connection.

What sound modes are available?

The soundbar offers three sound modes: Music, Movie, and Dialogue. You can switch between them using the corresponding buttons on the remote control.

How do I connect the soundbar to my TV via HDMI ARC?

Connect an HDMI cable from the TV's HDMI ARC port to the soundbar's HDMI IN (ARC) port. On the soundbar, select HDMI mode. Ensure your TV settings enable HDMI ARC and set digital audio output to PCM or Dolby.

Can I wall mount the soundbar?

Yes, the soundbar can be wall mounted. Attach the provided brackets to the rear of the soundbar using the included screws, then mount it securely on the wall.

What is the power output of this soundbar?

The soundbar delivers a total of 60W RMS (15W x 2 + 30W subwoofer).

How do I reset the soundbar?

If the soundbar malfunctions, unplug it from the power outlet, wait 30 seconds, and plug it back in. This acts as a reset. No factory reset option is documented.

Does the soundbar support Dolby Audio?

Yes, it is a 2.1CH Dolby Soundbar and supports Dolby Digital decoding via HDMI or optical input when the source is set to Dolby output.

How do I play music from a USB drive?

Insert a USB drive into the USB port. The soundbar will automatically switch to USB mode and start playing supported audio files. Use the remote to control playback (play/pause, previous/next).

What battery does the remote control use?

The remote control requires one AAA battery (not included). Insert it with the correct polarity.

What should I do if there is no sound?

Check that the soundbar is powered on and the correct input source is selected. Ensure the volume is not muted (long press Mode/Mute on remote). Verify cable connections and that the TV audio output is set to PCM or Dolby. If using Bluetooth, confirm pairing and proximity.

USER MANUAL KASBD60SA Kogan

Black cylindrical electronic device with a small display screen (no visible text or symbols)

2.1CH DOLBY SOUNDBAR WITH BUILT-IN SUBWOOFER

(60W RMS)

KASBD60SA

SAFETY & WARNINGS

Ensure you have read and understood these instructions before using the product. The contents of this User Guide may change without further notice due to changes in product performance and functionality.

• Do not use the appliance in humid environments or under water
• Do not use the appliance near sources of heat or in high temperature areas
• Avoid exposure to direct sunlight for an extended period.
• Ensure the appliance is either placed on a level and stable surface or is correctly wall-mounted to minimise the chance of falls or drops.
• Do not attempt to modify or disassemble the appliance without authorisation

Warning

	The product should never be exposed to water droplets or water splashing. Avoid placing the product near liquid-filled items such as vases.
	To avoid fire or electric shock, ensure the household voltage matches the voltage specified on the product before use.

IN THE BOX

• 1x Soundbar
  • 1 x User Guide
  • 1 x remote control
• 1 x power adaptor
• 1x RCA cable
  • 1 x wall-mount screws
  • 2x wall-mount brackets
• 1x Warranty card

OVERVIEW

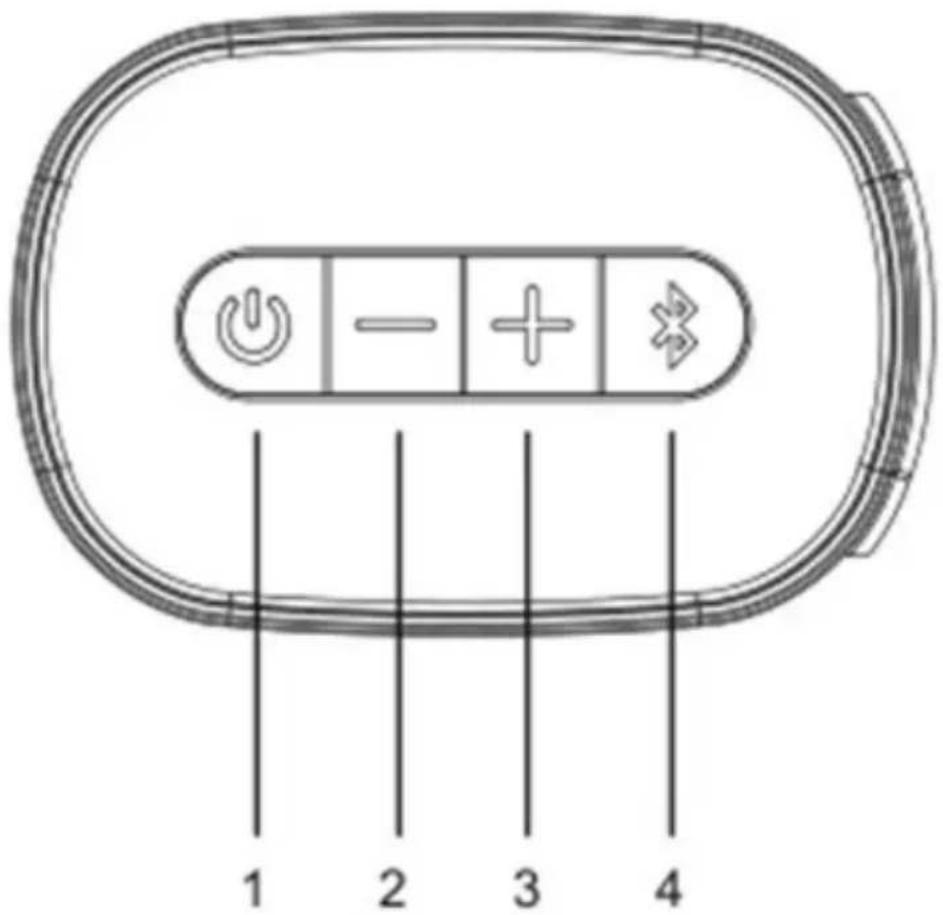

Buttons

1. ⏻: Short press to power on, short press to switch function, hold to power off
2. —: Press for volume down
3. +: Press for volume up
4. ✗: Press for Bluetooth pairing

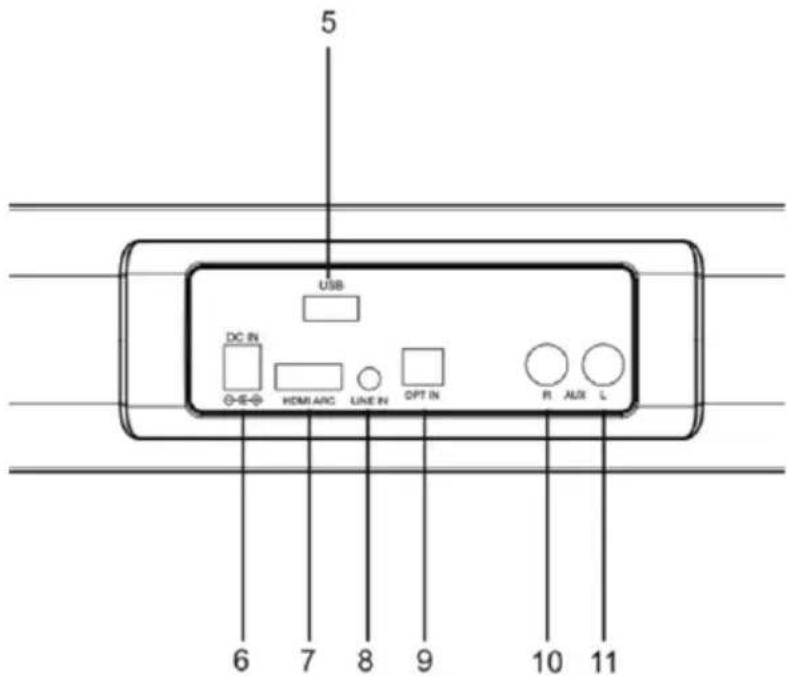

Connections

1. USB: USB port
2. DC IN: DC input
3. HDMI: HDMI in (ARC)
4. LINE IN: 3.5mm connector
5. OPT: Optical input
6. AUX IN (R): For external audio input (RCA/Phono)
7. AUX IN (L): For external audio input (RCA/Phono)

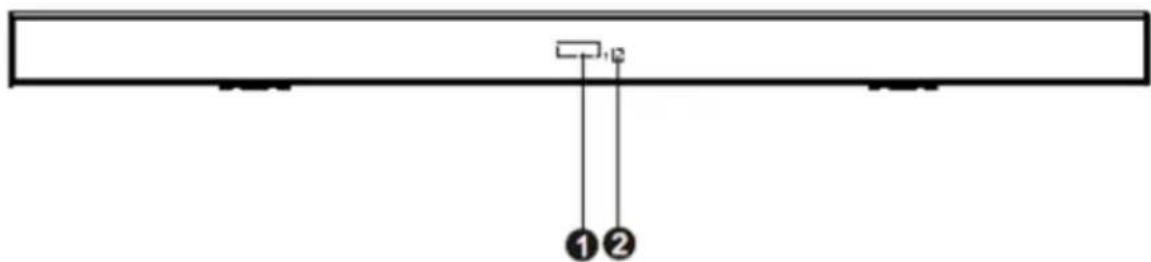

LED Display

1. LED Display
2. Remote control sensor

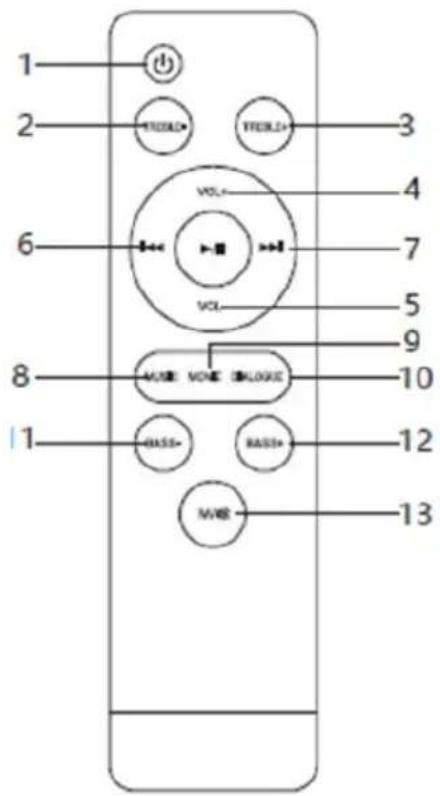

1		Press to power on and standby
2	TREBLE-	Press to decrease treble
3	TREBLE+	Press to increase treble
4	VOL+	Press to increase volume
5	VOL-	Press to decrease volume
6		Press to previous song in Bluetooth or USB mode
7		Press to next song in Bluetooth or USB mode
8		Press to play or pause in Bluetooth or USB mode
9		Press to select the Music sound mode
10		Press to select the Movie sound mode
11		Press to select the Dialogue sound mode
12		Press to decrease bass sound
13		Press to increase bass sound
14		Short press to change between HDMI/OPTICAL IN/LINE IN/AUX IN/USB mode, long press to toggle mute on/off

INSTALLATION

• Unpack all parts and remove protective material.

- Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

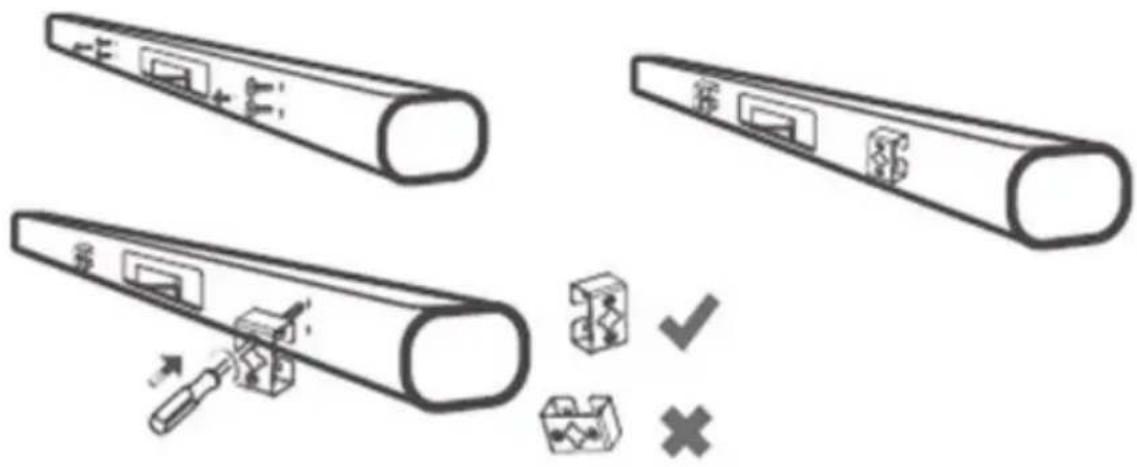

Attaching mounting brackets (optional)

1. Using a screwdriver, remove the four mounting screws from the rear of the product as shown.
2. Seat the two included mounting brackets vertically over the screw holes. Do not attach the brackets horizontally.
3. Reinsert the screws into the holes and tighten, attaching the brackets to the soundbar.

OPERATION

1. Make sure you have made all the necessary cable connections before connecting the Soundbar to a wall outlet, the soundbar will enter to standby mode, the LED display will show “--”.
2. Insert a AAA battery into the remote control to activate it.

Note:

The remote control works within a range of 6 metres.

1. Short press the Power/Source button on unit or remote control to turn on the soundbar.
2. Press the Power/Source button on the soundbar or the Mode/Mute button on the remote control to select from various sources.

1. Bluetooth Mode

After powering on, the soundbar will enter Bluetooth mode automatically. You can also select Bluetooth mode as described above.

1. Place the audio source device (smartphone, etc.) within 3 meters of the soundbar.
2. Activate the Bluetooth function of the audio source device, so that it starts to search for nearby Bluetooth devices (please refer to the device's instructions for details).
3. Select "KASBD60SA" from the discovered device list and click to connect.
4. If the device asks for a password, enter "0000" and press confirm button to pair the device with the soundbar.
5. Make sure that the distance between the soundbar and phone is less than 10m and there are no obstacles in the space. Music can now be played through the soundbar over Bluetooth.
6. Short press the Play/Pause button to play and pause music. Short press the Previous or Next buttons to play the previous or next song.
7. To disconnect, short press or long-press the Bluetooth button on the soundbar. At this time, another mobile phone device can be used to connect Bluetooth playing. If another connection is not selected, the soundbar will remain discoverable over Bluetooth until it is powered off or another mode is selected.

2. Line in mode

After powering the unit on, connect an external audio source to the LINE IN jack of the soundbar by using a 3.5mm audio cable, then short press the Power/Source button on the soundbar or the Mode/Mute button on the remote control to switch to "LINE IN". Adjust the external audio source to a moderate volume and begin playback.

3. AUX in mode

After powering the unit on, connect an external audio source to the AUX IN jack of the soundbar by using the included RCA cable, then short press the Power/Source button on the soundbar or the Mode/Mute button on the remote control to switch to “AUX IN”. Adjust the external audio source to a moderate volume and begin playback.

4. HDMI mode

Short press the Power/Source button on the soundbar or the Mode/Mute button on the remote control to switch to "HDMI" mode. Connect a HDMI cable to the HDMI (ARC) port on your TV and then to the HDMI IN (ARC) port on the rear of the soundbar. Ensure the HDMI ARC function is activated on your TV and digital output is set to PCM/Dolby.

5. Optical mode

Short press the Power/Source button on the soundbar or the Mode/Mute button on the remote control to switch to “OPTICAL”. Connect the DVD audio and equipment to the soundbar’s OPT IN jack with an optical audio cable. This machine decodes optical fiber digital to restore sound through power amplifier. Ensure your TV’s digital output is set to PCM/Dolby.

6. USB mode

After powering the soundbar on, insert a USB drive into the USB port of the soundbar. The product will automatically enter USB playback mode and plays any supported audio files found on the USB. Press the Play/Pause button to play and pause the music. Short press the Previous or Next button to skip back/forward between songs.

Volume and sound mode

1. After powering the sound bar on, in any mode of playback, short press or long press the volume “-” button on the soundbar or remote control to decrease the volume. Short press or long press the volume “+” button on the soundbar or remote control to increase the volume.

Note:

During volume increase and decrease, the LED display will show the volume level as it is set (between 0–32).

1. After powering on, in any mode of playback, short press the relevant button on the remote control to choose a sound effect mode: MUSIC, MOVIE or DIALOGUE.

Note:

In MOVIE, MUSIC and DIALOGUE modes, the BASS and TREBLE settings can be adjusted from the remote control.

Power off

When powered on, long press the Power/Source button on the soundbar or short press the Power/Standby button on remote control to power the unit off. If unplugged from power the supply, the machine will be completely powered off.

Device compatibility

The product theoretically supports all mobile phones with Bluetooth functionality and any related equipment that connects to Bluetooth and plays music.

SPECIFICATIONS

Output power	15W x 2+30W
AC/DC adaptor	100-240V~50/60Hz
Speaker frequency	50Hz - 15kHz
Bluetooth version	5.0, A2DP, AVRCP
Bluetooth range	Up to 10m
Dimensions	940 x 92 x 63mm

TROUBLESHOOTING

Issue	Possible solution
Bluetooth device cannot be paired	Another device is already paired to the soundbar. When powered on, the soundbar will automatically find the paired device and connect. Turn off the Bluetooth function on the connected device, and the soundbar will be discoverable again.
Bluetooth playback volume is low	Adjust the output volume on the Bluetooth audio device.
Short Bluetooth connection distance	Obstruction exists between the soundbar and Bluetooth device. Remove any obstructions that may be present.
Bluetooth connection is interrupted (broken sound)	1. Obstruction exists between the soundbar and Bluetooth device. Remove any obstructions that may be present.2. The Bluetooth device is beyond the maximum connection range. Shorten the distance between the soundbar and Bluetooth device.

Note:

If the above methods are ineffective, contact Kogan.com for further support.

Need more information?

We hope this User Guide has given you

the assistance needed for a simple set-up.

For the most up-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com

kōgan
