Product Type	Drill
Model	PXBDS-220
Brand	Ozito
Power Source	18V Li-ion battery
Chuck Type	Keyless, 0-10mm
Speed Range	0-1500 RPM (variable)
Torque Settings	20+ torque settings
Drilling Capacity (Steel)	10mm
Drilling Capacity (Wood)	25mm
Maximum Clamping Force	Variable
Weight	1.5 kg (with battery)
Dimensions (L x W x H)	250mm x 80mm x 200mm
Battery Charger Included	Yes
Warranty	2 years
Maintenance	Wipe with dry cloth; clean air vents
Safety Features	Lock-off button, gear guard
Spare Parts Availability	Contact Ozito customer service

Frequently Asked Questions - PXBDS-220 Ozito

How do I change the drill bit?

Turn the chuck counterclockwise to open, insert the bit, then tighten clockwise. Ensure the bit is centered and secure before use.

What battery does the PXBDS-220 use?

It uses an 18V Ozito Li-ion battery. Compatible with other Ozito 18V power tool batteries.

How long does the battery last?

Battery life depends on usage. Expect around 50-100 screws in wood or 10-20 minutes of continuous drilling on a full charge.

Can I use it for masonry drilling?

No, this model is designed for wood, steel, and plastic. For masonry, use a hammer drill. Using masonry bits may damage the tool.

How do I adjust the speed?

The drill has a variable speed trigger. Press gently for low speed, full squeeze for high speed. Use the forward/reverse switch for direction.

What is the maximum torque setting?

The drill has 20+ torque settings. Adjust by rotating the collar near the chuck. Higher settings are for larger screws or harder materials.

How do I clean the drill?

Unplug the battery. Wipe the exterior with a dry, soft cloth. Clean air vents with compressed air or a brush. Do not use water or solvents.

Is the drill compatible with right-angle attachments?

Yes, it can accept standard drill attachments, including right-angle adapters and screwdriver bits with a 1/4-inch hex shank.

What should I do if the drill stops working?

Check the battery charge and connections. Ensure the forward/reverse switch is not in the middle. If it still fails, contact Ozito support.

How do I store the drill when not in use?

Remove the battery. Store in a cool, dry place away from children. Avoid extreme temperatures and direct sunlight.

USER MANUAL PXBDS-220 Ozito

18V LITHIUM ION

Chuck Size: 13mm Keyless

No Load Speed: 0-400 / 0-1,500/min

Torque Setting: 21

Max. Torque: 55Nm

Max. Drilling ∅: 32mm Wood

10mm

Metal

Weight: 1.1kg

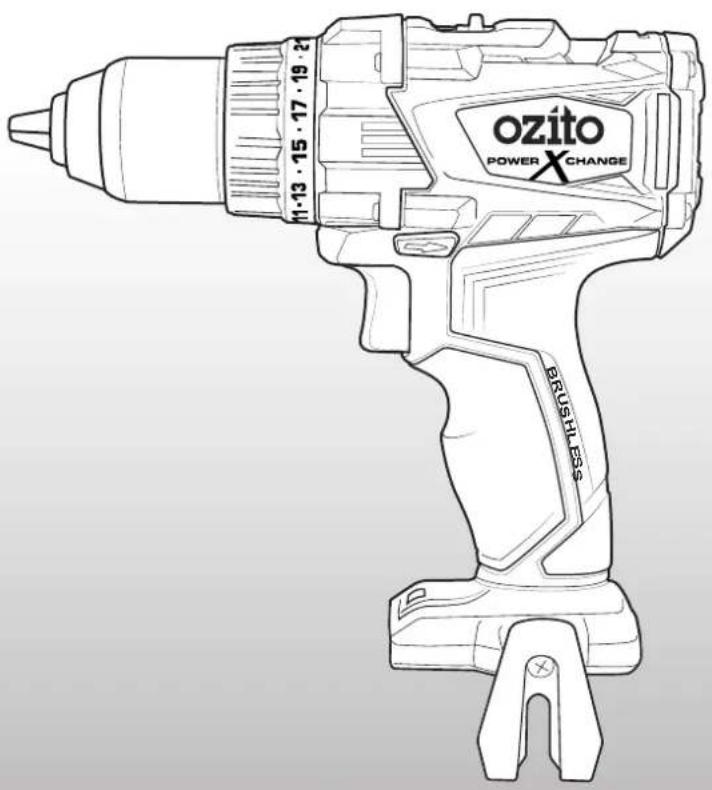

Line drawing of a Ozito Power X change power tool with labeled components (no text or symbols beyond branding)

WHAT'S IN THE BOX

Line drawing of a cylindrical electric drill with no visible text or symbols

Brushless Drill Driver

Battery & Charger sold separately

ozito.com.au

PXBDS-220

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Lithium Ion batteries and chargers are covered by a 36 month warranty and are excluded from the warranty extension. Warranty excludes consumable parts.

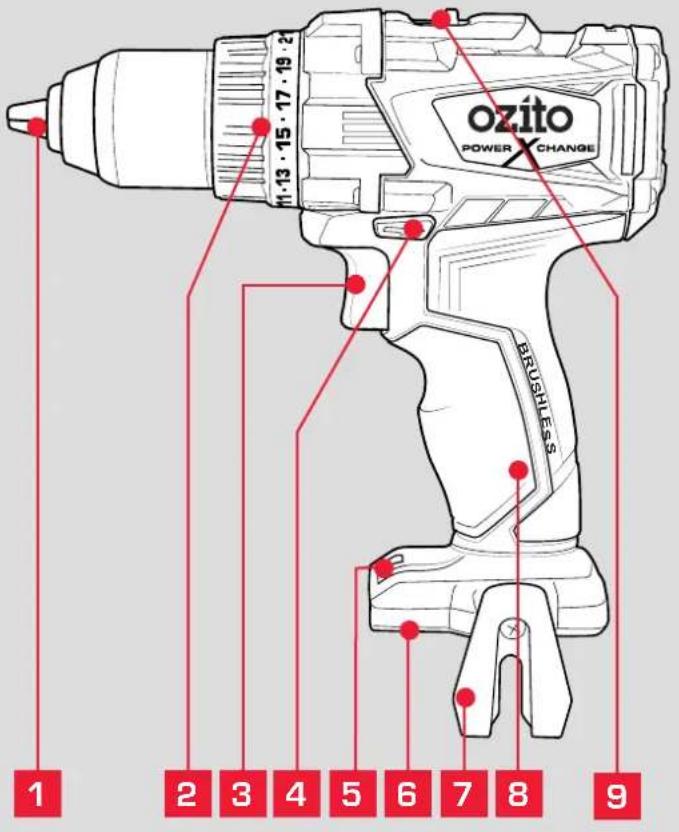

KNOW YOUR PRODUCT SETUP & PRE

1 Metal Ratcheting Chuck

6 Battery Seating

2 Torque Adjustment Collar

7 Belt Clip

3 Variable Speed Trigger

8 Sure Grip Handle

4 Forward/ Reverse Lever

9 Gear Selector

5 LED Light

BATTERY & CHARGER

This tool is compatible with all battery and chargers from the Ozito Power X Change Range.

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

ARATION

1. BATTERY INSTALLATION

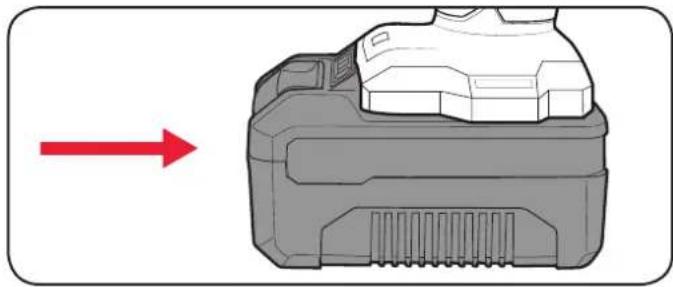

Installing the Battery Pack

1 Slide the battery into the drill base until it clicks into place.

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

Removing the Battery Pack

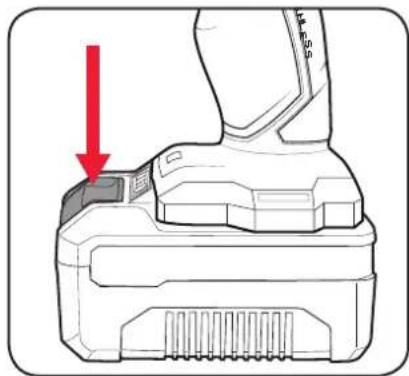

1 Hold down the battery release button.

Technical diagram of a mechanical component with a red arrow pointing to a specific part (no text or symbols present)

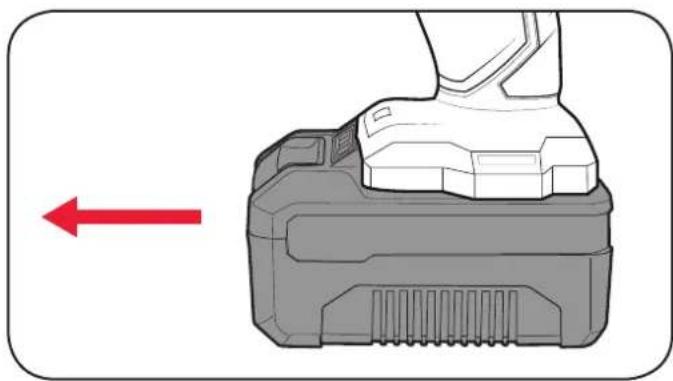

2 Slide the battery out.

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

OPERATION

2. KEYLESS CHUCK

WARNING! ENSURE THE TOOL IS SWITCHED OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING TASKS.

Installing a Drill Bit

1 Rotate the chuck collar anti-clockwise to open the chuck.

2 Insert the drill bit, making sure it is centred in the chuck.

Diagram of a drill bit with a red arrow indicating direction (no text or symbols)

3 Tighten the chuck by turning clockwise.

Illustration of a drill bit with red motion arrows indicating rotational motion (no text or symbols)

4 Pull on the bit to ensure it is firmly secured.

Diagram of a drill bit with a red arrow indicating direction (no text or symbols)

Removing a Drill Bit

1 Open the chuck by rotating the chuck collar and remove the drill bit.

Diagram of a drill bit with red motion arrows indicating clockwise motion (no text or symbols)

CAUTION! TO REDUCE THE RISK OF INJURY, WE RECOMMEND THE USE OF GLOVES WHEN HANDLING DRILL BITS.

3. CONTROLS

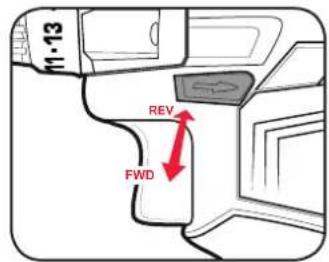

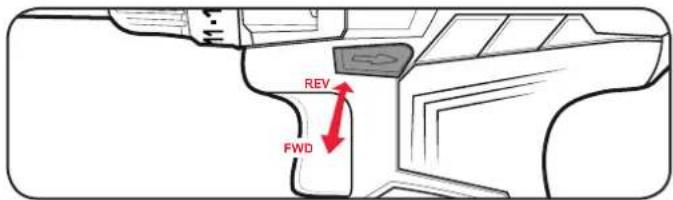

Forward/ Reverse Lever

1 For forward rotation, push the fwd/rev lever towards the left side of the drill. For reverse rotation push fwd/rev lever to the right.

Variable Speed Trigger

1 To start drilling squeeze the variable speed trigger.

2 To stop drilling release the trigger.

Diagram of a device with a red arrow pointing to a gray component (no text or symbols)

Diagram showing a device with a red arrow pointing left, no text or symbols present

Note: The more the variable speed trigger is depressed, the faster the drill bit will rotate.

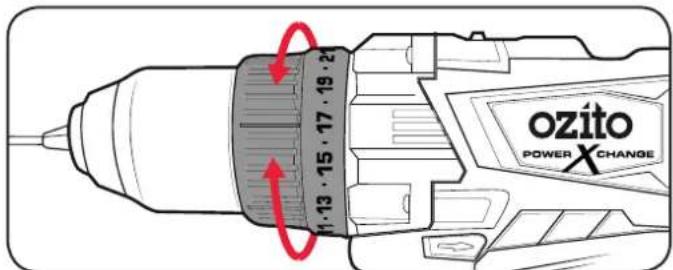

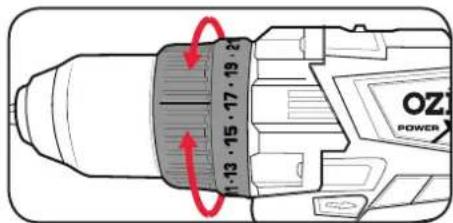

Adjusting Torque

1 Rotate the torque collar to the desired setting.

Note: Selecting a higher torque setting will allow the drill to use more torque to drive the screw in or out. To prevent damaging the screw head, it is recommended to start at a low torque setting and increase when necessary.

Speed Control

The gear selector controls the speed of the drill. First gear allows slower drilling with more torque, while second gear is suitable when less torque but higher speed is required.

1 Slide the switch forward to select first gear.

2 Slide the switch backward to select second gear.

Cross-sectional diagram of a mechanical component with a red arrow indicating direction (no text or symbols)

Pure technical diagram showing a cross-section with a red arrow indicating direction, no text or symbols present.

4. DRILLING 5.

Before starting to drill, perform a few simple checks.

1 Depress and release the variable speed trigger to ensure it is not locked on.

2 Check the forward/reverse lever is on desired setting.

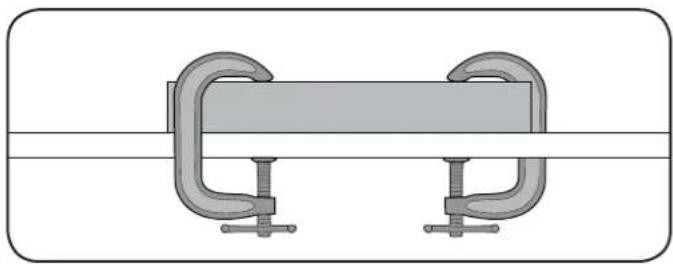

3 Secure the material to be drilled in a vice or clamp to stop it turning whilst drilling.

Diagram of a mechanical clamp or bracket with two curved arms and a central rectangular block, no text or symbols present.

4 Hold the drill firmly and place the bit at the point to be drilled.

5 Depress the variable speed trigger to start the drill.

Diagram of a drill bit with a pointed tip and threaded shaft (no text or symbols)

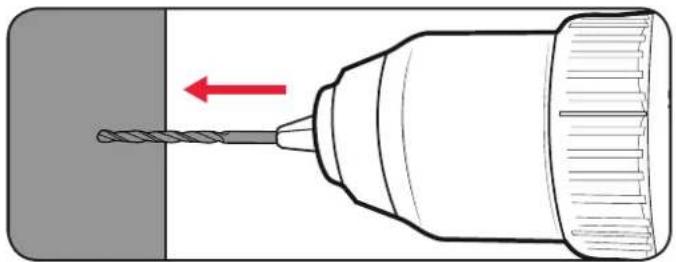

6 Move the drill bit into the workpiece.

Diagram of a drill bit with a red arrow indicating direction (no text or symbols)

Note: Do not force the drill or apply side pressure to elongate the hole. Let the drill do all the work.

HELPFUL TIPS

Drilling to a Preset Depth

A simple way of achieving a hole at a desired depth is to use masking tape.

1 Measure along the drill bit to indicate the desired depth.

2 Wrap a small piece of masking tape tightly around the drill bit.

Illustration of a twist drill bit above a ruler, showing measurement scale (no text or symbols)

Diagram of a twisted cable with a rectangular component and red rotation arrows indicating motion (no text or symbols)

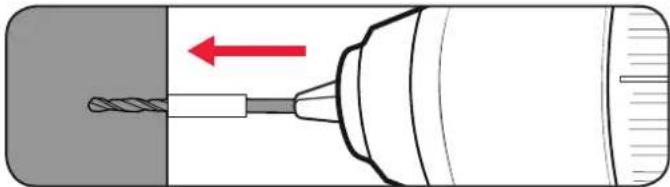

3 Drill into the material until the surface reaches the start of the tape.

Diagram of a drill bit with a red arrow indicating direction (no text or symbols)

Torque Settings

Torque settings can alter the depth to which you can drill or drive into a surface. To determine the torque setting required to drive a screw perfectly flush to the work surface, follow the below steps.

1 Set the torque collar to lowest setting and tighten the first screw.

2 If the clutch ratchets and makes a clicking sound before screw is flush, increase the collar setting and continue tightening.

Technical line drawing of a screwdriver tip (no text or symbols)

3 Repeat until you reach the correct setting/screw depth. Use this setting for the remaining screws.

Technical line drawing of a screwdriver inserted into a cylindrical component (no text or symbols)

When drilling hard, smooth surfaces, use a centre punch to mark the desired hole location. This measure will prevent the drill bit from slipping off centre as you start the hole.

When drilling metals, use light oil on the drill bit to keep it from overheating. The oil will prolong the life of the bit and increase drilling action.

MAINTENANCE

1. When not in use, the drill should be stored in a dry, frost free location, keep out of children's reach.
2. Keep ventilation slots of the drill clean at all times and prevent anything from entering.
3. If the housing of the drill requires cleaning, do not use solvents. Use of a cloth only is recommended.
4. Blow out the ventilation slots with compressed air periodically.

Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the drill by an unauthorised person or by mishandling.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

TROUBLESHOOTING

LED lights do not illuminate on charger

Check the charging adaptor is securely plugged into the wall outlet.

Check the battery is firmly connected to the charging cradle.

Check that the charging jack is securely connected to the charging cradle.

The battery has a short run time

Ensure the battery is properly charged. It will take 4-5 charging cycles before the battery reaches optimum charge and run time.

Variable speed trigger is locked

Ensure that the forward / reverse lever is in the correct position; pressed left for forwards direction, pressed right for backwards direction. If it is in between the two settings the variable speed trigger will be locked.

The drill is stripping the screw head

Ensure you are starting with a low torque setting and holding the drill securely onto the screw head. Increase the torque setting as required.

Drill has cut out during use

The battery charge could be completely depleted. Place the battery on the charging cradle for 3-5 hours.

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

DESCRIPTION OF SYMBOLS

V Volts		Hz	Hertz
ac/~ Alternating current		W	Watts
dc/—Direct current		- Diameter
mA Milliamperes		Ah Amp hour
Nm Newton Meters		No	No load speed
/min Revolutions or reciprocation per minute
		[8652]	Double insulated
Warning			Read instruction manual

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

This tools charger is double insulated; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

The power supply for this products charger should be protected by a residual current device (rated at 30mA

or less). A residual current device reduces the risk of electric shock.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

1. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

c. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

1. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached

to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
c. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

1. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

DRILL DRIVER SAFETY WARNINGS

WARNING! Wear ear protectors when drilling Exposure to noise can cause

hearing loss.

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Before drilling into walls, ceilings etc, ensure that there are no concealed power cables or pipes in the cavity.

WARNING! Some dust created by power sanding, sawing, grinding, and other construction activities contain chemicals known to cause r, birth defects or other reproductive harm. Some examples of theseicals are:

• Lead from lead-based paints
  • Crystalline silica from bricks and cement and other masonry products
  • Arsenic and chromium from chemically treated timber
  Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
