USER MANUAL HF0416414 Hoffman

Collection of black and white air vent grilles with ventilation slots, no visible text or symbols

Side-Mount Filter Fans and Grilles

HF/HG Models

INSTRUCTION MANUAL

TABLE OF CONTENTS

Installation Instructions....3

Wire Diagrams....5

How to Read Model Numbers......6

Filter Cleaning / Replacement....6

Replacement Parts 7

Warranty 7

CAUTION

Before cutting holes in the sides of the enclosure, verify all internal components are clear of the cutting tool to avoid damaging installed components.

INSTALLATION INSTRUCTIONS

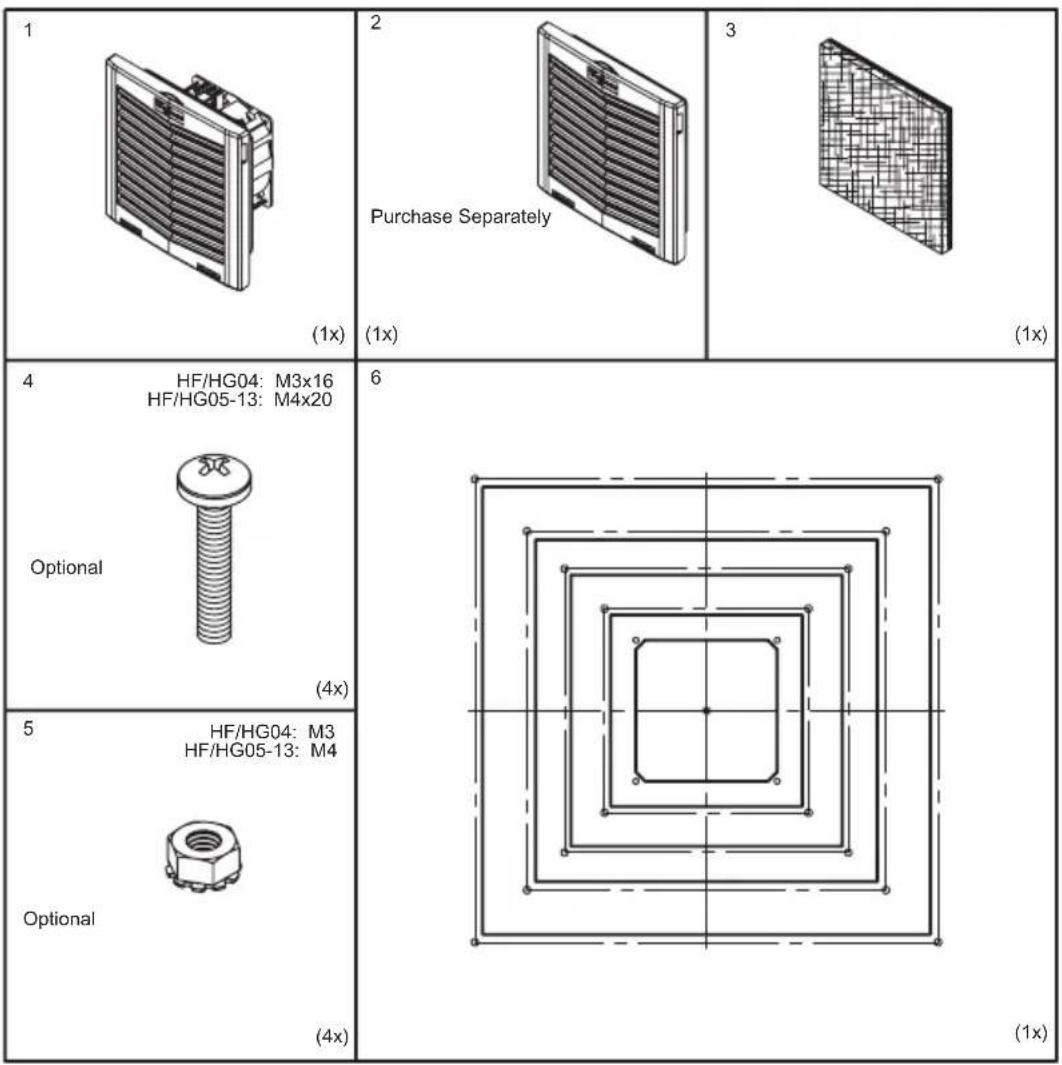

1. Apply cutout template to the side of the enclosure located as desired. See Figure 1
2. Cutout hole in enclosure using the appropriate cutout size for the model you purchased.
3. Deburr the cutting edge.

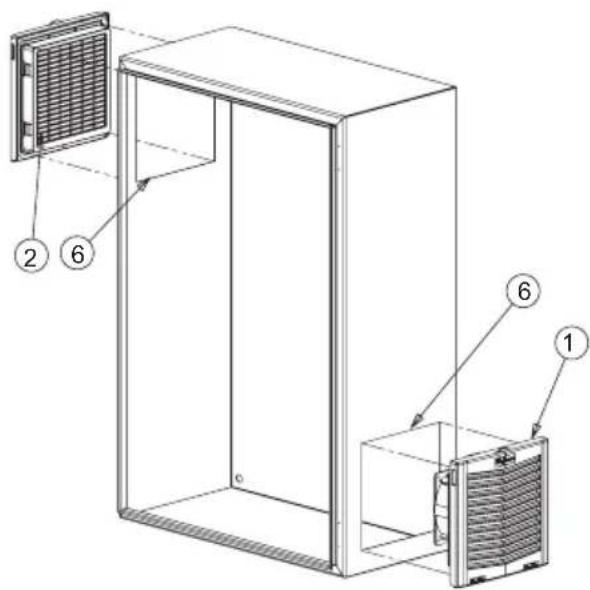

4. Insert fan or grille and push into opening until all four corners are snapped and locked. See Figure 2.
5. Mounting fasteners are not required for panel or enclosure material thickness less than .10 (2.5 mm). For panel or enclosure material thickness between .10 (2.5 mm) and .14 (3.5 mm), mounting fasteners are recommended. For panel or enclosure material thickness greater than .14 (3.5 mm), mounting fasteners are required in order to maintain the IP / Type 12 rating.
6. In order to install the mounting fasteners, removal of the grille is required. Remove the grille by pulling from the top of the grille to 45^ maximum as shown in Figure 3 on page 4. Then pull from the bottom as shown in Figure 4 on page 4. NOTE: The orientation "Top" directs the louvers downward. This is for reference only; the assembly can be installed to orient louvers in any direction.
7. It may be necessary to drill out the mounting holes in the filter housing. For model HF04, use a 1/8 (3 mm) drill bit. For models HF05, HF09, HF10 and HF13, use a 5/32 (4 mm) drill bit.

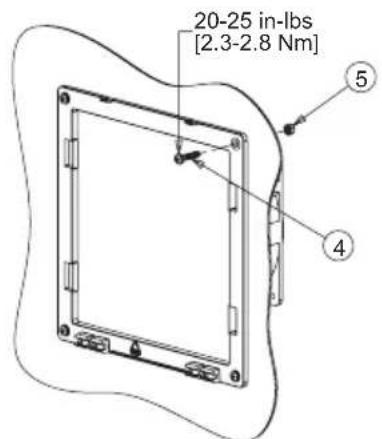

8. Torque fasteners to 20-25 in-lbs (2.3-2.8 Nm). See Figure 5 on page 4.
9. Install the grille as shown in Figure 2
10. Verify the location of the enclosure with installed filter fan has a minimum clearance of 7.00 (178 mm). See Figure 7 on page 4
11. Wire the filter fan following the Wire Diagrams on page 5 for the appropriate model being installed.

Technical line drawing of a rectangular enclosure with a circular pattern on the side panel, labeled with number 6 (no text or symbols beyond label)

Figure 1

Figure 2

Figure 3

Figure 5

Technical line drawing of a device with a lid and fan blade, showing internal structure and mounting points (no text or symbols)

Figure 4

Diagram of a solar panel with labeled components and directional arrows indicating rotation (no text or symbols present)

Figure 6

Figure 7

WIRE DIAGRAMS

WIRING DIAGRAM HF04, HF05, HF09, HF10 AC POWERED

WIRING DIAGRAM HF13 AC POWERED

WIRING DIAGRAM HF04, HF05, HF09, HF10 DC POWERED

WIRING DIAGRAM HF13 - FULL SPEED DC POWERED

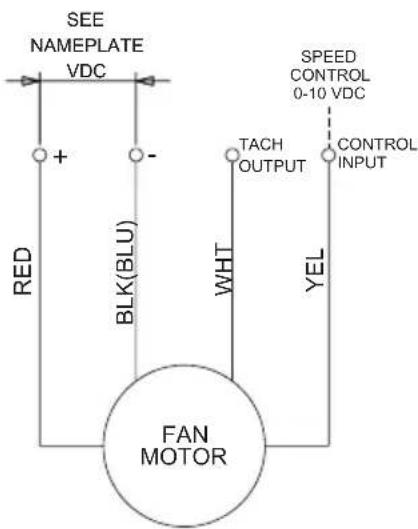

WIRING DIAGRAM HF13 - VARIABLE SPEED DC POWERED

HOW TO READ MODEL NUMBERS

HF 04 16	4 0 4
1 2 3 4 5	6

1. Filter fan / Grille
2. Size
3. Voltage: 16 = AC 115/50/60/1

$$ 2 6 = \mathrm{AC} 2 3 0 / 5 0 / 6 0 / 1 $$

$$ 2 4 = \mathrm{DC} 2 4 \mathrm{V} $$

$$ 4 8 = \mathrm{DC} 4 8 \mathrm{V} $$

1. IP Rating: 4 = IP54

$$ 5 = \mathrm{IP} 5 5 $$

1. Version
2. Color: 3 = RAL9011 Black

$$ 4 = \text { RAL } = \text { RAL7035 Light Gray } $$

FILTER CLEANING / REPLACEMENT

Replacement Filter Part Numbers
Fan/Grille Models	IP54 / Type 12(≈ .50 [14 mm] thick)	IP55 / Type 12(≈ .75 [20 mm] thick)
HF/HG04 8913442	3R --
HF/HG05 8913442	4R 89136408R
HF/HG09 8913442	5R 89136409R
HF/HG10 8913442	6R 89136410R
HF/HG13 8913442	7R* 89136411R

*Note: HF/HG13 replacement filters are not approved for IP54; only Type 12.

1. Open louvered grille.
2. Wash filter in warm water. Use mild detergent if necessary.
3. For greasy matter, wash in warm water containing a grease solvent.
4. Do not wring the filter.

REPLACEMENT PARTS

Model	RAL7035 Light Gray RAL9011 Black
	Grille Housing	Grille Housing
HF04 89123	894SP 89133137	SP 89131499SP	89133137SP
HF05 89122	973SP 89133138	SP 89131495SP	89133138SP
HF09 89122	907SP 89133139	SP 89131484SP	89133139SP
HF10 89123	456SP 89133140	SP 89131496SP	89133140SP
HF13 89124	454SP HG13004	04 89131502SP	HG1300403
HG04 89123	894SP HG04004	04 89131499SP	HG0400403
HG05 89122	973SP HG05004	04 89131495SP	HG0500403
HG09 89122	907SP HG09004	04 89131484SP	HG0900403
HG10 89123	456SP HG10004	04 89131496SP	HG1000403
HG13 89124	454SP HG13004	04 89131502SP	HG1300403

WARRANTY

Please register your product and reference the Hoffman Cooling Product Warranty located here: https://hoffman.nvent.com/en/hoffman/warranty-information

nVent

nVent

2100 Hoffman Way

Anoka, MN 55303 USA

+1.763.422.2211

+1.763.576.3200

nVent.com
