CR6005A Tech - Turntable Crosley - Free user manual and instructions

Product Type	Vinyl Turntable
Model	CR6005A Tech
Brand	Crosley
Drive Mechanism	Belt Drive
Speeds	33 1/3, 45, 78 RPM
Cartridge	Ceramic Stereo Cartridge
Stylus	Sapphire Stylus (replacement model: SC-7SP)
Turntable Platter	Aluminum
Built-in Speakers	Dual 3-inch Full Range Speakers
Output Power (Speakers)	2 x 3 Watts
Audio Outputs	RCA Line Out (2 x RCA jacks)
Headphone Jack	3.5mm (front panel)
USB Port	No
Bluetooth	Built-in Bluetooth Transmitter (receives audio from phone to play via turntable speakers)
Power Supply	AC 100-240V, 50/60Hz
Dimensions (W x D x H)	16.5 x 14.5 x 5.5 inches (420 x 370 x 140 mm)
Weight	8.5 lbs (3.85 kg)
Material	MDF Cabinet with Real Wood Veneer
Dust Cover	Included (removable)
Speed Adjustment	Pitch control with strobe
Tonearm	Dynamic Balanced with Weight and Anti-skate
Maintenance	Replace stylus after approx. 400 hours; clean with stylus brush
Safety	Automatic return at end of record (no auto stop)
Repairability	Replaceable belt, stylus, cartridge; serviceable by authorized technicians
Included Accessories	Dust cover, 45 RPM adapter, RCA cable, power adapter, user manual

Frequently Asked Questions - CR6005A Tech Crosley

How do I set up the Crosley CR6005A Tech turntable?

Unpack the turntable and remove all packing materials. Place it on a stable, level surface. Connect the power adapter to the turntable and plug it into an outlet. Remove the dust cover and attach the platter. Install the belt around the motor pulley and platter if not pre-installed. Balance the tonearm using the counterweight and set anti-skate. Connect to external speakers via RCA if desired.

How do I change the speed on my Crosley turntable?

Press the speed button on the front panel to toggle between 33 1/3, 45, and 78 RPM. The corresponding indicator light will illuminate.

How do I pair my phone via Bluetooth to play through the turntable speakers?

Press the Bluetooth button on the turntable until the Bluetooth indicator flashes. On your phone, enable Bluetooth and select 'Crosley CR6005A' from the list. Once connected, the indicator will remain solid. Play audio from your phone; it will stream through the turntable's speakers.

Can I connect external speakers to this turntable?

Yes, use the RCA line out jacks on the back. Connect them to powered speakers or an amplifier. Note that the built-in speakers are disabled when a 3.5mm headphone plug is inserted, but not via RCA.

How do I adjust the tracking force on the tonearm?

First, ensure the turntable is level. The counterweight at the back of the tonearm should be rotated to achieve the recommended tracking force (usually 3-4 grams for the included cartridge). Use a stylus pressure gauge if available. An anti-skate dial is located next to the tonearm base and should be set to match the tracking force.

What should I do if my records are skipping?

Check that the turntable is on a stable, level surface. Ensure the tracking force is correct (3-4 grams). Clean the stylus with a stylus brush. Dirty records may also cause skipping; clean them with a record cleaning kit. If skipping persists, the stylus may be worn and need replacement.

How do I replace the stylus (needle)?

Turn off the turntable. The stylus is attached to the cartridge. Gently pull the stylus downward and away from the cartridge. Insert the new stylus (model SC-7SP) by pushing it upward until it clicks into place. Dispose of the old stylus properly.

Does the turntable automatically stop at the end of the record?

This model features automatic return: after the record finishes, the tonearm will lift and return to the rest position automatically. There is no auto-stop function to lift the tonearm mid-record.

How do I clean the turntable and maintain it?

Use a soft, dry cloth to clean the exterior. The dust cover can be cleaned with a mild glass cleaner. The stylus should be cleaned with a stylus brush after every few hours of play. Replace the belt if it becomes loose or stretched; it is a user-serviceable part.

Can I use a 78 RPM record on this turntable?

Yes, the CR6005A Tech supports 78 RPM. You may need to use a different stylus for optimal play; a 78 stylus is available separately. The included sapphire stylus is for 33/45 RPM. Playing 78s with the standard stylus may cause wear.

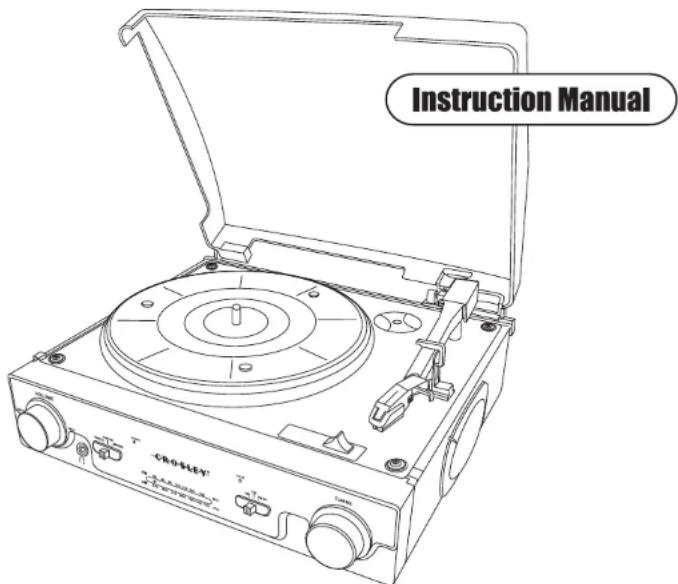

USER MANUAL CR6005A Tech Crosley

LIMITED MANUFACTURERS WARRANTY

Crosley Radio, Inc. warrants the product to be free from defects in material and workmanship under normal use for a period of one year from the original date of purchase. This warranty is not transferable. If the product is determined to be defective during the warranty period, the unit will be repaired or replaced at Crosley Radio's sole discretion. This warranty covers manufacturing defects and normal consumer use and does NOT cover damage or failure as a result of abuse, accident, alterations, misuse, neglect, abnormal wear and tear, inadequate maintenance, commercial or unreasonable use, damage caused by power surges, mishandling, accident, acts of God or attempted repair by an unauthorized service agent. Also not covered are cosmetic damages, cords and antennas.

Should this product fail to function in a satisfactory manner, it is best to first return it to the store or retailer where it was originally purchased. If additional service is still needed, the original purchaser must FIRST contact our offices to obtain an RA (Return Authorization) Number.

TO OBTAIN AN RA NUMBER

CALL: 1.888.CROSLEY

(1.888.276.7539)

Send the unit prepaid to the address below in the original packaging (or reasonable substitute to prevent damage). Clearly mark your RA number on the outside packaging and include the original sales receipt (or a copy) indicating date of purchase, amount paid, and place of purchase. You must also include your full name, shipping address and daytime contact number. Please include a check or money order in the amount of \$19.95, made payable to Crosley Radio, to cover handling and return shipping charges. Returned products will not be shipped to PO Boxes. Crosley Radio will not be responsible for delays or unprocessed claims resulting from a purchaser's failure to provide any or all of the necessary information.

CROSLEY RADIO

ATTN: RETURNS DEPT

2001 PRODUCTION DRIVE

Louisville, KY 40299

For additional support: Crosley Radio Consumer Service Department

24 hours a day / 7 days a week

Telephone: 1.888.CROSLEY (1.888.276.7539)

There are no express warranties except as listed above.

The purchaser's bill of sale is the only proof of warranty entitlement.

This warranty gives the purchaser specified legal rights in addition to any rights which may vary from state to state.

In accordance with the "Moss-Magnuson Warranty Act" of July 10, 1975, this is termed a "limited warranty" which in no way compromises Crosley Radio's high standards of quality and workmanship.

910-290800-0010-200

CRO SLEY

CR6005A

TECH SERIES

www.crosleyradio.com

General

Troubleshooting

There is no Power

1 Make sure radio is plugged in correctly.
2 The unit is not turned on: Rotate the VOLUME ON/OFF KNOB from the OFF position past the "click" to turn on the unit.

There is no Sound

1 Check the volume level by turning the VOLUME ON/OFF KNOB.
2 Make sure headphones are not connected to the unit.
3 Check the position of the FUNCTION SWITCH.

Turntable will not work

1 Make sure the FUNCTION SWITCH is set to phono.
2 Try moving the tone arm to the right until you hear a click.
3 Make sure the protective needle cover is removed.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO NOT REMOVE COVER. PILOT LAMPS SOLDERED IN PLACE. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

"Ventilation not being impeded."

"Do not exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus."

Specification

FRÉQUENCY : FM 88 -108 MHz

AM 530 - 1700 KHz

POWER SOURCE : AC Adaptor AC120V/DC 9V 600mA

ANTENNA : External antenna for FM

Built-in ferrite bar for AM

POWER CONSUMPTION : 12W

SPEAKER SIZE : 2" x 3" Dynamic type x 2

SPEAKER OHM : 4 ohm

SPEAKER WATT : 3-5W

POWER OUTPUT : 1.2W x 2

REPLACEMENT NEEDLE: NP1

*DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Basic Operation

Turntable Operation Radio Operation

Turn the unit on by rotating the VOLUME ON/OFF KNOB located on the front panel to the ON position
1 Set the FUNCTION SWITCH to PHONO mode.
2 Set the SPEED CONTROL SWITCH to the desired speed (33 1/3, 45 or 78 rpm). Place your record onto the turntable.
3 Move the TONE ARM slightly to the right side until you hear a click sound to activate the turntable.
4 Move the TONE ARM by hand over the record to the point you want the record to start. Adjust the VOLUME ON/OFF KNOB to your desired listening level.
5 At the end of the record, the TONE ARM will stop automatically. You must return the TONE ARM to the arm rest by hand.

Accessory: Adapter for 45 rpm

This adaptor allows you to play 45 RPM records.

1 Place the 45 RPM adaptor over the spindle.
2 Gently place your 45 RPM record onto the turntable.
3 Follow the steps under turntable operation to play your record.

1 Set the FUNCTION SWITCH to RADIO mode.
2 Set the AM / FM / FM.ST SWITCH to the desired Band.
3 Select the desired radio station by rotating TUNING KNOB.
4 Adjust the VOLUME ON/OFF KNOB to the desired sound level.

Antenna

Antenna: for FM reception, the unit is provided with a FM WIRE ANTENNA, move the wire until the reception is clear and with no interferences. For AM reception, the unit is provided with a directional build-in ferrite antenna. Rotate the set to find the position in which the best reception is obtained. Do not connect the EXTERNAL FM ANTENNA to any outside antenna.

Welcome Table 0

Thank you for purchasing the Crosley Tech Series Turntable (CR6005A). Before operating this unit, please read this manual thoroughly and retain it for future reference.

About This Manual

Instructions in this manual describe the control function of the CR6005A.

Included in the package:

• Tech Series Tumtable
• 3.5mm Stereo cable
- AC Power Adaptor

contents

Getting Started

Control Locators....4
Unpacking....5
Power Source....5

Basic Operation

Turntable Operation.... 6

Radio Operation.... 6

Connecting Optional Equipment

Auxiliary Output 7

Auxiliary Input....7

General

Troubleshooting Guide...... 8

Warranty....9

IMPORTANT SAFETY INSTRUCTION

PLEASE READ CAREFULLY ALL THE FOLLOWING IMPORTANT SAFEGUARDS

THAT ARE APPLICABLE TO YOUR EQUIPMENT

1. Read Instructions - All the safety and operating instructions should be read before the product is operated.
2. Retain instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the product and in the operating Instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

9. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. Power Sources - This product should be operated only from the type of power source indicated on the marking label, if you are not sure of the type of power supply to your home. Consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11. Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet try reversing the plug, if the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. Power - Cord Protection - Power - supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

13. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power - line surges.

14. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

15. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short - out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water

d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way.

f. When the product exhibits a distinct change in performance - this indicates a need for service.

1. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

2. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

3. Wall or ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

4. Heat - The product should be situated away from heat sources such as radiators. Heat registers, stoves, or other products (including amplifiers) that produce heat.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or other applications, we will also be required to use equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna

- Increase the separation between the equipment and receiver.

- Connect the equipment into an circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio TV technician for help

Connecting Optional Equipment

Auxiliary Output

1 You can connect your radio to different sources using the auxiliary output.

2 Plug Auxiliary cables (not supplied) into the LINE OUT JACK.

3 Connect the other end of the Auxiliary cables into the input on your desired component.

4 See the owners' manual for the component for correction operation.

NOTE: The Auxiliary Output is a passive signal level output only and will not power speakers.

Auxiliary Input

1 You can connect external components to your unit by using the Auxiliary Input.

2 Plug Auxiliary cable into the LINE IN JACK on the back of your unit.

3 Set the FUNCTION SWITCH to LINE IN mode

4 Plug the other end of the Auxiliary cable into the output jack on your desired external component

5 Check the volume level of your external component.

6 See operator's manual for correct operation of the external component.

Headphone Jack Operation

1 Connect headphones to the Headphone Jack
2 Adjust volume to the desired listening level. NOTE: When using headphones, the sound to the unit speakers will be cut off.

The sound from all speakers is cut off.
NOTE: Headphones not included with unit.

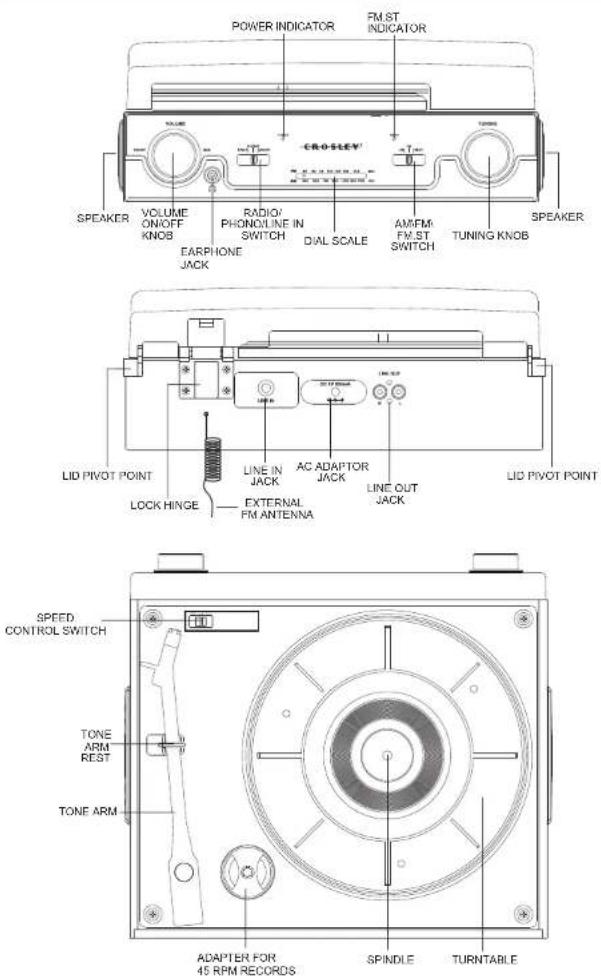

Control Locators

Getting Started

Unpacking

1 Remove packing materials from unit. Note: Save all packing materials,
2 Remove plastic bag covering radio.
3 Remove AC Adaptor from packing.
4 Untie antenna wire on back of radio.
5 Remove black tie-wrap from under the tone arm.
6 Remove white protective needle cover by gently pulling towards the front of the unit.
7 Install the top lid onto the unit
8 Untie the FM antenna and allow it to hang down in a straight line for optimum FM reception. If you have trouble tuning in an FM Station, move the external FM antenna for best reception. Do not connect FM antenna to outside antenna

Lid Installation

1 Flip the LID LOCK HINGE towards the back of the unit.

2 Position LID over the turntable and press the lid onto the LOCK HINGE as shown below.

3 As you press the lid into place, align the PIVOT PINS on the LID with the LID PIVOT POINTS as shown below.

4 Press the LID all the way in until the PIVOT PINS snap into the LID PIVOT POINTS and the LOCK HINGE clicks into place.

Power Source

1 Untie the wire on the AC Adaptor
2 Plug the AC Adaptor into appropriate wall outlet.
3 Plug the small end of the adaptor into the AC ADAPTOR JACK on the back of the unit.
