Product Type	Built-in Dishwasher
Brand	Eurotech
Model	ED-D60CM 12P WH
Colour	White
Dimensions (H x W x D)	850 x 600 x 580 mm
Net Weight	45 kg
Power Supply	220-240 V ~ 50 Hz
Rated Current	10 A
Water Pressure (min/max)	0.04 - 1.0 MPa
Capacity	12 Place Settings
Number of Programs	6 (3in1, Intensive, Heavy, Normal, 1 Hour, Rapid)
Energy Consumption (Normal cycle)	0.74 kWh
Water Consumption (Normal cycle)	12 L
Noise Level	49 dB(A)
Rinse Aid Dispenser Capacity	110 ml
Detergent Dispenser	With pre-wash and main wash compartments
Filter System	Triple filtration (Coarse, Main, Fine)
Adjustable Upper Basket	Yes
Folding Spikes in Lower Basket	Yes
Cutlery Basket	Yes
Maintenance	Weekly filter cleaning; regular spray arm and seal cleaning
Safety Features	Grounding protection; child supervision recommended

Frequently Asked Questions - ED-D60CM 12P WH Eurotech

Why won't my dishwasher start?

Check if the power cord is plugged in, the door is securely closed, and the water supply is turned on. Also, ensure the circuit breaker is not tripped.

What should I do if water is not draining from the dishwasher?

Inspect the drain hose for kinks, clean the filters (coarse and fine), and ensure the kitchen sink drain is not clogged.

How can I remove suds from the dishwasher?

Use only dishwasher-specific detergent. If suds appear, open the door, let them evaporate, add 1 gallon of cold water, close the door, and run a Rapid cycle.

Why are my dishes not clean after a wash?

Ensure dishes are loaded correctly without blocking spray arms, select a more intensive program if needed, use enough detergent, and clean the filter assembly.

What causes white film on the interior?

Hard water minerals can cause a white film. Clean the interior with a damp sponge and dishwasher detergent (not other cleaners) while wearing rubber gloves.

How do I adjust the rinse aid setting?

Open the rinse aid dispenser cap and rotate the dial. Start at setting 4; increase if there are water spots, decrease if there are sticky white stains.

What does the 'Rapid' light flashing quickly indicate?

This error code means longer water inlet time. Check if the faucet is open, water intake is not restricted, or water pressure is low.

Can I add a forgotten dish mid-cycle?

Yes, if the detergent cup hasn't opened. Press Start/Reset, open the door carefully after spray arms stop, add the dish, close the door, and press Start/Reset again.

How should I load sharp knives?

Place knives with sharp points down in the cutlery basket or horizontally in the upper basket to prevent injury and protect the door seal.

What is the recommended detergent for this dishwasher?

Use only dishwasher-specific detergent (powder, gel, or tablets). Avoid soap, laundry detergent, or handwashing liquids. For hard water, use detergent with phosphate or add salt.

USER MANUAL ED-D60CM 12P WH Eurotech

Technical line drawing of an open kitchen appliance with internal components (no text or symbols)

Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

SwitchontheappliancePresstheOn/Offbuttontoswitchontheappliance,Openthedoor.

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans, thenloadthebaskets. Refertothedishwasherloadinginstructions.

Selectaprogramme

Closethedoor, presstheProgrammebuttonuntiltheselectedprogrammelightsup. (SeethesectionentitledOperationinstruction) "

Runningthedishwasher

TurnonthewatertapandpresstheStart/Resetbutton. Themachinewillstartworking afterabout10seconds.

- Changingtheprogramme

• 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispense must be refilled.
     2.PresstheStart/Resetbuttonformorethan3secondstocanceltherunningprogramme.
• Selectanewprogramme.
  4.Restartthe dishwasher.

- Addforgottendishesinthe dishwasher.

●1. Openthodooralittletostopthedishwasher.

1. After the spray arms stop working, you can open the door completely.
   3.Addtheforgottendishes.
2. Close the door, the dishwasher will start running again after 10 seconds.

WARNING!

Open the door carefully. Hot steam may escape when the door is opened!

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-onstate.

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerofthedishwasherwillsound8times,thenstop. TurnofftheapplianceusingtheON/OFFbutton.

Turnoffthewatertap, unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptibletobreak. They will also dry better. Unload the appliance, starting from the lower basket.

Read this Manual

DearCustomer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keepittorefertoitatalaterdate.
■ Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

This appliance is intended to be used in household and similar application such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bedandbreakfasttypeenvironments.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.
If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1

2) Operating Instructions....2
Control Panel....2 DishwasherFeatures....2

3) Prior using for the first time....3

A、Fill the Rinse Aid Dispenser....3
B、Function of Detergent 4

4) Loading the Dishwasher Basket......6
Attention before or after loading the Dishwasher Baskets....6
Loading the upper Basket....7
Loading the Lower Basket......7
Cutlery Basket......8

5) Starting a washing programme....9
Wash Cycle Table....9
Turning on the Appliance....10
Change the Programme....10
AttheEndoftheWashCycle....10

6) Maintenance and cleaning....11
Filtering System....11 Caring for the Dishwasher....12.

7) Installation instruction....13
Positioning the Appliance....13
About Power Connection....13
Water Connection....14
Start of dishwasher....15

8) Troubleshooting Tips....16
Before calling for service....16
Errorcodes....17
Technical information....18

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE

WARNING!

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith allocalcodesandordinances.

▲WARNING!

■ Improperconnectionoftheequipment-grounding conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitdoesnotfit theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.

WARNING! PROPER USE

■ Donotabuse, siton, or standard the door or dish rack of the dish washer.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjectsthe onorstandon doorwhenitisopen. The appliance could tip forward.
■ When loading items to be washed: 1) Locatesharpitems so that they are not likely to damagethedoor seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element. (This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

• Keepchildrenawayfromdetergentandrinseaid,keep childawayfromtheopendoorofthedishwasher,therecouldstillbesomedetergentleftinside.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  ■ The door should not be left open, sincethiscouldincreasetheriskoftripping.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Removethedoortothewashingcompartmentwhen removinganolddishwasherfromserviceordiscardingit.
  ■ Please dispose of packing materials properly.
  ■ Usethedishwasheronlyforitsintendedfunction.

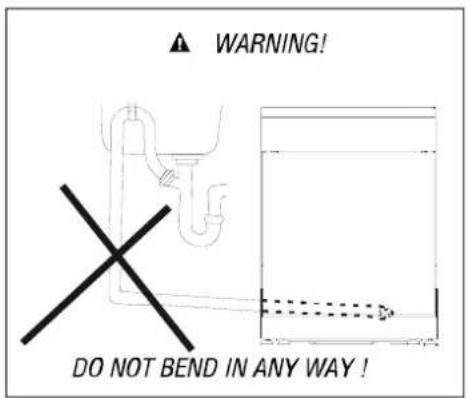

  ■ During installation, the powersupply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
  The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not bereused.
  ■ The maximum number of placesettings to be washedis12.
  ■ The maximum permissible inlet water pressure is 1 Mpa.
  ■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions beforeusingitforthefirsttime.

Control Panel

1 Power indicator light: To show the power supply.
2 Power switch: To turn on/off the power supply.
3 * Rinse aid warning lights: To show whenthedispenserneedtoberefilled → Finish light:to show when the washing program isfinished

4 Start /Reset button: To start the selected washing program or reset the washing program when the machine is working.
5 Washing Program Selector: To select one of the six washing programs.
6 Program indicator lights: To show the washing program.

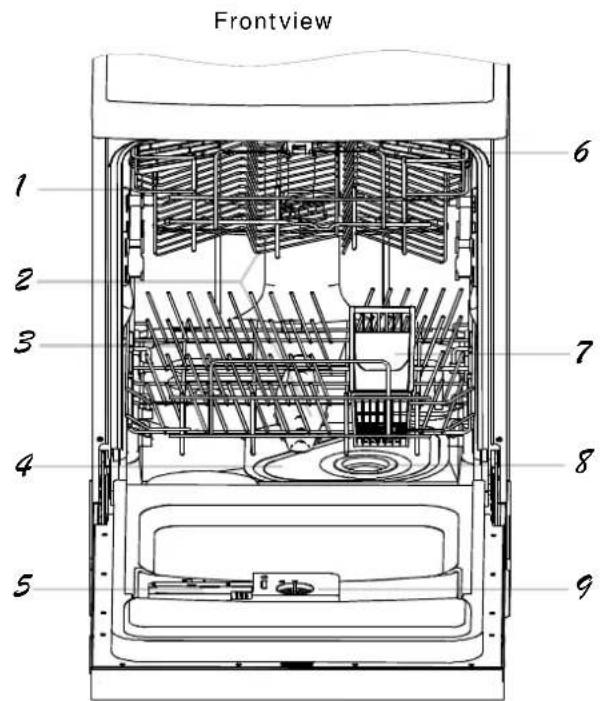

Dishwasher Features

1 UpperBasket
2 SprayArms
3 LowerBasket

4 MainFilter
5 Detergent Dispenser
6 CupShelf

7 Cutlery Basket
8 CoarseFilter
9 RinseAidDispenser

10 Drainpipeconnector
11 Inletpipeconnector

3.Prior using for the first time

Before using your dishwasher for the first time:

A Fill the rinse aid dispenser
B Fill indetergent

A. Fill the Rinse Aid Dispenser

RinseAidDispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill their rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Whento Refill the RinseAid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let theirinse aidlevelfall 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
1 / 4 full - Should refill to eliminate spotting
Empty

Hand operating a control panel with buttons and a rotary knob (no visible text or symbols)

Close-up of a kitchen sink with a white plastic bag attached, showing no text or symbols (no readable labels or symbols)

Close-up of a hand holding a circular button next to a white electronic device with ventilation slots (no visible text or symbols)

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilt while during filling with an absorbent cloth to avoid excessive foaming

duringthenextwash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes are still not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or limespots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Use only detergent specifically made for the use in dishwashers.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6°dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split into two basic types:

■ conventional, alkaline detergents with causticcomponents
■ low alkaline concentrated detergents with natural enzymes

The use of "normal washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason

“normalwash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using intensive programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for an normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AmountofDetergenttoUse

Close-up of a kitchen appliance with a plastic tray, a tube, and a control panel (no visible text or symbols)

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent and rinse aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on theright:

A The placeof main wash cycle detergent placed.
B The place of pre-wash cycle detergent placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ The information about the amount of detergent for the single programme please refer to the Wash CycleTableonthepage9.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

4. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamilddetergentthatisdescribedas'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low atemperature as possible.
■ To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the program has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wooden, horn china or mother-of-pearl handles

■ Plastic items that are not heat resistant

■ Oldercutlerywithgluedpartsthatarenot temperatureresistant

■ Bondedcutleryitemsordishes

■ Pewterorcooperitems

■ Crystalglass

■ Steelitemssubjecttorusting

■ Woodenplatters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after alargenumberofwashes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and itemsof cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

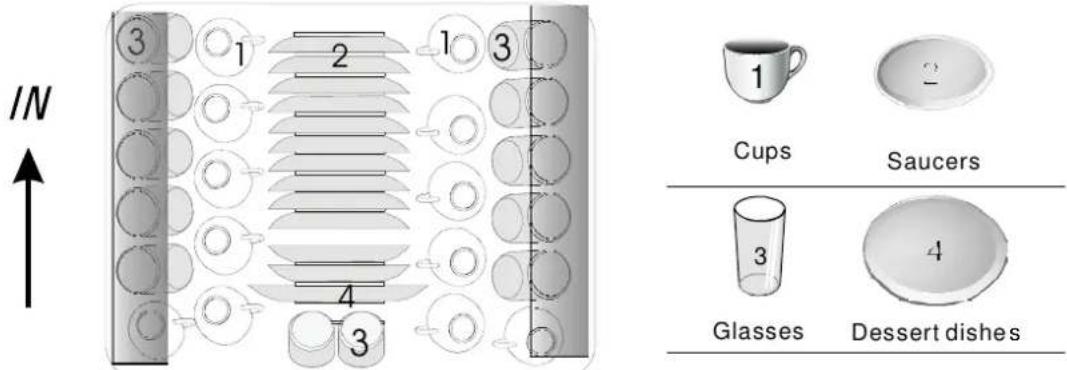

Loading the Upper Basket

The upperbasket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they will not be moved by the spray of water.

Loading the Lower Basket

We suggest that you place large items and items that are the most difficult to clean into the lower basket such as: pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the topspray arm.

Please be reminded that:

Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Dessert dishes

Soup plates

Circular object with a small number 'b' on its surface, no text or symbols present.

Dinner plates

7 Cutlery basket

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or be removed when not required for use.

Close-up of a mechanical component with a white arrow pointing to a cylindrical part (no visible text or symbols)

Close-up of a mechanical component with a curved arm and a black arrow pointing to a small cylindrical part (no text or symbols visible)

Close-up of a wire cage with metal grating and a hand adjusting it (no text or symbols visible)

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikescanbefoldeddownas show in the picture right.

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

1 Forks

2 Soupspoons

3 Dessertspoons

4 Teaspoons

5 Knives

▲ WARNING!

Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

3D architectural diagram showing two views of a building structure with structural elements, no text or symbols present

5. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
3in1	Forcommonlysoiled loads,Use multifunctional detergent	Pre-wash (50°C)Wash (50°C)RinseRinse (70°C)Drying	3in1	155	1.30	15.0
Intensive	Forheaviestsoiled crockery, and normally soiledpots、pans、dishes etcwithdriedonsoiling;	Pre-wash(50°C)Pre-washWash(65)°CRinseRinseRinse(55)°CDrying	5/25g(or)3in1	130	1.40	22.0	★
Heavy	Forheavilysoiledloads, such as pots, plates, glasses and lightlysoiledpans.	Pre-wash(50°C)Wash (50°C)RinseRinse (65°C)Drying	5/25g(or)3in1	160	1.20	15.0	★
Normal (*AS/NZS2007.1)	Standard daily cycle for normally soiled loads, such aspots、plates、 glasses.	Pre-washWash (55°C)RinseRinse (50°C)Drying	5/25g(or)3in1	140	0.74	12.0	★
1 Hour	Forlightlysoiledloads thatdo notneedexcellent drying efficiency.	Wash(55°C)RinseRinse (50°C)Drying	30g.	60	0.95	11.0	★
Rapid	Ashorterwashforlightly soiledloadsandquick washwithoutdrying.	Wash (40°C)RinseRinse (40°C)	20g.	30	0.45	12.0

NOTE:

*AS/NZS 2007.1: This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1, as follows:

■ Capacity:12setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
■ Open the door slightly 50mm to assist in drying of the dishes after every wash

Turning On the Appliance

Starting a cycle wash

1 Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").
2 Pour in the detergent (see the section entitled "Detergent and Rinse Aid").
3 Insert the plug into the socket. The power supply is 220-240 VAC/50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the ON/OFF button, and the ON/OFF light will turn on.
5 Press the program button, the wash program will be changed as follows direction:

3in1->Intensive->Heavy->Normal->1 Hour->Rapid;

If a program is selected, the response light will light. Then press the Start/Reset button, the dishwasher begins to start.

When you press the Start/Reset button to pause during washing, the program light will stop blinking and the dishwasher will mooring every minute unless you press the Start/Resetbuttontostart.

Change the Program...

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the start/reset button more than 3 seconds, the machine will be in standby state, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").
3 The program lights show the state of the dishwasher:
a) One of the program lights on----pause
b) One of the program lights blinking----run
c) Some of the up three program lights quick flashing----error

NOTE:

If you open the door, the machine is closed. The program light will stop blinking and the buzzer will sound every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

i Pressthestart/resetbutton

4 Addforgottendishes.

2 Openthodooralittletostopthewashing.

5 Closethedoor

3 Afterthesprayarmsstopworking, you can open the door completely.

6 Pressthestart/resetbutton,thedishwasherwillrun after10seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The running indicator light is off, only in this case the programme has ended.
1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turnoff the watertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

6. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

Thisfilter holds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

1

step 1: Turn the filter in anti-clockwise direction, then lift it up

2

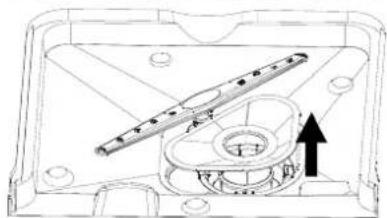

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

step 2 : lift the Main filter up

3

Technical line drawing of a mechanical assembly with no visible text or symbols

step 3: lift the Fine filter up

NOTE: Whenfollowingthisprocedurefromstep1tostep3,thefiltersystemwillberemoved; whenfollowingitfromStep3toStep1,thefiltersystemwillbeinstalled.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Technical line drawing of a mechanical component with no visible text or symbols

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

CleaningtheSprayArms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.
To remove the spray arms, screw off the nut clockwise to takeout the washer on top of the spray arm and remove the arm.
- Wash the arms in soapy and warm water and use a soft brushtocleanthejets.
■ Replacethemafterrinsingthemthoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that your run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odourstoform in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°.

About Power Connection

WARNING!

For personal safety:

■ DONOTUSEAN EXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTION FROMTHEPOWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

■ Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
■ Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.

Water Connection

Cold Water Connection

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING!

Please closethe hydrantafter using.

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping. Use the special plasticsupportthatcomes with the appliance. The free end of the hose must be at a height between 40 and 100cm and must not be immersed in water.

FRONTVIEW

How to Drain Excess Water From Hoses

If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excesswater from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

ExtensionHose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

■ Thedishwasherislevelandfixedproperly
The inlet valve is open
There is a leakage at the connections of the conducts
■ The wires are tightly connected
The power is switched on
■ Theinletanddrainhosesareknotted

Allpacking materials and printings should be taken out from the dishwasher

Attention: Afterinstallation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

8. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Technical problems	Problem	Possible Causes	What To Do
	Dishwasher doesn't start	Fuseblown,orthe circuitbreakertriggered	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
		Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
		Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
		Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
	water not pumped from dishwasher	Kinkindrainhose	Checkdrainhose.
		Filterclogged	Checkcoarsethefilter(see section titled " Cleaning The Filter ")
		Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.If the problem is the kitchen sink not draining ,you may need aplumberratherthanaservicemanfordishwashers.
General problems	Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoid suds.Ifthisoccurs,openthedishwasherandletsuds evaporate.Add1gallonofcoldwatertothetub.Close andlatchthedishwasher,thenStartthe"Rapid"wash cyclelodrainoutthewater.Repeatifnecessary.
		Spilledrinse-aidAlwayswipeuprinse-aidspillsimmediately.
	Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
	White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
	There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.	Theitemsshouldbecorrosionresistant.
Noise	Knocking noise in the wash cabinet	A s p a y a r m i s knockingagainst aniteminabasket	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r
	Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
	Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.
	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
The Rapid light quick flashing	Longerinlettime.	Faucetsisnotopened,orwaterintakeisrestricted, orwaterpressureistoolow.
The Normal light quick flashing	Overflow.	Someelementofdishwasherleaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, thewater shouldberemovedbeforerestartingthedishwasher.

Height : 850mm
Width : 600mm
Depth : 580mm
Voltage connected Load : see rating label
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 12 Place settings
