Product Type	Car
Brand	Buick
Model	Cascada (2017)
Body Style	Convertible
Engine	1.6L Turbocharged I4
Horsepower	200 hp @ 5500 rpm
Transmission	6-Speed Automatic with Manual Mode
Drivetrain	Front-Wheel Drive
Fuel Type	Gasoline
Fuel Economy (Combined)	24 mpg
Seating Capacity	4 Passengers
Length	184.1 in (4676 mm)
Width (without mirrors)	72.4 in (1839 mm)
Height (top up)	55.9 in (1420 mm)
Wheelbase	106.1 in (2695 mm)
Curb Weight	3979 lbs (1805 kg)
Convertible Top	Power-operated soft top, 17 seconds open/close
Safety Features	Airbags, ABS, StabiliTrak, Rearview Camera
Maintenance Interval	Oil change every 7500 miles
Manual Languages Available	English
Manual Format	PDF, 381 pages

Frequently Asked Questions - Cascada (2017) Buick

How can I download the manual for my Buick Cascada 2017?

Click the Download button on the manual page to save the PDF file to your device.

Is the manual available in other languages?

Yes, you can request a translation by selecting your desired language and providing your email address on the manual page.

How many pages does the manual have?

The manual contains 381 pages.

Can I ask questions about the car?

Yes, you can submit questions through the 'Ask a new question' section on the manual page.

What type of engine does the Buick Cascada 2017 have?

It features a 1.6L Turbocharged I4 engine producing 200 hp.

Is the Buick Cascada a convertible?

Yes, it is a 4-passenger convertible with a power-operated soft top.

What safety features are included?

Standard safety features include airbags, ABS, StabiliTrak stability control, and a rearview camera.

What is the fuel economy of the 2017 Cascada?

Combined fuel economy is approximately 24 mpg (city/highway).

How do I open the convertible top?

Press and hold the convertible top switch; it operates in about 17 seconds.

What is the recommended oil change interval?

Buick recommends changing the oil every 7,500 miles.

USER MANUAL Cascada (2017) Buick

2017

Cascada Owner's Manual

buick.com

Contents

Introduction......2

InBrief....5

Keys, Doors, and Windows.....21

SeatsandRestraints......45

Storage......89

InstrumentsandControls.....92

Lighting....119

InfotainmentSystem......127

ClimateControls......213

DrivingandOperating......217

VehicleCare....254

ServiceandMaintenance.....331

TechnicalData....344

CustomerInformation......347

ReportingSafetyDefects.....357

OnStar....360

Index......370

2Introduction

Introduction

Thenames, logos, emblems, slogans, vehiclemodelnames, and vehiclebodydesignsappearingin thismanualincluding, but not limited to, GM, the GM logo, BUICK, the BUICKEmblem, and CASCADA are trademarks and/or servicemark sof General Motors LLC, its subsidiaries, affiliates, or licensors.

ForvehiclesfirstsoldinCanada, substitutethename"General MotorsofCanadaCompany"for BuickMotorDivisionwhereverit appearsinthismanual.

Thismanualdescribesfeaturesthat mayormaynotbeonthevehicle becauseofoptionalequipmentthat wasnotpurchasedonthevehicle, modelvariants,country specifications,features/applications thatmaynotbeavailableinyour region,orchangessubsequentto theprintingofthisownermanual.

Refertothepurchase documentationrelatingtoyour specificvehicletoc confirmthe features.

Keepthismanualinthevehiclefor quickreference.

CanadianVehicleOwners

AFrenchlanguagemanualcanbe obtainedfromyourdealer,at www.helminc.com,orfrom:

PartNo.23321689AFirstPrinting

©2016GeneralMotorsLLC.AllRightsReserved.

Danger, Warning, and Caution

Warning messages found on vehicle labels and this manual describe hazards and what to avoid or reduce them.

Danger

Dangerindicatesahazardwitha highlevelofriskwhichwillresult inseriousinjuryordeath.

Warning

Warning indicates ahazard that could result in injury or death.

Caution

Caution indicates ahazard that could result in property or vehicle damage.

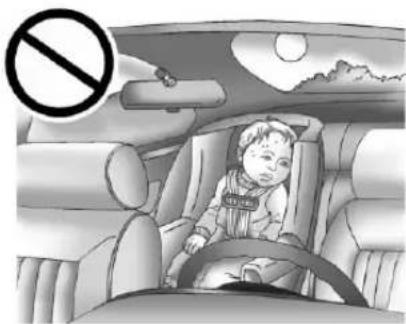

Acirclewithaslashthroughitisa safetysymbolwhichmeans"Do Not,""Donotdothis,"or"Donotlet thishappen."

Symbols

The vehicle has components and label that uses symbols instead of text. Symbols are shown along with the text describing the operation or information relating to as specific component, control, message, gauge, or indicator.

i: Shownwhentheowner manualhasadditionalinstructions orinformation.

→:Shownwhentheservice manualhasadditionalinstructions orinformation.

→:Shownwhenthereismore informationonanotherpage—"seepage."

VehicleSymbolChart

Herearesomeadditionalsymbols that may be found on the vehicle and what they mean. Form more information on the symbol, refer to the Index.

AirbagReadinessLight

AirConditioning

(ABS):AntilockBrakeSystem(ABS)

^1 :AudioSteeringWheelControls orOnStar ^®

(①):BrakeSystemWarningLight

- +: ChargingSystem

:CruiseControl

DoNotService

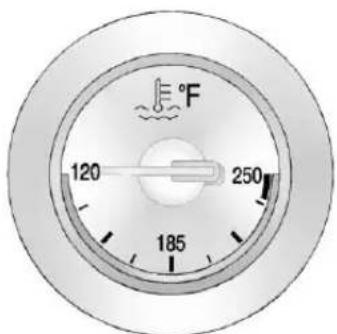

EngineCoolantTemperature

-ExteriorLamps

DoNotPuncture

:Flame/FireProhibited

D:FogLamps

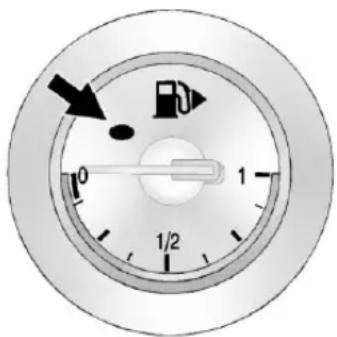

:FuelGauge

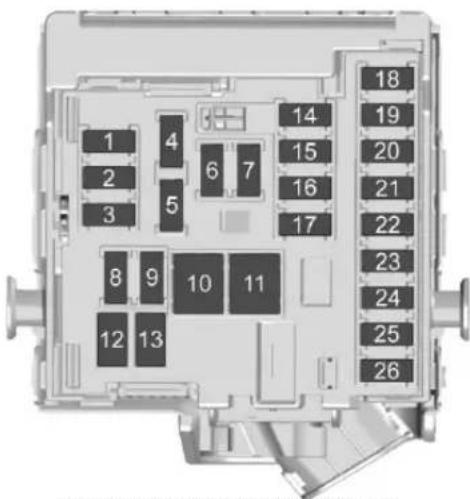

Fuses

4Introduction

ED:HeadlampHigh/Low-Beam Changer

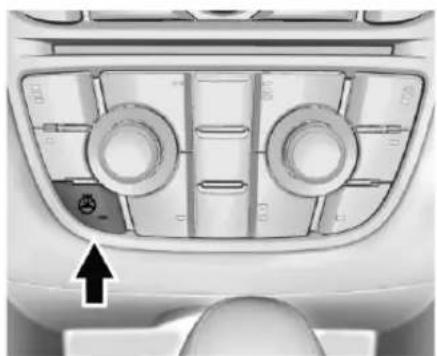

HeatedSteeringWheel

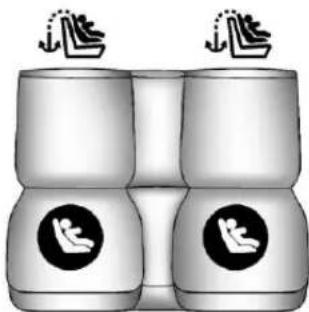

LATCHSystemChildRestraints

:MalfunctionIndicatorLamp

:OilPressure

①:Power

Ω:RemoteVehicleStart

SafetyBeltReminders

①:TirePressureMonitor

:TractionControl/StabiliTrak®

UnderPressure

:WindshieldWasherFluid

InBrief

InstrumentPanel

InstrumentPanelOverview.....6

InitialDrivelnformation

InitialDriveInformation......8

RemoteKeylessEntry(RKE)

System......8

RemoteVehicleStart......8

DoorLocks......9

TrunkRelease......9

Windows......10

SeatAdjustment......10

HeatedSeats......11

HeadRestraintAdjustment....12

SafetyBelts....12

PassengerSensingSystem...12

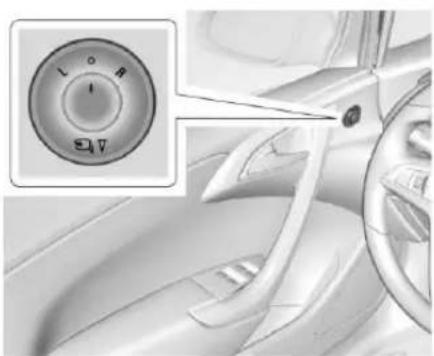

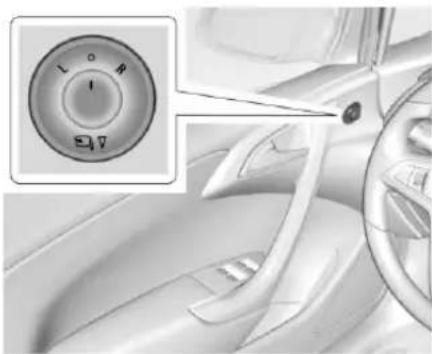

MirrorAdjustment.....12

SteeringWheelAdjustment....13

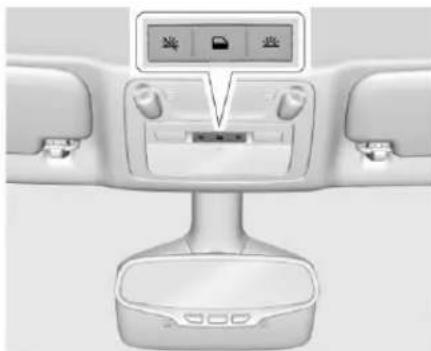

InteriorLighting......13

ExteriorLighting......14

WindshieldWiper/Washer.....14

ClimateControls......15

Transmission......15

VehicleFeatures

InfotainmentSystem......16

SteeringWheelControls.....16

CruiseControl......16

DriverInformation

Center(DIC)......16

ForwardCollisionAlert(FCA)

System......17

LaneDeparture

Warning(LDW)......17

RearVisionCamera(RVC)....17

ParkingAssist......17

PowerOutlets......17

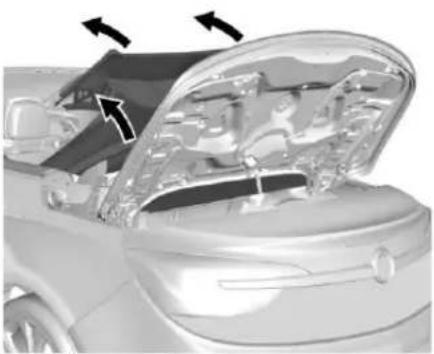

Convertible....18

PerformanceandMaintenance

TractionControl/Electronic

StabilityControl......18

TirePressureMonitor......18

Fuel....19

E85orFlexFuel......19

EngineOilLifeSystem......19

DrivingforBetterFuel

Economy....19

RoadsideAssistance

Program.....20

InstrumentPanel

InstrumentPanelOverview

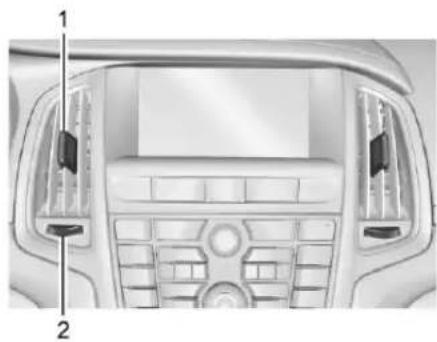

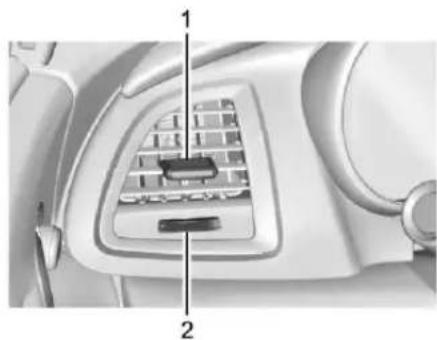

1. AirVents→215.

2.HeadlampHigh/Low-Beam Changer→120.

TurnSignalLever.See Turn andLane-Change Signals→122.

DriverInformationCenter(DIC)

Buttons.SeeDriverInformation Center(DIC)→110.

1. Cruise Control 242.

ForwardCollisionAlert(FCA) System→246(IfEquipped).

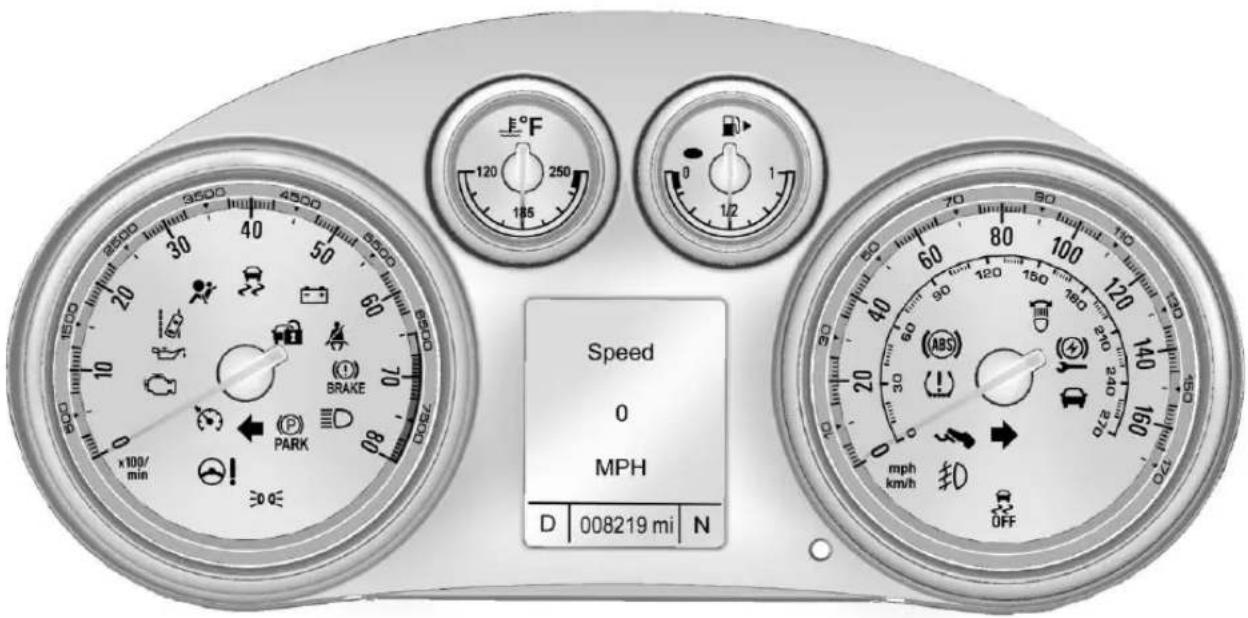

4.InstrumentCluster→98.

5.DriverInformationCenter (DIC)→110.

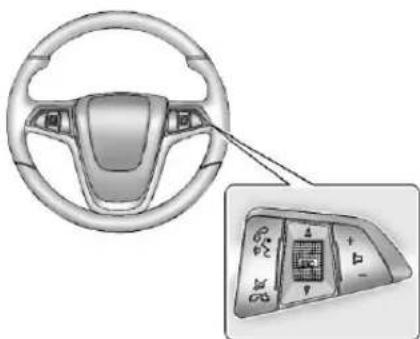

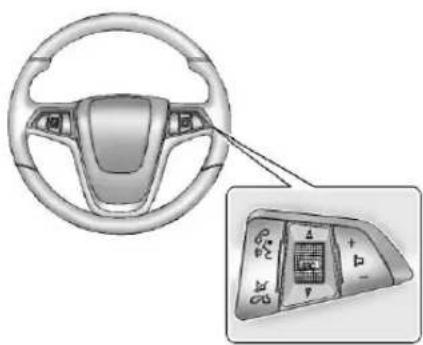

1. Steering Wheel Controls→93.

2. WindshieldWiper/Washer→94.

3. CentralLockingSwitch.See PowerDoorLocks→28.

HazardWarning Flashers→122.

PassengerAirbagStatus Indicator→101.

9.AM-FMRadio→138.

1. Anti-TheftAlarmSystem IndicatorLight. See Vehicle AlarmSystem→31.

2. TractionControl/Electronic StabilityControl→240. LaneDepartureWarning (LDW)→248. AssistanceSystemsfor ParkingorBacking→244.

3. DualAutomaticClimateControl System→213. HeatedFrontSeats→49(If Equipped). HeatedSteeringWheel→94(If Equipped).

4. USBPort.SeeUSB→160. InputJack.SeeAuxiliary Devices→165.

5. Convertible Top\\37. CentralPowerWindowSwitch. SeePowerWindows\\34.

6. Electric Parking Brake 237.

16.ShiftLever.SeeAutomatic Transmission→234.

17.PowerOutlets→96.

1. IgnitionSwitch. See Ignition Positions⇒228.

19.Horn→94.

1. Steering Wheel Adjustment→93.

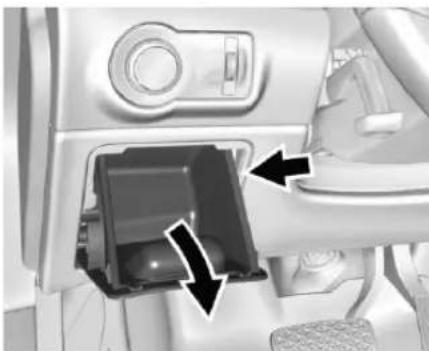

2. InstrumentPanelStorage→89. InstrumentPanelFuse Block→285.

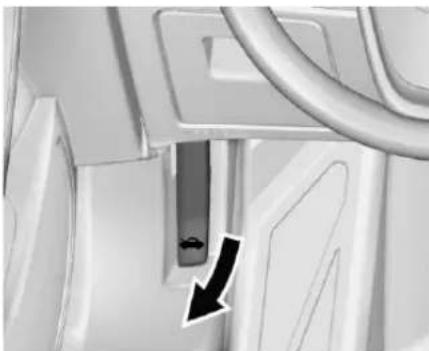

22.HoodRelease.See Hood→257.

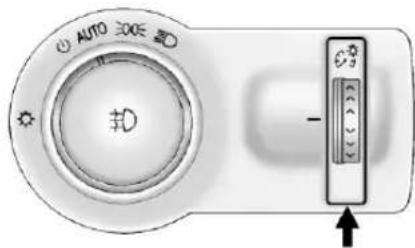

23.ExteriorLampControls→119. FogLamps→123(If Equipped). InstrumentPanelIllumination Control→123.

1. DataLinkConnector(DLC) (OutofView). See Malfunction IndicatorLamp(CheckEngine Light)→102.

8InBrief

InitialDrive Information

Thissectionprovidesabrief overviewaboutsomeofthe importantfeaturesthatmayormay notbeonyourspecificvehicle.

Formoredetailedinformation, refer toeachofthefeatureswhichcanbe foundlaterinthisowner'smanual.

RemoteKeylessEntry (RKE)System

The Remote Keyless Entry (RKE) transmitter may work up to 60m (197ft) away from the vehicle.

3D rendered image of a mobile phone with six key icons arranged in a grid (no text or symbols visible)

WithRemoteStartShown

Pressthebuttontoextendthekey. Thekeycanbeusedforthedriver sidelockandtheignition.

:Presstounlockbothdoors,the trunkandthefueldoor.Pressand hold toopenallwindows.

:Presstolockbothdoors,the trunkandthefueldoor.Pressand holdtocloseallwindows.

Lockandunlockfeedbackcanbe personalized.See Vehicle Personalization→113.

Pressandholdtoreleasethe trunk.

▶:Pressandreleasetoinitiate vehiclelocator.Pressandholdforat leastthreesecondstosoundthe panicalarm.Pressagaintocancel thepanicalarm.

SeeKeys→21andRemoteKeyless Entry(RKE)SystemOperation→23.

RemoteVehicleStart

lfequipped, theenginecanbe startedfromoutsideofthevehicle.

StartingtheVehicle

1. Pressandrelease ☐ on the RKEtransmitter.
2. Immediately press and hold for least four seconds until the turnsign allamps flash.

Startthevehiclenormallyafter entering.

Whenthevehiclestarts, theparking lampswillturnon.

Remotestartcanbeextended.

CancelingaRemoteStart

Tocancelaremotestart,dooneof thefollowing:

• Pressandhold Q until the parkinglampsturnoff.
• Turnonthehazardwarning flashers.
  • Turnthevehicleonandthenoff.
  See Remote Vehicle Start→26.

DoorLocks

Tolockorunlockthedoorsfrom outsidethevehicle:

• Press 🔍or onthe Remote KeylessEntry(RKE)transmitter.
  • Usethekeyinthedriverdoor.

Tolockorunlockthedoorsfrom insidethevehicle:

- Press 🔔or 🔑onthepowerdoor lockswitch.

- Pullinganinteriordoorhandle willunlockthedoor.Pullingthe doorhandleagainunlatchesit.

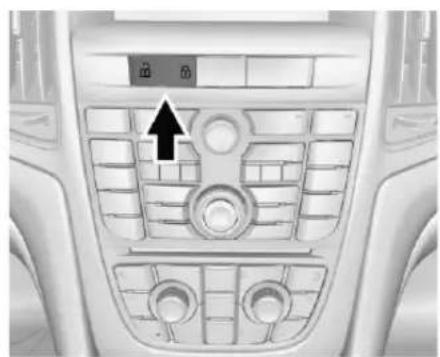

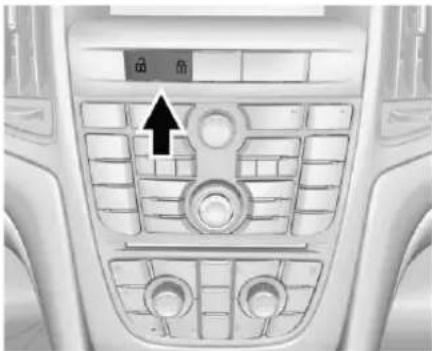

PowerDoorLocks

Interior view of a car dashboard with air vent and control panel (no text or symbols visible)

:Presstounlock.

:Presstolock.

SeePowerDoorLocks→28.

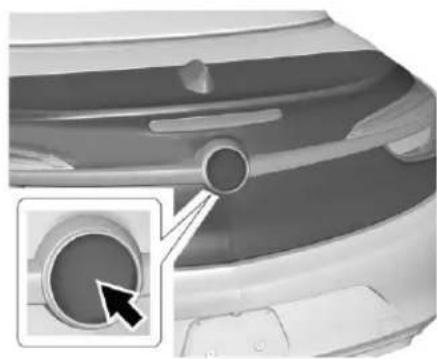

TrunkRelease

Close-up of a car's rear bumper with a circular dial and an arrow pointing to the center (no text or symbols visible)

Pressthelowerhalfoftheemblem toopenthetrunk.See Trunk→29.

10InBrief

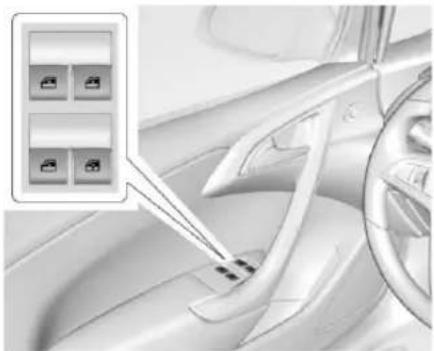

Windows

Interior view of a car dashboard with steering wheel and dashboard (no visible text or symbols)

Powerwindowsworkwhenthe ignitionison,inACC/ACCESSORY, orinRetainedAccessoryPower (RAP).SeeRetainedAccessory Power(RAP) 231.

Usingthewindowswitch, pressto openorpulltoclosethewindow. Thewindowsmaybetemporarily disablediftheyareusedrepeatedly withinashorttime.

SeePowerWindows→34.

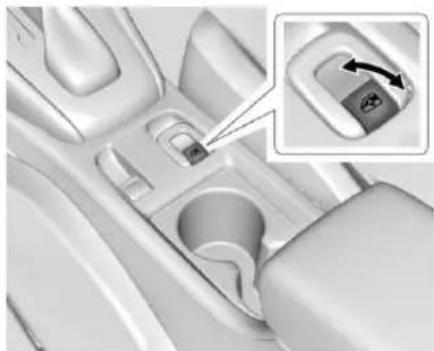

CentralPowerWindowSwitch

Presstoexpressopenorpullto expresscloseallwindows.

WindowOperationwith ConvertibleTop

Windowswillautomaticallylower fullywhentheconvertibletopis loweredorraised. Convertible Top⇒37.

SeatAdjustment

PowerDriverSeatAdjustment

Car seat assembly diagram showing directional arrows indicating movement or force (no text or symbols present)

Toadjustapowerdriverseat, ifequipped:

- Movetheseatforwardor rearwardbyslidingthecontrol forwardorrearward.

• Raiseorlowerthefrontpartof theseatcushionbymovingthe frontofthecontrolupordown.
• Raiseorlowertheentireseatby movingtherearofthecontrolup ordown.

SeePowerSeatAdjustment→47.

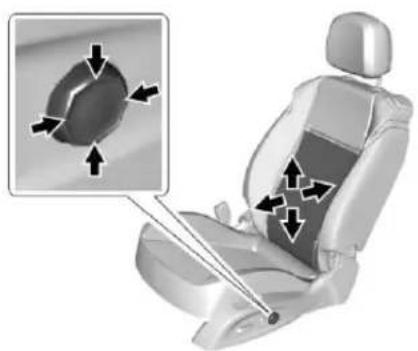

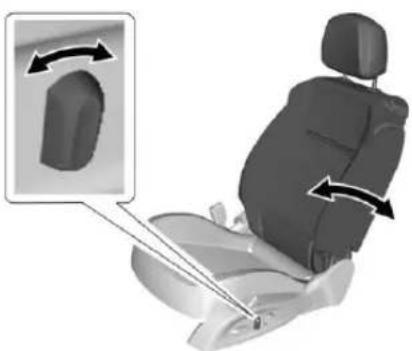

3D illustration of a car seat with directional arrows indicating rotation or movement (no text or symbols)

Toadjustthepowerseatback:

• Tiltthetopofthecontrol rearwardtorecline.
• Tiltthetopofthecontrolforward toraise.

SeeRecliningSeatbacks→48.

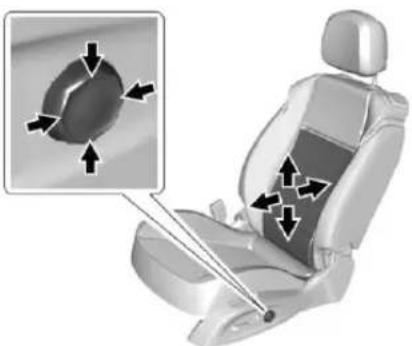

PowerLumbar

Car seat diagram showing stressors and directional arrows (no text or symbols)

Ifequipped, pressandholdthefront oftheswitchtoincreaselumbar support, ortherearoftheswitchto decreaselumbarsupport.

Toadjusttheheightofthesupport, pressandholdthetoporbottomof theswitch.Releasetheswitchwhen theseatbackreachesthedesired leveloflumbarsupport.

SeeLumbarAdjustment→48.

SeatbackLatches

3D illustration of a car seat with black arrows indicating movement or force direction (no text or symbols)

Tofoldtheseatback, lifttherelease leverandfoldtheseatbackforward. Theseatwillslideforward.

Toraise, lift theseatback to its upright position until theseatlocks. Theseat will slide back to the original position.

SeeSeatbackLatches→49.

RearSeats

Therearseatbackscanbefolded.

Fordetailedinstructions,seeRear Seats→50.

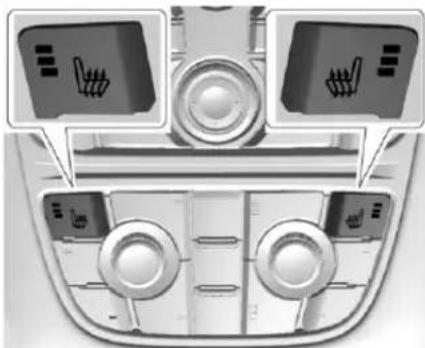

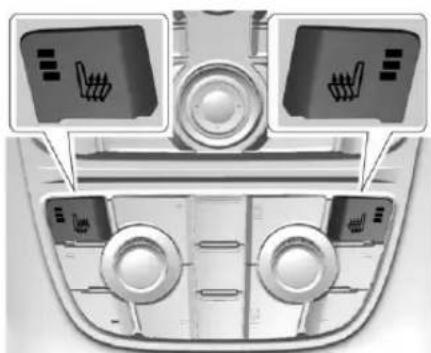

HeatedSeats

Top-down view of a car dashboard with three control panels and directional arrows (no text or symbols)

Ifavailable, the controls are on the climate control panel. The engine must be running to operate the heated seats.

Press 📊or 🌐toheatthedriveror passengerseatcushionand seatback.

Pressthecontrolonceforthe highestsetting.Witheachpressof thecontrol,theheatedseatwill changetothenextlowersetting, andthentheoffsetting.Threelights indicatethehighestsettingandone lightthelowest.

12InBrief

SeeHeatedFrontSeats→49.

HeadRestraint Adjustment

Donotdriveuntiltheheadrestraints foralloccupantsareinstalled and adjusted properly.

Toachieveaccomfortableseating position, changetheseatback reclineangleaslittleasnecessary whilekeepingtheseatandthehead restraintheightintheproper position.

SeeHeadRestraints→46and RecliningSeatbacks→48.

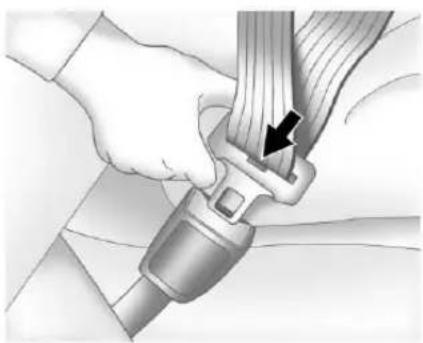

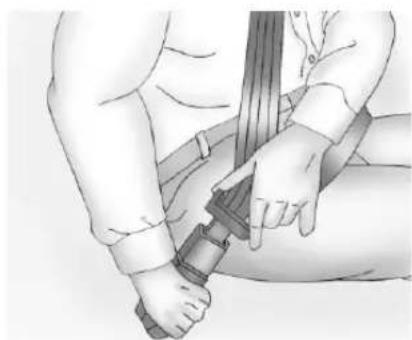

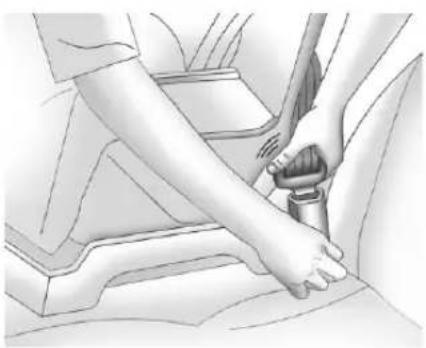

SafetyBelts

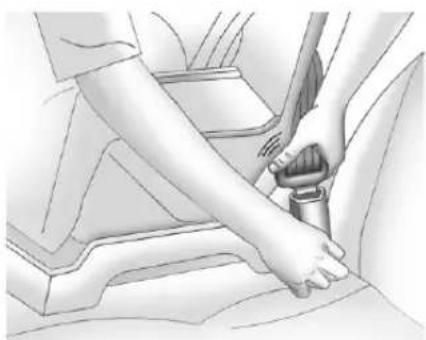

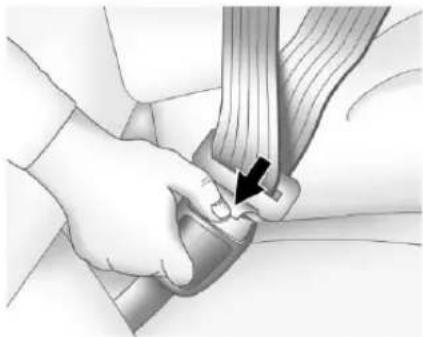

Illustration of a person adjusting a belt buckle, showing hands and wrist (no text or symbols)

Refertothefollowingsectionsfor importantinformationonhowtouse safetybeltsproperly:

• SafetyBelts→52.
• HowtoWearSafetyBelts Properly→53.
• Lap-ShoulderBelt→54.
• LowerAnchorsandTethersfor Children(LATCHSystem)→76.

PassengerSensing System

PASS AIR BAG

ON OFF

Thepassengersensingsystem turnsoffthefrontoutboard passengerfrontalairbagandknee airbagundercertainconditions.No otherairbagisaffectedbythe passengersensingsystem.See PassengerSensingSystem→63for importantinformation.

Thepassengerairbagstatus indicatorwillbevisibleonthecenter stackwhenthevehicleisstarted. SeePassengerAirbagStatus Indicator→101.

MirrorAdjustment

InteriorMirrors

Adjusttherearviewmirrorforaclear viewoftheareabehindyour vehicle.

AutomaticDimmingRearview Mirror

Automaticdimmingreducesthe glareofheadlampsfrombehind. Thedimmingfeaturecomeson whenthevehicleisstarted.

SeeAutomaticDimmingRearview Mirror→34.

ExteriorMirrors

Interior view of a car dashboard with a circular control knob (no visible text or symbols)

1. TurntheselectorswitchtoL (Left)orR(Right)tochoose thedriverorpassengermirror.

2. Movethe control to adjust the mirror.

3. Turntheselectorswitchto todeselectthemirror.

The vehicle has manual folding mirrors. See Folding Mirrors 33.

SteeringWheel Adjustment

Diagram of a car steering wheel and dashboard with directional arrows indicating rotational motion (no text or symbols)

Toadjustthesteeringwheel:

1. Pulltheleverdown.

2. Movethesteeringwheelup ordown.

3. Pullorpushthesteeringwheel closerorawayfromyou.

1. Lifttheleveruptolockthe steeringwheelinplace.

Donotadjustthesteeringwheel whiledriving.

InteriorLighting

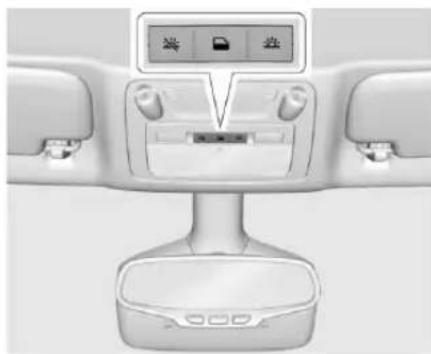

DomeLamps

Theinteriorlampscontrolinthe overheadconsolecontrolsboththe frontandrearinteriorlamps.

:Presstoturnthelampsoff, evenwhenadoorisopen.

:Presstoturnthelampson automaticallywhenadooris opened.

14InBrief

:Presstoturnonthedome lamps.

ReadingLamps

Interior view of a car dashboard with two switches and a rear-mounted base (no visible text or symbols)

Thefrontreadinglampsareinthe overheadconsole.

or : Press the button near each lamptoturnitonoroff.

ExteriorLighting

The exterior lamp controlisto the left of the steering column on the instrument panel.

☐:Brieflyturntothispositionto turntheautomaticclampcontroloff oronagain.

AUTO: Turnstheheadlampson automaticallyatnormalbrightness, togetherwiththeparkinglamps, taillamps,licenseplatelamps, instrumentpanellights,and sidemarkerlamps.

200:Turnsontheparkinglamps includingallamps,exceptthe headlamps.

D:Turnsontheheadlamps togetherwiththeparkinglampsand instrumentpanellights.Awarning chimesoundsifthedriverdooris openedwhentheignitionswitchis offandtheheadlampsareon.

D: Ifequippedwithfoglamps, presstoturnthelampsonoroff.

See:

- ExteriorLampControls→119

- FogLamps→123

WindshieldWiper/Washer

WiththeignitioninACC/ ACCESSORY,ON/RUN,orSTART, movethelevertoselectthewiper speed.

HI:Useforfastwipes.

LO:Useforslowwipes.

INT: MovetheleveruptoINT, then turnthe ◀INTbandupordown formoreorlesssensitivity to moisture.

OFF: Usetoturnthewipersoff.

1X: Forasinglewipe, briefly move theleverdown. For several wipes, hold the leverdown.

↓: Pullthelevertowardyouto spraywindshieldwasherfluidand activatethewipers.

SeeWindshieldWiper/Washer→94.

ClimateControls

The heating, cooling, defrosting, and ventilation for the vehicle can be controlled with this system.

1.DriverandPassengerHeated Seats(IfEquipped)

2.DriverandPassenger TemperatureControls

1. AUTO(AutomaticOperation)

2. AirDeliveryModes

5.FanControls

6.Defrost

1. RearWindowDefogger

2. Recirculation

9.HeatedSteeringWheel(If Equipped)

1. AirConditioning

See Dual Automatic Climate Control System→213.

Transmission

DriverShiftControl(DSC)

DSCallowsyoutoshiftan automatictransmissionsimilartoa manualtransmission.Tousethe DSCfeature:

1. Movetheshiftleverfrom D(Drive)totheleftintothe(+) or(-)manualposition.

2. Presstheshiftleverforward(+)
   toupshiftorrearward(-) to
   downshift.AnMandthe
   currentgearwillbedisplayed
   intheDriverInformation
   Center(DIC).

SeeManualMode→235.

While using the DSC feature, the vehicle will have firmer, quicker shifting. You can us this for sport driving or when climbing or descending hills, to stay in gear longer, ort downward shift form more powerorengine braking.

VehicleFeatures

InfotainmentSystem

SeelnfotainmentSysteminthis manualforinformationontheradio, audioplayers, phone, navigation system, and voiceorspeech recognition. It also includes informationonsettings.

SteeringWheelControls

Theinfotainmentsystemcanbe operatedbyusingthesteering wheelcontrols.SeeSteeringWheel Controls93.

CruiseControl

:Presstoturnthecruisecontrol systemonoroff.Awhiteindicator comesonintheinstrumentcluster whencruiseisturnedon.

RES/+:Ifthereisasetspeedin memory, movethethumbwheelup brieflytoresumetothatspeedor holdupwardtoaccelerate. Ifcruise controlisalreadyactive, useto increasevehiclespeed.

SET/--:Movethethumbwheeldown brieflytosetthespeedandactivate cruisecontrol.Ifcruisecontrolis alreadyactive,usetodecrease speed.

:Presstodisengagecruise controlwithouterasingtheset speedfrommemory.

See Cruise Control→242.

DriverInformation Center(DIC)

The DIC display is in the center of the instrument cluster. It shows the status of many vehicles systems. The controls for the DIC are on the return signal lever.

1. SET/CLR: Presstoset, orpressandholdtoclear, the menuitemdisplayed.

2.△/▽:Usethebandto scrollthroughtheitemsin eachmenu.
3. MENU: Presstodisplaythe DICmenus. Thisbuttonisalso usedtoreturntoorexitthelast screendisplayedontheDIC.

SeeDriverInformationCenter (DIC)→110.

ForwardCollisionAlert (FCA)System

Ifequipped, FCAmayhelpavoidor reduce the harm caused by front-end crashes. FCAprovides a green indicator, 📋, when a vehicle is detected ahead. When approaching a vehicle ahead too quickly, FCAprovides a visual alert and rapidly beeps.

SeeForwardCollisionAlert(FCA) System→246.

LaneDeparture Warning(LDW)

lfequipped, LDWmayhelpavoid unintentionallanedeparturesat speedsof56km/h(35mph)or greater. LDWusesacamerasensor todetectthelanemarkings. The LDWlight, 📋, isgreenifalane markingisdetected. Ifthevehicle departsthelanewithoutusingaturn signalinthatdirection, thelightwill changetoamberandflash. In addition, beepswillsound.

SeeLaneDepartureWarning (LDW)→248.

RearVision Camera(RVC)

Ifequipped,RVCdisplaysaviewof theareabehindthevehicleonthe infotainmentdisplaywhenthe vehicleisshiftedintoR(Reverse)to aidwithparkingandlow-speed backingmaneuvers.

See Assistance Systems for Parking or Backing 244.

ParkingAssist

Ifequipped, RearParking Assist (RPA) uses sensorson therear bumpertoassist with parking and avoiding objects while in R(Reverse). It operates at speeds less than 8 km/h (5 mph). RPAmay display awarning triangle on the RVC screen andagraphicon the instrument cluster to provide the object distance. In addition, multiple beeps may occur if very closeto an object.

The vehicle may also have the Front Parking Assist system.

See Assistance Systems for Parking or Backing 244.

PowerOutlets

Theaccessorypoweroutletscanbe usedtopluginelectricalequipment, suchasacellphoneorMP3player.

Thereisoneaccessorypoweroutlet onthecenterstackbelowthe climatecontrolsandoneontherear ofthecenterfloorconsole. These

18InBrief

outletsarepoweredwhenthekeyis inON/RUNorACC/ACCESSORY, oruntilthedriverdoorisopened within 10minutesofturningoffthe vehicle.SeeRetainedAccessory Power(RAP)231.

SeePowerOutlets→96.

Convertible

Theconvertibletopcanbe automaticallyopenedandclosed. Forstep-by-stepinstructions,see Convertible Top→37.

Performance and Maintenance

TractionControl/ElectronicStability Control

The TractionControlSystem(TCS) limitswheelspin. Thesystemison whenthevehicleisstarted.

TheStabiliTraksystemassistswith directionalcontrolofthevehiclein difficultdrivingconditions.The systemisonwhenthevehicleis started.

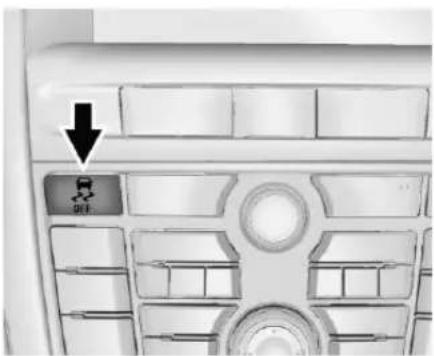

• ToturnoffTCS,pressand release 🔊 onthecenterstack. TheappropriateDICmessageis displayed.
• Pressandrelease OFF again to turn TCSbackon. The appropriate DIC message is displayed.
• ToturnoffbothTCSand StabiliTrak, pressandhold until comesoninthe

instrumentclusterandthe appropriateDICmessageis displayed.

- Press OFF againtoturnonboth systems. The appropriate DIC message is displayed.

See TractionControl/Electronic StabilityControl→240.

TirePressureMonitor

ThisvehiclemayhaveaTire PressureMonitorSystem(TPMS).

Thelowtirepressurewarninglight alertstoasignificantlossin pressureofoneofthevehicle's tires.Ifthewarninglightcomeson, stopassoonaspossibleandinflate thetirestotherecommended pressureshownontheTireand

LoadingInformationlabel.See VehicleLoadLimits→224.The warninglightwillremainonuntilthe tirepressureiscorrected.

Thelowtirepressurewarninglight maycomeonincoolweatherwhen thevehicleisfirststarted,andthen turnoffasthevehicleisdriven.This maybeanearlyindicatorthatthe tirepressuresaregettinglowand thetiresneedtobeinflatedtothe properpressure.

The TPMS does not replacenormal monthly tire maintenance. Maintain the correct tire pressures.

See TirePressureMonitor System→296.

Fuel

PremiumRecommendedFuel

Usepremium93octaneunleaded gasolineinyourvehicle. Unleaded gasolinewithanoctaneratingas lowas87maybeused, butitwill reduceperformanceandfuel economy. SeeFuel249.

E85orFlexFuel

NoE85orFlexFuel

Gasoline-ethanolfuelblendsgreater thanE15(15%ethanolbyvolume), suchasE85, cannotbeusedin this vehicle.

EngineOilLifeSystem

Theengineoillifesystemcalculates engineoillifebasedonvehicleuse anddisplaystheCHANGEENGINE OILSOONmessagewhenitistime tochangetheengineoilandfilter.

Theoillifesystemshouldbereset to 100% only following an oil change.

ResettingtheOilLifeSystem

1. Display REMAININGOILLIFE on the Driver Information Center(DIC). See Driver Information Center(DIC) 110.
2. PressandholdSET/CLRto resettheoillifeat100%.
3. TurntheignitiontoLOCK/OFF.

SeeEngineOilLifeSystem→262.

DrivingforBetterFuel Economy

Drivinghabitscanaffectfuel mileage. Herearesomedrivingtips togetthebestfueleconomy possible.

• Avoidfaststartsandaccelerate smoothly.
• Brakegraduallyandavoid abruptstops.
• Avoididlingtheengineforlong periodsoftime.

20InBrief

• When road and weather conditions are appropriate, use cruise control.
• Alwaysfollowpostedspeed limitsordrivemoreslowlywhen conditionsrequire.
• Keepvehicletiresproperly inflated.
• Combineseveraltripsintoa singletrip.
• Replacethevehicle'stireswith thesameTPCSpecnumber moldedintothetire'ssidewall nearthesize.
• Followrecommended scheduled maintenance.

Roadside Assistance Program

U.S.:1-800-252-1112

TTYUsers(U.S.Only):

1-888-889-2438

Canada:1-800-268-6800

NewBuickownersareautomatically enrolledintheRoadsideAssistance Program.

SeeRoadsideAssistance

Program→351.

Keys, Doors, and Windows

KeysandLocks

Keys......21

RemoteKeylessEntry(RKE)

System......23

RemoteKeylessEntry(RKE)

SystemOperation......23

RemoteVehicleStart......26

DoorLocks......27

PowerDoorLocks......28

DelayedLocking.....28

AutomaticDoorLocks......28

LockoutProtection......29

Doors

Trunk......29

VehicleSecurity

VehicleSecurity......31

VehicleAlarmSystem......31

Immobilizer....32

ImmobilizerOperation......32

ExteriorMirrors

ConvexMirrors....33

PowerMirrors....33

FoldingMirrors....33

HeatedMirrors....33

InteriorMirrors

InteriorRearviewMirrors.....34

AutomaticDimmingRearview

Mirror....34

Windows

Windows....34

PowerWindows....34

SunVisors....36

Roof

ConvertibleTop......37

KeysandLocks

Keys

Warning

Leavingchildreninavehiclewith anignitionkeyorRemote KeylessEntry(RKE)transmitteris dangerousandchildrenorothers couldbeseriouslyinjuredorkilled.Theycouldoperatethe powerwindoworothercontrolsormakethevehiclemove.The windowswillfunctionwiththekey intheignitionorwiththeRKE transmitterinthevehicle,and childrenorotherscouldbecaught inthepathofaclosingwindow. Donotleavechildreninavehicle withtheignitionkeyoranRKE transmitter.

Illustration of a child washing a car while an adult assists, with a no-smoking symbol (no text or labels)

Warning

Ifthekeyisunintentionally rotatedwhilethevehicleis running,theignitioncouldbe movedoutoftheRUNposition. Thiscouldbecausedbyheavy itemshangingfromthekeyring, orbylargeorlongitemsattached tothekeyringthatcouldbe contactedbythedriveror steeringwheel.Iftheignition movesoutoftheRUNposition, theenginewillshutoff,braking andsteeringpowerassistmaybe (Continued)

Warning(Continued)

impacted, andairbagsmaynot deploy. Toreducetheriskof unintentional rotation of the ignition key, donotchangethe way the ignition key and Remote Keyless Entry (RKE) transmitter, if equipped, are connected to the provided key rings.

Theignitionkey,keyrings,andRKE transmitter,ifequipped,are designedtoworktogether.Asa system,itreducestheriskof unintentionallymovingthekeyout oftheRUNposition.lfreplacements oradditionsarerequired,seeyour dealer.Limitaddeditemstoafew essentialkeysorsmall,lightitems nolargerthananRKEtransmitter.

Simple 3D-rendered object resembling a stylized letter or symbol with a circular center and handle (no text or symbols)

Interference from radio-frequency identification (RFID) tags may prevent the key from starting the vehicle. Keep RFID tags away from the key when starting the vehicle.

ThekeythatispartoftheRKE transmittercanbeusedforthe ignitionanddriversidelock.

Close-up of a mobile phone's keychain with four function keys and an arrow pointing to it (no text or symbols on the main body)

PressthebuttonontheRKE transmittertoextendthekey.Press thebuttonandthekeybladeto retractthekey.

Ifitbecomesdifficulttoturnthekey, inspectthekeybladefordebris. Periodicallycleanwithabrush orpick.

Seeyourdealerifanewkeyis needed.

Iflockedoutofthevehicle,see RoadsideAssistance Program→351.

With an active On Star subscription, an On Star Advisorm may remotely unlock the vehicle. See On Star Overview 360.

RemoteKeylessEntry (RKE)System

SeeRadioFrequency Statement→357.

If there is a decrease in the Remote KeylessEntry(RKE) operating range:

• Checkthedistance. The transmitter may be too far from the vehicle.
• Checkthelocation. Other vehiclesorobjectsmaybe blockingthesignal.
• Checkthetransmitter'sbattery. See "BatteryReplacement" later inthissection.
• Ifthetransmitterisstillnot workingcorrectly,seeyour dealeroraqualifiedtechnician forservice.

RemoteKeylessEntry (RKE)SystemOperation

Thetransmitterfunctionsmaywork upto60m(197ft)awayfromthe vehicle.

Keepinmindthatotherconditions, suchasthosepreviouslystated,can impacttheperformanceofthe transmitter.

3D rendered image of a mobile phone with key buttons and navigation icons (no text or symbols visible)

WithRemoteStartShown

:Presstounlockbothdoors,the trunk,andthefueldoor.Pressand hold toopenallwindows.See PowerWindows⇒34.

24Keys, Doors, and Windows

Theturnsignalindicatorsmayflash toindicateunlocking.See Vehicle Personalization→113.

Pressing 📄willdisarmthealarm system.See VehicleAlarm System→31.

:Presstolockbothdoors,the trunk,andthefueldoor.Pressand hold tocloseallwindows.

The turnsignal indicators may flash and/or the horn maysound to indicate locking.

Ifthedriverdoorisopenwhen is pressed, alldoorslock and the driverdoorwillimmediatelyunlock, ifenabledthroughvehicle personalization.See Vehicle Personalization⇒113.

If the passenger door is open when is pressed, all doors lock.

Pressing 🔒 may also arm the alarm system. See Vehicle Alarm System 31.

:Pressandholdtoreleasethe trunk.

▶:Pressandreleaseonetimeto initiatevehiclelocator. The exterior lampsflashandthehornchirps threetimes.

Pressandhold ➕foratleast threesecondstosoundthepanic alarm. Thehornsoundsandthe turnsignalsflashfor30seconds, oruntil ➕ispressedagainorthe vehicleisstarted.

Ω: If equipped, presstöoperate theremotestartfeature. See Remote Vehicle Start→26.

Thebuttonsonthetransmitterare disabledwhenthereisakeyinthe ignition.

ProgrammingKeystothe Vehicle

Onlykeysprogrammedtothe vehiclewillwork.Ifakeyislostor stolen,areplacementcanbe purchasedandprogrammedthrough yourdealer.Thevehiclecanbe reprogrammedsothatlostorstolen keysnolongerwork.Anyremaining

keyswillneedtobereprogrammed. Eachvehiclecanhaveuptoeight keysmatchedtoit.

Programmingwithtwo RecognizedKeys

Toprogramanewkey:

1. Inserttheoriginal, already programmedkeyintheignition andturnthekeytotheON/RUNposition.

2. TurnthekeytoLOCK/OFF, andremovethekey.

3. Quickly, withinfiveseconds, insertthesecondoriginal alreadyprogrammedkeyinthe ignitionandturnittotheON/RUNposition.

4. Insertthenewkeytobe programmedandturnittothe ON/RUNpositionwithin fiveseconds.

Thesecuritylightwillturnoff oncethekeyhasbeen programmed.

1. RepeatSteps1–5ifadditional keysaretobeprogrammed.

Ifakeyislostordamaged, see your dealertohaveanewkeymade.

Programmingwithouttwo RecognizedKeys

Programanewkeytothevehicle whenarecognizedkeyisnot available.Canadianregulations requirethatownersseetheirdealer.

Iftwocurrentlyrecognizedkeysare notavailable, followthisprocedure toprogramthefirstkey.

Thisprocedurewilltake approximately30minutesto completeforthefirstkey. The vehiclemustbeoffandallofthe keysyouwishtoprogrammustbe withyou.

1. Insertthenewvehiclekey into the ignition.
2. TurntoON/RUN. Thesecurity lightwillcomeon.
3. Wait 10 minutes until the security light turn soff.
4. TurntheignitiontoLOCK/OFF.
   5.RepeatSteps2–4twomore times.Afterthethirdtime,turn toON/RUN;thekeyislearned

andallpreviouslyknownkeys willnolongerworkwiththe vehicle.

1. To learn these second key, turn to OFF and insert these second key to be learned and rot ateto ON/RUN.

Afterthetwokeysarelearned, remainingkeyscanbelearned by followingtheprocedurein "Programmingwithtwo RecognizedKeys."

BatteryReplacement

Caution

Whenreplacingthebattery,do nottouchanyofthecircuitryon thetransmitter.Staticfromyour bodycoulddamagethe transmitter.

The battery is not rechargeable. To replace the battery:

1. Pressthebuttononthe transmittertoextendthekey.

Close-up of a silver and black flip car with a white arrow pointing to the side (no text or symbols visible)

1. Removethebatterycoverby pryingitwithafinger.
2. Removethebatterybypushing onthebatteryandslidingit towardthekeyblade.
3. Insertthenewbattery, positive sidefacingup. Push the batterydownuntilisheldin place. Replace with a CR2032 equivalent battery.
4. Snapthebatterycoverbackon tothetransmitter.

RemoteVehicleStart

Ifequipped, this feature allows the enginetobestarted from outside the vehicle.

Q: This button will be on the RKE transmitter if the vehicle has a remote start.

Theclimatecontrolsystemwilluse theprevioussettingsduringa remotestart.Thereardefoggerand heatedseatsmaycomeonduring remotestartbasedoncoldambient conditions.SeeHeatedFrontSeats 49and Vehicle Personalization113.

Lawsinsomelocalcommunities may restrict the use of remote starters. Forexample, somelaws require a person using remotestart to have the vehicle in view. Check local regulations for any requirements.

If the vehicle is slow on fuel, donot us ether remotestart feature. The vehicle may run out off fuel.

Otherconditionscanaffectthe performanceofthetransmitter.See RemoteKeylessEntry(RKE) System23.

StartingtheVehicle

Tostarttheengineusingtheremote startfeature:

1. Pressandrelease

1. Immediately after completing

Step1, pressandhold Qfor leastfoursecondsoruntilthe turnsignallampsflash.The turnsignallampsflashing confirmstherequesttoremote startthevehiclehasbeen received.

Whenthevehiclestarts, the parking lampswillturnonandremainonas longastheengineisrunning. The doorswillbelockedandtheclimate controlsystemmaycomeon.

Theenginewillcontinuetorunfor 10minutesunlessatimeextension isdoneortheignitionisturnedon. After30seconds,repeatthestepsif

a10-minuteextensionisdesired. Remotestartcanbeextended onlyonce.

ThekeymustbeturnedtoON/RUN beforedriving.

ExtendingEngineRunTime

Fora10-minuteextension,repeat Steps1and2whiletheengineis stillrunning.Anextensioncanbe requested30secondsafterstarting.

Theremotestartcanbe extendedonce.

When theremotestartisextended, thesecond 10minuteswillstart immediately.

Forexample, if the engine has been running for five minutes, and 10 minutes are added, the engine will run for total of 15 minutes.

A maximumoftworemotestarts, orasinglestartwithanextension, isallowedbetweenignitioncycles.

The vehicle'signitionmust be turned on and then back off before theremotestart procedure can be used again.

CancelingaRemoteStart

Tocancelaremotestart,dooneof thefollowing:

• Pressandhold ∅untilthe parkinglampsturnoff.
• Turnonthehazardwarning flashers.
  • Turnthevehicleonandthenoff.

ConditionsinWhichRemoteStart WillNotWork

Theremotevehiclestartfeaturewill notoperateif:

• Thekeyisintheignition.
• Thehoodisnotclosed.
- Thehazardwarningflashers areon.
- Themalfunctionindicatorlamp ison.
- Theenginecoolanttemperature istoohigh.
• Theoilpressureislow.
- Tworemotevehiclestarts,ora singleremotestartwithan extension,havealready beenused.

• ThevehicleisnotinP(Park).

DoorLocks

Warning

Unlockeddoorscan be dangerous.

• Passengers, especially children, caneasily open the doors and fallout of a moving vehicle. The chance of being thrown out of the vehicle in acrash is increased if the doors are not locked. So, all passengers should wear safety belts properly and the door should be locked whenever the vehicle is driven.
• Youngchildrenwhogetinto unlockedvehiclesmaybe unabletogetout.Achild canbeovercomeby extremeheatandcansuffer permanentinjuriesoreven (Continued)

Warning(Continued)

deathfromheatstroke. Alwayslockthevehicle wheneverleavingit.

- Outsiderscaneasilyenter throughanunlockeddoor whenslowingorstopping thevehicle.Lockthedoors tohelppreventthisfrom happening.

Tolockorunlockthedoorsfrom outsidethevehicle:

• Press 📞or 📞ontheRemote KeylessEntry(RKE)transmitter.
• Usethekeyinthedriverdoor.

Tolockorunlockthedoorsfrom insidethevehicle:

• Press 📄or 📋onthepowerdoor lockswitch.
• Pullinganinteriordoorhandle willunlockthedoor.Pullingthe doorhandleagainunlatchesit.

28Keys, Doors, and Windows

Free-TurningLocks

The doorlock cylinder turns freely when either the wrong key is used, or the correct key is not fully inserted. The free-turning doorlock feature prevents the lock from being forced open.

Toresetthelock,turnittothe verticalpositionwiththecorrectkey fullyinserted.Removethekeyand insertitagain.

If this does not reset the lock, turn the key halfway around in the cylinder and repeat the reset procedure.

PowerDoorLocks

Interior view of a car dashboard with control panel and directional arrow (no text or symbols)

The centrallockingswitchlocksand unlocksbothdoors, the trunk, and the fueldoor.

:Presstounlock.

:Presstolock.

DelayedLocking

Thisfeatureddelaysthelockingof thedoorsuntilfivesecondsafterall doorsareclosed.

When dispressed on the power door lock switch while the door is open, achimewill sound three times indicating delayed locking is active.

Thedoorswilllockautomatically fivesecondsafteralldoorsare closed. If a door is reopened before that time, the five-second timer will reset when all doors are closed again.

Press 📞onthedoorlockswitch againorpress 📞ontheRKE transmittertolockthedoors immediately.

Thisfeaturecanalsobe programmed. See Vehicle Personalization→113.

AutomaticDoorLocks

Thedoorswilllockautomatically whenalldoorsareclosed,the ignitionison,andthevehicleis shiftedoutofP(Park).

Tounlockthedoors:

- Press ☐ on the power door lock switch.

- Shiftthetransmissioninto P(Park).

Automaticdoorlockingcannot be disabled.Automaticdoorunlocking canbeprogrammed.See Vehicle Personalization⇒113.

LockoutProtection

Whenlockingisrequestedwiththe driverdooropenandthekeyinthe ignition,allthedoorswillockand thenthdriverdoorwillunlock.This canbemanuallyoverriddenby pressingandholding ☐onthe powerdoorlockswitch.

IfOpenDoorAnti-Lockoutisturned on,thevehicleisoffwiththedriver dooropen,anddoorlockingis requested,allthedoorswilllockand onlythedriverdoorwillunlock.The OpenDoorAnti-Lockoutfeaturecan beturnedonoroff.See Vehicle Personalization→113.

Doors

Trunk

Warning

Exhaustgasescanenterthe vehicleifitisdrivenwiththe liftgateortrunk/hatchopen, orwithanyobjectsthatpass throughthesealbetweenthe bodyandthetrunk/hatchor liftgate.Engineexhaustcontains carbonmonoxide(CO)which cannotbeseenorsmelled.Itcan causeunconsciousnessandeven death.

If the vehicle must be driven with the lift gate or trunk/hatch open:

• Closeallofthewindows.
• Fullyopentheairoutletson orundertheinstrument panel.
• Adjusttheclimatecontrol systemtoasettingthat bringsinonlyoutsideair

(Continued)

Warning(Continued)

andsetthefanspeedtothe highestsetting.See "ClimateControlSystems" intheIndex.

- If the vehicle is equipped with a power lift gate, disable the power lift gate function.

SeeEngineExhaust→233.

TrunkRelease

Toopenthetrunk, the vehicle must be offortheshift levermust be in P(Park).

30Keys, Doors, and Windows

Close-up of a car's rear bumper with a circular opening and a magnified inset showing the nose area (no text or symbols visible)

• Pressthelowerhalfofthe emblemonthetrunklid.
• Pressandhold 📄 onthe RemoteKeylessEntry(RKE) transmitter.

Emergency Trunk Release Handle

Stylized graphic of a car with motion indicators and a running figure inside a container (no text or symbols)

Caution

Donotusetheemergencytrunk releasehandleasatie-downor anchorpointwhensecuringitems inthetrunkasitcoulddamage thehandle.

Thereisaglow-in-the-dark emergencytrunkreleasehandleon thetrunklid. Thishandlewillglow followingexposuretolight.Pullthe releasehandletoopenthetrunk fromtheinside.

Top-down view of a car interior with silhouettes of a car, running person, and directional arrows indicating movement (no text or symbols)

Afterpullingtheemergencytrunk releasehandle,pushthehandle backintothebezel

VehicleSecurity

This vehicle has the theft-deterrent features; however, they donot make the vehicle impossible to steal.

VehicleAlarmSystem

This vehicle has an anti-theftalarm system.

Close-up of a car roof structure with curved roof and ventilation duct (no text or symbols visible)

The indicator light, on the instrument panel near the windshield, indicates the status of the system:

Off: Alarmsystemisdisarmed.

OnSolid: Vehicleissecured duringthedelaytoarmthesystem.

FastFlash: Vehicle is unsecured. Adoor, the hood, the convertible top, orthetrunkisopen.

SlowFlash:Alarmsystemis armed.

ArmingtheAlarmSystem

1. Closethetrunkandthehood. Turnoffthevehicle.

2. Lockthevehicleinoneof twoways:

3. UsetheRKEtransmitter.

4. Withadooropen, pressthe inside 🔒.

5. After 30 second the alarm system will alarm, and the indicator light will begin to slowy flash indicating the alarms system is operating. Pressing ☐ on the RKE transmitter second timewill bypass the 30-second delay and immediately arm the alarm system.

The vehicle alarmsystem will not arm if the doors are locked with the key.

Ifthedriverdoorisopenedwithout firstunlockingwiththeRKE transmitter,thehornwillchirpand theturnsignallightswillflashto indicatepre-alarm.Ifthevehicleis notstarted,orthedoorisnot unlockedbypassing 📞ontheRKE transmitterduringthe10-second pre-alarm,thealarmwillbe activated.

Ifadoor,thehood,orthetrunkis openedwithoutfirstdisarmingthe system,theturnsignalswillflash andthehornwillsoundforabout 30seconds.Thealarmsystemwill thenre-armtomonitorforthenext unauthorizedevent.

DisarmingtheAlarmSystem

Dooneofthefollowingtodisarm thealarmsystemorturnoffthe alarmifithasbeenactivated:

• Press 📐 and 📞 on the RKE transmitter.
• Startthevehicle.

32Keys, Doors, and Windows

To avoid setting off the alarm by accident:

• Lockthevehicleafterall occupantshaveleftthevehicle andalldoorsareclosed.
• Alwaysunlockadoorwiththe RKEtransmitter.

Unlockingthedriverdoorwiththe keywillnotdisarmthesystemor turnoffthealarm.

HowtoDetectaTamper Condition

If ispressed on the RKE transmitter and the horn chirps and the turn sign all lights flash three times, analarmoccurred previously while the alarmsystem was armed.

If the alarm has been activated, a message will appear on the DIC.

Immobilizer

SeeRadioFrequency Statement→357.

ImmobilizerOperation

This vehicle has a passive theft-deterrent system.

Thesystemdoesnothavetobe manuallyarmedordisarmed.

The vehicle is automatically immobilized when the key is removed from the ignition.

Thesystemisautomatically disarmedwhenthevehicleis startedwiththecorrectkey. Thekey usesatransponderthatmatchesan immobilizercontrolunitinthe vehicleandautomaticallydisarms thesystem. Onlythecorrectkey startsthevehicle. Thevehiclemay notstartifthekeyisdamaged.

Thesecuritylightintheinstrument clustercomesonifthereisa problemwitharmingordisarming thetheft-deterrentsystem.

Whentryingtostartthevehicle, the securitylightcomesonbrieflywhen theignitionisturnedon.

If theenginedoesnotstartandthe securitylightstayson,thereisa problemwiththesystem.Turnthe ignitionoffandtryagain.

Iftheenginestilldoesnotstart, and thekeyappearstobeundamaged orthelightcontinuestostayon, try anotherignitionkey.

Iftheenginestilldoesnotstartwith theotherkey,thevehicleneeds service.Ifthevehicledoesstart,the firstkeymaybedamaged.Seeyour dealerwhocanservicethe theft-deterrentsystemandhavea newkeymade.

Donotleavethekeyordevicethat disarmsordeactivatesthe theft-deterrentsysteminthevehicle.

ExteriorMirrors

ConvexMirrors

Warning

Aconvexmirrorcanmakethings, likeothervehicles, lookfarther awaythantheyreallyare. If you cuttoosharplyintotherightlane, youcouldhitavehicleonthe right. Checktheinsidemirroror glanceoveryourshoulderbefore changinglanes.

Thepassengersidemirrorisconvex shaped. Aconvexmirror'ssurfaceis curvesomorecanbeseenfrom thedriverseat.

PowerMirrors

Close-up of a car dashboard with a circular control dial and a magnified inset showing the left side (no text or symbols visible)

1. TurntheselectorswitchtoL (Left)orR(Right)tochoose thedriverorpassengermirror.

2. Movethe control to adjust the mirror.

3. Turntheselectorswitchto todeselectthemirror.

FoldingMirrors

ManualFoldingMirrors

Thevehiclehasmanualfolding mirrors. Thesemirrorscanbefolded inwardtopreventdamagewhen goingthroughanautomaticcar wash. Tofold, pullthemirrortoward thevehicle. Pushthemirroroutward toreturnittotheoriginalposition.

HeatedMirrors

Ifequippedwithheatedmirrors:

:Therearwindowdefoggeralso heatstheoutsidemirrors.

See Dual Automatic Climate Control System→213.

InteriorMirrors

InteriorRearviewMirrors

Adjusttherearviewmirrorforaclear viewoftheareabehindthevehicle.

Donotsprayglasscleanerdirectly onthemirror.Useasofttowel dampenedwithwater.

AutomaticDimming RearviewMirror

Therearviewmirrorautomatically dimstoreducetheglareofthe headlampsfrombehind. This featurecomesonwhenthevehicle isstarted.

Windows

Warning

Neverleaveachild,ahelpless adult,orapetaloneinavehicle, especiallywiththewindows closedinwarmorhotweather. Theycanbeovercomebythe extremeheatandsuffer permanentinjuriesorevendeath fromheatstroke.

Interior view of a car with a child seated in the seat, no visible text or symbols

The vehicle aerodynamics are designed to improve fueleconomy performance. This may result in

pulsingsoundwheneitherrear windowisdownandthefront windowsareup. Toreducethe sound,openeitherafrontwindow orthesunroof,ifequipped.

PowerWindows

Warning

Childrencouldbeseriously injuredorkilledifcaughtinthe pathofaclosingwindow.Never leavekeysinavehiclewith children.Whentherearechildren intherearseat,usethewindow lockoutbuttontoprevent operationofthewindows.See Keys→21.

Interior view of a car showing steering wheel, dashboard, and seatbelt (no text or symbols visible)

Thewindowsworkwhenthevehicle isinON/RUNorACC/ACCESSORY,orwhenRetained AccessoryPower(RAP)isactive. SeeRetainedAccessoryPower (RAP)↔231.

Pressorpulltheswitchtoopenor closethewindow.

Thewindowswillbetemporarily disabledifthewindowswitchesare usedrepeatedlywithinashorttime.

WindowExpressMovement

Express-down/upallowsthe windowstobeopenedorclosed withoutholdingthewindowswitch. Pressthewindowswitchfullydown

orpullitup, and quickly release it to engage. Briefly pressorpull the sameswitchtostopwindow movement.

CentralPowerWindowSwitch

Interior view of a car airway with a hand valve and a close-up inset showing the right-hand side of the door (no text or symbols visible)

Thecentralpowerwindowswitch willexpress-openallwindowswhen pressed.Pulltoexpress-close.

ExpressWindowObstacle Detection

Theexpress-upfeaturewillreverse windowmovementifitcomesin contactwithanobject.Extremecold oricecouldcausethewindowto

auto-reverse. Thewindowwill operateasnormalaftertheobjector conditionisremoved.

ObstacleDetectionOverride

Warning

Ifobstacledetectionoverrideis activated, the window will not reverse automatically. You or others could be injured and the window could be damaged. Before you use obstacledetection override, makes sure that all people and obstructions are clear of the window path.

Thewindowcanbeclosed by holdingthewindowswitchintheup positionifconditionspreventitfrom expressclosing.

WindowOperationwith ConvertibleTop

Windowswillautomaticallylower fullywhentheconvertibletopis loweredorraised.SeeConvertible Top⇒37.

ProgrammingthePower Windows

Ifthebatteryonthevehiclehas beenrechargedordisconnected, orisnotworking,thewindowswith theexpress-upfeaturewillneedto bereprogrammedforthefeatureto work.Ifpowerislost,therear windowsmustbereprogrammed first.Beforeereprogramming,replace orrechargethevehicle'sbattery.

Toprogramawindow:

1. With the ignition in ON/RUN or ACC/ACCESSORY, or when Retained Accessory Power (RAP) is active, close all doors.
2. Pullandholdthepower windowswitchuntilthewindow isfullyclosed. Continue holdingtheswitchupfor approximatelyfiveseconds afterthewindowiscompletely closed.
3. Pressthepowerwindowswitch downuntilthewindowisfully open. Continueholdingthe

switchdownforapproximately fivesecondsafterthewindow iscompletelyopen.

Thewindowisnowreprogrammed. Repeat the process for the other windows.

WindowIndexing

Ifthewindowfreezestothedoor, pushthetopofthewindowinward whileopeningthedoor.Clearallthe snowandicefromthedoorand glass.

Thenopenthewindowcompletely andthencloseit.

Thedoorcannowbeclosed.

Whenfullyclosed,indexing automaticallylowersthewindowa smallamountwhenthedooris opened.Whenthedorisclosed, thewindowwillraisetoitsprevious position.Ifeitherwindowdoesnot indexproperly,itcouldbedueto lossofpower.Beforeseeingyour dealerforserviceprogramthe powerwindows.

RemoteWindowOperation

Thisfeatureallowsallthewindows tobeopenedremotely.Pressand hold 📄ontheRKEtransmitter.

SunVisors

Diagram showing two car door lockers with directional arrows indicating movement (no text or symbols)

Pullthesunvisordowntoblock glare.Detachthesunvisorfromthe centermounttopivottotheside windowor,ifequipped,extend alongtherod.

Roof

ConvertibleTop

Reviewthefollowingbefore operating:

Warning

While opening or closing the convertible top, people can be injured by themoving part so the tonneau cover or convertible top. Maintain visual contact with the top while it is being operated.

Caution

Followtheseguidelineswhen operatingtheconvertibletopor damagecanoccur:

- Remove all items from the roof, trunklid, ortonneau cover before operating. (Continued)

Caution(Continued)

• Removealobjectsfromthe trunkthatmaycontactthe convertibletopwhenitis operated.
• Donotleavethevehicle withtheconvertible topopen.
• Donotexceed50km/h (31mph)untilthetophas completelyclosedor opened.
• Donotopenorclosethetop whiledrivinginhighwind conditions.
• Donotoperatethe convertibletopmultiple timesinashortperiodof timewithoutstartingthe enginetoavoiddrainingthe vehiclebattery.

(Continued)

Caution(Continued)

• Donotopenorstorethe convertibletopwhenitis dirtyorwet. This could result in stains, mildew, or other damage.
• Onlystorethevehiclewith thetopfullyclosed.

OpeningtheConvertibleTop

1. Placethepartitionintherear storageareaintheupright position.SeeRear Storage→89.
   2.Closethetrunk.
2. Startthevehicleorplaceitin ACC/ACCESSORY.
3. When possible, operate the convertible top when the vehicle is stopped. Thetopcan be operated while driving below 50 km/h (31 mph) and will stop if that speed is exceeded. Thetopoperation will take approximately

38Keys, Doors, and Windows

25seconds.Makesurethetop operationcanbecompleted beforethatspeedisreached.

Close-up of a car's rearview and side view showing the wheel and seat (no text or symbols visible)

1. Pullandholdthefrontofthe convertibleswitch. The windowswillautomatically lower.

2. Continue holding until the convertible top is completely open. Achimewills sound. Releasetheswitch.

7.Brieflypullthecentralpower windowswitchtocloseall windows.

Iftheradioison,thesoundmaybe mutedforabrieftimeduetoanew audiosystemequalizationbeing loaded.

ClosingtheConvertibleTop

1. Makesurethesunvisormirror coversareclosedandthesun visorsarestoredinthecenter mountposition.

2.Closethetrunk.

1. Startthevehicleorplaceitin ACC/ACCESSORY.

2. When possible, operate the convertible top when the vehicle is stopped. Thetopcan be operated while driving below 50 km/h (31 mph) and will stop if that speed is exceeded. Thetopoperation will take approximately 25 seconds. Makes sure the top operation can be completed before that speed is reached.

Close-up of a car interior component with a black arrow pointing to a specific part (no text or symbols visible)

1. Pressandholdthefrontofthe convertibletopswitch. The windowswillautomatically lower.

2. After the convertible top is completely closed, achimewill sound. Releasetheswitch.

3. Brieflypullthecentralpower windowswitchtocloseall windows.

Iftheradioison,thesoundmaybe mutedforabrieftimeduetoanew audiosystemequalizationbeing loaded.

Troubleshooting

Checkthefollowingifthe convertibletopswitchisnot operating:

• TheignitionsouldbeinACC/ACCESSORYorON/RUN, orRetainedAccessoryPower (RAP)shouldbeactive.
• Thetrunklidshouldbeclosed withthetrunkpartitioninplace. ADriverInformationCenter (DIC)messagewilldisplay.
• IftheONLYMANUAL OPERATIONOFTOP POSSIBLEmessageis displayedontheDIC,see "ManualClosingofTop"laterin thissection.

• At cooleroutsidetemperatures, theconvertibletopmaynot open.Itispossibletoclosethe topdowntotemperaturesof about-20°C(-4°F).ADIC messagewilldisplayifthetop willnotopenduetolow temperature.Ifnecessary,move thevehicletoaheatedindoor areatooperatethetop.

• Ifthetophasrecentlybeen cycledrepeatedlyorleftinan intermediatestate,itwillbe temporarilydisabled.ADIC messagedisplays.Normal operationwillberestoredwithin 10minutesafterthesystemhas cooled.

• Ifthevehiclebatteryislow, the powertopoperationmaybe disabled. Trytostartthevehicle. ADICmessagedisplays.
• If the battery has recently been reconnected or if the vehicle has been jump started, the top may not operate until the power window have been programmed. Completes the power window programming procedure. See Power Windows 34.

Otherfeaturesmaybeaffected whileoperatingtheconvertibletop:

• Thetrunkcanonlybeopened whentheconvertibletopis completelyopenedorclosed.
• Thewindows cannot close while the topismoving.

- Whendrivingwiththetopnot fullysecured,chimescanbe heardabove80km/h(50mph).

If the vehicle battery has been disconnected and reconnected, the fuses were pulled or replaced, or a jump start was performed, the TOP NOT SECURE message may display. Press and hold the front of the convertible top switch to open/ closetetop until this message is cleared.

PartialTopCycling

Iftheconvertibletopoperationis stoppedbeforecompletion,thetop willtemporarilyholditsposition. IftheignitionisinACC/ACCESSORYorON/RUN,thetop willbeheldforupto10minutes. Ifthevehicleismovingoroff,the amountoftimewillvaryfromafew secondstoaboutaminate.

ChimesandDICmessageswillbe displayedbeforethetopwillmove. Whenthisoccurs,immediatelyfinish theconvertibletopoperationby pressingtheswitchagainuntil completes.

40Keys, Doors, and Windows

Ifthetopcannotbesecured, keep clearofthetopcomponents. In someconditionsthetopmaymove quickly.

Donotdrivewiththeconvertibletop inanunsecuredposition. Thetop componentsmaymove unexpectedly.Insomecasesthe topmaynotbeabletobepower operated.Ifthisoccurs,followthe DICmessagesdisplayed.

Ifthetonneaucoversisnotsecured andlatched, and the vehicle is moving above 10km/h (6mph), the tonneau cover may automatically movetoastable position.

ManualClosingofTop

IftheDICdisplaystheONLY MANUALOPERATIONOFTOP POSSIBLEmessage:

1. Pressandholdorpullandhold thefrontoftheconvertibletop switchtoeitheropenorclose thetop.Pressorpulltheswitch intheoppositedirectionifone doesnotwork.

2. If the top moves, continue holding the switch that direction for at least five seconds. The top should then work normally.

Ifthetopdoesnotrespondineither direction, usethefollowing proceduretomanuallyclosethe convertibletopandtonneaucover beforeservicingifneeded. This requiresmorethanoneperson.

Thereisahexwrenchinthe glovebox.Thereisalsostringinthe gloveboxforyourdealertomanually securethetopcompletelyifneeded.

1. Placetheignitionswitch inOFF.

Close-up of a car's front compartment showing the door, seatbelt, and dashboard (no text or symbols visible)

1. Openthetrunkandpullthe tonneaucoverreleaselever downward.
2. Closethetrunk. Thetrunk cannotbeopened from this stepforward.

Keys, Doors, and Windows41

Close-up of a car's roof and side panel showing a black cover with an arrow pointing to the top section (no text or symbols visible)

1. With an additional person, lift the tonneau cover from both sidesto approximately the half raised position.

2. With the tonneau cover being held in the half raised position, insert the hex wrench into the marked position of the flap drive unit. Turn the wrench clockwise to the stop. The sideways flaps will turn inward.

3. With an additional person, raisethetonneau cover to the fully open position.

3D rendering of a car's front compartment showing engine and dashboard components (no text or symbols)

1. Lifttheconvertibletopby pullinguponbothsidesofthe frontbowandtensionbow.

Side view of a car showing internal engine bay and dashboard components (no visible text or symbols)

8.Movethefrontbowtothe windshieldframe.

Close-up of a car interior panel with a black arrow pointing to a component (no text or symbols visible)

42Keys, Doors, and Windows

1. Removethecapcoveringthe manualclosureopening.There isarecessinthecaptosnapit offusingatool.Insertthehex wrenchintotheopeningand thenturnthewrenchclockwise untilitsops.Theconvertible topisnowlocked.

Close-up of a car's front window showing the hood and side panel, with arrows pointing to specific sections (no text or symbols visible)

1. Liftupthetensionbowonboth sidesandraisethetonneau covertoapproximatelythehalf raisedposition,andthenallow ittoslideintotheclosed position.

2. Lowerthetensionbow.

Atthistimethevehiclecanbe driven,howevertheconvertible topisnotlatchedattherear andwillnotbecompletely waterproof.Seeyourdealerto servicetheconvertibletop system.

CleaningtheConvertibleTop

Theconvertibletopshouldbe cleanedoften.Donotuse high-pressurecarwashesasthese maycausewatertoenterthe vehicle.

Handwashtheconvertibletopin partialshade. Use mild soap, lukewarmwater, and asoft sponge. Achamoisor cloth may leavelinton the top, and abrush canchafethe threads in the top fabric. Donotuse detergents, harsh cleaners, solvents, or bleaching agents.

Wettheentiretopandletthesoap remainonthefabricforafew minutes.Washevenlytoavoid spotsorrings.Whenthetopisvery dirty,useamildfoam-typecleaner. Thoroughlyrinsetheentirevehicle, thenletthetopdryindirectsunlight.

Toprotecttheconvertibletop:

- Makesuretheconvertibletopis completelydrybeforeloweringit.

- Donotgetanycleaneronthe vehicle'spaintedfinish;itcould leavestreaks.

WindDeflectors

Interior view of a car showing the dashboard and seat area with directional arrows indicating movement (no text or symbols present)

Therearetwowinddeflectorsina stowagebagbehindtherearseat backrests.SeeRearSeats→50.

- Thesmallwinddeflectorcanbe placedbetweentherearhead restraints.

- Thelargewinddeflectorcanbe placedbehindthefrontseats.

Donotplaceanyobjectsonthe winddeflectors.

InstallingtheSmallWindDeflector

Close-up of a mechanical component with a black arrow pointing to a specific part (no visible text or symbols)

1. Removethecoverfromthe mountbetweentherearhead restraintsbyslidingittoward theriversideofthevehicle.

Interior view of a car showing a rearview mirror and seat assembly (no text or symbols visible)

1. Insert the deflector into the deflectormount.

3.Slidethedeflectortowardthe passengersideofthevehicle untilitlocks.

1. Raisetherearseatbacks.

Reversethestepstoremovethe smallwinddeflector.

InstallingtheLargeWindDeflector

Therearseatcannotbeoccupied whenthelargewinddeflectoris inuse.

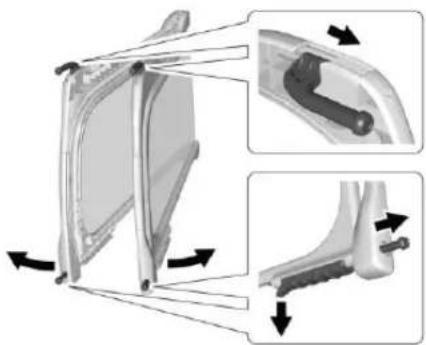

Mechanical assembly diagram showing a bracket with directional arrows indicating movement, no text or symbols present.

1. Turntheupperlockingpinsout ofthebracketsonthewind deflector.

2. Liftthetabstoopenthelower lockingpins.

3. Openthewinddeflector.

44Keys, Doors, and Windows

Interior view of a car dashboard with seatbelt and steering wheel (no text or symbols visible)

1. Insertthedriversidepinsinto thetrimrecesses.
2. Slightly fold the deflector at the center hinge and insert the passengerside pins into the trim recesses.
3. Push the center of the deflector downtofully engagethepins.

Interior view of a car showing the dashboard and seat area with directional arrows indicating flow or movement (no text or symbols present)

1. Foldthefronthalfofthe deflectortothevertical position.

ReverseSteps1-7toremovethe largewinddeflector.

StowingtheWindDeflectors

1. Afterstowing both deflectors in the stowage bag, lower the rearseatbacks.

Interior view of a car showing seatbelt and dashboard with an arrow pointing to the seat (no text or symbols present)

1. Insertthetopofthebaginthe stowagecompartment.Align theremainderofthebagtofit, andsecureitwiththestraps.

Seatsand Restraints

HeadRestraints

HeadRestraints......46

FrontSeats

PowerSeatAdjustment.....47

LumbarAdjustment.....48

RecliningSeatbacks......48

SeatbackLatches......49

HeatedFrontSeats......49

RearSeats

RearSeats......50

SafetyBelts

SafetyBelts....52

HowtoWearSafetyBelts Properly....53

Lap-ShoulderBelt....54

SafetyBeltUseDuring Pregnancy....56

SafetyBeltExtender......56

SafetySystemCheck......57

SafetyBeltCare....57

ReplacingSafetyBeltSystem PartsafteraCrash......57

AirbagSystem

AirbagSystem......58

WhereAretheAirbags?......59

WhenShouldanAirbag Inflate?......60

WhatMakesanAirbag Inflate?......61

HowDoesanAirbag Restrain?......61

WhatWillYouSeeafteran AirbagInflates?......62

RollBars....63

PassengerSensingSystem...63

ServicingtheAirbag-Equipped Vehicle....67

AddingEquipmenttothe Airbag-EquippedVehicle.....68

AirbagSystemCheck......68

ReplacingAirbagSystemParts afteraCrash....69

ChildRestraints

OlderChildren......69

InfantsandYoungChildren....71

ChildRestraintSystems......73

WheretoPuttheRestraint.....75

LowerAnchorsandTethersfor Children(LATCHSystem)....76

ReplacingLATCHSystemParts AfteraCrash......83

SecuringChildRestraints(With the SafetyBeltinthe

RearSeat)....83

SecuringChildRestraints(With the SafetyBeltinthe

FrontSeat)......85

HeadRestraints

Warning

Withheadrestraintsthatarenot installedandadjustedproperly, thereisagreaterchancethat occupantswillsufferaneck/spinalinjuryinacrash.Donot driveuntiltheheadrestraintsfor allooccupantsareinstalledand adjustedproperly.

Side profile illustration of a man in a car seat, showing head, torso, and seat (no text or symbols)

Adjusttheheadrestraintsothatthe topoftherestraintisatthesame heightasthetopoftheoccupant's head. Thispositionreducesthe chanceofaneckinjuryinacrash.

FrontSeats

The vehicle's frontseat have adjustable head restraints in the outboard seating positions.

Top-down view of a car headrest with double-headed arrows indicating vertical and horizontal motion (no text or symbols)

Toraiseorlowertheheadrestraint, pressthebuttononthesideofthe headrestraint,andpulluporpush theheadrestraintdown,and releasethebutton.Pullandpushon

theheadrestraintafterthebuttonis releasedtomakesurethatitis lockedinplace.

3D rendered human figure with a black arrow pointing to the shoulder area (no text or symbols)

Toadjusttheheadrestraintforward, grasptheheadrestraintandpull forwardtothedesiredlocked position. Toadjusttheheadrestraint rearward, grasptheheadrestraint andpullforwardfully, until the mechanismreleasesandallowsthe headrestraint toreturntothefull rearposition.

ActiveHeadRestraints

YourvehiclehasanActiveHead RestraintSysteminthefront outboardseatingpositions. These automaticallyactivatetoreducethe riskofneckinjuryifthevehicleishit frombehind.

Warning

If your head restraint has been activated dueto a rear collision, you must return the vehicle to the dealer for inspection and re-setting or replacement of the system.

RearSeats

The vehicle's rearseatshave non-adjustable headrestraints in the outboard seating positions.

Therearheadrestraintsare designedtoberemoved.See"Head RestraintRemovaland Reinstallation"underLowerAnchors andTethersforChildren(LATCH System)76.

If you are installing a child restraint in therearse at, see "Securinga Child Restraint Designed for the LATCH System" under Lower Anchors and Tethers for Children (LATCH System) 76.

FrontSeats

PowerSeatAdjustment

PowerDriverSeatAdjustment

Car seat assembly diagram showing directional arrows indicating movement, no text or symbols present

Toadjustapowerdriverseat, ifequipped:

• Movetheseatforwardor rearwardbyslidingthecontrol forwardorrearward.
• Raiseorlowerthefrontpartof theseatcushionbymovingthe frontofthecontrolupordown.

48SeatsandRestraints

- Raiseorlowertheentireseatby movingtherearofthecontrolup ordown.

LumbarAdjustment PowerLumbar

Car seat assembly diagram showing internal components and directional arrows (no text or labels)

Ifequipped, pressandholdthefront oftheswitchtoincreaselumbar support, ortherearoftheswitchto decreaselumbarsupport.

Toadjusttheheightofthesupport, pressandholdthetoporbottomof theswitch.Releasetheswitchwhen theseatbackreachesthedesired leveloflumbarsupport.

RecliningSeatbacks

Warning

Ifeitherseatbackisnotlocked, it couldmoveforwardinasudden stoporcrash. Thatcouldcause injurytothepersonsittingthere. Alwayspushandpullonthe seatbackstobesuretheyare locked.

3D illustration of a car seat with directional arrows indicating movement or force (no text or symbols)

Toadjustthepowerseatback:

- Tiltthetopofthecontrol rearwardtorecline.

- Tiltthetopofthecontrolforward toraise.

Warning

Sittinginareclinedpositionwhen thevehicleisinmotioncanbe dangerous.Evenwhenbuckled up,thesafetybelts cannotdo theirjob.

Theshoulderbeltwillnotbe againstyourbody.Instead,itwill beinfrontofyou.Inacrash,you couldgointoit,receivingneckor otherinjuries.

Thelapbeltcouldgoupover yourabdomen. Thebeltforces wouldbethere, notatyourpelvic bones. This could cause serious internal injuries.

Forproperprotectionwhenthe vehicleisinmotion,havethe seatbackupright.Thensitwell backintheseatandwearthe safetybeltproperly.

Illustration of a person lying on their back with a no-smoking symbol above, holding a long object (no text or symbols present)

Donothaveaseatbackreclinedif thevehicleismoving.

SeatbackLatches

3D rendering of a car seat with black arrows indicating movement or force direction (no text or symbols)

Tofoldtheseatback, lifttherelease leverandfoldtheseatbackforward. Theseatwillslideforward.

Toraise, lift theseatback to its upright position until theseatlocks. Theseat will slide back to the original position.

Incasetheseatbackcannotfold andisblockedbytheheadrestraint, movetheseatbackwardor downwardslightly,oradjustthe headrestrainttoalowerposition. SeePowerSeatAdjustment→47or HeadRestraints→46.

Obstructions

If theseatencountersan obstructionorresistancewhile slidingforwardorbackward, the actionisstoppedandtheseatwill moveintheoppositedirection.

HeatedFrontSeats

Warning

If you cannot feel temperature change or paint to the skin, the seat theater may cause burns. To reduce risk of burns, people with such conditions should use care when using these seat theater, especially for long period so time. Don't place anything on these at that insulates against heat, such as a blanket, cushion, cover, or similar item. This may cause these seat theater to overheat. An overheated seat theater may cause a burn or may damage these seat.

50SeatsandRestraints

Interior view of a car dashboard with three hand gestures and control panels (no text or symbols visible)

Ifequipped, the controls are on the climate control panel. The engine must be running to operate the heated seats.

Press 📋or 🌐toheatthedriveror passengerseatcushionand seatback.

Pressthecontrolonceforthe highestsetting.Witheachpressof thecontrol,theheatedseatwill changetothenextlowersetting, andthentheoffsetting.Threelights indicatethehighestsettingandone lightthelowest.

Thepassengerseatmaytake longertoheatup.

RemoteStartHeatedSeats

Whenitiscoldoutside,theheated seatscanbeturnedon automaticallyduringaremote vehiclestart.Theheatedseatswill becanceledwhentheignitionis turnedon.Presstheheatedseat controlstousetheheatedseats afterthevehicleisstarted.

Theheatedseatindicatorlightson thecontroldonotturnonduringa remotestart.

Thetemperatureperformanceofan unoccupiedseatmaybereduced. Thisisnormal.

Theheatedseatswillnotturnon duringaremotestartunlesssthe heatedseatfeatureisenabledin thevehiclepersonalizationmenu. SeeRemote Vehicle Start→26and Vehicle Personalization→113.

RearSeats

Eithersideoftherearseatbackcan befoldedformorecargospaceorto accessthewinddeflectorbag.

Warning

Take care when operating the foldablerearseats. Therear seatbackfoldsforward with considerable power which can cause injury, particularly to children. Ensure that nothing is attached to there are seats or on these at cushion.

Caution

Foldingarearseatwiththesafety beltsstillfastenedmaycause damagetheseatorthesafety belts.Alwaysunbucklethesafety beltsandreturnthemtotheir normalstowedpositionbefore foldingarearseat.

Tofoldtherearseatbacks:

1. Removethewinddeflectorif installed.
   2.Movethefrontseatsforwardor removetherearhead restraints.SeePowerSeat Adjustment→47orLower AnchorsandTethersfor Children(LATCHSystem)→76 forheadrestraintremoval instructions.Storethehead restraintsinthecargoarea.

Mechanical assembly diagram showing a motor and gear mechanism (no text or labels)

1. Pullthereleaseswitchinthe trunktofoldtherear seatbackdown.

2. Foldtheseatbackforward.

3. RepeatSteps1–4fortheother seatback,ifnecessary.

Toraisetheseatback:

Warning

Asafetybeltthatisimproperly routed, not properly attached, ortwisted will not provide the protection needed in acrash. The person wearing the belt could be seriously injured. After raising the reseatback, always check to be sure that the safety belts are properly routed and attached, and are not twisted.

1. Lifttheseatbackupandpushit rearwarduntillatchesinto place. Keepthesafetybelts clearoftheseatback and untwisted.

Warning

If theseatbackisnotlocked, it could move forwardinasudden stoporcrash. That could cause injury to the person sitting there. Always pull forward on the top of these at back at the area of the latch to be sure it is locked.

1. Pushandpullontheseatback tomake sureitislocked into position.
2. Reinstalltheheadrestraints, if necessary. See Lower Anchors and Tethers for Children (LATCHSystem) 76 for headrestraint reinstallation instructions.
3. RepeatSteps1–3fortheother seatback,ifnecessary

Keeptheseatintheuprightlocked positionwhennotinuse.

52SeatsandRestraints

SafetyBelts

Thissectionofthemanual describeshowtousesafetybelts properly.Italsodescribessome thingsnottodowithsafetybelts.

Warning

Donotletanyoneridewherea safetybeltcannotbeworn properly. Inacrash, if youoryour passenger(s) are not wearing safetybelts, injuriescanbemuch worsethanifyouarewearing safetybelts. You can be seriously injuredorkilled by hitting things insidethevehicleharderorby beingejectedfromthevehicle. In addition, anyone who is not buckledupcanstrikeother passengersinthevehicle.

Itisextremelydangeroustoride inacargoarea,insideoroutside ofavehicle.Inacollision, passengersridingintheseareas aremorelikelytobeseriously injuredorkilled.Donotallow

(Continued)

Warning(Continued)

passengerstorideinanyareaof thevehiclethatisnotequipped withseatsandsafetybelts.

Alwayswearasafetybelt, and checkthatallpassenger(s) are restrainedproperlytoo.

Thisvehiclehasindicatorsasa remindertobucklethesafetybelts. See SafetyBeltReminders→100.

WhySafetyBeltsWork

Illustration of a person seated in a car, wearing a helmet and holding a device (no text or symbols visible)

Whenridinginavehicle,youtravel asfastasthevehicledoes.Ifthe vehiclestopssuddenly,youkeep goinguntilsomethingstopsyou. Itcouldbethewindshield,the instrumentpanel,orthesafetybelts!

Whenyouwearasafetybelt,you andthevehicleslowdowntogether. Thereismoretimetostopbecause youstopoveralongerdistanceand, whenwornproperly,yourstrongest bonestaketheforcesfromthe safetybelts.Thatiswhywearing safetybeltsmakessuchgood sense.

QuestionsandAnswersAbout SafetyBelts

Q: Willlbetrappedinthevehicle afteracrashiflamwearinga safetybelt?

A: You could be—whether you are wearing as safety belt not. Your chance of being conscious during and after a crash, so you can unbuckle and get out, is much greater if you are belted.

Q: If my vehicle has air bags, why should have to wear safety belts?

A: Airbagsaresupplemental systemsonly; sotheyworkwith safetybelts—notinsteadof them. Whetherornotanairbag isprovided, allooccupantsstill havetobuckleuptogetthe mostprotection.

Also, innearly all states and in all Canadian provinces, the law requires wearingsafety belts.

HowtoWearSafetyBelts Properly

Thissectionisonlyforpeopleof adultsize.

Therearespecialthingstoknow aboutsafetybeltsandchildren, and therearedifferentrulesforsmaller childrenandinfants. Ifachildwill be ridinginthevehicle, see Older Children→69orInfantsandYoung Children→71. Followthoserulesfor everyone'sprotection.

Itisveryimportantforallooccupants tobuckleup.Statisticsshowthat unbeltedpeoplearehurtmoreoften incrashesthanthosewhoare wearingsafetybelts.

Thereareimportantthingstoknow aboutwearingasafetybeltproperly.

Illustration of human torso and pelvis with a black diagonal brace, shown against a grid background (no text or symbols)

- Situpstraightandalwayskeep yourfeetonthefloorinfront ofyou.

• Alwaysusethecorrectbuckle foryourseatingposition.

- Wearthelappartofthebeltlow andsnugonthehips,just touchingthethighs.Inacrash, thisappliesforcetothestrong

pelvicbonesandyouwouldbe lesslikelytoslideunderthelap belt. Ifyouslidunderit, thebelt wouldapplyforceonyour abdomen. This could cause seriousorevenfatalinjuries.

- Weartheshoulderbeltoverthe shoulderandacrossthechest. Thesepartsofthebodyarebest abletotakebeltrestraining forces. Theshoulderbeltlocksif thereisasuddenstoporcrash.

Warning

Youcanbeseriouslyinjured, orevenkilled, bynotwearing yoursafetybeltproperly.

- Neverallowthelapor shoulderbelttobecome looseortwisted.

- Neverweartheshoulder beltunderbotharmsor behindyourback.

- Neverroutethelapor shoulderbeltoveran armrest.

54SeatsandRestraints

Lap-ShoulderBelt

Allseatingpositionsinthevehicle havealap-shoulderbelt.

The following instructionsexplain howtowearalap-shoulderbelt properly.

1. Adjusttheseat, if theseatis adjustable, so you cansit up straight. Toseehow, see "Seats" in the Index.

Medical illustration of a person using a bandage to adjust the abdomen (no text or symbols present)

1. Pickupthelatchplateandpull thebeltacrossyou.Donotlet itgettwisted.

Thelap-shoulderbeltmaylock ifyoupullthebeltacrossyou veryquickly.Ifthishappens,let thebeltgobackslightlyto unlockit.Thenpullthebelt acrossyoumoreslowly.

Iftheshoulderportionofa passengerbeltispulledoutall theway,thechildrestraint lockingfeaturemaybe engaged.Ifthishappens,let thebeltgobackalltheway andstartagain.

Close-up of hands adjusting a car seatbelt with a black arrow pointing to the cable (no text or symbols visible)

1. Pushthelatchplate into the buckle until it clicks.

Pulluponthelatchplateto makesureitissecure.Ifthe beltisnotlongenough,see SafetyBeltExtender→56.

Positionthereleasebuttonon thebucklesothatthesafety beltcouldbequicklyunbuckled ifnecessary.

Illustration of a person using a bandage to cut a sword (no text or symbols present)

1. Tomakethelapparttight, pull upontheshoulderbelt.

Medical illustration showing a hand holding a wrist with a finger inserted, no text or symbols present

Tounlatchthebelt, pushthebutton onthebuckle. Thebelt should return to its stowed position.

Alwaysstowthesafetybeltslowly. Ifthesafetybeltwebbingreturns quicklytothestowedposition,the retractormaylockandcannotbe pulledout.Ifthishappens,pullthe safetybeltstraightoutfirmlyto unlockthewebbing,andthen releaseit.Ifthewebbingisstill lockedintheretractor,seeyour dealer.

Beforeadoorisclosed, besurethe safetybeltisoutoftheway. Ifa doorisslammedagainstasafety belt, damagecanoccurtoboththe safetybeltandthevehicle.

SafetyBeltPresenter

Thesafetybeltpresentersbringthe frontoutboardsafetybeltstothe fronttohelpfastenthem.

Close-up of a car seatbelt buckle with a black arrow pointing to the side panel (no text or symbols visible)

Thepresentercomesoutwhen:

• Therespectivedoorisclosed andtheignitionisturnedon.
  • Theignitionisonandthedooris closed.

Thepresentermayautomatically retractwhenanyofthefollowing occur:

• Therespectivedoorisopened again.
• Thekeyisremovedfromthe ignition.
• Therespectivelatchplateis inserted into the buckle.
• Atime-outof45seconds elapsed.
• The vehicle is driven longer than 15 seconds with as speed of more than 5 km/h (3 mph).

If the safety beltpresenter does not retract automatically, push it back slightly.

SafetyBeltPretensioners

Thisvehiclehassafetybelt pretensionersforfrontandrear outboardoccupants. Although the safetybeltpretensionerscannot be seen, they are part of the safetybelt assembly. They can help tighten the safetybelts during the early stages of a moderate to severe frontal, near frontal, or rear crash if the

56SeatsandRestraints

thresholdconditionsforpretensioner activationaremet.Safetybelt pretensionerscanalsohelptighten thesafetybeltsinasidecrashora rolloverevent.

Pretensionersworkonlyonce.Ifthe pretensionersactivateinacrash, thepretensionersandprobably otherpartsofthevehicle'ssafety beltsystemwillneedtobereplaced. SeeReplacingSafetyBeltSystem PartsafteraCrash57.

Donotsitontheoutboardsafety beltwhileenteringorexitingthe vehicleoratanytimewhilesittingin theseat.Sittingonthesafetybelt candamagethewebbingand hardware.

RearSafetyBeltComfort Guides

Rearsafetybeltcomfortguidesmay provideaddedsafetybeltcomfort forolderchildrenwhohave outgrownboosterseatsandfor someadults.Wheninstalledona shoulderbelt,thecomfortguide positionsthebeltawayfromthe neckandhead.

Comfortguidesareavailable throughyourdealerfortherear outboardseatingpositions. Instructionsareincludedwiththe comfortguide.

SafetyBeltUseDuring Pregnancy

Safetybeltsworkforeveryone, includingpregnantwomen.Likeall occupants,theyaremorelikelyto beseriouslyinjurediftheydonot wearsafetybelts.

Illustration of a person wearing a car seatbelt and driving a vehicle (no text or symbols visible)

Apregnantwomanshouldwearalap-shoulderbelt,andthelap portionshoubewornaslowas possible,belowtherounding, throughoutthepregnancy.

The best way to protect the fetus is to protect them other. When as safety belt is worn properly, it is more likely that the fetus will not be hurt in a crash. For pregnant women, as for anyone, the key to makings safety belt is effective is wearing them properly.

SafetyBeltExtender

Ifthevehicle'ssafetybeltwillfasten aroundyou,youshoulduseit.

Butifasafetybeltisnotlong enough,yourdealerwillorderyou anextender.Whenyougointo orderit,taketheheaviestcoatyou willwear,sotheextenderwillbe longenoughforyou.Tohelpavoid personalinjury,donotletsomeone elseuseit,anduseitonlyforthe seatismadetofit.Theextender hasbeendesignedforadults.Never useitforsecuringchildrestraints. Towearit,attachittotheregular

safetybelt.Formoreinformation, seetheinstructionsheetthatcomes withtheextender.

SafetySystemCheck

Check that the safety belt reminder, safety belts, buckles, latch plates, and retractors, are all working properly. Look for any other loose or damaged safety belts system parts that might keep safety belts system from performing properly. See your alert to have it repaired. Tornor frayed safety belts may not protect you in a crash. They can rip apart under impact forces. Ifabeltistorn or frayed, have it replaced immediately.

Makesurethesafetybeltreminder lightisworking.SeeSafetyBelt Reminders⇒100.

Keepsafetybeltscleananddry. See SafetyBeltCare→57.

SafetyBeltCare

Keepbeltscleananddry.

Warning

Donotbleachordyesafetybelt webbing. It may severely weaken the webbing. In a crash, they might not be able to provide adequate protection. Clean and rinses safety belt webbing only with mild soap and lukewarm water. Allow the webbing today.

Safetybeltsshouldbeproperly caredforandmaintained.

Safetybelthardwareshouldbekept dryandfreeofdustordebris. As necessary exterior hardsurfaces and safetybeltwebbing maybe lightly cleaned with mild soap and water. Ensure there is not excessive dustordebris in themechanism. If dustordebris exists in the system pleaseseethedealer. Partsmay need to be replaced to ensure proper functionality of the system.

ReplacingSafetyBelt SystemPartsaftera Crash

Warning

Acrashcandamagethesafety beltsysteminthevehicle. Damagedsafetybeltsystem may not properly protect the person using it, resulting in serious injury overvendeathina crash. To help makes sure the safety belts systems are working properly after a crash, havethem inspected and any necessary replacements made as soon as possible.

Afteraminorcrash, replacement of safetybeltsmaynotbenecessary. Butthesafetybeltasembliesthat were used during any crash may have been stressed or damaged. Seeyourdealertohavethesafety beltassemblies inspected or replaced.

58SeatsandRestraints

Newpartsandrepairsmaybe necessaryevenifthesafetybelt systemwasnotbeingusedatthe timeofthecrash.

Havethesafetybeltpretensioners checkedifthevehiclehasbeenina crash,oriftheairbagreadinesslight staysonafteryoustartthevehicle orwhileyouaredriving.SeeAirbag ReadinessLight→101.

AirbagSystem

The vehicle hasthe following airbags:

• Afrontalairbagforthedriver.
• Afrontalairbagforthefront outboardpassenger.
• Akneeairbagforthedriver.
• Akneeairbagforthefront outboardpassenger.
• Aseat-mountedsideimpact airbagforthedriver.
• Aseat-mountedsideimpact airbagforthefrontoutboard passenger.

Allvehicleairbagshavetheword AIRBAGonthetrimoronalabel nearthedeploymentopening.

Forfrontalairbags, theword AIRBAGisonthecenterofthe steeringwheelforthedriverandon theinstrumentpanelforthefront outboardpassenger.

Forkneeairbags, thewordAIRBAG isonthelowerpartofthe instrumentpanel.

Forseat-mountedsideimpact airbags, thewordAIRBAGisonthe sideoftheseatbackclosestto thedoor.

Airbagsaredesignedtosupplement theprotectionprovidedbysafety belts. Eventhoughtoday'sairbags arealsodesignedtohelpreduce theriskofinjuryfromtheforceofan inflatingbag,allairbagsmustinflate veryquicklytodotheirjob.

Herearethemostimportantthings toknowabouttheairbagsystem:

Warning

Youcanbeseverelyinjuredor killedinacrashifyouarenot wearingyoursafetybelt,even withairbags.Airbagsare designedtoworkwithsafety belts,notreplacethem.Also, airbagsarenotdesignedtoinflate ineverycrash.Insomecrashes safetybeltsaretheonlyrestraint. SeeWhenShouldanAirbag Inflate?60.

(Continued)

Warning(Continued)

Wearingyoursafetybeltduringa crashhelpsreduceyourchance ofhittingthingsinsidethevehicle orbeingejectedfromit.Airbags are"supplementalrestraints"to thesafetybelts.Everyoneinthe vehicleshouldwearasafetybelt properly,whetherornotthereis anairbagforthatperson.

Warning

Because airbagsinflatewithgreat forceandfasterthantheblinkof aneye,anyonewhoisup against,orverycloseto,any airbagwhenitinflatescanbe seriouslyinjuredorkilled.Donot situnnecessarilyclosetoany airbag,asyouwouldbeifsitting ontheedgeoftheseatorleaning forward.Safetybeltshelpkeep youinpositionbeforeandduring acrash.Alwayswearthesafety (Continued)

Warning(Continued)

belt, even with airbags. Thdriver should sit as far back as possible while still maintaining control of the vehicle. Thesafety belts and the front outboard passenger air bags are most effective when you are sitting well back and upright in these at with both feet on the floor.

Occupantsshouldnotleanonor sleepagainsthedoororside windowsinseatingpositionswith seat-mountedairbags.

Warning

Childrenwhoareupagainst, orverycloseto,anyairbagwhen itinflatescanbeseriouslyinjured orkilled.Alwayssecurechildren properlyinthevehicle.Toread how,seeOlderChildren→69or InfantsandYoungChildren→71.

Thereisanairbagreadinesslight ontheinstrumentcluster,which showstheairbagsymbol.The systemcheckstheairbagelectrical systemformalfunctions.Thelight tellsyouifthereisanelectrical problem.SeeAirbagReadiness Light→101.

WhereAretheAirbags?

Illustration of a cylindrical object with a lid, placed on a textured surface (no text or symbols)

60SeatsandRestraints

Thedriverfrontalairbagisinthe centerofthesteeringwheel.

Thefrontoutboardpassenger frontalairbagisinthepassenger sideinstrumentpanel.

Interior view of a car dashboard and steering wheel (no text or symbols visible)

Thedriverkneeairbagisbelowthe steeringcolumn. Thefrontoutboard passengerkneeairbagisbelowthe glovebox.

3D rendered image of a car seat assembly (no text or symbols visible)

DriverSideShown, Passenger SideSimilar

The driver and front outboard passenger seat-mounted side impact air bags are in the sides of these seat backs closest to the door.

Warning

If something is between an occupant and an airbag, the airbag might not inflate properly or might force the object into that person causing severe injury overvendence. The pathofan inflating airbag must be kept

(Continued)

Warning(Continued)

clear.Donotputanything betweenanoccupantandan airbag, and donotattachorput anythingonthesteeringwheel huboronornearanyother airbagcovering.

Donotuseseataccessoriesthat blocktheinflationpathofa seat-mountedsideimpactairbag.

WhenShouldanAirbag Inflate?

Thisvehicleisequippedwith airbags. See Airbag System 58. Airbagsaredesignedtoinflateifthe impactexceedsthespecificairbag system'sdeploymentthreshold. Deploymentthresholdsareusedto predicthowsevereacrashislikely tobeintimefortheairbagsto inflateandhelprestrainthe occupants. Thevehiclehas electronicsensorsthathelpthe airbagsystemdeterminethe

severityoftheimpact.Deployment thresholdscanvarywithspecific vehicledesign.

Frontalairbagsaredesignedto inflateinmoderatetoseverefrontal ornearfrontalcrashestohelp reducethepotentialforsevere injuries,mainlytothedriver'sor frontoutboardpassenger'shead andchest.

Whether the frontal air bags willor should inflate is not based primarily on how fast the vehicle is traveling. It depends on what is it, the direction of the impact, and how quickly the vehicles slows down.

Frontalairbagsmayinflateat differentcrashspeedsdependingon whetherthevehiclehitsanobject straightonoratanangle,and whethertheobjectisfixedor moving,rigidordeformable,narrow orwide.

Frontalairbagsarenotintendedto inflateduringvehiclerollovers, in rearimpacts, orinmanyside impacts.

Inaddition, the vehicle has advanced technology frontal airbags. Advanced technology frontal airbags adjust therestraint according to crash severity.

Kneeairbagsaredesignedtoinflate inmoderatetoseverefrontalor nearfrontalimpacts.Kneeairbags arenotdesignedtoinflateduring vehiclerollovers,inrearimpacts, orinmanysideimpacts.

Seat-mountedsideimpactairbags are designed to inflate in moderate to severesidecrashes depending on the location of the impact.

Seat-mountedsideimpactairbags arenotdesignedtoinflateinfrontal impacts, nearfrontalimpacts, rollovers, orrearimpacts.

Aseat-mountedsideimpactairbag is designed to inflate on the side of the vehicle that is struck.

Inanyparticularcrash, noonecan saywhetheranairbagshouldhave inflatedsimplybecauseofthe vehicledamageorrepaircosts.

WhatMakesanAirbag Inflate?

Inadeploymentevent,thesensing systemsendsanelectricalsignal triggeringareleaseofgasfromthe inflator.Gasfromtheinflatorfillsthe airbagcausingthebagtobreakout ofthecover.Theinflator,theairbag, andrelatedhardwareareallpartof theairbagmodule.

Forairbaglocations, see WhereAre theAirbags?59.

HowDoesanAirbag Restrain?

Inmoderatetoseverefrontalor nearfrontalcollisions, evenbelted occupantscancontactthesteering wheelortheinstrumentpanel. In moderatetoseveresidecollisions, evenbeltedoccupantscancontact theinsideofthevehicle.

Airbagssupplementtheprotection providedbysafetybeltsby distributingtheforceoftheimpact moreevenlyoverthe occupant'sbody.

62SeatsandRestraints

Butairbagswouldnothelpinmany typesofcollisions,primarily because the occupant'smotionis nottoward those airbags.See When Shouldan Airbag Inflate?→60.

Airbagsshouldneverberegarded asanythingmorethanasupplement tosafetybelts.

WhatWillYouSeeafter anAirbagInflates?

Afterthefrontalandseat-mounted sideimpactairbagsinflate,they quicklydeflate,soquicklythatsome peoplemaynotevenrealizethe airbagsinflated.Somecomponents oftheairbagmodulemaybehotfor severalminutes.Forlocationofthe airbags,seeWhereArethe Airbags?59.

Thepartsoftheairbagthatcome intocontactwithyoumaybewarm, butnottoohottotouch. Theremay besomesmokeanddustcoming fromtheventsinthedeflated airbags. Airbaginflationdoesnot preventthedriverfromseeingoutof

thewindshieldorbeingabletosteer thevehicle, nordoesitprevent peoplefromleavingthevehicle.

Warning

Whenanairbaginflates,there maybedustintheair.Thisdust couldcausebreathingproblems forpeoplewithahistory of asthmaorotherbreathingtrouble. Toavoidthis,everyoneinthe vehicleshouldgetoutassoonas itissafetodoso.Ifyouhave breathingproblemsbutcannot getoutofthevehicleafteran airbaginflates,thengetfreshair byopeningawindoworadoor. Ifyouexperiencebreathing problemsfollowinganairbag deployment,youshouldseek medicalattention.

The vehicle has a safe feature that may automatically unlock the doors, turn on the interior lamps and hazard warning flashers, and should the fuel system after the air bags inflate. The feature may also activate,

withoutairbaginflation,afteran eventthatexceedsapredetermined threshold.Youcanlockthedoors, andturnofftheinteriorlampsand hazardwarningflashersbyusing thecontrolsforthosefeatures. Turningoffthehazardwarning flasherrequiresanignitioncycle first.

Warning

Acrashsevereenoughtoinflate theairbagsmayhavealso damagedimportantfunctionsin thevehicle,suchasthefuel system,brakeandsteering systems,etc.Evenifthevehicle appearstobedrivableaftera moderatecrash,theremaybe concealeddamagethatcould makeitdifficulttosafelyoperate thevehicle.

Usecautionifyoushouldattempt torestarttheengineafteracrash hasoccurred.

Inmanycrashessevereenoughto inflatetheairbag, windshieldsare brokenbyvehicledeformation. Additionalwindshieldbreakagemay alsooccurfromthefrontoutboard passengerairbag.

• Airbagsaredesignedtoinflate onlyonce. Afteranairbag inflates, youwillneedsomenew partsfortheairbagsystem. Ifyoudonotgetthem, the airbagsystemwillnotbethere tohelpprotectyouinanother crash. A newsystemwillinclude airbagmodulesandpossibly otherparts. Theservicemanual forthevehiclecoverstheneed toreplaceotherparts.
• The vehicle has acrash sensing and diagnostic module which records information after a crash. See Vehicle Data Recording and Privacy 358 and Event Data Recorders 358.
• Letonlyqualifiedtechnicians workontheairbagsystem. Improperservicecanmeanthat

theairbagsystemwillnotwork properly.Seeyourdealerfor service.

RollBars

Warning

Vehiclerolloversare unpredictable and dangerous eventsthatmayresultininjuryor deathregardless of the rollbar or any other feature. Nofeature can fully protect an occupantine every crash, including a rollover.

Therollbarsareundercovers behindtherearheadrestraints. The rollbarsaredesignedtodeployif thesensingsystempredictsthatthe vehicleisabouttorolloveronits side.Inaddition,therollbarsare designedtodeployinmoderateto severesidecrashesdependingon thelocationoftheimpact,aswellas inaseverefrontalimpact.Rollbars arenotdesignedtodeployinrear impacts.

Therollbarsdeploywiththe convertibletopopenorclosed.Ifthe rollbarsdeploy,donotoperatethe convertibletop.

Donotplaceanyobjectsonthe coversoftherollbarsbehindthe headrestraints.

Havetherollbarscheckedifthe vehiclehasbeeninacrash,orifthe airbagreadinesslightstaysonafter startingordrivingthevehicle.See AirbagReadinessLight→101.

PassengerSensing System

The vehicle has a passenger sensing system for the front outboard passenger position. The passenger air bag status indicator will light on the center stack when the vehicle is started.

PASS AIR BAG

OFF

64SeatsandRestraints

ThewordsONandOFFwillbe visibleduringthesystemcheck. Whenthesystemcheckis complete,eitherthewordONorthe wordOFFwillbevisible.See PassengerAirbagStatus Indicator→101.

Thepassengersensingsystem turnsoffthefrontoutboard passengerfrontalairbagandknee airbagundercertainconditions.No otherairbagisaffectedbythe passengersensingsystem.

Thepassengersensingsystem workswithsensorsthatarepartof thefrontoutboardpassengerseat. Thesensorsaredesignedtodetect thepresenceofaproperlyseated occupantanddetermineifthefront outboardpassengerfrontalairbag andkneeairbagshouldbeallowed toinflateornot.

According to accident statistics, children are safer when properly secured in a rearseatin the correct child restraint for their weight and size.

Whenever possible, childrenage 12 and undershould besecured in arearseating position.

Neverputarear-facingchildseatin thefront. Thisisbecausetheriskto therear-facingchildissogreat, iftheairbaginflates.

Warning

Achildinarear-facingchild restraintcanbeseriouslyinjured orkilledifthepassengerfrontal airbaginflates. Thisisbecause thebackoftherear-facingchild restraintwouldbeverycloseto theirflatingairbag. Achildina forward-facingchildrestraintcan beseriouslyinjuredorkilledifthe passengerfrontalairbaginflates andthepassengerseatisina forwardposition.

Evenifthepassengersensing systemhasturnedoffthefront outboardpassengerairbag(s), no systemisfail-safe. Noonecan guaranteeethatanairbagwillnot (Continued)

Warning(Continued)

deployundersomeunusual circumstance, event though the airbag(s) are off.

Neverputarear-facingchild restraintinthefrontseat,evenif theairbagisoff.Ifsecuringa forward-facingchildrestraintin thefrontoutboardpassenger seat,alwaysmovetheseatasfar backasitwillgo.Itisbetterto securechildrestraintsintherear seat.Considerusinganother vehicletotransportthechild whenarearseatisnotavailable.

Thepassengersensingsystemis designedtoturnoffthefront outboardpassengerfrontalairbag andkneeairbagif:

• Thefrontoutboardpassenger seatisunoccupied.

• Thesystemdeterminesthatan infantispresentinachild restraint.

• Afrontoutboardpassenger takeshis/herweightoffofthe seatforaperiodoftime.

• Thereisacriticalproblemwith theairbagsystemorthe passengersensingsystem.

Whenthepassengersensing systemhasturnedoffthefront outboardpassengerfrontalairbag andkneeairbag,theoffindicator willlightandstaylitasareminder thattheairbagsareoff.See PassengerAirbagStatus Indicator→101.

Thepassengersensingsystemis designedtoturnonthefront outboardpassengerfrontalairbag andkneeairbaganytimethesystem sensesthatapersonofadultsizeis sittingproperlyinthefrontoutboard passengerseat. Whenthe passengersensingsystemhas allowedtheairbagstobeenabled, theonindicatorwilllightandstaylit asareminderthattheairbagsare active.

Forsomechildren, including children in child restraints and for very small adults, the passenger

sensingsystemmayormaynotturn offthefrontoutboardpassenger frontalairbagandkneeairbag, dependingupontheperson's seatingpostureandbodybuild. Everyoneinthevehiclewhohas outgrownchildrestraintsshould wearasafetybeltproperly—whetherornotthereisanairbagfor thatperson.

Warning

If the airbagreadiness light ever comes on and stay on, it means that something may be wrong with the air bags system. To help avoid injury to yourself for others, have the vehicles serviced right away. See Airbag Readiness Light 101 form more information, including important safety information.

IftheOnIndicatorIsLitfora ChildRestraint

Thepassengersensingsystemis designedtoturnoffthefront outboardpassengerfrontalairbag

andkneeairbagifthesystem determinesthataninfantispresent inachildrestraint.Ifachildrestraint hasbeeninstalledandtheon indicatorislit:

1. Turnthevehicleoff.
2. Removethechildrestraint from the vehicle.
3. Remove any additional items from these seats such as blankets, cushions, seat covers, seat heaters, or seat massagers.
4. Reinstall the child restraint following the directions provided by the child restraint manufacturer and refer to Securing Child Restraints (With the Safety Belt in the Rear Seat) 83 or Securing Child Restraints (With the Safety Belt in the Front Seat) 85.
5. If, after reinstalling the child restraint and restarting the vehicle, the on indicator is still lit, turn the vehicle off. Then slightly reclining the vehicle seat back and adjust these at cushion, if adjustable, to make

66SeatsandRestraints

surethatthevehicleseatback isnotpushingthechild restraintintotheseatcushion.

Alsomakesurethechild restraintisnottrappedunder thevehicleheadrestraint. Ifthishappens,adjustthehead restraint.SeeHead Restraints→46.

6.Restartthevehicle.

Thepassengersensingsystemmay ormaynotturnofftheairbag(s)for achildinachildrestraintdepending uponthechild'ssize.Itisbetterto securethechildrestraintinarear seat.Neverputarear-facingchild restraintinthefrontseat,evenifthe onindicatorisnotlit.

IftheOffIndicatorIsLitforan Adult-SizedOccupant

Illustration of a woman seated in a car, viewed from the side (no text or symbols present)

Ifapersonofadultsizeissittingin thefrontoutboardpassengerseat, buttheoffindicatorislit,itcouldbe becausethatpersonisnotsitting properlyintheseat.Usethe followingstepstoallowthesystem todetectthatpersonandenablethe frontoutboardpassengerfrontal airbagandkneeairbag:

1. Turnthevehicleoff.

2. Remove any additional material from these seat, such as blankets, cushions, seat covers, seat theaters, or seat

massagers. Also, remove laptops, orother electronic devices.

1. Placetheseatbackinthefully uprightposition.

2. Havethepersonsituprightin theseat, centeredontheseat cushion, with legscomfortably extended.

3. Restart the vehicle and have the person remain in this position for two to three minutes after the event indicator is lit.

Warning

Ifthefrontoutboardpassenger airbagisturnedoffforan adult-sizedoccupant,theairbag willnotbeabletoinflateandhelp protectthatpersoninacrash, resultinginanincreasedriskof seriousinjuryorevendeath.An adult-sizedoccupantshouldnot rideinthefrontoutboard passengerseat,ifthepassenger airbagoffindicatorislit.

AdditionalFactorsAffecting SystemOperation

Safetybeltshelpkeepthe passengerinpositionontheseat duringvehiclemaneuversand braking,whichhelpsthepassenger sensingsystemmaintainthe passengerairbagstatus.See "SafetyBelts" and "ChildRestraints" intheIndexforadditional informationabouttheimportanceof properrestraintuse.

Athicklayerofadditionalmaterial, suchasablanketorcushion, oraftermarketequipmentsuchas seatcovers,seatheaters,andseat massagerscanaffecthowwellthe passengersensingsystem operates.Werecommendthatyou notuseseatcoversorother aftermarketequipmentexceptwhen approvedbyGMforyourspecific vehicle.SeeAddingEquipmentto theAirbag-EquippedVehicle68 formoreinformationabout modificationsthatcanaffecthow thesystemoperates.

Awetseatcanaffectthe performanceofthepassenger sensingsystem. Hereishow:

• Thepassengersensingsystem mayturnoffthepassenger airbag(s)whenliquidissoaked intotheseat. If this happens, the offindicatorwillbelit, and the airbagreadinesslightonthe instrumentpanelwillalsobelit.
• Liquidpooledontheseatthat hasnotsoakedinmaymakeit morelikelythatthepassenger sensingsystemwillturnonthe passengerairbag(s)whilea childrestraintorchildoccupant isontheseat.Ifthepassenger airbag(s)areturnedon,theon indicatorwillbelit.

If the passenger seat gets wet, dry these at immediately. If the airbag readiness light is lit, donot install a child restraint or allow any oneto occupy these at. See Airbag Readiness Light 101 for important safety information.

Theonindicatormaybelitifan object, such as abriefcase, handbag, grocerybag, laptop,

orotherelectronicdeviceisputon anunoccupiedseat. If this is not desired remove the object from these seat.

Warning

Stowingofarticlesunderthe passengerseatorbetweenthe passengerseatcushionand seatbackmayinterferewiththe properoperationofthepassenger sensingsystem.

Servicingthe Airbag-EquippedVehicle

Airbags affect how the vehicle should be serviced. There are parts of the air bags system in several places around the vehicle. Your dealer and the servicemanual have information about servicing the vehicle and the air bags system. To purchase as servicemanual, see Service Publications Ordering Information 356.

Warning

Forupto10secondsafterthe vehicleisturnedoffandthe batteryisdisconnected,anairbag canstillinflateduringimproper service.Youcanbeinjuredifyou areclosetoanairbagwhenit inflates.Avoidyellowconnectors. Theyareprobablypartofthe airbagsystem.Besuretofollow properserviceprocedures,and makesurethepersonperforming workforyouisqualifiedtodoso.

AddingEquipmenttothe Airbag-EquippedVehicle

Addingaccessoriesthatchangethe vehicle'sframe,bumpersystem, height,frontend,orsidesheet metal,maykeeptheairbagsystem fromworkingproperly.The operationoftheairbagsystemcan also affectedbychangingor movinganypartsofthefrontseats, safetybelts,theairbagsensingand diagnosticmodule,steeringwheel, instrumentpanel,anyoftheairbag

modules, rollbars, frontsensors, sideimpactsensors, orairbag wiring.

Yourdealerandtheservicemanual haveinformationaboutthelocation oftheairbagsensors,sensingand diagnosticmodule,andairbag wiring.

Inaddition, the vehicle has a passengersensingsystem for the front outboard passenger position, which includessensor that are part of the passenger seat. The passengersensingsystem may not operate properly if the original seat trim is replaced with non-GM covers, upholstery, or trim; or with GM covers, upholstery, or trim designed for different vehicle. Any object, such as an after market seat heater or comfort-enhancing pad or device, installed under or on top of these at fabric, could also interferewith the operation of the passengersensingsystem. This could either prevent proper deployment of the passenger airbag(s) or prevent the passenger sensingsystem from properly

turningoffthepassengerairbag(s). See Passenger Sensing System→63.

If you have to modify your vehicle because you have adisability and you have questions about whether them modifications will affect the vehicle's airbagsystem, or if you have questions about whether the airbag system will be affected if the vehicle is modified for any other reason, call Customer Assistance. See Customer Assistance Offices 349.

The vehicle has rollbars. See Different Size Tires and Wheels 304.

AirbagSystemCheck

Theairbagsystemdoesnotneed regularly scheduled maintenance or replacement. Makesuretheairbag readinesslightisworking. See AirbagReadinessLight→101.

Caution

Ifanairbagcoveringisdamaged, opened,orbroken,theairbag maynotworkproperly.Donot openorbreaktheairbag coverings.Ifthereareany openedorbrokenairbag coverings,havetheairbag coveringand/orairbagmodule replaced.Forthelocationofthe airbags,seeWhereArethe Airbags?59.Seeyourdealer forservice.

ReplacingAirbagSystem PartsafteraCrash

Warning

Acrashcandamagetheairbag systemsinthevehicle.
Adamagedairbagsystemmay notproperlyprotectyouandyour passenger(s)inacrash,resulting inseriousinjuryorevendeath.To (Continued)

Warning(Continued)

helpmakesuretheairbag systemsareworkingproperly afteracrash,havethem inspectedandanynecessary replacementsmadeassoonas possible.

Ifanairbaginflates, you will need to replace airbagsystemparts. See your dealerforservice.

If the airbag readiness light stays on after the vehicle is started or comes on when you are driving, the airbag system may not work properly. Have the vehicles serviced right away. See Airbag Readiness Light 101.

ChildRestraints OlderChildren

Illustration of two people sitting side by side, wearing matching clothing (no text or symbols)

Olderchildrenwhohaveoutgrown boosterseatsshouldwearthe vehicle'ssafetybelts.

70SeatsandRestraints

Themanufacturerinstructionsthat comewiththeboosterseatstatethe weightandheightlimitationsforthat booster.Useaboosterseatwitha lap-shoulderbeltuntilthechild passesthefittestbelow:

• Sitallthewaybackontheseat. Dothekneesbendattheseat edge?Ifyes,continue.Ifno, returntotheboosterseat.
• Bucklethelap-shoulderbelt. Doestheshoulderbeltreston theshoulder?Ifyes,continue. Ifno,tryusingtherearsafety beltcomfortguide,ifavailable. See“RearSafetyBeltComfort Guides”underLap-ShoulderBelt 54.Ifacomfortguideisnot available,oriftheshoulderbelt stilldoesnotrestonthe shoulder,thenreturntothe boosterseat.
• Doesthelapbeltfitlowand snugonthehips,touchingthe thighs?Ifyes,continue.Ifno, returntotheboosterseat.

- Canpropersafetybeltfitbe maintainedforthelengthofthe trip?Ifyes,continue.Ifno, returntotheboosterseat.

Q: Whatistheproperway to wearsafetybelts?

A: Anolderchildshouldwearalap-shoulderbeltandgettheadditionalrestraintashoulderbeltcanprovide. Theshoulderbeltshouldnotcrossthefaceorneck. Thelapbeltshouldfitsnuglybelowthehips, justtouchingthetopofthethighs.Thisappliesbeltforcetothechild'spelvicbonesinacrash.Itshouldneverbewornovertheabdomen,whichcouldcausesevereorevenfatalinternalinjuriesinacrash.

Alsosee"RearSafetyBeltComfort Guides"underLap-Shoulder Belt→54.

According to accident statistics, children are safer when properly restrained in a rearseating position.

Inacrash, children who are not buckled up can strike other people who are buckled up, or can be thrown out of the vehicle. Older children need to use safety belts properly.

Warning

Neverallowmorethanonechild towearthesamesafetybelt. The safetybelt cannot properly spread the impactforces. Inacrash, they can be crushed together and seriously injured. As safetybelt must be used by only one person at time.

Illustration of three people seated in a car, one wearing a seatbelt, with a no-smoking symbol overlay (no text or symbols present)

Warning

Neverallowachildtowearthe safetybeltwiththeshoulderbelt behindtheirback.Achildcanbe seriouslyinjuredbynotwearing thelap-shoulderbeltproperly.Ina crash,thechildwouldnotbe restrainedbytheshoulderbelt. Thechildcouldmovetoofar forwardincreasingthechanceof headandneckinjury.Thechild mightalsoslideunderthelap belt.Thebeltforcewouldthenbe appliedrightontheabdomen.

(Continued)

Warning(Continued)

That could cause serious or fatal injuries. Theshoulder belt should go over the shoulder and across the chest.

Illustration of a person sitting in a chair with a no-smoking symbol (no text or labels present)

InfantsandYoung Children

Everyoneinavehicleneeds protection! Thisincludesinfantsand allotherchildren. Neitherthe distancetravelednortheageand sizeofthetravelerchangesthe need,foreveryone,tousesafety

restraints. Infact, the lawine every state in the United States and in every Canadian provinces says childrenuptosomeagemust be restrained while in a vehicle.

Warning

Childrencanbeseriouslyinjured orstrangledifashoulderbeltis wrappedaroundtheirneck.The shoulderbeltcantightenbut cannotbeloosenedifitislocked. Theshoulderbeltlockswhenitis pulledallthewayoutofthe retractor.Itunlockswhenthe shoulderbeltisallowedtogoall thewaybackintotheretractor, butitcannotdothisifitis wrappedaroundachild'sneck. Iftheshoulderbeltislockedand tightenedaroundachild'sneck, theonlywaytoloosenthebeltis tocutit.

Neverleavechildrenunattended inavehicleandneverallow childrentoplaywiththesafety belts.

72SeatsandRestraints

Everytimeinfantsandyoung childrenrideinvehicles,theyshould havetheprotectionprovidedby appropriatechildrestraints.Neither thevehicle'ssafetybeltsystemnor itsairbagsystemisdesigned forthem.

Childrenwhoarenotrestrained properlycanstrikeotherpeople, orcanbethrownoutofthevehicle.

Warning

Neverholdaninfantorachild whileridinginavehicle.Dueto crashforces,aninfantorachild willbecomesoheavyitisnot possibletoholditduringacrash. Forexample,inacrashatonly 40km/h(25mph),a5.5kg(12lb) infantwillsuddenlybecomea 110kg(240lb)forceonaperson's arms.Aninfantorchildshouldbe securedinanappropriate restraint.

Illustration of a woman breastfeeding a baby in a car seat, with a no-smoking symbol overlay (no text or symbols on the diagram itself)

Warning

Childrenwhoareupagainst, orverycloseto,anyairbagwhen itinflatescanbeseriouslyinjured orkilled.Neverputarear-facing childrestraintinthefront outboardseat.Securea rear-facingchildrestraintinarear seat.Itisalsobettertosecurea forward-facingchildrestraintina rearseat.Ifyoumustsecurea forward-facingchildrestraintin thefrontoutboardseat,always movethefrontpassengerseatas farbackasitwillgo.

Interior view of a car showing a person seated in the seat with a car seatbelt, no visible text or symbols.

Childrestraintsaredevicesusedto restrain,seat,orpositionchildrenin thevehicleandaresometimes calledchildseatsorcarseats.

Therearethreebasictypes of childrestraints:

• Forward-facingchildrestraints
• Rearward-facingchildrestraints
- Belt-positioningboosterseats

The proper child restraint for your child depends on their size, weight, and age, and also on whether the child restraint is compatible with the vehicle in which it will be used.

Foreachtypeofchildrestraint, therearemanydifferentmodels available. Whenpurchasingachild restraint, besureitisdesignedtobe usedinamotorvehicle. Ifitis, the restraintwillhavealabelsayingthat itmeetsfederalmotorvehiclesafety standards. Therestraint manufacturer'sinstructionsthat comewiththerestraintstatethe weightandheightlimitationsfora particularchildrestraint. In addition, therearemanykindsofrestraints availableforchildrenwithspecial needs.

Warning

Toreducetheriskofneck and headinjuryinacrash,infantsand toddlersshouldbesecuredina rear-facingchildrestraintuntilage two,oruntiltheyreachthe maximumheightandweightlimits oftheirchildrestraint.

Warning

Ayoungchild'shipbonesarestill sosmallthatthevehicle'sregular safetybeltmaynotremainlowon thehipbones,asitshould. Instead,itmaysettleuparound thechild'sabdomen.Inacrash, thebeltwouldapplyforceona bodyareathatisunprotectedby anybonystructure.Thisalone couldcauseseriousorfatal injuries.Toreducetheriskof seriousorfatalinjuriesduringa crash,youngchildrenshould alwaysbesecuredinappropriate childrestraints.

ChildRestraintSystems

3D illustration of a mechanical device with handle and internal components (no text or symbols)

Rear-FacingInfantSeat

Arear-facingchildrestraintprovides restraintwiththeseatingsurface againstthebackoftheinfant.

The harnesssystemholdstheinfant inplaceand,inacrash,actsto keeptheinfantpositionedinthe restraint.

74SeatsandRestraints

Illustration of a car seat with adjustable armrest and seatbelt (no text or symbols)

Forward-FacingChildSeat

Aforward-facingchildrestraint providesrestraintforthechild's bodywiththeharness.

3D rendered illustration of a car seat with front and back panels (no text or symbols)

BoosterSeats

Abelt-positioningboosterseatis usedforchildrenwhohave outgrowntheirforward-facingchild restraint.Boostersaredesignedto improvethefitofthevehicle'ssafety beltsystemuntilthechilddislarge enoughforthevehiclesafetybelts tofitproperlywithoutaboosterseat. SeethesafetybeltfittestinOlder Children→69.

SecuringanAdd-OnChild RestraintintheVehicle

Warning

Achildcanbeseriouslyinjuredor killedinacrashifthechild restraintisnotproperlysecuredin thevehicle.Securethechild restraintproperlyinthevehicle usingthevehicle'ssafetybeltor LATCHsystem,followingthe instructionsthatcamewiththat childrestraintandtheinstructions inthismanual.

Tohelpreducethechanceofinjury, thechildrestraintmustbesecured inthevehicle.Childrestraint systemsmustbesecuredinvehicle seatsbylapbeltsorthelapbelt portionofalap-shoulderbelt,orby theLATCHsystem.SeeLower AnchorsandTethersforChildren (LATCHSystem)→76formore information.Childrencanbe endangeredinacrashifthechild restraintisnotproperlysecuredin thevehicle.

Whensecuringanadd-onchild restraint, refertotheinstructions that comewiththerestraint which maybeontherestraintitselforina booklet, or both, and to this manual. The childrestraint instructions are important, so if they are not available, obtain are replacement copy from the manufacturer.

Keepinmindthatanunsecured childrestraintcanmovearoundina collisionorsuddenstopandinjure peopleinthevehicle.Besureto properlysecureanychildrestraintin thevehicle—evenwhennochildis init.

InsomeareasoftheUnitedStates andCanada,CertifiedChild PassengerSafetyTechnicians (CPSTs)areavailabletoinspect anddemonstratehowtocorrectly useandinstallchildrestraints.In theU.S.,refertotheNational HighwayTrafficSafety Administration(NHTSA)websiteto locatethenearestchildsafetyseat inspectionstation.ForCPST availabilityinCanada,checkwith TransportCanadaortheProvincial MinistryofTransportationoffice.

SecuringtheChildWithinthe ChildRestraint

Warning

Achildcanbeseriouslyinjuredor killedinacrashifthechildisnot properlysecuredinthechild restraint.Securethechild properlyfollowingtheinstructions thatcamewiththatchildrestraint.

WheretoPutthe Restraint

According to accident statistics, children and infants are safer when properly restrained in an appropriate child restraint secured in a rear seating position.

Whenever possible, children aged 12 and unders should be secured in arearseating position.

Neverputarear-facingchild restraintinthefront. Thisisbecause therisktotherear-facingchildisso greatiftheairbagdeploys.

Warning

Achildinarear-facingchild restraintcanbeseriouslyinjured orkilledifthefrontpassenger airbaginflates. Thisisbecause thebackoftherear-facingchild restraintwouldbeverycloseto theirflatingairbag.Achildina forward-facingchildrestraintcan beseriouslyinjuredorkilledifthe frontpassengerairbaginflates andthepassengerseatisina forwardposition.

Evenifthepassengersensing systemhasturnedoffthefront passengerfrontalairbag,no systemisfail-safe.Noonecan guaranteeethatanairbagwillnot deployundersomeunusual circumstance,eventthoughitis turnedoff.

Securerear-facingchildrestraints inarearseat, eveniftheairbag isoff. Ifyousecurea forward-facingchildrestraintin

(Continued)

Warning(Continued)

thefrontseat,alwaysmovethe frontpassengerseatasfarback asitwillgo.Itisbettertosecure thechildrestraintinarearseat.

See Passenger Sensing System →63foradditionalinformation.

Whensecuringachildrestraintina rearseatingposition,studythe instructionsthatcamewiththechild restrainttomakesureitis compatiblewiththisvehicle.

Childrestraintsandboosterseats varyconsiderablyinsize, and some mayfitincertainseatingpositions betterthanothers.

Depending on where you place the child restraint and the size of the child restraint, you may not be able to access adjacent safety belts or LATCH anchors for additional passengers or child restraints. Adjacent seating position should not be used if the child restraint prevents access to or interferes with herouting of the safety belt.

Whereverachildrestraintis installed, besuretofollowthe instructionsthatcamewiththechild restraintsystemandsecurethe childrestraintsystemproperly.

Keepinmindthatanunsecured childrestraintcanmovearoundina collisionorsuddenstopandinjure peopleinthevehicle.Besureto properlysecureanychildrestraintin thevehicle—evenwhennochildis init.

LowerAnchorsand TethersforChildren (LATCHSystem)

The LATCHsystem secures a child restraint during driving or in a crash. LATCH attachment on the child restraint are used to attach the child restraint to the anchors in the vehicle. This system is designed to make installation of a child restraint easier.

InordertousetheLATCHsystemin yourvehicle,youneedachild restraintthathasLATCH attachments.LATCH-compatible

rear-facingandforward-facingchild seatscanbeproperlyinstalled usingeithertheLATCHanchor thevehicle'ssafetybelts.Donot useboththesafetybeltsandthe LATCHanchoragesystemtosecure arear-facingorforward-facing childseat.

Boosterseatsusethevehicle's safetybeltstosecurethechildin theboosterseat. Ifthemanufacturer recommendsthattheboosterseat besecuredwiththeLATCHsystem, thiscanbedoneaslongasthe boosterseatcanbepositioned properlyandthereisnointerference withtheproperpositioningofthe lap-shoulderbeltonthechild.

Makesuretofollowtheinstructions thatcamewiththechildrestraint, andalsotheinstructionsinthis manual.

Wheninstallingachildrestraintwith atoptether,youmustalsouse eithertheloweranchorsorthe safetybeltstoproperlysecurethe childrestraint.Achildrestraintmust neverbeattachedusingonlythetop tether.

The LATCH anchoragesystem can be used until the combined weight of the child plus the child restraint is 29.5kg (65lbs). Use the safety belt alone instead of the LATCH anchoragesystem on the combined weight is more than 29.5kg (65lbs).

See SecuringChildRestraints(With the SafetyBeltintheRearSeat) 83or SecuringChildRestraints (With the SafetyBeltintheFront Seat) 85.

ChildrestraintsbuiltafterMarch 2014willbelabeledwiththe specificchildweightuptowhichthe LATCHsystemcanbeusedto installtherestraint.

The following explain show to attach a child restraint with these attachments in the vehicle.

Notallvehicleseatingpositionor childrestraintshaveloweranchors andattachmentsortoptether anchorsandattachments.Inthis case,thesafetybeltmustbeused (withtoptetherwhereavailable)to

securethechildrestraint.See SecuringChildRestraints(Withthe SafetyBeltintheRearSeat)→83or SecuringChildRestraints(Withthe SafetyBeltintheFrontSeat)→85.

LowerAnchors

Loweranchors(1)aremetalbars builtintothevehicle.Therearetwo loweranchorsforeachLATCH seatingpositionthatwill accommodateachildrestraintwith lowerattachments(2).

TopTetherAnchor

Atoptether(3,4)anchorsthetopof thechildrestrainttothevehicle. Atoptetheranchorisbuiltintothe vehicle. Thetoptether attachment(2)onthechildrestraint connectstothetoptetheranchorin thevehicleinordertoreducethe forwardmovementandrotationof thechildrestraintduringdrivingorin acrash.

Thechildrestraintmayhavea singletether(3)oradualtether(4). Eitherwillhaveasingle attachment(2)tosecurethetop tethertotheanchor.

78SeatsandRestraints

Somechildrestraintsthathavea toptetheraredesignedforusewith orwithoutthetoptetherbeing attached.Othersrequirethetop tetheralwaystobeattached.In Canada,thelawrequiresthat forward-facingchildrestraintshave atoptether,andthatthetetherbe attached.Besuretoreadandfollow theinstructionsforthechild restraint.

LowerAnchorandTopTether AnchorLocations

Illustration of two identical cylindrical objects with circular icons, each above a pair of stylized human figures (no text or symbols)

RearSeat

: Seatingpositionswithtop tetheranchors.

:Seatingpositionswithtwo loweranchors.

Interior view of a car backseat with three black arrows pointing to seat positions (no text or symbols)

Therearoutboardseatingpositions haveexposedmetalloweranchors intheopeningsbelowthecrease betweentheseatbackandtheseat cushion.

Therearetoptetheranchorsymbols toassistyouinlocatingthetop tetheranchors

Diagram of two car back seats with arrows pointing to circular components (no text or symbols)

Thetoptetheranchorsarelocated onthebackoftherearseatbacks. Besuretouseananchoronthe samesideofthevehicleasthe seatingpositionwherethechild restraintwillbeplaced.

Donotsecureachildrestraintina positionwithoutatoptetheranchor ifanationalorlocallawrequires thatthetoptetherbeattached,orif theinstructionsthatcomewiththe childrestraintsaythatthetoptether mustbeattached.

According to accident statistics, children and infants are safer when properly restrained in a child restraintsystemor infant restraint system secured in a rearseating position. See Where to Put the Restraint 75 for additional information.

SecuringaChildRestraint DesignedfortheLATCH System

Warning

IfaLATCH-typechildrestraintis notattachedtoanchors,thechild restraintwillnotbeabletoprotect thechildcorrectly.Inacrash,the childcouldbeseriouslyinjuredor killed.InstallaLATCH-typechild restraintproperlyusingthe anchors,orusethevehicle's safetybeltstosecurethe restraint,followingtheinstructions thatcamewiththechildrestraint andtheinstructionsinthis manual.

Warning

Toreducetheriskofseriousor fatalinjuriesduringacrash,do notattachmorethanonechild restrainttoasingleanchor. Attachingmorethanonechild restrainttoasingleanchorcould causetheanchororattachment tocomelooseorevenbreak duringacrash.Achildorothers couldbeinjured.

Warning

Childrencanbeseriouslyinjured orstrangledifashoulderbeltis wrappedaroundtheirneck. The shoulderbeltcantightenbut cannotbeloosenedifitislocked. Theshoulderbeltlockswhenitis pulledallthewayoutofthe retractor.Itunlockswhenthe shoulderbeltisallowedtogoall thewaybackintotheretractor, butitcannotdothisifitis

(Continued)

Warning(Continued)

wrappedaroundachild'sneck. Iftheshoulderbeltislocked and tightenedaroundachild'sneck, theonlywaytoloosenthebeltis tocutit.

Buckleanyunusedsafetybelts behindthechildrestraintso childrencannotreachthem.Pull theshoulderbeltallthewayout oftherextractortosetthelock, andtightenthebeltbehindthe childrestraintafterthechild restrainthasbeeninstalled.

Warning

Takecarewhenoperatingthe foldablerearseats.Therear seatbackfoldsforwardwith considerablepowerwhichcan causeinjury,particularlyto children.Ensurethatnothingis attachedtotherearseatsoron theseatcushion.

80SeatsandRestraints

Caution

DonotlettheLATCH attachmentsrubagainstthe vehicle'ssafetybelts.Thismay damagetheseparts.Ifnecessary, movebuckledsafetybeltsto avoidrubbingtheLATCH attachments.

Donotfoldtherearseatback whentheseatisoccupied.Donot foldtheemptyrearseatwitha safetybeltbuckled.Thiscould damagethesafetybeltorthe seat.Unbuckleandreturnthe safetybelttoitsstowedposition, beforefoldingtheseat.

If you need to secure more than one child restraint in there are seat, see Where to Put the Restraint 75.

This system is designed to make installation of child restraint easier. When using lower anchors, donot us the vehicle's safety belts. Instead us the vehicle's slower anchors and child restraint attachment to secure therestrants.

Somerestraintsalsouseanother vehicleanchortosecureatop tether.

1. For rearseating positions, if the head restraint interferes with the proper installation of the child restraint, the head restraint may be removed. See "Head Restraint Removal and Reinstallation" at the end of this section.

2. If the child restraint manufacturer's instructions recommend that the toptether be attached, attach the top tether to the toptether anchor. Referto the child restraint instructions and the following steps:

Interior view of a car dashboard with directional arrows indicating movement or control (no text or symbols present)

2.1.Pullthereleaseswitchin thetrunktofoldtherear seatbackforwardto accessthetoptether anchors.SeeRearSeats 50foradditional information.

2.2. Adjustthetoptethertoits fulllengthandroutethe toptetheraccordingto yourchildrestraint instructionsandthe followinginstructions:

Line drawing of a seated car seat with a headpin and armrest (no text or symbols)

If you are using a single tether in a separate seating position, rout the tether under the head restraint.

Line drawing of a seated car seat with a belt and seatbelt (no text or symbols)

If you are using adual tetherinarearseating position, routethetether aroundthesidesofthe headrestraint.

Two car seats viewed from the side, each with a black arrow pointing to a circular component (no text or symbols visible)

2.3. Attachthetoptetherhook totheanchorontheback oftherearseatback. Makesurethatyou securethetoptetherto thetoptetheranchorand nottotheseatbacklatch.

Technical line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

If you are using a single tether in a separate seating position and the head restrain has been removed, route the single tether over these seats back.

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

If you are using adual tetherinarearseating position and the head restrain has been removed, routethedual tether over these at back.

2.4.Pushrearwardonthe seatbackuntilillocksinto itsuprightposition.Push andpullontheseatback tomakesureitissecured properly.

1. Put the child restraint on the seat. Attach and tighten the lower LATCH attachment on the child restraint to the lower

82SeatsandRestraints

anchors. If the child restraint does no travel lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the safety belts and the optether. Referto your child restraint manufacturer instructions and see Securing Child Restraints (With the Safety Belt in the Rear Seat) 83 or Securing Child Restraints (With the Safety Belt in the Front Seat) 85.

1. Tightenthetoptether.
2. Beforeplacingachildinthe childrestraint, makesureitis securelyheldinplace. To check, graspthechildrestraint attheLATCHpathandattempt tomoveitsidetoside and backandforth. Thereshould benomorethan2.5cm(1in) of movementforproper installation.

HeadRestraintRemovaland Reinstallation

Therearoutboardheadrestraints canberemovediftheyinterferewith theproperinstallationofthechild restraint.

Toremovetheheadrestraint:

1. Pullthereleaseswitchinthe trunktofoldtheseatback forward. SeeRearSeats→50 foradditionalinformation.

Close-up of a white car headrest with two black arrows pointing to the front wheel (no text or symbols visible)

1. Pressbothbuttonsonthehead restraintpostsatthesame time, and pulluponthehead restraint.

2. Storetheheadrestraintinthe trunkofthevehicle.

3. Whenthechildrestraintis removed, reinstallthehead restraintbeforetheseating positionisused.

Warning

Withheadrestraintsthatarenot installedandadjustedproperly, thereisagreaterchancethat occupantswillsufferaneck/spinalinjuryinacrash.Donot driveuntiltheheadrestraintsfor allooccupantsareinstalledand adjustedproperly.

Toreinstalltheheadrestraint:

3D illustration of a mechanical component with two pins inserted, showing a close-up of the top part with arrows indicating direction (no text or symbols present)

1. Insert the head restraint posts into the holes in the top of the seat back. Then notches on the posts must facethedriverside of the vehicle.
2. Push the head restraint down.
3. Trytomovetheheadrestraint to make sure that it is locked in place.

ReplacingLATCHSystem PartsAfteraCrash

Warning

AcrashcandamagetheLATCH systeminthevehicle.Adamaged LATCHsystemmaynotproperly securethechildrestraint, resultinginseriousinjuryoreven deathinacrash.Tohelpmake suretheLATCHsystemis workingproperlyafteracrash, seeyourdealertohavethe systeminspectedandany necessaryreplacementsmadeas soonaspossible.

If the vehicle has the LATCH system and it was being used during a crash, new LATCH system parts may be needed.

Newpartsandrepairsmaybe necessaryeveniftheLATCH systemwasnotbeingusedatthe timeofthecrash.

SecuringChildRestraints (WiththeSafetyBeltin theRearSeat)

Whensecuringachildrestraintina rearseatingposition,studythe instructionsthatcamewiththechild restrainttomakesureitis compatiblewiththisvehicle.

If the child restraint that the LATCH system, see Lower Anchors and Tethers for Children (LATCH System) 76 for how and where to install the child restraint using LATCH. If a child restraint is secured in the vehicle using a safety belt and it uses to optether, see Lower Anchors and Tethers for Children (LATCH System) 76 for to optether anchor locations.

Donotsecureachildseatina positionwithoutatoptetheranchor ifanationalorlocallawrequires thatthetoptetherbeanchored, orif theinstructionsthatcomewiththe childrestraintsaythatthetopstrap mustbeanchored.

84SeatsandRestraints

InCanada, the law requires that forward-facing child restraint have adopted, and that the tether be attached.

If the child restraint or vehicle seat position does nothavethe LATCH system, you will be using the safety belt to secure the child restraint. Besure to follow the instructions that camewith the child restraint.

If more than one child restraint need to be installed in there are seat, besuretoread Where to Put the Restraint 75.

1. If the head restraint interferes with the proper installation of the child restraint, the head restraint may be removed. See "Head Restraint Removal and Reinstallation" under Lower Anchors and Tethers for Children (LATCH System) 76.

2. If the child restraint manufacturer recommends using toptether, adjust the toptethertoitsfulllength and attach it tothetoptether anchor. Referto the instruction that camewith the

childrestraintandseeLower AnchorsandTethersfor Children(LATCHSystem)→76.

1. Putthechildrestraint on theseat.
2. Pickupthelatchplate, and run the lap and shoulder portions of the vehicle's safety belt through or around therestraint. The child restraint instructions will show you how.

Illustration of a person using a belt switch to lift a car seatbelt (no text or symbols present)

1. Pushthelatchplateintothe buckleuntilitclicks. Ifthelatch platewillnotgofullyintothe buckle, checkifthecorrect buckleisbeingused.

Positionthereleasebuttonon thebuckle,awayfromthechild restraintsystem,sothatthe safetybeltcouldbequickly unbuckledifnecessary.

Illustration of a person using a belt buckle on a car seatbelt (no text or symbols)

1. Pulltheshoulderbeltallthe wayoutoftheretractortoset thelock. Whentheretractor lockisset, thebeltcan be tightened but not pulled out of theretractor.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Totightenthebelt, pushdown onthechildrestraint, pullthe shoulderportionofthebelt to tightenthalapportionofthe belt, and feedtheshoulderbelt back intotheretractor. When installinga forward-facing child restraint, it may be helpful to use your kneetopushdown on the childrestraint as you tightenthebelt.

Trytopullthebeltoutofthe retractortomakesurethe retractorislocked.Ifthe retractorisnotlocked,repeat Steps4and5.

1. Tightenthetoptether. See LowerAnchorsandTethersfor Children(LATCHSystem)76.

2. Beforeplacingachildinthe childrestraint,makesureitis securelyheldinplace.To check,graspthechildrestraint atthesafetybeltpathand attempttomoveitsidetoside andbackandforth.Whenthe childrestraintisproperly installed,thereshouldbeno morethan2.5cm(1in)of movement.

Toremovethechildrestraint, unbucklethevehiclesafetybeltand letitreturntothestowedposition. Ifthetoptetherisattachedtoatop tetheranchor, disconnect. Ifthe headrestraintwasremoved, reinstallitbeforetheseating positionisused. See "Head RestraintRemovaland Reinstallation" underLowerAnchors and TethersforChildren(LATCH System)76.

SecuringChildRestraints (WiththeSafetyBeltin theFrontSeat)

Thisvehiclehasairbags. Arear seatisasaferplacetosecurea forward-facingchildrestraint. See Where to Put the Restraint 75.

Inaddition, the vehicle has a passengersensingsystem which is designed to turn off the front outboard passenger frontal airbag and knee airbag under certain conditions. See Passenger Sensing System 63 and Passenger Airbag Status Indicator 101 form more information, including important safety information.

Neverputarear-facingchildseatin thefront. Thisisbecausetheriskto therear-facingchildissogreat, iftheairbagdeploys.

Warning

Achildinarear-facingchild restraintcanbeseriouslyinjured orkilledifthefrontoutboard passengerfrontalairbaginflates. Thisisbecausethebackofthe rear-facingchildrestraintwould beveryclosetotheinflating airbag.Achildinaforward-facing childrestraintcanbeseriously injuredorkilledifthefront outboardpassengerfrontalairbag inflatesandthepassengerseatis inaforwardposition.

Evenifthepassengersensing systemhasturnedoffthefront outboardpassengerairbag(s), no systemisfail-safe. Noonecan guaranteeethatanairbagwillnot deployundersomeunusual circumstance, even though the airbag(s) are off.

Securerear-facingchildrestraints inarearseat, even if the airbag(s) are off. If you secure a (Continue

Warning(Continued)

forward-facingchildrestraintin thefrontoutboardpassenger seat,alwaysmovetheseatasfar backasitwillgo.Itisbetterto securethechildrestraintina rearseat.

See Passenger Sensing System →63foradditionalinformation.

If the child restraint uses atop tether, see Lower Anchors and Tethers for Children (LATCH System) 76 for toptether anchor locations.

Donotsecureachildseatina positionwithoutatoptetheranchor ifanationalorlocallawrequires thatthetoptetherbeanchored,orif theinstructionsthatcomewiththe childrestraintsaythatthetopstrap mustbeanchored.

InCanada, the law requires that forward-facing child restraint have adopted, and that the tether be attached.

When using the lap-shoulder belt to secure the child restraint in this position, follow the instruction that camewith the child restraint and the following instructions:

1. Movetheseatasfarbackasit willgobeforesecuringthe forward-facingchildrestraint. Movetheseatupwardorthe seatbacktoanuprightposition, ifneeded,togetatight installationofthechild restraint.

Whenthepassengersensing systemhasturnedoffthefront outboardpassengerfrontal airbagandkneeairbag,theoff indicatoronthepassenger airbagstatusindicatorshould lightandstaylitwhenyoustart thevehicle.SeePassenger AirbagStatusIndicator→101.

1. Putthechildrestraint on theseat.

2. Pickupthelatchplate, and run the lap and shoulder portions of the vehicle's safety belt

throughoraroundtherestraint. Thechildrestraintinstructions willshowyouhow.

Illustration of a person's seatbelt being adjusted for a car (no text or symbols visible)

1. Pushthelatchplate into the buckle until it clicks.

Positionthereleasebuttonon thebuckle,awayfromthechild restraintsystem,sothatthe safetybeltcouldbequickly unbuckledifnecessary.

Illustration of a person using a seatbelt to lift a seatbelt (no text or symbols present)

1. Pulltheshoulderbeltallthe wayoutoftheretractortoset thelock. Whentheretractor lockisset, thebeltcan be tightened but not pulled out of theretractor.

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

1. Totightenthebelt, pushdown on the child restraint, pull the shoulder portion of the belt to tight entel apportion of the belt, and feed the shoulder belt back into other retractor. When installing a forward-facing child restraint, it may be helpful to use your kneetopushdown on the child restraint as you tightenthebelt.

Trytopullthebeltoutofthe retractortomakesurethe retractorislocked.Ifthe retractorisnotlocked,repeat Steps5and6.

88SeatsandRestraints

1. Beforeplacingachildinthe childrestraint, makesureitis securelyheldinplace. To check, graspthechildrestraint atthesafetybeltpath and attempttomoveitside-to-side andback-and-forth. When the childrestraintsproperly installed, thereshouldbeno morethan2.5cm(1in)of movement.

If the air bags are off, the off indicator in the passenger air bag status indicator will come on and stay on when the vehicle is started.

Ifachildrestrainhasbeeninstalled andtheonindicatorislit,see"Ifthe OnIndicatorIsLitforaChild Restraint"underPassengerSensing System→63.

Toremovethechildrestraint, unbucklethevehiclesafetybeltand letitreturntothestowedposition.

Storage

StorageCompartments

StorageCompartments......89

InstrumentPanelStorage.....89

GloveBox......89

RearStorage....89

CenterConsoleStorage......91

Storage Compartments

Warning

Donotstoreheavyorsharp objectsinstoragecompartments. Inacrash, theseobjectsmay causethecovertoopenand couldresultinjury.

InstrumentPanelStorage

Interior view of a car dashboard with a black arrow pointing to the left side (no visible text or symbols)

Pulldowntoopen.

GloveBox

Liftuponthelevertoopenthe glovebox.

Thegloveboxfeaturesapen holder.

The intermediateshelfcanbe removedbypullingonthe frontedge.

Toreinstalltheshelf, slideitintothe sideguidesandpushbackuntil engagesintotherearpanel.

RearStorage

RearTrunkPartition

Thereartrunkpartitionmustbe foldedoutfortheconvertibletopto move. If the partition is not completely folded out, including the pass-through flap behind therear seats, awarning chimewills sound and a DIC message will display. See Rear Seats 50.

90Storage

Diagram of a car interior showing structural components and directional arrows (no text or symbols)

Pullthestrapdownwardtotherear. Thepass-throughflapmustbe closedintheverticalposition.

Interior view of a vehicle showing a door, vent, and side panel with arrows indicating direction (no text or symbols)

Toenlargetherearstorage compartmentwhentheconvertible topisclosed,therearstorage partitioncanbefoldedin.Push upwardonthepartitionnearthe looparea.

See Convertible Top⇒37.

ShoppingBagHooks

Close-up of a vehicle's rear window with two black arrows pointing to the door (no text or symbols visible)

Thehooksalongtheupperedgeof thetrunkcanbeusedforhanging upto5kg(11lb).

CargoTie-Downs

Top-down view of a car rearview showing the windshield and side panels with arrows indicating direction (no text or symbols)

Thecargotie-downscanbeusedto securesmallloads.

CenterConsoleStorage

Close-up of a car seatbelt mechanism with an arrow indicating clockwise direction (no text or symbols present)

Toaccessthestorage, thearmrest mustbeintherearwardposition. Pressthebuttonandlift.

Close-up of a car seatbelt mechanism with a black arrow indicating direction (no text or symbols)

Theremaybeasmallstorage drawerontherearoftheconsole.

Instruments and Controls

Controls

SteeringWheelAdjustment....93

SteeringWheelControls.....93

HeatedSteeringWheel......94

Horn....94

WindshieldWiper/Washer.....94

Compass....95

Clock....96

PowerOutlets......96

WarningLights, Gauges, and Indicators

WarningLights, Gauges, and Indicators....97

InstrumentCluster......98

Speedometer....99

Odometer....99

TripOdometer....99

Tachometer....99

FuelGauge....99

EngineCoolantTemperature Gauge....100

SafetyBeltReminders......100

AirbagReadinessLight.....101

PassengerAirbagStatus Indicator....101

ChargingSystemLight.....102

MalfunctionIndicatorLamp (CheckEngineLight)......102

BrakeSystemWarning Light....104

ElectricParkingBrake Light....105

ServiceElectricParkingBrake Light.....105

AntilockBrakeSystem(ABS) WarningLight.....105

OperatePedalLight......105

PowerSteeringWarning Light....106

LaneDepartureWarning (LDW)Light....106

VehicleAheadIndicator.....106

StabiliTrak® OFFLight......106

TractionControlSystem(TCS)/StabiliTrak® Light......107

TirePressureLight......107

EngineOilPressureLight....107

LowFuelWarningLight.....108

SecurityLight......108

High-BeamOnLight.....108

AdaptiveForwardLighting (AFL)Light....109

FrontFogLampLight......109

LampsOnReminder......109

CruiseControlLight......109

DoorAjarLight......109

InformationDisplays

DriverInformation

Center(DIC)......110

VehicleMessages

VehicleMessages......113

VehiclePersonalization

VehiclePersonalization......113

Controls

SteeringWheel Adjustment

Diagram of a car steering wheel and dashboard with directional arrows indicating rotation (no text or symbols)

Toadjustthesteeringwheel:

1. Pulltheleverdown.
   2.Movethesteeringwheelup ordown.
2. Pullorpushthesteeringwheel closerorawayfromyou.
3. Lifttheleveruptolockthe steeringwheelinplace.

Donotadjustthesteeringwheel whiledriving.

SteeringWheelControls

Depending on the vehicle options, some audio functions can be controlled through the steering wheel controls.

Interior view of a car steering wheel and dashboard with a close-up inset showing internal components (no text or symbols visible)

I: Press to answer an incomingcall, interact with Bluetooth, or start voice recognition. See Bluetooth 198 or Voice Recognition 192.

☑ / ☑ : Press to decline an incomingcallortoendacurrent call.Presstosilencethevehicle speakerswhileusingthe

infotainmentsystem.Pressagainto turnthesoundon.Presstocancel voicerecognition.

△ SRC ∇ : Press to select an audio source.

Usethenthumbwheeltoselectthe nextorpreviousfavoriteradio station, CD, USB, AUX, and BluetoothAudio.SeeAM-FMRadio 138, Satellite Radio 141 (if equipped), CDPlayer 157, BluetoothAudio 166, or Auxiliary Devices 165.

Use △SRCtoskiptothenextsong orshowusingPandora(ifequipped) orStitcher.SeePandoralInternet Radio→147orStitcherInternet Radio→152.

+ ▷-:Press+toincrease the volume. Press-todecrease.

HeatedSteeringWheel

Top-down view of a car dashboard with circular ventricles and a directional arrow indicator (no text or symbols)

: If equipped with a heated steering wheel, presstoturniton or off. Alighton the button displays when the feature is turned on.

Thesteeringwheeltakesabout threeminutestostartheating.

Horn

Press ▶ onthesteeringwheelpad tosoundthehorn.

WindshieldWiper/Washer

WiththeignitioninACC/ ACCESSORYorON/RUN,move thewindshieldwiperlevertoselect thewiperspeed.

HI:Useforfastwipes.

LO:Useforslowwipes.

INT: MovetheleveruptoINT, then turnthe ◀INTbandupordown formoreorlesssensitivity to moisture. See "Rainsense" later in this section.

OFF:Usetoturnthewipersoff.

1X: Forasinglewipe, briefly move thewiperleverdown. For several wipes, hold thewiperleverdown.

Clearsnowandicefromthewiper bladesandwindshieldbeforeusing them.Iffrozentothewindshield, carefullyloosenorthawthem. Damagedbladesshouldbe replaced.SeeWiperBlade Replacement→273.

Heavysnoworicecanoverloadthe wipermotor.SeeElectricalSystem Overload→281.

WiperParking

WhenusingRainsensewipes,the wiperspausebrieflyonthe windshield.Ifthewiperleveris movedtoOFForifRainsenseand additionalwipesarenotrequired, thewipersmaymovetothebaseof thewindshield.

If the ignition is turned OFF while the wipers are on LO, HI, or INT, they will immediately stop.

Ifthewindshieldwiperleveristhen movedtoOFFbeforethedriver doorisopenedorwithin10minutes, thewiperswillrestartandmoveto thebaseofthewindshield.

If the ignition is turned OFF while the wipers are performing wipes due to windshield washing or Rain sense wipes, the wipers continue on until they reach the base of the windshield.

Rainsense

Asensordetectstheamountof wateronthewindshieldand controlsthefrequencyofthe windshieldwiper.

INT: Movethewindshieldwiper levertoINT.Turnthe ◀INTband onthewiperlevertoadjustthe sensitivity.

• Turnthebandupformore sensitivitytomoisture.
- Turnthebanddownforless sensitivitytomoisture.
- Movethewindshieldwiperlever outoftheINTpositionto deactivateRainsense.

WiperArmAssemblyProtection

Ifequippedwithwiperarmassembly protection,whenusinganautomatic carwash,movethewindshield wiperlevertoOFF.Thisdisables theautomaticRainsensewindshield wipers.

WithRainsense, if the transmission is in N(Neutral) and the vehicle speed is very slow, the wipers will automatically stop the base of the windshield.

Thewiperoperationsreturnto normalwhentetransmissionisno longerinN(Neutral)orthevehicle speedhasincreased.

↓: Pullthewindshieldwiper levertowardyoutspraywindshield washerfluidandactivatethewipers. Thewiperswillcontinueuntilthe

leverisreleasedorthemaximum washtimeisreached. When the windshieldwiperleverisreleased, additionalwipesmayoccur dependingonhowlongthe windshieldwasherhadbeen activated. See WasherFluid ^269 forinformationonfillingthe windshieldwasherfluidreservoir.

Warning

Infreezingweather, donotuse the washer until the windshield is warmed. Otherwise the washer fluid can form mice on the windshield, blocking your vision.

Compass

The vehicle may have a compass display on the Driver Information Center (DIC). The compass receives its heading and other information from the Global Positioning System (GPS) antenna, Stabili Trak ^® , and vehiclespeed information.

96InstrumentsandControls

Thecompasssystemisdesignedto operateforacertainnumberof milesordegreesofturnbefore needingasignalfromtheGPS satellites. Whenthecompass displayshowsCAL, drivethe vehicleforashortdistanceinan openareawhereitcanreceivea GPSsignal. Thecompasssystem willautomaticallydeterminewhena GPSsignalisrestoredandprovide aheadingagain.

Clock

Theinfotainmentsystemcontrols areusedtoaccessthetimeand datesettingsthroughthemenu system. Theclockmenucanonly beusedwiththeradiowhileinON/RUNorACC/ACCESSORY.See "TimeandDateSettings" under ConfigureMenu→185.

PowerOutlets

Theaccessorypoweroutletscanbe usedtopluginelectricalequipment, suchasacellphoneorMP3player.

Thereisoneaccessorypoweroutlet onthecenterstackbelowthe climatecontrolsandoneontherear ofthecenterfloorconsole. These outletsarepoweredwhenthekeyis inON/RUNorACC/ACCESSORY, oruntilthedriverdoorisopened within10minutesofturningoffthe vehicle.SeeRetainedAccessory Power(RAP)→231.

Caution

Leavingelectricalequipment pluggedinforanextendedperiod oftimewhilethevehicleisoffwill drainthebattery.Alwaysunplug electricalequipmentwhennotin useanddonotpluginequipment thatexceedsthemaximum 20amprating.

Certain electrical accessories may not be compatible with the accessory power outlet and could overload vehicle or adapter fuses. If a problem is experienced, see your dealer.

When adding electrical equipment, besuretofollowtheinstallation instructionsincludedwiththe equipment.SeeAdd-On Electrical Equipment→253.

Caution

Hangingheavyequipmentfrom thepoweroutletcancause damagenotcoveredbythe vehiclewarranty. Thepower outletsaredesignedfor accessorypowerplugsonly,such ascellphonechargecords.

WarningLights, Gauges,and Indicators

Warninglightsandgaugescan signalthatsomethingiswrong beforeitbecomesseriouslyenough tocauseanexpensiverepairor replacement.Payingattentiontothe warninglightsandgaugescould preventinjury.

Somewarninglightscomeonbriefly whentheengineisstartedto indicatetheyareworking.When oneofthewarninglightscomeson andstaysonwhiledriving,orwhen oneofthegaugesshowstheremay beaproblem,checkthesectionthat explainswhattodo.Waitingtodo repairscanbecostlyandeven dangerous.

InstrumentCluster

Speedometer

Thespeedometersshowsthevehicle speedinkilometersperhour(km/h) andmilesperhour(mph).

Odometer

Theodometershowshowfarthe vehiclehasbeendriven,ineither kilometersormiles.

TripOdometer

Thetripodometershowshowfar thevehiclehasbeendrivensince thetripodometerwaslastreset.

Thetripodometerisaccessed and resetthroughtheDriverInformation Center(DIC).SeeDriver InformationCenter(DIC)→110.

Tachometer

Thetachometerdisplaystheengine speedinrevolutionsper minute(rpm).

Caution

If the engine is operated with the rpm's inthewarning area at the high end of the tachometer, the vehicle could be damaged, and the damage would not be recovered by the vehicle warranty. Donot operate the engine with the rpm's inthewarning area.

FuelGauge

Whentheignitionison, the fuel gaugetells you about how much fuely you have left in your tank.

Anarrowonthefuelgauge indicatesthesideofthevehiclethe fueldoorison.

Whenthefuelislow, amessage may appear in the Driver Information Center (DIC), and a chimewillsound.

Herearefourthingsthatsome ownersaskabout.Noneofthese showaproblemwithyourfuel gauge:

• Attheservicestation, the fuel pumpshutsoffbeforethegauge readsfull.
• Ittakesalittlemoreorlessfuel tofillupthanthegauge indicated. Forexample, the gaugemayhaveindicatedthe tankwashalffull, butitactually tookalittlemoreorlessthan halfthetank'scapacitytofill thetank.
• Thegaugemovesalittlewhile turningacornerorspeedingup.

100InstrumentsandControls

- Thegaugetakesafewseconds tostabilizeaftertheignitionis turnedon, and willgobackto emptywhentheignitionis turnedoff.

EngineCoolant TemperatureGauge

Thisgaugeshowstheengine coolanttemperature.

Iftheindicatorneedlemovestothe hotsideofthegaugetowardthe shadedarea,theengineistoohot.

If the vehicle has been operated under normal driving conditions, pull offtheroad, stop the vehicle, and turnoff the engine as soon as possible.

SafetyBeltReminders DriverSafetyBeltReminder Light

Thereisadriversafetybelt reminderlightontheinstrument cluster.

Whenthevehicleisstarted, this lightflashesandachimemaycome ontoremindthedrivertofasten theirsafetybelt. Thenthelightstays onsoliduntilthebeltisbuckled. Thiscyclemaycontinueseveral timesifthedriverremainsor becomesunbuckledwhilethe vehicleismoving.

Ifthedriversafetybeltisbuckled, neitherthelightnorthechime comeson.

PassengerSafetyBelt ReminderLight

Thereisapassengersafetybelt reminderlightnearthepassenger airbagstatusindicator.See PassengerSensingSystem→63.

Whenthevehicleisstarted,this lightflashesandachimemaycome ontoremindpassengerstofasten theirsafetybelt. Thenthelightstays onsoliduntilthebeltisbuckled. Thiscyclecontinuesseveraltimesif thepassengerremainsorbecomes unbuckledwhilethevehicleis moving.

If the passengers safety belt is buckled, neither the chimen or the light comes on.

Thefrontpassengersafetybelt reminderlightandchimemayturn onifanobjectisputontheseat suchasabriefcase,handbag, grocerybag,laptop,orother electronicdevice.Toturnoffthe reminderlightand/orchime,remove theobjectfromtheseatorbuckle thesafetybelt.

AirbagReadinessLight

Thislightshowsifthereisan electricalproblemwiththeairbag system. Thesystemcheckincludes theairbagsensor(s),passenger sensingsystem,thepretensioners, theairbagmodules,therollbars, thewiring,andthecrashsensing anddiagnosticmodule. Formore informationontheairbagsystem, seeAirbagSystem→58.

Theairbagreadinesslightcomeson forseveralsecndswhenthe vehicleisstarted.Ifthelightdoes notcomeonthen,haveitfixed immediately.

Warning

If the airbagreadinesslightstays on after the vehicle is started or comes on while driving, it means the air bagsystem might not be working properly. The airbags in the vehicle might not inflate a crash, or they could even inflate without acrash. To help avoid injury, have the vehicles serviced right away.

PassengerAirbagStatus Indicator

Thevehiclehasapassenger sensingsystem.SeePassenger SensingSystem→63forimportant safetyinformation.Thecenterstack hasapassengerairbagstatus indicator.

PASS AIR BAG

ON

OFF

Whenthevehicleisstarted,the passengerairbagstatusindicator willlightONandOFFforseveral secondsasasystemcheck.Then, afterseveralseconds,thestatus indicatorwilllighteitherONorOFF toletyouknowthestatusofthe frontoutboardpassengerfrontal airbagandkneeairbag.

IfthewordONislitonthe passengerairbagstatusindicator,it meansthatthefrontoutboard passengerfrontalairbagandknee airbagareallowedtoinflate.

IfthewordOFFislitonthe passengerairbagstatusindicator,it meansthatthepassengersensing systemhasturnedoffthefront outboardpassengerfrontalairbag andpassengerkneeairbag.

If,afterseveralseconds,bothstatus indicatorlightsremainon,orifthere arenolightsatall,theremaybea

102InstrumentsandControls

problemwiththelightsorthe passengersensingsystem.See yourdealerforservice.

Warning

If the airbagreadiness light ever comes on and stay on, it means that something may bewrong with the air bags system. To help avoid injury to your self for others, havethe vehicles serviced right away. See Airbag Readiness Light 101 form more information, including important safety information.

ChargingSystemLight

Thechargingsystemlightcomeson brieflywhentheignitionisturned on,buttheengineisnotrunning,as achecktoshowthelightisworking.

Thelightturnsoffwhentheengine isstarted. If it does not, have the vehicles serviced by your dealer.

Ifthelightstayson,orcomeson whiledriving,therecouldbea problemwiththeelectricalcharging system.Haveitcheckedbyyour dealer.Drivingwhilethislightison coulddrainthebattery.

Ifashortdistancemustbedriven withthelighton,besuretoturnoff allaccessories,suchastheradio andairconditioner.

MalfunctionIndicator Lamp(CheckEngine Light)

Thislightispartofthevehicle's emissioncontrolon-board diagnosticsystem. If this lightison while the engine is running, a malfunction has been detected and the vehicle may require service. The light should come on to show that it is working when the ignition is in ON/RUN with the engine not running. See Ignition Positions 228.

Malfunctionsareoftenindicatedby thesystembeforeanyproblemis noticeable. Beingawareofthelight andseekingservicepromptlywhen itcomesonmaypreventdamage.

Caution

If the vehicle is driven continually with this lighton, the emission control system may not work as well, the fuel economy may be lower, and the vehicle may not run smoothly. This could lead to costly repair that might not be covered by the vehicle warranty.

Caution

Modificationstotheengine, transmission, exhaust, intake, orfuelsystem, ortheuseof replacementtiresthatdonot meettheoriginaltire specifications, cancausethislight tocomeon. This could lead to costly repairs not covered by the vehicle warranty. This could also affect the vehicle's sability topass an Emissions Inspection/ Maintenancetest. See Accessories and Modifications 255.

Ifthelightisflashing:A

malfunctionhasbeendetectedthat coulddamagetheemissioncontrol systemandincreasevehicle emissions.Diagnosisandservice mayberequired.

Tohelppreventdamage, reduce vehiclespeed and avoid hard accelerations and uphill grades.

If the light continuestoflash, find a safe placetopark. Turn the vehicle off and wait at least 10 seconds before starting the engine. If the light is still flashing, follow the previous guidelines and see your dealer for service as soon as possible.

Ifthelightisonsteady:A

malfunctionhasbeendetected. Diagnosisandservicemaybe required.

Checkthefollowing:

• Aloeoseormissingfuelcapmay causethelighttocomeon.See Fillingthe Tank→250.Afew drivingtripswiththecap properlyinstalledmayturnthe lightoff.
• Poorfuelqualitycancause inefficientengineoperationand poordriveability,whichmaygo awayoncetheengineiswarmed up.Ifthisoccurs,changethe fuelbrand.Itmayrequireat leastonefulltankoftheproper fueltoturnthelightoff.See Fuel→249.

Ifthelightremainson, see your dealer.

EmissionsInspection and MaintenancePrograms

If the vehiclerequires an Emissions Inspection/Maintenancetest, the test equipment will likely connect to the vehicle's Data Link Connector (DLC).

Technical line drawing of a connector pinout (no text or symbols)

TheDLCisundertheinstrument paneltotheleftofthesteering wheel.Connectingdevicesthatare notusedtoperformanEmissions Inspection/Maintenancetestorto servicethevehiclemayaffect vehicleoperation.SeeAdd-On ElectricalEquipment→253.See yourdealerifassistanceisneeded.

The vehicle may not pass inspection if:

• Thelightisonwhentheengine isrunning.
• Thelightdoesnotcomeon whentheignitionisinON/RUN withtheenginenotrunning.
• Criticalemissioncontrolsystems havenotbeencompletely diagnosed. If this happens, the vehicle would not be ready for inspection and might require several days of routine driving before the system is ready for inspection. This can happen if the 12-volt battery has recently been replaced or rundown, or if the vehicle has been recently serviced.

Seeyourdealerifthevehiclewill notpassorcannotbemadeready forthetest.

BrakeSystemWarning Light

The vehicle brakesystem consists of two hydraulics circuits. If one circuit is not working, there are remaining circuit can still work to stop the vehicle. Fornormal braking performance, both circuits need to be working.

Thebrakesystemwarninglightwill comeonwhenthereisabrake problem.

If the warning light stay on, have the vehicle inspected by your dealer right away.

BRAKE

Thislightshouldcomeonbriefly whentheengineisstarted.lfitdoes notcomeonthen,haveitfixedsoit willbereadytowarnyouifthereis aproblem.

Warning

Thebrakesystemmightnotbe workingproperlyifthebrake systemwarninglightison. Drivingwiththebrakesystem warninglightoncanleadtoa crash.Ifthelightisstillonafter thevehiclehasbeenpulledoff theroadandcarefullystopped, havethevehicletowedfor service.

Ifthelightcomesonwhiledriving, a chimesounds. Pullofftheroadand stop. Thepedalmightbeharderto pushorgoclosertothefloor. Itmightalsotakelongertostop. Ifthelightisstillon, havethe vehicletowedforservice. See Towingthe Vehicle 318.

ElectricParkingBrake Light

Theparkingbrakestatuslight comesonwhenthebrakeis applied. Ifthelight continues flashingaftertheparkingbrakeis released, orwhiledriving, thereisa problemwiththeElectricParking Brake(EPB)system.

Ifthelightdoesnotcomeon, orremainsflashing,seeyourdealer.

ServiceElectricParking BrakeLight

Theparkingbrakewarninglight shouldcomeonbrieflywhen startingthevehicle. Ifitdoesnot comeon,haveitfixedsoitwillbe readytowarnifthereisaproblem. Ifthislightstayson,thereisa problemwiththeElectricParking Brake(EPB)systemoranother systemonthevehiclethatis causingtheparkingbrakesystemto workatareducedlevel.Thevehicle canstillbedriven,butshouldbe takentoadealerassoonas possible.Seetheinformationforthe EPBunderElectricParking Brake→237.

AntilockBrakeSystem (ABS)WarningLight

TheAntilockBrakeSystem(ABS) lightcomesonbrieflywhenthe engineisstarted.

Ifthelightdoesnotcomeon,have thevehicleservicedbyyourdealer.

IftheABSlightcomesonandstays onwhiledriving,stopassoonas possibleandturntheignitionoff. Starttheengineagaintoresetthe system.Ifthelightstaysonafter drivingataspeedabove20km/h (13mph),seeyourdealerfor service.Achimemayalsosound whenthelightcomesonsteady.

Iftheregularbrakesystemwarning lightisnoton,thevehiclestillhas brakes,butnotantilockbrakes. Iftheregularbrakesystemwarning lightisalsoon,thevehicledoesnot haveantilockbrakesandthereisa problemwiththeregularbrakes. SeeBrakeSystemWarning Light→104.

OperatePedalLight

Thislightcomesonwhenthebrake pedalneedstobeappliedtorelease theElectricParkingBrake(EPB).

PowerSteeringWarning Light

Ifequipped, this light comes on briefly when the ignition is turned to ON/RUN as a check to show it is working.

Ifitdoesnotcomeonhavethe vehicleservicedbyyourdealer.

If this light stay on, or comes on while driving, the system may not be working. If this happens, see your dealer for service.

LaneDepartureWarning (LDW)Light

Ifequipped, this light comes on briefly while starting the vehicle. If it does not come on, have the vehicle serviced.

ThislightisgreenifLDWisonand readytooperate.

Thislightchangestoamberand flashestoindicate that the thelane marking has been crossed without using a turn signal in that direction.

SeeLaneDepartureWarning (LDW)→248.

VehicleAheadIndicator

Ifequipped, this indicator will display green when a vehicle is detected ahead

SeeForwardCollisionAlert(FCA) System→246.

StabiliTrak® OFFLight

Thislightcomesonbrieflywhile startingtheengine.lfitdoesnot, havethevehicleservicedbyyour dealer.

Thislightcomesonwhenthe StabiliTraksystemisturnedoff. IfStabiliTrakisoff,the Traction ControlSystem(TCS)isalsooff.

IfStabiliTrakandTCSareoff, the systemdoesnotassistincontrolling thevehicle. TurnontheTCSand theStabiliTraksystems, and the warninglightturnsoff.

See Traction Control/Electronic Stability Control→240.

TractionControlSystem (TCS)/StabiliTrak® Light

Thislightcomesonbrieflywhenthe engineisstarted.

Ifthelightdoesnotcomeon, have the vehicleservicedbyyourdealer. Ifthesystemisworkingnormally, theindicatorlightturnsoff.

Ifthelightisonandnotflashing,the TCSandpotentiallytheStabiliTrak systemhavebeendisabled. ADriverInformationCenter(DIC) messagemaydisplay.Checkthe DICmessagestodeterminewhich feature(s)isnolongerfunctioning andwhetherthevehiclerequires service.

Ifthelightisonandflashing,the TCSand/ortheStabiliTraksystem isactivelyworking.

See TractionControl/Electronic StabilityControl→240.

TirePressureLight

ForvehicleswiththeTirePressure MonitorSystem(TPMS), thislight comesonbrieflywhentheengineis started. Itprovidesinformation abouttirepressuresandtheTPMS.

WhentheLightIsOnSteady

This indicates that one or more of the tires are significantly underinflated.

Stopassoonaspossible, and inflatethetirestothepressurevalue shownontheTireandLoading Informationlabel.See Tire Pressure⇒295.

WhentheLightFlashesFirstand ThenIsOnSteady

If the light flashes for about a minute and then stay on, ther may be a problem with the TPMS. If the problem is not corrected, the light will come on at every ignition cycle. See Tire Pressure Monitor Operation 297.

EngineOilPressureLight

Caution

Lackofproperengineoil maintenancecandamagethe engine. Drivingwiththeengineoil lowcanalsodamagetheengine.

(Continued)

Caution(Continued)

Therepairswouldnotbecovered bythevehiclewarranty.Check theoillevelassoonaspossible.Addoilifrequired,butiftheoil leveliswithintheoperatingrange andtheoilpressureisstillow,havethevehicleserviced.Always followthemaintenanceschedule forchangingengineoil.

Thislightshouldcomeonbrieflyas theengineisstarted.Ifitdoesnot comeon,havethevehicleserviced byyourdealer.

Ifthelightcomesonandstayson,it meansthatoilisnotflowingthrough theengineproperly.Thevehicle couldbelowonoilandmighthave someothersystemproblem.See yourdealer.

LowFuelWarningLight

Thislightcomesonforafew secondswhentheignitionisturned onasachecktoindicateitis working.lfitdoesnotcomeon, haveitfixed.

Thelowfuelwarninglightcomeson andachimesoundswhenthe vehicleislowonfuel. Thelightturns offwhenfuelisaddedtothe fueltank.

SecurityLight

Thesecuritylightshouldcomeon brieflyastheengineisstarted.Ifit doesnotcomeon,havethevehicle servicedbyyourdealer.Ifthe systemisworkingnormally,the indicatorlightturnsoff.

If the light stay on and the engine does not start, there could be a problem with the theft-deterrent system. See Immobilizer Operation 32.

High-BeamOnLight

Thehigh-beamonlightcomeson whenthehigh-beamheadlampsare inuse.

SeeHeadlampHigh/Low-Beam Changer→120formoreinformation.

AdaptiveForward Lighting(AFL)Light

Thislightshouldcomeonbrieflyas thevehicleisstarted.Ifitdoesnot comeon,havethevehicleserviced byyourdealer.

Thislightcomesonsolidwhen thereisaproblemwiththeAFL system.Itflasheswhenthesystem isswitchingbetweenlighting modes.SeeAdaptiveForward Lighting(AFL)→121.

FrontFogLampLight

Ifequipped, this light comes on when the foglamps are on.

Thelightgoesoutwhenthefog lampsareturnedoff.SeeFog Lamps→123.

LampsOnReminder

Thislightcomesonwhenthe exteriorlampsareinuse.See ExteriorLampControls→119.

CruiseControlLight

Forvehicleswithcruisecontrol,the cruisecontrollightiswhitewhenthe cruisecontrolisonandready,and turnsgreenwhenthecruisecontrol issetandactive.

Thelightturnsoffwhenthecruise controlisturnedoff.See Cruise Control→242.

DoorAjarLight

Ifequipped, this light comes on when a door is open or not securely latched. Before driving, check that all doors are properly closed.

InformationDisplays

DriverInformation Center(DIC)

The DIC displays information about the vehicle. It alsodisplays warning messages ifasystem problem is detected. See VehicleMessages 113. All messages appear in the DIC display in the center of the instrument cluster.

DICOperationandDisplays

The DIChasdifferentdisplays which can be accessed by using the DICbuttonsontheturnsignallever. The DICdisplaystrip, fuel, and vehicle system information, and warning messages if a system problem is detected.

ThebottomoftheDICdisplay showsthepositionoftheshiftlever andtheodometer.Itmayalsoshow thedirectionthevehicleisdriving.

DICButtons

1. SET/CLR: Presstoset, orpressandholdtoclear, the menuitemdisplayed.
2. △/▽:Usetoscrollthrough theitemsineachmenu. Asmallmarkerwillmove acrossthebottomofthepage asyouscrollthroughtheitems. Thisshowswhereeachpageis inthemenu.
3. MENU: PresstogettotheTrip/FuelMenuandtheVehicle InformationMenu. Thisbutton isalsousedtoreturntoorexit thelastscreendisplayedon theDIC.

Trip/FuelMenultems

PressMENUontheturnsignal leveruntiltheTrip/FuelMenuis displayed. Use △/▽toscroll throughthefollowingmenuItems:

• DigitalSpeedometer
• Trip1
• Trip2
• FuelRange
  • AverageFuelEconomy
• InstantaneousFuelEconomy
  • AverageVehicleSpeed
• Timer
• Navigation

DigitalSpeedometer

Thespeedometershowshowfast thevehicleismovingineither kilometersperhour(km/h)ormiles perhour(mph). Thespeedometer cannotbereset.

Trip1andTrip2

Thesedisplaysshowthecurrent distancetraveled,ineither kilometers(km)ormiles(mi),since

thelastresetforthetripodometer. Thetripodometercanberesetto zerobypressingSET/CLR,orthe tripodometerresetsteminthe instrumentcluster,whilethetrip odometerdisplayisshowing.

FuelRange

Thisdisplayshowstheapproximate distancethevehiclecanbedriven withoutrefueling. Thefuelrange estimateisbasedonanaverageof thevehicle'sfueleconomyover recentdrivinghistoryandthe amountoffuelremaininginthefuel tank.Fuelrangecannotbereset.

AverageFuelEconomy

Thisdisplayshowstheapproximate averagelitersper100kilometers (L/100km)ormilespergallon (mpg).Averagefueleconomyis calculatedbasedonthenumberof L/100km(mpg)recordedsincethe lasttimethismenuitemwasreset. Thisnumberreflectsonlythe approximateaveragefueleconomy thatthevehiclehasrightnow,and willchangeasdrivingconditions change.Theaveragefueleconomy canberesetbypassingSET/CLR whiletheAverageFuelEconomy displayisshowing.

InstantaneousFuelEconomy

Theinstantaneousfueleconomy displayshowsthecurrentfuel economyinlitersper100kilometers (L/100km)ormilespergallon (mpg). Theinstantaneousfuel economyreflectsonlythecurrent approximatefueleconomy, and changesfrequentlyasdriving conditionschange. Unlikeaverage economy, thisdisplaycannot be reset.

AverageVehicleSpeed

Thisdisplayshowstheaverage speedofthevehicleinkilometers perhour(km/h)ormilesper hour(mph). Thisaverageis calculatedbasedonthevarious vehiclespeedsrecordedsincethe lastresetofthisvalue. Theaverage speedcanberesetbypassing SET/CLRwhiletheAverageVehicle Speeddisplayisshowing.

Timer

Thisdisplaycanbeusedasatimer. Tostartthetimer, pressSET/CLR while Timerisdisplayed. The displaywillshowtheamountoftime thathaspassedsincethetimerwas lastreset, notincludingtimethe ignitionisoff. Timewillcontinueto becountedaslongastheignitionison, evenifanotherdisplayisbeing shownontheDIC. Thetimerwill recordupto99hours, 59minutes, and 59seconds(99:59:59)after whichthedisplaywillreturntozero. Tostopthetimer, pressSET/CLR brieflywhileTimerisdisplayed. To resetthetimertozero, pressand holdSET/CLR.

Navigation

Thisdisplayisusedforthe NavigationSystemTurn-by-Turn guidance.Ifequippedwith navigation,seeUsingthe NavigationSystem→168.

112InstrumentsandControls

VehicleInformationMenu Items

Press MENU on the turn signal lever until the Vehicle Information Menu is displayed. Use W / X to scroll through the following menu items:

• Unit
• Tire Pressure
• Remaining Oil Life
• Battery Voltage

Unit

Press SET/CLR to set. Move W / X to switch between metric or US when the set Unit display is active. Press SET/CLR to confirm the setting. This will change the displays on the cluster and DIC to either metric or English (US) measurements.

TirePressure

The display will show a vehicle with the approximate pressures of all four tires. Tire pressure is displayed in either kilopascal (kPa) or pounds per square inch (psi). See Tire PressureMonitorSystem0 296 and TirePressureMonitor Operation0 297.

RemainingOilLife

This display shows an estimate of the oil's remaining useful life. If REMAINING OIL LIFE 99% is displayed, that means 99% of the current oil life remains.

When the remaining oil life is low, the CHANGE ENGINE OIL SOON message will appear on the display. The oil should be changed as soon as possible. See EngineOil0 260. In addition to the engine oil life system monitoring the oil life, additional maintenance is recommended in the Maintenance Schedule. See Maintenance Schedule0 332.

Remember, the Remaining Oil Life display must be reset after each oil change. It will not reset itself. Also, be careful not to reset the Remaining Oil Life display accidentally at any time other than when the oil has just been changed. It cannot be reset accurately until the next oil change. To reset the engine oil life system, press SET/CLR while the Remaining Oil Life display is active. See EngineOil LifeSystem0 262.

BatteryVoltage

This display shows the current battery voltage. If the voltage is in the normal range, the value will display. For example, the display may read Battery Voltage 15.0 Volts. The vehicle's charging system regulates voltage based on the state of the battery. The battery voltage can fluctuate while viewing this information on the DIC. This is normal. See ChargingSystem Light0 102.

VehicleMessages

MessagesdisplayedontheDIC indicatethestatusofthevehicleor someactionthatmaybeneededto correctacondition.Multiple messagesmaydisplayoneafterthe other.

Themessagesthatdonotrequire immediateactioncanbe acknowledgedandclearedby pressingSET/CLR.Themessages thatrequireimmediateactioncannot becleareduntilthatactionis performed.Allmessagesshouldbe takenseriouslyandclearingthe messagesdoesnotcorrectthe problem.

Followtheinstructionsgiveninthe messages. Thesystemdisplays messagesregardingthefollowing topics:

• ServiceMessages
• FluidLevels
• VehicleSecurity
• Brakes

• RideControlSystems

• DriverAssistanceSystems

• CruiseControl
  • LightingandBulbReplacement
  • Wiper/WasherSystems
• DoorsandWindows
• ConvertibleTop
• SafetyBelts
• AirbagSystems
  • EngineandTransmission
• TirePressure
• Battery

Vehicle Personalization

Usetheaudiosystemcontrolsto accessthepersonalizationmenus forcustomizingvehiclefeatures.

The following are all possible personalization features. Depending on the vehicle, some may not be available.

InfotainmentSystemAudio SystemControls

UsingtheFaceplate

←→Knob

• Presstheouterdiameter (chromering)toenter,select, oractivateahhighlightedmenu option.
  • Turntohighlightamenuoption.
• Presstheouterdiameter (chromering)toenableor disableasystemsetting.

BACK

• Presstoexitamenu.
• Presstoreturntoaprevious screen.

114InstrumentsandControls

UsingtheTouchScreen

Touchascreenfeatureto:

• Viewmorefeatureoptions.

- Enableordisablethefeature.

△:Touchtoscrollup.

▽:Touchtoscrolldown.

Back: Touchtoreturntothe previousmenu.

Toaccessthe personalizationmenu:

1. TouchConfigontheHome Pageoftheinfotainment displayorpressCONFIGon thefaceplate.

2. Select the desired feature to display a list of available options.

3. Select the desired feature setting.

PersonalizationMenus

The followinglistofmenuitemsmay beavailable:

- Languages

- TimeandDate

• RadioSettings
• PhoneSettings
• NavigationSettings
• DisplaySettings
• VehicleSettings

Eachmenuisdetailedinthe followinginformation.

Languages

SelectLanguages, thenselectfrom theavailablelanguage(s).

TimeandDate

Manuallysetthetimeanddate.See Clock→96.

RadioSettings

Selectandthefollowingmay display:

• AutoVolume
• GracenoteOptions
• SXMChannelArt
  • MaxStartupVolume
  • NumberofFavoritesPages
• SXMCategories

- SoftwareVersionsMenu

AutoVolume

Thisfeatureadjuststhevolumeto minimizetheeffectsofunwanted backgroundnoisethatcanresult fromchangingroadsurfaces,driving speeds,oropenwindows.This featureworksbestatlowervolume settingswherebackgroundnoiseis typicallylouderthanthesound systemvolume.

SelectOff, Low, Medium, or High.

GracenoteOptions

Selectandthefollowingmay display:

- Normalization

Normalization

Thisfeatureimprovesvoice recognitionandmediagroupings. See CD Player 157, USB 160 AuxiliaryDevices 165, and BluetoothAudio 166.

Selecttoenableordisable.

SXMChannelArt

ThisfeatureturnstheSXMAudio pagebackgroundontheSXM Channeldisplayonandoff.

Selecttoenableordisable.

MaxStartupVolume

Thisfeaturesetsthemaximum startupvolume.Ifthevehicleis startedandthevolumeisgreater thanthislevel,thevolumeis adjustedtothislevel.

Select+or-toincreaseor decreasethevolume.

NumberofFavoritePages

Selecttosetthenumberoffavorite pagestodisplay.

Selectthedesirednumber.

SXMCategories

ThisallowswhichavailableSXM Categoriesareusedanddisplayed. Selecttoenableordisableavailable categories.

SoftwareVersionsMenu

Selecttodisplayinformationabout thesystemandupdatesoftwareif available.

PhoneSettings

Selectandthefollowingmay display:

- Bluetooth

Bluetooth

Selectandthefollowingmay display:

- DeviceList

- PairDevice

DeviceList

Selecttoconnecttoadifferent phonesource, disconnectaphone, ordeleteaphone.

PairDevice

Selecttopairanewdevice.See Bluetooth→198.

NavigationSettings

See ConfigureMenu→185.

DisplaySettings

Selectandthefollowingmay display:

• HomePageMenu
• RearCameraOptions
• DisplayOff
• MapSettings

HomePageMenu

Selectandthefollowingmay display:

• Customize
• Sort
• RestoreHomePageDefaults

Customize

Thisfeatureallowstheselectionof whaticonswillbeonthefirst HomePage.

Selectandfollowthescreen prompts.

116InstrumentsandControls

Sort

Thisfeatureallowstheiconsonthe HomePagetobemoved.

Selectandfollowthescreen prompts.

RestoreHomePageDefaults

ThisfeaturewillrestoretheHome Pagetothefactorysettings.

Selectandfollowthescreen prompts.

RearCameraOptions

Selectandthefollowingmay display:

Symbols

- GuideLines

Symbols

See Assistance Systems for Parking or Backing 244.

Selecttoenableordisable.

GuideLines

See Assistance Systems for Parking or Backing 244.

Selecttoenableordisable.

DisplayOff

Selecttoturnthedisplayoff. The displaywillreturnwhenanyradio buttonsarepressedorthescreenis touched(ifequipped).

MapSettings

See"MapSettings"inConfigure Menu→185.

VehicleSettings

Selectandthefollowingmay display:

• ClimateandAirQuality
• ComfortandConvenience

- CollisionDetectionSystems

- Lighting

- PowerDoorLocks

- RemoteLock/Unlock/Start

- ReturntoFactorySettings?

ClimateandAirQuality

Selectandthefollowingmay display:

• AutoFanSpeed
• RemoteStartAutoHeatSeat

- AutoRearDefog

AutoFanSpeed

Choosetheblowerspeedsetting. SelectHigh, Medium, or Low.

RemoteStartAutoHeatSeat

Whenon, this feature will turn the heated seatson when using remote start on cold days.

Selecttoenableordisable.

AutoRearDefog

Whenon, thisfeatureturnsonthe rearwindowdefoggeratvehicle startwhentheinteriortemperature iscoldandfogislikely. Theauto reardefogfunctioncanbedisabled byselecting 🐎. Whenoff, the featurecanbeturnedonby selecting 🐎. See "RearWindow Defogger" under DualAutomatic ClimateControlSystem→213.

Selecttoenableordisable.

ComfortandConvenience

Selectandthefollowingmay display:

• ChimeVolume
• ButtonChime

ChimeVolume

Thisallowstheselectionofthe chimevolumelevel.

SelectLoworHigh.

ButtonChime

ThisallowstheButtonChime featuretobeturnedonoroff.

Selecttoenableordisable.

CollisionDetectionSystems

Selectandthefollowingmay display:

- ParkAssist

ParkAssist

ThisallowstheParkingAssist featuretobeturnedonoroff.

SelectOfferOn.

Lighting

Selectandthefollowingmay display:

- VehicleLocatorLights

- ExitLighting

VehicleLocatorLights

Thisallowsthevehiclelocatorlights tobeturnedonoroff.

Selecttoenableordisable.

ExitLighting

This allow these selection of how long the exterior lamps stay on when leaving the vehicle when it is dark outside.

SelectOff, 30Seconds, 1Minute, or2Minutes.

PowerDoorLocks

Selectandthefollowingmay display:

• OpenDoorAntiLockOut
• AutoDoorUnlock
• DelayDoorLock

OpenDoorAntiLockOut

Whenon, thisfeaturewillkeepthe driverdoorfromlockinguntilthe doorisclosed. If thisfeature is turnedon, the DelayDoorLock menuwillnotbeavailable.

Selecttoenableordisable.

AutoDoorUnlock

This allows selection of which doors will automatically unlock when the vehicle is shifted into P(Park).

SelectAllDoors, DriverDoor, or Off.

DelayDoorLock

Whenon, this feature will delay the locking of the doors. See Delayed Locking 28.

Selecttoenableordisable.

RemoteLock/Unlock/Start

Selectandthefollowingmay display:

• RemoteUnlockFeedback
• RemoteLockFeedback
• RemoteDoorUnlock

RemoteUnlockFeedback

Whenon, the exterior lampswill flash when unlocking the vehicle with the RKE transmitter.

SelectFlashLightsorOff.

118InstrumentsandControls

RemoteLockFeedback

This allows selection of what feedback is provided when unlocking the vehicle with the RKE transmitter.

SelectLightsandHorn, LightsOnly, HornOnly, orOff.

RemoteDoorUnlock

Thisallowsselectionofwhichdoors willunlockonthefirstpressof 📄on theRKEtransmitter.IfDriverDoor isselected,alldoorswillunlockon thesecondpressof 📄within fivesecondsofthepriorpress. SelectDriverDoororAllDoors.

ReturntoFactorySettings?

This returns allofthe vehicle personalization setting to the factory settings. Select Yesor No.

Lighting

ExteriorLighting

ExteriorLampControls.....119

HeadlampHigh/Low-Beam

Changer......120

Flash-to-Pass......120

DaytimeRunning

Lamps(DRL)....120

AutomaticHeadlamp

System......121

AdaptiveForward

Lighting(AFL)......121

HeadlampLevelingControl...122

HazardWarningFlashers.....122

TurnandLane-Change

Signals......122

FogLamps....123

InteriorLighting

InstrumentPanelIllumination

Control.....123

CourtesyLamps......124

DomeLamps....124

ReadingLamps.....124

LightingFeatures

EntryLighting......124

ExitLighting......124

BatteryLoadManagement...125

BatteryPowerProtection.....125

ExteriorLightingBattery

Saver....125

ExteriorLighting

ExteriorLampControls

The exterior lamp controlistothe left of the steering column on the instrument panel.

Therearefourpositions:

Brieflyturntothispositionto turntheautomaticclampcontroloff oronagain.

AUTO:Turnstheheadlampson automaticallyatnormalbrightness, togetherwiththeparkinglamps, taillamps,licenseplatelamps, instrumentpanellights,and sidemarkerlamps.

120Lighting

300:Turnsontheparkinglamps includingallamps,exceptthe headlamps.
D: Turnsontheheadlamps togetherwiththeparkinglampsand instrumentpanellights.Awarning chimesoundsifthedriverdooris openedwhentheignitionswitchis offandtheheadlampsareon.

D: Ifequipped, presstoturnthe foglampsonoroff.

SeeFogLamps→123.

Whenthelightsareon, 300 will be lit. See Lamps On Reminder 109.

HeadlampHigh/Low-BeamChanger

ED: Pushtheturnsignalleveraway fromyouandreleasetoturnthe highbeamson.

Toreturntolowbeams, pushthe leveragainorpullittowardyouand release.

This indicator light turnson in the instrument cluster when the high-beam headlamps are on.

Flash-to-Pass

Toflashthehighbeams, pull the turnsignalleverallthewaytoward you. Thenreleaseit.

DaytimeRunning Lamps(DRL)

DRL can make it easier for other to seethefront of your vehicle during the day. Fully functional DRL are required on all vehicles first sold in Canada.

ThededicatedDRLwillcomeon whenallofthefollowingconditions aremet:

• TheignitionisintheON/RUNmode.
• Theexteriorlampcontrolis inAUTO.
• ThevehicleisnotinP(Park).

Theheadlampsautomatically changefromDRLtotheregular headlampsdependingonthe darknessofthesurroundingsand informationprovidedbytherain sensor.Theotherlampsthatcome onwiththeheadlampswillalso comeon.

Whenitisbrightenoughoutside, theheadlampsgooffandtheDRL comeon.

ToturntheDRLofforonagain, turn the exteriorlamp control to and then release. For vehicles first sold in Canada, this control only works when the transmission is in P(Park).

AutomaticHeadlamp System

Whenitisdarkenoughoutside and the exterior lamp control is in the automatic position and the engine is running, the headlamps come on automatically. See Exterior Lamp Controls 119.

Thesystemmayalsoturnonthe headlampswhendrivingthrougha parkinggarageortunnel.

Ifthevehicleisstartedinadark garage,theautomaticheadlamp systemcomesonimmediately.Ifit islightoutsidewhenthevehicle leavesthegarage,thereisaslight delaybeforetheautomatic headlampsystemchangestothe DRL.Duringthatdelay,the instrumentclustermaynotbeas brightasusual.Makesurethe

instrumentpanelbrightnesscontrol isinthefullbrightposition.See InstrumentPanelIllumination Control 123.

LightsOnwithWipers

If the windshieldwipers are activated in daylight with the engine on, and the exterior lamp control is in AUTO, the headlamps, parking lamps, and other exterior lamps come on. The transition time for the lamps coming on varies based on wiperspeed. Wh theewipers are not operating, these lampsturnoff. Mov the exterior lamp control to or 300 to disable this feature.

AdaptiveForward Lighting(AFL)

The AFL system adjusts the headlamp stop provide greater road illumination in various driving conditions.

ToenableAFL,settheexteriorlamp controltotheAUTOposition. MovingthecontroloutoftheAUTO positionwilldeactivatethesystem.

AFLwilloperatewhenthevehicle speedisgreaterthan3km/h (2mph). AFLwillnotoperatewhen thetransmissionisinR(Reverse). AFLisnotimmediatelyoperable afterstartingthevehicle;drivinga shortdistanceisrequiredto calibratetheAFL.SeeExterior LampControls⇒119.

CurveLighting

Thelightbeampivotsbasedonthe steeringwheelpositionandvehicle speedofatleast10km/h(6mph). Theheadlampsshineatanangle of upto15degreestotherightorleft ofthedirectionoftravel.

CornerLighting

Ontightbendsorwhenmakinga turn,dependingonthesteering angleortheturnsignallamp,an additionalleftorrightreflectoris turnedontoilluminatetheroadata rightangletothedirectionoftravel. Itisactivateduptoaspeedof 40km/h(25MPH).

122Lighting

ReversingFunction

Iftheheadlampsareonandthe shiftleverisinR(Reverse),both cornerlightsareturnedon.They remainonfor20secondsafter movingtheshiftleveroutof R(Reverse)positionoruntilthe vehicleisdrivingforwardfasterthan 16km/h(10mph).

HeadlampLeveling Control

Theleveloftheheadlampsis adjustedautomaticallybasedon vehicleload.

HazardWarningFlashers

Top-down view of a vehicle dashboard with a warning sign and arrow pointing to the front panel (no text or symbols on the dashboard itself)

△:Presstomakethefrontand rearturnsignallampsflashonand off. Thiswarnsothersthatyouare havingtrouble. Pressagaintoturn theflashersoff.

Intheeventofanaccidentwith airbagdeploymentthehazard warningflashersareactivated automatically.

TurnandLane-Change Signals

Movetheleverallthewayupor downtosignalaturn.

Anarrowontheinstrumentcluster willflashinthedirectionoftheturn orlanechange.

Raiseorlowertheleveruntilthe arrowstartstoflashtosignalalane change. Theturnsignalflashes threetimes.

Theleverreturnstoitsstarting positionwhenitisreleased.

Ifaftersignalingaturnorlane changethearrowflashesrapidlyor doesnotcomeon,asignalbulb maybeburnedout.Replaceany

burnedoutbulbs.Ifabulbisnot burnedout,checkthefuse.See FusesandCircuitBreakers→282.

FogLamps

Ifequipped, thefrontfoglamp buttonisontheexteriorlamp controltotheleftofthesteering column.

Theignitionmustbeontoturnon thefoglamps.

D: Presstoturnthefoglampson oroff. Anindicatorlightonthe instrumentclustercomesonwhen thefoglampsareon.

Thefoglampscomeontogether withtheparkinglamps.

Somelocalitieshavelawsthat requiretheheadlampstobeon alongwiththefoglamps.

InteriorLighting

InstrumentPanel IlluminationControl

Thisfeaturecontrolsthebrightness oftheinstrumentpanelcontrolsand infotainmentdisplayscreen.The thumbwheelistotheleftofthe steeringcolumnnontheinstrument panel.

:Moveththumbwheelupor downandhold,tobrightenordim theinstrumentpanelcontrolsand infotainmentdisplayscreen.

124Lighting

CourtesyLamps

Thecourtesylampscomeon automaticallywhenanydooris openedandthedomelampisinthe doorposition.

DomeLamps

Interior view of a mobile phone control panel with ports and buttons (no visible text or symbols)

The interior lamps control in the overhead console controls both the front and rear interior lamps.

:Presstoturnthelampsoff, evenwhenadoorisopen.

:Presstoturnthelampson automaticallywhenadooris opened.

:Presstoturnonthedome lamps.

ReadingLamps

Thefrontreadinglampsareinthe overheadconsole.

Interior view of a car seatbelt with two directional indicators (no text or symbols)

or : Press the button near each lamptoturnitonoroff.

LightingFeatures

EntryLighting

Someexteriorlampsandmostof theinteriorlampsturnonbrieflyat nightorinareaswithlimitedlighting whentheRemoteKeylessEntry (RKE)transmitter 🔒buttonis pressed.SeeRemoteKeylessEntry (RKE)SystemOperation→23.After about30secondstheexteriorlamps turnoff,thenthedomelampsand remaininginteriorlampsdimtooff. Entrylightingcanbedisabled manuallybychangingtheignition outoftheOFFposition,orby pressingtheRKEtransmitter 🔒 button.

Thisfeaturecanbechanged.See VehiclePersonalization→113.

ExitLighting

Some exterior lamps come on at night, or in areas with limited lighting, when the key is removed from the ignition. The domelamps also come on when the key is removed from the ignition. The

exteriorlampsanddomelamps remainonafterthedoorisclosed forasetamountoftime,then automaticallyturnoff.

The exterior lampsturnoff immediately by turning the exterior lamps control off.

Thisfeaturecanbechanged.See VehiclePersonalization→113.

BatteryLoad Management

The vehicle has Electric Power Management (EPM) that estimates the battery's temperature and state of charge. It then adjusts the voltage for best performance and extended life of the battery.

Whenthebattery'sstateofcharge islow,thevoltageisraisedslightly toquicklybringthechargebackup. Whenthestateofchargeishigh, thevoltageisloweredslightlyto preventovercharging.Ifthevehicle hasavoltmetergaugeoravoltage displayontheDriverInformation Center(DIC),youmayseethe

voltagemoveupordown. This is normal. If there is a problem, an alert will be displayed.

The battery can be discharged at idle if the electrical loads are very high. This is true for all vehicles. This because the generator (alternator) may not be spinning fast enough that lidetoproduce all of the power needed for very high electrical loads.

Ahighelectricalloadoccurswhen severalofthefollowingareon,such as:headlamps,highbeams,rear windowdefogger,climatecontrolfan athighspeed,heatedseats,engine coolingfans,trailerloads,andloads pluggedintoaccessorypower outlets.

EPMworkstoppreventexcessive dischargeofthebattery.ltdoesthis bybalancingthegenerator'soutput andthevehicle'selectricalneeds. Itcanincreaseengineidlespeedto generatemorepowerwhenever needed.Itcantemporarilyreduce thepowerdemandsofsome accessories.

Normally, these actions occur in steps or levels, without being noticeable. In rare cases at the highest level of corrective action, this action may be noticeable to the driver. If so, a DIC message might be displayed and it is recommended that the driver reduces the electrical loads as much as possible. See Driver Information Center (DIC) 110.

BatteryPowerProtection

The battery saverfeature is designed to protect the vehicle's battery.

If some interior lamps are left on and the ignition is turned off, the battery rundown protection system automatically turns the lamp after sometime.

ExteriorLightingBattery Saver

The exterior lampsturnoff about 10 minutes after the ignition is turned off, if the parking lamps or headlamp have been manually left on. This protects againstdraining

126Lighting

thebattery.Torestartthe10-minute timer,turntheexteriorlampcontrol totheoffpositionandthenbackto theparkinglamporheadlamp position.

Tokeepthelampsonformorethan 10minutes, theignitionmustbein theACC/ACCESSORYorON/RUN position.

Infotainment System

Introduction

Overview......128

SteeringWheelControls.....132

UsingtheSystem......132

SoftwareUpdates......137

Radio

AM-FMRadio....138

RadioDataSystem(RDS)....141

SatelliteRadio....141

RadioReception......146

Multi-BandAntenna......147

QuickInfo....147

PandoraInternetRadio......147

StitcherInternetRadio......152

Pictures....156

AudioPlayers

AvoidingUntrustedMedia

Devices......157

CDPlayer......157

MP3....158

USB....160

AuxiliaryDevices......165

BluetoothAudio......166

OnStarSystem

OnStarSystem......167

Navigation

UsingtheNavigation

System......168

Maps....172

NavigationSymbols......172

Destination....174

OnStar® Destination

Download.....184

ConfigureMenu......185

GlobalPositioning

System(GPS)....190

VehiclePositioning......190

ProblemswithRoute

Guidance....191

IftheSystemNeeds

Service....192

MapDataUpdates......192

DatabaseCoverage

Explanations......192

VoiceRecognition

VoiceRecognition......192

BluetoothPhone/Devices

Bluetooth....198

TextMessaging......205

TrademarksandLicense

Agreements

TrademarksandLicense

Agreements......208

Introduction

Overview

Readthefollowingpagesto becomefamiliarwiththe infotainmentsystemfeatures.

Warning

Takingyoureyesofftheroadfor toolongortoooftenwhileusing anyinfotainmentfeaturecan causeacrash.Youorothers couldbeinjuredorkilled.Donot giveextendedattentionto infotainmenttaskswhiledriving. Limityourglancesatthevehicle displaysandfocusyourattention ondriving.Usevoicecommands wheneverpossible.

Theinfotainmentsystemhasbuilt-in featuresintendedtohelpavoid distractionbydisablingsome functionswhendriving. These functionsmaygrayoutwhenthey areunavailable. Manyinfotainment

featuresarealsoavailablethrough theinstrumentclusterandsteering wheelcontrols.

Beforedriving:

• Becomefamiliarwiththe operation,centerstackcontrols, andinfotainmentdisplays.
• Setuptheaudiobypresetting favoritestations, setting the tone, and adjusting the speakers.
• Setupphonenumbersin advancesotheycanbecalled easilybytouchingasingle displaycommandorbyusinga singlevoicecommandif equippedwithBluetoothphone capability.

SeeDefensiveDriving→218.

Toplaytheinfotainmentsystemwith theignitionoff,seeRetained AccessoryPower(RAP)→231.

CustomerAssistance

Assistanceisavailabletohelpwith Bluetoothpairing, application downloading and installation, other mobile device interface, and operationsupportofthe infotainmentsystem.Specialistsare availablewhencallingthis CustomerAssistancenumber: 1-855-4SUPPORT(478-7767).

InfotainmentSystemOverview

Theinfotainmentsystemis controlledbyusingthecenterstack controls,infotainmentdisplay, steeringwheelcontrols,andvoice recognition.

SeeUsingtheSystem→132.

RadiowithNavigationShown, RadioWithoutNavigationSimilar

1. (Home)
   2.SRCE(Source)

2. ◀◀◀(SeekUp)
   4.Presets1-6

3. ⏻/△(Power/Volume)
   6.▷▷▷(SeekDown)
   7.AS1/2(Autostore)
   8.FAV1/2/3(Favorites)

130InfotainmentSystem

9.NAVI(Navigation)

10.PHONE

1. DEST(Destination)

12.RPT(Repeat)

13.BACK

1. InnerRockerKnob

2. ←→(Tune/Menu)

3. INFO(Information)

17.TONE

1. CONFIG(Configuration)

19.CDSlot

1. (Eject)

21.①(Clock)

InfotainmentCenterStack Controls

The control on the center stack are used to start primary functions while using the infotainment system.

Centerstackcontrolsonradios withoutnavigationreplaceSRCE withRADIO/BAND,CD,andAUX. SeeAM-FMRadio→138,Satellite Radio→141(ifequipped),CD Player→165,andAuxiliary Devices→165.

:PresstoaccesstheHome Pageontheinfotainmentdisplay. See"HomePage"followinginthis section.

Forradioswithoutnavigationtouch Homeatthetopbarofthe infotainmentdisplaytoaccessthe HomePage.

SRCE:Presstochangetheaudio sourcessuchasAM-FMradio, SiriusXM(ifequipped),CD,USB/ iPod,Pandora(ifequipped), Stitcher,BluetoothAudio,andAUX. SeeAM-FMRadio→138,Satellite Radio→141(ifequipped),Pandora InternetRadio→147(ifequipped), StitcherInternetRadio→152,CD Player→157,BluetoothAudio →166,or Auxiliary Devices→165.

◀◀◀:

- AM,FM,orSiriusXM(if equipped):Presstoseektothe previousstrongstation.See AM-FMRadio→138orSatellite Radio→141(ifequipped).

• CD,USB/iPod,BluetoothAudio, orAUX:Presstoseekthe beginningofthecurrentor previoustrack.SeeCDPlayer 157, Bluetooth Audio 166, orAuxiliaryDevices 165.
• CD,USB/iPod,BluetoothAudio, orAUX:Pressandholdto quicklyreversethroughatrack. Releasetoreturntoplaying speed.SeeCDPlayer\\157, BluetoothAudio\\166,or AuxiliaryDevices\\165.

Presets1–6: Thepresets numberedonethroughsixcanbe usedtoselectstoredAM-FM stationsandSiriusXMchannels.

①/

1. Presstoturnthesystemon andoff.
2. Turntoadjustthevolume.

▷▷▷:

- AM,FM,orSiriusXM(if equipped):Presstoseektothe nextstrongstation.SeeAM-FM Radio→138orSatelliteRadio →141(ifequipped).

• CD,USB/iPod,BluetoothAudio, andAUX:Presstoseektothe beginningofthecurrentornext track.SeeCDPlayer→157, BluetoothAudio→166,or AuxiliaryDevices→165.
• CD,USB/iPod,BluetoothAudio, andAUX:Pressandholdtofast forwardthroughatrack.Release toreturntoplayingspeed.See CDPlayer⇒157,Bluetooth Audio⇒166,orAuxiliary Devices⇒165.

AS1/2: Autostoresearches and storesFMandAMstations with the strongest signal.

FAV1/2/3:Presstodisplaythe currentpagenumberabovethe presets. Thestoredstations for eachlistdisplayonthepresetatthe bottomofthescreen. Thenumberof presetFAVlistscanbechangedin theConfigurationMenu.

NAVI:

1. Presstoviewthevehicle's currentpositiononthe mapview.

2. Continuepressingtocycle throughthefullmapviewand splitmapdisplays.

PHONE:SeeBluetooth→198.

DEST:

1. Presstoenteradestination.
2. Ifadestinationhasalready beenentered, presstoaccess theDestinationMenu.See Destination→174.

RPT: Presstorepeatthelastvoice guidanceprompt.

BACK: Presstoreturntothe previoussscreeninamenu.

Ifonapageaccesseddirectlybya centerstackcontrolorHomePage icon,pressingBACKwillgotothe homepage.

InnerRockerKnob: Movethe rockerknobindifferentdirectionsto navigateethroughthemap displayonly.

←→:Turntohighlightafeature. Presstheouterchromeringto activatethehighlightedfeature.

Toggletheinnerdirectionalrocker knobtonavigatethroughamap displayonly.

INFO: Presstotogglethroughan audioornavigationinformation display.

TONE: Presstoaccessthesound menutoadjustbass, midrange, and treble. See AM-FMRadio→138.

CONFIG:Presstoadjustfeatures foraudio, navigation, display, phone, vehicle, and time. See ConfigureMenu→185.

△:Presstoejectadiscfromthe CDplayer.SeeCDPlayer→157.

:Presstoadjustthetime.

Autostore

TouseAutostore:

1. PressSRCEtoselectFM orAM.
2. PressAS1/2fortwoseconds.
3. Theradiosearches and automatically storesthesix strongest stations.

PressAS1/2toalternatebetween theAutostorestationsandfavorites.

132InfotainmentSystem

Autostoredoesnotdelete previouslylstoredfavoritestations.

Autostoredoesnotfunctionwith SiriusXMradiochannels.

SteeringWheelControls

Depending on the vehicle options, some audio functions can be controlled through the steering wheel controls.

Interior view of a car steering wheel and dashboard with a close-up inset showing the dashboard panel (no text or symbols visible)

I: Press to answer an incomingcall, interact with Bluetooth, or start voicerecognition. See Bluetooth 198 or Voice Recognition 192.

☑ / ☑ : Press to decline an incomingcallortoendacurrent call.Presstosilencethevehicle speakerswhileusingthe infotainmentsystem.Pressagainto turnthesoundon.Presstocancel voicerecognition.

△ SRC ∇ : Press to select an audio source.

Usethenthumbwheeltoselectthe nextorpreviousfavoriteradio station,CD,USB,AUX,and BluetoothAudio.SeeAM-FMRadio 138,Satellite Radio 141 (if equipped),CDPlayer 157,BluetoothAudio 166,orAuxiliary Devices 165.

Use △SRCtoskiptothenextsong orshowusingPandora(ifequipped) orStitcher.SeePandoralInternet Radio→147orStitcherInternet Radio→152.

+ ▷-:Press+toincrease the volume. Press-todecrease.

UsingtheSystem

InfotainmentDisplayIconsand Commands

Theinfotainmentsystemis controlledbytouchingthe infotainmentdisplayandbyusing theknobsandothercontrols.

Infotainmentdisplayiconsand commandsareonthescreenand highlightedwhenafeatureis available.Sometogglefeatures highlightwhenactiveandgrayout wheninactive.

Controlsandknobsonthecenter stackareusedbypassingand/or turningtoaccessfeaturesonthe infotainmentsystem.

Voicerecognition, through the steeringwheel controls, can be used to control the infotainment features.

Press 📞/½ onthesteeringwheel controlstobeginvoicerecognition. See VoiceRecognition→192.

HomePage

InfotainmentDisplays

TheHomePageallowsaccess to manyofthefeatures.

Back: Touchtoreturntothe previouspage.

Home: Touchtogobacktothe HomePage.

Fav: Touchtodisplayapageof stored(favorite)AM-FMstationsor SiriusXM(ifequipped)channels. KeeptouchingFavtoscrollthrough thefavoritepages.

More ▶:Thisoptionmaydisplay dependingonthenumberof featuresstoredontheHomePage. Touchtogotothenextpage.

◀Previous: Touchtogotothe previouspage.

Next ▶: Touchtogotothe nextpage.

HomePageCustomization

The first Home Page can be customized.

Toaddicons:

1. TouchMenu.
2. TouchCustomize.
3. Touchanicontoaddor removefromthefirstHome Page.A ◎indicatesitwillbe displayed.Themaximum numberoficonsonHome Pageiseight.

4.TouchDone.

Tomoveicons:

1. TouchSort.
2. Touchtoselectaniconto moveandswapwithanother icononthefirstHome Pageonly.
   3.TouchDone.

TorestoreHomePage1 defaults:

1. TouchMenu.
2. TouchRestoreHomePage Defaults.
3. Touch Yesor Cancel.

HomePageFeatures

Touchinfotainmentdisplayiconsare highlightedwhenafeatureis available.

Various functions are disabled when the vehicle is moving.

134InfotainmentSystem

TouchNowPlayingtodisplaythe activesourcepage. Thesources availableareAM,FM,SiriusXM(if equipped),CD,USB/iPod,Pandora (ifequipped),Stitcher,Bluetooth Audio,andAUX.

SeeAM-FMRadio→138, Satellite Radio → 141, CD Player → 157, PandoraInternetRadio→147, StitcherInternetRadio→152, and AuxiliaryDevices→165.

TouchNavigationifequipped, to display a map of your current vehicle position. See Using the

NavigationSystem→185, Maps → 172, Navigation Symbols → 172, and ConfigureMenu→185.

TouchDestinationtodisplaythe DestinationEntrymainpageorthe DestinationMenu. Theavailable iconsprovideeasyaccesstoa varietyofwaystoentera destination.SeeDestination→174.

TouchPhonetodisplaythePhone mainpage.SeeBluetooth→198.

TouchConfigtodisplaytheConfig mainpage.Fromthisdisplay,adjust featuressuchastimeanddate, audio,phone,navigation,vehicle, anddisplay.SeeConfigure Menu→185.

TouchTonetodisplaytheTone mainpage.Adjustthetoneand speakersbytouchingthedisplay optionstochangethelevelsof soundfortreble,midrange,bass, fade,andbalance.SeeAM-FM Radio 138.

TouchPicturestopviewpictureson yourUSBdeviceorSDcard. PicturesontheSDcardcanonlybe viewedthroughaUSBadapter.See Pictures→156.

TouchFMtodisplaytheFMmain pageandplaythecurrentorlast tunedFMstation.SeeAM-FM Radio→138.

TouchAMtodisplaytheAMmain pageandplaythecurrentorlast tunedAMstation.SeeAM-FM Radio→138.

TouchXM(ifequipped)todisplay theXMmainpageandplaythe currentorlasttunedSiriusXM channel.SeeAM-FMRadio→138 andSatelliteRadio→141.

TouchPandora(ifequipped)to displaythePandoramainpage and streampersonalizedradiostations basedonartists,songs,genres,and comedians.SeePandoraInternet Radio→147.

TouchStitcher(ifequipped)to displaytheStitchermainpage and streamnews,sports,and entertainmentshowsthrough the audiosystem.See StitcherInternet Radio→152.

TouchCDtodisplaytheCDmain pageandplaythecurrentorlastCD trackselected.SeeCD Player→157.

136InfotainmentSystem

Touch®Bluetoothtodisplaythe BluetoothAudiomainpagetoplay musicthroughaBluetoothdevice. SeeBluetoothAudio→166.

TouchiPodtodisplaytheiPodmain pageandplaythecurrentorlast trackselected.SeeAuxiliary Devices→165.

TouchUSBtodisplaytheUSBmain pageandplaythecurrentorlast trackselected.SeeAuxiliary Devices→165.

TouchAUXtoaccessany connectedauxiliarydevice.See AuxiliaryDevices→165.

TouchWeather(ifequipped) to display the weather main page. Select other weather-related options from that list. See "Sirius XM Travel Link Weather" under Satellite Radio 141.

TouchFuel(ifequipped)todisplay detailednationwidefuelpricingSee "SiriusXMTravelLinkFuelPricing" underSatelliteRadio→141.

TouchMovies(ifequipped)toshow detailsoflocalmovietheater listings,starttimes,andratingsif available.See“SiriusXMTravelLink MovieListings”underSatellite Radio141.

TouchQuickInfoaccess informationonAudioplaying, OnStarTurn-by-Turn(ifequipped), 5-dayForecast,NearbyFuel Stations,andMovieShowtimes. SeeQuickInfo→147.

TouchMessages(ifequipped)to displaytheTextMessageInbox. See TextMessaging→205.

Ifequipped, AppsrequiresaWi-Fi Internetconnectionaspartofa smartphoneorothermobiledevice dataserviceplan. Onmost smartphones, activationisinthe SettingsmenuunderMobile NetworkSharing, PersonalHotspot, MobileHotspot, Wi-FiHotspot, orsimilar. AfteractivationofWi-Fi onthesmartphone, touchAppson theradioHomePage. Follow the promptstoconfiguretheInternet connectionandsetupanaccount. Seewww.buick.com/intellilink(U.S.).

CleaningHighGlossSurfaces and VehicleInformation and RadioDisplays

Forvehicleswithhighgloss surfacesorvehicledisplays,usea microfiberclothtowipesurfaces. Beforewipingthesurfacewiththe microfibercloth,useasoftbristle brushtoremovedirtthatcould scratchthesurface.Thenusethe microfiberclothbygentlyrubbingto clean.Neverusewindowcleaners orsolvents.Periodicallyhandwash themicrofiberclothseparately, usingmildsoap.Donotusebleach orfabricsoftener.Rinsethoroughly andairdrybeforenextuse.

Caution

Donotattachadevicewitha suctioncuptothedisplay. This maycausedamageandwould notbecoveredbythevehicle warranty.

SoftwareUpdates

Seewww.buick.comforsoftware updates.

Radio

AM-FMRadio

PlayingtheRadio

• Presstoturntheradioonoroff.
- Turntoincreaseordecreasethe volumeoftheactivesource.

Thesteeringwheelcontrolscan alsobeusedtoadjustthevolume. SeeSteeringWheelControls→132.

RadioOperation

Theradiowillworkwhenthekeyis inON/RUNorACC/ACCESSORY. WhenthekeyisturnedfromON/RUNtoLOCK/OFF,theradiowill continuetoworkfor10minutesor untilthedriverdoorisopened.

Theradiocanbeturnedonby pressing ☐/∠onthecenter stackandwillstayonfor 10minutes.Openingthedriverdoor willnotturntheradiooffwhen pressing ☐/∠.

Someradiosmaystayonlonger andresetthetimefor10minutesif thereareanyadditionalpressesof

Theradiocanbeturnedoffatany timebypassing ⏻/△onthe centerstack.

AudioSource

PressSRCEonthecenterstackor SRConthesteeringwheelcontrols todisplayandscrollthroughthe availablesourcesAM,FM,SiriusXM (ifequipped),Pandora(ifequipped), Stitcher,CD,USB,AUX,and BluetoothAudio.

Forradioswithoutnavigation,press RADIO/BAND,CD,orAUXtoscroll throughthesources.

InfotainmentSystemSettings

ToneSettings

Toaccessthetonesettings,touch ToneSettingstheHomePage. Tonesettingsarespecifictoeach source.

Thetonesettingscanalsobe accessedbypassingTONEonthe centerstack.

Toadjustthesettings:

• Bass: Touch+or-tochange thelevel.
• Mid(Midrange): Touch+or-to changethelevel.
• Treble: Touch+or-tochange thelevel.
• EQ:Pressandturnthe knobtocyclethroughthepreset EQoptions.
• Fade: TouchForRformore soundfromthefrontorrear speakers. Themiddleposition balancesthesoundbetweenthe frontandrearspeakers.

- Balance: TouchLorRformore soundfromtheleftorright speakers. Themiddleposition balancesthesoundbetweenthe leftandrightspeakers.

FindingaStation

PressSRCEonthecenterstackor pressSRConthesteeringwheel controlstoselectAM,FM,SiriusXM (ifequipped),Pandora(ifequipped), Stitcher(ifequipped),CD,USB, AUX,andBluetoothAudio.

Turnthe ←→knobtofindaradio station. Toselectapresetstation, pressFAV1/2/3toscrollthrough the favoritepagesandthenpressa presetonthecenterstackortouch thedisplayicon.

SeekingaStation

Press ◀◀◀or▶▶tosearchfora station.

AM

1. TouchAMontheHomePage orselectAMbypassing SRCEonthecenterstackor pressingSRConthesteering wheelcontrols,orsay"Tune AM"or"AM"throughvoice recognition.

Forradioswithoutnavigation, pressRADIO/BANDonthe centerstacktoselectAM.

1. Touch Menutodisplay the AM stations or categories.

2. Touchtoselectanoption. To updatethestationlist, touch Refresh.

FM

1. TouchFMontheHomePage orselectFMbypressingSRCE on the center stack or pressing SR Con the steering wheel controls, or say "TuneFM" or "FM" through voicerecognition. For radios without navigation, press RADIO/BANDon the center stack to select FM.
2. Touch Menutodisplaythe FM stationsorcategories.
3. Touchtoselectanoption. To updatethestationlist, touch Refresh.

140InfotainmentSystem

SiriusXM(IfEquipped)

1. Touch X Monthe Home Page or select XM by pressing SRCE on the center stack or pressing SR Con the steering wheel controls, or say "Tune XM" or "XM" through voice recognition.

Forradioswithoutnavigation, pressRADIO/BANDonthe centerstacktoselectXM.

1. Touch Menutodisplay the XM categories.

2. Touchacategoryandthenturn the knobtoscrollthe stationlist.Touchtoselectan option.

StoringRadioStationPresets

Upto36presetstationscanbe stored.AM,FM,andSiriusXM(if equipped)canbemixed.

1. From the AM, FM, or Sirius XM mainpage, press and hold any of the 1-6 presets on the center stack or one of the presets at the bottom of the infotainment display. After a few seconds, abeepis heard and thenew preset information displays on that preset.

2. Repeatforeachpreset.

Mixed-BandPresets

Eachfavoritepagecanstore sixpresetstations. Thepresets withinapagecanbedifferentradio bands.

Toscrollthroughthepages, press FAV1/2/3onthecenterstackor touchFavonthetopbarofthe infotainmentdisplay. Thecurrent pagenumberappearsabovethe presets. Thestoredstationsfor eachfavoritepagedisplayonthe presets.

Tochangethenumberoffavorite pagesdisplayed:

1. TouchConfigonthe HomePage.

2. TouchRadioSettings.

3. TouchNumberofFavorite Pages.

RecallingaPresetStation

Torecallapresetstationfroma favoritespage,dooneofthe following:

- TouchFavatthetopbarofthe infotainmentdisplayandthe presetpop-upwillappear.Touch oneofthepresetstogotothe selectedpresetstation.

- IntheAM, FM, or SiriusXM (if equipped) mainpage, touchone of the preset stogoto the selected preset station.

RadioDataSystem(RDS)

RDSfeaturesareavailableforuse onlyonFMstationsthatbroadcast RDSinformation.WithRDS,the radiocan:

• Seektostationsbroadcasting theselectedtypeof programming.
• Receive announcements concerning local and national emergencies.
• Displaymessagesfromradio stations.

This system relies on receiving specific information from these stations and only works when the information is available. It is possible that a radiostation could broadcast incorrect information that cause the radio feature to work improperly. If this happens, contact theradiostation.

When information is broadcast from the current FM station, the station name or call letters display on the audioscreen. RD Scan provide a

programtype(PTY)forcurrent programmingandthenameofthe programbeingbroadcasted.

SatelliteRadio

SiriusXM® SatelliteRadio

VehicleswithavalidSiriusXM satelliteradiosubscriptioncan receiveSiriusXMprogramming.

SiriusXMsatelliteradiohasawide varietyofprogrammingand commercial-freemusic,coastto coast,andindigital-qualitysound. Seewww.siriusxm.comorcall 1-866-601-6296.

WhenSiriusXMisactive,thestation name,number,categoryname, songtitle,andartistdisplayonthe screen.SiriusXMmayupdatethe backgroundpictureatanytime.

TuneSelect

Analertwillbesentwhetheradio seesthatsearchcriteriaonany SiriusXMchannelismetandwill offertheoptiontotunetothatsong orartist.Upto10artistsandsongs canbesavedintheTuneSelectlist.

TostoreanArtistorSong:

1. TouchMenuwhentheArtistor SongisplayingonSiriusXM.
2. SelectTuneSelecttoaccess theTuneSelectMenu.

142InfotainmentSystem

1. SelectSaveAlertforArtist PlayingorSaveAlertforSong Playing.
2. TouchOKtoconfirm.

ToturnTuneSelectonoroff:

1. TouchMenuwheninSiriusXM.
2. SelectTuneSelect.
3. SelectAlertsActivetoturnthe alertsonoroff.

TodeleteTuneSelectAlerts:

1. TouchMenuwheninSiriusXM.
2. TouchManageTuneSelect.
3. TouchDeleteAlerts.
4. Selectthealerttodelete.
5. TouchOKtoconfirm.

SiriusXMCategories

SiriusXMstationsareorganizedin categories.

AddingorRemovingXM Categories

TocustomizewhichSiriusXM categoriesareusedanddisplayed inthesystem:

1. PressCONFIGonthecenter stackortouchConfigonthe HomePage.
2. SelectRadioSettingsfromthe SettingsMenulist.

3. SelectXMCategories.

4. Selectordeselectanycategory tobeusedwhileinthe SiriusXMmode.Acheckmark willindicate that the category is selected.

TouchShowAllXMCategoriesto restoreallSiriusXMcategories.

SiriusXMChannelArt

SiriusXMprovidesupdatedcategory backgroundgraphicsandtheradio willautomaticallyupdatethescreen. SiriusXMmaysendupdated categorygraphicstothevehicle. Whenthishappens,thebackground graphicsmayappeartobeincorrect buttheradiowillupdateonceallof thegraphicshavebeendownloaded fromSiriusXM.

ToturnSiriusXMchannelgraphics onoroff:

1. Press onthecenterstackto gototheHomePageortouch Homeonthetopbarofthe infotainmentdisplay.
2. SelectXMontheHomePage.

3. TouchMenuontheXMNow PlayingScreen.

4. TouchtheXMChannelArt optiontoturnonoroff.

NavTraffic ^® (IfEquipped)

Thenavigationsystemmayhavea SiriusXMNavTrafficreceiver.Itisa subscriptionserviceprovided throughSiriusXMSatelliteRadio. Aservicefeeisrequiredtoreceive theSiriusXMNavTrafficservice. Real-timetrafficinformationis providedtofullyintegratethe navigationsystemtodisplaycurrent trafficconditionsforthechosen route.See"TrafficSettings"laterin thissection.

Amessagedisplaystoindicate the SiriusXMNavTrafficsubscriptionis notactivated.

lfactivated,trafficinformation displays:

• Unscheduledtrafficincident data, such as accidents and disabled vehicles.
• Scheduledtrafficincidentdata, suchasroadconstructionand roadclosures.

- Trafficflowinformation(rateof speeddata).Flowdatamaynot beavailableinallmarkets.

Trafficinformationisdeliveredtothe vehiclebySiriusXMradiosatellites. SiriusXMNavTrafficprovides continuouslyupdatedtraffic information.

SiriusXMNavTrafficcurrently broadcaststhetrafficinformationfor manymarketsnationally. The servicemaybeavailableinmore citiesinthefuture.See www.xmnavtraffic.comformore detailsonlocalcoverage.

Toaccessthetrafficfeatures,touch TrafficfromtheNavigationMenuor mapdisplay.

AllTrafficEvents: Touchtoviewa listofreportedtrafficconditionsfor uptoapproximately 100km(70mi). It could take sometimetodisplay the information received.

Theinformationisdisplayedwithan arrowanddistance. Thearrow indicatesthedistanceisastraight lineandthedirectionoftheevent fromthevehicle'scurrentposition.

TrafficEventsonRoute: Touch to displayalistofreportedtraffic conditions on the current route. The iconistoneddown if noroute is active.

TrafficSettings: Touch to customizetrafficoptions.

SiriusXMTravelLink(If Available)

Theinfotainmentsystemmayhave SiriusXMTravelLink ^® .Itisa subscriptionserviceprovided throughSiriusXMSatelliteradio. Aservicefeeisrequiredtoreceive theSiriusXMTravelLinkservice. WhensubscribedtoSiriusXMTravel Link,oneormoreservicesmaybe available:

144InfotainmentSystem

• TravelLinkFuelPricing: Detailednationwidefuelpricing informationmaybeavailable.
• TravelLinkMovieListings: Detailedlocalmovietheater listings, starttimes, andratings maybeavailable.
• TravelLinkWeather: National and Local Weathergivescurrent andforecastedweather.

Formoredetailedinformationand coveredetailsonSiriusXMTravel Linkseewww.siriusxm.com.

SiriusXMTravelLinkFuelPricing

WhenSiriusXMTravelLink informationisavailable,thesystem willdisplayalistoffuelstations closetothevehiclelocation.Thelist willincludethefuelstationname, direction,distanceandprice.The listcanbesortedbydistanceor priceandtherearefourdifferent fueltypestochoosefrom.Asthe vehicleismoving,adirectionarrow anddistancetofuelstationwill update.Thearrowrepresentsthe directiontothegasstationfromthe currentvehicleposition.The

distancerepresentsthestraightline distancebetweenthevehicle locationandthefuelstation.

FromtheHomePage,touchFuel. Thesystemwilldisplayalistoffuel stationsclosetothevehicle.

Changethefuelinformationonthe displaybytouchingtheFuelMenu optionto:

• SortFuelStationsByPriceorBy Distance: Thedefaultsort methodisbydistance.
• ChooseFuelType:The availablefueltypesareRegular (unleaded),Mid-Range, Premium,andDiesel.

Formoreinformationonthefuel station,selectthefuelstationname. Thedisplaywillshowthefuel stationname,address,phone number,distance,amenities,and thelasttimethefuelpricewas updated.Ifafuelstationdoesnot appearinthelist,itmaybenewor thepricemaynothavebeen updatedinthepast24hours.

IfequippedwithNavigationwhen thefuelstationisselected,see Destination⇒174formore informationofnavigationrouting features.

Allowuptofiveminutesafterturning onthevehicleforthefuel informationontoappear.

SiriusXMTravelLinkMovie Listings

WhenSiriusXMTravelLink informationisavailable,theMovie featureprovidesmovieshowtime andtheaterinformationformovies closetothevehiclelocation.

FromtheHomePage,touch Movies. Thesystemdisplaythe MovieandTheatersearchpage.

Tosearchmovies:

• TouchtheMoviefieldtochoose amoviename.
• TouchtheTheaterfieldto chooseaspecifictheater.
• TouchtheDatefieldtochoose whichdatetosearchmovies and/ortheaters.

- TouchSearchtoviewalistof moviesortheaters.

Whensearchingbymovie,alistof movieswillappear.Whenamovieis selected,atheaterlistwillappear withadirectionarrowanddistance. Thedirectionanddistancewill updateevery10secondsasthe vehicleismoving.Thedirection arrowrepresentsthelocationofthe theaterfromthecurrentvehicle location.Thedistancerepresents thestraightlinedistancebetween thecurrentvehiclelocationandthe theater.

Moviedetailsareavailablewhena movieisselected.Selectthe appropriateoptiontodisplaymore information:

• CastandSynopsis
• Playtime
  • Rating(G,PG-13,R,etc.)
• TheaterName
  • Showtimes

Theaterinformationincludes address,phonenumber,distance, andamenities.

SiriusXMTravelLinkWeather

SiriusXMTravelLinkWeatheruses thesamesourcesthatprofessional pilotsandmarinersrelyon.

FromtheHomePage,touch Weather.Thesystemdisplaysthe XMWeatherMenu.Someoptions mayonlybeavailableonvehicles equippedwithnavigation.

3Hour/6HourForecast

The3Hour/6HourForecastpage showsthecurrentweatherconditioninthecityofthevehicle'scurrent position.

Allowupto15minutesforthe currentweatherintheareato display.

5DayForecast

Touchtoshowtheextended5Day forecast.

ForecastAlongRoute

Ifadestinationisset, weather conditions can be viewed for up to three locations along the route:

• Currentvehicleposition.
• Midwaypointfromcurrent positiontofinaldestination.
• Currentweatherconditionofthe destinationcity.

NearbySkiConditions

Touchtoshowthenearbyweather conditionsforsking.

Location

Select this option to view weather conditions around or in specific city entered by name or selected from themap.

146InfotainmentSystem

Theoptionsavailableare:

• AroundCurrentPosition
• AroundDestination
• SelectWeatherStation

CurrentWeatherAdvisories

FromtheXMWeatherMenu,touch CurrentWeatherAdvisoriesto displayanycurrentweather advisorywarningsineffectnearthe currentposition.

Troubleshooting

SiriusXMTravelLinkservicesuse theSiriusXM® SatelliteSignaland GPSSatelliteSignaltoprovidethis feature.

Whenthevehicleisstarted, it can takeuptofiveminutesfortheradio to receive the TravelLinkservices.

TravelLinkMessages

NoGPSSignal: Movethevehicle intoapositionthatisvisibleto thesky.

AcquiringSignal:Radiois downloadingtheactivation informationornotreceivingagood signal.Movethevehicletoopensky andrestartthevehicle.

NoSXMSignal:Receptionis blocked.Movethevehicleinto opensky.

RadioReception

Frequencyinterferenceandstatic canoccurduringnormalradio receptionifitemssuchascellphone chargers,vehicleconvenience accessories,andexternalelectronic devicesarepluggedintothe accessorypoweroutlet.Ifthereis interferenceorstatic,unplugthe itemfromtheaccessorypower outlet.

FM

FMsignalsonlyreachabout16to 65km(10to40mi).Although the radiohasabuilt-inelectroniccircuit thatautomaticallyworkstoreduce interference, somestaticcanoccur, especiallyaroundtallbuildingsor hills, causingthesoundtofadein andout.

AM

TherangeformostAMstationsis greaterthanforFM,especiallyat night. Thelongerrangecancause stationfrequenciestointerferewith eachother. Staticcanoccurwhen thingslikestormsandpowerlines interferewithradioreception. When thishappens,tryreducingthetreble ontheradio.

SiriusXM® SatelliteRadio Service

SiriusXMSatelliteradioservice givesdigitalradioreceptionfrom coasttocoastinthe48contiguous UnitedStates,andinCanada.Just aswithFM,tallbuildingsorhillscan interferewithsatelliteradiosignals, causingthesoundtofadeinand out.Inaddition,travelingorstanding underheavyfoliage,bridges,

garages,ortunnelsmaycauseloss oftheSiriusXMsignalforaperiod oftime.

CellularPhoneUsage

Cellphoneusage, suchasmaking or receiving phone calls, charging, or having the phone on may cause static interference in theradio. Unplug the phone or turn it off this happens.

Multi-BandAntenna

Themulti-bandantennaisusedfor OnStar,theSiriusXMSatelliteRadio ServiceSystem,andGPS(Global PositioningSystem),ifthevehicle hasthesefeatures.Keepthe antennaclearofobstructions for clearreception.

If the vehicle has as unroof, and it is open, reception can also be affected.

QuickInfo

QuickInfogivesaccesstoquick informationonAudioplaying, OnStarTurn-by-Turn(ifequipped), 5-dayForecast,NearbyFuel Stations,andMovieShowtimes.

Toaccess,touchQuickInfoonthe HomePageorpressINFOonthe centerstack.Dependingonthe systemandiftheoptionsare availableforthatregion,some optionsmaybegrayedout.

Audiolinfo: Displaysinformation on the currentitemplaying.

OnStarTurn-by-Turn:Displaysthe nextmaneuverinaroute.See OnStar® Destination Download→184.

5-dayForecast: Display the 5-day forecast fortheweather station closest to the current location. See "Sirius XM Travel Link Weather" in Satellite Radio 141.

NearbyFuelStations: Displays fuelpricesanddistancesforclose fuelstations.See "SiriusXMTravel LinkFuelPricing" in Satellite Radio 141.

MovieShowtimes: Displaysalist of movies playing in the theaters closest to the current location. See "Sirius XM Travel Link Movie Listings" in Satellite Radio 141.

PandoralInternetRadio

Pandora® isafreelInternetradio servicethatstreamspersonalized radiostationsbasedonartists, songs,genres,andcomedians. CreatestationsusingthePandora websiteorsmartphoneapplication, thenuse 👍(thumbsup)or 👍(thumbsdown)topersonalize stations.Tosetupanaccount,orfor moreinformation,goto

148InfotainmentSystem

www.pandora.com.Pandoramay notbeavailableinCanadaor Mexico.

AphoneortabletwithInternet connectionandthePandora applicationinstalledisrequired. Personalcellphonedataplansare used.Makesurethelatestversion isinstalledonthedeviceandthe volumeisturnedup.

ToinstallPandora:

• OnanAndroid™ phoneor AndroidTablet, gototheAndroid PlayStore, andsearchfor Pandora.Installtothephone, nottotheSDcard.
• OnaBlackBerry ^® phone, goto the BlackBerryAppWorld ^™ and searchforPandora.
• OnaniPhone ^® ,iPad ^® ,oriPod touch ^® ,gototheiTunes ^® Store andsearchforPandora.

LaunchingPandora

ConnecttheiPhone,iPad,oriPod touchtotheUSBport,orconnect anAndroidorBlackBerrythrough Bluetooth.SeeAuxiliaryDevices

165 or Bluetooth 198. For first-timeuse, setupstations before connectingtothevehicle. The Pandoraiconwillbeavailableon theHomePageandthesource pop-updisplaysifthelatest applicationisinstalledonthe device.

UsinganiPhone,iPodtouch, oriPad

1. PlugthedeviceintotheUSB port. Thephonescreenmust beunlocked.
2. Tolaunch, dooneofthe following:

- Launchtheapplicationon thedevice.

- TouchPandoraonthe HomePage.

- Press 📞/™eandsay "Pandora"or"Tune Pandora."

- Acceptanynotifications on the devicescreen.

TorelaunchPandora, pressSRCE on the center stack or press SRCon the steering wheel controls.

Ifnothinghappenswhenthe availablePandoraiconistouched, downloadthelatestPandora applicationandretry.

Pandorawillalwaysbehighlighted ontheHomePagewhenaniPhone, iPad,oriPodtouchisconnected usingtheUSBport.Touse,loginto youraccount.

If the "PleaseSeeDevice" message is shown, the loginscreen may display on the device.

IfPandoraisshutdownonthe phoneoranotheraudioappisused, Pandoramaynotstartonthenext ignitioncycle. IfiPodsourceis selected, itmayshowiPodandthen switchtoPandora.

UsinganAndroidPhone

1. PairtheAndroidphoneusing Bluetooth.
2. Useoneofthefollowingto launch:

- Launchtheapplicationon thedevice.

- TouchPandoraonthe HomePage.

- Press 📞/mandsay "Pandora" or "Tune Pandora."

AfterPandorahasbeenlaunched, pressSRCEonthecenterstackor pressSRConthesteeringwheel controlstoaccessPandora features.

Ifnothinghappenswhenthe availablePandoraiconistouched, downloadthelatestPandora applicationandretry.

If the "PleaseSeeDevice" message is shown, the loginscreen may display on the device.

If the "Please Unlock the Phone or Restart the App and Try again" message is shown, then the phone may be locked. Unlock the phone, closetheapp, and then restart the app to ensure proper communication.

UsingaBlackBerryPhone

Thephonemustbeunlocked.To launchPandoraservice:

1. PairtheBlackBerryphone usingBluetooth.

2. Useoneofthefollowingto launch:

3. Launchtheapplicationon thedevice.

4. TouchPandoraonthe HomePage.
5. Press 📞/undcandsay "Pandora" or "Tune Pandora."

AfterPandorahasbeenlaunched, pressSRCEonthecenterstackor pressSRConthesteeringwheel controlstoaccessPandora features.

Ifnothinghappenswhenthe availablePandoraiconistouched, downloadthelatestPandora applicationandretry.

If the "PleaseSeeDevice" message is shown, the loginscreen may display on the device.

If the "PleaseUnlockthePhoneor RestarttheAppandTryagain" message is shown, then your phone may be locked. Unlock the phone, closetheapp, then restart the app to ensure proper communication.

PandoraMenus

TouchMenuonthePandora mainpage.

Pandorahasamenusystemwith thefollowing:

Shuffle: Touchtoplaythestations inrandomorder.

Touchauser-createdstationtoplay fromthedisplayedlist.

PandoraFeatures

Pandorahasfeaturestoratetracks, skiptracks, orchangestations.

150InfotainmentSystem

:Touchwhileplayingatrackto bookmarkeitherthetrackorthe artist.Bookmarksareviewableon www.pandora.com.

:Whentouched, Pandorastores theinformation, changestothenext track, and does not play the track on this station again. This helps Pandorachose which tracks should not play this station. This feature is only available on user created stations.

:Whentouched,Pandorastores thisinformationand is highlightedfortheremainderofthe track. ThishelpsPandorachoose whichtracksshouldplayonthis station.

▶: Whentouched, Pandora changestothenexttrack.

D/II : Touch D/II on the infotainment displaytopause playback. Touch againtoresume.

TuningPandoraStations:When Pandoraisplaying,use 📞/µ€on thesteeringwheeltotunetoany Pandorastationonthedevice.

1. Press ☐ on thesteering wheel.

2. Say "TunePandoraRadio."

Pandoravoicecontrolwillnotwork until Pandoraislaunchedthefirst timeduringthatignitioncycle.

PandoraSkipLimit

Pandoralimitsthenumberofskips allowedontheirservice.Whenthe skiplimitisreached, willnotskip thecurrentlyplayingtrack,but feedbackwillberecorded.

PandoraAdvertisement

Pandoramaydisplay advertisements.Artistname and tracktitlewillnotdisplayandthe skiptrackoptionisnotavailable.

SwitchingBetweenPandoraand Stitcher

ToswitchbetweenPandoraand Stitcher,presstheapplicationicon ontheiPhone,iPodtouch,oriPad. ThisisnotrequiredforAndroid devices.SeeStitcherInternet Radio→152.

PandoraTroubleshooting

UnabletoConnectDeviceto Vehicle

If the device is unable to connect to the USBorBluetooth:

1. Turnthevehicleoff.

2. Removethekeyfromthe ignition.

3. Openandclosethedriverdoor, waitabout30seconds,andtry toconnectthedeviceagain.

UnabletoStartPandora

Ifthedeviceisunabletolaunch Pandora:

- Checkthatthelatestversionof Pandoraisinstalled.

• Checkthatthereisanactive accountloggedintoPandora.
• Haveatleastonestation created.
• ForAndroidandBlackBerry devices, check that the device is paired with the vehicle, and the Bluetooth icon on the display is highlighted.
• ForiPhone,iPodtouch,oriPad devices,checkthattheUSB cableisconnectedtotheUSB portandthescreenisunlocked.
• ClosePandoraonthedevice andlaunchagain.Devicesthat allowmultitaskingmayrequire anextrasteptoquitthePandora application.Seethecellphone manufacturer'suserguide.

ThumbsUporThumbsDown Error

Ifthereisanerrortryingtoratea trackwiththe 📋or💡icons,an errormessagewilldisplay.Touch OKtoetry.

LossofAudio

LossofPandoraaudiocanhappen indifferentways:

• Weakorlostdataconnection.
  • Deviceneedstobecharged.
  • Applicationneedstobe relaunched.
• Connectionbetweenphoneand radiolost.

- IfanyiPhone,iPodtouch, oriPadisconnectedto Bluetoothandthedock connector,gototheAirplayicon onthedeviceandselectdock connectorordisconnectand reconnectthedockconnectoron thedevice.

- Thevolumeistoolow.Turnup thevolumeonthedevice.

- Thebatterysaverandtask managerapplicationsonthe phonecancausePandorato functionincorrectly.Remove thoseappsfromthephoneor removePandoraandBluetooth fromthetasklists.

If the connection is lost between the application and device, am message "Please Unlock the Phone or Restart the App and Try again" will display. Touch OK toetry.

IftouchingOKdoesnotclearthe issueon the phone, see "Please Unlock the Phone or Restart the Append Try again" under "Common Pandora Messages" following.

CommonPandoraMessages

PleaseSeeDevice: Whennot loggedinorwhenauthentication failed, seethedevice. TouchOKto continue.

PausedorAudioPaused:

Playbackispausedontheradioor onthedevice.Touch ▷/llorplayon thedevice.

NoStationsFound: Loggedinput nostationshavebeencreated. TouchOKtocontinue.

PleaseUnlockthePhoneor

RestarttheAppandTryagain:

Communicationfailurebetweenthe radioandthephoneapplication, orthedeviceislocked.

152InfotainmentSystem

Device sthat allow multitasking may require an extrastepto quit the Pandora application. Close Pandora on the device and launch again.

Unlock the phone and check that the Home Pages how so the phone/device.

Seethecellphonemanufacturer's userguide.

Seewww.pandora.com/helpfor moreinformation.Iftheservicewill notwork,seeyourdealerfor assistance.

StitcherInternetRadio

StitcherSmartRadio ^® isanInternet radioservicethatstreamsnews, sports, and entertainment shows through the audiosystem. Create personalized, on-demand stations or use Stitcher's preset stations. Toset upan account, download the application from the Android Market oriTunesStore, orgoto www.stitcher.com.

AphoneortabletwithInternet connectionisrequiredforth this application.Personalcellphone

dataplansareused.Makesurethe latestversionisinstalledonthe deviceandthevolumeonthe deviceisturnedup.

BlackBerryphonesarenot supportedforthisapplication.

ToinstallStitcher:

- OnanAndroidphoneorTablet withInternetconnection,goto theAndroidPlayStore,search forStitcher,andinstalltothe phone,nottotheSDcard.

- OnaniPhone,iPad,oriPod touch,gototheiTunesStore andsearchforStitcher.

LaunchingStitcher

ConnecttheiPhone,iPad,oriPod touchtotheUSBport,orconnect AndroidthroughBluetooth.See AuxiliaryDevices→165orBluetooth →198.Forfirst-timeuse,setupthe stationsbeforeconnectingtothe vehicle.TheStitchericonwillbe availableontheHomePageand sourcepop-updisplaysifthelatest applicationisinstalledonthe device.

UsingtheiPhone,iPodtouch, oraniPad

1. PlugthedeviceintotheUSB port. Thephonescreenmust beunlocked.

2. Useoneofthefollowingto launch:

3. Presstheapplicationonthe device.

4. TouchStitcheronthe HomePage.
5. Press 📞/µ¢andsay "Stitcher" or "Tune Stitcher."

6. Acceptanynotifications on the devicescreen.

7. If Stitcherdoes not begin playing, select a category and then astation.

AfterStitcherhasbeenlaunched, pressSRCEonthecenterstackor pressSRConthesteeringwheel controlstoaccessStitcherfeatures.

Ifnothinghappenswhenthe availableStitchericonistouched, downloadthelatestStitcher applicationandretry.

InfotainmentSystem153

Stitcherwillalwaysbehhighlighted ontheHomePagewhenaniPhone, iPad,oriPodtouchisconnected usingtheUSBport.Touse,loginto youraccount.

If the "PleaseSeeDevice" message is shown, the loginscreen may display on the device.

If the "Please Unlock the Phone or Restart the App and Try again" message is shown, then the phone may be locked. Unlock the phone, closetheapp, then restart the app and makes sure the homepage is visible on the phone device.

UsinganAndroidPhone

1. PairtheAndroidphoneusing Bluetooth.

2. Useoneofthefollowingto launch:

3. Presstheapplicationonthe device.

4. TouchStitcheronthe HomePage.

5. Press 📞/¶andsay "Stitcher" or "Tune Stitcher."

6. If Stitcherdoes not begin playing, select a category and then astation.

AfterStitcherhasbeenlaunched, pressSRCEonthecenterstackor pressSRConthesteeringwheel controlstoaccessStitcherfeatures.

If nothing happens when the available Stitchericonistouched, download the latest Stitcher application and retry.

If the "PleaseSeeDevice" message is shown, the loginscreen may display on the device.

If the "Please Unlock the Phone or Restart the App and Try again" message is shown, then your phone may be locked. Unlock the phone, closetheapp, then restart the app to ensure proper communication.

StitcherMenus

TouchMenuontheStitcher mainpage.

Stitcherhasamenusystemwiththe following:

MyOnDemandStations: Displays alistoffavoritestationsandshows.

Selectandstoreprogramsas favoritesonthedevice.Favorite stationlistscanbecreatedto includefavoriteshowsswhichcanbe accessedthroughMyOnDemand Stations.

StitcherStationCategories: Displayscategoriesbytopic.

Whenacategorythensub-category isselected,theradiowillstart playingthefirstprograminthat sub-category.

154InfotainmentSystem

Turnthe←→knobtodisplaythe first24stationsofthatsub-category.

CurrentStationPlaylist:While

listeningtoashow,turnthe knobtodisplaythemenulistof showsavailableforthecurrent station.

StitcherFeatures

Stitcherservicehasfeaturestorate orskipshows,orchangestations.

★: Whentouched, the current showisadded to the favorites station.

:Whentouched, Stitcher changestothenextshow. This helps Stitcherprovide a personalized listening experience.

:Whentouched, Stitcherstores thisinformationand is highlightedfortheremainderofthe show. ThishelpsStitcherprovidea personalizedlisteningexperience.

▶▶: Whentouched, Stitcher changestothenextshow.

D/II: Touchonthecenterstackto pause playback. Touchagainto resume.

StitcherAdvertisement

Stitchermaydisplay advertisements.Artistnameandtitle maynotdisplayandtheskiptrack optionisnotavailable.

SwitchingBetweenPandoraand Stitcher

ToswitchbetweenPandoraand Stitcher,presstheapplicationicon ontheiPhone,iPodtouch,oriPad. ThisisnotrequiredforAndroid devices.SeePandoraInternet Radio→147.

StitcherTroubleshooting

UnabletoConnectDeviceto Vehicle

If the device is unable to connect to the USBorBluetooth:

1. Turnthevehicleoff.
2. Removethekeyfromthe ignition.
3. Openandclosethedriverdoor, waitabout30seconds,andtry toconnectthedeviceagain.

Thebatterysaverandtaskmanager applicationsonthephonecan causeStitchertofunction incorrectly.Removethoseapps fromthephoneorremoveStitcher andBluetoothfromthetasklists.

UnabletoStartStitcher

Ifthedeviceisunabletolaunch Stitcher:

• Checkthatthelatestversionof Stitcherisinstalled.

• Checkthatthereisanactive accountloggedintoStitcher.

• ForAndroiddevices, check that the device is paired with the vehicle, and the Bluetooth icon on the display is highlighted.

• ForiPhone,iPodtouch,oriPad devices,checkthattheUSB cableisconnectedtotheUSB portandthescreenisunlocked andtheHomePageisshowing.
• CloseStitcheronthedevice and launchagain. Devices that allow multitasking may require an extrasteptoquitthe Stitcher application. Seethecellphone manufacturer'suserguide.

LossofAudio

LossofStitcheraudiocanhappen dueto:

• Weakorlostdataconnection.
  • Deviceneedstobecharged.
• Applicationneedstobe relaunched.
• Connectionbetweenphoneand radioislost.
• IfanyiPhone,iPodtouch, oriPadisconnectedto Bluetoothandthedock

connector, gototheAirplayicon onthedeviceandselectdock connectorordisconnectand reconnectthedockconnectoron thedevice.

• Thevolumeistoolow.Turnup thevolumeonthedevice.

If the connection is lost between the application and device, am message "Please Unlock the Phone or Restart the App and Try again" will display. Touch OK toetry.

IftouchingOKdoesnotclearthe issue,see"PleaseUnlockthe PhoneorRestarttheAppandTry again"under"CommonStitcher Messages"following.

CommonStitcherMessages

PleaseTryAgainLater: A general error has occurred. A data connection maybe unavailable due to a weak or lost signal or the Stitcherservice being temporarily down. Touch OK to continue.

PausedorAudioPaused:

Playbackispausedontheradioor onthedevice.Touch ▷/llorplayon thedevice.

PleaseSeeDevice: Whentheuser isnotloggedinorwhen authenticationfailed,seethe device.TouchOKtocontinue. Disconnectthephonefromtheradio andfollowtheStitcheraccountlogin processonthephone.

NoStationsFound: Theuseris loggedinbutnostationshavebeen created. TouchOKtocontinue.

PleaseChooseaNewStation:

Theendofthestationhasbeen reachedandthereisnomore contenttoplay.Selectanewstation throughtheStitchermenu.

PleaseUnlockthePhoneor RestarttheAppandTryagain:

Communicationfailurebetweenthe radioandthephoneapplicationor thedeviceislocked.

Seewww.stitcher.com/helpformore information.Iftheservicewillnot work,sendanemailto [e-mail] dealer.

Pictures

Picturescanonlybeviewedusing USBdevices.lfpicturesareonan SDcard, transfertoaUSBdevice oruseaUSB-SDadapter. A maximum5Mbuncompressed photosizeissupported, however to achievethis, usea4Megapixel lowerresolutioncamerasetting. Onlyjpeg, bmp, gif, and pngfiles aresupported.

1. TouchPictures on the HomePage.
2. Thesystemdoesasearchto findthepicturefolders. A "Pleasewait" message displaysuntilthesearchis finished.

3.Alistdisplays.Selectapicture toview.

1. Once apictured displays, the following options are available:

Info: Touchtoturnfilename informationonoroff.

<:Touchtodisplayaprevious pictureifnotinslideshowmode.
▶: Touch to toggle between slide show mode and manual mode.

: Touchtodisplayanextpictureif notinslideshowmode.
▲:Touchtomanuallyrotatea picture90degrees counterclockwise.

Menu: TouchtoopenthePicture ViewerSettingsscreen.Slide PictureViewerMain, Slideshow

Timer, and ShuffleImages display asoptions for configuring the view of images stored in the system.

If the displayed picturescreen is not used with six seconds, the upper and lower bar options will disappear. Touch-tap the screentore-display the upper and lower bar.

AudioPlayers

Avoiding Untrusted Media Devices

When using mediadevices such as CDs, DVDs, Blu-ray Discs ^® , SD cards, USB devices, and mobile devices, consider the source. Untrusted mediadevices could contain file that affects system operation or performance. Avoid use if the contentor origin cannot be trusted.

CDPlayer

TheCDplayeriscapableofplaying:

• MostaudioCDs
  CD-R
• CD-RW
• MP3, unprotectedWMA, and AAC formats

Whenplayinganycompatible recordabledisc,thesoundquality maybe reduced duetothedisc,the

methodofrecording, thequality of themusicrecorded, orhowthedisc has been handled.

Theremaybeincreasedskipping, difficultyreadingrecordedtracks, findingtracks,and/orloading and ejecting. If these problems occur, check the disc for damage or try a known good disc.

ToavoiddamagetotheCDplayer:

• Donotusescratchedor damageddiscs.
• Donotapplylabelstodiscs. The labelscouldgetcaughtinthe player.
• Insertonlyonediscatatime.
• Keeptheloadingslotfreeof foreignmaterials, liquids, and debris.
• Useamarkingpentolabelthe topofthedisc.

LoadingandEjectingDiscs

Toloadadisc:

1. Turnthevehicleon.

2. Insertadiscintotheslot, right sideup. The player pulls it in therestoftheway. If the disc is damaged or improperly loaded, there is an error and the discejects.

Thediscautomaticallyplaysonce loaded.

Press △toejectadiscfromthe CDplayer.Ifthediscisnotremoved withinashortperiodoftime,itis automaticallypulledbackintothe player.

PlayinganAudioCD

1. TouchCDontheHomePage orselectCDfromthesource pop-uptodisplaytheCD mainpage.

158InfotainmentSystem

Forvehicleswithoutnavigation, pressCDonthecenterstack toaccesstheCDmainpage.

1. Touch the Menuicontodisplay themenuoptions.
2. Touchtoselecttheoption.

OntheCDmainpage, the track number displays and the Song, Artist, and Album information displays when available.

Usethefollowingradiocontrolsto playthedisc:

▷/||:Usetopauseorresumeplay.

◀◀◀:

• Presstoseektothebeginning of the current or previous track. If the track has been playing for less than five seconds, it seeks to the previous track. If longer than five seconds, the current track starts from the beginning.
• Pressandholdtofastreverse throughatrack.Releaseto returntoplayingspeed.Elapsed timedisplays.

▶▶▶:

• Presstoseektothenexttrack.
- Pressandholdtofastforward throughatrack.Releaseto returntoplayingspeed.Elapsed timedisplays.

Knob:Turntotherightor lefttoselectthenextorprevious track.Presstheouterringofthis knobtoselectfromthelist.Ifatrack isselectedfromthemenu,the systemplaysthetrackandreturns totheCDscreen.

ErrorMessages

IfDiscErrordisplaysand/orthedisc comesout, itcouldbedueto:

• Thedischasaninvalidor unknownformat.
• Thediscisveryhot. Trythedisc againwhenthetemperature returnstonormal.
• Theroadisveryrough. Try the discagainwhentheroadis smoother.
• Thediscisdirty, scratched, wet, or upsidedown.

• Theairisveryhumid. Try the discagainlater.
- Therewasaproblemwhile burningthedisc.
- ThelabeliscaughtintheCD player.

If the CD is not playing correctly, try a know good CD.

Ifanyerrorcontinues,contactyour dealer.

MP3

PlayinganMP3CD

ToplayanMP3CD, followthesame instructionsas "Playingan AudioCD".

The following guidelines must be met when creating an MP3 disc, otherwise the CD might not play:

• Samplingrate:16kHz, 22.05kHz,24kHz,32kHz, 44.1kHz,and48kHz.

• Bitratessupported:8,16,24,32,40,48,56,64,80,96,112,128,144,160,192,224,256,and320kbps.

• Maximumnumberoffolders: eightfolderswith255filesper folder.
  • Maximumof1,000fileson adisc.

• RecordedonaCD-RorCD-RW.
• TheArtist/Album/SongTitles/GenreinformationrequiresaCDtobefullyscannedbeforethemusicnavigatorworkswiththesemenus.

MP3MusicMenu

TouchMenuontheinfotainment displaywhilethatsourcesisactiveto accessthemenu.

Touchanyofthefollowingoptions ontheMP3Menu:

ShuffleSongs: Touchtoplaythe tracksrandomly.Touchagain to stopshuffle.

PlayLists: Touchtoviewthe playlistsstoredonthedisc.Selecta playlisttoviewthelistofallsongsin thatplaylist.Theremightbeadelay beforethelistdisplays.Selecta songfromthelisttobegin playback.

Artists: Touchtoviewthelistof artistsstoredonthedisc.Selectan artistnametoviewalistofallsongs bytheartist.Theremightbeadelay beforethelistdisplays.Selecta songfromthelisttobeginplayback.

Albums: Touchtoviewthealbums onthedisc. Selectthealbumto viewalistofallsongsonthealbum. Theremightbeadelaybeforethe listdisplays. Selectasongfromthe listtobeginplayback.

SongTitles: Touchtodisplayalist ofallsongsonthedisc.Songsare displayedasstoredonthedisc. Theremightbeadelaybeforethe listdisplays.Tobegin playback, selectasongfromthelist.

Genres: Touchtoviewthegenres. Selectagenretoviewalistofall songsofthatgenre.Selectasong fromthelisttobeginplayback.

Folders: Touchtoopenafolderlist toaccessthefileswithinthefolder structure.

RootDirectory

Therootdirectoryistreatedasa folder.Allfilescontaineddirectly undertherootdirectoryare accessedpriortoanyrootdirectory folders.

EmptyFolders

lfarootdirectoryorfolderisempty orcontainsonlyfolders,theplayer advancestothenextfolderinthe filestructurethatcontainsa compressedaudiofile.Theempty folder(s)arenotdisplayedor numbered.

NoFolder

WhentheCDonlycontains compressedaudiofileswithoutany foldersorplaylists,allfilesare undertherootfolder.

FileSystemandNaming

Thesongtitles, artists, albums, and genres are taken from the file's ID3 tag and are only displayed if present in the tag. If a song title is not present in the ID3 tag, theradio display the filename as the track name.

PreprogrammedPlaylists

Theradiorecognizes preprogrammedplaylists;however, thereisnoeditingcapability. These playlistsaretreatedasspecial folderscontainingcompressed audiosongfiles.

USB

PlayingfromaUSB

AUSBmassstorageorCertified WindowsVista ^® /MediaTransfer Protocol(MTP)devicecanbe connectedtotheUSBport.

Ifequipped, theUSBportisinthe centerconsole.

TheUSBicondisplayswhenthe USBdeviceisconnected.

USBMediaFormats

TheUSBportwillsupportthe followingmediaformats:

• MP3
• UnprotectedWMA
• UnprotectedAAC

Otherformatsmaybesupported.

Gracenote®

Gracenotetechnologyembedded intotheradiohelpsmanageand navigatetheUSBdevicemusic collection. WhenaUSBdeviceis connectedtotheradio, Gracenote identifiesthemusiccollectionand deliversthecorrectalbum, artist name,genres,andcoverartonthe screen.Ifinformationismissing, Gracenotewillfillitin.

SearchingMusicLibraryUsing VoiceRecognition

VoiceRecognition: Gracenote improves music search and navigation by identifying bands, artists, and albums name that may behard top pronounce, irregular spellings, and nicknames as voice command to access music. See Voice Recognition 192.

Normalization: If equipped, normalization help to improve the voicerecognition accuracy for titles that sounds similar. It also helps group long list of genres into 10 common genres. Forex example, there may be multiplerock genes in the medialibrary; normalization will group all those into onerock genre. Normalization default is off.

ToturnNormalizationOn:

1. PressCONFIGonthecenter stackortouchConfigonthe HomePage.
2. TouchRadioSettings, then touchGracenoteOptions.
3. Touch Normalization to turn on or off.

CoverArt

TheGracenoteembeddeddatabase containscoverartoralbumart informationforthemusiconthe USBdevice.Ifthemusicis recognizedbyGracenoteanddoes havecoverart,Gracenotewilluse

thecoverartfoundintheembedded databaseanddisplayitontheradio. Userpredefinedcoverartwill alwaysbeusedfirst.lfnocoverart isfound, Gracenotewillusegeneric genregraphicsorimagesofartists.

MoreLikeThis

TheGracenotedatabasecontains attributesformusic,suchasgenre, eraofmusic,region,artisttype, mood,etc.Usethistocreatea playlistofupto30songs"more like"thecurrentlyplayingsong.This playlistwillbestoredinthePlaylist Menuwhenthedeviceis reconnected.Ifsongsareremoved fromthedevice,thesystemwillskip overthosesongsandplaythenext availablesong.

Usetheinfotainmentdisplayor voicerecognitiontocreateaMore LikeThisPlayList.See"Voice RecognitionCommands"inVoice Recognition\\192.

GracenotelIndexing

While Gracenoteisindexing, infotainmentfeaturesareavailable includingselectingmusicfromthe

menu.Voicerecognitionmusicwill notbeavailableuntiltheradiohas completedindexingthedevice.Deviceswithmoremusicmaytake longertoindex.Thedevicewill indexwhenpluggedintotheradio forthefirsttime.WhenIndexingis removedfromthescreen,theradio isreadytosupportmusicsearch.Onthenextconnectionorignition cycle,Indexingwillshowbrieflyon thescreen.Theradioissearching forchangestothedeviceand preparingthemusiclist.Ifthereare nochanges,thevoicerecognition musicsearchwillbeavailable.The radiowillindexandstoretwo deviceswithupto10,000songson eachdevice.

USBMP3PlayersandUSBDrives

• TheUSBMP3playersandUSB devicesconnectedmustcomply withtheUSBMassStorage Classspecification(USBMSC).
• Harddiskdrivesarenot supported.

• Theradiowillnotbeabletoplay backwrite-protectedmusic.

• Filesystemssupported:FAT32, NTFS,Linux,andHFS+.

• The following restrictions apply forthedatastoredonaUSB MP3playerorUSBdevice:
  -Maximumfolderstructure depth:8 levels.
  -MaximumnumberofMP3/WMAfilesthatcanbe displayed:10,000.
  -Playlistentriesmustbeinthe formofrelativepaths.
• Thesystemattributefor folders/filesthatcontainaudio datamustnotbeset.

ToplayaUSBdevice,dooneofthe following:

• ConnecttheUSBanditbegins toplay.
• TouchNowPlayingonthe HomePage.
• PressSRCEtoscrolluntilthe USBsourcescreenisavailable. Forvehicleswithoutnavigation, pressAUXonthecenterstack.

162InfotainmentSystem

- Press 📞/ωεonthesteering wheelcontrolstoplayCD, Artist, Album, SongTitle, or Song Genre. See Voice Recognition 192.

The following playlist formats are supported:

• M3U(StandardandExtended)
- iTunes
- PLS(Standard)
- WAX
- ASX
• RMP

Theradiosupportspluggingacell phoneinasaUSBdeviceaslong asthecellphonesupportsUSB massstorageclassorhasUSBdisc drivesupportenabled.

While the USB source is active, use the following to operate USB function:

←→Knob:Turntoscrollthrough thelist.Turnquicklytofastscroll alphabeticallythroughlargelists.

D/II: Touchtostart, pause, orresumeplayofthecurrentmedia source.

◀◀◀:

• Touchtoseektothebeginning of the current or previous track. If the track has been playing for less than five seconds, the previous track plays. If playing longer than five seconds, the current track restarts.
• Touchandholdtoreverse quicklythrough playback. Releasetoreturntoplaying speed.Elapsedtimedisplays.

▶▶▶:

• Touchtoseektothenexttrack.
• Touchandholdtoadvance quicklythrough playback. Releasetoreturntoplaying speed.Elapsedtimedisplays.

USBMenu

The following are available through the USBMenu:

Shuffle: Touchtoplaythetracks randomly. Touchagaintostop shuffle.

PlayMoreLikeThis: Touch to automatically create a playlist of song that are likely the song currently playing.

TheradiowillshowPlaylistCreation Succeededandcontinueplayingthe currentsong.

PlaylistCreationFailedmayappear ifasongisnotfoundinthe GracenoteDatabase.

DeleteAutomaticPlaylist: Touch todeleteaMoreLikeThisplaylist.

Folders: Touchtoopenafolderlist toaccessthefileswithinthefolder structure.

Playlists:

1. Touchtoviewtheplaylistson theUSB.
2. Selectaplaylisttoviewthelist ofallsongsinthatplaylist.
3. Selectasongfromthelistto begin playback.

Artists:

1. Touchtoviewthelistofartists ontheUSB.
2. Selectanartistnametoviewa listofallalbumsbytheartist.
3. Toselectasong, touchSongs Listortouchanalbumand thenselectasongfromthelist.

Albums:

1. Touchtoviewthealbumson theUSB.
2. Selectthealbumtoviewalist ofallsongsonthealbum.
3. Selectasongfromthelistto begin playback.

Genres:

1. Touchtoviewthegenreson theUSB.
2. Selectagenretoviewalistof allsongsofthatgenre.
3. Selectasongfromthelistto begin playback.

Songs:

1. Touchtodisplayalistofall songsontheUSB.

2. Songsaredisplayedasthey arestoredonthedisc. Tobegin playback, selectasongfrom thelist.

FileSystemandNaming

Thesongs, artists, albums, and genres are taken from the file's song information and are only displayed if present. Theradio display the filename esthetetrack name if the song information is not available.

PlayingfromaniPod®

Thisfeaturesupportsthefollowing iPodmodels:

• iPodclassic ^® (6thgeneration)
• iPodnano ^® (3G,4G,5G,6G, and7G)
• iPodtouch ^® (1G,2G,3G,4G,5G,and6G)

Theremaybeproblemswiththe operationandfunctioninthe followingsituations:

• WhenconnectinganiPodon whichamorerecentversionof thefirmwareisinstalledthanis supportedbytheinfotainment system.
• WhenconnectinganiPodon whichfirmwarefromother providersisinstalled.

ToconnectaniPod:

1. Connectoneendofthe standardiPodUSBcabletothe iPod'sdockconnector.
2. Connecttheotherendtothe USBportinthecenterconsole.

iPodmusicinformationdisplayson theradio'sdisplayandbegins playingthroughthevehicle'saudio system.

TheiPodbatteryrecharges automaticallywhilethevehicleison. TheiPodshutsoffandstops chargingwhenthevehicleis shutoff.

IftheiPodisanunsupportedmodel, itcanstillbelistenedtointhe vehiclebyconnectingtothe auxiliaryinputjackusingastandard 3.5mm(1/8in)stereocable.

164InfotainmentSystem

iPodMenu

UsetheiPodMenutoselect:

Shuffle: Touchtoplaythetracks randomly. Touchagaintostop shuffle.

PlayMoreLikeThis:Allowsthe radiotocreateplaylistswithsongs/ tracksthataresimilartowhatis beinglistenedto. Theradiowill createaplaylistwithupto30similar songs. Theplaylistwillappearinthe Playlistcategoryofthemenufor futurelistening.

1. Touchtoautomaticallycreatea playlistofsongsthataresimilar tothesongcurrentlyplaying.

2. TheradiowillshowPlaylist CreationSucceededand continueplayingthe currentsong.

DeleteAutomaticPlaylist: Touch todeleteaMoreLikeThisplaylist.

Playlists:

1. Touchtoviewtheplaylistson theiPod.
2. Selectaplaylistnametoview alistofallsongsintheplaylist.
3. Select the song from the list to begin playback.

Artists:

1. Touchtoviewtheartistson theiPod.
2. Selectanartistnametoviewa listofallalbumswithsongsby theartist.
3. Selectanalbum.
4. Select the song from the list to begin playback.

Albums:

1. Touchtoviewthealbumson theiPod.

2. Selectanalbumnametoview alistofallsongsonthealbum orselectSongsListtoviewall songsontheiPod.

3. Select the song from the list to begin playback.

Genres:

1. Touchtoviewthegenreson theiPod.
2. Selectagenrenametoviewa listofartistsofthatgenre.
3. Selectanartisttoviewall albumsofthatgenre.
4. SelectAlbumtoviewsongs.
5. Select the song from the list to begin playback.

Songs:

1. Touchtoviewalistofallsongs ontheiPod.
2. Select the song from the list to begin playback.

Podcasts:

1. Touchtoviewthepodcastson theiPod.

2. Selectapodcastnameto begin playback.

Composers:

1. Touchtoviewthecomposers ontheiPod.

2. Select the composertoviewa list of songs by that composer.

3. Selectasongfromthelistto begin playback.

AudioBooks:

1. Touchtoviewtheaudiobooks ontheiPod.

2. Select the audiobook from the list to begin playback.

PlayingfromaniPhone oriPad®

Thisfeaturesupportsthefollowing iPhoneoriPadmodels:

- iPhone® (2G,3G,3GS,4,4S,5,6,and6plus)

- iPad® (1G,2G)

Followthesameinstructionsas statedearlierforusinganiPod.To usevoicerecognitiontoplaymusic, say"PlayUSB,""PlayArtist,""Play

Album,""PlaySong,"or"Play Genre."See Voice Recognition→192.

iPhone,iPodtouch,andiPad Troubleshooting

WhenaniPhone,iPodtouch, oriPadisconnectedthroughUSB andBluetooth,theaudiomaynotbe heardwhentheiPodsourceonthe radioisselected.Ifaphonecallis receivedwhilelisteningtotheiPod sourceandthereisnoaudioforthe iPodafterthesource,thengotothe Airplayicononthedeviceand selectdockconnectorordisconnect andreconnectthedockconnector onthedevice.

Somefunctionalitymaydifferbased onoperatingsystemversionon device.

USBTroubleshooting

If the device is not being recognized orthemusicismissingscreen information, restoretheradio defaults:

1. TouchConfig.

2. TouchRadioSettings.

3. TouchSoftware VersionsMenu.

4. TouchClearandResetRadio.
   5.TouchYes.

Pairthephoneagainandthedevice willhavetoindexagain.

BluetoothAudioandVoice Recognition

SeeBluetoothAudio→166and VoiceRecognition→192for informationonusingvoice recognitionwithBluetoothaudio.

Makesurealldeviceshavethe latestsoftwardownloaded.

Auxiliary Devices

lfequipped, this vehicle has an auxiliary input jack in the center console. Possible auxiliary audio sources include:

• Laptopcomputer
• MP3player
• Tapeplayer

Thisjackisnotanaudiooutput.Do notplugheadphonesintothe auxiliaryinputjack.Setupany auxiliarydevicewhilethevehicleis inP(Park).

Connecta3.5mm(1/8in)cable fromtheauxiliarydevicetothe auxiliaryinputjack.Whenadevice isconnected,thesystem automaticallybeginsplayingaudio fromthedeviceoverthevehicle speakers.

Ifanauxiliarydevicehasalready beenconnected,butadifferent sourceiscurrentlyactive,dooneof thefollowing:

• PressSRCEtoscrollallofthe availableaudiosourcescreens, untiltheAUXsourcedisplayis selected.
  Forvehicleswithoutnavigation, pressAUXonthecenterstack.
• Say "PlayFrontAUX" using voicerecognition to play the auxiliary device. See Voice Recognition 192.
• TouchAUXontheHomePage.

BluetoothAudio

Ifequipped, musicmaybeplayed fromapairedBluetoothdevice. See "PairingaPhone/Device" under Bluetooth⇒198.

ToplaymusicthroughaBluetooth device:

1. Poweronthedevice, pair, and connectthedevice.
2. Musiccanbelaunched by doingoneofthefollowing:

- TouchBluetoothonthe HomePage.

- PressSRCEuntilBluetooth Audioisselected.

Forvehicleswithout navigation,pressAUXon thecenterstackuntil BluetoothAudioisselected.

- PressSRConthesteering wheelcontrolsuntil BluetoothAudioisselected. See SteeringWheel Controls⇒132.

- Usevoicerecognition.See VoiceRecognition→192.

Themusiccanbecontrolledby eithertheinfotainmentcontrolsor thecontrolsonthedevice.

Whenaphoneisconnectedtothe systemthroughBluetoothAudio,the phonenotificationsandsoundsmay notbeheardonthephoneuntil Bluetoothisdisconnected. Notificationfeaturesmayvarybased onthephone.Checkthephone manufacturer'sinformationfor notificationsupport.

BluetoothAudioMenu

TouchMenuwhilesourcedto BluetoothAudioandthefollowing maydisplay:

Shuffle: Presstheouterringofthe knobtoturnshuffleonoroff. Notalldevicessupporttheshuffle feature.

WhenselectingBluetoothaudio,the Bluetoothdeviceinternalmusic playermaynotopendependingon thestatusofthedevice.Alldevices launchandplaybackaudio differently.Makesurethecorrect audiosourceisplayingonthe deviceforBluetoothaudioplayback

ontheradio. Whenthevehicleis notmoving, usethedevicetobegin playback.

WhenselectingBluetoothaudioas asource,theradiomaysourceto theBluetoothAudioPausedoption withnoaudioplaying.Pressplayon thedeviceortouch ▷/lltobegin playback.Thismayhappen dependingonhowthedevice communicatesoverBluetooth.

Somephonessupportsending Bluetoothmusicinformation to displayontheradio. Whentheradio receives this information, it will checktoseeifanyalbumartis available and displayit.

Whenplayingmusicontheradio fromaBluetoothdevice,makesure theBluetoothdeviceis unlocked andtheintendedmusicapplication isshowingonthehomescreen.

ForiPhone/iPodtouchandiPad devices, BluetoothAudiowillnot workifthedeviceisconnected throughtheUSBandBluetoothat thesametime.

Asnewdevicesareintroduced,see SoftwareUpdates→137.

OnStarSystem

OnStar ^® with4GLTE

4GLTE

IfequippedwithOnStar4GLTE,up tosevendevices,suchas smartphones,tablets,andlaptops, canbeconnectedtohigh-speed Internetthroughthevehicle'sbuilt-in Wi-Fihotspot.

Call1-888-4-ONSTAR (1-888-466-7827) to connect to an OnStar Advisor for assistance. See www.onstar.com for detailed instruction guide, vehicle availability, details, and system limitations.

168InfotainmentSystem

Servicesandappsvarybymake, model, year, carrier, availability, and conditions.4GLTEserviceis availableinselectmarkets.4GLTE performanceisbasedonindustry averagesandvehiclesystems design.Someservicesrequirea dataplan.

Navigation

UsingtheNavigation System

PressNAVlonthecenterstackor touchNavigationontheHomePage toaccessthenavigationmap.

PressNAVIagaintochange betweenalternativeviewsofthe normalsplitandfullmapviews.

TheMenuoptionatthebottomright sideofthedisplayaccessethe NavigationMenu.

Thetouch-sensitivefeatures availableare:

DestinationEntry/RouteMenu

TouchtoentertheDestinationEntry displaywhereadestinationcanbe enteredwhenguidanceisinactive.

TouchtoenterRouteMenuto modifythecurrentroute,cancela destination,oraddawaypointwhen guidanceisactive.

HeadingIndicator

TouchHeadingIndicatorortodisplay theMapView.Therearethree indicatorsettings:

• 2DNorthUp:DisplaysNorthat thetopofthemapscreen regardlessofthedirectionthe vehicleistraveling.
• 2DHeadingUp:Displaythe directionthevehicleistraveling. Theshadedtriangleiconpoints North.
• 3DHeadingUp:Isthesameas2DHeadingUp,butthemapisin3D.

MapModes

Touchtochangetheviewofthe mapswhileusingthenavigation function. Thesystemoffersaviety offullandsplitviews. Someviews areonlyselectablewhenroute guidanceisactive.

Another way to changethe view of themapsistotouchthemap modeicon.

MapSettings

TouchMapSettingstodisplaythe MapDisplayoption.TouchMap Displaytoselectoneofthe availablefeatures:

• Automatic
  Day
• Night

See ConfigureMenu→185.

SelectSpeedLimitstotogglethe speedlimitdisplayonoroff.

170InfotainmentSystem

Traffic

TouchTraffictodisplaytheTraffic Menu.Touchoneoftheoptions:

• AllTrafficEvents:Viewall reportedtrafficeventswhileon oroffaplannedroute.
• TrafficEventsonRoute:View trafficeventswhileonaplanned route.
• TrafficSettings:Customizetraffic options. Thisfeaturecanalsobe accessedbytouchingthetraffic lighticonattheleftlowerside of themapscreen.SeeConfigure Menu→185.

ShowPOIs

Touchtocustomizewhichmajor POIcategoriesaredisplayedon themap.

NearbyPOIs

Touchtodisplayasearchlistof nearbyPOIs.Selectthe desiredPOI.

POIsAlongRoute

Touchtodisplayasearchlistof POIsthatliealongorneartheroute tothedestination.Selectthe desiredPOI.

ExitList

Touchtodisplayalistofthenext threehighwayexitsifavailable. Selectanexittodisplayalistof POIsassociatedwiththatexitthat canberouted.

SwitchRouteTime/Destination

Touchtocustomizethearrival/travel timeandwaypoint/destination informationdisplayedinthemain mapscreen.

CurrentPositionInfo

Touchtodisplayasplitscreen showingdetailedinformationabout thevehicleposition. Thisfeature canalsobeaccessedbytouching thevehicleinformationtabonthe lowercenterofthedisplay. The locationcanbesavedtothe AddressBookbytouchingSavein thesplitscreen.

InfotainmentSystem171

DestinationPositionInfo

Touchtodisplayasplitmapscreen showingthefinaldestination.

MapAdjustments

Thesystemletsyouadjustthescale ofviewonthemap.Also,asyou drive, themapscrollsautomatically basedonthedirectionoftravel.

MapScales

Therearetwowaystochangethe mapscale:

- Turnthe ←→knobclockwise orcounterclockwisetozoomout orin.

- TouchtheMapScale+or-iconsonthelowercornersofthemapscreenorthedifferentzoomindicationstochangethezoomlevel.

Themapscalebartimesoutif thezoomlevelisnotchanged withinafewseconds.

Thescalecanbeconfiguredfor Englishormetricunits.Tochange fromEnglishtometric,seeDriver InformationCenter(DIC)→110.

ScrollFeatures

- Toscrollwithinthemap,touch anywhereonthemapscreen andthescrollsymboldisplays.

- Tapthemaptocenteratthat locationonthescreen.

- Touchandholdthescreenin anydirectionoutsidethescroll symboltoscrollthemapinthat direction.

- Scrollspeedincreaseswhen touchingclosertotheedgeof thescreen.

- PressNAVlorBACKonthe centerstacktoexitmapscrolling andreturntothecurrentvehicle locationonthemap.

Touchthecyclingarrowsatthetop ofthemapscreentotogglefromthe normaltopbar(Back,Home,and Fav)totheaudioinformationbar.

Maps

Thissectionincludesbasic informationaboutthemap database.

Themapsarestoredinaninternal flashmemorythatisusedinthe navigationsystem.

DetailedAreas

Roadnetworkattributesare containedinthemapdatabasefor detailedareas.Attributesinclude informationsuchasstreetnames, streetaddresses,andturn restrictions.Adetailedareaincludes allmajorhighways,serviceroads, andresidentialroads.Thedetailed areasincludepointsofinterest (POIs)suchasrestaurants,airports, banks,hospitals,policestations,

gasstations, tourist attractions, and historical monuments. Themap databas may not included data for newly constructed areas, map database corrections, or long term construction projects. The navigation system provides full route guidance in the detailed map areas.

NavigationSymbols

Followingarethemostcommon symbolsthatappearonamap screen.

The vehiclesymbolindicates the current position and heading direction of the vehicle on themap.

Thedestinationsymbolmarksthe finaldestinationafteraroutehas beenplanned.

Thewaypointsymbolmarksoneor moresetwaypoints.

Awaypointisastopoverdestination pointaddedtotheplannedroute.

Theestimated time and distance to the destination are displayed.

Ifwaypointshavebeenaddedtothe currentroute,eachwaypoint destinationdisplayestimatedtime anddistance.

Thissymbolindicate that the map viewis Northup. Northup displays Northatthetopofthemapscreen regardless of the direction the vehicle is traveling.

Selectthisscreensymboltochange theviewtoHeadingupor3D.

Thissymbolindicatesthatthemap viewisHeadingup.

Headingupviewdisplaythe directionthevehicleistravelingat thetopofthemapscreen.The shadedtriangleindicatesNorth.

Touchthisscreensymboltochange to3Dmode.

The3Dsymbolisthesameasthe Headingupsymbol,butthemapis in3D.

TheNoGPSsymbolappearswhen thereisnoGlobalPositioning System(GPS)satellitesignal.

Thissymbolatthebottomofamap screenchangesthecurrentmap modescreen.

Thissymbolontherightofthemap screendisplaysthespeedlimit whileonaroute. Thespeedlimit maynotbeaccuratedueto changesfromtheDepartmentof Transportation, thelocal municipalities, oroldermapdata. Alwaysfollowthepostedspeedlimit ontheroad.

174InfotainmentSystem

DrivingonaRoute

UrgentManeuverAlert

Thesystemwillgiveanindication thatthenextmaneuverisclose.

DrivingonaHighway

DrivingonaResidentialRoad

Destination

Ifrouteguidanceisnotactive,touch DestinationontheHomePageto accessDestinationEntry.Several optionscanbeselectedtoplana routebyenteringdestinations. Somedestinationentryitemssuch asPreviousDestinations,Address Book,andMyHomemaybegrayed outifnodestinationwaspreviously enteredorsaved.

Alpha-NumericKeyboard

Lettersofthealphabet,symbols, punctuation,andnumbers,when available,displayonthenavigation screenasalpha/numerickeyboards. Thealphakeboarddisplayswhen dataneedstobeentered.

ABCorQWERTY: Touch to toggle between ABCorQWERTY keyboard character layouts.

ÄÖ: Touchtoaccessanalternate languagekeyboard.

Sym:Usetoselectsymbols.

Space:Usetoenteraspace between charactersorthewordsof aname.

Delete: Touchtodeletean incorrectcharacterthathasbeen selected.

Last5: Touchtoselectanyofthe lastfivecitiesorstreetnames enteredifavailable.

AddressEntry

TouchAddressstodisplayAddress Entry.Setaroutebyenteringthe statename,cityname,streetname, housenumber,andintersection.

Ifnostatehasbeenentered previously, thecityandstatefields arenotavailable. Touchdisplayat therightofthecitynametoselecta state.

Ifthestatewaspreviouslysetandis displayed,touchthedisplayatthe rightofthecitynametochangethe selectedstate.

Tomakenameselectioneasier, the systemhighlightsonlycharacters that are available after the previously entered done.

City:Enteracityname.

State:Enterastatename.

Street:Enterastreetname.

House#:Enteravalidaddress number.

Junction: Enterastreetnamethat intersectswiththeselectedstreet.

Toenterthecitynamefirst:

1. Enterthecityname.
   2.Enterthestreetname.Use the Deleteoptiontodeletean incorrectlyenteredcharacter.
   Alistdisplaysifsixorfewer namesareavailable.Ifthere aremorethansix,thereisa matchcounterwithanumber ofavailablestreets.Touchthe Doneoptiontoviewthelistand selectthestreet.

3.Enterthehousenumber.

1. Touch the Done option at any time and the system triesto resolve a destination based on the entered information, then displays it on the screen.

1. Touch the Start Guidance option and theroute calculates.

EnteringaDestinationinOther Countries

Tochangethedestinationaddress fromtheUnitedStateoanother country,thecountrywillneedto changeinthenavigationsystem.

Tochangethecountryaddress:

1. Touch Destination on the HomePage.
2. TouchAddressstodisplaythe AddressEntryoption.
3. GotoStateandselect. The Stateentrydisplays. Selectthe Countryoption. The available CountryListdisplays.

176InfotainmentSystem

1. Selectthedesiredcountry. For example, selectCanadaasa defaultcountry.
   5.EnterState.Forexample,enterOntarioandconfirmtheselection.

Thedestinationinothercountries canalsobechangedusingvoice recognition. See Voice Recognition 192.

PointofInterest(POI)

TouchPOlontheDestinationEntry page. Severaloptionscanbe selectedtoplanaroute.

ThePOIListallowsselectionofa destinationsearchbyCategory, Name, or TelephoneNumber.

EnteringbyPOIname:

1. SelecttosearchByName.

1. Makesurethecorrectcountry andcityarepresent, then selectSearch.Addthecity locationtonarrowdownthe resultsofthesearch.

3.EnterthePOIname.
4. Selectafewofthecharacters orspellthenameinfull, by usingthealphakeyboard.
5. SelecttheDoneoption, orif thelisthassixorfeweritems, alistofPOIswillimmediately display.
6. TouchthedesiredPOI.

1. TouchStartGuidance and the route calculates.

PreviousDestinations

Selectadestinationfromthe PreviousDestinationList.Upto 15pointsthathavebeenpreviously enteredcanberecalled.Ifthelistis full,theoldestdestinationsare automaticallydeletedoncethe newestdestinationsareadded.

AddressBook

Ifnodestinationissavedtothe addressbook,saveadestination:

1. Touch Destination on the HomePage.

2. Enter an address using any of the destination methods (AddressEntry, POI Entry, etc.).

3. OntheDestination Confirmationscreen, selectSave.

4. Thesystemdisplaythe optionsName, Number, Icon, andDone.TouchDonetosave thedestination.

5. Tocustomizetheaddressbook entry, selectName, Number, orIcon.

Ifadestinationisalreadysavedto theaddressbook,touchDestination ontheHomePagetodisplay AddressBook.

Chooseadestinationbyselecting anaddressthathasbeenstored in theaddressbook.

1. TouchAddressBook.Alist displaystheaddressbook entries.

2. Select the destination from the list.

3. TouchStartGuidance and the route calculates.

ToeditAddressBookentries:

1. Selectanitemfromthe addressbook.

2. OntheDestination Confirmationdisplay, selectEdit.

3. Thesystemdisplaythe optionsName, Number, Icon, and Delete. TouchDelete to deletethedestinationfromthe addressbook.

4. Tocustomizetheaddressbook entry, selectName, Number, orIcon.

Latitude/LongitudeCoordinates

Chooseadestinationbasedon latitudinalandlongitudinal coordinates.

178InfotainmentSystem

Toenterthelocationascoordinates, latitudeandlongitude:

1. Touch Destination on the Home Page. Touch the Latitude and Longitude option to display the screen above.
2. Select Latitude or Longitudeto change. Enter the coordinates in degrees, minutes, and seconds.
3. TouchSearchiftheinformation iscorrect.
4. Touch the Start Guidance option. Theroute calculates.

FavoriteRoutes

AddingaFavoriteRoute:

1. Touch Destination on the Home Pagetodisplay the Favorite Routesoption.
2. TouchFavoriteRoute to displayNewFavoriteRoute.
3. SelectNewFavoriteRoute and enterafavoriteroutename.
4. TouchOKandthedisplay returnstothefavorite routeslist.
5. Select the favoriteroute and addawaypoint using any of the destination methods, such as addressentry, POI entry, etc.

SelectingaFavoriteRoute:

1. Touch Destination on the Home Pagetodisplay the Favorite Routesoption.
2. Touch Favorite Routesto displayalistofavailable favoriteroutes.
3. Scrollandselectafavorite route.
4. TouchStartGuidance. The routecalculates.

DeletingaFavoriteRoute:

1. Touch Destination on the Home Pagetodisplaythe Favorite Routesoption. Touch this option to display the list of available favoriteroutes.
2. Scrollandselecttherouteto bedeleted.
3. TouchEdit.
4. TouchDeleteFavoriteRoute.

Changingtheroutename:

1. Touch Destination on the Home PagetodisplaytheFavorite Routesoption. Touch thisto displaythelistofavailable favoriteroutes.

2. TouchtheEditoption.

3. SelectEditName.
4. Using the keypad, enter the name.
5. Touch the Doneoption. The newnamewillbeinthe Favorite RoutesMenu.

MyHome

Ifnohomedestinationisentered, saveadestinationbytouchingthe DestinationiconontheHomePage. Enteradestinationusinganyofthe destinationentrymethods(Address Entry,POIEntry,etc.).SelectSave asHomefromtheDestination Confirmationscreen.

Ifadestinationisalreadysavedas home,touchDestinationonthe HomePagetodisplayMyHome. Touchthisoptiontostartroute guidance.

SelectfromMap

1. Touch Destination on the Home PagetodisplaySelect from Map. Touch this option to display themapscreen with a scrollsymbolcentered on themap.
2. TouchtheZoomin/utoption onthescreenandtouchthe maptolocatethedestinationto select.Touchandholdafinger onthemaptoactivatefast scrolling.
3. TouchGoonthebottomofthe screentodisplayDestination Confirmation.
4. TouchStartGuidance. The routecalculates.

TravelGuide

TouchTravelGuideonthe DestinationEntrypage.Several optionscanbeselectedtoplana route.

The TravelGuidePOlentrylist allowsselectionofadestination searchbycategoryorname.

180InfotainmentSystem

EnteringbyPOICategory

1. SelectCategoryfromthePOI ListmenutoaccessthePOI Selectionoption.
2. Enterthenecessary information by first selecting the location option to access the Location menu.

1. Selectanyofthelineoptions suchasNearby.

2. SelectCategoryfromthePOI Selectionmenutoaccessthe POIList.

1. Selectanyofthelineoptions suchasAllPOIs.
2. SelectSortMethodfromthe POISelectionmenutoaccess theSearchOrdermenu.Select oneofthetwooptions:By DistanceorByName.
3. SelectSearch.
4. SelectthedesiredPOI.

EnteringbyPOIname:

1. SelecttosearchByName.
2. Makesurethecorrectcountry, state, and city are present, then select Search.
   3.EnterthePOIname.
3. Selectafewofthecharacters orspellthenameinfull, by usingthealphakeyboard.
4. TouchDone, orifthelisthas sixorfeweritems, alistof POIswillimmediatelydisplay.
   6.TouchthedesiredPOI.

TheTravelGuidePOIwillhave somedetailedinformationaboutthe selectionmade. Thisinformation mayinclude:

• BriefDescription
• Address
  Number
• HoursofOperation
• Price
  Website

Photosmaynotbeavailablefor certainlocationsorcountries.

DestinationConfirmation

Multipleoptionsareavailableonthe DestinationConfirmationscreen:

StartGuidance: Touchtostarta routecalculationtothedisplayed destination.

ShowonMap: Touchtoswitchto themapviewwiththedisplayed destinationcenteredonthemap.

Save/Edit: Touchtosavethe displayeddestinationintothe addressbook. If the displayed destination is already stored in the addressbook, Edit will show the menu item.

Call: Touchtoinitiateaphonecall tothedisplayedphonenumber, ifphonecapabilityisavailable.

SaveasHome: Touchtosavethe displayeddestinationasyourhome destination. Thehomedestination willbestoredatthetopofthelistof destinationsintheaddressbook.

RouteOptions: Touchtochange routeoptions. See "RouteOptions" following.

RouteOptions

Touchtodisplayvariousroute options.

AlternativeRoutes: If enabled, the system will provide an additional screen after Start Guidance has been selected. Select Fastest, Shortest, or Ecocalculated routes before selecting Go.

182InfotainmentSystem

Fastest: This calculates the quickest route.

Shortest: This calculates the shortest route.

Eco: This calculate the most fuel efficient route based on speed and distance.

UndertheRouteOptionsmenu, thereareroutepreference that by default are all enabled.

Acheckmarkplacednexttoeach preferenceindicatethis.Allof thesepreferencesareusedwhen calculatingtheroute.Ifanyofthese preferencesareunselected,the routewillbecalculatedwithout includingthesepreferences.

UseHighways: Deselecttoavoid majorroads.

UseTollRoads:Deselecttoavoid tollroads.

UseFerries: Deselecttoavoid ferries.

UseTunnels: Deselecttoavoid tunnels.

UseTimeRestricted:Deselectto avoidtimerestrictedroads.

UseCarTrain: Deselecttoavoid cartrains.

MenuwithRouteGuidance Active

Severalfunctionscanbeperformed afterdestinationhasbeen entered.TouchtheHomePage DestinationEntrydisplaytoaccess theRouteMenuscreen.

CancelGuidance

TouchCancelGuidancetocancel thecurrentroute.

DestinationList

SelectDestinationListtoview optionsfororganizingwaypoints.

TurnList

SelectTurnListtoviewalistof maneuversfortheentireroute. TouchAvoidnexttooneoftheturn maneuverstoavoidasegmentof roads.Amaximumofeightavoided segmentsareallowed.

AvoidList

SelectAvoidListtodisplayalistof avoidedroadsegmentswiththe optiontoremovetheavoideditems fromthelist.

VoicePrompt

SelectVoicePrompttoviewoptions todisableormanagenavigation voice promptsandtrafficalert prompts.

Detour

TouchDetourtodisplaytheroute detouroptions.Selecttodetourthe wholerouteorbyaspecific distance.

RouteOptions

Thisfeaturecanbeaccessedfrom theDestinationConfirmationMenu andDestinationMenuwithRoute GuidanceActive.See"Destination Confirmation"previouslyinthis section.

Waypoints

Upto threewaypointscanbeadded tothecurrentroute. Thewaypoints can besorted (moved) or deleted.

Toaddawaypoint:

1. From the Destination List menu, touch Add Waypoint.
2. Enterthewaypointbyanyof theadddestinationmethods. Thesystemcalculatesand highlightstherouteandthe routecanbestarted.
3. Toaddmorewaypoints, touch AddWaypointtoaddthe waypointintheorderdesired ontheroute.

Todeleteawaypoint:

1. From the Destination menu, touch Destination List.
2. TouchDeleteWaypoint.

3. Selectthewaypointstobe deleted. TouchDelete.

TheSortWaypointfeatureallows reorganizationofthedestinationlist.

Tosortawaypoint:

1. From the Destination menu, touch Destination List.
2. TouchSortWaypoints.
3. Selectthewaypointtomove.
4. Selectthelocationtomovethe waypointto.

Instead of deleting individual waypoints, select Delete All Waypointstodelete all waypoints at the sametime.

Tosaveadestinationlistasa favoriteroute,selectSaveas FavoriteRoute.

OnStar® Destination Download

Thedestinationdownloadletsan OnStar® Subscriberaskan OnStar Advisortodownloadadestinationto thenavigationsystem.OnStarwill sendaddressinformationand locationcoordinatesofthe destinationintothenavigation system.

UsingDestinationDownload

Thenavigationradioscreenmust beturnedonbeforeadownload.

Thenavigationsystemdisplays "Pleasewait" astheaddressis searched within themapdatabase.

If the address is not found within the map database, the system may use latitude and longitude coordinate to locate the destination.

If the system is unable to locate the address, the Downloading On Star destination failed to screen displays.

RouteGuidanceNotActive

IfanOnStardestinationis downloadedwhilerouteguidanceis notactivated,thenavigationsystem displaysapop-upscreenwiththe followingfunctions:

StartGuidance: Touchtostart routecalculationtothe destination(s)received.

ShowonMap: Touchtodisplay theMapScreen.

Save: Touchosavethe downloadeddestinationtothe addressbook.

Call: Touchtoinitiateacallwith BluetoothPhoneorOnStar Hands-FreeCalling(ifavailable).

SaveasHome: Touchtosetan addressasahomedestination.

RouteGuidanceActive

IfanOnStardestinationis downloadedwhilerouteguidanceis alreadyactive,thesystemdisplays apop-upscreenwiththefollowing screenfunction:

• TouchStartGuidance; the navigationsystemaddsthe downloadeddestinationbefore thenextwaypointoftheexisting route(closesttothecurrent vehicleposition).
• Allotheroptionsonthepop-up displayoperateasdescribed under"RouteGuidanceNot Active."

PreviousDestinations

PreviouslydownloadedOnStar destinationsaresavedunder PreviousDestinationsinthe navigationsystem,wheretheycan beaccessedorsavedtothe AddressBook.

ConfigureMenu

TheConfigurationMenuisusedto adjustfeaturesandpreferences, suchasSound, Radio, Nav (Navigation), Display, or Time Settings.

1. TouchConfigontheHome PageorpressCONFIGonthe centerstack.

1. Touch-tapthescrollbaruntil thedesiredoptiondisplays. Selectthedesiredsettingsto

change.See Vehicle Personalization→113on adjustingmostvehiclesettings. See"NavigationSettings"and "NavigationSettingDisplays" laterinthissection.

Languages

TouchConfigontheHomePageor pressCONFIGonthecenterstack toenterthemenuoptions.Turnthe knobortouch-tapthescroll bartoscrollthroughtheavailable options.Pressthe knobor pressLanguagestodisplaythe languages.Selectthedesired language.

TimeandDateSettings

FromtheTimeandDateSetting menu,touchtodisplaytheTimeand Datemenu.

AutomaticClockUpdate: When enabled, thisfeaturewillsetthe clockautomatically.

SetTime: Touch+or-toincrease ordecrease the Hours and Minutes displayed on the clock.

SetDate: Touch+or-toincrease ordecreasetheday.

12hr/24hrFormat: Touch12 Hourforstandardtime; touch24 Hourformilitarytime.

TouchBacktosavethe adjustments.

RadioSettings

TouchConfigontheHomePageor pressCONFIGonthecenterstack toenterthemenuoptions.Turnthe knobortouch-tapthescroll bartoscrollthroughtheavailable options.Pressthe knobor touchRadioSettingstodisplaythe radiosettingsmenu.Touchthis featuretomakechangesforradio informationdisplayed,presetpages,

186InfotainmentSystem

AutoVolume, and XM Categories Restore. See Satellite Radio 141, for information about XM Categories.

TheRadioSettingsare:

AutoVolume: SelectOff, Low, Medium, or High sensitivity to automatically adjust the volumeto minimizethe effect so fun wanted background noisethat can result from changing roads surfaces, driving speeds, or open windows. This feature works best at lowervolume settings where background noise is typically louder than the sound system volume.

GracenoteOptions: Touch to enable/disableNormalization used to improve voicerecognition and mediagroupings. See CDPlayer 157, USB 160, Auxiliary Devices 165, and Bluetooth Audio 166.

XMChannelArt: Touchtoenable/disabletheXMAudiopage backgroundontheXMChannel display.

MaxStartupVolume: Touchtoset themaximumvolumelevelfor startupthatwillbeusedevenifa highervolumehadbeensetwhen theradiowasturnedoff.

NumberofFavoritePages: Touch toselectthenumberoffavorite pagestobedisplayed.

XMCategories:Touchto customizewhichavailableXM Categoriesareusedanddisplayed.

SoftwareVersionInformation: Touchtodisplayinformationabout thesystemandupdatesoftwareif available.

PhoneSettings

SeeBluetooth→198.

NavigationSettings

TouchConfigontheHomePageto enterthesetupmenu.Turnthe knobortouch-tapthescroll baruntiltheNavigationSettings optiondisplays.Selectthisfeature tomakechangestoVoicePrompt, TrafficSettings,GuidanceAlert, DeleteSavedDestinations,Bread Crumbs,andRouteSimulation.

NavigationSettingDisplays

Variousnavigationsystemsettings are available through the ConfigurationSettingsmenu. Some options are only available after a route is planned.

TouchNavigationSettingstoaccess thenavigationsystemsettings.

VoicePrompt

TheVoicePromptmenuallows changestothevoiceprompt features.

NavigationVoicePrompts:Select OnorOfftoturnthevoice instructionsonoroffwhiletraveling onaplannedroute.

TrafficAlertPrompts: Select the OnorOfftoturnthetrafficvoice promptonoroffwhiletravelingona plannedroute.

NavigationVolume:Selectto changethevolumeofthenavigation prompts.

MuteVoicePromptswhilein Calls: Selecttomutevoice promptswhileinacall.

TrafficSettings

TouchtodisplaytheTraffic Settingsmenu.

TrafficEvents(On/Off): Touch to enable order disable the traffic feature.

TrafficAlertPrompts(On/Off): Touchtoenableordisablethetraffic voiceprompts.

RouteBasedonTraffic Conditions: Touchtodisplaya submenuofoptions.

• RouteBasedonTraffic Conditions: Touchtoenableor disabletheroutefeature.
• AutomaticRecalculation: Touch to enable automatic route recalculation.

- RecalculationafterConfirmation: Touchtoenableroute recalculationafterconfirmation.

SortMethod: Touchtodisplaya submenuofsortoptions.

• SortbyDistance:Touchto displaytrafficeventsinorderof distancewiththeclosestevent shownfirst.
• SortbyRoadName:Touchto displaytrafficeventsin alphabeticalorder.

ShowTrafficEventsonMap: Touchtodisplaytrafficiconson themap.

- ShowAll: Touchtoenable displayofalltrafficiconson themap.

188InfotainmentSystem

• HideAll: Touchtodisable displayofalltrafficiconson themap.
• UserDefined: Touchtodefine theindividualtypesoficonsthat aredisplayedfortrafficflowand trafficconditions.

TrafficFlowStatus

Thetrafficflowstatuswilldisplaying green, yellow, orredlinesbeside theroad.

• Redindicate significantly impaired traffic flow with average speed less than 40 km/h (25 mph).
• Yellowindicateslightlyimpaired trafficflowwithaveragespeed between40and73km/h(25and 45mph).
• Greenindicatesnormaltraffic flowwithaveragespeedabove 73km/h(45mph).

ClosedRoads, TrafficDelays, Roadworks, Incidents, and Advisories

Select the traffic event group for display on themapscreen. Some events may cover more than one traffic condition. See the following traffic conditions.

TrafficConditions

The followingtrafficconditionicons maydisplay:

StoppedTrafficTrafficJam

AccidentRoadClosed

LaneNarrowsRoadWork, Construction

AlertRoadCondition

RoadVisibilityOther

GuidanceAlert

Touchtoenabletheguidancealert pop-uptobewiedonthemapor onthemainscreenssuchasaudio, weather, phone, etc. Acheckmark appearstoindicate theguidance alertmodeison.

DeleteSaved Destinations

Touchtodeleteallsaved destinations.ADeleteSaved Destinationssubmenudisplays. Selectthedesiredoptionsfor deletionandtouchDeleteatthe bottomtocontinue.Aconfirmation screendisplaysrequestingtodelete orcancel.

BreadCrumbs

Breadcrumbs,whendisplayed, showapreviouslyfollowedroute.

SelectDisplaytoenablebread crumbsonthemapdisplay.

Itispossibletorecordandstore breadcrumbstoretrievejourneys forfuturereference.

Previouslystoredbreadcrumbscan beloadedfromtheSavedmenu item,andthendisplayedby selectingShowonMap.

RouteSimulation

Selecttodisplayaroutesimulation.

UseLastKnownPosition:Select tostartthesimulationfromthelast knownposition.

UsePreviousDestination:Select tostartthesimulationfroma previousdestination.

UseSpecifiedLocation:Selectto startthesimulationfromaspecified location.

Oncethestartingpositionforthe simulationisselected,select NavigationandtheMapdisplaywill beinSimulationmode.SIMis displayedonthemap.

Selectandenterthedestinationas foranormaljourneyandselectStart Guidancetocalculatetheroutein Simulationmode.

TouchNexttoskiptothenextturn, ortouchStoptopausethe simulation.

Tostopthesimulation, pressDEST and select CancelGuidance.

ToexitfromSimulationmode, return totheNavigationSettingsmenu, selectRouteSimulation, thenselect CancelRouteSimulation.

VehicleSettings

See Vehicle Personalization→113.

DisplaySettings

TouchConfigontheHomePageor pressCONFIGonthecenterstack, thenselectDisplaySettingsfrom thelist.

The following options may display:

HomePageMenu: Touch to customize the first page of the HomePage.

RearCameraOptions: Touch to enable ordisable Symbols and GuideLines..

DisplayOff: Touchtoturnoffthe display. Thedisplaywillreturnwhen anycenterstackcontrolispressed orthescreenistouched(if equipped).

MapSettings: Touchtoenterthe submenutochangeMapDisplay settingsandenableSpeedLimit displayonmap.

MapDisplay: Touchtochangethe screenbackground.

- TheAutomaticsettingadjusts thescreenbackground automaticallydependingonthe exteriorlightingconditions.

• TheDaysettingbrightensthe mapbackground.
• TheNightsettingdarkensthe mapbackground.

Tochangetheoverallbrightness settingforthedisplay, usethe vehicleinteriorlightinginstrument panelilluminationcontrol.

SpeedLimits: Touchtoenableor disabledisplayedspeedlimitson themap.

GlobalPositioning System(GPS)

Thepositionofthevehicleis determinedbyusingsatellite signals,variousvehiclesignals,and mapdata.

Attimes, other interferences such as the satellite condition, road configuration, condition of the vehicle, and/or other circumstances can affect thenavigations system's ability to determine the accurate position of the vehicle.

TheGPSshowsthecurrentposition ofthevehicleusingsignalssentby GPSSatellites.Whenthevehicleis notreceivingsignalsfromthe satellites,asymbolappearsonthe mapscreen.SeeNavigation Symbols\\172.

Thissystemmightnotbeavailable orinterferencecanoccurifanyof thefollowingaretrue:

• Signalsareobstructedbytall buildings, trees, largetrucks, oratunnel.
• Satellitesarebeingrepairedor improved.

FormoreinformationiftheGPSis notfunctioningproperly,see ProblemswithRouteGuidance 191andIftheSystemNeeds Service 192.

VehiclePositioning

Attimes, the position of the vehicle on themap could be inaccurate due to one or more of the following reasons:

• Theroadsystemhaschanged.

• The vehicle is driving on slippery roads, surface such as sand, gravel, or snow.
• Thevehicleistravelingon windingroadsorlongstraight roads.
• Thevehicleisapproachingatall buildingoralargevehicle.
• Thesurfacestreetsrunparallel toafreeway.
• The vehicle has been transferred by a vehicle carrier or a ferry.
• Thecurrentpositioncalibration issetincorrectly.
• Thevehicleistravelingathigh speed.
• Thevehiclechangesdirections morethanonce,orthevehicleis turningonaturntableina parkinglot.
• Thevehicleisenteringand/or exitingaparkinglot,garage,ora lotwitharoof.
  • TheGPSsignalisnotreceived.

• Aroofcarrierisinstalledonthe vehicle.

• Tirechainshavebeeninstalled.
  • Thetiresarereplacedorworn.

• Thetirepressureforthetiresis incorrect.
• Thisisthefirstnavigationuse afterthemapdataisupdated.
  • The12-voltbatterywas disconnectedforseveraldays.
• The vehicle is driving in heavy traffic where driving is at low speeds, and the vehicle is stopped and started repeatedly.

ProblemswithRoute Guidance

Inappropriaterouteguidance can occur underoneormoreof the following conditions:

• Theturnwasnotmadeonthe roadindicated.

• Routeguidancemightnotbe availablewhenusingautomatic reroutingforthenextrightor leftturn.
  • Theroutemightnotbechanged whenusingautomaticrerouting.

• Thereisnorouteguidancewhen turningatanintersection.

• Pluralnamesofplacesmightbe announcedoccasionally.
• It could take alongtimeto operate automatic rerouting during high-speed driving.
• Automaticreroutingmight displayaroutereturningtothe setwaypointifheadingfora destinationwithoutpassing throughasetwaypoint.
• Therouteprohibitstheentryofa vehicleduetoaregulationby timeorseasonoranyother regulationwhichmaybegiven.
• Someroutesmightnotbe searched.
• Theroutetothedestination mightnotbeshownifthereare newroads,ifroadshave recentlychanged,orifcertain roadsarenotlistedinthermap data.SeeMaps⇒172.

Torecalibratethevehicle'sposition onthemap, parkwiththevehicle runningfortwotofiveminutes, until thevehiclepositionupdates.Make

192InfotainmentSystem

surethevehicleisparkedina locationthatissafeandhasaclear viewoftheskyandawayfromlarge obstructions.

IftheSystemNeeds Service

If thenavigationsystemneeds service and the steps listed here have been followed but there are still problems, see Problems with Route Guidance 191.

MapDataUpdates

Themapdatainthevehicleisthe mostup-to-dateinformation availablewhenthevehiclewas produced. Themapdataisupdated periodically,providedthatthemap informationhaschanged.

Forquestionsabouttheoperationof thenavigationsystemortheupdate process,contacttheGMNavDisc Centertoll-freephonenumber, 1-877-NAV-DISC(1-877-628-3472) orgotothecenter'swebsite, www.gmnavdisc.com.Ifupdatesare needed,calltheGMNavDisc CenterororderanewMapUpdate

online.Toordermapdata,havethe vehicle'sVehicleIdentification Number(VIN)available.See VehicleIdentificationNumber (VIN)344.

Afterreceivingtheupdatedmap data,seeMaps→172.

DatabaseCoverage Explanations

Coverageareasvarywithrespectto thelevelofmapdetailavailablefor anygivenarea.Someareasfeature greaterlevelsofdetailthanothers. Ifthishappens,itdoesnotmean thereisaproblemwiththesystem. Asthemapdataisupdated,more detailcanbecomeavailablefor areasthatpreviouslyhadlimited detail.SeeMapData Updates→192.

VoiceRecognition

Voicerecognitionallowsfor hands-freeoperationofthesystem features.

Voicerecognition can be used when theradioisonor when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) 231. Thesystem maintains a minimum volume level.

UsingVoiceRecognition

1. Press on the steering wheel. The audiosystem mutes. A voice prompt states, "Pleasesayacommand." Wait until the tone is heard before speaking.
   If there is not one, makes sure that the volume is turned up.
   Whilevoicerecognitionis active, thesystemdisplaysa symbolinthetoprightofthe screen.

2. Clearly speak one of the commands listed later in this section.

Press/ twice on the steering wheel to skip the voice prompt messages.

CancelingVoiceRecognition

1. Pressandrelease/On thesteeringwheelcontrol to cancelacommand, if the systemresponsedoesnot matchthevoicecommand, or say "Goodbye" or "Cancel."

2. Thesystemreplies, "Goodbye."

HelpfulHintsforSpeaking Commands

• When multiple commands are available, choosethe command that works best for you.
• Wordsinparenthesesare optional. Forexample, for the command "TuneFM (frequency)," saying "TuneFM 87.7" or "TuneFM" are both valid commands.

• Whenthecommandis recognized, thesystemwill eitherperformthefunctionor asktoconfirmthechoice.

• Whenthesystemdoesnot recognizethecommand,the systemsays"Pardon."

• If experiencing difficulty with the system recognizing a command, confirm that the command is correct. Try saying the command clearly or wait for a brief moment after the tone.
• Backgroundnoisesuchasa climatecontrolfanpositionedon high, openwindows, and very loudoutsidenoises, even if the windows are closed, can cause voice commandstobe misunderstood.
• Thesystemisabletorecognize commandsindifferent languages,suchasEnglish, CanadianFrench,andSpanish. Thesystemonlyrecognizes commandsbasedonthe languageselected.
• Toincreaseordecreasethe voicevolumeduringavoice recognitionsession,turnthe volumeknoboftheradio, orpressthevolumesteering wheelcontrol.Ifthevolumeis

adjusted during avoice recognition session, a Volume bar appear on the screen showing the voice volume level as its being adjusted. This also changest the volume of the guidance prompts.

• Whenusingnavigation commands, takethetimeto becomefamiliarwiththe address.Longdelayswhen givingtheaddresscanresultin thesystemnotrecognizingthe addressorroutingtoadifferent locationthanintended.
• Whenprovidingthehouse numberportionoftheaddress, thesystemrecognizesbothdigit formatandnumericaltext.An examplewouldbetosay, "3-0-0-0-1"or"Thirty ThousandOne."
• Ifthesystemprovides the destinationinanothercountry on several attempts, say the "ChangeCountry" command and say the country of interest. The country default is the United States. To enter a destination in

194InfotainmentSystem

CanadaorMexico, the country will first havetobechanged in the system.

VoiceRecognitionHelp

Toenterthehelpplaybacksession, clearlyspeakoneofthehelp commands.

Help: Thesystemplaysbackmore specifichelpcommandssuchas RadioSettingstochoosefrom.

Radio: Use this command to learn about how to select the band (AM, FM, or SiriusXM), and how to change radiostations by speaking frequency numbers.

Phone: Usethiscommandtolearn abouthowtodial, pairadevice, ordeleteadevice.

MyMedia: Usethiscommandto learnhowtoplayspecifictracks, artists, albums, devicesconnected totheUSBport, ortochange sources.

Settings: Usethiscommandto learnabouthowtoturnVerboseon oroff, orsetthelanguage.

VoiceRecognitionCommands

The followinglistshowsthevoice commandsavailableforthesystem withabriefdescriptionofeach. The commandsarelistedwiththe optionalwordsinparentheses. To usethevoicecommands,seethe previousinstructions.

RadioCommands

TuneAM, TuneFM, TuneXM, TunePandora, TuneStitcher: Instructsthesystemtogotothe specificbandandthelaststation.

TuneAM(frequency), TuneFM (frequency), TuneXM(station numberorname): Instructsthe systemtogotothespecificstation.

ThumbsUp: Instructsthesystem togivethecurrentsongorstationa thumbsupinPandoraorStitcher.

ThumbsDown: Instructsthe systemtogivethecurrentsongor stationathumbsdowninPandora orStitcher.

PhoneCommands

DialorCall(phonenumberor contact):Instructsthesystemto startaphonecall. Forexample, say "Dial12481234567." Tocalla phonebookcontact, say "Dial" or "Call," saythenameandlocation, andthensay "Dial." Forexample, say "CallJohnatHome" or "Call JohnatWork." Ifanumberisnot recognized, thefirstnumberinthe listwillbecalled.

PairorConnect: Instructsthe systemtobeginpairingadevice.

DigitDial: Instructsthesystemto dialaphonenumberonedigitata time. Aftersayingthedigits, say "Dial."

RedialorRedialLastNumber: Instructsthesystemtodialthelast phonenumbercalled.

SelectDeviceorChangePhone: Instructsthesystemtoswitchtoa differentpaireddevice. The device must be selected from the screen or using the knob.

DeleteDevice: Instructsthe systemtodeleteapaireddevice.

ReadTextMessagesorReadSMS

Messages: Instructsthesystemto beginreadingtextmessagesfroma paireddevice.

Notalldevicessupporttext messages.Applicablewhere equipped.

MyMediaCommands

CD,AUX,USB,orBluetooth Audio:Instructsthesystemto changethesource.

PlayCD: Instructsthesystemto playaCD.

The following commandsonly apply to USB, iPod, and iPhonesources. They are supported after the device has been indexed.

PlayArtist(artistname): Instructs thesystemtoplaysongsbya specificartist.

PlayAlbum(albumtitle): Instructs thesystemtoplayaspecificalbum.

PlaySong(songtitle): Instructs thesystemtoplayaspecificsong.

PlayGenre(genrename): Instructsthesystemtoplaysongs ofaparticulargenre.

SearchArtist(artistname): Instructsthesystemtoshowalistof allsongsbyaspecificartist.

SearchComposer(composer name):Instructsthesystemto showalistofallsongsbyaspecific composer.

SearchAlbum(albumname): Instructsthesystemtoshowalistof allsongsonaspecificalbum.

SearchGenre(genrename): Instructsthesystemtoshowalistof allsongsforaspecificgenre.

SearchFolder(foldername): Instructsthesystemtoshowalistof allsongsinaspecificfolder.

SearchPlaylist(playlistname): Instructsthesystemtoshowalistof allsongsinaspecificplaylist.

SearchAudioBook(audiobook name):Instructsthesystemto showalistofalltracksinaspecific audiobook.

SearchPodcast(podcastname): Instructsthesystemtoshowalistof alltracksinaspecificpodcast.

MoreLikeThis: Instructsthe systemtocreateaplaylistoftracks similartothecurrenttrackplaying.

SettingsCommands

Verbose(set)on(mode),Verbose(set)off(mode):Instructsthe systemtoturnvoicepromptsonor off.Whenoff,thisfeatureturnsoff voice prompts.

Language(language): Instructs thesystemtosetthelanguage.

ListDevices: Instructsthesystem togivealistofdevicestouse.

OtherCommands

Goodbye: Instructsthesystemto endaphonecallorvoice recognition.

Cancel: Instructsthesystemto cancelanaction.

GoBack, Back, Previous: Instructsthesystemtogobacktoa priormenu.

196InfotainmentSystem

MainMenu: Instructsthesystemto gotothemainmenu.

Yes, Yep, Yup, Ya, Sure, Right, Correct, OK, Positive, YouGotit, Probably, YouBet: These can be used to say "Yes."

No, Nope, Na, Noway, Wrong, Incorrect, Negative, Notreally, No Isaid, Nol Did Not, Nol Do Not: These can be used to say "No."

NextPage, PageDown: Instructs thesystemtoscrollforwardone pageinalist.

PreviousPage, PageUp: Instructs thesystemtoscrollbackonepage inalist.

NavigationCommands(If Equipped)

Toactivatethenavigationvoice recognition:

1. Press P/w on thesteering wheel. The audiosystem mutes. A voice prompts says, "Pleasesayacommand." Wait until the tone is heard before speaking.

If there is not one, makes sure the volume is turned up.

Whilevoicerecognitionis active, thesystemdisplaysa symbolinthetoprightofthe screen.

1. Clearly speak the command "Navigation."

2. Clearly speak one of the commands in this section.

The following commandsonly apply once the Navigation command is given.

ChangeCountry: Changesthe countryorigintoinputadestination from that region. Thesystemwill acceptUnitedStates, Canada, or Mexico.

AddressorDestination: Allows an addressstobestatedasa one-shotmethod. Thesystemwill recognizes the addressifstatedallat onceorsayacitycenter. An exampleistosay, "200 Renaissance Street, Detroit, Michigan" or "Detroit, Michigan."

DirectedAddress: Allows an addresstobestatedonestepata time. The format will be State, City, Street, then House Number.

Intersection: Allows an Intersection to bestated the destination. The format will be State, City, Street, then Intersection.

Contact: Whenaphoneispaired tothesystem, which contains AddressInformationstoredfor contacts, theaddressassociated with thatcontactcanbecomea route. If thesystemcannotresolve theaddress, anerrordisplays.

Home: Instructsthesystemtostart guidancetotheaddressssavedas MyHome.

PointsofInterestorPOI:Allowsa PointofInteresttobestatedasa destination.

Saythenameorlistitemnumberof thecategoryandsubcategoryto returnalistofPOIs.Saytheitem numbertoselectaPOIfromthelist.

POIcommandsforNearby,Along Route,andAroundDestinationwill beavailableifrouteguidanceis active.

AddWaypoint: Allows addition of individual waypoints or the destination. Thesystemwill ask for the choice of entry method to continue. An example lists say, "POI Along Route" or "Intersection."

DeleteWaypoint: Whenguidance isactive, this command allows the deletion of individual waypoints or the destination. If guidance is not active, the system will indicate the destination list is empty.

WhereAml?, MyLocation, orCurrentPosition: Instructsthe systemtogivethecurrentposition ofthevehicle.

Help: Thesystemplaysbackmore specifichelpcommandsassociated withNavigationoraNavigation sub-feature.

CancelGuidanceorCancel Route: Instructsthesystemto cancelguidance.

EnteringaDestinationinOther Countries

Forthevoicerecognitiontorespond toalocaladdress,the correspondingcountryneedstobe setinthenavigationsystem.

The country can also be set using voice commands. However, the country will change back to the default country when the vehicle is keyed off.

1. Press 📂/µ⁵ onthesteering wheel.

2.Say"Navigation."

1. Say "ChangeCountry."

2. Say the country name. For example, say "Canada."

OnStarCommand(If Equipped)

ToactivateOnStarvoice recognition, press 📋onthemirror orpress 📃/∞onthesteering wheelandsay"OnStar"afterthe beep. ThiswillactivetheOnStar voicecontrol.SeeOnStar Overview→360.

OnStar: These commands can be used after OnStar is pressed.

HelpCommands

• Help
• Hands-FreeCalling(ifavailable)
• Turn-by-TurnDirections
• OnStarInfo

Aftereachlistofhelpcommands, thefollowingareavailable:

• GoBack
• Repeat
• Cancel
• Help
  Goodbye

Hands-FreeCalling(ifavailable)

• Call
• Store
• Commands

-Call

-Store

-MyNumber

-Minutes

198InfotainmentSystem

-StoreLastNumber

-DigitDial

-Redial

-Dial

-NumberRecall

-Directory

-DigitStore

Turn-by-TurnDirections(if available)

- Directory

- PlanRoute

- Commands

-Directory

-StoreDestination

-PlanRoute

-DeleteDestination

-MuteDirections

OnStarInfo(ifavailable)

- Messages

- Minutes

- MyNumber

- Commands

-Messages

-VirtualAdvisor

-MyNumber

-Minutes

-NumberRecall

-AdvisorPlayback

- VirtualAdvisor

VirtualAdvisor(ifavailable)

Choosethisoptiontoconnecttoa liveAdvisor.

VoicePass-Thru

Voicepass-thruallowsaccesstothe voicerecognitioncommandsonthe cellphone, namelySiri ^® orVoice Command.Seethecellphone manufacturer'suserguidetoseeif thecellphonesupportsthisfeature.

Toactivatethephonevoice recognition system, press and hold / on the steering wheel for approximately twoseconds.

BluetoothPhone/Devices

Bluetooth

Overview

Forvehiclesequipped with Bluetooth capability, the system can interact with many cell phones and devices, allowing:

- Placing and receiving hands-free calls.

- Sharingofthecellphone's addressbookorcontactlistwith thevehicle. Thephonebookwill onlydisplaywhenthatphoneis connected.

- Placingoutgoingcallsbyvoice recognition.

Thesystemcanbeusedwhilein ON/RUN,ACC/ACCESSORY, orRetainedAccessoryPower (RAP). TherangeoftheBluetooth systemcanbeupto9.1m(30ft). Theradiocanconnecttomost

Bluetooth-enabled phones. Available features and functions may be dependent on the device.

Onacurrentphonecallscreen,an imageofthecontactfromyour phone'scontactlistcanbe displayed.Notallphonesare compatiblewiththisfeature.

BluetoothControls

Usethecontrolsonthecenterstack andthesteeringwheeltooperate theBluetoothsystem.

SteeringWheelControls

^9 / ^10 : Press to answer incoming callsandstartvoicerecognition.
☑ / ☑ : Press to end a call, declineanincomingcall, or cancel voicerecognition.
+ ▷ -: Press + or - to increase or decrease the volume.

InfotainmentSystemControls

Forinformationabouthowto navigatethemenusystemusingthe infotainmentcontrols,see Overview⇒128.

Phone: PresstoenterthePhone mainmenu.Pressandholdtomute orunmute.

VoiceRecognition

Thevoicerecognitionsystemuses commandstocontrolthesystem anddialphonenumbers.

When using voicerecognition:

• Thesystemmaynotrecognize voicecommandsifthereistoo muchbackgroundnoise.
• Atonesoundstoindicate that the system is ready for a voice command. Wait forthetone and thenspeak.
• Speakclearlyinacalmand naturalvoice.

See Voice Recognition→192.

AudioSystem

Soundcomesthroughthevehicle's frontaudiosystemspeakersand overridestheaudiosystem. Use the VOL/ △knobduringacallto changethevolumelevel. The

adjustedvolumelevelremainsin memoryforlatercalls. Thesystem maintainsaminimumvolumelevel.

See Voice Recognition→192.

BluetoothAudio

SeeBluetoothAudio→166.

PairingwithInfotainment Controls

ABluetooth-enabledcellphone must be paired and then connected to the vehicle before it can be used. Seethecellphonemanufacturer's user guide for Bluetooth functions before pairing the cellphone. If a Bluetooth phone is not connected, call will be made using OnStar Hands-Free Calling, if available. See OnStar Overview 360.

PairingInformation

• ABluetooth-enabledphone and anaudioplaybackdevice can be paired to the system at the same time.
• Uptofivedevicescanbepaired totheBluetoothsystem.

200InfotainmentSystem

• Thepairingprocessisdisabled whenthevehicleismoving.
• Pairingonlyneedstobe completedonce, unless the pairinginformationonthecell phonechangesorthecellphone isdeletedfromthesystem.
• Onlyonepairedcellphonecan beconnectedtotheBluetooth systematatime.
• If multiple paired cell phones are within range of the system, the radiowill connect to the first phone in the list to the phone that was previously connected.

PairingaPhone/Device

1. PressCONFIGorPHONE on thecenterstack.
2. SelectPhoneSettings.
3. SelectPairDevice(Phone). Theradiodisplays "Please startBluetoothsearchonyour phone. Confirmorenter number." If the device supports a four-digit Personal

IdentificationNumber(PIN), it will display. The PIN is used in Step5.

1. Start the pairing process on the cell phonetobepaired to the vehicle. Seethecellphone manufacturer's user guide.

2. Locate and select the device named after the vehicle make and model in the list on the cell phone. Follow the instructions on the cell phone to enter the PIN provided in Step 3, orto confirm the six-digit code matches. The system recognizes the new connected phone after the pairing process is complete.

3. If the phone prompt to accept connection or allow phone bookdown, select always accept and allow. The phone book may not be available if not accepted. Some phones will put connection requestor phonebookrequestinapull downtaskbaratthetopofthe

screen.Dragdownthetaskbar andlookforconnection/ phonebookrequestandaccept.

1. Repeattopairadditional phones.

ListingAllPairedandConnected Phones/Devices

1. PressCONFIGonthecenter stack.
2. SelectPhoneSettings.
3. SelectDeviceList.

DeletingaPairedPhone/Device

1. PressCONFIGonthecenter stack.
2. SelectPhoneSettings.
3. SelectDeviceList.
4. Select the phonetodelete and follow the screen prompts.

ConnectingtoaDifferentPhone

Toconnecttoadifferentphone,the newphonemustbeinthevehicle andavailabletobeconnectedtothe Bluetoothsystembeforethe processisstarted.

1. PressCONFIGonthecenter stack.
2. SelectPhoneSettings.
3. SelectDeviceList.
4. Selectthenewphoneto connecttoandfollowthe screenprompts.

PairingwithVoiceRecognition

ABluetooth-enabledcellphone mustbepairedandthenconnected tothevehiclebeforeitcanbeused. Seethecellphonemanufacturer's userguideforBluetoothfunctions beforepairingthecellphone.lfa Bluetoothphoneisnotconnected, callswillbemadeusingOnStar Hands-FreeCalling,ifavailable. SeeOnStarOverview→360.

PairingaPhone

1. Press /^2 . Thesystem responds "Pleasesaya command," followed by atone.
2. Say "Pair." Thesystem responds with "Please search for Bluetooth devices on your phone, select your vehicle,

confirmorenterthePIN numberprovidedonthe screen."

1. StartthesearchforBluetooth deviceson thephone. Then select the device and follow the instructions on the phone by either entering the four-digit PINorconfirming the six-digit passcode. The PINisused in Step4.
2. Locateandselectthedevice namedafterthevehiclemake andmodelinthelistonthecell phone.Followtheinstructions onthecellphonetoenterthe PINprovidedinStep3orto confirmthesix-digitcode matches.Thesystemresponds "Successfullypaired."
3. RepeatSteps 1–4 topair additional phones.

ListingAllPairedandConnected Phones

Thesystemcanlistallcellphones pairedtoit.Ifapairedcellphoneis alsoconnectedtothevehicle,the systemrespondstoconfirmthat phonenameisconnected.

1. Press Ⓞ/¶. Thesystem responds "Pleasesaya command," followed by atone.
   2.Say"DeviceList."

DeletingaPairedPhone

If the phonenametodelete is unknown, see "ListingAllPaired and Connected Phones."

1. Press /^2 . Thesystem responds "Pleasesaya command," followed by atone.
   2.Say"DeleteDevice."
2. Thesystemresponds: "To deleteadevice, please select itsnamefromthelist." Select the device to delete on the display and will be removed.

202InfotainmentSystem

Tocancelthiscommand, press ☑/ ☑onthesteeringwheelcontrolor pressBACKonthecenterstack.

ConnectingtoaDifferentPhone orDevice

Toconnecttoadifferentcellphone, thesystemlooksforthenext availablecellphone. Depending on thecellphonetobeconnected, this commandmayneedtoberepeated.

1. Press /^2 . Thesystem responds "Pleasesaya command," followed by atone.

2. Say "ChangePhone."

3. Toselectadevice,touch thenameonthedisplay.

4. Ifanothercellphoneisnot found, theoriginalphone remainsconnected.

MakingaCallUsingPhone BookandInfotainment Controls

Forcellphonesthatsupportthe phonebookfeature,theBluetooth systemcanusethecontactsstored onthecellphonetomakecalls.See

thecellphonemanufacturer'suser guideorcontactthewireless providertofindoutifthisfeatureis supported.

When acellphonesupportsthe phonebookfeature,thePhone BookandCallListsmenusare automaticallyavailable.

ThePhoneBookmenuallows accesstothephonebookstoredin thecellphonetomakeacall.

TheCallListsmenuallowsaccess tothephonenumberfromthe IncomingCalls,OutgoingCalls,and MissedCallsmenusonthecell phonetomakeacall.

Theradiowilldisplaythefirst 1,000contactsandthephone numbersforeachcontactincluding Home,Work,Mobile,andOther.

TomakeacallusingthePhone Bookmenu:

1. PressPHONE on the center stackortouch the Phone icon on the Home Page.

2. SelectPhoneBook.

3. Selectthelettergroupofthe phonebookentrytoscroll throughthelistofnames/ numbers.

4. Selectthename.
5. Selectthenumbertocall.

TomakeacallusingtheCall Listsmenu:

1. PressPHONE on the center stackortouch the Phone icon on the Home Page.
2. SelectCallLists.
3. Select the Incoming Calls, Outgoing Calls, or Missed Callslist.
4. Selectthenameornumber tocall.

MakingaCallUsingthe InfotainmentControls

Tomakeacall:

1. PressPHONE on the center stackortouch the Phone icon on the Home Page.

2. TouchEnterNumber.
   3.Enterthephonenumber.

3. SelectOKtostartdialingthe number.

4. SelectCalltoplacethecall.

Tomakeacallusingvoice recognition,see "MakingaCall" underBluetooth→198.

AcceptingorDecliningaCall

When an incoming call is received, the infotainment system mutes and aringtone is heard in the vehicle.

UsingtheInfotainmentControls

Turnthe ←→knobto"Answer" or "Decline" and press the outerring of the ←→knobortouch Acceptor Decline on the screen.

UsingSteeringWheelControls

Press Ⓗ / Ⓥ to answer or ⚡ / ⓞ to declinethecall.

CallWaitingUsingthe InfotainmentControls

Callwaitingmustbesupported on theBluetoothphoneandenabledby thewirelessservicecarriertowork.

SwitchingBetweenCalls(Call WaitingCallsOnly)

Toswitchbetweencalls,turnand presstheouterringofthe knobandselectSwitchCallor selectSwitchCallonthescreen.

CallWaitingUsingSteering WheelControls

Callwaitingmustbesupported on thecellphoneandenabledbythe wirelessservicecarrier.

• Press / toansweran incomingcallwhenanothercall isactive. Theoriginalcallis placedonhold.
• Press P/Againtoreturnto theoriginalcall.
• Todeclineansweringthe incomingcall,touchDeclineon thedisplayortakenoaction.
• Press ☑/☐todisconnectthe currentcallandswitchtothecall onhold.

ConferenceCallingUsingthe InfotainmentControls

Conferencecallingandthree-way callingmustbesupportedonthe Bluetoothphoneandenabledbythe wirelessservicecarriertowork.This featureisonlysupportedwhenthe vehicleisnotmoving.

Tostartaconferencewhileina currentcall:

1. Turnandpresstheouterringof the ←→knobandselect EnterNumber.
   2.Enterthephonenumber and selectOK.
2. After the call has been placed, turn the knob and choose Merge Calls.
3. To add more caller to the conference call, repeat Steps 1 -3. Then number of caller that can be added is limited by your wireless service carrier.

EndingaCall

UsingtheInfotainmentControls

Turnandpresstheouterringofthe knobandselectHangUpor touchHangUponthescreen.

UsingSteeringWheelControls

Press ☑/©toendordeclinean incomingcall.

MutingaCall

During acall, all sounds from inside the vehicle can be muted so that the person on the other end of the call cannot hear them.

UsingtheInfotainmentControls

Turnandpresstheouterringofthe knobandselectMuteCall. Pressagaintocancelmute.

TransferringaCall

Audiocanbetransferredbetween theBluetoothsystemandthecell phone.

Thecellphonemustbepairedand connectedwiththeBluetooth systembeforeacallcanbe transferred.

ToTransferAudiofromthe BluetoothSystemtoaCellPhone

During acallwiththeaudiointhe vehicle, touchtheTransferCall optiononthescreenorpressand hold C/w onthesteeringwheel controls.

ToTransferAudiototheBluetooth SystemfromaCellPhone

Usetheaudiotransferfeatureon thecellphone. Seeyourcellphone manufacturer'suserguideformore information. TouchtheTransferCall optiononthescreenorpressand hold P/w ^2 onthesteeringwheel controls.

DualToneMulti-Frequency (DTMF)Tones

Thein-vehicleBluetoothsystemcan sendnumbersduringacall. This is usedwhencallingamenu-driven phonesystem.

UsingthelnfotainmentControls

1. Turnandpresstheouterringof the ←→knobandselect EnterNumber.

2.Enterthephonenumber, orselectEnterNumberonthe displayandselectdigits, then touchOK.

Hands-FreePhone

UsingBluetoothVoice Recognition

Tousevoicerecognition, press 61 onthesteeringwheelcontrols. Usethecommandsbelowforthe variousvoicefeatures. For additionalinformation, say "Help" whileinavoicerecognitionmenu.

MakingaCall

Callscanbemadeusingthe followingcommands.

DialorCall: These commands can be used interchangeably to diala phonenumber.

DigitDial: This command allows a phonenumbertobedialed by entering the digits one at time.

Redial: This commanddialsthe lastnumberusedonthecellphone.

Tocallanumber:

1. Press P/12. Thesystem responds "Pleasesaya command," followed by atone.
2. Say "Dial" or "Call."
3. Saytheentirenumberwithout pausing,followedby"Dial."

Onceconnected, thepersoncalled willbeheardthroughtheaudio speakers.

Tocallusinganametag:

1. Press /^2 . Thesystem responds "Pleasesaya command," followed by atone.
2. Say "Dial" or "Call" and then saythenametag. For example, say "CallJohn atWork."

Onceconnected, thepersoncalled willbeheardthroughtheaudio speakers.

Usingthe“DigitDial”Command

This allowsaphonenumbertobe dialedbyenteringthedigitsoneat atime.

1. Press Ⓗ/¶¿. Thesystem responds "Pleasesaya command," followed by atone.
   2.Say"DigitDial."
2. Sayeachdigit, oneatatime, todial. Aftereachdigitis entered, the system repeats backthedigititheardfollowed byatone. Afterthelastdigit has been entered, say "Dial."

Ifanunwantednumberisrepeated back, say "Clear" toclearthelast number.

Onceconnected, thepersoncalled willbeheardthroughtheaudio speakers.

Usingthe"Redial"Command

1. Press Ⓞ/¶. Thesystem responds "Pleasesaya command," followed by atone.
2. Afterthetone, say "Redial." Thesystemdialsthelast numbercalledfromthe connectedcellphone.

Onceconnected, thepersoncalled willbeheardthroughtheaudio speakers.

ClearingtheSystem

Unlessinformationisdeletedoutof thevehicleBluetoothsystem,itwill beretained.Thisincludesphone pairinginformation.Fordirections onhowtodeletethisinformation, see"DeletingaPairedPhone/Device."previouslyinthissection.

TextMessaging

Forvehiclesequipped with Bluetooth capability, the system, if equipped with text messaging, can display text messages, playbacka message over the audiosystem, and send a predefined message. Not all phoness support all functions and work with Bluetooth. Theradio only support there receipt of SMS text messages. Arequest may need to be accepted on the phone or some phone settings may need to be changed to allow text messaging to function. Se the cell phone manufacturer's user guide.

206InfotainmentSystem

UsingTextMessaging

1. TouchMessagesontheHome PageorselectTextMessages fromthePhonemainscreen. Untilalltextmessagesare retrieved,theHomePageicon willremaingrayandthePhone mainscreenoptionwillbe removed.

Thisfeaturewillbedisabledif thepairedBluetoothdevice doesnotsupportSMStext messaging.

1. Once all messages are retrieved, the TextMessage Inbox displays. Select a message for viewing. Viewing messages is only available while the vehicle is not in motion.

3.Viewthemessageorselect Listentohearthemessage throughvoicerecognition. The

messageviewscreenislocked outwhilethevehicleisin motion.

- SelectCalltodialthecontactor numberassociatedwiththetext. Notallphonesallowcallingthe senderofthemessageandwill resultinnotbeingableto selectCall.

- SelectReplytoreplytoatext messagethatwasreceivedas anincomingmessage.Notall phonesallowmessagesending.

- Selectthedesiredmessagefrom thedisplayofpredefined messagestosendasthereply message.

InfotainmentSystem207

• SelectSendtosendthat message.
• SelectBacktocancelandreturn tothepreviousscreen.

IncomingTextMessages

Apop-upscreenisdisplayedwhen thereisanincomingtext. The pop-upwillremainonthescreen untilDismississelected.

• SelectListentohearthe messagethroughvoice recognition.
• SelectViewtoviewthe message.Viewingisnot availablewhilethevehicleisin motion.
• SelectReplyoreplytothe messageusingapredefined message.
• SelectCalltodialthecontactor numberassociatedwiththetext.
• SelectDismissstocloseoutthe incomingpop-upmessage screen.

TextMessagingSettings

TextMessageSettingsareavailable fromtheTextMessageInbox.

• SelectManagePredefined Messagestocreateauser definedmessagethatcanbe usedlatertoreplytoatext message.
• SelectTextAlertstochoosethe alertbehaviorforincomingtext messages:

-Textalertwithtone

-Toneonly

-Off

Trademarksand LicenseAgreements

FCCInformation

SeeRadioFrequency Statement→357.

Made for

iPod

iPhone

"MadeforiPod," and "Madefor iPhone," meanthatanelectronic accessoryhasbeendesignedto connectspecificallytoiPodor iPhoneandhasbeencertifiedby thedeveloppertomeetApple performancestandards. Appleisnot responsiblefortheoperationofthis deviceoritscompliancewithsafety andregulatorystandards. Please notethattheuseofthisaccessory withiPodoriPhonemayaffect wirelessperformance.iPhone ^® , iPod ^® , iPodclassic ^® , iPodnano ^® ,

iPodshuffle ^® , andiPodtouch ^® are trademarksofAppleInc., registered intheU.S. andothercountries.

FeesandTaxes:Subscriptionfee, taxes,onetimeactivationfee,and otherfeesmayapply.Subscription feeisconsumeronly.Allfeesand programmingsubjecttochange. SubscriptionssubjecttCustomer Agreementavailableat www.siriusxm.com.SiriusXM® serviceonlyavailableinthe 48contiguousUnitedStatesand Canada.

InCanada: Somedeterioration of servicemayoccurinextreme northern latitudes. This is beyond the control of SiriusXM ^® Satellite Radio.

ExplicitLanguageNotice:Channels withfrequentexplicitlanguageare indicatedwithan"XL"precedingthe

channelname.Channelblockingis availableforSiriusXMSatellite Radioreceiversbynotifying SiriusXM:

• U.S:866-601-6296orsee www.siriusxm.com.

Itisprohibitedtocopy,decompile, disassemble,reverseengineer, hack,manipulate,orotherwise makeavailableanytechnology or softwareincorporatedinreceivers compatiblewiththeSiriusXM SatelliteRadioSystemorthat supporttheSiriusXMwebsite,the OnlineServiceoranyofitscontent. Furthermore,theAMBERvoice compressionsoftwareincluded in thisproductisprotected by intellectualpropertyrightsincluding patentrights,copyrights,andtrade secretsofDigitalVoice Systems,Inc.

GeneralRequirements:

ALicenseAgreementfromSiriusXM isrequiredforanyproductthat incorporatesSiriusXMTechnology and/orforuseofanyofthe

SiriusXMmarkstobemanufactured, distributed,ormarketedinthe SiriusXMServiceArea.

Gracenote

Gracenote ^® , Gracenotelogo and logotype, and the "Powered by Gracenote" logo are either a registered trademark or at trademark of Gracenote, Inc. in the United States and/or other countries.

Bluetooth

TheBluetooth ^® wordmark and logosareownedbytheBluetooth SIG, Inc. and any use of such marks by General Motors is under license. Other trademarks and tradenames are those of their respective owner's.

Pandora(IfEquipped)

Pandoraisaregisteredtrademark of PandoraMedia, Inc., usedunder license.

DOLBY®

DIGITAL

Manufacturedunderlicensefrom DolbyLaboratories.Dolbyandthe double-Dsymbolaretrademarksof DolbyLaboratories.

MapEndUserLicense Agreement(Optional EquipmentAppliesWhere Equipped)

ENDUSERTERMS

TheMapDataDisc("Data")is provided for your personal, internal use only and not for resale. It is protected by copyright, and is subject to the following terms (this "EndUserLicense Agreement") and conditions which are agreed by you, on the one hand, and HERE North America, LLC ("HERE") and its licensors (including their licensors and suppliers) on the other hand.

Inaddition, the Lonely Planet Travel Guide content is subject to the followings uppliernotices (if equipped):

©2014LonelyPlanetPublications PtyLtd.Allrightsreserved.

PANASONICanditscontent providershavetriedtomakethis informationasaccurateaspossible, butitisprovided“asis”and PANASONICanditscontent providersacceptnoresponsibility foranyloss,injuryorinconvenience resultingfromthisinformation.You shouldverifycriticalinformation(like visas,healthandsafety)beforeyou travel.

TERMSANDCONDITIONS

PersonalUseOnly.Youagreeto usethisDatatogetherwiththe GeneralMotorsMyLinkorIntelliLink ConnectedNavigationRadio Platformforthesolelypersonal, non-commercialpurposesforwhich youwerlicensed,andnotfor servicebureau,time-sharingor othersimilarpurposes.Accordingly, butsubjecttotherestrictionsset forthinthefollowingparagraphs,

210InfotainmentSystem

youagreenottootherwise reproduce,copy,modify,decompile, disassemble,createanyderivative worksof,orreverseengineerany portionofthisData,andmaynot transferordistributeitinanyform, foranypurpose,excepttothe extentpermittedbymandatorylaws.

Restrictions

Exceptwhereyouhavebeen specificallylicensedtodosoby PANASONIC, and without limiting the preceding paragraph, you may not (a) usethis Data with any products, systems, or applications installed or otherwise connected to or in communication with vehicles, capable of vehiclenavigation, positioning, dispatch, realtimeroute guidance, fleet managementor similar applications; or (b) with or in communication with any positioning devices or anymobileor wireless-connected electronic computer devices, including without limitation cellular phones, palmtop and handheld computers, pagers, and personal digital assistants or PDAs

Warning

The Datamay contain inaccurate or incomplete information dueto the passage of time, changing circumstances, sources used and thenature of collecting comprehensive geographic data, any of which may lead to incorrect results.

NoWarranty

ThisDataisprovidedtoyou“asis,” andyouagreetouseitatyourown risk.PANASONICanditslicensors (andtheirlicensorsandsuppliers) makenoguarantees, representationsorwarrantiesofany kind,expressorimplied,arisingby laworotherwise,includingbutnot limitedto,content,quality,accuracy, completeness,effectiveness, reliability,fitnessforaparticular purpose,usefulness,useorresults tobeobtainedfromthisData, orthattheDataorserverwillbe uninterrupteddorerror-free.

DisclaimerofWarranty

PANASONICANDITSLICENSORS (INCLUDINGTHEIRLICENSORS ANDSUPPLIERS)DISCLAIMANY WARRANTIES,EXPRESSOR IMPLIED,OFQUALITY, PERFORMANCE, MERCHANTABILITY,FITNESS FORAPARTICULARPURPOSE ORNON-INFRINGEMENT.Some States,TerritoriesandCountriesdo notallowcertainwarranty exclusions,sotothatextentthe aboveexclusionmaynotapply toyou.

DisclaimerofLiability

PANASONICANDITSLICENSORS (INCLUDINGTHEIRLICENSORS ANDSUPPLIERS) SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMANDOR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMANDORACTION ALLEGING ANY LOSS, INJURY ORDAMAGES, DIRECTOR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THE INFORMATION; OR FOR

ANYLOSSOFPROFIT, REVENUE, CONTRACTSORSAVINGS, OR ANYOTHERDIRECT, INDIRECT, INCIDENTAL, SPECIALOR CONSEQUENTIAL DAMAGES ARISINGOUTOFYOURUSEOF ORINABILITYTOUSETHIS INFORMATION, ANYDEFECTIN THEINFORMATION, ORTHE BREACHOFTHESETERMSOR CONDITIONS, WHETHERINAN ACTIONINCONTRACTORTORT ORBASEDONAWARRANTY, EVENIFPANASONICORITS LICENSORSHAVEBEEN ADVISEDOFTHEPOSSIBILITY OFSUCHDAMAGES. Some States, TerritoriesandCountriesdo notallowcertainliabilityexclusions ordamageslimitations, sotothat extenttheabovemaynotapply toyou.

ExportControl

PANASONIC shall not export from anywhere any part of the Data or any direct product thereof except in compliance with, and with all licenses and approvals required under, applicable export laws, rules and regulations, including but not

limitedtothelaws, rules and regulations administered by the Office of Foreign Assets Control of the U.S. Department of Commerce and the Bureau of Industry and Security of the U.S. Department of Commerce. To the extent that any such export laws, rules or regulations prohibit HERE from complying with any of its obligations here undertodeliverordistribute Data, such failures shall be excused and shall not constitute a breach of this Agreement.

EntireAgreement

Thesetermsandconditions constitutetheentireagreement betweenPANASONIC(andits licensors,includingtheirlicensors andsuppliers)andyoupertainingto thesubjectmatterhereof,and supersedesintheirentiretyanyand allwrittenororalagreements previouslyexistingbetweenuswith respecttosuchsubjectmatter.

GoverningLaw

The abovetermsandconditions shall begoverned by the law so the State of Illinois (with respect to use

ofDatafortheAmericasand/orthe AsiaPacificterritories), andthelaws ofTheNetherlands(withrespectto DatafortheMiddleEast, Africa, Russia and Europeterritories), withoutgivingeffectto(i)itsconflict oflawsprovisions, or(ii)theUnited NationsConventionforContractsfor theInternationalSaleofGoods, whichisexplicitlyexcluded. You agree to submittothejurisdiction of theStateofIllinoisforanyandall disputes, claimsandactionsarising fromorinconnectionwiththeData provided to you hereunder.

GovernmentEndUsers

IftheDataisbeingacquiredbyor onbehalfoftheUnitedStates governmentoranyotherentity seekingorapplyingrightssimilarto thosecustomarilyclaimedbythe UnitedStatesgovernment,thisData isa"commercialitem"asthatterm isdefinedat48C.F.R."(FAR") 2.101,islicensedinaccordance withtheseEnd-UserTerms,and eachcopyofDatadeliveredor otherwisefurnishedshallbemarked andembeddedasappropriatewith

212InfotainmentSystem

the following "NoticeofUse," and shall be treated in accordance with such Notice:

Maps for Life

NOTICEOFUSE

CONTRACTOR(MANUFACTURER/SUPPLIER)

NAME:

HERENorthAmerica,LLC

CONTRACTOR(MANUFACTURER/SUPPLIER)

ADDRESS:

425WestRandolphStreet, Chicago, IL60606.

ThisDataisacommercialitemas definedinFAR2.101andissubject totheseEnd-UserTermsunder whichthisDatawasprovided.

©2014HERENorthAmerica,LLC. Allrightsreserved.

IftheContractingOfficer, federal governmentagency, oranyfederal officialrefusestousethelegend providedherein,theContracting Officer,federalgovernmentagency, oranyfederalofficialmustnotify HERENorthAmerica,LLCpriorto seekingadditionaloralternative rightsintheData.

ClimateControls

ClimateControlSystems

DualAutomaticClimate

ControlSystem......213

AirVents

AirVents......215

Maintenance

PassengerCompartmentAir

Filter......216

ClimateControl Systems

DualAutomaticClimate ControlSystem

Theheating, cooling, and ventilation for the vehicle can be controlled with this system.

1. Driver and Passenger Heated Seats (If Equipped)
   2.DriverandPassenger TemperatureControls
2. AUTO(AutomaticOperation)
3. AirDeliveryModes

5.FanControls
6.Defrost
7. RearWindowDefogger
8. Recirculation
9.HeatedSteeringWheel(If Equipped)
10.AirConditioning

AutomaticOperation

Thesystemautomatically controls the fanspeed, airdelivery, air conditioning, and recirculation in ordertoheatorcoolthevehicle to the desired temperature.

When AUTOislit, all four functions operate automatically. Each function can also be manually set and the setting is displayed. Functions not manually set will continue to be automatically controlled, even if the AUTOindicator is not lit.

Forautomaticoperation:

1. PressAUTO.
2. Set the temperature. Allow the system timetostabilize. Then adjust the temperature as needed for best comfort.

214ClimateControls

Toimprovefuelefficiency and tocoolthevehiclefaster, recirculationmaybe automaticallyselectedinwarm weather. There circulationlight willnotcomeon. Press toselectrecirculation;pressit againtoselectoutsideair.

Englishunitscanbechangedto metricunitsthroughtheDriver InformationCenter(DIC).See DriverInformationCenter (DIC)⇒110.

ManualOperation

: Press the lower button to decreasethefanspeed. Pressing the lowerbuttonlongerturnsthefan andcoolingoff. Presstheupper buttonoincreasethefanspeed. Theselectedfanspeedisindicated bythenumberofsegmentsonthe displayscreen. PressAUTOto returntoautomaticoperation.

AirDeliveryModes:Press

or 📋 tochangethedirectionofthe airflow.Anycombinationofthethree buttonscanbeselected.The indicatorlightinthebuttonwillturn

on. The current mode appears in the displayscreen. Pressing any of the three buttons cancels automatic air delivery control and the direction of the airflow is controlled manually. Press AUTO return to automatic operation.

Tochangethecurrentmode, select oneormoreofthefollowing:

Airisdirectedtothe windshieldandsidewindowwents.

Airisdirectedtotheinstrument paneloutlets.

Airisdirectedtothefloor outlets.

:Presstoclearthewindshield offogorfrostmorequickly.Airis directedtothewindshield.

Forbestresults, clearallsnowand icefromthewindshieldbefore defrosting.

:Presstoturntheair conditioningonoroff.Ifthefanis turnedoffortheoutside temperaturefallsbelowfreezing,the airconditioningcompressorwill notrun.

Press AUTOtoreturntoautomatic operationandtheairconditioner runsasneeded.Whentheindicator lightison,theairconditionerruns automaticallytocooltheairinside thevehicleortodrytheairneeded todefogthewindshieldfaster.

:Presstoturnrecirculationon oroff.Anindicatorlightcomeson. Airisrecirculatedtoquicklycoolthe insideofthevehicleorreduceentry ofoutsideairandodors.

RearWindowDefogger

[1] : Presstoturntherearwindow defoggeronoroff. An indicator light on the button comes on to show that therear window defoggerison.

Thedefoggeronlyworkswhenthe ignitionisinON/RUN. Thedefogger turnsoffiftheignitionisintheACC/ACCESSORYorLOCK/OFF position.

Therearwindowdefoggercanbe settoautomaticoperation;see "ClimateandAirQuality" under VehiclePersonalization→113. WhenAutoRearDefogisselected, therearwindowdefoggerturnson

automaticallywhentheinterior temperatureiscoldandtheoutside temperatureisabout4°C(40°F) andbelow.Theautoreardefogger turnsoffautomaticallyafterabout 10minutes.Athigherspeeds,the rearwindowdefoggermaystayon continuously.

Ifequippedwithheatedoutside rearviewmirrors,theyturnonwhen therearwindowdefoggerbuttonis onandhelptoclearfogorfrostfrom thesurfaceofthemirrors.See HeatedMirrors→33.

Caution

Donottrytoclearfrostorother materialfromtheinsideofthe frontwindshieldandrearwindow witharazorbladeoranything elsethatissharp. Thismay damagetherearwindow defoggergridandaffectthe radio'sabilitytopickupstations clearly. Therepairswouldnotbe coveredbythevehiclewarranty.

or : Press to turn the heated seatsonoroff.SeeHeatedFront Seats→49.

: If equipped, presstoturn the heatedsteeringwheelonoroff. See HeatedSteeringWheel→94.

RemoteStartClimateControl Operation: If equipped with the remote vehicle start feature, the climate control system may run when the vehicle is started remotely. Thesystem use the driver's previous setting to heater cool the inside of the vehicle. Thereardefog may come on during remotestart based on cold ambient conditions. Thereardefog indicator light does not come on during remotestart. If the vehicle has front heated seats, they may come on during a remotestart. The heated seat indicator lights donot come on during remotestart. See Remote Vehicle Start 26 and Heated Front Seats 49.

AirVents

AdjustableAirVents

Top-down view of a car dashboard with front and back panels, no visible text or symbols

Interior view of a car head panel with labeled parts (1 and 2), showing internal components without any text or symbols.

1.SliderKnob

216ClimateControls

2. Thumbwheel

Usethesliderknobs(1)ontheair ventstochangethedirectionofthe airflow.

Usethethumbwheels(2)nearthe airventstocontroltheamountof airflowortoshutofftheairflow.

FixedAirVents

Additional airvents are under the windshield, near the sidewindows, and in the footwells.

OperationTips

• Keepalloutletsopenwhenever possibleforbestsystem performance.
• Keepthepathunderallseats clearofobjectstohelpcirculate theairinsidethevehiclemore effectively.
• Useofnon-GMapprovedhood deflectorscanadverselyaffect theperformanceofthesystem.

Maintenance

PassengerCompartment AirFilter

AirlIntake

Top-down view of a car showing engine compartment and structural components (no text or symbols visible)

Theairintakeinfrontofthe windshieldintheengine compartmentmustbekeptclearto allowairintake.Removeany leaves,dirt,orsnow.

PollenFilter

The pollenfiltercleansdust, pollen, and other airborne irritants from aire entering the vehicle through the air intake.

Driving and Operating

DrivingInformation

DistractedDriving......218

DefensiveDriving......218

DrunkDriving......218

ControlofaVehicle......219

Braking......219

Steering......219

Off-RoadRecovery......220

LossofControl.....220

DrivingonWetRoads.....221

HillandMountainRoads.....222

WinterDriving......222

IftheVehicleIsStuck.....223

VehicleLoadLimits......224

StartingandOperating

NewVehicleBreak-In.....227

IgnitionPositions......228

StartingtheEngine......230

RetainedAccessory

Power(RAP)......231

ShiftingIntoPark......231

ShiftingoutofPark......232

ParkingoverThings

ThatBurn....232

EngineExhaust

EngineExhaust......233

RunningtheVehicleWhile

Parked....233

AutomaticTransmission

AutomaticTransmission.....234

ManualMode......235

Brakes

AntilockBrake

System(ABS)......237

ElectricParkingBrake......237

BrakeAssist......239

HillStartAssist(HSA)......239

RideControlSystems

TractionControl/Electronic

StabilityControl.....240

CruiseControl

CruiseControl....242

DriverAssistanceSystems

AssistanceSystemsfor

ParkingorBacking......244

ForwardCollisionAlert(FCA)

System......246

LaneDeparture

Warning(LDW)......248

Fuel

Fuel......249

CaliforniaFuel

Requirements......250

FuelsinForeignCountries...250

FuelAdditives......250

FillingtheTank......250

FillingaPortableFuel

Container......252

TrailerTowing

GeneralTowing

Information......253

ConversionsandAdd-Ons

Add-OnElectrical

Equipment......253

DrivingInformation

DistractedDriving

Distractioncomesinmanyforms andcantakeyourfocusfromthe taskofdriving.Exercisegood judgmentandonotletother activitiesdivertyourattentionaway fromtheroad.Manylocal governmentshaveenactedlaws regardingdriverdistraction.Become familiarwiththelocallawsin yourarea.

Toavoiddistracteddriving, keep youreyesontheroad, keep your handsonthesteeringwheel, and focus your attention on driving.

• Donotuseaphonein demandingdrivingsituations. Useahands-freemethodto placeorreceivenecessary phonecalls.

• Watchtheroad.Donotread, takenotes,orlookup informationonphonesorother electronicdevices.

• Designateafrontseat passengertohandlepotential distractions.

• Becomefamiliarwithvehicle featuresbeforedriving,suchas programmingfavoriteradio stationsandadjustingclimate controlandseatsettings. Programalltripinformationinto anynavigationdevicepriorto driving.
• Waituntilthevehicleisparked toretrieveitemsthathavefallen tothefloor.
• Stoporparkthevehicletotend tochildren.
• Keeppetsinanappropriate carrierorrestraint.
• Avoidstressfulconversations whiledriving,whetherwitha passengeroronacellphone.

Warning

Takingyoureyesofftheroadtoo longortoooftencouldcausea crashresultingininjuryordeath. Focusyourattentionondriving.

Refertotheinfotainmentsectionfor moreinformationonusingthat system,includingpairingandusing acellphone

DefensiveDriving

Defensivedrivingmeans"always expecttheunexpected."Thefirst stepindrivingdefensivelyistowear thesafetybelt.SeeSafety Belts⇒52.

• Assumethatotherroadusers (pedestrians, bicyclists, and otherdrivers) are going to be careless and make mistakes. Anticipate what they might do and beready.
• Allowenoughfollowingdistance betweenyouandthedriverin frontofyou.
• Focusonthetaskofdriving.

DrunkDriving

Deathandinjuryassociatedwith drinkinganddrivingisaglobal tragedy.

Warning

Drinkingandthendrivingisvery dangerous.Yourreflexes, perceptions,attentiveness,and judgmentcanbeaffectedbyevenasmallamountofalcohol.You canhaveaserious—oreven fatal—collisionifyoudriveafter drinking.

Donotdrinkanddriveorridewith adriverwhohasbeendrinking. Ridehomeinacab;orifyouare withagroup,designateadriver whowillnotdrink.

ControlofaVehicle

Braking, steering, and accelerating are important factors in helping to control vehicle while driving.

Braking

Brakingactioninvolvesperception timeandreactiontime.Decidingto pushthebrakepedalisperception time.Actuallydoingitis reactiontime.

Averagedriverreactiontimeis aboutthree-quartersofasecond.In thattime,avehiclemovingat 100km/h(60mph)travels20m (66ft),whichcouldbealotof distanceinanemergency.

Helpfulbrakingtipstokeepinmind include:

• Keepenoughdistancebetween youandthevehicleinfront ofyou.
• Avoidneedlessheavybraking.
• Keeppacewithtraffic.

If the engine ever stops while the vehicle is being driven, brake normally but donot pump the brakes. Doings could make the pedal hardertop ush down. If the engine stops, there will become power brake assist but it will be used when the brake is applied. Onc the power assist is used up, it cantak elongertostop and the brake pedal will be hardertop ush.

Steering

ElectricPowerSteering

The vehicle has electric power steering. It does not have power steering fluid. Regular maintenance is not required.

Ifpowersteeringassistislostdue toasystemmalfunction,thevehicle canbesteered,butmayrequire increasedeffort.Seeyourdealerif thereisaproblem.

If the steering wheelisturned until it reaches the end of a travel and is held against that position for an extended period of time, power steering assist may be reduced.

If the steering assist is used for an extended period of time, power assist may be reduced.

Normaluseofthepowersteering assistshouldreturnwhenthe systemcoolsdown.

Seeyourdealerifthereisa problem.

CurveTips

• Takecurvesatareasonable speed.
- Reducespeedbeforeenteringa curve.
- Maintainareasonablesteady speedthroughthecurve.
- Waituntilthevehicleisoutof thecurvebeforeaccelerating gentlyintothestraightaway.

SteeringinEmergencies

• Therearesomesituationswhen steeringaroundaproblemmay bemoreeffectivethanbraking.
• Holdingbothsidesofthe steeringwheelallowsyoutoturn 180degreeswithoutremoving ahand.
• TheAntilockBrakeSystem (ABS)allowssteeringwhile braking.

Off-RoadRecovery

Diagram showing two cars driving on a road with directional arrows indicating flow (no text or symbols)

Thevehicle'srightwheelscandrop offtheedgeofaroadontothe shoulderwhiledriving.Follow thesetips:

1. Easeofftheacceleratorand then, if there is nothing in the way, steer the vehicles that it straddlesthe edge of the pavement.

2. Turnthesteeringwheelabout one-eighthofaturn,untilthe rightfronttirecontactsthe pavementedge.

3. Turnthesteeringwheeltogo straightdowntheroadway.

LossofControl

Skidding

Therearethreetypesofskidsthat correspondtothevehicle'sthree controlsystems:

• BrakingSkid—wheelsarenot rolling.
• SteeringorCorneringSkid—toomuchspeedorsteeringina curvecausestirestoslipand losecorneringforce.
• AccelerationSkid—toomuch throttlecausesthedriving wheelstospin.

Defensivedriversavoidmostskids bytakingreasonablecaresuitedto existingconditions,andbynot overdrivingthoseconditions.But skidsarealwayspossible.

If the vehicle start to slide, follow these suggestions:

- Easeyourfootoffthe acceleratorpedalandsteerthe wayyouwantthevehicletogo.

The vehicle may straighten out. Beready for a second skid if it occurs.

• Slowdownandadjustyour drivingaccordingtoweather conditions. Stoppingdistance canbelongerandvehicle controlcanbeaffectedwhen tractionisreducedbywater, snow, ice, gravel, orother materialontheroad. Learnto recognizewarningclues—such asenoughwater, ice, orpacked snowontheroadtomakea mirroredsurface—andslow downwhenyouhaveanydoubt.
• Trytoavoidsuddensteering, acceleration, or braking, including reducing vehiclespeed by shifting to lower gear. Any sudden changes could cause the rest of the vehicle.

Remember: Antilockbrakeshelp avoidonlythebrakingskid.

DrivingonWetRoads

Rainandwetroadscanreduce vehicletraction and affect your ability to stop and accelerate.

Alwaysdriveslowerinthesetypes of driving conditions and avoid driving through large puddles and deep-standing or flowing water.

Warning

Wetbrakescancausecrashes. Theymightnotworkaswellina quickstopandcouldcause pullingtooneside.Youcould losecontrolofthevehicle.

Afterdrivingthroughalarge puddleofwateroracar/vehicle wash, lightlyapplythebrake pedaluntilthebrakeswork normally.

Flowingorrushingwatercreates strongforces.Drivingthrough flowingwatercouldcausethe vehicletobecarriedaway.Ifthis happens,youandothervehicle occupantscoulddrown.Donot ignorepolicewarningsandbe verycautiousabouttryingtodrive throughflowingwater.

Hydroplaning

Hydroplaningisdangerous.Water canbuildupunderthevehicle's tiressotheyactuallyrideonthe water.Thiscanhappeniftheroadis wetenoughandyouaregoingfast enough.Whenthevehicleis hydroplaning,ithaslittleorno contactwiththeroad.

Thereisnohardandfastruleabout hydroplaning. Thebestadviceisto slowdownwhentheroadiswet.

OtherRainyWeatherTips

Besidesslowingdown,otherwet weatherdrivingtipsinclude:

• Allowextrafollowingdistance.
  • Passwithcaution.
• Keepwindshieldwiping equipmentingoodshape.
• Keepthewindshieldwasherfluid reservoirfilled.
• Havegoodtireswithproper treaddepth.See Tires→288.
  • Turnoffcruisecontrol.

HillandMountainRoads

Drivingonsteephillsorthrough mountainsisdifferentthandriving onflatorrollingterrain. Tipsinclude:

• Keepthevehicleservicedandin goodshape.
• Checkallfluidlevelsandbrakes, tires,coolingsystem,and transmission.
• Shifttoalowergearwhengoing downsteeporlonghills.

Warning

Usingthebrakestoslowthe vehicleonalongdownhillslope cancausebrakeoverheating,can reducebrakeperformance,and couldresultinalossofbraking. Shiftthetransmissiontoalower geartolettheengineassistthe brakesonasteepdownhillslope.

Warning

CoastingdownhillinN(Neutral) orwiththeignitionoffis dangerous. This can cause overheating of the brakes and loss of steering. Always havethe engineer running and the vehicle ingear.

• Driveatspeedsthatkeepthe vehicleinitsownlane.Donot swingwideorcrossthe centerline.
• Bealertontopofhills; somethingcouldbeinyourlane (e.g.,stalledcar,accident).
• Payattentiontospecialroad signs(e.g.,fallingrocksarea, windingroads,longgrades, passingorno-passingzones) andtakeappropriateaction.

WinterDriving

DrivingonSnoworIce

Snoworicebetweenethetires and theroadcreateslesstraction or grip, sodrivecarefully. Weticecan occuratabout0°C(32°F) when freezingrainbeginstofall. Avoid drivingonweticeorinfreezingrain untilroadscanbetreated.

ForSlipperyRoadDriving:

• Accelerategently.Accelerating tooquicklycausesthewheelsto spinandmakesthesurface underthetiresslick.
• TurnonTractionControl.See TractionControl/Electronic StabilityControl→240.
• TheAntilockBrakeSystem (ABS)improvesvehiclestability duringhardstops,butthe brakeshouldbeappliedsooner thanwhenondrypavement. SeeAntilockBrakeSystem (ABS)→237.
• Allowgreaterfollowingdistance andwatchforslipperyspots.lcy patchescanoccuronotherwise

clearroadsinshadedareas. Thesurfaceofacurveoran overpasscanremainicywhen thesurroundingroadsareclear. Avoidsuddensteering maneuversandbrakingwhile onice.

• Turnoffcruisecontrol.

BlizzardConditions

Stopthevehicleinasafeplaceand signalforhelp.Staywiththevehicle unlessthereishelpnearby. Ifpossible,useRoadside Assistance.SeeRoadside AssistanceProgram⇒351.Toget helpandkeepeveryoneinthe vehiclesafe:

• Turnonthehazardwarning flashers.
• Tiearedclothtoanoutside mirror.

Warning

Snowcantrapengineexhaust underthevehicle. This may cause exhaust gas to get inside. Engine exhaust contains carbon monoxide (CO), which cannot be seen or smelled. It can cause unconsciousness and even death.

Ifthevehicleisstuckinsnow:

• Clearsnowfromthebaseof thevehicle,especiallyany blockingtheexhaustpipe.
• Openawindowabout5cm (2in)onthevehicleside thatisawayfromthewind, tobringinfreshair.
• Fullyopentheairoutletson orundertheinstrument panel.

- Adjusttheclimatecontrol systemtocirculatetheair insidethevehicleandset (Continued)

Warning(Continued)

thefanspeedtothehighest setting.See"Climate ControlSystems."

FormoreinformationaboutCO, seeEngineExhaust→233.

Tosavefuel, runtheengine for short period stowarm the vehicle and thenshuttheengine off and partially closet hewindow. Moving about to keep warm also helps.

Ifittakestimeforhelptoarrive, whenrunningtheengine, pushthe acceleratorpedalslightlysothe engineerunsfasterthantheidle speed. Thiskeepsthebattery chargedtorestartthevehicleandto signalforhelpwiththeheadlamps. Dothisaslittleaspossible,to savefuel.

IftheVehiclesStuck

Slowlyandcautiouslyspinthe wheelstofreethevehiclewhen stuckinsand,mud,ice,orsnow.

224DrivingandOperating

Ifstucktooseverelyforthetraction systemtofreethevehicle,turnthe tractionsystemoffandusethe rockingmethod.SeeTraction Control/ElectronicStability Control 240.

Warning

If the vehicle's tiresspinathigh speed, they can explode, and you or others could be injured. The vehicle can overheat, causing an engine compartment fire or other damage. Spin the wheels as little as possible and avoid going above 56 km/h (35 mph).

RockingtheVehicletoGet itOut

Turnthesteeringwheelleftand righttocleartheareaaroundthe frontwheels.Turnoffanytraction system.Shiftbackandforth betweenR(Reverse)andalow forwardgear,spinningthewheels aslittleaspossible.Toprevent transmissionwear,waituntilthe wheelsstopspinningbeforeshifting

gears.Releasetheaccelerator pedalwhileshifting,andpress lightlyontheacceleratorpedal whenthetransmissionisingear. Slowlyspinningthewheelsinthe forwardandreversedirections causesarockingmotionthatcould freethevehicle.Ifthatdoesnotget thevehicleoutafterafewtries,it mightneedtobetowedout.Ifthe vehicledoesneedtobetowedout, see Towingthe Vehicle⇒318.

VehicleLoadLimits

It is very important to know how much weight the vehicle can carry. This weight is called the vehicle capacity weight and include the weight of all occupants, cargo, and all nonfactory-installed options. Twolabelson the vehicle may show how much weight it may properly carry: the Tire and Loading Information label and the Certification label.

Warning

Donotloadthevehicleany heavierthantheGross VehicleWeightRating (GVWR),oreitherthe maximumfrontorrearGross AxleWeightRating(GAWR). Thiscancausesystemsto breakandchangethewaythe vehiclehandles. Thiscould causelossofcontrolanda crash. Overloadingcanalso reducestoppingdistance, damagethetires,andshorten thelifeofthevehicle.

DrivingandOperating225

TireandLoadingInformation Label

LabelExample

Avehicle-specificTire and LoadingInformationlabelis attached to the vehicle's center pillar (B-pillar). The Tire and LoadingInformationlabel shows thenumber of occupant seating positions (1), and them a maximum vehicle capacity weight (2) in kilograms and pounds.

The Tire and Loading Information label also shows the tiresize of the original

equipmenttires(3)andthe recommendedcoldtireinflation pressures(4).Formore informationontiresandinflation see Tires→288and Tire Pressure→295.

Thereisalsoimportantloading informationontheCertification label.ItmayshowtheGross VehicleWeightRating(GVWR) andtheGrossAxleWeight Rating(GAWR)forthefrontand rearaxle.See"Certification Label"laterinthissection.

"StepsforDeterminingCorrect LoadLimit—

1. Locatethestatement"The combinedweight of occupants and cargoshould never exceed XXXkgor XXXlbs." on your vehicle's placard.

2. Determinethecombined weightofthedriverand passengersthatwillbe ridinginyourvehicle.

3. Subtract the combined weight of the driver and passengers from XXXkgor XXXlbs.

4. Theresultingfigureequals theavailableamountof cargoandluggageload capacity. Forexample, ifthe "XXX" amountequals 1400lbs.andtherewillbe five150lbpassengersin yourvehicle, theamountof availablecargoandluggage loadcapacityis650lbs. (1400-750(5x150)=650lbs.)

5. Determinethecombined weightofluggageandcargo beingloadedonthevehicle. Thatweightmaynotsafely exceedtheavailablecargo andluggageloadcapacity calculatedinStep4.

6. If your vehicle will betowing a trailer, load from your trailer will be transferred to

226DrivingandOperating

yourvehicle.Consultthis manualtodeterminehow thisreducestheavailable cargoandluggageload capacityofyourvehicle."

Thisvehicleisneitherdesigned norintendedtotowatrailer.

Example1

1. VehicleCapacityWeight forExample1=453kg (1,000lbs).

2. SubtractOccupant Weight@68kg(150lbs) ×2=136kg(300lbs).

3. Available Occupant and CargoWeight=317kg (700lbs).

Example2

1. VehicleCapacityWeight forExample2=453kg (1,000lbs).
2. SubtractOccupant Weight@68kg(150lbs) ×5=340kg(750lbs).
3. Available Cargo Weight = 113kg (250lbs).

Example3

1. VehicleCapacityWeight forExample3=453kg (1,000lbs).
2. SubtractOccupant Weight@91kg (200lbs)×5=453kg (1,000lbs).
3. Available Cargo Weight = 0kg(0lbs).

Refertothevehicle's Tire and Loading Information label for specific information about the vehicle's capacity weight and seating positions. The combined

weightofthedriver,passengers, andcargoshouldneverexceed thevehicle'scapacityweight.

CertificationLabel

LabelExample

Avehicle-specific Certification labelisattachedtothevehicle's centerpillar(B-pillar). Thelabel mayshowthegrossweight capacityofthevehicle, called theGrossVehicleWeightRating (GVWR). TheGVWRincludes theweightofthevehicle, all occupants, fuel, and cargo.

Warning

Thingsinsidethevehiclecan strikeandinjurepeople in suddenstoporturn, orina crash.

• Putthingsinthecargo areaofthevehicle.Inthe cargoarea,putthemas farforwardaspossible. Trytospreadtheweight evenly.
• Neverstackheavier things,likesuitcases, insidethevehiclesothat someofthemareabove thetopsoftheseats.
• Donotleavean unsecuredchildrestraint inthevehicle.
• Securelooseitemsinthe vehicle.
• Donotleaveaseat foldeddownunless needed.

Starting and Operating

NewVehicleBreak-In

Caution

The vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines:

• Donotdriveatanyone constantspeed, fastorslow, forthefirst805km(500mi). Donotmakefull-throttle starts. Avoiddownshifting to brakeorslowthevehicle.
• Avoidmakinghardstopsfor thefirst322km(200mi)or so.Duringthistimethenew brakeliningsarenotyet brokenin.Hardstopswith newliningscanmean prematurewearandearlier replacement.Followthis

(Continued)

228DrivingandOperating

Caution(Continued)

breaking-inguidelineevery timeyougetnewbrake linings.

Followingbreak-in,enginespeed andloadcanbegradually increased.

IgnitionPositions

Theignitionswitchhasfourdifferent positions.

Caution

Usingatooltoforcethekeyto turnintheignitioncouldcause damagetotheswitchorbreakthe key. Usethecorrectkey, make sureitisallthewayin, andturnit onlywithyourhand. Ifthekey cannotbeturnedbyhand, see yourdealer.

Thekeymustbefullyextendedto startthevehicle.

ToshiftoutofP(Park),turnthe ignitiontoON/RUNandapplythe brakepedal.

0StoppingtheEngine:Whenthe vehicleisstopped,turntheignition switchtoLOCK/OFFtoturnthe engineoff.RetainedAccessory Power(RAP)willremainactive.See RetainedAccessoryPower (RAP)→231.

Thisistheonlypositionfromwhich thekeycanberemoved. Thislocks theignitionandautomatic transmission.

Donotturntheengineoffwhenthe vehicleismoving. This will cause a loss of power assist in the brake and steerings systems and disable the airbags.

If the vehicle must be shutoff in an emergency:

1. Brakeusingafirmandsteady pressure.Donotpumpthe brakesrepeatedly.Thismay depletepowerassist,requiring increasedbrakepedalforce.
   2.ShiftthevehicletoN(Neutral). Thiscanbedonewhilethe vehicleismoving.Aftershifting toN(Neutral),continueto firmlyapplythebrakesand steerthevehicletoasafe location.
2. Cometoacompletestop.Shift toP(Park).Turntheignitionto LOCK/OFF.
   4.Settheparkingbrake.See ElectricParkingBrake→237.

Warning

Turningoffthevehiclewhile movingmaycauselossofpower assistinthebrakeandsteering systemsanddisabletheairbags. Whiledriving,onlyshutthe vehicleoffinanemergency.

If the vehicle cannot be pulled over, and must be shutoff while driving, turn the ignition to ACC/ACCESSORY.

1: Thispositionprovidespowerto someoftheelectricalaccessories. TomovethekeyfromACC/ACCESSORYtoLOCK/OFF, push inthekeyandthenturnitto LOCK/OFF.

2: Theignitionswitchstaysin this positionwhentheengineisrunning. Thispositioncanbeusedtooperate theelectricalaccessories, including theventilationfanand12-voltpower outlet, aswellastodisplaysome warningandindicatorlights. This positioncanalsobeusedfor serviceanddiagnostics, and to

verify the proper operation of the malfunction indicator lampasm may be required for remission inspection purposes. The transmission is also unlocked in this position.

The battery could bed trained if the key is left in the ACC/ACCESSORY or ON/RUN position with the engine off. The vehicle might not start if the battery is allowed to drain for an extended period of time.

3: Thispositionstartstheengine. Whentheenginestarts, releasethe key. Theignitionswitchwillreturnto ON/RUNfornormaldriving.

A warningtonesoundswhen the driverdoorisopenediftheignition isstillinACC/ACCESSORYandthe keyisintheignition.

If the ignition becomes difficult to turn, see Keys→21.

KeyLockRelease

Thevehicleisequippedwithan electronickeylockrelease. The key lockrelease is designed to prevent ignition key removal unless the shift leverisin P(Park).

The keylock release is always functionale except in the case of an uncharged or low voltage (less than 9-volt) battery. If the vehicle has an uncharged battery or a battery with low voltage, try charging or jump starting the battery. See Jump Starting-North America 315.

Medical illustration of a surgical procedure with an arrow pointing to a specific anatomical area (no text or labels present)

Ifchargingorjumpstartingthe batterydoesnotwork,locatethe holebelowtheignitionlock.Inserta flatbladedtooloranotherkeyfrom thekeychainintotheopening. Whenthelevercanbefelt,actuate thelevertowardthedriver,and removethekeyfromtheignition.

230DrivingandOperating

StartingtheEngine

MovetheshiftlevertoP(Park)or N(Neutral).Torestartthevehicle whenitisalreadymoving,use N(Neutral)only.

Caution

DonottrytoshifttoP(Park)ifthe vehicleismoving.Ifyoudo,you coulddamagethetransmission. ShifttoP(Park)onlywhenthe vehicleisstopped.

Caution

If you add electrical parts or accessories, you could change the way the engine operates. Any resulting damage would not be covered by the vehicle warranty. See Add-On Electrical Equipment 253.

Caution

If the steering wheelisturned until treachesthe endofits travel, and sheldin that position while starting the vehicle, damage may occur to the hydraulic power steering system and therem maybe loss of power steering assist.

StartingProcedure

1. With your footoff the accelerator pedal, turn the ignition key to START. When the engine starts, let go of the key. The idle speed will go down the engine warms. Do not racethe engine immediately after starting it. Operatethe engine and transmission gently to allow the oil to warm up and lubricate all moving parts.

Caution

Crankingtheengineforlong periodsoftime,byreturningthe ignitiontotheSTARTposition immediatelyaftercrankinghas ended,canoverheatanddamage thecrankingmotor,anddrainthe battery.Waitatleast15seconds betweeneachtry,toletthe crankingmotorcooldown.

1. If theenginedoesnotstart afterfiveto10seconds, especiallyinverycoldweather (below-18°Cor0°F), it could befloodedwithtoomuch gasoline. Push theaccelerator pedal alltheway to thefloor and hold it thereasyouhold the key in STARTfora maximum of 15 seconds. Wait at least 15 seconds between each try, to allow the ranking motortocool. Whentheengine starts, let goofthekey and accelerator. If the vehicle starts briefly but then stops again, repeat the procedure. This

clearstheextragasolinefrom theengine.Donotracethe engineimmediatelyafter startingit.Operatetheengine andtransmissiongentlyuntil theoilwarmsupandlubricates allmovingparts.

RetainedAccessory Power(RAP)

The following vehicle accessories maybe used for up to 10 minutes after the engine is turned off:

• Powerwindows
• Accessorypoweroutlets

Powertotheinfotainmentsystem willcontinuetooperatefor 30minutesoruntilthekeyis removedfromtheignitionswitch, regardlessofwhetheranydoorwill beopened.

ShiftingIntoPark

ToshiftintoP(Park):

1. Holdthebrakepedaldownand settheparkingbrake.

See Electric Parking Brake→237.

1. Hold the button on the shift lever and push the levertoward the front of the vehicle into P(Park).
2. TurntheignitiontoLOCK/OFF.
3. Removethekey.

LeavingtheVehiclewiththe EngineRunning

Warning

Itcanbedangeroustoleavethe vehiclewiththeengine running. Itcouldoverheatandcatchfire.

It is dangeroustogetoutof the vehicle iftheshiftleveris not fully in P (Park) with the parking brake firmly set. The vehicle can roll.

Donotleavethevehiclewhenthe engineisrunning.Ifyouhaveleft theenginerunning,thevehicle canmovesuddenly.Youorothers couldbeinjured.Tobesurethe (Continued)

Warning(Continued)

vehiclewillnotmove,evenwhen youareonfairlylevelground, alwayssettheparkingbrakeand movetheshiftlevertoP(Park). See ShiftingIntoPark 231.

If you havetoleavethe vehicle with the engineer running, the vehicle must be in P (Park) and the parking brakeset.

Releasethebuttonandcheckthat theshiftlevercannotbemovedout ofP(Park).

TorqueLock

Torquelockiswhentheweightof thevehicleputstoomuchforceon theparkingpawlinthe transmission. This happens when parkingonahillandshiftingthe transmissionintoP(Park)isnot doneproperly; thenitisdifficultto shiftoutofP(Park). Toprevent torquelock, settheparkingbrake andthenshiftintoP(Park). Tofind outhow, see "ShiftingIntoPark" previously in this section.

232DrivingandOperating

Iftorquelockdoesoccur, the vehiclemayneedtobepushed uphillbyanothervehicletorelieve theparkingpawlpressure,soyou canshiftoutofP(Park).

ShiftingoutofPark

AutomaticTransmission ShiftLock

The vehicle has an automatic transmission shift lock control system. Theshift lock control system is designed to:

• Preventignitionkeyremoval unlessstheshiftleverisin P(Park).
• Preventmovementoftheshift leveroutofP(Park), unless the ignitionisinON/RUNandthe brakepedalisapplied.

Theshiftlockisalwaysfunctional exceptinthecaseofanuncharged orlowvoltage(lessthan9-volt) battery.

If the vehicle has an uncharged battery or abattery with low voltage, trycharging or jump starting the battery. See Jump Starting-North America 0 315.

Iftheshiftlevercannotbemoved outofP(Park):

1. Apply and maintain the regular brakes.
2. TurntheignitiontotheON/RUNposition.Seelgnition Positions0 228formore information.
3. Letupontheshiftlever and makesuretheshiftleveris pushedallthewayinto P(Park).
4. Presstheshiftleverbutton.
5. Movetheshiftleverintothe desiredgear.

If you still cannot movetheshift lever from P (Park), consult your dealer or professional to owing service.

ParkingoverThings ThatBurn

Warning

Thingsthatcanburncouldtouch hotexhaustpartsunderthe vehicleandignite.Donotpark overpapers,leaves,drygrass, orotherthingsthatcanburn.

EngineExhaust

Warning

Engineexhaustcontainscarbon monoxide(CO),whichcannot be seenorsmelled.ExposuretoCO cancauseunconsciousness and evendeath.

Exhaustmayenterthevehicleif:

• The vehicle idles in areas with poor ventilation (parking garages, tunnels, deep snow that may block under body airflow or tail pipes).
• Theexhaustsmellsor soundsstrangeordifferent.
• Theexhaustsystemleaks duetocorrosionordamage.
• The vehicle exhaust system has been modified, damaged, or improperly repaired.

(Continued)

Warning(Continued)

- Thereareholesoropenings inthevehiclebodyfrom damageoraftermarket modificationsthatarenot completelysealed.

Ifunusualfumesaredetectedor ifitissuspectedthatexhaustis comingintothevehicle:

- Driveitonlywiththe windowscompletelydown.

- Havethevehiclerepaired immediately.

Neverparkthevehiclewiththe engineerunninginanenclosed areasuchasagarageora buildingthathasnofreshair ventilation.

RunningtheVehicle WhileParked

Itisbetternottoparkwiththe engineerunning.

Ifthevehicleisleftwiththeengine running,followtheproperstepsto besurethevehiclewillnotmove. See ShiftingIntoPark→231and EngineExhaust→233.

Automatic Transmission

Interior view of a car gear shift lever and dashboard (no text or symbols visible)

Theselectedgearisalsoshownin theDIC.

Top-down view of a car dashboard with analog gauges and a central control panel (no visible text or symbols)

P: Thispositionlocksthedrive wheels. It is the best position to use when starting the engine because the vehicle cannot move easily.

Warning

It is dangerous to get out of the vehicle if the shift lever is not fully in P (Park) with the parking brake firmly set. The vehicle can roll.

Donotleavethevehiclewhenthe engineisrunning.Ifyouhaveleft theenginerunning,thevehicle canmovesuddenly.Youorothers

(Continued)

Warning(Continued)

couldbeinjured.Tobesurethe vehiclewillnotmove,evenwhen youareonfairlylevelground, alwayssettheparkingbrakeand movetheshiftlevertoP(Park). SeeShiftingIntoPark→231.

Makesuretheshiftleverisfullyin P(Park)beforestartingtheengine. Thevehiclehasanautomatic transmissionshiftlockcontrol system. Theregularbrakemustbe fullyappliedfirstandthentheshift leverbuttonpressedbeforeshifting fromP(Park)whentheignitionkey isinON/RUN. Ifyoucannotshiftout ofP(Park),easepressureonthe shiftlever,thenpushtheshiftlever allthewayintoP(Park)asyou maintainbrakeapplication.Then presstheshiftleverbutton and movetheshiftleverintoanother gear.See ShiftingoutofPark→232.

R:Usethisgeartobackup.

DrivingandOperating235

Caution

ShiftingtoR(Reverse)whilethe vehicleismovingforwardcould damagethetransmission.The repairswouldnotbecoveredby thevehiclewarranty.Shiftto R(Reverse)onlyafterthevehicle isstopped.

Torockthevehiclebackandfortho getoutofsnow,ice,orsandwithout damagingthetransmission,seelf the VehicleIsStuck→223.

N: In this position, the engine does not connect with the wheels. To restart the engine when the vehicle is already moving, use N(Neutral) only. Also, use N(Neutral) when the vehicle is being towed.

Warning

Shiftingintoadrivegearwhilethe engineisrunningathighspeedis dangerous.Unlessyourfootis firmlyonthebrakepedal,the (Continued)

Warning(Continued)

vehiclecouldmoveveryrapidly. Youcouldlosecontrolandhit peopleorobjects.Donotshift intoadrivegearwhiletheengine isrunningathighspeed.

Caution

ShiftingoutofP(Park)or N(Neutral)withtheengine runningathighspeedmay damagethetransmission. The repairswouldnotbecoveredby thevehiclewarranty.Besurethe engineisnotrunningathigh speedwhenshiftingthevehicle.

D: This position is for normal driving. It provides the best fuel economy. If more power is needed for passing, and the vehicle is:

- Goinglessthan56km/h (35mph), pushtheaccelerator pedalabouthalfwaydown.

- Goingabout56km/h(35mph)or more,pushtheacceleratorall thewaydown.

Caution

If the vehicle does not shift gears, the transmission could be damaged. Have the vehicle serviced right away.

ManualMode

DriverShiftControl(DSC)

Caution

Drivingwiththeengineatahigh rpmwithoutupshiftingwhileusing DriverShiftControl(DSC),could damagethevehicle.Always upshiftwhennecessarywhile usingDSC.

DSCallowsyoutoshiftan automatictransmissionsimilartoa manualtransmission.Tousethe DSCfeature:

236DrivingandOperating

Diagram of a car gear shift lever mechanism (no text or labels)

1. Movetheshiftleverfrom D(Drive)totheleftintothe(+) or(-)manualposition.

Top-down view of a car dashboard with analog gauges and a central control panel (no visible text or symbols)

1. Presstheshiftleverforward(+) toupshiftorrearward(-) to downshift.AnMandthe currentgearwillbedisplayed intheDIC.

While using the DSC feature, the vehicle will have firmer, quicker shifting. You can us this for sport driving or when climbing or descending hills, to stay in gear longer, ort downward shift form more powerorengine braking.

The transmission will only allow you to shift tintogears appropriate for the vehicles speed and engine revolutions per minute (rpm). The transmission will not automatically shift to then next lower gear if the engineer misto high, norto the nexthigher gear when the maximum engineer misreached.

Ifshiftingispreventedforany reason,thecurrentlyselectedgear willflashmultipletimes,indicating thatthetransmissionhasnotshifted gears.

WhileintheDSCmode,the transmissionwillautomatically downshiftwhenthevehiclecomes toastop. Thiswillallowformore powerduringtake-off.

When accelerating the vehicle from astopinsnowy and cly conditions, you may want to shift into second gear. Higher gear allows the vehicle to gain more traction on slippery surfaces.

Brakes

AntilockBrake System(ABS)

ThisvehiclehasanAntilockBrake System(ABS), anadvanced electronicbrakingsystemmathelps preventabrakingskid.

Whenthevehiclebeginstodrive away,ABSchecksitself. Amomentarymotororclickingnoise maybeheardwhilethistestisgoing on,anditmayevenbennoticedthat thebrakepedalmovesalittle.This isnormal.

If there is a problem with ABS, this warning light stays on. See Antilock Brake System (ABS) Warning Light 105.

Ifdrivingsafelyonawetroadandit becomesnecessarytoslamonthe brakesandcontinuebrakingto avoidasuddenobstacle,a computersensesthewheelsare slowingdown.Ifoneofthewheels isabouttostoprolling,thecomputer willseparatelyworkthebrakesat eachwheel.

ABScanchangethebrakepressure toeachwheel, asrequired, faster thananydrivercould. Thiscanhelp yousteeraroundtheobstaclewhile brakinghard.

Asthebrakesareapplied, the computerkeepsreceivingupdates onwheelspeedandcontrols brakingpressureaccordingly.

Remember:ABSdoesnotchange thetimeneededtogetafootupto thebrakepedaloralwaysdecrease stoppingdistance.Ifyougettoo closetothevehicleinfrontofyou, therewillnotbeenoughtimeto applythebrakesifthatvehicle suddenlyslowsorstops.Always leaveenoughroomupaheadto stop,evenwithABS.

UsingABS

Donotpumpthebrakes.Justhold thebrakepedaldownfirmlyandlet ABSwork.YoumayheartheABS pumpormotoroperatingandfeel thebrakepedalpulsate.This is normal.

BrakinginEmergencies

ABSallowsyoutosteerandbrake atthesametime.Inmany emergencies,steeringcanhelp morethaneventheverybest braking.

ElectricParkingBrake

Close-up of a car interior showing a black key labeled (P) with a magnified inset highlighting the button (no readable text or symbols)

238DrivingandOperating

The Electric Parking Brake (EPB) switch is on the center console. The EPB can always be activated, even if the ignition is off. Top prevent draining the battery, avoid repeated cycles of the EPB when the engine is not running.

Thesystemhasaredparkingbrake statuslightandanamberparking brakewarninglight.SeeElectric ParkingBrakeLight→105.There arealsoparkingbrake-related DriverInformationCenter(DIC) messages.Incaseofinsufficient electricalpower,theEPBcannotbe appliedorreleased.

Beforeleavingthevehicle, check theredparkingbrakestatuslightto ensurethattheparkingbrakeis applied.

EPBApply

ToapplytheEPB:

1. Besurethevehicleisata completestop.

2. LiftuptheEPBswitch momentarily.

Theredparkingbrakestatuslight willflashandthenstayononcethe EPBisfullyapplied.Ifthered parkingbrakestatuslightflashes continuously,thentheEPBisonly partiallyappliedorthereisa problemwiththeEPB.ADIC messagewilldisplay.Releasethe EPBandtrytoapplyitagain.Ifthe lightdoesnotcomeon,orkeeps flashing,havethevehicleserviced. Donotdrivethevehicleifthered parkingbrakestatuslightisflashing. Seeyourdealer.SeeElectric ParkingBrakeLight→105.

If theamberparkingbrakewarning lightison, lift upon the EPB switch and hold it up. Continuetohold the switch until thered parking brake status light remain on. If the amber parking brakewarning light remains on, see your dealer.

If the EPB is applied while the vehicle is moving, the vehicle will decelerate as long asthes switch is held up. If these switch is held up until the vehicle comestoastop, the EPB will remain applied.

The vehicle may automatically apply the EPBinsomesituations when the vehicle is not moving. This is normal, and is donetoperiodically check the correct operation of the EPB system.

If the EPB fail to apply, there are wheel should be blocked to prevent vehicle movement.

EPBRelease

ToreleasetheEPB:

1. PlacetheignitionintheACC/ACCESSORYorON/RUN position.

2. Apply and hold the brake pedal.

3. Pushdownmomentarily on the EPB switch.

TheOperatePedalLightcomeson whenthebrakepedalneedstobe appliedtoreleasetheEPB.See OperatePedalLight→105.

TheEPBisreleasedwhenthered parkingbrakestatuslightisoff.

If the amberparking brakewarning lightison, releasethe EPB by pushingdown on the EPB switch and holding it down. Continueto hold the switch until thered parking brake status light is off. If either light stay on after release is attempted, see your dealer.

Caution

Drivingwiththeparkingbrakeon canoverheatthebrakesystem andcauseprematurewearor damagetobrakesystemparts. Makesurethattheparkingbrake isfullyreleasedandthebrake warninglightisoffbeforedriving.

AutomaticEPBRelease

TheEPBwillautomaticallyreleaseif thevehicleisrunning,placedinto gear,andanattemptismadeto driveaway.Avoidrapidacceleration whentheEPBisapplied,to preserveparkingbrakelininglife.

BrakeAssist

The Brake Assist feature is designed to assist the driver in stopping or decreasing vehicle speed in emergency driving conditions. This feature uses the stability system hydraulic brake control module to supplement the power brakes system under conditions where the driver has quickly and forcefully applied the brake pedal in an attempt to quickly stoporslowdown the vehicle. The stability system hydraulic brake control module increases brake pressure at each corner of the vehicle until the ABS activates. Minor brake pedal pulsation or pedalmovement during this time is normal and the drivers should continueto apply the brake pedal as the drivingsituation dictates. The Brake Assist feature will automatically disengagewhen the brake pedal is released for brake pedal pressure is quickly decreased.

HillStartAssist(HSA)

ThisvehiclehasaHillStartAssist (HSA)feature, whichmaybeuseful whenthevehicleisstoppedonan incline. Thisfeatureisdesignedto preventthevehiclefromrolling, eitherforwardorrearward, during vehicledriveoff. Afterthedriver completelystopsandholdsthe vehicleinacompletestandstillon anincline, HSAwillbeautomatically activated. Duringthetransition periodbetweenwhenthedriver releasesthebrakepedalandstarts toacceleratetodriveoffonagrade, HSAholdsthebrakingpressureto ensurethatthereisnorolling. The brakeswillautomaticallyrelease whentheacceleratorpedalis applied.

RideControlSystems

TractionControl/ElectronicStability Control

SystemOperation

ThevehiclehasaTractionControl System(TCS)andStabiliTrak ^® , an electronicstabilitycontrolsystem. Thesesystemshelplimitwheelspin andassistthedriverinmaintaining control,especiallyonslipperyroad conditions.

TCSactivatesifitsensesthatany ofthedrivewheelsarespinningor beginningtolosetraction. Whenthis happens, TCSappliesthebrakesto thespinningwheelsandreduces enginepowertolimitwheelspin.

StabiliTrakactivateswhenthe vehiclesensesadifferencebetween theintendedpathandthedirection thevehicleisactuallytraveling. StabiliTrakselectivelyapplies brakingpressuretoanyoneofthe

vehiclewheelbrakestoassistthe driverinkeepingthevehicleonthe intendedpath.

Ifcruisecontrolisbeingusedand TCSorStabiliTrakbeginstolimit wheelspin,cruisecontrolwill disengage.Cruisecontrolmaybe turnedbackonwhenroad conditionsallow.

Bothsystemscomeon automaticallywhenthevehicleis startedandbeginstomove. The systemsmaybeheardorfeltwhile theyareoperatingorwhile performingdiagnosticchecks. This isnormalanddoesnotmeanthere isaproblemwiththevehicle.

Itisrecommendedtoleaveboth systemsonfornormaldriving conditions,butitmaybenecessary toturnTCSoffifthevehiclegets stuckinsand,mud,ice,orsnow. SeelftheVehicleIsStuck→223 and"TurningtheSystemsOffand On"laterinthissection.

The indicator light for both systems is in the instrument cluster. This light will:

• FlashwhenTCSislimiting wheelspin.
• FlashwhenStabiliTrakis activated.
• Turnonandstayonwheneither systemisnotworking.

Ifeithersystemfailstoturnonorto activate, amessagedisplaysinthe DriverInformationCenter(DIC), and

becomesonandstaysonto indicatethatthesystemisinactive andisnotassistingthedriverin maintainingcontrol. Thevehicleis safetodrive, butdrivingshouldbe adjustedaccordingly.

If comesonandstayson:

1. Stopthevehicle.

DrivingandOperating241

1. Turntheengineoffandwait 15seconds.
   3.Starttheengine.

Drivethevehicle.If comeson andstayson,thevehiclemayneed moretimetodiagnosetheproblem. Iftheconditionpersists,seeyour dealer.

TurningtheSystemsOff andOn

Caution

Donotrepeatedlybrakeor accelerateheavilywhenTCSis off. Thevehicledrivelinecouldbe damaged.

ToturnoffonlyTCS,pressand release OFF. TheappropriateDIC messageisdisplayed.

ToturnTCSonagain,pressand release OFF. TheappropriateDIC messageisdisplayed.

IfTCSislimitingwheelspinwhen ispressed, thesystemwillnotturn offuntilthewheelsstopspinning.

ToturnoffbothTCSandStabiliTrak, pressandhold OFF untilthe StabiliTrakOfflight OFF comesonand staysonintheinstrumentcluster. TheappropriateDICmessageis displayed.

ToturnTCSandStabiliTrakon again,pressandrelease OFF. The StabiliTrakOfflight OFF inthe

instrumentclusterturnsoff. The appropriate DIC message is displayed.

Addingaccessoriescanaffect vehicleperformance.See Accessoriesand Modifications→255.

CruiseControl

Thecruisecontrolsthevehicle maintainaspeedofabout40km/h (25mph)ormorewithoutkeeping yourfootontheaccelerator.Cruise controldoesnotworkatspeeds below40km/h(25mph).

Warning

Cruisecontrolcanbedangerous whereyoucannotdrivesafelyat asteadyspeed.Donotuse cruisecontrolonwindingroadsor inheavytraffic.

Cruisecontrolcanbedangerous onslipperyroads.Onsuchroads, fastchangesintiretraction can causeexcessivewheelslip,and youcouldlosecontrol.Donotuse cruisecontrolonslipperyroads.

The vehicle has a Traction Control System (TCS) or Stabili Trak system that begins to limit wheels in while using cruise control and the cruise control will automatically disengage.

See TractionControl/Electronic StabilityControl→240. Ifacollision alert occurs when cruise control is activated, cruise control is disengaged. See Forward Collision Alert(FCA) System→246. When road conditions allow you to out safety use again, cruise control can be turned back on.

If the brakes are applied, cruise controldisengages.

:Presstoturnthecruisecontrol systemonoroff.Awhiteindicator comesonintheinstrumentcluster whencruiseisturnedon.

RES/+: If thereisasetspeed in memory, movethethumbwheelup briefly to resumeto that speed or hold upward to accelerate. If cruise control is already active, useto increase vehicles speed.

SET/−:Movethethumbwheeldown brieflysetthespeedandactivate cruisecontrol. Ifcruisecontrol is alreadyactive, usetodecrease speed.

☒: Presstodisengagecruise controlwithoutouterasingtheset speedfrommemory.

SettingCruiseControl

If \misonwhennotinuse, SET/-or RES/+couldgetbumpedandgo intocruisewhennotdesired.Keep offwhencruisecontrolisnot beingused.\

Tosetaspeed:

1. Press *toturncruise controlon.
2. Getuptothespeeddesired.
3. Movethethumbwheeldown towardSET/-andreleaseit.

4. Remove your foot from the accelerator.

The cruisecontrol indicator on the instrument cluster turns green after cruise control has been set to the desired speed. See Instrument Cluster 98.

ResumingaSetSpeed

If the cruise control lissetata desired speed and then the brakes are applied or is pressed, the cruise control disengaged without erasing the sets speed from memory. Oncethe vehicles speed is about 40 km/h (25 mph) or greater, move the thumbwheel up toward RES/+ briefly. The vehicler return to the previously sets speed.

IncreasingSpeedWhileUsing CruiseControl

If the cruise control system is already activated:

- Movethenthumbwheeluptoward RES/+andholdituntilthe desiredspeedisreached,then releaseit.

- To increase vehicles speed in small increments, movethe thumbwheel uptoward RES/+ briefly. Foreachpress, the vehicle goes about 1.6 km/h (1 mph) faster.

Thespeedometerreadingcanbe displayedineitherEnglishormetric units.SeeDriverInformationCenter (DIC)⇒110.Theincrementvalue useddependsontheunits displayed.

ReducingSpeedWhileUsing CruiseControl

If the cruise control system is already activated:

- Movethethumbwheeltoward SET/-andholduntilthedesired lowerspeedisreached,then releaseit.

- Todecreasethevehiclespeedin smallincrements, movethe thumbwheeltowardSET/-briefly. Foreachpress, the vehiclegoesabout1.6km/h (1mph)slower.

Thespeedometerreadingcanbe displayedineitherEnglishormetric units.SeeDriverInformationCenter (DIC)⇒110.Theincrementvalue useddependsontheunits displayed.

PassingAnotherVehicleWhile UsingCruiseControl

Usetheacceleratorpedalto increasethevehiclespeed. When youtakeyourfootoffthepedal, the vehicleslowsdowntotheprevious setcruisecontrolspeed. While pressingtheacceleratorpedalor shortlyfollowingthereleaseto overridecruisecontrol,briefly movingthethumbwheeltoward SET/-willresultincruisesettothe currentvehiclespeed.

UsingCruiseControlonHills

Howwellcruise control workson hills depend on the vehicle speed, load, and the steepness of the hills. Whenging up steep hills, you might have to stop the accelerator pedal to maintain the vehicle speed. Whenging downhill, you might have to brake or shift to lower gear to keep your

244DrivingandOperating

speeddown.Ifthebrakepedalis applied,cruisecontrolwill disengage.

EndingCruiseControl

Therearefourwaystoendcruise control:

• Todisengagecruisecontrol, steplightlyonthebrakepedal.
• Press ✗
• Shiftthetransmission to N(Neutral).
• Toturnoffcruisecontrol, press 📁.

ErasingSpeedMemory

Thecruisecontrolsetspeedis erasedfrommemoryif ispressed orifthevehicleisturnedoff.

DriverAssistance Systems

AssistanceSystemsfor ParkingorBacking

Ifequipped, the Rear Vision Camera (RVC), Rear Parking Assist (RPA), and Front Parking Assist (FPA) may help the driver park or avoid objects. Always check around the vehicle when parking or backing.

RearVisionCamera(RVC)

Whenthevehicleisshiftedinto R(Reverse),theRVCdisplaysan imageoftheareabehindthevehicle intheinfotainmentdisplay.

Side view of a car with a wheel rim and adjacent panel, showing no text or symbols

1.ViewDisplayedbythe Camera

1.ViewDisplayedbythe Camera
2.CornersoftheRearBumper

Displayedimagesmaybefartheror closerthantheyappear.Thearea displayedislimitedandobjectsthat areclosetoeithercornerofthe bumperorunderthebumperdonot display.

TouchMENUontheinfotainment screentoadjustthedisplay brightnesswhileviewingtherear cameradisplay.

A warning triangle may display on the RVC screentoshow that RPA has detected an object. This triangle changes from a bertored and increases its size the closer the object.

Warning

Thecamera(s)donotdisplay children,pedestrians,bicyclists, crossingtraffic,animals,orany otherobjectoutsideofthe cameras'fieldofview,belowthe bumper,orunderthevehicle. Showndistancesmaybedifferent fromactualdistances.Donot driveorparkthevehicleusing

(Continued)

Warning(Continued)

onlythesecamera(s).Always checkbehindandaroundthe vehiclebeforedriving.Failureto usepropercaremayresultin injury,death,orvehicledamage.

ParkingAssist

WithRPA, asthevehiclebacksup atspeedsoflessthan8km/h (5mph), thesensorsontherear bumperdetectobjectsupto2.5m (8ft)behindthevehiclethatare withinazone25cm(10in)highoff thegroundandbelowbumperlevel. IfthevehiclehasFrontParking Assist(FPA), italsodetectsobjects 1.2m(4ft)infrontofthevehicle. Thesedetectiondistancesmaybe shorterduringwarmerorhumid weather. Blocked sensorswillnot detectobjectsandcanalsocause falsedetections. Keepthesensors cleanofmud, dirt, snow, ice, and slush; and cleansensorsafteracar washinfreezingtemperatures.

Warning

The Parking Assistsystemdoes not detect children, pedestrians, bicyclists, animals, or objects located below the bumper or that are too close to or far from the vehicle. It is not available at speed greater than 8 km/h (5 mph). Toprevent injury, death, or vehicle damage, even with Parking Assist, always check the area around the vehicle and check all mirrors before moving forward or backing.

Top-down view of a car with no visible text, numbers, or symbols on the vehicle itself

246DrivingandOperating

Theinstrumentclustermayhavea parkingassistdisplaywithbarsthat show"distancetoobject"andobject locationinformationforRPA,andon somevehicles,fortheFPAsystem. Astheobjectgetscloser,morebars lightup,andthebarschangecolor fromyellowtoambertored.

Whenanobjectisfirstdetectedin therear,onebeepwillbeheard fromtherear.Whenanobjectis veryclose(<0.6m(2ft)inthe vehiclerear,or<0.3m(1ft)inthe vehiclefront),fivebeepswillsound fromtherearorfrontdependingon objectlocation.BeepsforFPAare higherpitchedthanforRPA.

TurningtheFeaturesOnorOff

TheP▲buttononthecenterstack isusedtoturnonoroffParking Assist. Theindicatorlightnexttothe

buttoncomesonwhenthefeatures areonandturnsoffwhenthe featureshavebeendisabled.

Theparkingassistsymbolsand guidancelinescanbeturnedor offthroughtheinfotainmentsystem. See“RearCameraOptions”in VehiclePersonalization→113

ForwardCollisionAlert (FCA)System

Ifequipped, theFCAsystemmay helptoavoidorreducetheharm causedbyfront-endcrashes.FCA providesavisualalertandbeeps whenapproachingavehicledirectly aheadtooquickly.

Theforward-lookingFCAcamera sensorisonthewindshieldahead oftherearviewmirror.FCAdetects vehicleswithinadistanceof approximately60m(197ft)and operatesatspeedsabove40km/h (25mph).

Warning

FCAisawarningsystemand doesnotapplythebrakes.When approachingaslower-movingor stoppedvehicleaheadtoorapidly, orwhenfollowingavehicletoo closely,FCAmaynotprovidea warningwithenoughtimetohelp avoidacrash.Italsomaynot provideanywarningatall.FCA doesnotwarnofpedestrians, animals,signs,guardrails, bridges,constructionbarrels, orotherobjects.Bereadytotake actionandapplythebrakes.See DefensiveDriving→218.

DetectingtheVehicleAhead

FCAwarningswillnotoccurunless theFCAsystemdetectsavehicle ahead. Whenavehicleisdetected, thevehicleaheadindicatorwill displaygreen. Vehiclesmaynotbe detectedoncurves, highwayexit ramps, orhills, duetopoorvisibility; orifavehicleaheadispartially blockedbypedestriansorother objects. FCAwillnotdetectanother vehicleaheaduntilitiscompletely inthedrivinglane.

Warning

FCAdoesnotprovideawarning tohelpavoidacrash,unlessit detectsavehicle.FCAmaynot detectavehicleaheadiftheFCA sensorisblockedbydirt,snow, orice,orifthewindshieldis damaged.Itmayalsonotdetecta vehicleonwindingorhillyroads, orinconditionsthatcanlimit visibilitysuchasfog,rain, orsnow,oriftheheadlampsor windshieldarenotcleanedorin

(Continued)

Warning(Continued)

propercondition.Keepthe windshield,headlamps,andFCA sensorscleanandingoodrepair.

CollisionAlert

Abstract black-and-white graphic of two cars spiking around a starburst shape (no text or symbols)

When your vehicle approaches another vehicle to rapidly, the FCA display will come on the DIC and several high-pitched beepswill sound. Whent this Collision Alert occurs, the brakesystem may prepare for driver braking to occur morerapidly which can cause a brief, mild deceleration. Continueto apply the brake pedal as needed. Cruise control may be disengaged when the Collision Alert occurs.

SelectingtheAlertTiming

Close-up of a car's front air vent with a mounted fan or vent (no visible text or symbols)

TheCollisionAlertcontrolisonthe steeringwheel.Press 🔍 tosetthe alerttiming.Thefirstbuttonpress showsthecurrentcontrolsettingon theDIC.Additionalbuttonpresses willchangethissettingandturnthe systemoff.

UnnecessaryAlerts

FCAmayprovideunnecessary alertstoturningvehicles,vehiclesin otherlanes,objectsthatarenot vehicles,orshadows.Thesealerts arenormaloperationandthe vehicledoesnotneedservice.

CleaningtheSystem

If the FCAsystemdoesnotseemto operateproperly, cleantheoutside ofthewindshieldareainfrontofthe camerasensorbeforeconsidering takingthevehicleinforservice.

LaneDeparture Warning(LDW)

Ifequipped, LDWmayhelpavoid crashesduetounintentionallane departures. It may provide an alert if the vehicle is crossing alane without using aturn signal in that direction. LDW uses acamera sensortodetect the lanemarkings at speed sof 56 km/h (35 mph) or greater.

Warning

TheLDWsystemdoesnotsteer thevehicle.TheLDWsystem maynot:

- Provideenoughtimeto avoidacrash.

(Continued)

Warning(Continued)

• Detectlanemarkingsunder poorweatherorvisibility conditions. This can occur if the windshieldor headlamps are blocked by dirt, snow, orice; if they are not in proper condition; or if the sunshines directly into the camera.
• Detectroadedges.
• Detectlanesonwindingor hillyroads.

IfLDWonlydetectslane markingsononesideoftheroad, itwillonlywarnyouwhen departingthelaneontheside whereithasdetectedalane marking.Alwayskeepyour attentionontheroadand maintainpropervehicleposition withinthelane,orvehicle damage,injury,ordeathcould occur.Alwayskeepthe windshield,headlamps,and

(Continued)

Warning(Continued)

camerasensorscleanandin goodrepair.DonotuseLDWin badweatherconditions.

HowtheSystemWorks

The LDW camerasensor is on the windshield ahead of there are view mirror.

ToturnLDWonandoff, press on thecenterstack. Thecontrol indicatorwilllightwhenLDWison.

WhenLDWison, isgreenif LDWisavailabletowarnofalane departure. If the vehicle crosses a detected lanemarking without using the turnsignal in that direction, changestoamber and flashes.

Additionally, there will be three beepsontherightorleft, depending on the lane departuredirection.

WhentheSystemDoesNot SeemToWorkProperly

Thesystemmaynotdetectlanesas wellwhenthereare:

• Closevehiclesahead.
• Suddenlightingchanges,such aswhendrivingthroughtunnels.
• Bankedroads.

If the LDW system is not functioning properly when lanemarkings are clearly visible, cleaning the windshield may help.

LDWalertsmayoccurduetotar marks, shadows, cracksintheroad, temporaryorconstructionlane markings, orotherroad imperfections. Thisisnormalsystem operation; the vehicle does not need service. Turn LDWoffifthese conditions continue.

Fuel

GMrecommendstheuseofTOP TIER® detergentgasolinetokeep theenginecleanerandreduce engineeredeposits.See www.toptiergas.comforalistofTOP TIERdetergentgasolinemarketers andapplicablecountries.

Detergent Gasoline

Premiumunleadedgasoline meetingASTMspecificationD4814 withapostedoctaneratingof93is highlyrecommendedforbest

performanceandfueleconomy. Unleadedgasolinewithanoctane ratedaslowas87canbeused. Usingunleadedgasolinerated below93octane,however,willlead toreducedaccelerationandfuel economy.Ifknockingoccurs,usea gasolineratedat93octaneassoon aspossible,otherwise,theengine couldbedamaged.Ifheavy knockingisheardwhenusing gasolinewitha93octanerating,the engineneedsservice.

ProhibitedFuels

Caution

Donotusefuelswithanyofthe followingconditions;doingso maydamagethevehicleandvoid itswarranty:

- Forvehicleswhicharenot FlexFuel,fuellabeled greaterthan15%ethanolby volume,suchasmid-level ethanolblends(16–50% ethanol),E85,orFlexFuel.

(Continued)

Caution(Continued)

• Fuelwithanyamountof methanol, methylal, and aniline. Thesefuelscan corrodemetalfuelsystem partsordamageplasticand rubberparts.
• Fuelcontainingmetalssuch asmethylcyclopentadienyl manganesetricarbonyl (MMT), which candamage theemissionscontrol systemandsparkplugs.
• Fuelwithapostedoctane ratingoflessthanthe recommendedfuel. Using thisfuelwillowerfuel economyandperformance, andmaydecreasethelifeof theemissionscatalyst.

CaliforniaFuel Requirements

If the vehicle is certified to meet California Emissions Standards, it is designed to operate on fuel that meet Californias specifications. See

theunderhoodemissioncontrol label. If this fuel is not available in states adopting California Emissions Standards, the vehicle will operate satisfactorily on fuels meeting federal specifications, but emission control system performance may be affected. Them malfunction indicator lamp could turn on and the vehicle may not pass a magnog - check test. See Malfunction Indicator Lamp (Check Engine Light) 102. If this occurs, return to your authorized dealer for diagnosis. If it is determined that the condition is caused by the type of off fuel used, repairs may not be covered by the vehicle warranty.

FuelsinForeign Countries

The U.S., Canada, and Mexico post fuel octaneratingsinanti-knock index (AKI). For fuel nottouseina foreign country, see "Prohibited Fuels" in Fuel 249.

FuelAdditives

Tokeepfuelsystemsclean, TOP TIER® detergentgasoline is recommended. See Fuel 249.

If TOPTIER detergent gasoline is not available, one bottle of GM Fuel System Treatment Cleaner added to the fuel tank at every engine oil change, can help. GM Fuel System Treatment Cleaner is the only gasoline additive recommended by General Motors. It is available at your dealer.

FillingtheTank

Warning

Fuelvaporsandfuelfiresburn violentlyandcancauseinjuryor death.

- Tohelpavoidinjuriestoyou andothers,readandfollow alltheinstructionsonthe fuelpumpisland.

(Continued)

Warning(Continued)

• Turnofftheenginewhen refueling.
• Keepsparks, flames, and smoking materials away from fuel.
• Donotleavethefuelpump unattended.
• Donotuseacellphone whilerefueling.
• Donotre-enterthevehicle whilepumpingfuel.
• Keepchildrenawayfrom thefuelpumpandneverlet childrenpumpfuel.
• Fuelcansprayoutifthefuel capisopenedtooquickly. Thisspraycanhappenifthe tankisnearlyfull, and is more likely in hot weather. Openthefuelcapslowly and wait for any hiss noise to stop, then unscrew the capalltheway.

3D illustration of a circular object with decorative patterns and two black arrows indicating rotation or movement (no text or symbols)

Thefuelcapisbehindahingedfuel dooronthepassengersideofthe vehicle. Thefueldoorislocked whenthevehicledoorsarelocked.

Press ☐ontheRKEtransmitterto unlock.Toopenthefueldoor,push andreleasetherearwardcenter edgeofthedoor.

Mechanical assembly diagram showing a wheel and bracket assembly (no text or symbols visible)

Turnthefuelcapcounterclockwise toremove. Whilerefueling, hangthe tetheredfuelcapfromthehookon thefueldoor.

Warning

Overfillingthefueltankbymore thanthreeclicksofastandardfill nozzlemaycause:

• Vehicleperformanceissues, includingenginestallingand damagetothefuelsystem.
• Fuelspills.
  • Potentialfuelfires.

252DrivingandOperating

Becarefulnottospillfuel.Waita fewsecondsafteryouhavefinished pumpingbeforeremovingthe nozzle.Cleanfuelfrompainted surfacesassoonaspossible.See ExteriorCare321.

When replacing the fuel cap, turn it clockwise until it clicks. Makesure the cap is fully installed. The diagnostics system can determine if the fuel cap has been left for improperly installed. This would allow fuel to evaporate into the atmosphere. See Malfunction Indicator Lamp (Check Engine Light) 102.

Warning

Ifafirestartswhileyouare refueling, donotremovethe nozzle. Shutofftheflowoffuelby shuttingoffthepumporby notifyingthestationattendant. Leavetheareaimmediately.

Caution

Ifanewfuelcapsisneeded, be suretogetherighttypeofcap fromyourdealer. Thewrongtype offuelcapmaynotfitproperly, maycausethemalfunction indicatorlamptolight, and could damagethefueltank and emissionssystem. See MalfunctionIndicatorLamp (CheckEngineLight)→102.

FillingaPortableFuel Container

Warning

Fillingaportablefuelcontainer whileitisinthevehiclecancause fuelvaporsthatcanigniteeither bystaticelectricityorother means.Youorotherscouldbe badlyburnedandthevehicle couldbedamaged.Always:

(Continued)

Warning(Continued)

• Useapprovedfuel containers.
• Removethecontainerfrom thevehicle,trunk,orpickup bedbeforefilling.
• Placethecontaineronthe ground.
• Placethenozzleinsidethe fillopeningofthecontainer beforedispensingfuel,and keepitincontactwiththefill openinguntilfillingis complete.
• Fillthecontainernomore than95%fulltoallowfor expansion.
• Donotsmoke, light matches, oruselighters while pumping fuel.
• Avoidusingcellphonesor otherelectronicdevices.

TrailerTowing

GeneralTowing Information

The vehicle is neither designed nor intended to tow a trailer.

Conversionsand Add-Ons

Add-On Electrical Equipment

Warning

TheDataLinkConnector(DLC)is usedforvehicleserviceand EmissionInspection/Maintenance testing.SeeMalfunctionIndicator Lamp(CheckEngineLight) 102.Adeviceconnectedtothe DLC—suchasanaftermarket fleetordriver-behaviortracking device—mayinterferewith vehiclesystems.Thiscouldaffect vehicleoperationandcausea crash.Suchdevicesmayalso accessinformationstoredinthe vehicle'ssystems.

Caution

Someelectricalequipment can damage the vehicle or cause component stonotwork and would not be recovered by the vehicle warranty. Always check with your dealer before adding electricalequipment.

Add-onequipmentcandrainthe vehicle's12-voltbattery, evenifthe vehicleisnotoperating.

Thevehiclehasanairbagsystem. Beforeattemptingtoaddanything electricaltothevehicle,see ServicingtheAirbag-Equipped Vehicle→67andAddingEquipment totheAirbag-Equipped Vehicle→68.

VehicleCare

GeneralInformation

GeneralInformation......255

CaliforniaProposition 65Warning......255

CaliforniaPerchlorate MaterialsRequirements.....255

Accessories and Modifications....255

VehicleChecks

DoingYourOwn ServiceWork......256

Hood....257

EngineCompartment Overview......259

EngineOil....260

EngineOilLifeSystem.....262

AutomaticTransmission Fluid....263

EngineAirCleaner/Filter.....263

CoolingSystem......264

EngineCoolant......265

EngineOverheating.....268

WasherFluid......269

Brakes......270

BrakeFluid......270

Battery-NorthAmerica.....271

StarterSwitchCheck......272

AutomaticTransmissionShift LockControlFunction Check......272

IgnitionTransmissionLock Check......273

ParkBrakeandP(Park) MechanismCheck......273

WiperBladeReplacement....273

HeadlampAiming

HeadlampAiming......274

BulbReplacement

BulbReplacement......275

HighIntensityDischarge(HID) Lighting......275

LEDLighting......275

AdaptiveForwardLighting Lamps....275

FogLamps....276

FrontTurnSignalLamps.....276

SidemarkerLamps......277

SideTurnSignalLamps.....278

Back-UpLamps......279

LicensePlateLamp......280

ReplacementBulbs......281

ElectricalSystem

ElectricalSystemOverload...281

FusesandCircuitBreakers...282

EngineCompartmentFuse

Block....282

InstrumentPanelFuse Block......285

RearCompartmentFuse Block....286

WheelsandTires

Tires....288

All-SeasonTires......289

WinterTires......289

Low-ProfileTires......290

TireSidewallLabeling......290

TireDesignations......292

TireTerminology and Definitions....293

TirePressure......295

TirePressureMonitor System....296

TirePressureMonitor Operation......297

TireInspection......300

TireRotation......301

When It Is Time for New Tires....302

BuyingNewTires......302

DifferentSizeTiresand Wheels....304

UniformTireQuality Grading....304

WheelAlignmentandTire Balance....306

WheelReplacement......306

TireChains....307

IfaTireGoesFlat......307

TireChanging......309

CompactSpareTire......314

JumpStarting

JumpStarting-North

America......315

TowingtheVehicle

TowingtheVehicle......318

Recreational Vehicle

Towing....320

AppearanceCare

ExteriorCare....321

InteriorCare....326

FloorMats....329

GeneralInformation

Forserviceandpartsneeds,visit yourdealer.Youwillreceive genuineGMpartsandGM-trained andsupportedservicepeople.

GenuineGMpartshaveoneof thesemarks:

Genuine

Parts

Accessories

CaliforniaProposition 65Warning

WARNING: Mostmotorvehicles, including this one, as well as many of its service parts and fluids, contain and oremit chemicals known to the State of California

causecancerandbirthdefectsor otherreproductiveharm.Engine exhaust,manypartsandsystems, manyfluids,andsomecomponent wearby-productscontainand/or emitthesechemicals.

SeeBattery-NorthAmerica→271 and Jump Starting-North America→315.

CaliforniaPerchlorate MaterialsRequirements

Certaintypesofautomotive applications, such as airbag initiators, safetybeltpretensioners, and lithium batteries contained in Remote Keyless Entrytransmitters, may contain perchloratematerials. Special handling may be necessary. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.

Accessories and Modifications

Adding non-dealer accessories or making modification to the vehicle can affect vehicle performance and

256VehicleCare

safety, includingsuchthingsas airbags, braking, stability, ride and handling, emissionssystems, aerodynamics, durability, and electronicsystems like antilock brakes, traction control, and stability control. These accessories or modifications could devencause malfunctionordamagenotcovered by the vehicle warranty.

Damagetosuspensioncomponents causedbymodifyingvehicleheight outsideoffactorysettingswillnotbe coveredbythevehiclewarranty.

Damagetovehiclecomponents resultingfrommodificationsorthe installationoruseofnon-GM certifiedparts,includingcontrol moduleorsoftwaremodifications,is notcoveredunderthetermsofthe vehiclewarrantyandmayaffect remainingwarrantycoveragefor affectedparts.

GMAccessoriesaredesignedto complementandfunctionwithother systemsonthevehicle.Seeyour dealertoaccessorizethevehicle usinggenuineGMAccessories installedbyadealertechnician.

Also, see Adding Equipment to the Airbag-Equipped Vehicle 68.

VehicleChecks

DoingYourOwn ServiceWork

Warning

It can be dangerous to work on your vehicle if you don to have the proper knowledge, service manual, tools, or parts. Always follow owner's manual procedures and consult the servicemanual for your vehicle before doing any servicework.

If doingsome of your own service work, us the properservice manual. It tells you much more about how to servicethe vehicle than this manual can. To order the properservicemanual, see Service Publications Ordering Information 356.

This vehicle has an airbag system. Before attempting today you own servicework, see Servicing the Airbag-Equipped Vehicle 67.

Keeparecordwithallpartsreceipts andlistthemileageandthedateof anyserviceworkperformed.See MaintenanceRecords→343.

Caution

Evensmallamountsof contaminationcancausedamage tovehiclesystems.Donotallow contaminantstocontactthefluids, reservoircaps,ordipsticks.

Hood

Toopenthehood:

Close-up of a mechanical component with a black arrow indicating direction (no visible text or symbols)

1. Pullthehoodreleasehandle insidethevehicle.Itisonthe lowerleftsideoftheinstrument panel.

Interior view of a modern airplane cabin with passengers and luggage (no visible text or symbols)

1. Gotothefrontofthevehicle andmovethesecondaryhood releaselevertowardthedriver sideofthevehicle.

Interior view of a car hood with open lid and visible structural components (no text or symbols)

1. Liftthehoodandreleasethe hoodpropfromitsretainer, abovetheradiator. Securely placethehoodpropinto the slotontheunderside of thehood.

258VehicleCare

Toclosethehood:

1. Before closing the hood, be sure all fillercaps are on properly. Then, lift the hood to relieve pressure on the hood prop. Removethe hood prop from the slot in the underside of the hood and return the prop to its retainer. The proprod must click into place when returning it to her retain to prevent how do damage.

2. Lowerthehood30cm(12in) abovethevehicleandrelease itsoitfullylatches.Checkto makesurethehoodisclosed andrepeattheprocessif necessary.

Caution

Donotpressthehoodintothe latch. This may dent the hood.

EngineCompartmentOverview

260VehicleCare

1. EngineAirCleaner/Filter→263.
2. EngineCoolingFan(Outof View). SeeCooling System→264.
3. EngineOilDipstick.See EngineOil→260.
4. EngineOilFillCap. See EngineOil→260.
5. BrakeFluidReservoir. See Brakes→270.
   6.Battery-NorthAmerica→271.
6. EngineCoolantSurgeTank andPressureCap.See CoolingSystem→264.
7. Windshield Washer Fluid Reservoir. See Washer Fluid 269.
8. Engine Compartment Fuse Block→282.

EngineOil

Toensureproperengine performanceandlonglife,careful attentionmustbepaidtoengineoil.

Followingthesesimple, but importantstepswillhelpprotect yourinvestment:

• Useengineoilapprovedtothe properspecificationandofthe properviscositygrade.See "SelectingtheRightEngineOil" inthissection.
• Checktheengineoillevel regularlyandmaintainthe properoillevel.See"Checking EngineOil"and"WhentoAdd EngineOil"inthissection.
• Changetheengineoilatthe appropriatetime.SeeEngineOil LifeSystem→262.
• Always dispose of engine oil properly. See "What to Dow with Used Oil" in this section.

CheckingEngineOil

Checktheengineoillevelregularly, every650km(400mi),especially priortoalongtrip.Theengineoil dipstickhandleisaloop.See EngineCompartmentOverview 259forthelocation.

Warning

Theengineoildipstickhandle maybehot;itcouldburnyou. Useatowelorglovetotouchthe dipstickhandle.

IfalowoilDriverInformationCenter (DIC)messagedisplays,checkthe oillevel.

Followtheseguidelines:

- Togetanaccuratereading, park thevehicleonlevelground. Checktheengineoillevelafter theenginehasbeenoffforat leasttwohours. Checkingthe engineoilvelonsteepgrades ortoosoonafterengineshutoff canresultinincorrectreadings. Accuracyimproveswhen checkingacoldenginepriorto starting.Removethedipstick andcheckthelevel.

- Ifunabletowaittwohours, the enginemustbeoffforatleast 15minutesiftheengineis warm, oratleast30minutesif theengineisnotwarm. Pullout

thedipstick,wipeitwithaclean papertowelorcloth,thenpushit backinalltheway.Removeit again,keepingthetipdown,and checkthelevel.

WhentoAddEngineOil

Cross-sectional diagram of a segmented cylindrical object with internal layered structure (no text or symbols)

If the oil is below the cross-hatched area at the tip of the dipstick and the engine has been off for at least 15 minutes, add 1L (1 qt) of the recommended oil and then recheck the level. See "Selecting the Right Engine Oil" later in this section for an explanation of what kind of oil to use. Forengine oil crank case capacity, see Capacities and Specifications 345.

Caution

Donotaddtoomuchoil.Oil levelsaboveorbelowthe acceptableoperatingrange shownonthedipstickareharmful totheengine.Ifyoufindthatyou haveanoillevelabovethe operatingrange,i.e.,theengine hassomuchoilthattheoillevel getsabovethecross-hatched areathatshowstheproper operatingrange,theenginecould bedamaged.Youshoulddrain outtheexcessoilorlimitdriving ofthevehicleandseekaservice professionaltoremovethe excessamountofoil.

SeeEngineCompartmentOverview →259forthelocationoftheengine oilfillcap.

Addenoughoiltoputthelevel somewhereintheproperoperating range.Pushthedipstickalltheway backinwhenthrough.

SelectingtheRightEngineOil

Selectingtherightengineoil dependsonboththeperoil specificationandviscositygrade. SeeRecommendedFluidsand Lubricants⇒341.

Specification

Askforanduseengineoilsthat meetthedexos1 ^™ specification.

Engineoilsthathavebeen approvedbyGMasmeetingthe dexos1specificationaremarked withthedexos1approvedlogo.See www.gmdexos.com.

Caution

Failuretousetherecommended engineoilorequivalentcanresult inenginedamagenotcoveredby thevehiclewarranty.

ViscosityGrade

UseSAE5W-30viscositygrade engineoil.

ColdTemperatureOperation:Inan areaofextremecold,wherethe temperaturefallsbelow-29°C (-20°F),anSAE0W-30oilmaybe used.Anoilofthisviscositygrade willprovideeasiercoldstartingfor theengineatextremelylow temperatures.Whenselectinganoil oftheappropriateviscositygrade,it isrecommendedtoselectanoilof thecorrectspecification.See "Specification"earlierinthissection.

EngineOilAdditives/Engine OilFlushes

Donotaddanythingtotheoil. The recommendedoilsmeetingthe dexos1specificationareallthatis neededforgoodperformanceand engineprotection.

Engineoilsystemflushesarenot recommendedandcouldcause enginedamagenotcoveredbythe vehiclewarranty.

WhattoDowithUsedOil

Usedengineoilcontainscertain elementsthatcanbeunhealthyfor yourskinandcouldevencause cancer.Donotletusedoilstayon yourskinforverylong.Cleanyour skinandnailswithsoapandwater, oragoodhandcleaner.Washor properlydisposeofclothingorrags containingusedengineoil.Seethe manufacturer'swarningsaboutthe useanddisposalofoilproducts.

Usedoilcanbeathreattothe environment. If you change your own oil, besuretodrainallthe oil from the filter before disposal. Never dispose of oil by putting it in the trash or pouring it on the ground, intosewers, or intostreams or bodies of water. Recycle it by taking it to a placethat collects used oil.

EngineOilLifeSystem

WhentoChangeEngineOil

This vehicle has a computer system that indicates when to change the engine oil and filter. This is based on a combination of factors which

includeenginerevolutions,engine temperature,andmilesdriven. Basedondrivingconditions,the mileageatwhichanoilchangeis indicatedcanvaryconsiderably.For theoilifesystemtoworkproperly, thesystemmustbereseteverytime theoilischanged.

Whenthesystemhascalculated thatoillifehasbeendiminished, it indicatesthatanoilchangeis necessary.ACHANGEENGINE OILSOONmessagecomeson. Changetheoilassoonaspossible withinthenext1000km(600mi). Itispossiblethat,ifdrivingunder thebestconditions,theoillife systemmightindicatethatanoil changeisnotnecessaryforuptoa year.Theengineoilandfiltermust bechangedatleastonceayear and,atthistime,thesystemmust bereset.Yourdealerhastrained servicepeoplewhowillperformthis workandresetthesystem.Itisalso importanttochecktheoilregularly overthecourseofanoildrain intervalandkeepitattheproper level.

If the system is ever reset accidentally, the oil must be changed at 5000 km (3,000 mi) sincethelast oil change. Remembertoreset the oil life system whenever the oil is changed.

HowtoResettheEngineOil LifeSystem

Resetthesystemwheneverthe engineoilischangedsothatthe systemcancalculatethenext engineoilchange.Toresetthe system:

1. TurntheignitiontoON/RUN withtheengineoff.
2. PresstheDICMENUbuttonon theturnsignallevertoenter theVehicleInformationMenu. Usethethumbwheeltoscroll throughthemenuitemsuntil youreachREMAINING OILLIFE.
3. PressSET/CLRtoresettheoil lifeat100%.
4. TurntheignitiontoLOCK/OFF.

Thesystemisresetwhenthe CHANGEENGINEOILSOON messageisoffandtheREMAINING OILLIFE100%messageis displayed.

If the CHANGE ENGINE OIL SOON message comes back on when the vehicle is started, the engine oil life system has not been reset. Repeat the procedure.

AutomaticTransmission Fluid

HowtoCheckAutomatic TransmissionFluid

Itisnotnecessarytocheckthe transmissionfluidlevel. Atransmissionfluidleakistheonly reasonforfluidloss.Ifaleak occurs,takethevehicletoyour dealerandhaveitrepairedassoon aspossible.

Thereisaspecialprocedurefor checkingandchangingthe transmissionfluid.Becausethis procedureisdifficult,youshould havethisdoneatyourdealer.

Changethefluidattheintervals listedinMaintenanceSchedule 332, and besuretousethefluid listedinRecommendedFluidsand Lubricants 341.

EngineAirCleaner/Filter

Theengineaircleaner/filterisinthe enginecompartmentonthe passengersideofthevehicle.See EngineCompartment Overview→259.

WhentoInspecttheEngineAir Cleaner/Filter

Forintervalsonchangingand inspectingtheengineaircleaner/filter,seeMaintenance Schedule→332.

HowtoInspecttheEngineAir Cleaner/Filter

Donotstarttheengineorhavethe engineerunningwiththeengineair cleaner/filterhousingopen.Before removingtheengineaircleaner/ filter,makesurethattheengineair cleaner/filterhousingandnearby componentsarefreeofdirtand debris.Removetheengineair

264VehicleCare

cleaner/filter.Lightlytapandshake theengineaircleaner/filter(away fromthevehicle),toreleaseloose dustanddirt.Inspecttheengineair cleaner/filterfordamage,and replaceifdamaged.Donotclean theengineaircleaner/filterwith waterorcompressedair.

Toinspectorreplacetheaircleaner/filter:

Technical diagram of a mechanical component with arrows indicating assembly or force directions (no text or symbols present)

1. Removethesixscrewsandlift thecoverofftheengineair cleaner/filterassembly.

2. Inspectorreplacetheengine aircleaner/filter.

3. Lowerthecoverintotheengine aircleaner/filterassembly, then securewiththesixscrews.

Warning

Operatingtheenginewiththeair cleaner/filteroffcancauseyouor otherstobeburned. Theair cleanernotonlycleanstheair;it helpstostopflamesiftheengine backfires. Usecautionwhen workingontheengineanddonot drivewiththeaircleaner/filteroff.

Caution

If the aircleaner/filterisoff, dirt caneasilygetintotheengine, which could damage it. Always havethe aircleaner/filterinplace when you are driving.

CoolingSystem

Thecoolingsystemallowsthe enginetomaintainthecorrect workingtemperature.

Interior view of a car engine bay with labeled parts (no text or symbols visible)

1. EngineCoolingFan(Out ofView)
2. EngineCoolantSurgeTank and PressureCap

Warning

Anelectricenginecoolingfan underthehoodcanstartupeven whentheengineisnotrunning andcancauseinjury. Keep hands, clothing, and toolsaway from anyunderhoodelectricfan.

Warning

Heaterandradiatorhoses, and otherengineparts, can bevery hot. Donottouchthem. If you do, you can be burned.

Donotruntheengineifthereisa leak.Ifyouruntheengine,it couldloseallcoolant.Thatcould causeanenginefire,andyou couldbeburned.Getanyleak fixedbeforeyoudrivethevehicle.

Caution

Usingcoolantotherthan DEX-COOL ^® cancause prematureengine, heatercore, orradiatorcorrosion. In addition, the engine coolant could require changing sooner. Any repairs would not be covered by the vehicle warranty. Always use DEX-COOL (silicate-free) coolant in the vehicle.

EngineCoolant

Thecoolingsysteminthevehicleis filledwithDEX-COOLengine coolant. Thiscoolantisdesigned to remaininthevehiclefor5yearsor 240000km(150,000mi),whichever occursfirst.

The following explainsthecooling systemandhowtocheckandadd coolantwhenitislow. Ifthereisa problemwithengineoverheating, seeEngineOverheating 268.

WhattoUse

Warning

Addingonlyplainwaterorsome otherliquidtothecoolingsystem canbedangerous. Plainwater andotherliquids, canboilbefore thepropercoolantmixturewill. Thecoolantwarningsystemisset forthepropercoolantmixture. Withplainwaterorthewrong mixture, theenginecouldgettoo hotbutyouwouldnotgetthe

(Continued)

Warning(Continued)

overheatwarning. The engine could catch fire and you or others could be burned. Use a 50/50 mixture of clean, drinkable water and DEX-COOL coolant.

Usea50/50mixtureofclean drinkablewaterandDEX-COOL coolant. This mixture:

• Givesfreezingprotectiondown to -37^(-34^) , outside temperature.
• Givesboilingprotectionupto 129°C(265°F), engine temperature.
• Protectsagainstrustand corrosion.
• Willnotdamagealuminumparts.
• Helpskeep the proper engine temperature.

Caution

Ifimpropercoolantmixture, inhibitors,oradditivesareused in the vehiclecoolingsystem,the enginecouldoverheatandbe damaged.Toomuchwaterinthe mixturecanfreezeandcrack enginecoolingparts.Therepairs wouldnotbecoveredbythe vehiclewarranty.Useonlythe propermixtureofenginecoolant forthecoolingsystem.See RecommendedFluidsand Lubricants⇒341.

Neverdisposeofenginecoolantby puttingitinthetrash,pourington theground,orintosewers,streams, orbodiesofwater.Havethecoolant changedbyanauthorizedservice center,familiarwithlegal requirementsregardingused coolantdisposal.Thiswillhelp protecttheenvironmentandyour health.

CheckingCoolant

The vehicle must be on a level surface when checking the coolant level.

Itisnormaltoseecoolantmovingin theuppercoolanthosereturnline whentheengineisrunning.

Checktoseeifcoolantisvisiblein thecoolantsurgetank.Ifthecoolant insidethecoolantsurgetankis boiling,donotdoanythingelseuntil itcoolsdown.

Ifcoolantisvisiblebutthecoolant levelisnotatorabovethemark pointedto,adda50/50mixtureof clean,drinkablewaterand DEX-COOLcoolant.

Besurethecoolingsystemiscool beforethisisdone.

Ifnocoolantisvisibleinthecoolant surgetank, addcoolantasfollows:

HowtoAddCoolanttothe CoolantSurgeTank

Caution

This vehicle has as specific coolantfill procedure. Failure to follow this procedure could cause the enginetooverheat and be severely damaged.

Ifnoproblemisfound, checktosee ifcoolantisvisibleinthecoolant surgetank. Ifcoolantisvisiblebut thecoolantlevelisnotatthe indicatedlevelmark, adda50/50mixtureofclean, drinkablewater andDEX-COOLcoolantatthe coolantsurgetank, but besurethe coolingsystem, includingthe coolantsurgetankpressurecap, is coolbeforeyoudoit.

Warning

Steamandscaldingliquidsfroma hotcoolingsystemcanblowout andburnyoubadly.Neverturn

(Continued)

Warning(Continued)

thecapwhenthecoolingsystem, includingthesurgetankpressure cap,ishot.Waitforthecooling systemandsurgetankpressure captocool.

Caution

Incoldweather, watercanfreeze and cracktheengine, radiator, heatercore, and otherparts. Use therecommended coolant and the proper coolant mixture.

Warning

Youcanbeburnedifyouspill coolantonhotengineparts. Coolantcontainsethyleneglycol anditwillburniftheengineparts arehotenough.Donotspill coolantonahotengine.

1. Removethecoolantsurgetank pressurecapwhenthecooling system, including the coolant surgetank pressurecap and upperradiator hose, is no longerhot.

Turnthepressurecapslowly counterclockwiseabout one-quarterofaturn.Ifyou hearahiss,waitforthatto stop.Thiswillallowany pressurestilllefttobevented outthedischargehose.

1. Keep turning the pressure cap slowly and remove it.

Close-up of a mechanical component with a magnified inset showing a warning symbol and icons (no readable text or labels)

1. Fill the coolants surgetank with the proper DEX-COOL coolant mixture to the indicated level mark.

2. With the coolants surgetank pressure capoff, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan.

Bythistime, thecoolantlevel insidethecoolantsurgetank maybelower. If the level is lower, add more of the proper DEX-COOL coolant mixture to the coolantsurgetank until the level reaches the indicated level mark.

1. Replacethepressurecap tightly.

Checkthelevelinthecoolantsurge tankwhenthecoolingsystemhas cooleddown.Ifthecoolantisnotat theproperlevel,repeatSteps1-3andreinstallthepressurecap. Ifthecoolantstillisnotattheproper levelwhenthesystemcoolsdown again,seeyourdealer.

Caution

If the pressure cap is not tightly installed, coolant loss and possible enginedamagemay occur. Besure the cap is properly and tightly secured.

EngineOverheating

The vehicle has an engine coolant temperature gaugetowarnof the engine overheating. See Engine Coolant Temperature Gauge 100.

If the decision is madenottolift the hood when this warning appears, gets service help right away. See Roadside Assistance Program 351.

If the decisionismadetoliftthe hood, makesurethevehicleis parkedonalevelsurface.

Thenchecktoseeiftheengine coolingfanisrunning.Iftheengine isoverheating,thefanshouldbe running.Ifitisnot,donotcontinue toruntheengine.Havethevehicle serviced.

Caution

Runningtheenginewithout coolantmaycausedamageora fire.Vehicledamagewouldnotbe coveredbythevehiclewarranty.

IfSteamIsComingfromthe EngineCompartment

Warning

Steamfromanoverheatedengine canburnyoubadly,evenifyou justopenthehood.Stayaway fromtheengineifyouseeorhear steamcomingfromit.Justturnit offandgeteveryoneawayfrom thevehicleuntilcoolsdown. Waituntilthereisnosignof steamorcoolantbeforeyouopen thehood.

If you keep driving when the engine is overheated, the liquids init can catch fire. You or others could be badly burned. Stop the

(Continued)

Warning(Continued)

engineifitoverheats, andgetout of the vehicle until the engine is cool.

IfNoSteamIsComingfrom theEngineCompartment

Ifanengineoverheatwarningis displayedbutnosteamcanbeseen orheard,theproblemmaynotbe tooserious.Sometimestheengine cangetalittletoohotwhenthe vehicle:

• Climbsalonghillonahotday.
- Stopsafterhigh-speeddriving.
• Idlesforlongperiodsintraffic.

If the overheat warning is displayed with nosignofsteam:

1. Turntheairconditioningoff.

2. Turntheheaterontothe highesttemperatureandtothe highestfanspeed.Open the windowsasnecessary.

3. Whenitissafetodoso, pulloff theroad, shifttoP(Park) or N(Neutral), and let the engineidle.

If the engine coolant temperature gauge is no longer in the overheat zone, the vehicle can be driven. Continuetodrivethe vehicles slowly for about 10 minutes. Keep as safe vehicle distance from the vehicle in front. If the warning does not come back on, continued driven normally and havethecoolingsystem checked for proper fill and function.

Ifthewarningcontinues,pullover, stop,andparkthevehicle rightaway.

Ifthereisnosignofsteam,idlethe engineforthreeminuteswhile parked.Ifthewarningisstill displayed,turnofftheengineuntil coolsdown.

WasherFluid

WhattoUse

Whenthevehicleneedswindshield washerfluid, besuretoreadthe manufacturer's instructions before

use. If operating the vehicle in an areawherethetemperature may fall below freezing, use fluid that has sufficient protection against freezing.

AddingWasherFluid

Openthecapwiththewasher symbolonit.Addwasherfluiduntil thetankisfull.SeeEngine CompartmentOverview→259for reservoirlocation.

Caution

- Donotusewasherfluidthat containsanytypeofwater repellentcoating. This can cause the wiperbladesto chatterorskip.

(Continued)

Caution(Continued)

• Donotuseenginecoolant (antifreeze) in the windshieldwasher. It can damage the windshield washersystem and paint.
• Donotmixwaterwith ready-to-usewasherfluid. Watercancausethe solutiontofreezeand damagethewasherfluid tankandotherpartsofthe washersystem.
• When using concentrated washer fluid, follow the manufacturer instructions for adding water.
• Fillthewasherfluidtank onlythree-quartersfullwhen itisverycold. This allows forfluidexpansionif freezingoccurs, which could damagethetankifitis completelyfull.

Brakes

Discbrakepadshavebuilt-inwear indicatorsthatmakeahigh-pitched warningsoundwhenthebrakepads arewornandnewpadsareneeded. Thesoundcancomeandgoorcan beheardallthetimewhenthe vehicleismoving,exceptwhen applyingthebrakepedalfirmly.

Warning

Thebrakewearwarningsound meansthatsoonthebrakeswill notworkwell.Thatcouldleadto acrash.Whenthebrakewear warningsoundisheard,havethe vehicleserviced.

Caution

Continuingtodrivewithworn-out brakepadscouldresultincostly brakerepair.

Somedrivingconditionsorclimates cancauseabrakesquealwhenthe brakesarefirstappliedorlightly applied. Thisdoesnotmean somethingiswrongwiththebrakes.

Properlytorquedwheelnutsare necessarytohelppreventbrake pulsation.Whentiresarerotated, inspectbrakepadsforwear and evenlytightenwheelnutsinthe propersequencetotorque specifications.SeeCapacitiesand Specifications→345.

Brakepadsshouldbereplacedas completesets.

BrakePedalTravel

Seeyourdealerifthebrakepedal doesnotreturntonormalheight, orifthereisarapidincreasein pedaltravel. Thiscouldbeasign thatbrakeservicemayberequired.

ReplacingBrakeSystemParts

Alwaysreplacebrakesystemparts withnew,approvedreplacement parts.Ifthisisnotdone,thebrakes maynotworkproperly.Thebraking

performanceexpectedcanchange inmanyotherwaysifthewrong replacementbrakepartsare installedorifpartsareimproperly installed.

BrakeFluid

Thebrakemastercylinderreservoir isfilledwithGApprovedDOT4 brakefluidasindicatedonthe reservoircap.SeeEngine CompartmentOverview→259for thelocationofthereservoir.

CheckingBrakeFluid

WiththevehicleinP(Park)ona levelsurface,thebrakefluidlevel shouldbebetweenthemminum andmaximummarksonthebrake fluidreservoir.

Thereareonlytworeasonswhythe brakefluidlevelinthereservoirmay godown:

• Normalbrakeliningwear. When newliningsareinstalled, the fluidlevelgoesbackup.
• Afluidleakinthebrake hydraulicsystem.Havethe brakehydraulicsystemfixed. Withaleak,thebrakeswillnot workwell.

Alwayscleanthebrakefluid reservoircapandtheareaaround thecapbeforeremovingit.

Donottopoffthebrakefluid. Addingfluiddoesnotcorrectaleak. Iffluidisaddedwhentheliningsare worn,therewillbetoomuchfluid whennewbrakeliningsare installed.Addorremovefluid,as necessary,onlywhenworkisdone onthebrakehydraulicsystem.

Warning

Iftoomuchbrakefluidisadded, it canspillontheengineandburn, iftheengineishotenough. You ortherscouldbeburned, and thevehiclecouldbedamaged. Addbrakefluidonlywhenworkis doneonthebrakehydraulic system.

Whenthebrakefluidfallstoalow level,thebrakewarninglightcomes on.SeeBrakeSystemWarning Light→104.

Brakefluidabsorbswaterovertime whichdegradestheeffectiveness of thebrakefluid.Replacebrakefluid atthespecifiedintervalstopprevent increasedstoppingdistance.See MaintenanceSchedule→332.

WhattoAdd

UseonlyGMapprovedDOT4 brakefluidfromaclean,sealed container.SeeRecommended FluidsandLubricants 341.

Warning

The wrongor contaminated brake fluid could result in damage to the brakes system. This could result in the loss of braking leading to a possible injury. Always use the proper GM approved brake fluid.

Caution

Ifbrakefluidisspilledonthe vehicle'spaintedsurfaces,the paintfinishcanbedamaged. Immediatelywashoffanypainted surface.

Battery-NorthAmerica

Theoriginalequipmentbatteryis maintenancefree.Donotremove thecapanddonotaddfluid.

Refertothereplacementnumber shownontheoriginalbatterylabel whenanewbatteryisneeded.See EngineCompartmentOverview 259forbatterylocation.

Warning

WARNING: Batteryposts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of Californiatocause cancer and birth defect or other reproductive harm. Batteries also contain other chemicals known to the State of Californiatocause cancer. WASHHANDSAFTER HANDLING.

See California Proposition 65Warning→255.

VehicleStorage

Warning

Batterieshaveacidthatcanburn youandgasthatcanexplode. Youcanbebadlyhurtifyouare notcareful.SeeJump Starting-NorthAmerica→315fortipson workingaroundabatterywithout gettinghurt.

InfrequentUsage:Removethe black,negative(−)cablefromthe batterytokeepthebatteryfrom runningdown.

ExtendedStorage:Removethe black,negative(−)cablefromthe batteryoruseabatterytrickle charger.

StarterSwitchCheck

Warning

Whenyouaredoingthis inspection,thevehiclecould movesuddenly.Ifthevehicle moves,youorotherscouldbe injured.

1. Before starting this check, be sure there is enough room around the vehicle.

2. Apply both the parking brake and theregular brake.

Donotusetheaccelerator pedal, and bereadytoturnoff theengineimmediatelyifit starts.

1. Trytostarttheengineineach gear. The vehicles should start only in P (Park) or N (Neutral). If the vehicle starts in any other position, contact your dealer for service.

AutomaticTransmission ShiftLockControl FunctionCheck

Warning

When you are doing this inspection, the vehicle could moves suddenly. If the vehicle moves, you or others could be injured.

1. Before starting this check, be sure there is a ten thousand people around the vehicle. It should be parked on a level surface.

2. Apply the parking brake. Be ready to apply theregular brake immediately if the vehicle begins to move.

3. With the engine off, turn the ignition on, but donot start the engine. Without applying the regular brake, try to mov the shiftlever out of P (Park) with normaleffort. If the shift lever moves out of P (Park), contact your dealer for service.

IgnitionTransmission LockCheck

Whileparkedandwiththeparking brakeset,trytoturntheignitionto LOCK/OFFineachshiftlever position.

• Theignitionshouldturnto LOCK/OFFonlywhentheshift leverisinP(Park).
• Theignitionkeyshouldcome outonlyinLOCK/OFF.

Contactyourdealerifserviceis required.

ParkBrakeandP(Park) MechanismCheck

Warning

Whenyouaredoingthischeck, thevehiclecouldbegintomove. Youorotherscouldbeinjured andpropertycouldbedamaged. Makesurethereisroominfront ofthevehicleincaseitbeginsto roll.Bereadytoapplytheregular brakeatonceshouldthevehicle begintomove.

Parkonafairlysteephill, with the vehiclefacingdownhill. Keeping yourfootontheregularbrake, set theparkingbrake.

- Tochecktheparkingbrake's holdingability:Withtheengine runningandthetransmissionin N(Neutral),slowlyremovefoot pressurefromtheregularbrake pedal.Dothisuntilthevehicle is heldbytheparkingbrakeonly.

- TochecktheP(Park) mechanism'sholdingability: Withtheengine running, shift to P(Park). Then releasethe parkingbrake followed by the regularbrake.

Contactyourdealerifserviceis required.

WiperBladeReplacement

Windshieldwiperbladesshouldbe inspectedforwearandcracking. SeetheMaintenance Schedule332.

Replacementbladescomein differenttypesandareremovedin differentways.Forpropertyand length,seeMaintenance ReplacementParts→342.

274VehicleCare

Caution

Allowingthewiperarmtotouch the windshield when nowiper blade is installed could damage the windshield. Any damage that occurs would not be recovered by the vehicle warranty. Donotallow the wiperarmtotouch the windshield.

Toreplacethewindshieldwiper blade:

1. Pullthewindshieldwiper assemblyawayfromthe windshield.

Technical illustration of a mechanical component with an arrow indicating a specific part (no text or symbols present)

1. Pressthebuttoninthemiddle ofthewiperarmconnector, andpullthewiperbladeaway fromthearmconnector.
2. Removethewiperblade.
3. ReverseSteps1–3forwiper bladereplacement.

HeadlampAiming

Headlampaimhasbeenpresetand shouldneednofurtheradjustment. Ifthevehicleisdamagedinacrash, theheadlampaimmaybeaffected. Ifadjustmenttotheheadlampsis necessary,seeyourdealer.

BulbReplacement

Forthepropertyofreplacement bulbs,seeReplacement Bulbs→281.

Foranybulb-changingprocedure notlisted in this section, contact your dealer.

HighIntensityDischarge (HID)Lighting

Warning

TheHighIntensityDischarge (HID)lightingsystemoperatesat averyhighvoltage.Ifyoutryto serviceanyofthesystem components,youcouldbe seriouslyinjured.Haveyour dealeroraqualifiedtechnician servicethem.

AfteranHIDheadlampbulbhas beenreplaced, thebeammightbea slightlydifferentshadethanitwas originally. Thisisnormal.

LEDLighting

This vehicle has several LED lamps. For replacement of any LED lighting assembly, contact your dealer.

AdaptiveForward LightingLamps

CornerLightingLamps

Technical illustration of a mechanical component with a circular component and directional arrow (no text or symbols)

1. Turnthecapcounterclockwise andremoveit.

Close-up of a mechanical component with a circular opening showing internal components and a black arrow indicating direction (no text or symbols visible)

1. Turnthebulbholder counterclockwisetodisengage. Removethebulbholderfrom thereflector.

Mechanical assembly diagram showing a rotating component with a directional arrow (no text or symbols)

276VehicleCare

1. Pullthebulbfromtheplug connector.
2. Replace the bulb band connect the bulb holder with the plug connector.
3. Insert the bulbholder, engaging the wolugs into the reflector and turn clockwiseto secure.

FogLamps

Thebulbsareaccessiblefromthe undersideofthevehicle.

Close-up of a mechanical component with a black arrow pointing to a component, no visible text or symbols

1. Turnthebulbholder counterclockwise and remove it from thereflector.

Mechanical component assembly showing a valve and plug assembly (no text or symbols visible)

1. Disengagethebulbsocket from the plug connector by pressing theretaining lug.
2. Remove and replace the bulb socket with bulband attach the plug connector.
3. Insert the bulb socket into the reflector by turning clockwise and engage.

FrontTurnSignalLamps

Close-up mechanical component with a black arrow pointing to a circular feature (no visible text or symbols)

1. Turnthecapcounterclockwise andremoveit.

Cross-sectional view of a mechanical device showing internal components and a black arrow indicating direction (no text or symbols)

1. Turnthebulbsocket counterclockwiseandremoveit fromthereflector.

Mechanical component diagram showing a flanged housing and a plug assembly (no text or symbols)

1. Pullthebulbfromthebulb holderandreplaceit.

2. Insert the bulb socket into the reflector and turn clockwise.

5.Fitthecapandturnclockwise.

SidemarkerLamps

Side view of a modern sedan with two close-up diagrams showing front and side views (no text or symbols)

1. Insertatoolinbetween the sidemarkerhousing and the bumper. Topreventdamage, placeaclothbetweenthetool and the bumper.

3D rendered mechanical component with directional arrows indicating rotation or movement (no text or symbols)

1. Pushthetooltodisengagethe clipandremovethesidemarker housing. Donotuseexcessive force.

Close-up of a car charging plug with a cable, showing electrical contact details (no text or symbols visible)

278VehicleCare

1. Turnthebulbsocket90° counterclockwiseandremoveit fromthehousing.

Mechanical component with a cylindrical pin and attached cable, showing a directional arrow (no text or symbols)

1. Pullthebulbfromthebulb holderandreplaceit.
2. Re-insertthesocketintothe housingandturnit90° clockwise.
3. Insert the residemarker housing in reverse order in the bumper first, thengently push in the clip on the side.

SideTurnSignalLamps

3D diagram of a rectangular device with internal components and directional arrows indicating flow or movement (no text or symbols)

1. Insertatoolbetweentheside turnsignalandthefender. Placeaclothbetweenthetool andthefender.
2. Pushthetooltodisengagethe clipandremovethesideturn signallamp.

3D rendered mechanical component with a black arrow indicating direction (no text or symbols)

1. Turnthebulbholder counterclockwise and remove it from the housing.

Mechanical component diagram showing a flanged housing and a cylindrical component with an arrow indicating assembly (no text or symbols present)

1. Pullthebulbfromthebulb holderandreplaceit.

2. Insert the bulbholder and turn it clockwise.

3. Inserttherightendofthelamp, slideittotheright, and insert the left end.

Back-UpLamps

Medical procedure image showing surgical tool interacting with a device, with an inset close-up of the rotary knob (no text or symbols visible)

1. Thecoverisinsidethetrunk lid. Removethescrewonthe coverwithatoolandturn clockwisetoremovethecover.

Close-up of a metallic mechanical component with internal cavities and a black arrow pointing to a feature (no text or symbols visible)

1. Removethebulbholderby turningitcounterclockwise.

3D rendered mechanical component with a curved handle and arrow indicating direction (no text or symbols)

1. Remove and replace the bulb.

2. Insert the bulbholder into the taillampassembly and turn it clockwise.


Close-up of a mechanical component with internal structure and directional arrow (no visible text or symbols)

1. Closethecoverbyinserting thefastenerclipsfirst. Lockthe coverbyturningthescrew clockwisewithatool.

RearPositionLamps

1. Openthetrunklid.

280VehicleCare

Close-up of a device's front panel showing a knob and directional arrow (no text or symbols visible)

1. Releasethecoverintheside trimpanelandremove.

Close-up of a mechanical component with internal wiring and arrows indicating direction (no text or symbols)

1. Removethebulbholderby turningitcounterclockwise.

Mechanical component diagram showing two rotating parts with directional arrows indicating motion (no text or symbols)

1. Remove and replace the bulb.
2. Insert the bulbholder into the housing and turn clockwise.
3. Attachthesidetrimcover.

LicensePlateLamp

Technical diagram showing a mechanical assembly with an inset view of a component being inserted (no text or symbols present)

LampAssembly

BulbAssembly
1.BulbSocket

2.Bulb
3. LampAssembly

Toreplaceoneofthesebulbs:

1. Push the left of the lamp assembly toward theright.
2. Turnthelampassemblydown toremoveit.
3. Turnthebulbsocket(1) counterclockwisetoremoveit fromthelampassembly(3).
4. Pullthebulb(2) straightout of the bulbsocket(1).
   5.Pushthereplacementbulb straightintothebulbsocket andturnthebulbsocket clockwisetoinstallitintothe lampassembly.
5. Turnthelampassemblyinto the lampasassemblyopeningby engagingtheclipsidefirst.
6. Pushonthelampsideopposite theclipuntilthelampassembly snapsintoplace.

ReplacementBulbs

ExteriorLamp	Bulb Number
CornerLighting Lamps	H7LL
FogLampsH11
TurnSignalLamps7444	Amber
SidemarkerLampsW5	W
SideTurnSignal Lamps	W10/5
Back-UplampsW16W
RearPosition Lamps(Inside Trunk)	PY21W (Amber)
	P21/5W (Park/ Brake)
LicensePlateLampW5	W

Forreplacementbulbsnotlisted here,contactyourdealer.

ElectricalSystem

ElectricalSystem Overload

The vehicle has fuses and circuit breaker stop protect against electrical system overload.

Whenthecurrentelectricalloadis tooheavy, the circuitbreakeropens and closes, protecting the circuit until the current load return to normal or the problem is fixed. This greatly reduces the chance of circuit overload and fire caused by electrical problems.

Fusesandcircuitbreakersprotect powerdevicesinthevehicle.

Replaceabadfusewithanewone oftheidenticalsizeandrating.

Ifthereisaproblemontheroadand afuseneedstobereplaced,the sameamperagefusecanbe borrowed.Choosesomefeatureof thevehiclethatisnotneededtouse andreplaceitassoonaspossible.

HeadlampWiring

Anelectricaloverloadmaycause thelampstogoonandoff,orin somecasestoremainoff.Havethe headlampwiringcheckedrightaway ifthelampsgoonandoffor remainoff.

WindshieldWipers

Ifthewipermotoroverheatsdueto heavysnoworice, the windshield wiperswillstopuntilthemotor cools, and the wipercontrolis turnedoff. After removal of the blockage, the wipermotor will restart when the control is moved to the desired operating position.

Although the circuit is protected from electrical overload, overload dueto heavysnow oricemay cause wiper linkaged damage. Always clear and heavysnow from the windshield before using the windshield wipers.

If the overload is caused by an electrical problem and not snow or ice, besure to get it fixed.

FusesandCircuit Breakers

Thewiringcircuitsinthevehicleare protectedfromshortcircuitsbya combinationoffusesandcircuit breakers. Thisgreatlyreducesthe chanceofdamagecausedby electricalproblems.

Tocheckafuse,lookatthe silver-coloredbandinsidethefuse. Ifthebandisbrokenormelted, replacethefuse.Besuretoreplace abadfusewithanewoneofthe identicalsizeandrating.

Fusesofthesameamperagecan betemporarilyborrowedfrom anotherfuselocation,ifafusegoes out.Replacethefuseassoonas possible.

To identify and check fuses, circuit breakers, and relays, see Engine Compartment Fuse Block 282, Instrument Panel Fuse Block 285, and Rear Compartment Fuse Block 286.

EngineCompartment FuseBlock

Interior view of a vehicle showing engine, motors, and structural components (no visible text or symbols)

Toopenthefuseblockcover, press theclipsatthefrontandback and rotatethecoveruptotheside.

Caution

Spillingliquidonanyelectrical componentonthevehiclemay damageit.Alwayskeepthe coversonanyelectrical component.

EngineCompartmentFuseBlock

Thereisafusepullerintheengine compartmentfuseblock.

The vehicle may not be equipped with allothefuses, relays, and feature shown.

FusesUsage

1Enginecontrol module

202sensor

FusesUsage

3Fuelinjection/ Ignitionsystem

4Fuelinjection/ Ignitionsystem

5-

6Heatedmirrors

FusesUsage

7Fancontrol

8O2sensor/ Powertraincooling

9Rearwindowsensor

10Vehiclebattery sensor

11 Trunkrelease

12Adaptiveheadlamps/ Automaticheadlamp leveling

13ABSvalves

14-

15Enginecontrol module

16Starter

17Transmissioncontrol module

18Rearwindow defogger

19Frontpowerwindow

FusesUsage

20Rearpowerwindow

21Rearelectrical center

22-

23-

24Righthigh-beam headlamp

25Lefthigh-beam headlamp

26Frontfoglamps

27-

28-

29Electricparking brake

30ABSpump

31-

32Airbag

33Adaptiveforward lighting/Automatic headlampleveling

34Exhaustgas recirculation

FusesUsage

35Powerwindows/Rain sensor/Exterior mirror

36Climatecontrol

37-

38Vacuumpump

39 Fuelsystemcontrol module

40Frontwindshield washer

41-

42Enginecoolingfan

43Windshieldwipers

44-

45Enginecoolingfan

46-

47Horn

48Enginecoolingfan

49Fuelpump

50Headlampleveling/ Adaptiveforward lighting

FusesUsage

51-

52-

53Transmissioncontrol module/Engine controlmodule

54Vacuumpump/ Instrumentpanel cluster/HVAC

InstrumentPanelFuse Block

Interior view of a car dashboard with a close-up of the intake tray and control panel (no visible text or symbols)

The instrument panelfuse block is on the driverside of the instrument panel. To access:

1. Openthestorage compartment.
2. Pullstraightdownandoutto removethestorage compartment.
3. Removethecover.

Toreinstallthecover, lineupthe retainersandpushintoplace.

InstrumentPanelFuseBlock

The vehicle may not be equipped with allothefuses, relays, and feature shown.

FusesUsage

1Displays

2Bodycontrol module/Exterior lamps

FusesUsage

3Bodycontrol module/Exterior lamps

4Infotainmentsystem

5Infotainmentsystem/Instrument

6Poweroutlet

FusesUsage

7Poweroutlet

8Bodycontrol module/Left low-beamheadlamp

9Bodycontrol module/Right low-beamheadlamp

10Bodycontrol module/Doorlocks

11Interiorfan

12Driverpowerseat

13Passenger powerseat

14Diagnosticconnector

15Airbag

16Trunklidrelay

17A/Csystem

18Servicediagnose

19Bodycontrol module/Brake lamps/Reverse lamps/Interiorlamps

20-

FusesUsage

21Instrumentpanel

22Ignition

23Bodycontrolmodule

24Bodycontrolmodule

25-

26 Trunkpoweroutlet accessory

RearCompartmentFuse Block

Close-up of a car's front panel showing a button and handle, with an arrow pointing to the button (no text or symbols visible)

Therearcompartmentfuseblock, ifequipped, isontheleftsideofthe trunkbehindacover.

The vehicle may not be equipped with allothefuses, relays, and feature shown.

FusesUsage

1 Convertiblecontrol module/Right powerrail

2-

3Rearparkingassist

FusesUsage

4 Selective catalytic reduction system

5-

6-

7Powerseats

8Convertiblecontrol module

FusesUsage

9Selectivecatalytic reductionsystem

10 Selective catalytic reduction system

11 Tirepressure monitor/Rearvision camera

12Convertible control module/Reverse lamps

13-

14Rearseatelectrical folding

15-

16Rearvisioncamera/Convertiblecontrol module

17-

18-

19Heatedsteering wheel

20-

21Heatedseats

FusesUsage

22-

23Convertiblecontrol module/Left powerrail

24 Selective catalytic reduction system

25-

26Non-logisticmode

27Passiveentry/Passivestart

28-

29Hydraulicunit

30-

31-

32-

WheelsandTires

Tires

EverynewGMvehiclehas high-qualitytiresmadebya leadingtiremanufacturer.See thewarrantymanualfor informationregardingthetire warrantyandwheretoget service.Foradditional informationrefertothetire manufacturer.

Warning

• Poorlymaintained and improperly used tires are dangerous.
• Overloadingthetirescan causeoverheatingasa resultoftoomuch flexing. Therecouldbea blowoutandaserious crash. See VehicleLoad Limits→224.

(Continued)

Warning(Continued)

• Underinflatedtirespose thesamedangeras overloadedtires. The resultingcrashcould causeseriousinjury. Checkalltiresfrequently tomaintainthe recommendedpressure. Tirepressureshouldbe checkedwhenthetires arecold.
• Overinflatedtiresare morelikelytobecut, punctured, orbroken by asuddenimpact—such aswhenhittingapothole. Keeptiresatthe recommendedpressure.
• Wornoroldtirescan causeacrash. If the treadisbadlyworn, replacethem. (Continued)

Warning(Continued)

• Replaceanytiresthat havebeendamagedby impactswithpotholes, curbs,etc.
• Improperlyrepairedtires cancauseacrash. Only the dealeroran authorized tireservice centers should repair, replace, dismount, and mountthetires.
• Donotspinthetiresin excessof56km/h (35mph)onslippery surfacesuchassnow, mud,ice,etc.Excessive spinningmaycausethe tirestoexplode.

All-SeasonTires

This vehicle may comewith all-season tires. These tires are designed to provide good overall performance on most road surfaces

andweatherconditions.Original equipmenttiresdesignedtoGM's specificireperformancecriteria haveaTPCspecificationcode moldedontothesidewall.Original equipmentall-seasontirescanbe identifiedbythelasttwocharacters ofthisTPCcode,whichwill be"MS."

Considerinstallingwintertireson thevehicleiffrequentdrivingon snoworice-coveredroadsis expected. All-seasontiresprovide adequateperformanceformost winterdrivingconditions, butthey maynotofferthesamelevelof tractionorperformanceaswinter tiresonsnoworice-coveredroads. See Winter Tires 289.

WinterTires

This vehicle was not originally equipped with wintertires. Winter tires are designed for increased traction on snow and ice-covered roads. Consider installing winter tires on the vehicle iff frequent driving on ice or snow covered roads is expected. Se your dealer

fordetailsregardingwintertire availabilityandpropertireselection. Also,seeBuyingNewTires→302.

Withwintertires,theremaybe decreaseddryroadtraction, increasedroadnoise,andshorter treadlife.Afterchangingtowinter tires,bealertforchangesinvehicle handlingandbraking.

lfusingwintertires:

• Usetiresofthesamebrandand treadtypeonallfourwheel positions.
• Useonlyradialplytiresofthe samesize,loadrange,and speedratingastheoriginal equipmenttires.

Wintertireswiththesamespeed ratingastheoriginalequipmenttires maynotbeavailableforH,V,W,Y, andZRspeedratedtires. If winter tireswithalowerspeedratingare chosen, neverexceedthetire's maximumspeedcapability.

Low-ProfileTires

If the vehicle has P245/40R20 sizetires, they are classified as low-profiletires.

Caution

Low-profiletiresaremore susceptibletodamagefromroad hazardsorcurbimpactthan standardprofiletires.Tireand/or wheelassemblydamagecan occurwhencomingintocontact withroadhazardslikepotholes, orsharpedgedobjects,orwhen slidingintoacurb.Thewarranty doesnotcoverhisttypeof damage.Keeptiressettothe correctinflationpressureand whenpossible,avoidcontactwith curbs,potholes,andotherroad hazards.

TireSidewallLabeling

Usefulinformationaboutatireis moldedintoitssidewall. The exampleshowatypical passengervehicletireanda compactsparetiresidewall.

Passenger(P-Metric)TireExample

(1)TireSize: Thetiresizeisa combinationoflettersand numbersusedtodefinea particulartire'swidth,height, aspectratio,constructiontype, andservicedescription.Seethe "TireSize"illustrationalterinthis section.

(2)TPCSpec(Tire PerformanceCriteria

Specification) :Original equipmenttiresdesignedto GM'sspecificireperformance criteriahaveaTPCspecification codemoldedontothesidewall. GM'sTPCspecificationsmeetor exceedallfederalsafety guidelines.

(3)DOT(Department of Transportation): The

Department of Transportation (DOT) code indicates that the tire is incompliance with the U.S. Department of Transportation Motor Vehicle Safety Standards.

DOTTireDateof

Manufacture : Thelastfour digitsoftheTINindicatethetire manufactureddate. Thefirsttwo digitsrepresenttheweek(01–52)andthelasttwodigits, the year. Forexample, the third

weekoftheyear2010would haveafour-digitDOTdate of0310.

(4) TireIdentificationNumber (TIN): The letters and numbers following the DOT (Department of Transportation) code are the TireIdentificationNumber (TIN). The TIN shows the manufacturer and plant code, tiresize, and datethetire was manufactured. The TIN is molded on both sides of the tire, although only onesidemay havethedate of manufacture.
(5)TirePlyMaterial :Thetype ofcordandnumberofpliesin thesidewallandunderthetread.
(6)UniformTireQuality Grading(UTQG) :Tire manufacturersarerequired to gradetiresbasedonthree performancefactors:treadwear, traction,andtemperature resistance. Formoreinformation seeUniformTireQuality Grading→304.

(7) MaximumColdInflation LoadLimit : Maximumload that can be carried and the maximum pressure needed to support that load.

CompactSpareTireExample

(1) Tire Ply Material: Thetype of cord and number of plies in the sidewall and underthetread.
(2) TemporaryUseOnly : The compactsparetireortemporary usetireshouldnotbedrivenat speedsover80km/h(50mph). Thecompactsparetireisfor emergencyusewhenaregular

roadtirehaslostairandgone flat. If the vehicle has a compact spare tire, see Compact Spare Tire 314 and Ifa Tire Goes Flat 307.

(3) TireIdentificationNumber (TIN): The letters and numbers following the DOT (Department of Transportation) code are the TireIdentificationNumber (TIN). The TIN shows the manufacturer and plant code, tiresize, and datethetire was manufactured. The TIN is molded on both sides of the tire, although only onesidemay havethedate of manufacture.
(4)MaximumColdInflation LoadLimit : Maximumloadthat canbecarriedandthe maximumpressureneededto supportthatload.
(5) Tire Inflation : The temporary usetire or compact spare tires hould be inflated to 420kPa (60psi). Formore

informationontirepressureand inflationsee Tire Pressure 295.

(6)TireSize :Acombinationof lettersandnumbersdefinea tire'swidth,height,aspectratio, constructiontype,andservice description.TheletterTasthe firstcharacterinthetiresize meansthetireisfortemporary useonly.

(7)TPCSpec(Tire PerformanceCriteria Specification):Original equipmenttiresdesignedto GM'sspecificireperformance criteriahaveaTPCspecification codemoldedontothesidewall. GM'sTPCspecificationsmeetor exceedallfederalsafety guidelines.

TireDesignations

TireSize

The following is an example of typical passenger vehicle tiresize.

(1) Passenger(P-Metric) Tire: The United States version of a metric tiresizing system. The letter Pasthe first character in the timesize means passenger vehicle tire engine ered to standards set by the U.S. Tire and Rim Association.

(2)TireWidth : Thethree-digit numberindicatesthetiresection widthinmillimetersfrom sidewalltosidewall.

(3)AspectRatio :Atwo-digit numberthatindicatesthetire height-to-widthmeasurements. Forexample,ifthetiresize aspectratiois60,asshownin item3oftheillustration,itwould meanthatthetire'ssidewallis 60percentashighasitiswide.

(4)ConstructionCode :Aletter codeisusedtoindicatethetype ofplyconstructioninthetire. TheletterRmeansradialply construction;theletterDmeans diagonalorbiasply construction;andtheletterB meansbelted-biasply construction.

(5)RimDiameter :Diameterof thewheelininches.

(6)ServiceDescription :These charactersrepresenttheload indexandspeedratingofthe tire. Theloadindexrepresents theloadcarryingcapacityatire iscertifiedtocarry. Thespeed ratingisthemaximumspeeda tireiscertifiedtocarryaload.

TireTerminology and Definitions

AirPressure:Theamountof airinsidethetirepressing outwardoneachsquareinchof thetire.Airpressureis expressedinkPa(kilopascal) orpsi(poundspersquareinch).

AccessoryWeight : The combinedweightofoptional accessories. Some examples of optional accessories are automatic transmission, power windows, powerseats, and air conditioning.

AspectRatio :Therelationship ofatire'sheighttoitswidth.

Belt :Arubbercoatedlayerof cordsbetweenthepliesandthe tread.Cordsmaybemadefrom steelorotherreinforcing materials.

Bead : Thetirebeadcontains steelwireswrappedbysteel cordsthatholdthetireonto therim.

BiasPlyTire :Apneumatictire inwhichthepliesarelaidat alternateangleslessthan 90degreestothecenterlineof thetread.

ColdTirePressure :The amountofairpressureinatire, measuredinkPa(kilopascal) orpsi(poundspersquareinch) beforeatirehasbuiltupheat fromdriving.See Tire Pressure→295.

CurbWeight : The weight of a motor vehicle with standard and optionalequipment including the maximum capacity off fuel, oil, and coolant, but without passengers and cargo.

DOTMarkings :Acodemolded intothesidewallofatire signifyingthatthetireisin compliancewiththeU.S.

Department of Transportation (DOT) Motor Vehicle Safety Standards. The DOT code includes the Tire Identification Number (TIN), analphanumeric designator which can also identify the tire manufacturer, production plant, brand, and date of production.

GVWR :GrossVehicleWeight Rating.See VehicleLoad Limits→224.

GAWRFRT :GrossAxleWeight Ratingforthefrontaxle.See VehicleLoadLimits→224.

GAWRRR : GrossAxleWeight Ratingfortherearaxle. See VehicleLoadLimits 224.

IntendedOutboardSidewall : Thesideofanasymmetricaltire thatmustalwaysfaceoutward whenmountedonavehicle.

Kilopascal(kPa) : Thematic unitforairpressure.

294VehicleCare

LightTruck(LT-Metric)Tire:A tireusedonlightdutytrucksand somemultipurposepassenger vehicles.

LoadIndex : Anassigned numberranging from 1 to 279 that correspond to the load carrying capacity of fatire.

Maximum Inflation Pressure : Themaximum air pressure to which acoldtire can be inflated. Themaximum air pressure is molded onto the sidewall.

MaximumLoadRating :The loadratingforatireatthe maximumpermissibleinflation pressureforthattire.

MaximumLoadedVehicle Weight : Thesumofcurb weight, accessoryweight, vehiclecapacityweight, and productionoptionsweight.

NormalOccupantWeight :The numberofoccupantsavehicle isdesignedtoseatmultipliedby 68kg(150lb).See VehicleLoad Limits→224.

OccupantDistribution : Designatedseatingpositions.

OutwardFacingSidewall :The sideofanasymmetricaltirethat hasaparticularsidethatfaces outwardwhenmountedona vehicle. Thesideofthetirethat containsawhitewall,bears whitelettering,orbears manufacturer,brand,and/or modelnamemoldingthatis higherordeeperthanthesame moldingsontheothersidewall ofthetire.

Passenger(P-Metric)Tire :A tireusedonpassengercarsand somelightdutytrucksand multipurposevehicles.

Recommended Inflation Pressure : Vehicle manufacturer's recommended

tireinflationpressureasshown onthetireplacard.See Tire Pressure→295and Vehicle LoadLimits→224.

RadialPlyTire :Apneumatic tireinwhichtheplycordsthat extendtothebeadsarelaidat 90degreestothecenterlineof thetread.

Rim :Ametalsupportforatire anduponwhichthetirebeads areseated.

Sidewall : Theportionofatire betweenthetreadandthebead.

SpeedRating :An alphanumericcodeassignedto atireindicatingthemaximum speedatwhichatirecan operate.

Traction : Thefrictionbetween thetireandtheroadsurface. Theamountofgripprovided.

Tread : The portion of atire that comes into contact with theroad.

TreadwearIndicators:Narrow bands,sometimescalledwear bars,thatshowacrossthetread ofatirewhenonly1.6mm (1/16in)oftreadremains.See WhenItIs TimeforNew Tires\\302.

UTQGS(UniformTireQuality GradingStandards) :Atire informationsystemthatprovides consumerswithratingsfora tire'straction,temperature,and treadwear.Ratingsare determinedbytire manufacturersusing governmenttestingprocedures. Theratingsaremoldedintothe sidewallofthetire.SeeUniform TireQualityGrading⇒304.

VehicleCapacityWeight :The numberofdesignatedseating positionsmultipliedby 68kg(150lb)plustherated cargoload.See VehicleLoad Limits→224.

VehicleMaximumLoadonthe

Tire :Loadonanindividualtire duetocurbweight,accessory weight,occupantweight,and cargoweight.

VehiclePlacard :Alabel permanentlyattachedtoa vehicleshowingthevehicle capacityweightandtheoriginal equipmenttiresizeand recommendedinflationpressure. See“TireandLoading InformationLabel”under Vehicle LoadLimits→224.

TirePressure

Tiresneedthecorrectamountof airpressuretooperate effectively.

Caution

Neither tire underinflation nor overinflation is good. Under inflated tires, ortires that donothaveenoughair, can result in:

• Tireoverloading and overheating which could lead to a blowout.
  • Prematureor irregularwear.
• Poorhandling.
• Reducedfueleconomy.

Overinflatedtires, ortiresthat havetoomuchair, can resultin:

• Unusualwear.
• Poorhandling.
• Roughride.
• Needlessdamagefrom roadhazards.

The Tire and Loading Information label on the vehicle indicates the originalequipment tires and the correct cold tire inflation pressures. The recommended pressure is the minimum air pressure needed to support the vehicle's maximum loadcarrying capacity. See Vehicle Load Limits 224.

Howthevehicleisloaded affectsvehiclehandlingandride comfort. Neverloadthevehicle withmoreweightthanitwas designedtocarry.

WhentoCheck

Checkthetiresonceamonthor more. Donotforgetthecompact spare, if the vehicle has one. The cold compact spare tire pressures should be 420 kPa (60 psi). See Compact Spare Tire 314.

HowtoCheck

Useagoodqualitypocket-type gaugetochecktirepressure. Propertireinflationcannotbe determinedbylookingatthetire. Checkthetireinflationpressure whenthetiresarecold,meaning thevehiclehasnotbeendriven foratleastthreehoursorno morethan1.6km(1mi).

Removethevalvecapfromthe tirevalvestem.Pressthetire gaugefirmlyontothevalveto getapressuremeasurement. Ifthecoldtireinflationpressure matchestherecommended pressureontheTireand LoadingInformationlabel,no furtheradjustmentisnecessary. Iftheinflationpressureislow, addairuntiltherecommended pressureisreached.Ifthe inflationpressureishigh,press onthemetalsteminthecenter ofthetirevalvetoreleaseair.

Recheckthetirepressurewith thetiregauge.

Putthevalvecapsbackonthe valvestemstokeepoutdirtand moistureandpreventleaks.Use onlyvalvecapsdesignedforthe vehiclebyGM.TPMSsensors couldbedamagedandwould notbecoveredbythevehicle warranty.

TirePressureMonitor System

The TirePressureMonitorSystem (TPMS) uses radio and sensor technology to check tire pressure levels. The TPMS sensors monitor the air pressure in your tires and transmit tire pressurereading stoa receiver located in the vehicle.

Eachtire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressurerecommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of different sizing thanthesize indicated on the vehicle placard or

tireinflationpressurelabel,you shoulddeterminethepropertire inflationpressureforthosetires.)

Asanadded safety feature, your vehicle has been equipped with a tire pressure monitoringsystem (TPMS) that illuminates alow tire pressure telltale when none or more of your tires is significantly under-inflated.

Accordingly, whentelowtire pressuretelltaleilluminates, you shouldstopandcheckyourtiresas soonaspossible, andinflatethem totheproperpressure. Drivingona significantlyunder-inflatedtire causesthetiretooverheatandcan leadtotirefailure. Under-inflation alsoreducesfuelefficiencyandtire treadlife, andmayaffectthe vehicle'shandlingandstopping ability.

PleasenotethattheTPMSisnota substituteforpropertire maintenance, anditisthedriver's responsibility to maintain incorrect tire pressure, even if under-inflation has

notreachedtheleveltotrigger illuminationoftheTPMSlowtire pressuretelltale.

Yourvehiclehasalsobeen equippedwithaTPMSmalfunction indicatortoindicatewhenthe systemisnotoperatingproperly. TheTPMSmalfunctionindicatoris combinedwiththelowtirepressure telltale.Whenthesystemdetectsa malfunction,thetelltalewillflashfor approximatelyoneminuteandthen remaincontinuouslyilluminated. Thissequencewillcontinueupon subsequentvehiclestart-upsas longasthemalfunctionexists.

Whenthemalfunctionindicatoris illuminated, thesystemmaynotbe abletodetectorsignallowtire pressureasintended. TPMS malfunctionsmayoccurforvariety ofreasons, includingtheinstallation ofreplacementoralternatetiresor wheelsonthevehiclethatprevent theTPMSfromfunctioningproperly. AlwayschecktheTPMSmalfunction telltaleafterreplacingoneormore tiresorwheelsonyourvehicleto ensure thatthereplacementor

alternatetiresandwheelsallowthe TPMStocontinuetofunction properly.

See TirePressureMonitor Operation→297.

SeeRadioFrequency Statement→357.

TirePressureMonitor Operation

This vehicle may have a Tire Pressure Monitor System (TPMS). The TPMS is designed to warn the driver when alow tire pressure condition exists. TPMS sensors are mounted on to each tire and wheel assembly, excluding the spare tire and wheel assembly. The TPMS sensors monitor the air pressure in the tires and transmits the tire pressurereading to are receiver in the vehicle.

Whenalowtirepressurecondition isdetected,theTPMSilluminates thelowtirepressurewarninglight ontheinstrumentcluster.Ifthe warninglightcomeson,stopas soonaspossibleandinflatethe tirestotherecommendedpressure shownontheTireandLoading Informationlabel.SeeVehicleLoad Limits224.

Amessagetocheckthepressurein aspecifictiredisplaysintheDriver InformationCenter(DIC). Thelow tirepressurewarninglightandthe DICwarningmessagecomeonat eachignitioncycleuntilthetiresare inflatedtothecorrectinflation pressure. UsingtheDIC, tire pressurelevelscanbeviewed. For additionalinformationanddetails abouttheDICoperationand displaysseeDriverInformation Center(DIC)⇒110.

Thelowtirepressurewarninglight maycomeonincoolweatherwhen thevehicleisfirststarted, and then turnoffasthevehicleisdriven. This could be nearly indicatorthatthe airpressureisgettinglowand needstobeinflatedtotheproper pressure.

ATireandLoadingInformation label,attachedtoyourvehicle, showsthesizeoftheoriginal equipmenttiresandthecorrect inflationpressureforthetireswhen theyarecold.SeeVehicleLoad Limits→224,foranexampleofthe TireandLoadingInformationlabel anditslocation.AlsoseeTire Pressure→295.

TheTPMScanwarnaboutalow tirepressureconditionbutildoes notreplacenormaltire maintenance.See TireInspection 300, Tire Rotation 301 and Tires288.

Caution

Tiresealantmaterialsarenotall thesame.Anon-approvedtire sealantcoulddamagetheTPMS sensors.TPMSsensordamage causedbyusinganincorrecttire sealantisnotcoveredbythe vehiclewarranty.Alwaysuseonly theGMapprovedtiresealant availablethroughyourdealeror includedinthevehicle.

TPMSMalfunctionLightand Message

The TPMSwillnotfunctionproperly ifoneormoreoftheTPMSsensors aremissingorinoperable. Whenthe systemdetectsamalfunction, the lowtirewarninglightflashesfor aboutoneminuteandthenstayson fortheremainderoftheignition cycle. ADICwarningmessagealso displays. Themalfunctionlight and DICwarningmessagecomeonat eachignitioncycleuntiltheproblem

iscorrected. Someoftheconditions thatcancausethesetocome onare:

• Oneoftheroadtireshasbeen replacedwiththesparetire. The sparetiredoesnothavea TPMSsensor. Themalfunction lightandDICmessageshould gooffaftertheroadtireis replacedandthesensor matchingprocessisperformed successfully. See "TPMSSensor MatchingProcess" following.
• TheTPMSsensormatching processwasnotdoneornot completedsuccessfullyafter rotatingthetires.The malfunctionlightandtheDIC messageshouldgooffafter successfullycompleting the sensormatchingprocess.See "TPMSSensorMatching Process"following.
• OneormoreTPMSsensorsare missingordamaged. The malfunctionlightandtheDIC messageshouldgooffwhenthe TPMSsensorsareinstalledand

thesensormatchingprocessis performedsuccessfully.See yourdealerforservice.

• Replacementtiresorwheelsdo notmatchtheoriginalequipment tiresorwheels.Tiresandwheels otherthanthoserecommended couldpreventtheTPMSfrom functioningproperly.SeeBuying NewTires→302.
• Operatingelectronicdevicesor beingnearfacilitiesusingradio wavefrequenciessimilartothe TPMScouldcausetheTPMS sensorstomalfunction.

If the TPMS is not functioning properly it cannot detectorsignala lowtirecondition. Se your dealer for service if the TPMS malfunction light and DIC message comes on and stay on.

TPMSSensorMatching Process

EachTPMSsensorhasaunique identificationcode. Theidentification codeneedstobematchedtoanew tire/wheelpositionafterrotatingthe vehicle'stiresorreplacingoneor

moreoftheTPMSsensors.The TPMSsensormatchingprocess shouldalsobeperformedafter replacingasparetirewitharoad tirecontainingtheTPMSsensor. ThemalfunctionlightandtheDIC messagesshouldgooffatthenext ignitioncycle. Thesensorsare matchedtothetire/wheelpositions, usingaTPMSrelearntool,inthe followingorder:driversidefronttire, passengersidefronttire,passenger sidereartire,anddriversiderear. Seeyourdealerforserviceorto purchasearelearntool.ATPMS relearntoolcanalsobepurchased. SeeTirePressureMonitor SensorActivationToolat www.gmtoolsandequipment.comor call1-800-GMTOOLS (1-800-468-6657).

There are two minutes to match the first tire/wheel position, and five minutes overall to match all four tire/wheel positions. If it takes longer, them matching process stops and must be restarted.

TheTPMSsensormatching processis:

1. Settheparkingbrake.
2. Putanautomatictransmission inP(Park)oramanual transmissionin1(First)or R(Reverse).
3. TurntheignitiontoON/RUN with the engineoff. See Ignition Positions 228.
4. PressMENU to select the Vehicle Information Menu in the Driver Information Center (DIC).
5. Use the thumbwheel to scroll to the Tire Pressure Menultem screen.
6. PressSET/CLRtobeginthe sensormatchingprocess. Amessageaskingifthe processshouldbeginshould appear.
7. PressSET/CLRagainto confirmtheselection.

Thehornsoundstwiceto signalthereceiverisinrelearn modeandtheTIRE LEARNINGACTIVEmessage displaysontheDICscreen.

1. Startwiththedriverside fronttire.
2. Placetherelearntoolagainst thetiresidewall, nearthevalve stem. Thenpressthebuttonto activatetheTPMSsensor. Ahornchirpconfirmsthatthe sensoridentificationcodehas beenmatchedtothistireand wheelposition.
3. Proceed to the passengers side front tire, and repeat the procedure in Step 8.
4. Proceed to the passengers side reartire, and repeat the procedure in Step 8.
5. Proceedtothedriversiderear tire, and repeat the procedure in Step 8. The hornsound two timesto indicate the sensor identification code has been matched to the driversiderear tire, and the TPMS sensor

matchingprocessisnolonger active. The TIRELEARNING ACTIVEmessageontheDIC displayscreengoesoff.

1. TurntheignitiontoLOCK/OFF.
2. Setallfourtirestothe recommendedairpressure levelasindicatedontheTire andLoadingInformationlabel.

TireInspection

Werecommendthatthetires, includingthesparetire,ifthe vehiclehasone,beinspected forsignsofwearordamageat leastonceamonth.

Replacethetireif:

• Theindicatorsatthreeor moreplacesaroundthetire canbeseen.

• Thereiscordorfabric showingthroughthetire's rubber.

• Thetreadorsidewallis cracked, cut, orsnagged deepenoughtoshowcordor fabric.

• Thetirehasabump,bulge,orsplit.
• Thetirehasapuncture, cut, orotherdamagethatcannot berepairedwellbecauseof thesizeorlocationofthe damage.

TireRotation

Tiresshouldberotatedevery 12000km(7,500mi).See Maintenance Schedule→332.

Tiresarerotatedtoachievea moreuniformwearforalltires. Thefirstrotationisthemost important.

Anytimeunusualwearis noticed, rotatethetiresassoon aspossible, checkforpropertire inflationpressure, andcheckfor damagedtiresorwheels. If the unusualwearcontinuesafterthe

rotation, check the wheel alignment. See When It Is Time for New Tires → 302 and Wheel Replacement → 306.

Usethisrotationpatternwhen rotatingthetires.

Donotincludethecompact sparetireinthetirerotation.

Adjustthefrontandreartiresto therecommendedinflation pressureontheTireand LoadingInformationlabelafter thetireshavebeenrotated.See TirePressure→295and Vehicle LoadLimits→224.

ResettheTirePressureMonitor System.See TirePressure MonitorOperation→297.

Check that all wheel nuts are properly tightened. See "Wheel Nut Torque" under Capacities and Specifications 345.

Warning

Rustordirtonawheel,oronthe partstowhichitisfastened,can makewheelnutsbecomeloose aftertime. Thewheelcouldcome offandcauseanaccident.When changingawheel,removeany rustordirtfromplaceswherethe wheelattachestothevehicle.In anemergency,aclothorapaper towelcanbeused;however,use ascaperorwirebrushlaterto removeallrustordirt.

Lightlycoatthecenterofthe wheelhubwithwheelbearing greaseafterawheelchangeor tirerotationtopreventcorrosion orrustbuild-up.Donotget

302VehicleCare

greaseontheflatwheel mountingsurfaceoronthe wheelnutsorbolts.

WhenItIsTimeforNew Tires

Factors such as maintenance, temperatures, drivingspeeds, vehicleloading, and road conditions affect the wear rate of the tires.

Diagram of interlocking cylindrical structures with directional arrows indicating movement or force (no text or symbols)

Treadwearindicatorsareonewayto tellwhenitistimefornewtires. Treadwearindicatorsappearwhen thetireshaveonly1.6mm(1/16in)

orlessoftreadremaining. See TireInspection→300 and TireRotation→301.

Therubberintiresagesovertime. Thisalsoappliestothesparetire, ifthevehiclehasone,evenifitis neverused.Multiplefactors includingtemperatures,loading conditions,andinflationpressure maintenanceaffecthowfastaging takesplace.GMrecommendsthat tires,includingthespareif equipped,bereplacedaftersix years,regardlessoftreadwear.The tiremanufacturedateisthelastfour digitsoftheDOTTireIdentification Number(TIN)whichismoldedinto onesideofthetiresidewall.The firsttwodigitsrepresenttheweek (01-52)andthelasttwodigits,the year.Forexample,thethirdweekof theyear2010wouldhavea four-digitDOTdateof0310.

VehicleStorage

Tiresagewhenstorednormally mountedonaparkedvehicle.Park avehiclethatwillbestoredforat leastamonthinacool,dry,clean areaawayfromdirectsunlightto

slowaging. This are should be free of grease, gasoline, or other substance that candeteriorate rubber.

Parkingforanextendedperiodcan causeflatspotsonthetiresthat mayresultinvibrationswhile driving. Whenstoringavehiclefor atleastamonth,removethetiresor raisethevehicletoreducethe weightfromthetires.

BuyingNewTires

GMhasdevelopedandmatched specifictiesforthevehicle.The originalequipmenttiresinstalled werdesignedtomeetGeneral MotorsTirePerformanceCriteria Specification(TPCSpec) systemrating.When replacementtiresareneeded, GMstronglyrecommends buyingtireswiththesameTPC Specrating.

GM's exclusive TPCSpec system considers over a dozen critical specification that impact the overall performance of the

vehicle, including brakesystem performance, ride and handling, traction control, and tire pressure monitoring performance. GM's TPCSpec number is molded onto the tire's sidewall near the tiresize. If the tires have an all-season tread design, the TPCSpec number will be followed by MS formud and snow. See Tire Sidewall Labeling 290.

GMrecommendsreplacingworn tiresincompletesetsoffour. Uniformtreaddepthonalltires willhelptomaintainthe performanceofthevehicle. Brakingandhandling performancemaybeadversely affectedifallthetiresarenot replacedatthesametime. Ifproperrotation and maintenancehavebeendone, allfourtiressshouldwearoutat aboutthesametime.See Tire Rotation→301.However,ifitis

necessarytoreplaceonlyone axlesetofworntires, placethe newtiresontherearaxle.
Wintertireswiththesamespeed ratingastheoriginalequipment tiresmaynotbeavailableforH, V,W,YandZRspeedrated tires.Neverexceedthewinter tires'maximumspeedcapability whenusingwintertireswitha lowerspeedrating.

Warning

Tirescouldexplodeduring improperservice.Attempting tomountordismountatire couldcauseinjuryordeath. Onlyyourdealerorauthorized tireservicecentershould mountordismountthetires.

Warning

Mixingtiresofdifferentsizes, brands,ortypesmaycause lossofcontrolofthevehicle, resultinginacrashorother vehicledamage. Use the correctsize,brand,andtype oftiresonallwheels.

Warning

Usingbias-plytiresonthe vehiclemaycausethewheel rimflangestodevelopcracks aftermanymilesofdriving. Atireand/orwheelcouldfail suddenlyandcauseacrash. Useonlyradial-plytireswith thewheelsonthevehicle.

Ifthevehicletiresmustbe replacedwithatirethatdoesnot haveaTPCSpecnumber,make suretheyarethesamesize,

304VehicleCare

loadrange, speedrating, and construction(radial)asthe originaltires.

Vehiclesthathaveatire pressuremonitoringsystem couldgiveaninaccurate low-pressurewarningifnon-TPC Specratedtiresareinstalled. See TirePressureMonitor System→296.

The Tire and Loading Information label indicates the originalequipment tires on the vehicle. See Vehicle Load Limits 224.

DifferentSizeTiresand Wheels

Ifwheelsortiresareinstalledthat areadifferentsizethantheoriginal equipmentwheelsandtires,vehicle performance,includingitsbraking, rideandhandlingcharacteristics, stability,andresistancetorollover maybeaffected.Ifthevehiclehas electronicsystemssuchasantilock brakes,rolloverairbags,rollbars,

tractioncontrol, electronicstability control, or All-WheelDrive, the performanceofthesesystemscan also affected.

Warning

If differentsizedwheelsareused, theremaynotbeanacceptable levelofperformanceandsafetyif tiresnotrecommendedforthose wheelsareselected. This increases the chance of acrash and serious injury. Only use GM specific wheelandtiresystems developed for the vehicle, and havethem properly installed by a GM certified technician.

SeeBuyingNewTires→302and Accessoriesand Modifications→255.

UniformTireQuality Grading

The following information relates to the system developed by the United States National Highway

TrafficSafetyAdministration (NHTSA), which gradestires by treadwear, traction, and temperature performance. This applies only to vehicle less sold in the United States. The grades are molded on the sidewall of most passenger cartires. The Uniform Tire Quality Grading (UTQG) system does not apply to deeptread, wintertires, compact spare tires, tires with nominal rim diameters of 10 to 12 inches (25 to 30 cm), ortosomelimited-production tires.

While the tires available on General Motors passengers cars and light trucks may vary with respect to these grades, they must also conform to federal safety requirements and additional General Motors Tire Performance Criteria (TPC) standards.

Qualitygradescanbefound whereapplicableonthetire sidewallbetweentreadshoulder andmaximumsectionwidth. For example:

Treadwear200TractionAA TemperatureA

All Passenger Car Tires Must Conform to Federal Safety Requirements In Addition To These Grades.

Treadwear

Thetreadweargradeisa comparativeratingbasedonthe wearrateofthetirewhentested undercontrolledconditionsona specifiedgovernmenttest course. Forexample, atire graded150wouldwearoneand one-half(1½)timesaswellon thegovernmentcourseasatire graded100. Therelative performanceoftiresdepends upontheactualconditionsof theiruse, however, andmay departsignificantlyfromthe

normduetovariationsindriving habits,servicepracticesand differencesinroad characteristicsandclimate.

Traction

Thetractiongrades, from highest to lowest, are AA, A, B, and C. Those grades represent the tire's ability to stop on wet pavement as measured under controlled condition on specified government test surfaces of asphalt and concrete. At remarked C may have poor traction performance. Warning: Thetraction grade assigned to histire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning, or peak traction characteristics.

Temperature

ThetemperaturegradesareA (thehighest), B, and C, representing the tire's resistance

tothegenerationofheatandits abilitytodissipateheatwhen testedundercontrolled conditionsonaspecifiedindoor laboratorytestwheel.Sustained hightemperaturecancausethe materialofthetiretodegenerate andreducetirelife,and excessivetemperaturecanlead tosuddentirefailure.Thegrade Ccorrespondstoalevelof performancewhichall passengercartiresmustmeet undertheFederalMotorSafety StandardNo.109.GradesBand Arepresenthigherlevelsof performanceonthelaboratory testwheelthanthemminum requiredbylaw.Warning:The temperaturegradeforthistireis establishedforatirethatis properlyinflatedandnot overloaded.Excessivespeed, underinflation,orecessive loading,eitherseparatelyorin combination,cancauseheat buildupandpossibletirefailure.

WheelAlignmentandTire Balance

Thetiresandwheelswerealigned andbalancedatthefactoryto providethelongesttirelifeandbest overallperformance.Adjustmentsto wheelalignmentandtirebalancing arenotnecessaryonaregular basis.Consideranalignmentcheck ifthereisunusualtirewearorthe vehicleissignificantlypullingtoone sideortheother.Someslightpullto thelefttorright,dependingonthe crownoftheroadand/orotherroad surfacevariationssuchastroughs orruts,isnormal.Ifthevehicleis vibratingwhendrivingonasmooth road,thetiresandwheelsmayneed toberebalanced.Seeyourdealer forproperdiagnosis.

WheelReplacement

Replaceanywheelthatisbent, cracked,orbadlyrustedor corroded.Ifwheelnutskeepcoming loose,thewheel,wheelbolts,and wheelnutsshouldbereplaced. Ifthewheelleaksair,replaceit.

Somealuminumwheelscanbe repaired. Seeyourdealerifanyof theseconditionsexist.

Yourdealerwillknowthekindof wheelthatisneeded.

Eachnewwheelshouldhavethe sameload-carryingcapacity, diameter,width,offset,andbe mountedthesamewayastheoneit replaces.

Replacewheels, wheelbolts, wheel nuts, or TirePressureMonitor System(TPMS)sensorswithnew GMoriginalequipmentparts.

Warning

Using the wrong replacement wheels, wheel bolts, or wheel nutscan be dangerous. It could affect the braking and handling of the vehicle. Tirescan lose air, and cause loss of control, causing a crash. Always use the correct wheel, wheel bolts, and wheel nuts for replacement.

Caution

The wrongwheel can also cause problem with bearing life, brake cooling, speedometer or odometer calibration, headlamp aim, bumper height, vehicle ground clearance, and tire or tire chain clearance to the body and chassis.

UsedReplacementWheels

Warning

Replacingawheelwithaused oneisdangerous.Howithas beenusedorhowfarithasbeen drivenmaybeunknown.Itcould failsuddenlyandcauseacrash. Whenreplacingwheels,usea newGMoriginalequipment wheel.

TireChains

Warning

Donotusetirechains. Thereis notenoughclearance. Tirechains usedonavehiclewithoutthe properamountofclearancecan causedamagetothebrakes, suspension,orothervehicle parts.Theareadamagedbythe tirechainscouldcauselossof controlandacrash.

Useanothertypeoftraction deviceonlyifitsmanufacturer recommendsitforthevehicle's tiresizecombinationandroad conditions.Followthat manufacturer'sinstructions.To avoidvehicledamage,driveslow andreadjustorremovethe tractiondeviceifitcontactsthe vehicle.Donotspinthewheels. Iftractiondevicesareused,install themonthefronttires.

IfaTireGoesFlat

Itisunusualforatiretoblowout whiledriving,especiallyifthetires aremaintainedproperly.See Tires →288.Ifairgoesoutofatire,itis muchmorelikelytoleakoutslowly. Butifthereeverisablowout,here areafewtipsaboutwhattoexpect andwhattodo:

Ifafronttirefails,theflattire createsadragthatpullsthevehicle towardthatside.Takeyourfootoff theacceleratorpedalandgripthe steeringwheelfirmly.Steerto maintainlaneposition,andthen gentlybraketoastop,welloffthe road,ifpossible.

Arearblowout,particularlyona curve,actsmuchlikeaskidand mayrequirethesamecorrectionas usedinaskid. Stoppressingthe acceleratorpedalandsteerto straightenthevehicle. Itmaybe verybumpyandnoisy. Gentlybrake toastop, wellofftheroad, ifpossible.

Warning

Drivingonaflattirewillcause permanentdamagetothetire. Re-inflatingatireafterithasbeen drivenonwhileseverely underinflatedorflatmaycausea blowoutandaseriouscrash. Neverattempttore-inflateatire thathasbeendrivenonwhile severelyunderinflatedorflat. Haveyourdealeroranauthorized tireservicecenterrepairor replacetheflattireassoonas possible.

Warning

Liftingvehicleandgettingunder ittodomaintenanceorrepairsis dangerouswithoutthe appropriatesafetyequipmentand training.Ifajackisprovidedwith thevehicle,itisdesignedonlyfor changingaflattire.Ifitisusedfor anythingelse,youorotherscould

(Continued)

Warning(Continued)

bebadlyinjuredorkilledifthe vehicleslipsoffthejack.Ifajack isprovidedwiththevehicle,only useitforchangingaflattire.

Ifatiregoesflat, avoidfurthertire andwheeldamagebydrivingslowly toalevelplace, wellofftheroad, ifpossible. Turnonthehazard warningflashers. See Hazard WarningFlashers 122.

Warning

Changingatirecanbe dangerous. The vehiclecanslip off the jack and rollover or fall causing injury or death. Find a level placeto changethire. To help prevent the vehicle from moving:

1. Settheparkingbrakefirmly. (Continued)

Warning(Continued)

1. Putanautomatic transmission in P(Park) or a manual transmission in 1(First) or R(Reverse).
2. Turnofftheengineanddo notrestartwhilethevehicle israised.
3. Donotallowpassengersto remaininthevehicle.
4. Placewheelblocks, ifequipped, on both sides of the tire at the opposite corner of the tire being changed.

Whenthevehiclehasaflattire(2), usethefollowingexampleasa guidetoassistintheplacementof thewheelblocks(1), ifequipped.

1. WheelBlock(IfEquipped)
   2.FlatTire

The following information explains how to repair or change atire.

TireChanging

RemovingtheSpareTireand Tools

1. CenterWheelCapExtractor (IfEquipped)
   2.Strap
2. Screwdriver
   4.Jack
3. WheelWrenchandTowEye (InBag)

Toaccessthesparetireandtools:

1. Openthetrunk. See Trunk→29.
2. Lifttheloadfloor.

Close-up of a medical imaging device showing concentric circular components with a black arrow pointing to a central hub (no text or symbols visible)

1. Turntheretainernut counterclockwisetoremoveit.

Removethesparetire and placeitnearthetire being changed.

1. Removethejackandtoolsand placethemnearthetirebeing changed.

RemovingtheFlatTireand InstallingtheSpareTire

1. Doasafetycheckbefore proceeding. Seelfa Tire Goes Flat→307.

2. Ifequipped, removethewheel nutcapswithascrewdriveror flattoolcoveredwithasoft clothtoprotectthewheel.

Close-up of a car wheel with a mechanical component inserted, showing a close-up inset (no text or symbols)

1. If equipped, removethe center wheel cap by inserting the wheel cap extractor then pulling to remove it.

310VehicleCare

Illustration of a hand using a tool to trim a car tire, with a black arrow indicating clockwise motion (no text or symbols)

1. Turnthewheelwrench counterclockwisetoloosenall thewheelnuts, but donot removethemyet.
2. Placethejackunderthe vehicle.
3. Placethehextubeendofthe wheelwrenchoverthehex headofthejack.

Caution

Makesurethatthejacklifthead isinthecorrectpositionoryou maydamageyourvehicle.The repairswouldnotbecoveredby yourwarranty.

Diagram of a car with two wheels and a mechanical assembly below, showing alignment and mounting components (no text or symbols)

1. Position the jacklifthead at the jack location nearest the flattire.

Mechanical clamp assembly with a diamond-shaped frame and mechanical parts, shown in two views (no text or symbols visible)

1. Setthejacktothenecessary height. Positionitdirectlybelow thejackingpositionsoitdoes notslip.

Warning

Getting under a vehicle when it is lifted on a jack is dangerous. If the vehicles slip so off the jack, you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack.

Warning

Raisingthevehiclewiththejack improperlypositionedcan damagethevehicleandeven makethevehiclefall.Tohelp avoidpersonalinjuryandvehicle damage,besuretofitthejacklift headintotheproperlocation beforeraisingthevehicle.

Warning

Liftingvehicleandgettingunder ittodomaintenanceorrepairsis dangerouswithoutthe appropriatesafetyequipmentand training.Ifajackisprovidedwith thevehicle,itisdesignedonlyfor changingaflattire.Ifitisusedfor anythingelse,youorotherscould bebadlyinjuredorkilledifthe vehicleslipsoffthejack.Ifajack isprovidedwiththevehicle,only useitforchangingaflattire.

Mechanical assembly diagram showing a suspended linkage mechanism with a rotating arrow (no text or symbols)

1. Raisethejackbyturningthe handleclockwiseuntilitcomes incontactwiththe recommendedjackinglocation.

2. Raisethevehiclefarenough offthegroundsothereis enoughroomfortheroadtire tocleartheground.

Illustration of a hand adjusting a car wheel component with bolts (no text or symbols)

1. Remove allofthewheelnuts.

2. Removetheflattire.

Warning

Rustordirtonawheel,oronthe partstowhichitisfastened,can makewheelnutsbecomeloose aftertime.Thewheelcouldcome offandcauseanaccident.When changingawheel,removeany rustordirtfromplaceswherethe wheelattachestothevehicle.In anemergency,aclothorapaper

(Continued)

312VehicleCare

Warning(Continued)

towelcanbeused;however,use ascaperorwirebrushlaterto removeallrustordirt.

Illustration of a hand cleaning a car brake disc with a cloth (no text or symbols)

1. Remove any rustordirt from the wheel bolts, mounting surfaces, and spare wheel.
2. Placethecompactsparetire onthewheel-mountingsurface.

Warning

Neveruseoilorgreaseonbolts ornutsbecausethenutsmight comeloose. Thevehicle'swheel couldfalloff,causingacrash.

1. Reinstallthewheelnuts. Tighteneachnutbyhanduntil thewheelisheldagainst thehub.
2. Lowerthevehiclebyturning thejackhandle counterclockwise.

Warning

Wheelnutsthatareimproperlyor incorrectlytightenedcancause thewheelstobecomelooseor comeoff. Thewheelnutsshould beightenedwithatorquewrench tothepropertorquespecification afterreplacing. Followthetorque specificationsuppliedbythe aftermarketmanufacturerwhen usingaccessorylockingwheel

(Continued)

Warning(Continued)

nuts.See Capacities and Specifications→345fororiginal equipmentwheelnuttorque specifications.

Caution

Improperlytightenedwheelnuts canleadtobrakepulsation and rotordamage. To avoid expensive brakerepairs, evenly tightent the wheelnuts in the proper sequence and to the proper torquespecification. See Capacities and Specifications 345 forthewheelnuttorque specification.

1. Tightenthewheelnutsfirmlyin acrisscrosssequence, as shown.
2. Lowerthejackalltheway and removethejackfromunderthe vehicle.
3. Tightenthewheelnutsfirmly withthewheelwrench.

StoringaFlatorSpareTire andTools

Warning

Storingajack, atire, orother equipment in the passenger compartment of the vehicle could cause injury. In sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.

StoringtheFlatTireandTools

1. Replace the wheel wrench in the tool bag and the jack and tools in their original storage location.
2. Removethestrap.
3. Placetheflattireinthestorage compartmentwiththevalve stemup.

Mechanical assembly diagram showing a car wheel with attached gear and a close-up of the component (no text or symbols visible)

1. Placetheloopendofthestrap through the left rear cargo tie-down.

Placethehookendofthestrap throughtheloopandpullituntil thestrapissecurelyfastened tothecargotiedown.

314VehicleCare

Mechanical assembly diagram showing a belt switch and gear mechanism inside a vehicle (no text or symbols)

1. Insert the strap through the wheel, asshown.
2. Attach the hook to other right rearcargotie-down.
3. Tightenthestrapandsecureit usingthebuckle.
4. Replacetheloadfloor.

Thecompactspareisfortemporary useonly. Replacethecompact spare tire with a full-sizetireas soon as possible.

StoringtheCompactSpareTire andTools

Reversetheinstructionsfor removingthesparetireandtoolsto storethecompactsparetire.

CompactSpareTire

Warning

Drivingwithmorethanone compactsparetireatatimecould resultinlossofbrakingand handling. This could lead to a crash and you or others could be injured. Use only one compact sparetireatatime.

If this vehicle has a compact spare tire, it was fully inflated when new; however, it can lose airovertime. Check the inflation pressure regularly. It should be 420 kPa (60 psi).

Stopassoonaspossibleandcheck thatthesparetireiscorrectly inflatedafterbeinginstalledonthe vehicle. Thecompactsparetireis designedfortemporaryuseonly.

The vehicle will perform differently with the spare tire installed and it is recommended that the vehicle speed belimited to 80 km/h (50 mph). To conservethetread of the spare tire, havethe standard tire repaired or replaced as soon as convenient and return the spare tire to the storage area.

When using a compact spare tire, the AWD (ifequipped), ABS, and Traction Controls system may engage until the spare tire is recognized by the vehicle, especially on slippery roads. Adjust driving to reduce possible wheelslip.

Caution

Whenthecompactspareis installed, donottakethevehicle throughanautomaticcarwash withguiderails. Thecompact sparecangetcaughtontherails whichcandamagethetire, wheel, andotherpartsofthevehicle.

Donotusethecompactspareon othervehicles.

Donotmixthecompactsparetireor wheelwithotherwheelsortires. Theywillnotfit.Keepthesparetire anditswheeltogether.

Caution

Tirechainswillnotfitthecompact spare. Usingthemcandamage thevehicleandthechains.Donot usetirechainsonthecompact spare.

JumpStarting

JumpStarting-North America

Formoreinformationaboutthe vehiclebattery,seeBattery-North America271.

If the battery has rundown, try to use another vehicle and some jumpercable start your vehicle. Besuretousethe following step to do its safely.

Warning

WARNING: Batteryposts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of Californiatocause cancer and birth defects or other reproductive harm. Batteries also contain other chemicals known to the State of Californiatocause cancer. WASHHANDSAFTER HANDLING.

(Continued)

Warning(Continued)

See California Proposition 65Warning→255.

Warning

Batteriescanhurtyou. They can be dangerous because:

• Theycontainacidthatcan burnyou.
• Theycontainingasthatcan explodeorignite.
  • Theycontainenough electricitytoburnyou.

If you donot follow these steps exactly, some or all of these things can hurt you.

316VehicleCare

Caution

Ignoringthesestepscouldresult incostlydamagetothevehicle thatwouldnotbecoveredbythe vehiclewarranty.Tryingtostart thevehiclebypushingorpullingit willnotwork,anditcoulddamage thevehicle.

1. DischargedBattery NegativeGroundingPoint
2. DischargedBatteryPositive Terminal
3. GoodBatteryNegative Terminal

4. GoodBatteryPositive Terminal

Thejumpstartnegativegrounding point(1)forthedischargedbattery istheengineblockoranengine mountingbolt. Connecttoaspotas farawayfromthedischarged batteryaspossible.

Thejumpstartpositiveterminal(2) onthedischargedbatteryisinthe enginecompartmentonthedriver sideofthevehicle.

Thejumpstartnegativeterminal(3) andpositiveterminal(4) are on the battery of the vehicle providing the jumpstart.

Thepositivejumpstartconnection forthedischargedbatteryisundera trimcover.Openthecoverto exposetheterminal.

1. Check the other vehicle. It must have a 12-volt battery with an negative ground system.

Caution

If the other vehicle does not have a 12-voltsystem with an negative ground, both vehicles can be damaged. Only use vehicle that has a 12-voltsystem with a negative ground for jump starting.

1. Positionthetwovehiclesso thattheyarenottouching.
2. Set the parking brake firmly and put the shift lever in P(Park) with an automatic transmission, or Neutral with a manual transmission.

Caution

Ifanyaccessoriesareleftonor pluggedinduringthejump startingprocedure,theycouldbe damaged.Therepairswouldnot recoveredbythevehicle warranty.Wheneverpossible,turn offorunplugallaccessorieson eithervehiclewhenjumpstarting.

1. TurntheignitiontoLOCK/OFF. Turnoffalllightsand accessoriesinbothvehicles, exceptthehazardwarning flashersifneeded.

Warning

Anelectricfancanstartupeven whentheengineisnotrunning andcaninjureyou.Keephands, clothing,andtoolsawayfromany underhoodelectricfan.

Warning

Usingamatchnearabatterycan causebatterygastoexplode. Peoplehavebeenhurtdoingthis, andsomehavebeenblinded. Useaflashlightifyouneedmore light.

Batteryfluidcontainsacidthat canburnyou.Donotgetiton you.Ifyouaccidentallygetitin (Continued)

Warning(Continued)

youreyesoronyourskin, flush theplacewithwaterandget medicalhelpimmediately.

Warning

Fansorothermovingengine partscaninjureyoubadly.Keep yourhandsawayfrommoving partsoncetheengineisrunning.

1. Connectoneendofthered positive(+)cabletothe positive(+)terminalonthe dischargedbattery.

2. Connecttheotherendofthe redpositive(+)cabletothe positive(+)terminalofthegood battery.

3. Connectoneendoftheblack negative(−)cabletothe negative(−)terminalofthe goodbattery.

4. Connect the other end of the black negative (-) cable to the negative (-) grounding point for the discharged battery.

5. Start the engine in the vehicle with the good battery and run the engine at idles speed for at least four minutes.

6. Trytostartthevehiclethathad thedeadbattery.Ifitwillnot startafterafewtries,it probablyneedsservice.

Caution

If the jumpercables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. There pairs would not be covered by the vehicle warranty. Always connect and remove the jumpercables in the correct order, makingsure that the cables do not touch each other or other metal.

318VehicleCare

JumperCableRemoval

Reversethesequenceexactlywhen removingthejumpercables.

Afterstartingthedisabledvehicle andremovingthejumpercables, allowittoidleforseveralminutes.

TowingtheVehicle

Caution

Incorrectlytowingadisabled vehiclemaycausedamage. The damagewouldnotbecovered by thevehiclewarranty.

Donotlashorhookto suspensioncomponents. Use the properstrapsaroundthetiresto securethevehicle.

Havethevehicletowedonaflatbed carcarrier.Awheellifttowtruck coulddamagethevehicle.

Consultyourdealerora professionaltowingserviceifthe disabledvehiclemustbetowed.

Caution

Improperuseofthetoweyecan causevehicledamage. Use cautionandlowspeedsto preventdamagetothevehicle.

FrontTowEye

Close-up of a car's front bumper area with a black arrow pointing to the grille (no text or symbols visible)

Carefullyopenthecoverbyusing thesmallnotchthatconcealsthe fronttoweyesocket.

Close-up of a car door handle mechanism with a black arrow indicating rotation (no text or symbols)

Installthetoweyeintothesocketby turningitcounterclockwiseuntil stopsinahorizontalposition.

Whenthetoweyeisremoved, reinstallthecoverwiththenotchin theoriginalposition.

RearTowEye

Close-up of a car's side panel showing a small dark object and an arrow pointing to it (no text or symbols visible)

Carefullyopenthecoverbyusing thesmallnotchthatconcealsthe reartoweyesocket.

Close-up of a white plastic door with a metallic clip and a magnified view showing an arrow (no text or symbols)

Installthetoweyeintothesocketby turningitcounterclockwiseuntil stopsinahorizontalposition.

Whenthetoweyeisremoved, reinstallthecoverwiththenotchin theoriginalposition.

Totowthevehiclebehindanother vehicleforrecreationalpurposes, suchasbehindamotorhome,see RecreationalVehicle Towing→320.

Recreational Vehicle Towing

Recreationalvehicletowingmeans towingthevehiclebehindanother vehicle—suchasbehindamotor home. Thetwomostcommontypes ofrecreationalvehicletowingare knownasdinghytowinganddolly towing. Dinghytowingistowingthe vehiclewithallfourwheelsonthe ground. Dollytowingistowingthe vehiclewithtwowwheelsonthe groundandtwowheelsupona deviceknownasadolly.

Herearesomeimportantthingsto considerbeforerecreationalvehicle towing:

• Whatisthetowingcapacity of thetowingvehicle? Besureto readthetowvehicle manufacturer's recommendations.

• Howfarwillthevehiclebe towed?Somevehicleshave restrictionsonhowfarandhow longtheycantow.

• Doesthevehiclehavethe propertowingequipment? See yourdealerortrailering professionalforadditionaladvice andequipment recommendations.

• Isthevehiclereadytobe towed?Justaspreparingthe vehicleforalongtrip,makesure thevehicleispreparedtobe towed.

Caution

Useofashieldmountedinfront ofthevehiclegrillecouldrestrict airflowandcausedamagetothe transmission. Therepairswould notbecoveredbythevehicle warranty. Ifusingashield, only useonethatattachestothetowingvehicle.

DinghyTowing

Illustration of a bus connected to a car with a no-smoking symbol (no text or labels)

Caution

If the vehicle is bestowed with all four wheels on the ground, the drivetrain components could be damaged. There pairs would not be covered by the vehicle warranty. Donottow the vehicle with all four wheels on the ground.

The vehicle was not designed to be towed with all four wheels on the ground. If the vehicle must be towed, adolly should be used. See "Dolly Towing" following.

DollyTowing

Illustration of a car being pulled off from a bus (no text or symbols)

Towthevehiclewiththetworear wheelsonthegroundandthefront wheelsonadolly.

Totowthevehiclewithtwowheels onthegroundandadolly:

1. Putthefrontwheelsonadolly.
2. PuttheshiftleverinP(Park).
3. Securethevehicletothedolly.

Illustration of a car being stopped by a bus, with no visible text or symbols

Caution

Towingthevehiclefromtherear coulddamageit.Also,repairs wouldnotbecoveredbythe vehiclewarranty.Neverhavethe vehicletowedfromtherear.

AppearanceCare

ExteriorCare

Locks

Locksarelubricatedatthefactory. Useade-icingagentonlywhen absolutelynecessary, and havethe locksgreasedafterusing. See RecommendedFluidsand Lubricants341.

WashingtheVehicle

Topreservethevehicle'sfinish, washitoftenandoutofdirect sunlight.

Caution

Donotusepetroleum-based, acidic,orabrasivecleaning agentsastheycandamagethe vehicle'spaint,metal,orplastic parts. Ifdamageoccurs,itwould notbecoveredbythevehicle warranty.Approvedcleaning productscanbeobtainedfrom

(Continued)

Caution(Continued)

yourdealer.Followall manufacturerdirectionsregarding correctproductusage,necessary safetyprecautions,and appropriatedisposalofany vehiclecareproduct.

Caution

Avoidusinghigh-pressure washescloserthan30cm(12in) tothesurfaceofthevehicle.Use ofpowerwashersexceeding 8,274kPa(1,200psi)canresult indamageorremovalofpaint anddecals.

Caution

Donotpowerwashany componentunderthehoodthat hasthis symbol.

(Continued)

Caution(Continued)

This could cause damage that would not be recovered by the vehicle warranty.

Ifusinganautomaticcarwash, followthecarwashinstructions. The windshieldwiperandrearwindow wiper,ifequipped,mustbeoff. Removeanyaccessoriesthatmay bedamagedorinterferewiththecar washequipment.

Rinsethevehiclewell, before washing and after, to remove all cleaning agents completely. If they are allowed today on the surface, they could stain.

Drythefinishwithasoft,clean chamoisoranall-cottontowelto avoidsurfacescratchesandwater spotting.

ConvertibleTopCare

Frequentlyhandwashconvertible topswithmildcarwashsoap.Never useastiffbrush,steam,bleach, oraggressivecleaners.

If necessary, asoftbrush can be used to removed dirt. When finished cleaning, thoroughly rinsethefabric. Avoid automatic car washes with overhead brushes or very high pressures sprays asthey can cause damage and leaking.

Only lower the top when it is completely dry and avoid leaving the top lowered forextended period soft to metoprevent excessive interior weathering.

Avoidleavinglargeamountsof snowonthetopforextended periodsoftimeasdamagemayalso occur.

FinishCare

Applicationofaftermarketclearcoat sealant/waxmaterialsisnot recommended. Ifpaintedsurfaces aredamaged, seeyourdealerto havethedamageassessed and repaired. Foreignmaterialssuchas calciumchlorideandothersalts, ice meltingagents, roadoilandtar, tree sap, birddroppings, chemicalsfrom industrialchimneys, etc., can damagethevehicle'sfinishifthey remainonpaintedsurfaces. Wash

thevehicleassoonaspossible. Ifnecessary,usenon-abrasive cleanersthataremarkedsafefor paintedsurfacestoremoveforeign matter.

Occasionalhandwaxingormild polishingshouldbedonetoremove residuefromthepaintfinish.See yourdealerforapprovedcleaning products.

Donotapplywaxesorpolishesto uncoatedplastic, vinyl, rubber, decals, simulatedwood, or flatpaint as damage can occur.

Caution

Machine compoundingor aggressive polishingona basecoat/clearcoatpaintfinish may damage it. Use only non-abrasivewaxes and polishes that are made for a basecoat/clearcoat paint finish on the vehicle.

Tokeep the paint finish looking new, keep the vehicle Garagedor covered whenever possible.

Protecting Exterior Bright Metal Moldings

Caution

Failuretocleanandprotectthe brightmetalmoldingscanresult inahazywhitefinishorpitting. Thisdamagewouldnotbe coveredbythevehiclewarranty.

Thebrightmetalmoldingsonthe vehiclearealuminum,chromeor stainlesssteel. Topreventdamage alwaysfollowthesecleaning instructions:

• Besurethemoldingiscoolto thetouchbeforeapplyingany cleaningsolution.
• Useonlyapprovedcleaning solutionsforaluminum,chrome orstainlesssteel.Some cleanersarehighlyacidicor containalkalinesubstancesand candamagethemoldings.

• Alwaysdiluteaconcentrated cleaneraccordingtothe manufacturer'sinstructions.

• Donotusecleanersthatarenot intendedforautomotiveuse.

• Useanonabrasivewaxonthe vehicleafterwashingtoprotect andextendthemoldingfinish.

CleaningExteriorLamps/ Lenses, Emblems, Decals, and Stripes

Useonlylukewarmorcoldwater,a softcloth,andacarwashingsoap tocleanexteriorlamps,lenses, emblems,decals,andstripes. Followinstructionsunder"Washing theVehicle"previouslyinthis section.

Lampcoversaremadeofplastic, andsomehaveaUVprotective coating.Donotcleanorwipethem whendry.

Donotuseanyofthefollowingon lampcovers:

• Abrasiveorcausticagents.
• Washerfluidsandothercleaning agentsinhigherconcentrations thansuggestedbythe manufacturer.

324VehicleCare

• Solvents, alcohols, fuels, orotherharshcleaners.
  • Icescrapersorotherharditems.
• Aftermarketappearancecapsor coverswhilethelampsare illuminated,duetoexcessive heatgenerated.

Caution

Failure to clean lamps properly can cause damage to the lamp cover that would not be covered by the vehicle warranty.

Caution

Usingwaxonlowglossblack finishstripescanincreasethe glosslevelandcreatea non-uniformfinish.Cleanlow glossstripeswithsoapand wateronly.

AirlIntakes

Cleardebrisfromtheairintakes, betweenthehoodandwindshield, whenwashingthevehicle.

WindshieldandWiperBlades

Cleantheoutsideofthewindshield withglasscleaner.

Cleanrubberbladesusingalint-free clothorpapertowelsoakedwith windshieldwasherfluidoramild detergent.Washthewindshield thoroughlywhencleaningthe blades.Bugs,roadgrime,sap,and abuildupofvehiclewash/wax treatmentsmaycausewiper streaking.

Replacethewiperbladesiftheyare wornordamaged. Damagecanbe causedbyextremedusty conditions,sand,salt,heat,sun, snow,andice.

Weatherstrips

ApplyDielectricsiliconegreaseon weatherstripstomakethemlast longer,sealbetter,andnotstickor squeak.Lubricateweatherstripsat leastonceayear.Hot,dryclimates

mayrequiremorerefrequent application.Blackmarksfrom rubbermaterialonpaintedsurfaces canberemovedbyrubbingwitha cleancloth.SeeRecommended FluidsandLubricants⇒341.

Tires

Useastiffbrushwithtirecleanerto cleanthetires.

Caution

Using petroleum-based tire dressing product on the vehicle may damage the paint finish and ortires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on the vehicle.

WheelsandTrim—Aluminum orChrome

Useasoft,cleanclothwithmild soapandwatertocleanthewheels. Afterrinsingthoroughlywithclean water,drywithasoft,cleantowel. Awaxmaythenbeapplied.

Caution

Chromewheelsandotherchrome trimmaybedamagedifthe vehicleisnotwashedafterdriving onroadsthathavebeensprayed withmagnesium,calcium, orsodiumchloride. These chloridesareusedonroadsfor conditionssuchasiceanddust. Alwayswashthechromewith soapandwaterafterexposure.

Caution

Toavoidsurfacedamage, donot usestrongsoaps, chemicals, abrasivepolishes, cleaners, brushes, orcleanersthatcontain acidonaluminumor chrome-platedwheels. Useonly approvedcleaners. Also, never driveavehiclewithaluminumor chrome-platedwheelsthroughan automaticcarwashthatuses siliconecarbidetirecleaning

(Continued)

Caution(Continued)

brushes. Damagecouldoccur andtherepairswouldnotbe coveredbythevehiclewarranty.

BrakeSystem

Visuallyinspectbrakelinesand hosesforproperhook-up, binding, leaks, cracks, chafing, etc. Inspect discbrakepadsforwearandrotors for surfacecondition. Inspectdrum brakelinings/shoesforwearor cracks. Inspectallotherbrakeparts.

Steering, Suspension, and ChassisComponents

Visuallyinspectsteering, suspension, and chassis components for damaged, loose, or missing parts or sign sof wear at least once a year.

Inspectpowersteeringforproper hook-up, binding, leaks, cracks, chafing, etc.

Visuallycheckconstantvelocityjoint bootsandaxlesealsforleaks.

BodyComponentLubrication

Lubricateallkeylockcylinders, hoodhinges, liftgatehinges, and the steelfueldoorhinges, unless the components are plastic. Applying silicone grease on weather strips with aclean cloth will make them last longer, seal better, and not stick or squeak.

UnderbodyMaintenance

Atleasttwiceayear,springandfall, useplainwatertoflushany corrosivematerialsfromthe underbody.Takecaretothoroughly cleananyareaswheremudand otherdebriscancollect.

Donotdirectlypowerwashthe transfercaseand/orfront/rearaxle outputseals. Highpressurewater canovercometheseals and contaminatethefluid. Contaminated fluidwilldecreasethelifeofthe transfercaseand/oraxlesand shouldbereplaced.

SheetMetalDamage

If the vehicle is damaged and requires sheet metal repair or replacement, makes sure the body repair shop applies anti-corrosion material to parts repaired or replaced to restore corrosion protection.

Original manufacturer replacement partswillprovidethe corrosion protectionwhilemaintainingthe vehiclewarranty.

FinishDamage

Quicklyrepairminorchipsand scratcheswithtouch-upmaterials availablefromyourdealertoavoid corrosion.Largerareasoffinish damagecanbecorrectedinyour dealer'sbodyandpaintshop.

ChemicalPaintSpotting

Airbornepollutantscanfallupon andattackpaintedvehiclesurfaces causingblotchy, ring-shaped discolorations, and small, irregular darkspotsetched into the paint surface. See "FinishCare" previously in this section.

InteriorCare

Topreventdirtparticleabrasions, regularlycleanthevehicle'sinterior. Immediatelyremoveanysoils. Newspapersordarkgarmentscan transfercolortothevehicle's interior.

Useasoftbristlebrushtoremove dustfromknobsandcrevicesonthe instrumentcluster. Usingamild soapsolution,immediatelyremove handlotions,sunscreen,andinsect repellentfromallinteriorsurfacesor permanentdamagemayresult.

Usecleanersspecificallydesigned forthesurfacesbeingcleanedto preventpermanentdamage.Apply allcleanersdirectlytothecleaning cloth.Donotspraycleanersonany switchesorcontrols.Remove cleanersquickly.

Beforeusingcleaners,readand followwallsafetyinstructionsonthe label.Whilecleaningtheinterior, openedoorsandwindowstoget properventilation.

Topreventdamage, donotclean the interior using the following cleanersortechniques:

• Neverusearazororanyother sharpobjecttoremovesoilfrom anyinteriorsurface.
• Neveruseabrushwithstiff bristles.

- Neverrubanysurface aggressivelyorwithtoomuch pressure.

- Donotuselaundrydetergentsor dishwashingsoapswith degreasers. For liquid cleaners, use approximately 20 drops per 3.8L (1gal) of water. Aconcentrated soapsolution will create streaks and attract dirt. Donot uses solution that contain strongor caustic soap.

- Donotheavilysaturatethe upholsterywhencleaning.

- Donotusesolventsorcleaners containingsolvents.

InteriorGlass

Toclean, useaterryclothfabric dampenedwithwater. Wipedroplets leftbehindwithacleandrycloth. If necessary, useacommercial glasscleaneraftercleaningwith plainwater.

Caution

Topreventscratching,neveruse abrasivecleanersonautomotive glass.Abrasivecleanersor aggressivecleaningmaydamage therearwindowdefogger.

Cleaning the windshield with water during the first three months of ownership will reduce tendency to fog.

SpeakerCovers

Vacuumaroundaspeakercover gently, so that the speaker will not be damaged. Cleanspot with water and mild soap.

CoatedMoldings

Coatedmoldingsshouldbecleaned.

• When lightly soiled, wipewith a spongeorsoft, lint-freecloth dampened with water.
• Whenheavilysoiled,usewarm soapywater.

Fabric/Carpet/Suede

Startbyvacuumingthesurface usingasoftbrushattachment.lfa rotatingvacuumbrushattachmentis beingused,onlyuseitonthefloor carpet.Beforecleaning,gently removeasmuchofthesoilas possible:

• Gentlyblotliquidswithapaper towel. Continueblottinguntilno moresoilcanberemoved.
• Forsolidsoils, removeasmuch aspossibleprioritovacuuming.

Toclean:

1. Saturateaclean, lint-free colorfastclothwithwater. Microfiberclothis recommendedtopreventlint transfertothefabricorcarpet.

2. Remove excess moisture by gently wringing until water does not drip from the cleaning cloth.
   3.Startontheoutsideedgeofthe soilandgentlyrubtowardthe center.Foldthecleaningcloth toacleanareafrequentlyto preventforcingthesoilintothe fabric.

3. Continue gently rubbing the soiled area until there is no longer any color transfer from the soil to the cleaning cloth.
4. If the soil is not completely removed, use a mild soap solution followed only by plain water.

Ifthesoilisnotcompletely removed, it may be necessary to use a commercial upholstery cleaner or spot lifter. Testasmall hidden area for color fastness before using a commercial upholstery cleaner or spot lifter. If ring formation occurs, clean the entire fabric or carpet.

Aftercleaning, useapapertowel to blotexcessmoisture.

CleaningHighGlossSurfaces and VehicleInformationand RadioDisplays

Useamicrofiberclothonhighgloss surfacesorvehicledisplays.First, useasoftbristlebrushtoremove dirtthatcanscratchthesurface. Thengentlycleanbyrubbingwitha microfibercloth.Neverusewindow cleanersorsolvents.Periodically handwashthemicrofibercloth separately,usingmildsoap.Donot usebleachorfabricsoftener.Rinse thoroughlyandairdrybefore nextuse.

Caution

Donotattachadevicewitha suctioncuptothedisplay. This maycausedamageandwould notbecoveredbythevehicle warranty.

InstrumentPanel, Leather, Vinyl, Other Plastic Surfaces, Low Gloss Paint Surfaces, and Natural Open Pore Wood Surfaces

Useasoftmicrofibercloth dampenedwithwatertoremove dustandloosedirt.Foramore thoroughcleaning,useasoft microfiberclothdampenedwitha mildsoapsolution.

Caution

Soakingorsaturatingleather, especially perforatedleather, as wellasotherinteriorsurfaces, may cause permanent damage. Wipe excess moisture from these surfaces after cleaning and allow them todrynaturally. Never use heat, steam, or spotremovers. Do not use cleaner that contain siliconeor wax-based products. Cleaners containing these solvent scan permanently change

(Continued)

Caution(Continued)

theappearanceandfeelof leatherorsofttrim,andarenot recommended.

Donotusecleanersthatincrease gloss,especiallyontheinstrument panel. Reflectedglarecandecrease visibilitythroughthewindshield undercertainconditions.

Caution

Useofairfreshenersmaycause permanentdamagetoplastics and paintedsurfaces. Ifanair freshenercomesincontactwith anyplasticorpaintedsurface in the vehicle, blotimmediately and cleanwithasoftclothdampened withamildsoapsolution. Damagecausedbyairfresheners wouldnotbecoveredbythe vehiclewarranty.

CargoCoverand ConvenienceNet

Washwithwarmwaterandmild detergent. Donotusechlorine bleach. Rinsewithcoldwater, and thendrycompletely.

CareofSafetyBelts

Keepbeltscleananddry.

Warning

Donotbleachordyesafetybelt webbing. It may severely weaken the webbing. In a crash, they might not be able to provide adequate protection. Clean and rinses safety belt webbing only with mild soap and lukewarm water. Allow the webbing today.

FloorMats

Warning

Ifafloormatisthewrongsizeor isnotproperlyinstalled, itcan interferewiththepedals. Interferencewiththepedalscan causeunintendedacceleration and/orincreasedstopping distancewhichcancauseacrash andinjury. Makesurethefloor matdoesnotinterferewiththe pedals.

Usethefollowingguidelinesfor properfloormatusage:

- Theoriginalequipmentfloor matsweredesignedforyour vehicle.Ifthefloormatsneed replacing,itisrecommended thatGMcertifiedfloormatsbe purchased.Non-GMfloormats maynotfitproperlyandmay interferewiththepedals.Always checkthatthefloormatsdonot interferewiththepedals.

• Donotuseafloormatifthe vehicleisnotequippedwitha floormatretaineronthedriver sidefloor.
• Usethefloormatwiththe correctsideup.Donotturn itover.
• Donotplaceanythingontopof theriversidefloormat.
• Useonlyasinglefloormaton theriverside.
• Donotplaceonefloormaton topofanother.

330VehicleCare

RemovingandReplacingthe FloorMats

Pullupontherearofthefloormat tounlockeachretainerandremove.

Interior view of a car showing the dashboard and steering wheel (no text or symbols visible)

Reinstallbyliningupthefloormat retaineropeningsoverthecarpet retainersandsnapintoposition.

Makesurethefloormatisproperly securedinplace.

Verifythefloormatdoesnot interferewiththepedals.

Service and Maintenance

GeneralInformation

GeneralInformation......331

MaintenanceSchedule

MaintenanceSchedule.....332

SpecialApplicationServices

SpecialApplication

Services......338

Additional Maintenance and Care

AdditionalMaintenance

andCare....338

RecommendedFluids, Lubricants,andParts

RecommendedFluidsand

Lubricants....341

MaintenanceReplacement

Parts....342

MaintenanceRecords

MaintenanceRecords......343

GeneralInformation

Yourvehicleisanimportant investment. Thissectiondescribes therequiredmaintenanceforthe vehicle.Followthischeduletohelp protectagainstmajorrepair expensesresultingfromneglector inadequatemaintenance.Itmay alsohelptomaintainthevalueof thevehicleifitissold.Itisthe responsibilityoftheownertohave allrequiredmaintenanceperformed.

Yourdealerhastrainedtechnicians whocanperformrequired maintenanceusinggenuine replacementparts.Theyhave up-to-datetoolsandequipmentfor fastandaccuratediagnostics.Many dealershaveextendedeveningand Saturdayhours,courtesy transportation,andonline schedulingtoassistwithservice needs.

Yourdealerrecognizesthe importanceofproviding competitivelypricedmaintenance andrepairservices.Withtrained technicians,thedealeristheplace forroutinemaintenancesuchasoil

changesandtirerotationsand additionalmaintenanceitemslike tires,brakes,batteries,andwiper blades.

Caution

Damagecausedbyimproper maintenancecanleadtocostly repairsandmaynotbecovered bythevehiclewarranty. Maintenanceintervals,checks, inspections,recommendedfluids, andlubricantsareimportantto keepthevehicleingoodworking condition.

The Tire Rotation and Required Services are theresponsibility of the vehicle owner. It is recommended to have your dealer perform these services every 12000 km/7,500 mi. Proper vehicle maintenance helps to keep the vehicle in good working condition, improves fuel economy, and reduces vehicle emissions.

Becauseofthewaypeopleuse vehicles, maintenanceneedsvary. Theremayneetobemore

332ServiceandMaintenance

frequentchecksandservices. The AdditionalRequiredServices-Normalareforvehiclesthat:

• Carrypassengersandcargo withinrecommendedlimitson the Tire and Loading Information label. See Vehicle Load Limits 224.
• Aredrivenonreasonableroad surfaceswithinlegaldriving limits.
• Usetherecommendedfuel.See Fuel→249.

Refertotheinformationinthe MaintenanceScheduleAdditional RequiredServices-Normalchart.

TheAdditionalRequiredServices-Severeareforvehiclesthatare:

• Mainlydriveninheavycitytraffic inhotweather.
  • Mainlydriveninhillyor mountainousterrain.
• Frequentlytowingatraler.
  • Usedforhighspeedor competitivedriving.

- Usedfortaxi, police, ordelivery service.

Refertotheinformationinthe MaintenanceScheduleAdditional RequiredServices-Severechart.

Warning

Performingmaintenanceworkcan bedangerousandcancause seriousinjury.Perform maintenanceworkonlyifthe requiredinformation,propertools, andequipmentareavailable. Iftheyarenot,seeyourdealerto haveatrainedtechniciandothe work.SeeDoingYourOwn ServiceWork→256.

Maintenance Schedule

OwnerChecksandServices

AtEachFuelStop

- Checktheengineoillevel.See EngineOil→260.

OnceaMonth

• Checkthetireinflation pressures. See Tire Pressure→295.
• Inspectthetiresforwear.See TireInspection→300.
• Checkthewindshieldwasher fluidlevel.See Washer Fluid ^269 .

EngineOilChange

WhentheCHANGEENGINEOIL SOONmessagedisplays,havethe engineoilandfilterchangedwithin thenext1000km/600mi. Ifdriven underthebestconditions,the engineoillifesystemmaynot indicateetheneedforvehicleservice foruptoayear.Theengineoiland filtermustbechangedatleastonce ayearandtheoillifesystemmust bereset.Yourtraineddealer techniciancanperformthiswork. Iftheengineoillifesystemisreset accidentally,servicethevehicle within5000km/3,000misincethe lastservice.Resettheoillife systemwhentheoilischanged. SeeEngineOilLifeSystem→262.

TireRotationandRequired ServicesEvery12000km/7,500mi

Rotatethetires, if recommended for the vehicle, and perform the followingservices. See Tire Rotation 301.

• Checkengineoillevelandoil lifepercentage.Ifneeded, changeengineoilandfilter,and resetoillifesystem.SeeEngine Oil⇒260andEngineOilLife System⇒262.
• Checkenginecoolantlevel.See EngineCoolant→265.
• Checkwindshieldwasherfluid level. See WasherFluid→269.
• Visuallyinspectwindshieldwiper bladesforwear, cracking, orcontamination and replace wornordamagedblades. See ExteriorCare→321. Replace wiperblades every 20000km/12,000mior 12 months. See WiperBlade Replacement→273.

• Checktireinflationpressures. See TirePressure→295.

• Inspecttirewear.See Tire Inspection→300.

• Visuallycheckforfluidleaks.
• Inspectengineaircleanerfilter. SeeEngineAirCleaner/Filter→263.
• Inspectbrakesystem.See ExteriorCare→321.
• Visuallyinspectsteering, suspension,andchassis componentsfordamaged,loose, ormissingpartsorsignsof wear.SeeExteriorCare→321.
• Checkrestraintsystem components.SeeSafetySystem Check⇔57.
• Visuallyinspectfuelsystemfor damageorleaks.
• Visuallyinspectexhaustsystem andnearbyheatshieldsfor looseordamagedparts.
• Lubricatebodycomponents.See ExteriorCare→321.
• Checkstarterswitch.SeeStarter SwitchCheck→272.

334ServiceandMaintenance

• Checkautomatictransmission shiftlockcontrolfunction.See AutomaticTransmissionShift LockControlFunction Check→272.
• Checkignitiontransmissionlock. SeelgnitionTransmissionLock Check→273.
• Checkparkingbrakeand automatictransmissionpark mechanism. See Park Brake and P(Park) Mechanism Check 273.
• Checkacceleratorpedalfor damage, higheffort, orbinding. Replace if needed.
• Visuallyinspectgasstrutfor signsofwear,cracks,orother damage.Checktheholdopen abilityofthestrut.Seeyour dealerifserviceisrequired.

MaintenanceScheduleAdditionalRequiredServices-Normal

12000 km/7,500 mi

24000 km/15,000 mi

36000 km/22,500 mi

48000 km/30,000 mi

60000 km/37,500 mi

72000 km/45,000 mi

84000 km/52,500 mi

96000 km/60,000 mi

108000 km/67,500 mi

120000 km/75,000 mi

132000 km/82,500 mi

144000 km/90,000 mi

156000 km/97,500 mi

168000 km/105,000 mi

180000 km/112,500 mi

192000 km/120,000 mi

204000 km/127,500 mi

216000 km/135,000 mi

228000 km/142,500 mi

240000 km/150,000 mi

RotatetiresandperformRequiredServices.Checkengineoilevelandoillifepercentage.Changeengineoilandfilter,ifneeded.

√√

√√

√√

√√

√√

√√

√√

√√

√√

√

Replacepassengercompartmentairfilter.(1)√√√√

√√

Inspectevaporativecontrolsystem.(2)√√√

Replaceengineaircleanerfilter.(3)√√√

Replacesparkplugs.Inspectsparkplugwires.√√

Drainandfillenginecoolingsystem.(4)√

Visuallyinspectaccessorydrivebelts.(5)

√

Replacebrakefluid.(6)

336ServiceandMaintenance

Footnotes—Maintenance ScheduleAdditionalRequired Services-Normal

(1)Oreverytwoyears,whichever comesfirst.Morefrequent passengercompartmentairfilter replacementmaybeneededif drivinginareaswithheavytraffic, poorairquality,highdustlevels, orenvironmentalallergens. Passengercompartmentairfilter replacementmayalsobeneededif thereisreducedairflow,window fogging,orodors.YourGMdealer canhelpdeterminewhentoreplace thefilter.
(2) Visually check all fuel and vapor lines and hoses for proper attachment, connection, routing, and condition.
(3) Oreveryfouryears, whichever comesfirst. If driving industry conditions, inspect the filterate each oil change or more often as needed.
(4)Oreveryfiveyears,whichever comesfirst.SeeCooling System→264.

(5)Orevery10years,whichever comesfirst.Inspectforfraying, excessivecracking,ordamage; replace,ifneeded.
(6)Replacebrakefluideverythree years.SeeBrakeFluid→270.

MaintenanceScheduleAdditionalRequiredServices-Severe

12000km/7,500mi

24000km/15,000mi

36000km/22,500mi

48000km/30,000mi

60000km/37,500mi

72000km/45,000mi

84000km/52,500mi

96000km/60,000mi

108000km/67,500mi

120000km/75,000mi

132000km/82,500mi

144000km/90,000mi

156000km/97,500mi

168000km/105,000mi

180000km/112,500mi

192000km/120,000mi

204000km/127,500mi

216000km/135,000mi

228000km/142,500mi

240000km/150,000mi

RotatetiresandperformRequiredServices.Checkengineoilevelandoillifepercentage.Changeengineoilandfilter,ifneeded.

√√

√√

√√

√√

√√

√√

√√

√√

√√

Replacepassengercompartmentairfilter.(1)√√√√

√√

Inspectevaporativecontrolsystem.(2)√√√

Replaceengineaircleanerfilter.(3)√√√

Changeautomatictransmissionfluid.√√√

Replacesparkplugs.Inspectsparkplugwires.√√

Drainandfillenginecoolingsystem.(4)

√

Visuallyinspectaccessorydrivebelts.(5)

√

Replacebrakefluid.(6)

Footnotes—Maintenance ScheduleAdditionalRequired Services-Severe

(1)Oreverytwoyears,whichever comesfirst.Morefrequent passengercompartmentairfilter replacementmaybeneededif drivinginareaswithheavytraffic, poorairquality,highdustlevels, orenvironmentalallergens.

Passengercompartmentairfilter replacementmayalsobeneededif thereisreducedairflow,window fogging,orodors.YourGMdealer canhelpdeterminewhentoreplace thefilter.

(2) Visuallycheckallfuelandvapor linesandhosesforproper attachment, connection, routing, and condition.

(3) Oreveryfouryears, whichever comesfirst. If driving industry conditions, inspect the filterate each oil change or more often as needed.

(4)Oreveryfiveyears,whichever comesfirst.SeeCooling System→264.

338ServiceandMaintenance

(5)Orevery10years,whichever comesfirst.Inspectforfraying, excessivecracking,ordamage; replace,ifneeded.
(6)Replacebrakefluideverythree years.SeeBrakeFluid→270.

SpecialApplication Services

• SevereCommercialUse VehiclesOnly:Lubricatechassis componentseveryoilchange.
• Haveunderbodyflushingservice performed. See "Underbody Maintenance" in Exterior Care 321.

Additional Maintenance and Care

Yourvehicleisanimportant investmentandcaringforitproperly mayhelptoavoidfuturecostly repairs. Tomaintainvehicle performance,additional maintenanceservicesmaybe required.

It is recommended that your dealer perform theseservices—their trained dealer technicians know your vehiclebest. Your dealer can also performathorough assessment with a multi-point inspection to recommend when your vehicle may need attention.

The followinglistisintendedto explaintheservicesandconditions tolookforthatmayindicate servicesarerequired.

Battery

The 12-voltbatterysuppliespower tostarttheengineandoperateany additionalelectricalaccessories.

• To avoid break-downor failure to start the vehicle, maintain a battery with full cranking power.
• Traineddealertechnicianshave thediagnosticequipmenttotest thebatteryandensurethatthe connectionsandcablesare corrosion-free.

Belts

• Beltsmayneedreplacingifthey squeakorshowsignsof crackingorsplitting.
• Traineddealertechnicianshave accesstotoolsandequipment toinspectthebeltsand recommendadjustmentor replacementwhennecessary.

Brakes

Brakesstopthevehicleandare crucialtosafedriving.
- Signsofbrakewearmayinclude chirping,grinding,orsquealing noises,ordifficultystopping.

- Traineddealertechnicianshave accesstotoolsandequipment toinspectthebrakesand recommendqualityparts engineeredforthevehicle.

Fluids

Properfluid levels and approved fluids protect the vehicle's systems and components. See Recommended Fluids and Lubricants 341 for G M approved fluids.

• Engineoilandwindshield washerfluidlevelsshouldbe checkedateveryfuelfill.
• Instrumentclusterlightsmay comeontoindicatethatfluids maybelowandneedtobe filled.

Hoses

Hosestransportfluidsandshould beregularlyinspectedtoensure thattherearenocracksorleaks. Withamulti-pointinspection,your dealercaninspectthehosesand adviseifreplacementisneeded.

Lamps

Properlyworkingheadlamps, taillamps, and brakelamps are important to see and beseen on theroad.

• Signsthattheheadlampsneed attentionincludedimming,failure tolight,cracking,ordamage. Thebrakelampsneedtobe checkedperiodicallytoensure thattheylightwhenbraking.
• Withamulti-pointinspection, yourdealercancheckthelamps andnoteanyconcerns.

ShocksandStruts

Shocksandstrutshelpaidincontrol forasmootherride.

• Signsofwearmayinclude steeringwheelvibration,bounce/swaywhilebraking,longer stoppingdistance,oruneven tirewear.
• Aspartofthemulti-point inspection, trained dealer technicians can visually inspect theshocksandstrutsforsigns

340ServiceandMaintenance

ofleaking,blownseals, ordamage,andcanadvise whenserviceisneeded.

Tires

Tiresneedtobeproperlyinflated, rotated, and balanced. Maintaining the tirescansavemoneyandfuel, and can reduce risk of tire failure.

• Signsthatthetiresneedtobe replacedincludethreeormore visibletreadwearindicators;cord orfabricshowingthroughthe rubber;cracksorcutsinthe treadorsidewall;orabulgeor splitinthetire.
• Traineddealertechnicianscan inspectandrecommendtheright tires. Yourdealercanalso providetire/wheelbalancing servicestoensuresmooth vehicleoperationatallspeeds. Yourdealersellsandservices namebrandtires.

VehicleCare

To help keep the vehicle looking like new, vehicle care products are available from your dealer. For

informationonhowtocleanand protectthevehicle'sinteriorand exterior,seeInteriorCare⇒326and ExteriorCare⇒321.

WheelAlignment

Wheelalignmentiscriticalfor ensuringthatthetiresdeliver optimalwearandperformance.

• Signsthatthealignmentmay needtobeadjustedinclude pulling,impropervehicle handling,orunusualtirewear.
• Yourdealerhastherequired equipmenttoensureproper wheelalignment.

Windshield

Forsafety, appearance, and the bestviewing, keep the windshield clean and clear.

• Signsofdamageinclude scratches,cracks,andchips.
• Traineddealertechnicianscan inspectthewindshield and recommendproperreplacement ifneeded.

WiperBlades

Wiperbladesneedtobecleaned andkeptingoodconditionto provideaclearview.

• Signsofwearincludestreaking, skippingacrossthewindshield, andwornorsplitrubber.
• Traineddealertechnicianscan checkthewiperbladesand replacethemwhenneeded.

RecommendedFluids,Lubricants,andParts

RecommendedFluidsandLubricants

UsageFluid/Lubricant
AutomaticTransmissionDEXRON	®-VIAutomaticTransmissionFluid.
EngineCoolant50/50mixture	ofclean,drinkablewateranduseonlyDEX-COOL SeeEngineCoolant 265.
EngineOilEngineoilmeeting	thedexos1TMspecificationoftheproperSAEviscosity grade.ACDelcodexos1SyntheticBlendisrecommended.SeeEngine Oil 260.
HydraulicBrakeSystemDOT4HydraulicBrakeFluid(GMPartNo.19299570,in Canada19299571).
KeyLockCylinders,Hood,Door,and TrunkLidHinges	Multi-PurposeLubricant,Superlube(GMPartNo.12346241,in Canada10953474).
WeatherstripConditioningWeather	stripLubricant(GMPartNo.3634770,inCanada10953518)or DielectricSiliconeGrease(GMPartNo.12345579,inCanada10953481).
WindshieldWasherAutomotive	windshieldwasherfluidthatmeetsregionalfreezeprotection requirements.

MaintenanceReplacementParts

Replacementpartsidentifiedbelowbyname, partnumber, orspecification can be obtained from your dealer.

PartGMPartNumberACDelcoPartNumber
EngineAirCleaner/Filter13272719A3144C
PassengerCompartmentAirFilter13503677CF197
EngineOilFilter55594652PF101G
SparkPlugs5549009741-151
WiperBlades
Driver Side – 68.6 cm (27 in)	13348838	—
Passenger Side – 63.5 cm (25 in)	13348836	—

MaintenanceRecords

After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. Retain all maintain an encereceipts.

Date	Odometer Reading	ServicedByServices	Performed

TechnicalData

VehicleIdentification

VehicleIdentification

Number(VIN)......344

ServicePartsIdentification

Label....344

VehicleData

Capacitiesand

Specifications......345

EngineDriveBeltRouting....346

VehicleIdentification VehicleIdentification Number(VIN)

INVALIDTAGOOOOO5

Thislegalidentifierisinthefront corneroftheinstrumentpanel,on theriversideofthevehicle.Itcan beseenthroughthewindshieldfrom outside.TheVehicleIdentification Number(VIN)alsoappearsonthe VehicleCertificationandService Partslabelsandcertificatesoftitle andregistration.

Engineldentification

TheeighthcharacterintheVINis theenginecode. Thiscode identifiesthevehicle'sengine, specifications, and replacement parts. See "EngineSpecifications" under Capacities and Specifications →345forthevehicle'senginecode.

ServiceParts IdentificationLabel

Thislabel, ineitherthegloveboxor thetrunkarea, hasthefollowing information:

• VehicleIdentification Number(VIN).
• Modeldesignation.
• Paintinformation.
• Productionoptionsandspecial equipment.

Donotremovethislabelfromthe vehicle.

VehicleData

CapacitiesandSpecifications

Application	Capacities
	MetricEnglish
AirConditioningRefrigerantFortheairconditioningsystemrefrigeranttypeandchargeamount,seetherefrigerantlabelunderthehood.Seeyourdealerformoreinformation.
EngineCoolingSystem6.3L6.7qt
EngineOilwithFilter5.5L5.8qt
FuelTank56L14.8gal
WheelNutTorque140N•m 100lbft
Allcapacitiesareapproximate.Whenadding,besuretofilltotheapproximatelevel,asrecommendedinthismanual.Recheckfluidlevelafterfilling.

Engine Specifications

Engine	VIN Code	Transmission	Spark Plug Gap
1.6L L4 Engine	5	Automatic	0.60–0.70 mm (0.0236–0.0276in)

346TechnicalData

EngineDriveBeltRouting

Diagram of a pulley system with multiple spheres connected by rods (no text or labels)

Customer Information

CustomerInformation

CustomerSatisfaction

Procedure....347

CustomerAssistance

Offices......349

CustomerAssistanceforText

Telephone(TTY)Users.....349

OnlineOwnerCenter......350

GMMobilityReimbursement

Program......350

Roadside Assistance

Program......351

SchedulingService

Appointments......352

CourtesyTransportation

Program......353

CollisionDamageRepair.....354

ServicePublicationsOrdering

Information......356

RadioFrequency

Statement......357

ReportingSafetyDefects

ReportingSafetyDefectsto

theUnitedStates

Government......357

ReportingSafetyDefectsto

theCanadian

Government......357

ReportingSafetyDefectsto

GeneralMotors......358

VehicleDataRecordingand Privacy

VehicleDataRecordingand

Privacy....358

EventDataRecorders......358

OnStar ^® 359

InfotainmentSystem......359

CustomerInformation

CustomerSatisfaction Procedure

Yoursatisfactionandgoodwillare importanttoyourdealerandto Buick.Normally,anyconcernswith thesalestransactionorthe operationofthevehiclewillbe resolvedbyyourdealer'ssalesor servicedepartments.Sometimes, however,despitethebestintentions ofallconcerned,misunderstandings canoccur.Ifyourconcernhasnot beenresolvedoyoursatisfaction, thefollowingstepsshouldbetaken:

STEPONE: Discuss your concern with a member of dealership management. Normally, concerns can be quickly resolved at that level. If them matter has already been reviewed with the sales, service, or parts manager, contact the owner of your dealership or the general manager.

STEPTWO: If after contacting a member of dealership management, it appears your concern cannot be

resolvedbyyourdealershipwithout furtherhelp,intheU.S.,call 1-800-521-7300.InCanada,contact General Motors of Canada Customer Care Centreat 1-800-263-3777(English)or 1-800-263-7854(French).

Weencourageyoutocallthe toll-freenumberinordertogivethe inquirypromptattention.Havethe followinginformationavailableto givetheCustomerAssistance representative:

• VehicleIdentification Number(VIN). This is available from the vehicleregistration or title, or the plate at the top of the instrument panel and visible through the windshield.
  • Dealershipnameandlocation.
• Vehicledeliverydate and presentmileage.

When contacting Buick, remember that your concern will likely be resolved at a dealer's facility. That is why wesuggest following StepOne first.

STEPTHREE—U.S.Owners:

BothGeneralMotorsandyour dealerarecommittedtomaking sureyouarecompletely satisfied withthenewvehicle. However, ifyoucontinuetoremainunsatisfied afterfollowingtheprocedure outlinedinStepsOneandTwo,you canfilewiththeBetterBusiness Bureau(BBB)AutoLine ^® Program toenforceyourrights.

TheBBBAutoLineProgramisan out-of-courtprogramadministered bytheCouncilofBetterBusiness Bureaustosettleautomotive disputesregardingvehiclerepairsor theinterpretationoftheNewVehicle LimitedWarranty.Althoughyoumay berequiredtoresorttothisinformal disputesresolutionprogrampriorto filingacourtaction,useofthe programisfreeofchargeandyour casewillgenerallybeheardwithin 40days.Ifyoudonotagreewiththe decisiongiveninyourcase,you mayrejectitandproceedwithany othervenueforreliefavailable toyou.

YoumaycontacttheBBBAutoLine Programusingthetoll-free telephonenumberorwritethemat thefollowingaddress:

BBBAutoLineProgram

CouncilofBetterBusinessBureaus, Inc.

3033WilsonBoulevard Suite600

Arlington, VA22201

Telephone:[phone]

http://www.bbb.org/council/ programs-services/ dispute-handling-and-resolution/ bbb-auto-line

Thisprogramisavailableinall 50statesandtheDistrictof Columbia. Eligibilityislimitedby vehicleage,mileage,andother factors.GeneralMotorsreserves therighttochangeeligibility limitationsand/ordiscontinueits participationinthisprogram.

STEPTHREE—Canadian

Owners: In the event that you do not feel your concern have been addressed after following the procedure outlined in Steps One and Two, General Motors of Canada

Companywantsyoutobeawareof itsparticipationinano-charge Mediation/Arbitrationprogram. General Motors of Canada Companyhas committed to binding arbitration of owner disputes involving factory-related vehicle service claims. The program provides for the view of the facts involved by an impartial third party arbiter, and may include an informal hearing before the arbiter. The program is designed so that the entire disputes settlement process, from the time you file your complaint to the final decision, should be completed in about 70 days. We believe our impartial program offers advantages over courts in most jurisdictions because it is informal, quick, and free of charge.

For further information concerning eligibility in the Canadian Motor Vehicle Arbitration Plan (CAMVAP), call toll-free 1-800-207-0685, or call the General Motors Customer Care Centre, 1-800-263-3777 (English), 1-800-263-7854 (French), or writeto:

Mediation/ArbitrationProgram c/oCustomerCareCentre GeneralMotorsofCanada Company MailCode:CA1-163-005 1908ColonelSamDrive Oshawa,OntarioL1H8P7

The inquiry should be accompanied by the Vehicle Identification Number(VIN).

CustomerAssistance Offices

Buickencouragescustomerstocall thetoll-freenumberforassistance. However,ifacustomerwishesto writeore-mailBuick,theletter shouldbeaddressedto:

UnitedStatesandPuertoRico

BuickCustomerAssistanceCenter P.O.Box33136 Detroit,MI48232-5136 www.Buick.com 1-800-521-7300 1-800-832-8425(ForText Telephonedevices(TTYs)) RoadsideAssistance: 1-800-252-1112

From U.S. Virgin Islands: 1-800-496-9994

Canada

General Motors of Canada Company Customer Care Centre, Mail Code: CA1-163-005 1908 Colonel Sam Drive Oshawa, Ontario L1H8P7 www.gm.ca

1-800-263-3777(English) 1-800-263-7854(French) 1-800-263-3830(ForText Telephonedevices(TTYs)) RoadsideAssistance: 1-800-268-6800

AllOverseasLocations

PleasecontactthelocalGeneral MotorsBusinessUnit.

CustomerAssistancefor TextTelephone(TTY) Users

Toassistcustomerswhoaredeaf, hardofhearing,orspeech-impaired andwhouseTextTelephones

(TTYs), BuickhasTTYequipment available at its Customer Assistance Center. Any TTY user can communicate with Buick by dialing: 1-800-832-8425.TTY users in Canadacandial 1-800-263-3830.

OnlineOwnerCenter

OnlineOwnerExperience (U.S.)my.buick.com

The Buickonlineowner experience allows interaction with Buick and keeps important vehicle-specific information in one place.

MembershipBenefits

Downloadownermanualsand viewvehicle-specificichow-tovideos.

:Viewmaintenanceschedules, alerts,andOnStaronboardvehicle diagnosticinformation.Schedule serviceappointments.

Viewandprintdealer-recorded servicerecordsandself-recorded servicerecords.

:Selectadealerandview locations,maps,phonenumbers, andhours.

:Trackyourvehicle'swarranty information.
:ViewactiverecallsbyVehicle IdentificationNumber(VIN).See VehicleIdentificationNumber (VIN)344.
ViewGMCard, SiriusXM Satelliteradio(ifequipped), and OnStaraccountinformation.
■:Chatwithonlinehelp representatives.

Seemy.buick.comtoregisteryour vehicle.

BuickOwnerCentre(Canada) buickowner.ca

VisittheBuickOwnerCentre:

• Chatlivewithonlinehelp representatives.
• UsetheVehicleToolssection.
• Accessthirdpartyenthusiast sitesandsocialmedianetworks.

• Locateownerresourcessuchas lease-end, financing, and warrantyinformation.

• Retrieve your favorite articles, quizzes, tips, and multimedia galleries organized into the Featured Articles and Auto Care Sections.

• Downloadtheownermanualfor yourvehicle,quicklyandeasily.
• FindtheBuick-recommended maintenanceservicesforyour vehicle.

GMMobility ReimbursementProgram

GM MOBILITY

Thisprogramisavailableto qualifiedapplicantsforcost reimbursementofeligible aftermarketadaptiveequipment requiredforthevehicle,suchas handcontrolsorawheelchair/ scooterliftforthevehicle.

Formoreinformationonthelimited offer,visitwww.gmmobility.comor calltheGMMobilityAssistance Centerat1-800-323-9935.Text Telephone(TTY)users,call 1-800-833-9935.

General Motors of Canada also has a Mobility Program. Visit www.gm.ca or call 1-800-GM-DRIVE (463-7483) fordetails.TTY users call 1-800-263-3830.

Roadside Assistance Program

For U.S.-purchased vehicles, call 1-800-252-1112; (Text Telephone (TTY): 1-888-889-2438).

For Canadian-purchased vehicles, call 1-800-268-6800.

Serviceisavailable24hoursaday, 365daysayear.

CallingforAssistance

WhencallingRoadsideAssistance, havethefollowinginformation ready:

- Yourname,homeaddress,and hometelephonenumber.

• Telephonenumberofyour location.
- Locationofthevehicle.
- Model, year, color, and license platenumberofthevehicle.
- Odometerreading, Vehicle IdentificationNumber(VIN), and deliverydateofthevehicle.
• Descriptionoftheproblem.

Coverage

Servicesareprovidedforthe durationofthevehicle'spowertrain warranty.

IntheU.S.,anyonedrivingthe vehicleiscovered.InCanada,a persondrivingthevehiclewithout permissionfromtheownerisnot covered.

Roadside Assistance is not part of the New Vehicle Limited Warranty. General Motors North America and Buick reservether right to make any changes or discontinuethe Roadside Assistance program at any time without notification.

General Motors North America and Buick reservetheright to limit services or payment to an owner or driver if they decide the claims are madetoo often, or the sametype of claimism made many times.

ServicesProvided

• EmergencyFuelDelivery: Deliveryofenoughfuelforthe vehicletogettothenearest servicestation.
• Lock-OutService:Serviceto unlockthevehicleifyouare lockedout.Aremoteunlockmay beavailableifyyouhave OnStar®.Forsecurityreasons, thedrivermustpresent identificationbeforethisservice isgiven.

• EmergencyTowfromaPublic RoadorHighway:Towtothe nearestBuickdealerfor warrantyservice,orifthevehicle wasinacrashandcannotbe driven.Assistanceisnotgiven whenthevehicleisstuckin sand,mud,orsnow.

• FlatTireChange: Serviceto changeaflattirewiththespare tire. Thesparetire, ifequipped, mustbeingoodconditionand properlyinflated. Itistheowner's responsibilityfortherepairor replacementofthetireifitisnot coveredbythewarranty.

• BatteryJumpStart:Serviceto jumpstartadeadbattery.
• TriplInterruptionBenefitsand Assistance:Ifyourtripis interruptedduetoawarranty event,incidentalexpensesmay bereimbursedwithinthe Powertrainwarrantyperiod. Itemsconsideredarereasonable andcustomaryhotel,meals, rentalcar,oravehiclebeing deliveredbacktothecustomer, upto805km(500mi).

ServicesNotIncludedin RoadsideAssistance

• Impoundtowingcausedby violationofanylaws.

• Legalfines.

• Mounting, dismounting, or changing of snowtires, chains, or other traction devices.
  Serviceisnotprovidedifavehicle isinanareathatisnotaccessible totheservicevehicleorisnota regularlytraveledormaintained publicroad,whichincludesiceand winterroads.Off-roaduseisnot covered.

ServicesSpecificto Canadian-PurchasedVehicles

• FuelDelivery:Reimbursement isupto7liters. Dieselfuel deliverymayberestricted. Propaneandotherfuelsarenot providedthroughthisservice.
• Lock-OutService: Vehicle registration is required.
• TriplInterruptionBenefitsand Assistance:Mustbeover 150kmfromwhereyourtripwas startedtoqualify. Pre-authorization,original detailedreceipts,andacopyof therepairordersarerequired. Onceauthorizationhasbeen received,theRoadside

Assistanceadvisorwillhelpyou makearrangementsandexplain howtoreceivepayment.

• AlternativeService: If assistance cannot be provided rightaway, the Roadside Assistance advisor may give permission to get local emergency road service. You will receive payment, upto \$100, aftersending the original receipt to Roadside Assistance. Mechanical failures maybe covered, however an cost for parts and labor for repairs not covered by the warranty are the owner responsibility.

SchedulingService Appointments

Whenthevehiclerequireswarranty service,contactyourdealerand requestanappointment.By schedulingaserviceappointment andadvisingtheserviceconsultant ofyourtransportationneeds,your dealercanhelpminimizeyour inconvenience.

If the vehicle cannot be scheduled into the serviced department immediately, keep driving it until it can be scheduled for service, unless, of course, the problem is safety related. If it is, please call your dealership, let them know this, and ask for instructions.

If your dealer requests you to bring the vehicle for service, you are urged todos to easily in the work day as possible to allow for same-day repair.

Courtesy Transportation Program

Toenhanceyourownership experience,weandourparticipating dealersareproudtoofferCourtesy Transportation,acustomersupport programforvehicleswiththe Bumper-to-Bumper(BaseWarranty CoverageperiodinCanada), extendedpowertrain,and/or hybrid-specificwarrantiesinboth theU.S.andCanada.

SeveralCourtesyTransportation optionsareavailabletoassistin reducinginconveniencewhen warrantyrepairsarerequired.

Courtesy Transportation is not a part of the New Vehicle Limited Warranty. A separate booklet entitled "Limited Warranty and Owner Assistance Information" furnished with each new vehicle provides detailed warranty coverage information.

TransportationOptions

Warrantyservicecangenerallybe completedwhileyouwait.However, ifyouareunabletodoso,your dealermayofferthefollowing transportationoptions:

ShuttleService

This includes one-way or round-trip shuttleservicewithinreasonable time and distance parameters of your dealer's area.

PublicTransportationorFuel Reimbursement

Ifovernightwarrantyrepairsare needed, and public transportation is used, the expense must be supported by original receipts and within the maximum amount allowed by GM for shuttleservice. If U.S. customers arrange their own transportation, limited reimbursement for reasonable fuel expenses may be available. Claim amount should reflect actual costs and be supported by original receipts. See your dealer for information.

CourtesyRentalVehicle

Foranovernightwarrantyrepair,the dealermayprovideanavailable courtesyrentalvehicleorprovidefor reimbursementofarentalvehicle. Reimbursementislimitedandmust besupportedbyoriginalreceiptsas wellasassignedandcompleted rentalagreementandmeetstate/provincial,local,andrentalvehicle providerrequirements. Requirementsvaryandmayinclude minimumagerequirements,

354CustomerInformation

insurancecoverage,creditcard,etc. Additionalfeessuchasfuelusage charges,taxes,levies,usagefees, excessivemileage,orrentalusage beyondthecompletionoftherepair arealsoyourresponsibility.

Itmaynotbepossibletoprovide a likevehicleasacourtesyrental.

AdditionalProgram Information

Allprogramoptions,suchasshuttle service,maynotbeavailableat everydealer.Contactyourdealer for specific availability.

General Motors reserve theright to unilaterally modify, change, or discontinue Courtesy Transportation at any time and to resolve all question sof claim eligibility pursuant to the terms and conditions described herein at its solediscretion.

CollisionDamageRepair

If the vehicle is involved a collision and it is damaged, have the damage repaired by a qualified technician using the proper

equipmentandqualityreplacement parts.Poorlyperformedcollision repairsdiminishthevehicleresale value,andsafetyperformancecan becompromisedin subsequent collisions.

CollisionParts

GenuineGMCollisionpartsarenew partsmadewiththesamematerials andconstructionmethodsasthe partswithwhichthevehiclewas originallybuilt.GenuineGM Collisionpartsarethebestchoiceto ensurethatthevehicle'sdesigned appearance,durability,andsafety arepreserved.TheuseofGenuine GMpartscanhelpmaintaintheGM NewVehicleLimitedWarranty.

Recycledoriginalequipmentparts mayalsobeusedforrepair. These partsaretypicallyremovedfrom vehiclesthatweretotallossesin priorcrashes. Inmostcases, the partsbeingrecycledarefrom undamagedsectionsofthevehicle. ArecycledoriginalequipmentGM partmaybeanacceptablechoiceto maintainthevehicle'soriginally designedappearanceandsafety

performance;however,thehistoryof thesepartsisnotknown.Suchparts arenotcoveredbytheGMNew VehicleLimitedWarranty,andany relatedfailuresarenotcoveredby thatwarranty.

Aftermarketcollisionpartsarealso available. Thesearemadeby companiesotherthanGMandmay nothavebeentestedforthevehicle. Asaresult, thesepartsmayfit poorly, exhibitprematuredurability/corrosionproblems, and may not performproperlyin subsequent collisions. Aftermarketpartsarenot covered by the GMNewVehicle Limited Warranty, and any vehicle failurerelatedtosuchpartsis not covered by that warranty.

RepairFacility

GMalsorecommendsthatyou chooseacollisionrepairfacilitythat meetsyourneedsbeforeyouever needcollisionrepairs. Yourdealer mayhaveacollisionrepaircenter withGM-trainedtechniciansand state-of-the-artequipment,orbe abletorecommendacollisionrepair

centerthathasGM-trained techniciansandcomparable equipment.

InsuringtheVehicle

ProtectyourinvestmentintheGM vehiclewithcomprehensiveand collisioninsurancecoverage.There aresignificantdifferencesinthe qualityofcoverageaffordedby variousinsurancepolicyterms. Manyinsurancepoliciesprovide reducedprotectiontotheGM vehiclebylimitingcompensationfor damagerepairstroughtheuseof aftermarketcollisionparts.Some insurancecompanieswillnot specifyaftermarketcollisionparts. Whenpurchasinginsurance,we recommendthatyouensurethatthe vehiclewillberepairedwithGM originalequipmentcollisionparts. Ifsuchinsurancecoverageisnot availablefromyourcurrent insurancecarrier,considerswitching toanotherinsurancecarrier.

If the vehicle is leased, the leasing company may require you to have insurance that ensures repairs with Genuine GM Original Equipment

Manufacturer(OEM)partsor GenuineManufacturerreplacement parts.Readtheleasecarefully,as youmaybechargedattheendof theleaseforpoorqualityrepairs.

IfaCrashOccurs

Iftherehasbeenaninjury,call emergencyservicesforhelp.Donot leavethesceneofacrashuntilall mattershavebeentakencareof. Movethevehicleonlyifitsposition putsyouindanger,oryouare instructedtomoveitbyapolice officer.

Giveonlythenecessaryinformation topoliceandotherpartiesinvolved inthecrash.

Foremergencytowingsee RoadsideAssistance Program→351.

Gatherthefollowinginformation:

• Drivename, address, and telephonenumber.
• Driverlicensenumber.
• Ownername, address, and telephonenumber.

• Vehiclelicenseplatenumber.
- Vehiclemake, model, and modelyear.
- VehicleIdentification Number(VIN).
• Insurancecompanyandpolicy number.
- Generaldescriptionofthe damagetotheothervehicle.

Choose areputablerepairfacility that uses quality replacement parts. See "CollisionParts" earlier in this section.

If the airbag has inflated, see What Will You See after an Airbag Inflates? 62.

ManagingtheVehicleDamage RepairProcess

Intheeventthatthevehiclerequires damagerepairs, GMrecommends thatyoutakeanactiveroleinits repair. If you have apre-determined repair facility of choice, takethe vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be originalequipment parts, either

newGenuineGMpartsorrecycled originalGMparts.Remember, recycledpartswillnotbecovered by theGMvehiclewarranty.

Insurancepaysthebillfortherepair, butyoumustlivewiththerepair. Dependingonyourpolicylimits, yourinsurancecompanymay initiallyvaluetherepairusing aftermarketparts.Discussthiswith therepairprofessional,andinsiston GenuineGMparts.Remember, ifthevehicleisleased,youmaybe obligatedtohavethevehicle repairedwithGenuineGMparts, evenifyourinsurancecoverage doesnotpaythefullcost.

Ifanotherparty'sinsurance companyispayingfortherepairs, youarenotobligatedtoaccepta repairvaluationbasedonthat insurancecompany'scollisionpolicy repairlimits,asyouhaveno contractualimitswiththatcompany. Insuchcases,youcanhavecontrol oftherepairandpartschoicesas longasthecoststayswithin reasonablelimits.

ServicePublications OrderingInformation

ServiceManuals

ServiceManualshavethediagnosis andrepairinformationonthe engines,transmission,axle, suspension,brakes,electrical, steering,body,etc.

OwnerInformation

Ownerpublicationsarewritten specificallyforownersandintended toprovidebasicoperational informationaboutthevehicle.The OwnerManualincludethe MaintenanceScheduleforall models.

In-Portfolio: IncludesaPortfolio, OwnerManual, and Warranty Manual.

RETAILSELLPRICE:\35.00–\40.00(U.S.) plushandlingand shippingfees.

WithoutPouch:OwnerManualonly.

RETAILSELLPRICE: \$25.00(U.S.) plushandlingand shippingfees.

CurrentandPastModels

ServiceandOwnerpublicationsare availableformanycurrentandpast modelyearGMvehicles.

ORDERTOLLFREE:

1-800-551-4123Monday–Friday 8:00AM–6:00PMEasternTime

ForCreditCardOrdersOnly (VISA-MasterCard-Discover), see Helm, Inc. at: www.helminc.com.

Orwriteto:

Helm, Incorporated

Attention:CustomerService 47911HalyardDrive Plymouth,MI48170

Pricesaresubjecttochangewithout noticeandwithoutincurring obligation.Allowampletimefor delivery.

All listed prices are quoted in U.S. funds. Make checks payable in U.S. funds.

RadioFrequency Statement

This vehiclehassystemsthat operateonaradiofrequencythat complieswithPart15/Part18ofthe FederalCommunications Commission(FCC)rulesandwith IndustryCanadaStandards RSS-GEN/210/216/220/251/310, ICES-001.

Operationissubjecttothefollowing twoconditions:

1. Thedevicemaynotcause harmfulinterference.
2. Thedevicemustacceptany interferencereceived, including interference that may cause undesired operation of the device.

Changesormodificationstoanyof thesesystemsbyotherthanan authorizedservicefacilitycouldvoid authorizationtousethisequipment.

ReportingSafety Defects

ReportingSafetyDefects totheUnitedStates Government

If you believethat your vehicle has a defect which could cause acrashor could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying General Motors.

IfNHTSAreceivessimilar complaints, it may open an investigation, and if it find that as safety defect exists in a group of vehicles, it may order a recall and remedycampaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or General Motors.

TocontactNHTSA,youmaycall theVehicleSafetyHotline toll-freeat1-888-327-4236(TTY: 1-800-424-9153);gotohttp://www.safercar.gov;orwriteto:

Administrator, NHTSA 1200 New Jersey Avenue, S.E. Washington, D.C. 20590

Youcanalsoobtainother informationaboutmotorvehicle safetyfromhttp://www.safercar.gov.

ReportingSafetyDefects totheCanadian Government

IfyouliveinCanada, and you believe that the vehicle has a safety defect, notify Transport Canada immediately, and notify General Motors of Canada Company. Call Transport Canada at 1-800-333-0510 or writeto:

TransportCanada

RoadSafetyBranch

80rueNoel

Gatineau, QCJ8Z0A1

ReportingSafetyDefects toGeneralMotors

InadditiontonotifyingNHTSA(or

TransportCanada)inasituationlike this, notifyGeneralMotors.

Call1-800-521-7300, orwrite:

BuickCustomerAssistanceCenter

P.O.Box33136

Detroit, MI48232–5136

InCanada, call 1-800-263-3777

(English)or1-800-263-7854

(French), orwrite:

General Motors of Canada

Company

CustomerCareCentre, MailCode:

CA1-163-005

1908ColonelSamDrive

Oshawa,OntarioL1H8P7

VehicleData Recordingand Privacy

Thevehiclehasanumberof computersthatrecordinformation aboutthevehicle'sperformance and howitisdriven. Forexample, the vehicleusescomputermodule to monitorandcontrolengine and transmissionperformance, to monitortheconditionsforairbag deploymentanddeploythemina crash, and, ifequipped, to provide antilockbrakingtohelpthedriver controlthevehicle. Thesemodules may store datatohelpthedealer technicianservicethevehicle. Somemodulesmayalsostoredata abouthowthevehicleisoperated, suchasrateoffuelconsumptionor averagespeed. Thesemodules may retainpersonalpreferences, suchas radiopresets,seatpositions, and temperaturesettings.

EventDataRecorders

Thisvehicleisequippedwithan eventdatarecorder(EDR).The mainpurposeofanEDRisto record,incertaincrashornear crash-likesituations,suchasanair bagdeploymentorhittingaroad obstacle,datathatwillassistin understandinghowavehicle's systemsperformed.TheEDRis designedtorecorddatarelatedto vehicledynamicsandsafety systemsforashortperiodoftime, typically30secondsorless.The EDRinthisvehicleisdesignedto recordsuchdataas:

• Howvarioussystemsinyour vehiclewereoperating;
• Whetherornotthedriverand passengersafetybeltswere buckled/fastened;
• Howfar(ifatall)thedriverwas depressingtheacceleratorand/orbrakepedal;and,
• Howfastthevehiclewas traveling.

Thesedatacanhelpprovidea betterunderstandingofthe circumstancesinwhichcrashesand injuriesoccur.

Note

EDRdataarerecordedbyyour vehicleonlyifanon-trivialcrash situationoccurs;nodataare recordedbytheEDRundernormal drivingconditionsandnopersonal data(e.g.,name,gender,age,and crashlocation)arerecorded. However,otherparties,suchaslaw enforcement,couldcombinethe EDRdatawiththetypeof personallyidentifyingdataroutinely acquiredduringacrash investigation.

ToreadatarecordedbyanEDR, specialequipmentisrequired, and accesstothevehicleortheEDRis needed. In addition to the vehicle manufacturer, other parties, such as lawenforcement, that have the specialequipment, can read the information if they have access to the vehicle or the EDR.

GMwillnotaccessthesedataor shareitwithothersexcept:withthe consentofthevehicleowneror, ifthevehicleisleased, withthe consentofthelessee;inresponse toanofficialrequestbypoliceor similargovernmentoffice;aspartof GM'sdefenseoflitigationthrough thediscoveryprocess;or, as requiredbylaw.DatathatGM collectsorreceivesmayalsobe usedforGMresearchneedsormay bemadeavailabletoothersfor researchpurposes,whereaneedis shownandthedataisnottiedtoa specificvehicleorvehicleowner.

OnStar®

If the vehicle is equipped with OnStar® and has an active subscription, additional datam maybe collected through the OnStar system. This includes information about the vehicle's operation; collisions involving the vehicle; the use of the vehicle and its features; and, incertainsituations, the location and approximate GPS speed of the vehicle. Refertothe

OnStarTermsandConditionsand PrivacyStatementontheOnStar website.

See OnStarAdditional Information→365.

InfotainmentSystem

If the vehicle is equipped with an navigation system as part of the infotainment system, use of the system may result in the storage of destinations, addresses, telephone numbers, and other trip information. See "Navigation Settings" under ConfigureMenu 185 for information on stored data and for deletion instructions.

OnStar

OnStarOverview

OnStarOverview......360

OnStarServices

Emergency......361

Security......361

Navigation......362

Connections......362

Diagnostics....364

OnStarAdditionallInformation

OnStarAdditional Information....365

OnStarOverview

VoiceCommandButton

BlueOnStarButton

SOS RedEmergencyButton

This vehicle may be equipped with a comprehensive, in-vehiclesystem that can connect to an OnStar Advisor for Emergency, Security, Navigation, Connections, and Diagnostics Services. On Star services may require a paid subscription and dataplan. On Star requires the vehicle battery and electrical system, cellular service, and GPS satellites signal to be available and operating. On Star acts as a link to existing emergency service providers. On Starmay collect information about you and your vehicle, including location information. See On Star User

Terms, Privacy Statement, and Software Terms formoredetails including system limitations at www.onstar.com(U.S.) or www.onstar.ca(Canada).

TheOnStarsystemstatuslightis nexttotheOnStarbuttons.Ifthe statuslightis:

• SolidGreen:Systemisready.
• FlashingGreen:Onacall.
  • Red:Indicatesaproblem.
• Off:Systemisactive.Press twicetospeakwithanOnStar Advisor.

Press 📊orcall1-888-4ONSTAR (1-888-466-7827)tospeaktoan Advisor.

Press 📞 to:

• Makeacall, endacall, oransweranincomingcall.
• GiveOnStarHands-FreeCalling voicecommands.
• GiveOnStarTurn-by-Turn Navigationvoicecommands.

- ObtainandcustomizetheWi-Fi ^® hotspotnameorSSIDand password,ifequipped.

Press 📄 toconnecttoan Advisorto:

• Verifyaccountinformationor updatecontactinformation.
• Getdrivingdirections.
• ReceiveaDiagnosticcheckof thevehicle'skeyoperating systems.
• ReceiveRoadsideAssistance.
• ManageWi-FiSettings, ifequipped.

Press 📄 togetapriorityconnection toanOnStarAdvisoravailable 24/7to:

• Gethelpforanemergency.
- BeaGoodSamaritanor respondtoanAMBERAlert.
- Getassistanceinsevere weatherorothercrisissituations andfindevacuationroutes.

OnStarServices

Emergency

EmergencyServicesrequirean active, OnStarserviceplan (excludesBasicPlan). With AutomaticCrashResponse, built-in sensorscanautomaticallyalerta speciallytrainedOnStarAdvisor who is immediately connected into the vehicletohelp.

Press ^SOS forapriorityconnection to anOnStarAdvisorwhocancontact emergencyserviceproviders, direct themtoyouexactlocation, and relayimportantinformation.

WithOnStarCrisisAssist, specially trainedAdvisorsareavailable 24hoursaday,7daysaweek,to provideacentralpointofcontact, assistance,andinformationduringa crisis.

WithRoadsideAssistance,Advisors canlocateanearbyserviceprovider tohelpwithaflattire,abattery jump,oranemptygastank.

Security

Ifequipped, OnStarprovidesthese services:

• WithStolenVehicleAssistance, OnStarAdvisorscanuseGPSto pinpointthevehicleandhelp authoritiesquicklyrecoverit.
• WithRemoteIgnitionBlock™, ifequipped, OnStarcanblock theenginefrombeingrestarted.
• WithStolenVehicleSlowdown ^® , ifequipped, OnStarcanwork withlawenforcement to gradually slow the vehicle down.

TheftAlarmNotification

Ifequipped,ifthedoorsarelocked andthevehiclealarmsounds,a notificationbytext,e-mail,orphone callwillbesent.Ifthevehicleis stolen,anOnStarAdvisorcanwork withauthoritiestorecoverthe vehicle.

Navigation

OnStarnavigationrequiresa specificOnStarserviceplan.

Press 📊 to receive Turn-by-Turn directions or havethemsent to the vehicle's navigation screen, if equipped.

Turn-by-TurnNavigation

1. Press on toconnecttoan Advisor.
2. Requestdirectionstobe downloadedtothevehicle.
3. Follow the voice-guided commands.

UsingVoiceCommands DuringaPlannedRoute

CancelRoute

1. Press 📋. Systemresponds: "OnStarready," thenatone.

2. Say "Cancelroute." System responds: "Doyouwantto canceldirections?"

3. Say "Yes." System responds: "OK, request completed, thank you, goodbye."

RoutePreview

1. Press 📋. Systemresponds: "OnStarready," thenatone.
2. Say "Routepreview." System responds with then next three maneuvers.

Repeat

1. Press 📋. Systemresponds: "OnStarready," thenatone.
2. Say "Repeat." System respond with the last direction given, then respond with "OnStarready," then at one.

GetMyDestination

1. Press 📋. Systemresponds: "OnStarready," thenatone.
2. Say "Getmydestination." Systemrespondswiththe addressanddistancetothe destination, thenrespondswith "OnStarready," thenatone.

SendDestinationtoVehicle

Subscriberscanhavedirections senttothevehicle'snavigation screen,ifequipped.

Press 📄, thenasktheAdvisorto downloadaddirectionstothevehicle's navigationsystem, ifequipped. After thecallends, thenavigationscreen will provide promptstobegindriving directions. Routesthataresentto thenavigationscreencanonlybe canceled through thenavigation system.

Seewww.onstar.com(U.S.)or www.onstar.ca(Canada).

Connections

The following On Starservices help with staying connected.

Forcoveragemaps, see www.onstar.com(U.S.)or www.onstar.ca(Canada).

EnsuringSecurity

- Changethedefaultpasswords fortheWi-Fihotspotand RemoteLinkmobileapplication. Makethesepasswordsdifferent

fromeachotherandusea combinationofletters,numbers, andsymbolstoincreasethe security.

- Changethedefaultnameofthe SSID(ServiceSetIdentifier). Thisisyournetwork'snamethat isvisibletootherwireless devices.Chooseauniquename andavoidfamilynamesor vehicledescriptions.

OnStarWi-Fi ^® Hotspot(If Equipped)

The vehicle may have been built-in Wi-Fi hotspot that provides access to the Internet and web content at 4GLTE speed. Uptoseven mobile devices can be connected. A data plan is required. Use the in-vehicle control only when it is safe to do so.

1. ToretrieveWi-Fihotspot information, press 📋, waitfor the prompt, then say "Wi-Fi settings." On some vehicles, touch Wi-Fi Settings on the screen.

2. The Wi-Fi settings will display the Wi-Fi hotspot name (SSID), password, and some vehicles, the connection type (no Internet connection, 3G, 4G, 4GLTE), and signal quality (poor, good, excellent).

3. TochangetheSSIDor password, press 📊orcall 1-888-4ONSTARtoconnect withanAdvisor.

Afterinitialset-up,yourvehicle's Wi-Fihotspotwillconnect automaticallytoyourmobile devices.Managedatausageby turningWi-Fionoroffonyour mobiledevice,usingthe RemoteLinkmobileapp,orby contactinganOnStarAdvisor.

OnStarRemoteLink ^® MobileApp (IfEquipped)

DownloadtheOnStarRemoteLink mobileapptoselectApple ^ iOS, Android ^TM , BlackBerry ^ , orWindows ^ mobiledevices. OnStarSubscriberscanaccessthe followingservicesfromamobile device:

• Remotelystart/stopthevehicle, iffactory-equipped.
• Lock/unlockdoors, if equipped with automatic clocks.
• Activatethehornandlamps.
• Checkthevehicle'sfuellevel, oil life, ortirepressure, iffactory-equipped with the Tire Pressure Monitor System.
• Senddirectionstothevehicle.
• Locatethevehicleonamap (U.S.marketonly).
• Turnthevehicle'sWi-Fihotspot on/off,managesettings,and monitordataconsumption, ifequipped.

ForOnStarRemoteLinkinformation andcompatibility,see www.onstar.com(U.S.)or www.onstar.ca(Canada).

RemoteServices

ContactanOnStarAdvisorto unlockthedoorsorsoundthehorn andflashthelamps.

364OnStar

OnStarAtYourService

OnStarAdvisorscanprovideoffers fromrestaurantsandretailerson yourroute, helplocatehotels, orbookaroom. Theseservices varybymarket.

OnStarHands-FreeCalling

Makeandreceivecallswiththe built-inwirelesscallingservice, whichrequiresavailableminutes.

MakeaCall

1. Press 📋. Systemresponds: "OnStarready."
2. Say "Call." Systemresponds: "Call. Pleasesaythenameor numbertocall."
3. Say the entire number without pausing, including a "1" and the areacode. System responds: "OK, calling."

Calling911Emergency

1. Press 📋. Systemresponds: "OnStarready."

2. Say "Call." Systemresponds: "Call.Please say then a name or numbertocall."

3. Say "911" without pausing. System responds: "911."
4. Say "Call." Systemresponds: "OK, dialing911."

RetrieveMyNumber

1. Press 📋. Systemresponds: "OnStarready."
2. Say "Mynumber." System responds: "YourOnStar Hands-FreeCallingnumberis," thensaysthenumber.

EndaCall

Press 📋. Systemresponds: "Call ended."

VerifyMinutesandExpiration

Press 📋 and say "Minutes" then "Verify" to check how many minutes remain and their expiration date.

Diagnostics

Advanced Diagnostics provides a status of the vehicle's key systems with amonthlye-mail, or by pressing on. If equipped, Diagnostic Alertscan bereceived in real-time viae-mailortext. The Proactive Alerts feature (if available) can help predict and alert of potential upcoming maintenance issues with select components on the vehicle, before they become a problem.

OnStarcanalsomonitorandreport tirepressure,ifthevehicleis equippedwithaTirePressure MonitoringSystem.

OnStarAdditional Information

In-VehicleAudioMessages

Audiomessagesmayplayimportant informationatthefollowingtimes:

• Priortovehiclepurchase.Press 🟢 tosetupanaccount.
• WiththeOnStarBasicPlan, every60days.
• Afterchangeinownership and at90days.

TransferringService

Press on torequestaccounttransfer eligibilityinformation. The Advisor cancancelorchangeaccount information.

Selling/Transferringthe Vehicle

Call1-888-4ONSTAR (1-888-466-7827)immediately to terminate your OnStarservices if the vehicle is disposed of, sold, transferred, or if the lease ends.

ReactivationforSubsequent Owners

Press on and follow the prompt to speak to an Advisor as soon as possible. The Advisor will update vehiclerecords and explain On Star service options.

HowOnStarServiceWorks

AutomaticCrashResponse, EmergencyServices,CrisisAssist, StolenVehicleAssistance, AdvancedVehicleDiagnostics, RemoteServices,Roadside Assistance,Turn-by-Turn Navigation,andHands-FreeCalling areavailableonmostvehicles.Not allOnStarservicesareavailable everywhereoronallvehicles.For moreinformation,afulldescription ofOnStarservices,system limitations,andOnStarUserTerms, PrivacyStatement,andSoftware Terms:

• Call1-888-4ONSTAR (1-888-466-7827).
  • Seewww.onstar.com(U.S.).
  • Seewww.onstar.ca(Canada).

• CallTTY1-877-248-2080.

• Press 📊 tospeakwithan Advisor.

OnStarservicescannotworkunless thevehicleisinaplacewhere OnStarhasanagreementwitha wirelessserviceproviderforservice inthatarea. Thewirelessservice providermustalsohavecoverage, networkcapacity,reception,and technologycompatiblewithOnStar services. Serviceinvolvinglocation informationaboutthevehiclecannot workunlessGPSsignalsare available, unobstructed, and compatiblewiththeOnStar hardware. OnStarservicesmaynot workiftheOnStarequipmentisnot properlyinstalledorithasnotbeen properlymaintained. Ifequipmentor softwareisadded, connected, ormodified, OnStarservicesmay notwork. Otherproblemsbeyond thecontrolofOnStar—suchas hills, tallbuildings, tunnels, weather, electricalsystemdesignand architectureofthevehicle,damage

366OnStar

tothevehicleinacrash,orwireless phonenetworkcongestionor jamming—maypreventservice.

SeeRadioFrequency Statement→357.

ServicesforPeoplewith Disabilities

Advisorsprovideservicestohelp Subscriberswithphysicaldisabilities andmedicalconditions.

Press on to help:

• Locateagasstationwithan attendanttopumpgas.
• Findahotel,restaurant,etc., thatmeetsaccessibilityneeds.
• Providedirectionstotheclosest hospitalorpharmacyinurgent situations.

TTYUsers

OnStarhastheabilityto communicatetodeaf, hard-of-hearing,orspeech-impaired customerswhileinthevehicle.The availabledealer-installedTTY systemcanprovidein-vehicle

accesstoallOnStarservices, exceptVirtualAdvisorandOnStar Turn-by-TurnNavigation.

OnStarPersonalIdentification Number(PIN)

APINisneededtoaccesssome OnStarservices.ThePINwillneed tobechangedthefirsttimewhen speakingwithanAdvisor.To changetheOnStarPIN,contactan

OnStarAdvisorbypressing or calling1-888-4ONSTAR.

Warranty

OnStarequipmentmaybe warrantedaspartofthevehicle warranty.

Languages

The vehicle can be programmed to respond in multiple languages.

Press 📊 andaskforanAdvisor. AdvisorsareavailableinEnglish, Spanish,andFrench.Available languagesmayvarybycountry.

PotentialIssues

OnStarcannotperformRemote DoorUnlockorStolenVehicle Assistanceafterthevehiclehas beenoffcontinuouslyfor10days withoutanignitioncycle.Ifthe vehiclehasnotbeenstartedfor fivedays,OnStarcancontact RoadsideAssistanceoralocksmith tohelpgainaccesstothevehicle.

GlobalPositioning System(GPS)

• ObstructionoftheGPScan occurinalargecitywithtall buildings;inparkinggarages;aroundairports;intunnelsand underpasses;orinanareawith verydensetrees.IfGPSsignals arenotavailable,theOnStar systemshouldstilloperateto callOnStar.However,OnStar couldhavedifficultyidentifying theexactlocation.
• Inemergencysituations, OnStar canusethelaststoredGPS locationtosendtoemergency responders.

AtemporarylossofGPScancause lossoftheabilitytosenda Turn-by-TurnNavigationroute. The Advisormaygiveaverbalrouteor mayaskforacallbackafterthe vehicleisdrivenintoanopenarea.

CellularandGPSAntennas

Cellularreceptionisrequiredfor OnStartosendremotesignalsto thevehicle.Donotplaceitemsover orneartheantennatoprevent blockingcellularandGPSsignal reception.

UnabletoConnecttoOnStar Message

If there is limited cellular coverage or the cellular network has reached maximum capacity, this message may come on. Press 📊 to try the call again or try again after driving a few miles into another cellular area.

VehicleandPowerIssues

OnStarservicesrequireavehicle electricalsystem,wirelessservice, andGPSsatellitetechnologiestobe availableandoperatingforfeatures tofunctionproperly. Thesesystems may not operate if the battery is discharged disconnected.

Add-onElectricalEquipment

TheOnStarsystemisintegrated intotheelectricalarchitectureofthe vehicle.Donotaddanyelectrical equipment.SeeAdd-OnElectrical Equipment→253.Addedelectrical equipmentmayinterferewith the operationoftheOnStarsystemand causeittonotoperate.

VehicleSoftwareUpdates

OnStarorGMmayremotelydeliver softwareupdatesorchangestothe vehiclewithoutfurthernoticeor consent. Theseupdatesorchanges mayenhanceormaintainsafety, security, ortheoperationofthe vehicleorthevehiclesystems. Softwareupdatesorchangesmay affectorerasedataorsettingthat arestoredinthevehicle, suchas OnStarHands-FreeCallingname tags, savednavigationdestinations, orpre-setradiostations. Neither OnStarnorGMisresponsiblefor anyaffectedoreraseddataor settings. These updates or changes may also collect personal information. Such collection is described in the OnStar privacy statement or separately disclosed at the time of installation. These updates or changes may also cause asystem to automatically communicate with GM server to collect information about vehicle system status, identify whether updates or changes are available, or deliver updates or changes. An active OnStar agreement constitutes consent to these software updates or changes and agreement that either OnStar or GM may remotely deliver them to the vehicle.

Privacy

ThecompleteOnStarPrivacy Statementmaybefoundat www.onstar.com(U.S.), orwww.onstar.ca(Canada).We recommendthatyoureviewit.Ifyou haveanyquestions,call 1-888-4ONSTAR(1-888-466-7827) orpress 🟢 on tospeakwithan Advisor.Usersofwireless communicationsarecautionedthat

368OnStar

theprivacyofanyinformationsent viawirelesscellularcommunications cannotbeassured. Thirdparties mayunlawfullyinterceptoraccess transmissionsandprivate communicationswithoutconsent.

OnStar-Software Acknowledgements

CertainOnStarcomponentsinclude libcurlandunzipsoftwareandother thirdpartysoftware.Belowarethe noticesandlicensesassociatedwith libcurlandunzipandforotherthird partysoftwarepleaseseehttp://www.lg.com/global/support/ opensource/indexandhttps://www.onstar.com/us/en/support/getdocuments.html

libcurl:

COPYRIGHTANDPERMISSION NOTICE

Copyright(c)1996-2010, Daniel Stenberg, [e-mail].

Allrightsreserved.

Permissiontouse, copy, modify, and distribute this software for any purpose with or without fees

herebygranted,providedthatthe abovecopyrightnoticeandthis permissionnoticeappearinall copies.

THESOFTWAREISPROVIDED "ASIS,"WITHOUTWARRANTYOF ANYKIND,EXPRESSOR IMPLIED,INCLUDINGBUTNOT LIMITEDTOTHEWARRANTIES OFMERCHANTABILITY,FITNESS FORAPARTICULARPURPOSE ANDNONINFRINGEMENTOF THIRDPARTYRIGHTS.INNO EVENTSHALLTHEAUTHORSOR COPYRIGHTHOLDERSBE LIABLEFORANYCLAIM, DAMAGESOROTHERLIABILITY, WHETHERINANACTIONOF CONTRACT,TORTOR OTHERWISE,ARISINGFROM, OUTOFORINCONNECTION WITHTHESOFTWAREORTHE USEOROTHERDEALINGSIN THESOFTWARE.

Exceptascontainedinthisnotice, thenameofacopyrightholdershall notbeusedinadvertisingor otherwisetopromotethesale,use

orotherdealingsinthisSoftware withoutpriorwrittenauthorization of the copyrightholder.

unzip:

Thisisversion2005-Feb-10ofthe Info-ZIPcopyrightandlicense. The definitiveversionofthisdocument shouldbeavailableatftp://ftp.info-zip.org/pub/infozip/license.htmlindefinitely.

Copyright(c)1990-2005Info-ZIP.All rightsreserved.

Forthepurposesofthiscopyright andlicense, "Info-ZIP"isdefinedas thefollowingsetofindividuals:

MarkAdler, John Bush, Karl Davis, Harald Denker, Jean-Michel Dubois, Jean-Ioup Gailly, Hunter Goatley, Ed Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert Heath, Jonathan Hudson, Paul Kienitz, David Kirschbaum, Johnny Lee, Onnovander Linden, Igor Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George Petrov, Greg Roelofs, Kai Uwe Rommel, Steve Salisbury, Dave Smith, Steven M. Schweda,

ChristianSpieler, CosminTruta, AntoineVerheijen, PaulvonBehren, RichWales, MikeWhite.

Thissoftwareisprovided“asis,” withoutwarrantyofanykind, expressorimplied.Innoeventshall Info-ZIPoritscontributorsbeheld liableforanydirect,indirect, incidental,specialorconsequential damagesarisingoutoftheuseofor inabilitytousethissoftware.

Permissionisgrantedtoanyoneto usethissoftwareforanypurpose, includingcommercialapplications, andtoalteritandredistributeit freely,subjecttothefollowing restrictions:

1. Redistributionsofsourcecode mustretaintheabovecopyright notice, definition, disclaimer, and thislistofconditions.
2. Redistributionsinbinaryform (compiledexecutables) must reproduce the above copyright notice, definition, disclaimer, and this list of conditions in documentation and/or other materials provided with the distribution. Thesole exception

to this condition is redistribution of a standard UnZip SFX binary (including SFXWiz) as part of a self-extracting archive; that is permitted without inclusion of this license, as long as the normal SFX banner has not been removed from the binary or disabled.

1. Alteredversions—including, but notlimitedto, portstonew operating systems, existing portswithnew graphical interfaces, and dynamic, shared, or static library versions—must be plainly marked such and must not bemisrepresented as being the original source. Such altered versions also must not bemisrepresented as being Info-ZIP releases—including, but not limitedto, labeling of the altered versions with the names “Info-ZIP” (or any variation thereof, including, but not limitedto, different capitalizations), “Pocket UnZip,” “WiZ” or “MacZip” without the explicit permission

ofInfo-ZIP.Suchaltered versionsarefurtherprohibited frommisrepresentativeuseof theZip-BugsorInfo-ZIPe-mail addressesorofthe Info-ZIPURL(s).

1. Info-ZIPretainstherighttouse thenames "Info-ZIP," "Zip," "UnZip," "UnZipSFX," "WiZ," "PocketUnZip," "PocketZip," and "MacZip" for its own source and binary releases.

Index

A

Accessoriesand

Modifications......255

AccessoryPower......231

AdaptiveForward

Lighting(AFL)......121

AdaptiveForwardLighting

(AFL)Light.....109

AdaptiveForwardLighting

Lamps....275

Add-OnElectricalEquipment...253

Additional Information

OnStar ^® 365

AdditionalMaintenance

andCare....338

Adjustments

Lumbar, FrontSeats......48

Agreements

TrademarksandLicense.....208

AirCleaner/Filter,Engine.....263

AirConditioning......213

AirFilter, Passenger

Compartment......216

AirVents....215

AirbagSystem

Check......68

HowDoesanAirbag

Restrain?......61

AirbagSystem(cont'd)

PassengerSensingSystem....63

WhatMakesanAirbag

Inflate?......61

WhatWillYouSeeafteran

AirbagInflates?......62

WhenShouldanAirbag

Inflate?......60

WhereAretheAirbags?......59

Airbags

AddingEquipmenttothe

Vehicle......68

PassengerStatusIndicator...101

ReadinessLight.....101

ServicingAirbag-Equipped

Vehicles......67

SystemCheck....58

Alarm

VehicleSecurity......31

All-SeasonTires......289

AM-FMRadio....138

Antenna

Multi-band....147

AntilockBrakeSystem(ABS)...237

WarningLight.....105

AppearanceCare

Exterior......321

Interior......326

AssistanceProgram, Roadside......351
AssistanceSystemsfor ParkingandBacking......244
Audio Bluetooth....166
AudioPlayers CD....157 MP3....158
Automatic DoorLocks....28 HeadlampSystem....121 Transmission....234 TransmissionFluid....263
AutomaticTransmission ManualMode....235 ShiftLockControlFunction Check....272
Auxiliary Devices....165
AvoidingUntrustedMedia Devices....157

Battery ExteriorLightingBattery Saver....125 LoadManagement....125

B

Battery(cont'd) PowerProtection......125
Battery-NorthAmerica....271,315
BladeReplacement,Wiper.....273
Bluetooth....198
BluetoothAudio....166
Brake Parking, Electric.....237 SystemWarningLight.....104
Brakes....270 Antilock....237 Assist....239 Fluid....270
Braking....219 Break-In, NewVehicle....227
BulbReplacement....281 Back-upLamps....279
FogLamps....276 FrontTurnSignalLamps.....276
HeadlampAiming......274
Headlamps....275
HighIntensityDischarge (HID)Lighting......275
LicensePlateLamps......280
SideTurnSignalLamps.....278
SidemarkerLamps......277
BuyingNewTires......302

C Calibration....95
California FuelRequirements......250 PerchlorateMaterials Requirements......255
California Proposition 65Warning......255,271,315
Capacities and Specifications......345
CarbonMonoxide EngineExhaust.....233 Trunk.....29 WinterDriving.....222
CDPlayer....157 CenterConsoleStorage....91 Chains,Tire....307 ChargingSystemLight....102
Check IgnitionTransmissionLock...273 MalfunctionIndicator EngineLight.....102
ChildRestraints InfantsandYoungChildren....71 LowerAnchorsandTethers forChildren.....76 OlderChildren.....69

372Index

ChildRestraints(cont'd)

Securing....83,85

Systems....73

CircuitBreakers......282

Cleaning

ExteriorCare....321

InteriorCare....326

ClimateControlSystems

DualAutomatic......213

Clock....96

Cluster,Instrument......98

CollisionDamageRepair......354

CompactSpareTire......314

Compartments

Storage......89

Compass....95

ConfigureMenu......185

Connections

OnStar ^® 362

Control

TractionandElectronic

Stability......240

ControlofaVehicle......219

Controls

SteeringWheel....132

ConvertibleTop......37

RollBars....63

ConvexMirrors....33

Coolant

Engine....265

EngineTemperatureGauge..100

Cooling....213

CoolingSystem......264

CourtesyLamps......124

Courtesy Transportation

Program......353

CoverageExplanations......192

CruiseControl....242

Light....109

CustomerAssistance......349

Offices......349

TextTelephone(TTY)

Users......349

CustomerInformation

ServicePublications

OrderingInformation......356

CustomerSatisfaction

Procedure....347

D

DamageRepair,Collision......354

DataCollection

InfotainmentSystem......359

OnStar 359

DataRecorders,Event......358

DatabaseCoverage

Explanations....192

DaytimeRunning

Lamps(DRL)....120

DefensiveDriving......218

DelayedLocking....28

Destination....174

DestinationDownload

OnStar ^® ......184

Devices

Auxiliary....165

USB....160

Diagnostics

OnStar ^® 364

DistractedDriving......218

DomeLamps....124

Door

AjarLight....109

DelayedLocking......28

Locks....27

PowerLocks......28

DriveBeltRouting,Engine.....346

DriverInformation

Center(DIC)......110

Driving

Defensive......218

Drunk......218

ForBetterFuelEconomy...20,19

HillandMountainRoads.....222

IftheVehicleisStuck......223

Driving(cont'd)

LossofControl......220

Off-RoadRecovery......220

VehicleLoadLimits......224

WetRoads......221

Winter....222

DualAutomaticClimate

ControlSystem......213

E

ElectricParkingBrake......237

ElectricParkingBrakeLight....105

Electrical Equipment,

Add-On....253

ElectricalSystem

EngineCompartmentFuse

Block....282

FusesandCircuitBreakers...282

InstrumentPanelFuse

Block......285

Overload.....281

RearCompartmentFuse

Block......286

Emergency

OnStar ^® 361

Engine

AirCleaner/Filter......263

CheckandServiceEngine

SoonLight.....102

Engine(cont'd)

CompartmentOverview.....259

Coolant....265

CoolantTemperature

Gauge....100

CoolingSystem......264

DriveBeltRouting......346

Exhaust......233

OilLifeSystem......262

OilPressureLight......107

Overheating....268

RunningWhileParked......233

Starting......230

EntryLighting......124

EventDataRecorders......358

ExitLighting....124

Extender, Safety Belt.....56

ExteriorLampControls......119

ExteriorLightingBattery

Saver....125

F

Filter,

EngineAirCleaner.....263

Flash-to-Pass......120

Flashers,HazardWarning.....122

FlatTire....307

Changing....309

FloorMats....329

Fluid

AutomaticTransmission.....263

Brakes....270

Washer....269

FogLamps....123

BulbReplacement......276

FoldingMirrors....33

ForwardCollisionAlert

(FCA)System......246

FrequencyStatement

Radio....357

FrontFogLamp

Light.....109

FrontSeats

Heated....49

FrontTurnSignalLamps.....276

Fuel......249

Additives......250

EconomyDriving......20,19

FillingaPortableFuel

Container.....252

FillingtheTank......250

ForeignCountries......250

Gauge....99

LowFuelWarningLight.....108

Requirements, California.....250

374Index

Fuses

EngineCompartmentFuse

Block......282

FusesandCircuitBreakers...282

InstrumentPanelFuse

Block....285

RearCompartmentFuse

Block....286

G

Gauges

EngineCoolant

Temperature......100

Fuel....99

Odometer....99

Speedometer....99

Tachometer....99

TripOdometer....99

WarningLightsand

Indicators......97

GeneralInformation

ServiceandMaintenance.....331

Towing....253

VehicleCare....255

GlobalPositioning

System(GPS)....190

GloveBox......89

GMMobilityReimbursement

Program......350

Guidance

ProblemswiththeRoute.....191

H

HazardWarningFlashers.....122

HeadRestraints......46

HeadlampLevelingControl.....122

Headlamps

AdaptiveForward

Lighting(AFL)......121

Aiming....274

Automatic....121

BulbReplacement......275

DaytimeRunning

Lamps(DRL)....120

Flash-to-Pass......120

HighIntensityDischarge

(HID)Lighting.....275

High-BeamOnLight......108

High/LowBeamChanger.....120

LampsOnReminder ......109

Heated

SteeringWheel....94

HeatedFrontSeats......49

HeatedMirrors....33

Heating....213

High-BeamOnLight.....108

HillandMountainRoads......222

HillStartAssist(HSA)......239

Hood....257

Horn....94

HowtoWearSafetyBelts

Properly....53

HVAC....213

|

IftheSystemNeedsService....192

IgnitionPositions......228

IgnitionTransmissionLock

Check......273

Immobilizer....32

Indicator

VehicleAhead......106

InfantsandYoungChildren,

Restraints....71

Information

Quick....147

InfotainmentSystem......359

InstrumentCluster......98

InstrumentPanel

StorageArea......89

InstrumentPanelOverview.....7,6

InteriorRearviewMirrors......34

InternetRadio

Pandora....147

Stitcher....152

J

JumpStarting-North

America....315

K

KeylessEntry

Remote(RKE)System......23

Keys......21

L

Labeling,TireSidewall......290

Lamps

AdaptiveForwardLighting....275

Courtesy....124

DaytimeRunning(DRL).....120

Dome....124

ExteriorControls......119

ExteriorLightingBattery

Saver....125

FrontTurnSignal......276

LicensePlate......280

MalfunctionIndicator......102

OnReminder......109

Reading......124

SideTurnSignal.....278

Lamps(cont'd)

Sidemarker......277

LaneDeparture

Warning(LDW)......248

LaneDepartureWarning

Light....106

Lap-ShoulderBelt......54

LATCHSystem

ReplacingPartsaftera

Crash......83

LATCH, LowerAnchorsand

TethersforChildren......76

Latches, Seatback......49

LEDLighting......275

LevelingControl

Headlamp....122

Light

AdaptiveForwardLighting

(AFL)Light......109

Lighting

AdaptiveForward......121

Entry......124

Exit......124

IlluminationControl......123

LED....275

Lights....106

AirbagReadiness......101

Lights(cont'd)

AntilockBrakeSystem

(ABS)Warning......105

BrakeSystemWarning.....104

ChargingSystem......102

CruiseControl......109

DoorAjar....109

ElectricParkingBrake......105

EngineOilPressure......107

Flash-to-Pass......120

FrontFogLamp......109

High-BeamOn......108

High/LowBeamChanger.....120

LaneDepartureWarning.....106

LowFuelWarning......108

OperatePedal......105

SafetyBeltReminders......100

Security......108

ServiceElectricParking

Brake....105

StabiliTrak ^® OFF......106

TirePressure......107

TractionControlSystem

(TCS)/StabiliTrak ^® .....107

Warning,PowerSteering.....106

Locks

AutomaticDoor......28

DelayedLocking......28

376Index

Locks(cont'd)

Door....27

LockoutProtection......29

PowerDoor.....28

LossofControl......220

LowFuelWarningLight.....108

Low-ProfileTires......290

LowerAnchorsandTethers

forChildren(LATCH

System)....76

LumbarAdjustment......48

FrontSeats......48

M

Maintenance

Records......343

MaintenanceandCare

Additional....338

MaintenanceSchedule......332

RecommendedFluidsand

Lubricants......341

MalfunctionIndicatorLamp.....102

ManualMode......235

MapDataUpdates......192

Maps....172

Media

AvoidingUntrustedDevices..157

Menu

Configure......185

Messages

Vehicle....113

Messaging

Text.....205

Mirrors

AutomaticDimming

Rearview....34

Convex 33

Folding....33

Heated....33

Power....33

Mirrors,InteriorRearview......34

MonitorSystem, Tire

Pressure....296

MP3....158

Multi-bandAntenna....147

N

Navigation

Destination....174

OnStar ^® 362

UsingtheSystem......168

NavigationSymbols......172

NewVehicleBreak-In.....227

0

Odometer....99

Trip....99

Off-Road

Recovery......220

Oil

Engine....260

EngineOilLifeSystem......262

PressureLight......107

OlderChildren,Restraints......69

OnlineOwnerCenter......350

OnStar 359

OnStarSystem......167

OnStar ^® Additional

Information......365

OnStar ^® Connections......362

OnStar ^® Destination

Download......184

OnStar® Diagnostics......364

OnStar® Emergency......361

OnStar® Navigation......362

OnStar® Overview......360

OnStar® Security......361

OperatePedalLight.....105

Operation

FogLamps....123

Ordering

ServicePublications......356

Outlets

Power....96

Overheating,Engine......268

Overview......128

P

PandoraInternetRadio......147

Park

ShiftingInto......231

ShiftingOutof......232

Parking

BrakeandP(Park)

MechanismCheck......273

OverThingsThatBurn.....232

ParkingAssist......244

ParkingorBacking

AssistanceSystems......244

PassengerAirbagStatus

Indicator.....101

PassengerCompartmentAir

Filter......216

PassengerSensingSystem.....63

PerchlorateMaterials

Requirements, California.....255

Personalization

Vehicle....113

Pictures 156

Positioning

Vehicle....190

Power

DoorLocks......28

Mirrors....33

Outlets 96

Protection, Battery......125

RetainedAccessory(RAP)...231

SeatAdjustment......47

Windows 34

PowerSteeringWarning

Lights....106

Pregnancy, Using Safety Belts...56

Privacy

VehicleDataRecording......358

ProblemswithRoute

Guidance 191

Program

Courtesy Transportation.....353

Proposition

65Warning,

California .....255,271,315

Q

QuickInfo....147

R

RadioDataSystem(RDS).....141

RadioFrequencyStatement ....357

RadioReception......146

Radios

AM-FMRadio 138

Satellite.... 141

ReadingLamps ......124

RearSeats......50

RearStorage 89

RearVisionCamera(RVC).....244

RearviewMirrors

AutomaticDimming......34

RecliningSeatbacks......48

Recognition

Voice.... 192

RecommendedFluidsand

Lubricants....341

Records

Maintenance 343

RecreationalVehicleTowing....320

ReimbursementProgram,

GMMobility......350

RemoteKeylessEntry(RKE)

System 23

RemoteVehicleStart .....26

ReplacementBulbs.....281

ReplacementParts

Airbags......69

Maintenance 342

ReplacingAirbagSystem......69

378Index

ReplacingLATCHSystem

PartsafteraCrash......83

ReplacingSafetyBeltSystem

PartsafteraCrash......57

ReportingSafetyDefects

CanadianGovernment......357

GeneralMotors......358

U.S.Government......357

Restraints

WheretoPut....75

RetainedAccessory

Power(RAP)......231

Roads

Driving, Wet.....221

Roadside Assistance

Program......351

RollBars....63

Rotation, Tires......301

Routing,EngineDriveBelt.....346

RunningtheVehicleWhile

Parked....233

S

SafetyBelts....52

Care....57

Extender....56

HowtoWearSafetyBelts

Properly....53

Lap-ShoulderBelt......54

SafetyBelts(cont'd)

Reminders......100

ReplacingafteraCrash......57

UseDuringPregnancy......56

SafetyDefectsReporting

CanadianGovernment......357

GeneralMotors......358

U.S.Government......357

SafetySystemCheck......57

SatelliteRadio....141

SchedulingAppointments......352

SeatbackLatches....49

Seats

HeadRestraints......46

HeatedFront......49

LumbarAdjustment,Front.....48

PowerAdjustment, Front.....47

Rear....50

RecliningSeatbacks......48

SecuringChildRestraints....83,85

Security

Light....108

OnStar ^® 361

Vehicle....31

VehicleAlarm....31

Service

Accessoriesand

Modifications......255

Service(cont'd)

DoingYourOwnWork......256

EngineSoonLight.....102

MaintenanceRecords......343

Maintenance, General

Information......331

PartsIdentificationLabel.....344

PublicationsOrdering

Information......356

SchedulingAppointments.....352

ServiceElectricParking

BrakeLight....105

Services

SpecialApplication......338

ServicingSystem......192

ServicingtheAirbag......67

ShiftLockControlFunction

Check, Automatic

Transmission......272

Shifting

IntoPark......231

OutofPark......232

SideTurnSignalLamps......278

SidemarkerLamps......277

Signals, Turnand

Lane-Change......122

SoftwareUpdates......137

SpareTire

Compact....314

SpecialApplicationServices....338

Specificationsand

Capacities....345

Speedometer....99

StabiliTrak

OFFLight....106

StartAssist,Hill......239

StartVehicle, Remote......26

StarterSwitchCheck......272

StartingtheEngine......230

Steering......219

HeatedWheel....94

Power,WarningLights......106

WheelAdjustment......93

WheelControls....93

SteeringWheelControls.....132

StitcherInternetRadio......152

Storage

Rear....89

StorageAreas

CenterConsole....91

GloveBox......89

InstrumentPanel......89

StorageCompartments......89

StuckVehicle......223

SunVisors....36

Symbols

Navigation......172

System

ForwardCollision

Alert(FCA)......246

GlobalPositioning......190

Infotainment......359

T

Tachometer....99

TextMessaging......205

TextTelephone(TTY)Users....349

Theft-DeterrentSystems......32

Immobilizer....32

Time....96

Tires....288

All-Season......289

BuyingNewTires......302

Chains....307

Changing....309

CompactSpare......314

Designations......292

DifferentSize......304

IfaTireGoesFlat......307

Inspection......300

LowProfile......290

Pressure....295

PressureLight......107

PressureMonitorOperation..297

Tires(cont'd)

PressureMonitorSystem.....296

Rotation....301

SidewallLabeling......290

TerminologyandDefinitions..293

UniformTireQuality

Grading....304

WheelAlignmentandTire

Balance....306

WheelReplacement......306

When ItIsTimeforNew

Tires 302

Winter....289

Towing

GeneralInformation......253

RecreationalVehicle......320

Vehicle 318

Traction

ControlSystem(TCS)/

StabiliTrak® Light......107

TractionControl/Electronic

StabilityControl......240

TrademarksandLicense

Agreements......208

Transmission

Automatic....234

Fluid,Automatic......263

380Index

TransportationProgram,

Courtesy....353

TripOdometer....99

Trunk......29

TurnandLane-Change

Signals......122

U

UniformTireQualityGrading...304

Updates

MapData....192

Software....137

USB....160

UsingtheNavigationSystem...168

UsingtheSystem......132

V

Vehicle

AlarmSystem......31

Control......219

IdentificationNumber(VIN)...344

LoadLimits....224

Messages......113

Personalization......113

RemoteStart .....26

Security......31

Towing....318

VehicleAheadIndicator.....106

VehicleCare

TirePressure....295

VehicleDataRecordingand

Privacy....358

VehiclePositioning......190

Ventilation,Air......215

Viewing

Pictures....156

Visors....36

VoiceRecognition......192

W

Warning

BrakeSystemLight......104

LaneDeparture(LDW).....248

WarningLights, Gauges, and

Indicators......97

Warnings

HazardFlashers......122

WasherFluid 269

Wheels

AlignmentandTireBalance..306

DifferentSize......304

Replacement ....306

WhenItIsTimeforNew

Tires....302

WheretoPuttheRestraint.....75

Wi-Fi....362

Windows....34

Windows(cont'd)

Power 34

Windshield

Wiper/Washer....94

Winter

Driving....222

WinterTires......289

WiperBladeReplacement.....273
