| Product Type | AV Extender |
| Brand | Kramer |
| Model | TP-582R |
| Dimensions (H x W x D) | 4.4 cm x 19.0 cm x 10.5 cm |
| Weight | 0.6 kg |
| Power Supply | 12V DC, 1A |
| Power Consumption | 12W max |
| Video Bandwidth | Up to 4.95 Gbps |
| Maximum Extension Distance | 100 m (330 ft) over CAT6 |
| Supported Resolutions | Up to 4K@60Hz (4:4:4) |
| HDMI Compliance | HDMI 2.0, HDCP 2.2 |
| EDID Management | Onboard EDID emulation |
| RS-232 Extension | Bi-directional, up to 115200 baud |
| Infrared Extension | Bi-directional, 20-60 kHz |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 10% to 90% non-condensing |
| Maintenance | Keep dry; clean with soft cloth |
| Safety | Use only included power supply; avoid liquids |
| Spare Parts and Repairability | Contact Kramer support for service |
| General Information | Supports PoE (Power over Ethernet) for receiver |
Frequently Asked Questions - TP-582R Kramer
User questions about TP-582R Kramer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your AV Extender in PDF format for free! Find your manual TP-582R - Kramer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TP-582R by Kramer.
USER MANUAL TP-582R Kramer
HDMI Line Receiver DA
TP-581T, TP-582T, TP-582R Quick Start Guide
This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerav.com/manual/TP-582T/TP-581T/TP-582R to download the latest manual or scan the QR code on the left.
Step 1: Check what's in the box
TP-581T HDMI Line Transmitter and/or
TP-582T HDMI Switcher/Line
Transmitter and/or
TP-582R HDMI Line Receiver DA
1 Power supply (5V DC) per unit
4 Rubber feet per unit
1 Quick Start sheet
IR remote control transmitter (for TP-582 only)
Save the original box and packaging materials in case you need to return your machine for service.
Step 2: Install the Machine
Attach the rubber feet and place on a table or mount the device/s in a rack (using an optional RK-T2B rack adapter).

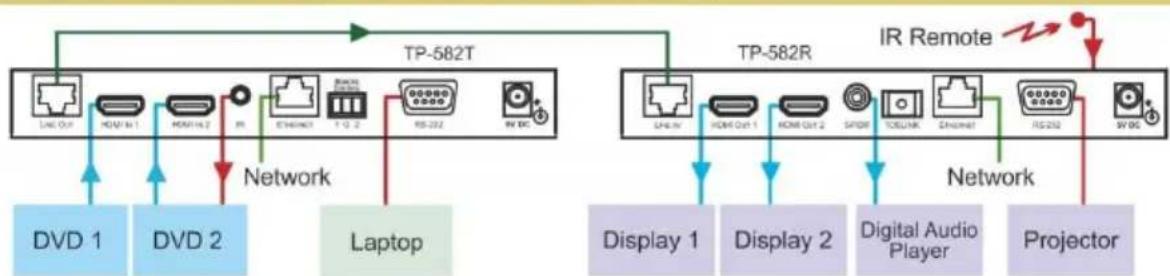

Step 3: Connect the inputs and outputs
Always switch off the power on each device before connecting it to your machine.
subgraph_TP-582T["TP-582T"]
A["Link Out"] --> B["HD/MI 1"]
C["HD/MI 2"] --> D["HD/MI 2"]
E["RS"] --> F["ECH/MS"]
G["USB"] --> H["T/O 2"]
I["RS-222"] --> J["W/DC"]
K["Network"] --> L["Laptop"]
M["DVD 1"] --> N["Display 1"]
O["DVD 2"] --> P["Display 2"]
Q["Laptop"] --> R["Display 2"]
S["Network"] --> T["Digital Audio Player"]
U["IR Remote"] --> V["Display 1"]
W["IR Remote"] --> X["Display 2"]
Y["IR Remote"] --> Z["Digital Audio Player"]
AA["Projector"] --> AB["Digital Audio Player"]
end
Always use Kramer high-performance cables for connecting AV equipment to the Kramer machine.
Step 4: Connect the power
Connect the 5V DC power adapter to the device and plug the adapter into the mains electricity.
Step 5: Acquiring the EDID
Connect the power. The system acquires the EDID according to the following priorities:
- If only one output is connected, the EDID is acquired from that output
- If both outputs are connected, the EDID is acquired from the output connected to HDMI OUT 1
- If no output is connected, the default EDID is acquired
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3 Overview 4
3.1 About HDBaseT™ Technology 5
3.2 Using Twisted Pair Cable 6
4 Defining the Devices 7
4.1 Your TP-581T HDMI Line Transmitter 7
4.2 Your TP-582T HDMI Switcher/Line Transmitter 8
4.3 Your TP-582R HDMI Line Receiver DA 9
5 Connecting the Devices 10
5.1 Connecting the TP-582T or TP-581T 10
5.2 Connecting the TP-582R 11
5.3 Controlling the AV Equipment via an IR Transmitter 13
5.4 Controlling the TP-582T via the REMOTE Terminal Block Connector 15
5.5 Connecting to a PC 15

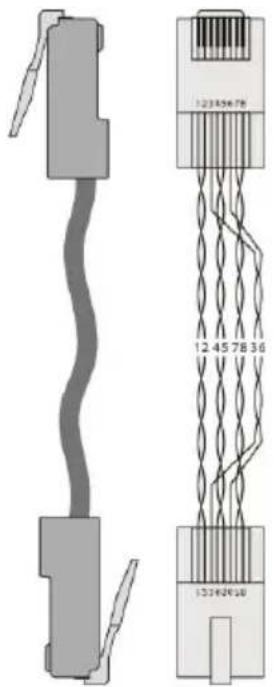

5.6 Wiring the RJ-45 Connectors 16
5.7 Acquiring the EDID 17
6 Technical Specifications 18
7 Default EDID 19
Figures
Figure 1: TP-581T HDMI Line Transmitter 7
Figure 2: TP-582T HDMI Switcher/Line Transmitter 8
Figure 3: TP-582R HDMI Line Receiver DA 9

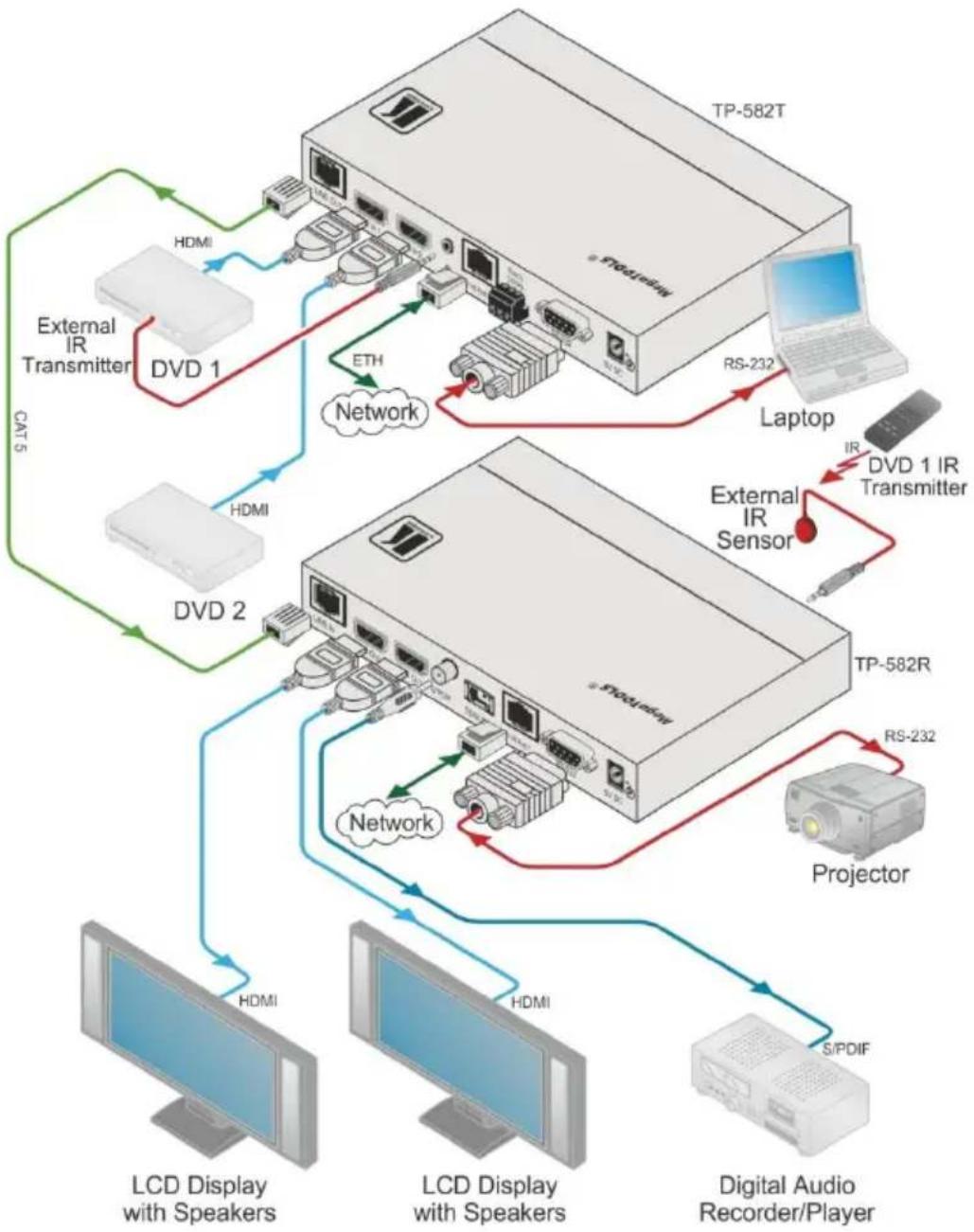

Figure 4: Connecting the TP-582T and TP-582R 12

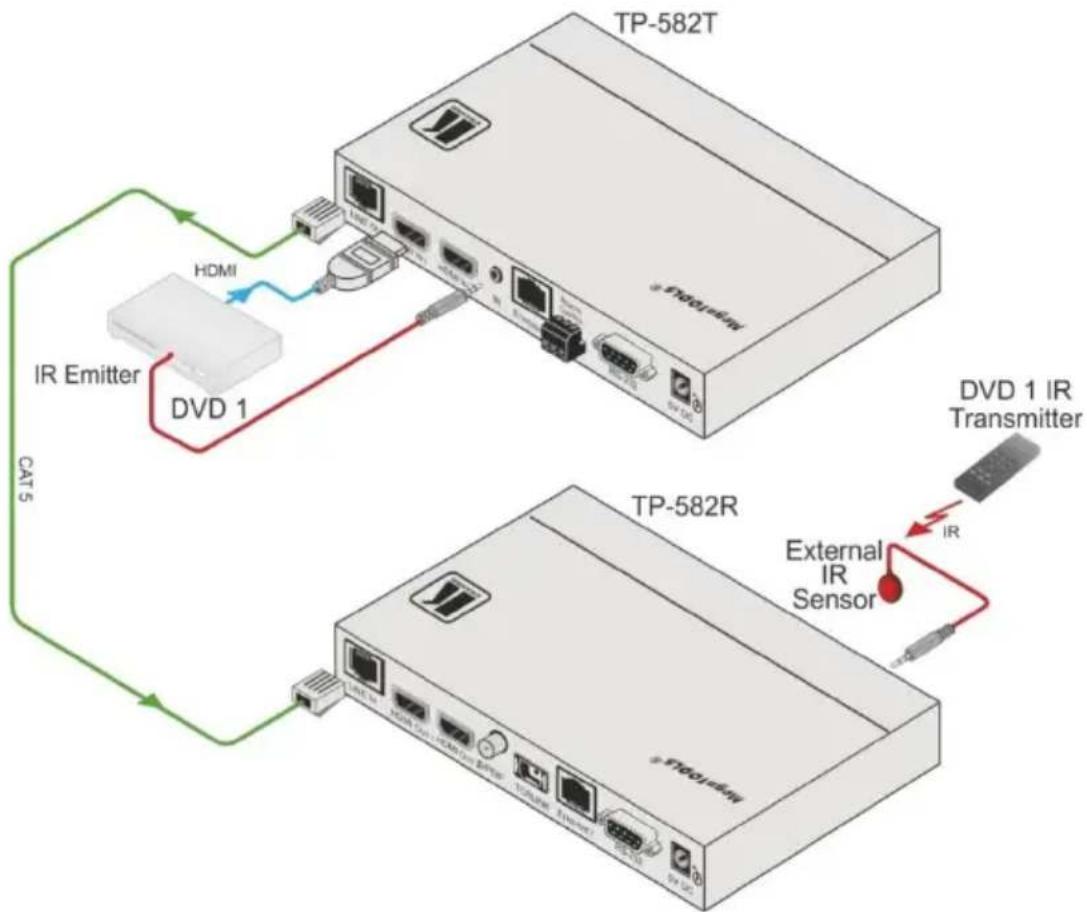

Figure 5: Controlling a DVD Player via the TP-582R 13

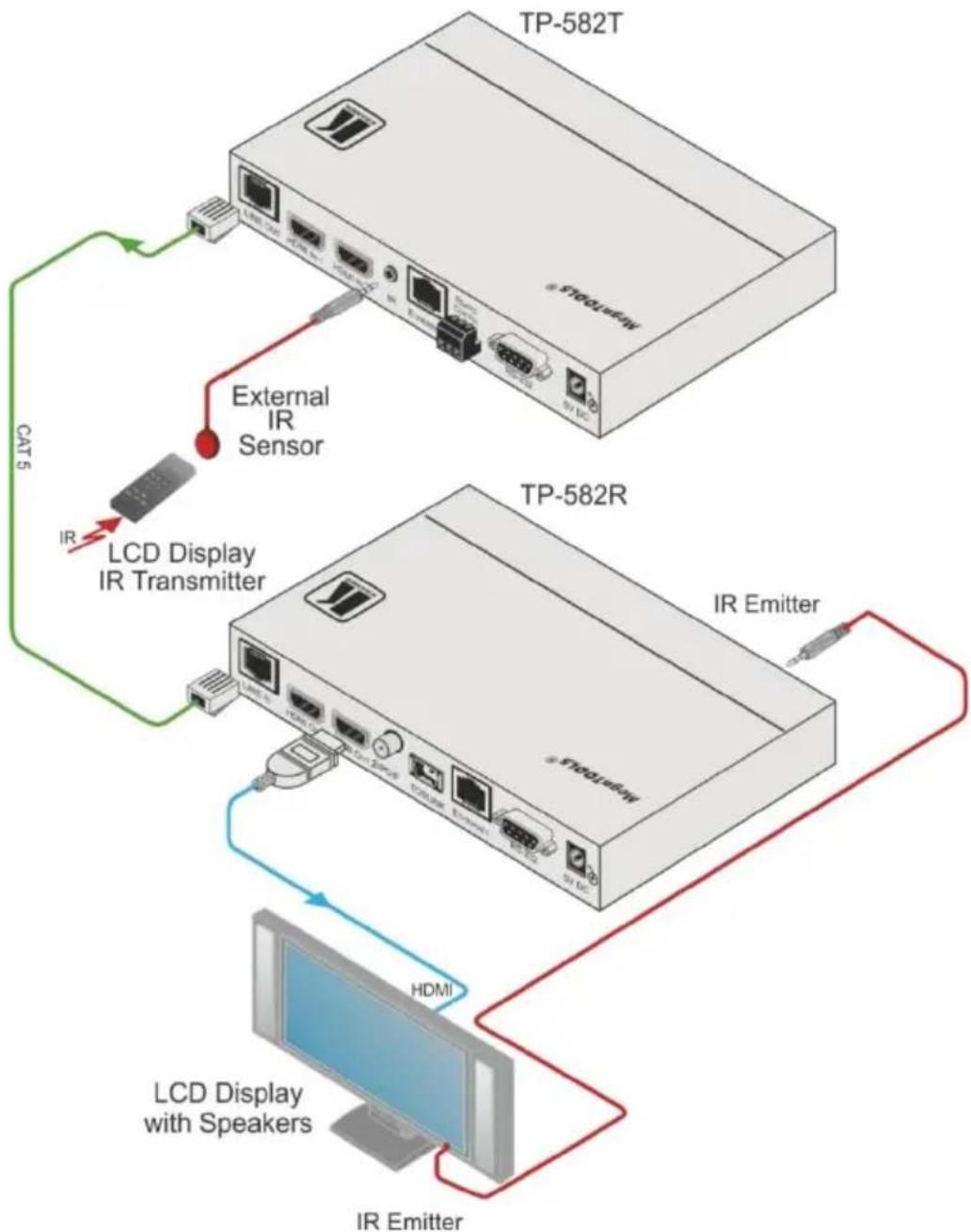

Figure 6: Controlling an LCD Display via the TP-582T 14
Figure 7: Connecting the Contact Closure Remote Control PINs 15
Figure 8: TP PINOUT 16
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration.
Congratulations on purchasing your Kramer MegaTOOLS ^® TP-581T HDMI Line Transmitter, TP-582T HDMI Switcher/Line Transmitter or TP-582R HDMI Line Receiver DA that are ideal for:
• Home theater, presentation and multimedia applications
- Rental and staging
2 Getting Started
We recommend that you:
- Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
- Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
- Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
- Do not secure the cables in tight bundles or roll the slack into tight coils
- Avoid interference from neighboring electrical appliances that may adversely influence signal quality
- Position your Kramer TP-581T, TP-582T and TP-582R away from moisture, excessive sunlight and dust
This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution: There are no operator serviceable parts inside the unit
Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit
Warning: Disconnect the power and unplug the unit from the wall before installing
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
3 Overview
The TP-582T and TP-582R are a high-quality twisted pair transmitter and receiver for HDMI, 100BaseT Ethernet, bidirectional RS-232 and IR signals.
With the TP-582T you can select one of two HDMI inputs, and convert it with the 100BaseT Ethernet, RS-232 and IR input signals to a twisted pair signal. The TP-582R converts the twisted pair signal back to 100BaseT Ethernet, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK® audio outputs. The TP-581T is identical to the TP-582T but has only one HDMI input.
Since the TP-581T has only one input, it does not have the input selection control which the TP-582T has (that is, contact closure, IR and front panel input selection).
Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).
The transmitter/receiver pair features:
- A maximum data transfer rate of 6.75Gbps (2.25Gbps per graphic channel) (1080p@60Hz 36-bit) over a range of up to 130m (430ft) when using BC-HDKat6a cables
- HDTV compatibility
- HDMI support for Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC
- 3D pass-through
- HDCP compliance
• EDID PassThru, passes EDID/HDCP signals from source to display - A bidirectional RS-232 interface over which commands and data can flow in both directions via the RS-232 interface at rates up to 115200, allowing status requests and control of the destination unit
- Bidirectional infrared interface for remote control of peripheral devices (see Section 5.3)
• 100BaseT Ethernet interface for connection to a network (see Section 5.5)
• LED status indicators for input, output, link and power
- Two RJ-45 CAT 5 output connectors: one for the line output and the other for the Ethernet input
The compact MegaTOOLS® enclosures (for the transmitters and the receiver) let you rack mount up to two units side-by-side in a 1U 19" rack space when using the optional RK-T2B rack.
In addition, the TP-582T HDMI Switcher/Line Transmitter also features:
- Two HDMI inputs
• Momentary remote contact closure for input switching - Front panel input select button
- IR remote control input switching (via the Kramer IR remote control transmitter)
The TP-582R HDMI Line Receiver DA also features:
• One RJ-45 CAT 5 input connector
- Two HDMI outputs
• An S/PDIF digital audio output
• A TOSLINK ^® optical audio output
The TP-581T HDMI Line Transmitter also features:
• One HDMI input
3.1 About HDBaseT™ Technology
HDBaseT™ is an advanced all-in-one connectivity technology (Supported by the HDBaseT Alliance). It is particularly suitable in the consumer home environment as a digital home networking alternative where it enables you to replace numerous cables and connectors by a single LAN cable used to transmit uncompressed full high-definition video, audio, 100BaseT Ethernet, power over cable, as well as various control signals.
The products described in this user manual are HDBaseT certified.
3.2 Using Twisted Pair Cable
Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products; the Kramer BC-HDKat6a (CAT 6 23 AWG cable) significantly outperforms regular CAT 5 / CAT 6 cables.
We strongly recommend that you use shielded twisted pair cable.
4 Defining the Devices
This section describes the:
• TP-581T HDMI Line Transmitter, see Section 4.1
• TP-582T HDMI Switcher/Line Transmitter, see Section 4.2
• TP-582R HDMI Line Receiver DA, see Section 4.3
4.1 Your TP-581T HDMI Line Transmitter
Figure 1 defines the TP-581T:


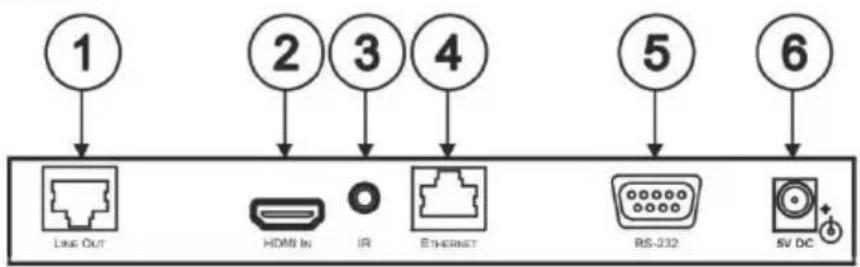

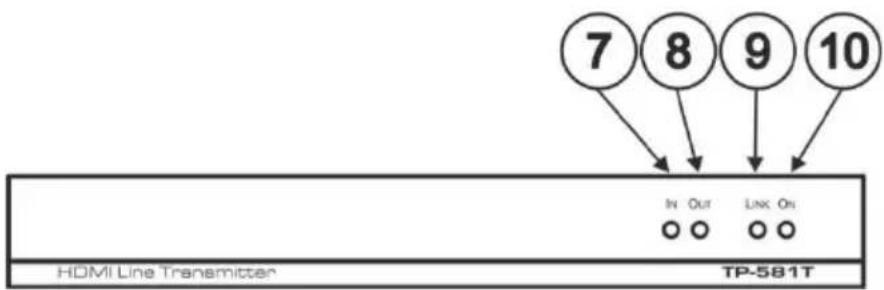

Figure 1: TP-581T HDMI Line Transmitter
| # | Feature | Function |
| 1 | LINE OUT RJ-45 Connector | Connects to the CAT 5 IN RJ-45 connector on the TP-582R |
| 2 | HDMI IN Connector | Connects to the HDMI source |
| 3 | IR 3.5mm Mini Jack Connector | Connects to an external infrared transmitter / sensor (receiver) |
| 4 | ETHERNET Connector | Connects to a network |
| 5 | RS-232 9-pin D-sub Connector | Connects to an RS-232 port |
| 6 | 5V DC | +5V DC connector for powering the unit |
| 7 | IN LED | Lights when an HDMI input device is connected |
| 8 | OUT LED | Lights when an HDMI output device is detected |
| 9 | LINK LED | Lights when the TP connection is active |
| 10 | ON LED | Lights when receiving power |
4.2 Your TP-582T HDMI Switcher/Line Transmitter

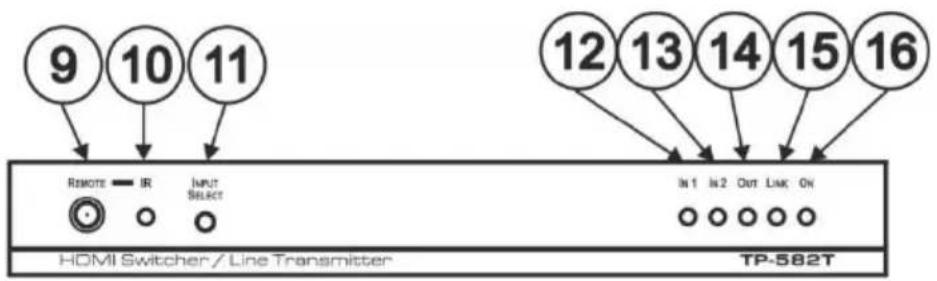

Figure 2 defines the TP-582T:

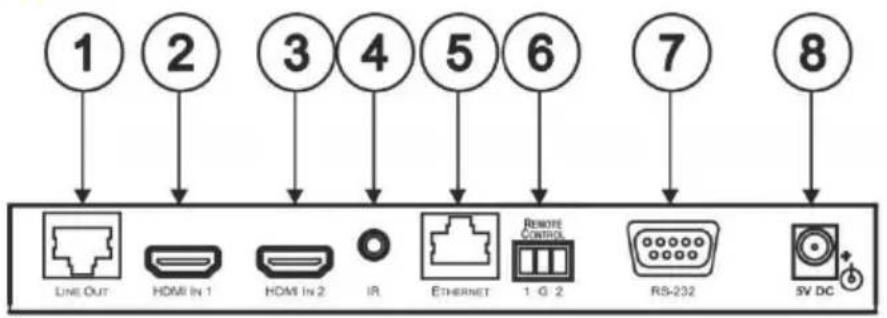

Figure 2: TP-582T HDMI Switcher/Line Transmitter
| # | Feature | Function |
| 1 | LINE OUT RJ-45 Connector | Connects to the CAT 5 IN RJ-45 connector on the TP-582R |
| 2 | HDMI IN 1 Connector | Connects to the HDMI source 1 |
| 3 | HDMI IN 2 Connector | Connects to the HDMI source 2 |
| 4 | IR 3.5mm Mini Jack Connector | Connects to an external infrared transmitter/sensor (receiver) |
| 5 | ETHERNET Connector | Connects to a network |
| 6 | REMOTE CONTROL Terminal Block | Connects to contact closure switches (see Section 5.4) |
| 7 | RS-232 9-pin D-sub Connector | Connects to an RS-232 port |
| 8 | 5V DC | +5V DC connector for powering the unit |
| 9 | REMOTE IR Sensor | Senses commands from the Kramer IR remote control deviceNote that the IR sensor is only used to select the TP-582T inputs. These IR signals cannot be transmitted to the TP-582R |
| 10 | IR LED | Lights when an infrared signal is detected |
| 11 | INPUT SELECT Switch | Press to toggle between HDMI inputs |
| 12 | IN 1 LED | Lights when the HDMI 1 input device is connected |
| 13 | IN 2 LED | Lights when the HDMI 2 input device is connected |
| 14 | OUT LED | Lights when an HDMI output device is detected |
| 15 | LINK LED | Lights when the TP connection is active |
| 16 | ON LED | Lights when receiving power |
4.3 Your TP-582R HDMI Line Receiver DA
Figure 3 defines the TP-582R:


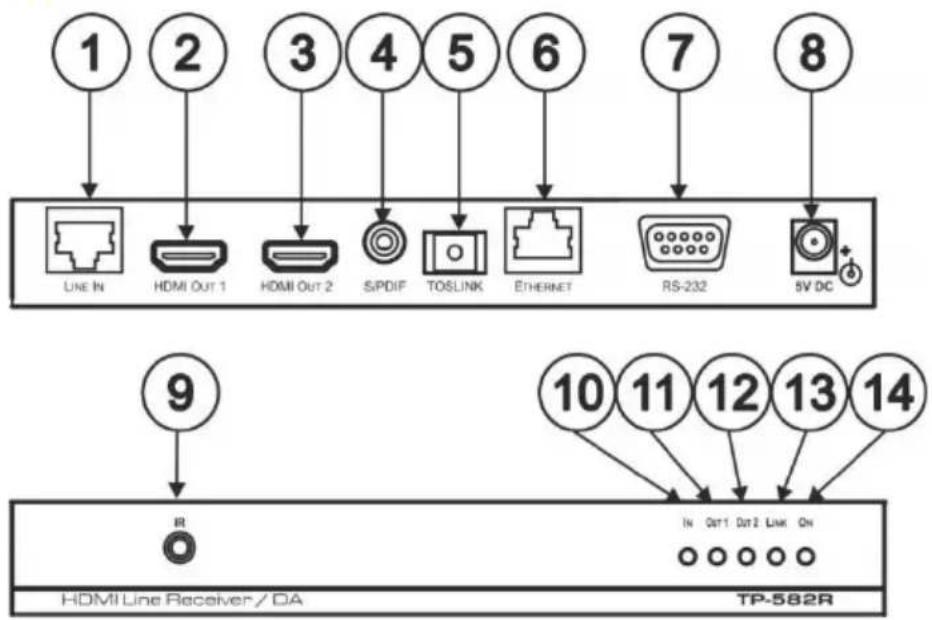

Figure 3: TP-582R HDMI Line Receiver DA
| # | Feature | Function |
| 1 | LINE IN RJ-45 Connector | Connects to the CAT 5 OUT RJ-45 connector on the TP-581T or TP-582T |
| 2 | HDMI OUT 1 Connector | Connects to the HDMI acceptor 1 |
| 3 | HDMI OUT 2 Connector | Connects to the HDMI acceptor 2 |
| 4 | S/PDIF Connector | Connects to a digital audio acceptor |
| 5 | TOSLINK® Connector | Connects to an optical audio acceptor |
| 6 | ETHERNET Connector | Connects to a network |
| 7 | RS-232 9-pin D-sub Connector | Connects to an RS-232 port |
| 8 | 5V DC | +5V DC connector for powering the unit |
| 9 | IR 3.5mm Mini Jack Connector | Connects to an external infrared transmitter/sensor (receiver) |
| 10 | IN LED | Lights when an input device is connected |
| 11 | OUT 1 LED | Lights when the HDMI 1 output device is connected |
| 12 | OUT 2 LED | Lights when the HDMI 2 output device is connected |
| 13 | LINK LED | Lights when the TP connection is active |
| 14 | ON LED | Lights when receiving power |
5 Connecting the Devices
Always switch off the power to each device before connecting it to your TP-581T, TP-582T and TP-582R. After connecting your TP-581T, TP-582T and TP-582R, connect its power and then switch on the power to each device.
You can use the TP-581T HDMI Line Transmitter or the TP-582T HDMI
Switcher/Line Transmitter with the TP-582R HDMI Line Receiver DA to configure an HDMI transmitter/receiver system.
• To connect the TP-582T or TP-581T, see Section 5.1
• To connect the TP-582R, see Section 5.2
• To remotely control the AV equipment, see Section 5.3
5.1 Connecting the TP-582T or TP-581T
To connect the TP-582T or TP-581T as shown in the example in Figure 4, do the following:
- Connect the HDMI IN1 connector to the first HDMI source (for example, a DVD player 1) for the TP-582T.
On the TP-581T, connect the HDMI IN connector to the HDMI source. - Connect the HDMI IN2 connector to the second HDMI source (for example, a DVD player 2).
There is no HDMI IN 2 connector for the TP-581T. - Connect the ETHERNET RJ-45 connector to a network.
- Connect the RS-232 9-pin D-sub connector to a computer.
- Connect the IR 3.5mm mini jack to an IR emitter.
- Connect the REMOTE CONTROL terminal block to an external set of switches (not shown in Figure 4).
-
Connect the LINE OUT RJ-45 connector over CAT 5 twisted pair to the TP-582R LINE IN connector.
-
Connect the 5V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 4).
5.2 Connecting the TP-582R
To connect the TP-582R as shown in the example in Figure 4, do the following:
- Connect the HDMI OUT 1 connector to the first HDMI acceptor (for example, LCD display 1).
- Connect the HDMI OUT 2 connector to the first HDMI acceptor (for example, LCD display 2).
- Connect the ETHERNET RJ-45 connector to a network.
- Connect the RS-232 9-pin D-sub connector to an RS-232 port (for example, a projector).
- Connect the IR 3.5mm mini jack to an IR sensor.
- Connect S/PDIF RCA connector to a digital audio acceptor (for example, a digital audio recorder).
- Connect TOSLINK ^® connector to an optical audio acceptor (for example, a digital audio recorder) (not shown in Figure 4).
- Connect the LINE IN RJ-45 connector over CAT 5 twisted pair to the TP-581T or TP-582T LINE OUT connector.
- If required, acquire the EDID (see Section 5.6).
- Connect the 5V DC power adapter to the power socket and connect the adapter to the mains electricity (not shown in Figure 4).
Figure 4: Connecting the TP-582T and TP-582R
5.3 Controlling the AV Equipment via an IR Transmitter
Since the IR signal on the TP-581T/TP-582T and the TP-582R is bidirectional, you can use a remote control transmitter to send commands (to the AV equipment) from either end of the transmitter /Receiver system. To do so you have to use the Kramer external IR sensor and the Kramer IR emitter cable.
Note that the IR sensor is only used to select the TP-582T inputs. These IR signals cannot be transmitted to the TP-582R.
Figure 5 illustrates how to control the DVD player using a remote control via the TP-582R.
Figure 5: Controlling a DVD Player via the TP-582R
Figure 6 illustrates how to control the LCD display via the TP-581T/TP-582T.
Figure 6: Controlling an LCD Display via the TP-582T
5.4 Controlling the TP-582T via the REMOTE Terminal Block Connector
The contact closure remote control pins operate in a similar way to the INPUT SELECT button. Using the contact closure remote control you can select the HDMI input. To do so, momentarily connect the required input pin (IN 1 or IN2) on the REMOTE CONTROL terminal block connector to the GND (ground) pin, as Figure 7 illustrates.
Do not connect more than one PIN to the GND PIN at the same time.
To select input 1, momentarily connect the 1 PIN to the G PIN
To select input 2, momentarily connect the 2 PIN to the G PIN
Figure 7: Connecting the Contact Closure Remote Control PINs
5.5 Connecting to a PC
You can connect to the transmitter/receiver system via an RS-232 connection using, for example, a PC. Note that a null-modem adapter/connection is not required.
To connect via RS-232, connect the RS-232 9-pin D-sub rear panel port on the transmitter/receiver system unit via a 9-wire straight cable (pin 2 to pin 2, pin 3 to pin 3, pin 5 to pin 5) to the RS-232 9-pin D-sub port on your PC.
5.6 Wiring the RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.
Note, that the cable ground shielding must be connected / soldered to the connector shield.
| EIA /TIA 568B | |
| PIN | Wire Color |
| 1 | Orange / White |
| 2 | Orange |
| 3 | Green / White |
| 4 | Blue |
| 5 | Blue / White |
| 6 | Green |
| 7 | Brown / White |
| 8 | Brown |
Figure 8: TP PINOUT
To acquire the EDID, connect the transmitter and receiver system as described in Section 5.
Once the power is connected, the system acquires the EDID according to the following priorities:
• If only one output is connected, the EDID is acquired from that output
- If both outputs are connected, the EDID is acquired from the output connected to HDMI OUT 1
- If no output is connected, the default EDID is acquired
To acquire the EDID of a newly connected output:
- Disconnect the power on the TP-582R.
- Connect the new acceptor (to HDMI OUT 1, if two outputs are connected).
- Connect the power.
The EDID is acquired only if the power is disconnected and then reconnected
6 Technical Specifications
| TP-581T | TP-582T | TP-582R | |
| INPUTS: | 1 HDMI connector | 2 HDMI connectors1 remote contactclosure on a terminal blockconnector | 1 RJ-45 connector |
| OUTPUTS: | 1 RJ-45 connector | 1 RJ-45 connector | 2 HDMI connectors1 TOSLINK® optical audio1 S/PDIF in an RCA connector |
| PORTS: | 1 IR on a 3.5mm mini jack1 Ethernet100BaseT on an RJ-45 connector1 RS-232 on a 9-pin D-sub connector | 1 IR on a 3.5mm mini jack1 Ethernet100BaseT on an RJ-45 connector1 RS-232 on a 9-pin D-sub connector | 1 IR on a 3.5mm mini jack1 Ethernet100BaseT on an RJ-45 connector1 RS-232 on a 9-pin D-sub connector |
| BANDWIDTH: | Supports up to 2.25Gbps bandwidth per graphic channel | ||
| RS-232 BAUD RATE: | 115200 | ||
| COMPLIANCE WITH HDMI STANDARD: | Supports HDMI and HDCP | ||
| POWER CONSUMPTION: | 5V DC, 800mA | 5V DC, 800mA | 5V DC, 1.55A |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F) | ||
| STORAGE TEMPERATURE: | -40° to +70°C (-40° to 158°F) | ||
| HUMIDITY: | 10% to 90%, RHL non-condensing | ||
| DIMENSIONS: | 18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 1.0") W, D, H | ||
| WEIGHT: | 0.6kg (1.4lbs) | ||
| INCLUDED ACCESSORIES: | Power supply | ||
| OPTIONS: | RK-T2B 19" rack mount, Kramer BC-HDKat6a cable | ||
| Specifications are subject to change without notice at http://www.kramerelectronics.com | |||
7 Default EDID
The factory default EDID is listed below.
Monitor
Model name..... TP-582
Manufacturer..... KRM
Plug and Play ID...... KRM5820
Serial number...... 505-707455010
Manufacture date...... 2009, ISO week 10
Filter driver...... None
EDID revision...... 1.3
Input signal type...... Digital
Color bit depth...... Undefined
Display type...... RGB color
Screen size.... 520 x 320 mm (24.0 in)
Power management...... Standby, Suspend, Active off/sleep
Extension blocs..... 1 (CEA-EXT)
DDC/CI...... Not supported
Color characteristics
Default color space..... Non-sRGB
Display gamma...... 2.20
Red chromaticity..... Rx 0.674 - Ry 0.319
Green chromaticity..... Gx 0.188 - Gy 0.706
Blue chromaticity..... Bx 0.148 - By 0.064
White point (default).... Wx 0.313 - Wy 0.329
Additional descriptors... None
Timing characteristics
Horizontal scan range.... 30-83kHz
Vertical scan range..... 56-76Hz
Video bandwidth..... 170MHz
CVT standard...... Not supported
GTF standard...... Not supported
Additional descriptors... None
Preferred timing...... Yes
Native/preferred timing.. 1280x720p at 60Hz (16:10)
Modeline...... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync
Standard timings supported
720 x 400p at 70Hz - IBM VGA
640 x 480p at 60Hz - IBM VGA
640 x 480p at 75Hz - VESA
800 x 600p at 60Hz - VESA
800 x 600p at 75Hz - VESA
1024 x 768p at 60Hz - VESA
1024 x 768p at 75Hz - VESA
1280 x 1024p at 75Hz - VESA
1280 x 1024p at 60Hz - VESA STD
1600 x 1200p at 60Hz - VESA STD
1152 x 864p at 75Hz - VESA STD
EIA/CEA-861 Information
Revision number...... 3
IT underscan...... Supported
Basic audio...... Supported
YCbCr 4:4:4.... Supported
YCbCr 4:2:2.... Supported
Native formats...... 1
Detailed timing #1..... 1920x1080p at 60Hz (16:10)
Modeline...... "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync
Detailed timing #2..... 1920x1080i at 60Hz (16:10)
Modeline...... "1920x1080" 74.250 1920 2008 2052 2200 1080 1084 1094 1124 interlace +hsync +vsync
Detailed timing #3..... 1280x720p at 60Hz (16:10)
Modeline...... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync
Detailed timing #4..... 720x480p at 60Hz (16:10)
Modeline..... "720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync
| CE video identifiers (VICs) - timing/formats supported |
| 1920 x 1080p at 60Hz - HDTV (16:9, 1:1) |
| 1920 x 1080i at 60Hz - HDTV (16:9, 1:1) |
| 1280 x 720p at 60Hz - HDTV (16:9, 1:1) [Native] |
| 720 x 480p at 60Hz - EDTV (16:9, 32:27) |
| 720 x 480p at 60Hz - EDTV (4:3, 8:9) |
| 720 x 480i at 60Hz - Doublescan (16:9, 32:27) |
| 720 x 576i at 50Hz - Doublescan (16:9, 64:45) |
| 640 x 480p at 60Hz - Default (4:3, 1:1) |
| NB: NTSC refresh rate = (Hz × 1000) / 1001 |
CE audio data (formats supported)
LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz
CE vendor specific data (VSDB)
IEEE registration number. 0x000C03
CEC physical address..... 1.0.0.0
Maximum TMDS clock..... 165MHz
CE speaker allocation data
Channel configuration.... 2.0
Front left/right..... Yes
Front LFE...... No
Front center...... No
Rear left/right..... No
Rear center...... No
Front left/right center.. No
Rear left/right center... No
Rear LFE...... No
Report information
Date generated...... 29/04/2012
Software revision..... 2.60.0.964
Data source...... Real-time 0x0031
Operating system...... 5.1.2600.2.Service Pack 3
Raw data
00,FF,FF,FF,FF,FF,FF,00,2E,4D,20,58,01,01,01,01,0A,13,01,03,80,34,20,78,EA,B3,25,AC,51,30,B4,26,10,50,54,A5,4B,00,81,80,A9,40,71,4F,01,01,01,01,01,01,01,01,01,01,1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,00,00,00,FF,00,35,30,35,2D,37,30,37,34,35,35,30,31,30,00,00,00,FC,00,54,50,2D,35,38,32,20,20,20,20,20,20,20,A0,00,00,00,FD,00,38,4C,1E,53,11,00,A0,A20,20,20,20,20,20,20,A186,Q2,O3,I B,F1,48,I 05,Q5,G4,O3,O2,O7,I 6,O1,I 23,O9,O7,O7,C5,O3,O C,OO,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,O,U O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O
LIMITED WARRANTY
The warranty obligations of Kramer Electronics for this product are limited to the terms set forth below:
What is Covered
This limited warranty covers defects in materials and workmanship in this product.
What is Not Covered
This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.
Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.
How Long Does this Coverage Last
Seven years as of this printing; please check our Web site for the most current and accurate warranty information.
Who is Covered
Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.
What Kramer Electronics will do
Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:
- Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
- Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
- Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.
What Kramer Electronics will not do Under This Limited Warranty
If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.
How to Obtain a Remedy under this Limited Warranty
To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, please visit our web site at www.kramerelectronics.com or contact the Kramer Electronics office nearest you.
In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required. You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.
If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.
Limitation on Liability
THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.
Exclusive Remedy
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A 'CONSUMER PRODUCT' UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.
Other Conditions
This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.
This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, please visit our Web site at
www.kramerelectronics.com or contact a Kramer Electronics office from the list at the end of this document.
Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.
For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
P/N: 2900-000582
Rev: 7
- TP-581T, TP-582T, TP-582R Quick Start Guide
- Step 1: Check what's in the box
- Step 2: Install the Machine
- Step 3: Connect the inputs and outputs
- Step 4: Connect the power
- Step 5: Acquiring the EDID
- Contents
- Introduction 1
- Getting Started 2
- Overview 4
- Defining the Devices 7
- Connecting the Devices 10
- Technical Specifications 18
- Default EDID 19
- Figures
- Introduction
- Getting Started
- Achieving the Best Performance
- Safety Instructions
- Recycling Kramer Products
- Overview
- About HDBaseT™ Technology
- Using Twisted Pair Cable
- Defining the Devices
- Your TP-581T HDMI Line Transmitter
- Your TP-582T HDMI Switcher/Line Transmitter
- Your TP-582R HDMI Line Receiver DA
- Connecting the Devices
- Connecting the TP-582T or TP-581T
- Connecting the TP-582R
- Controlling the AV Equipment via an IR Transmitter
- Controlling the TP-582T via the REMOTE Terminal Block Connector
- Connecting to a PC
- Wiring the RJ-45 Connectors
- Acquiring the EDID
- Technical Specifications
- Default EDID
- The factory default EDID is listed below.
- Monitor
- Color characteristics
- Timing characteristics
- Standard timings supported
- EIA/CEA-861 Information
- LIMITED WARRANTY
- What is Covered
- What is Not Covered
- How Long Does this Coverage Last
- Who is Covered
- What Kramer Electronics will do
- What Kramer Electronics will not do Under This Limited Warranty
- How to Obtain a Remedy under this Limited Warranty
- Limitation on Liability
- Exclusive Remedy
- Other Conditions
- SAFETY WARNING
Brand : Kramer
Model : TP-582R
Category : AV Extender
