Product Type	Small Diaphragm Condenser Microphone
Brand	MXL
Model	Tempo SK
Polar Pattern	Cardioid
Frequency Response	30 Hz - 20 kHz
Sensitivity	-35 dB re 1V/Pa
Impedance	200 ohms
Power Requirement	48V Phantom Power
Connector	XLR (3-pin)
Included Accessories	Stand adapter, windscreen, carrying case
Dimensions	5.5 x 0.75 inches (140 x 19 mm)
Weight	0.2 lbs (90 g)
Material	Metal body
Recommended Use	Recording vocals, acoustic instruments, overheads
Cleaning	Wipe with dry cloth; avoid moisture
Safety	Do not expose to extreme temperatures or humidity
Spare Parts	Contact MXL support for replacement capsules or grilles
Warranty	1 year limited warranty

Frequently Asked Questions - Tempo SK MXL

Does the MXL Tempo SK require phantom power?

Yes, the Tempo SK is a condenser microphone that requires 48V phantom power from your audio interface or mixer.

What type of cable does the Tempo SK use?

It uses a standard XLR (3-pin) cable for balanced audio connection.

Can I use the Tempo SK for vocals?

Absolutely, it is suitable for vocals, acoustic guitars, and overhead recording due to its cardioid pattern and smooth frequency response.

How do I clean the microphone?

Gently wipe the body with a dry, lint-free cloth. Avoid getting moisture inside the capsule. Use the included windscreen to protect from plosives.

What is the polar pattern of the Tempo SK?

It has a cardioid polar pattern, which picks up sound from the front and rejects noise from the sides and rear.

What accessories come with the microphone?

It includes a stand adapter, windscreen, and a carrying case.

Is the Tempo SK compatible with all audio interfaces?

Yes, as long as your interface provides 48V phantom power and has an XLR input, it will work.

How do I replace the capsule if damaged?

Contact MXL support or an authorized service center. The capsule is replaceable but requires professional service.

What is the frequency response range?

The Tempo SK captures frequencies from 30 Hz to 20 kHz, covering the full audible spectrum.

Can I use this microphone for live performances?

While primarily designed for studio use, it can be used on stage if properly shock-mounted and protected from feedback.

USER MANUAL Tempo SK MXL

Studio photo of a Timpo audio recording studio microphone on a tripod stand against a red gradient background (no text or symbols visible on the device itself)

Congratulations on your purchase of the MXL Tempo USB microphone. MXL microphones are the result of world-class engineering and manufacturing capabilities. They are designed to provide you with outstanding performance and exceptional value. While we encourage you to review this entire manual, there are a few key points about handling this microphone that we want you to familiarize yourself with right from the start.

MXL USB mics are professional quality, cardioid condenser studio microphones designed specifically for recording, podcasting, and video chats. Unlike microphones designed for live performance or dynamic model microphones, this instrument requires careful handling. Hence, you should observe the following:

ALWAYS: Handle the microphone carefully, avoiding sudden shocks such as dropping or bumping the microphone into other objects.

ALWAYS: Maintain a distance of approximately 4 – 6 inches when speaking or singing into the microphone. You are encouraged to use a pop filter for added protection of the sensitive capsule and to shield the instrument from saliva and sudden bursts of air.

NEVER: Tap the microphone to check if it's working. The RED LED on the back of the microphone located next to the headphone jack will tell you it's on and that the correct side is facing you.

NEVER: Blow into the microphone to check if it's working. The RED LED on the back of the microphone located next to the headphone jack will tell you it's on and that the correct side is facing you.

By following these few basic handling procedures, you can expect a long and trouble-free relationship with your new microphone. Again, thank you for your purchase of this outstanding MXL microphone.

A Little Background Information

MXL condenser microphones use what is known as a cardioid pickup pattern, which is more sensitive to sound waves arriving at the front of the microphone as opposed to those arriving from the sides or rear. This microphone benefits from being a USB (Universal Serial Bus) device—meaning this is a plug and play microphone

that will interface with Windows® operating system and Mac® computers without the need for any special drivers. Because it is a USB device, this microphone does not require an external microphone preamp, as is the case with most condenser microphones.

When recording an outdoor performance, use a windscreen to protect your microphone from recording problems caused by wind and damage from the elements.

Unpack Your Microphone

Begin by examining the contents of your MXL USB kit. You should have the following components:

• One MXL Tempo USB microphone
• USB 2.0 high speed cable
- Tripod stand
- Hard mount mic stand adapter
- Owner's manual

Getting Familiar with Your Microphone

In addition to speaking or singing into the side of the microphone with the cardioid symbol ☐ you should also notice the 1/8" stereo headphone jack on the back. This is a stereo headphone jack for monitoring the microphone's signal as well as hearing the audio played back from your computer. The 1/8" jack accepts most headphones but the maximum headphone volume will vary by manufacturer and model so care should always be exercised when first plugging in.

Using the Supplied Desktop Microphone Stand

1. Screw the microphone stand mount to the desktop stand.
2. Separate the desktop stand's legs and place it on a flat surface.
3. While holding the microphone upright and firmly in one hand, secure the microphone to the desktop stand by screwing the black mounting ring into the microphone's base. The microphone should now sit securely in the desktop stand.
4. Adjustments can be made to the angle of the microphone by loosening the thumbscrew on the side of the stand adapter.
5. At this point, attach the end of the USB cable that matches the microphone's connector. The other end

of the cable will connect to your computer's USB port.

Connecting the Microphone to Your Computer (Windows)

The MXL Tempo USB microphone will operate with both USB 2.0 (high speed USB) and USB 1.1 data buses. We recommend you connect your microphone directly to the computer's USB port as opposed to using a USB hub. USB hubs have been known to interfere with the performance of various USB devices.

PLEASE NOTE: Audio and video recording can be very taxing to a computer's resources. For this reason, you should close any and all running applications that are not essential.

Please take the following steps to get connected:

1. If open, close your audio recording application. You will open it after the microphone is connected and operational.
2. Connect the remaining end of the USB cable to the computer's USB port. You will see a red LED illuminate on the back of the microphone located next to the headphone jack, and Windows will display the New Hardware Found dialog message.
3. Allow Windows time to identify the device.
4. In approximately one minute, Windows should display a dialog message stating that Your New Hardware is Installed and Ready for Use. After this first connection, Windows will require just a few moments to identify the microphone.

Initial Setup with Windows XP Operating System

1. To select the MXL Tempo USB microphone as the default audio device, go to the Start Menu and select Control Panel.

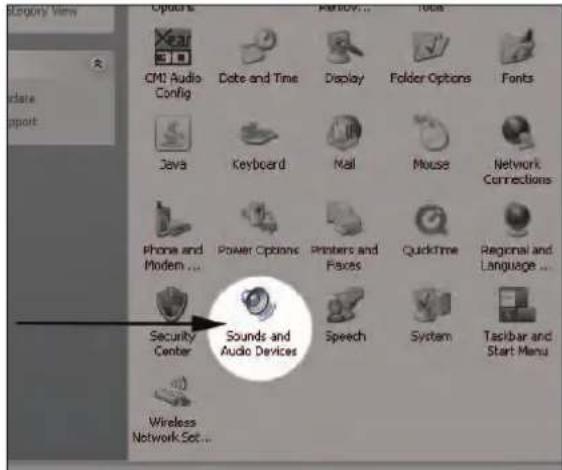

2. Select Sounds and Audio Devices.

1. Click on the Audio tab and select USB audio CODEC as the default device for Sound playback and Sound Recording.

1. To adjust the headphone volume, click on the Volume button under Sound playback.

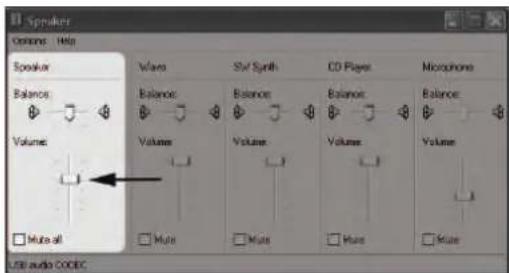

1. The master volume can be changed by moving the Speaker fader up or down.

1. To adjust the volume of the microphone signal directly to the headphones, adjust the Microphone fader up or down (this does not affect the volume of the microphone signal being recorded).

1. To adjust the volume of the microphone signal that goes to the computer and is recorded, click on the Volume button under sound recording.

1. Adjust the level by moving the Microphone fader up or down. The gain of the microphone is very sensitive. For most applications, the gain will be set towards the bottom of the fader.

Your computer is now setup to use the MXL Tempo USB microphone with most recording applications. Some applications will require additional settings to be changed within the program. Please see your recording software's manual for proper setup.

Initial Setup with Windows Vista/Windows 7 Operating Systems

1. To select the Tempo USB microphone as the default audio device, go to the Start Menu and select Control Panel.

1. Double click the Sound icon.

1. Select the Playback tab. Highlight the speaker icon labeled as USB AUDIO CODEC and click Set Default. To make further adjustments to the playback volume, double-click on the speaker icon labeled USB AUDIO CODEC.

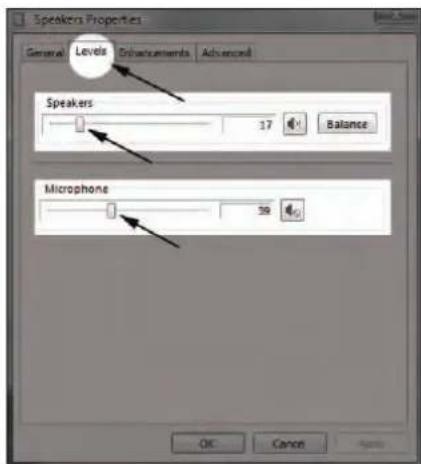

1. Click on the tab labeled Levels. The volume of the headphones can be adjusted by moving the fader labeled as Speakers.

To adjust the volume of the microphone signal directly to the headphones, adjust the Microphone fader (this does not affect the volume of the microphone signal being recorded). Then click OK.

1. To set the MXL Tempo USB microphone as the default input, select the Recording tab in the Sound window. Highlight the microphone icon labeled USB AUDIO CODEC and click Set Default.

To make further adjustments to the microphone volume, double-click on the microphone icon labeled USB AUDIO CODEC.

1. Click on the tab labeled Levels and adjust the Microphone fader. The gain of the microphone is very sensitive. For most applications the fader will be set towards the left.

To make adjustments to the sample rate and bit depth, click on the tab labeled Advanced and select the appropriate setting in the drop down menu.

Your computer is now setup to use the MXL Tempo USB microphone with most recording applications. Some applications will require additional settings to be changed within the program. Please see your recording software's manual for proper setup.

Initial Setup with Mac OS X

1. To select the Tempo USB as the default sound device click on the Apple icon at the top of the screen then select the System Preferences.

1. Click on the Sound icon.

www.mxlmics.com www.mxlmics.com10 11

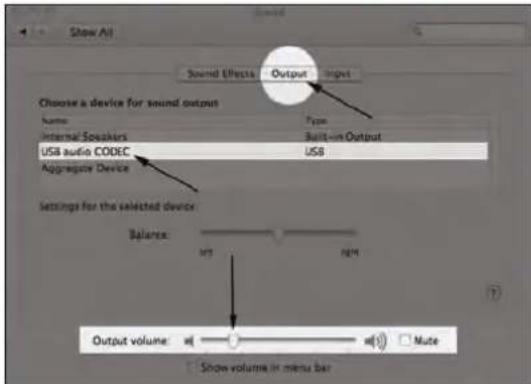

1. Click on the Output tab, then select the device named USB Audio CODEC. You can adjust the headphone volume by moving the fader labeled Output Volume.

1. Next click on the Input tab and select the device named USB Audio CODEC. You can adjust the microphone volume by moving the Input Volume fader. The gain of the microphone is very sensitive. For most applications the fader will be set more towards the left.

Your computer is now setup to use the MXL Tempo USB microphone with most recording applications. Some applications will require additional settings to be changed within the program. Please see your recording software's manual for proper setup.

For More Information

For additional information about your MXL USB microphone, how to contact technical support, as well as information on other products manufactured by MXL, please visit us online at www.mxlmics.com.

1910 East Maple Ave.

Marshall microphones are guaranteed against defects in material and workmanship for one year from date of purchase. Should you encounter any problem with this unit, promptly contact the company you purchased it from for assistance. The original dated sales receipt will be necessary for any warranty claim. Do not send any unit directly to us without prior authorization from our service department! Warranty coverage is limited to repair or replacement (at our option) of the microphone, and does not cover incidental damages due to use of this unit, nor damage caused by accidental misuse of this product.
