USER MANUAL GAG86210 Fotile

HTTP://WWW.FOTILE.COM

FOTILE always believes that, only by persistently focusing on kitchen industry, can we create advanced kitchen technology and provide professional kitchen problem solutions. Now, FOTILE kitchen appliance takes the lead in applying humanized, original functions and technologies. Moreover, FOTILE takes the key words of "built-in", "comprehensive set", to design a new life style fashionable, healthy, convenient and delight. FOTILE ceaselessly drive the kitchen technology, drive your high quality life by her specialty.

Any needs, please contact FOTILE service center. Some pictures in this manual are sketch map, only for reference. If there are some discrepancies, please subject to real object.

FOTILE

Two concentric circles diagram with no text or symbols

GAS STOVE

User Manual | GAG76202/GAS78201/GAS78307/GAG86309 GAG86210/GAS82215

Please read carefully about the user manual before using the product. And keep it well after reading, for future reference.

Honorable guest, thank you for your choice of FOTILE products. Please read through the manual to be familiar with the correct operation norms and enjoy the cooking.

FOTILE promise is, make our home better. It is our duty to let you satisfy with FOTILE products. Please read the user manual carefully before using it, and operate it complying with the manual requests. The manual description is important to keep the product a good working condition. And you will lose the free warranty right if the product is failed to use due to your improper use, thus any direct or indirect free warranty certificate will be rejected by FOTILE authorized service center. Meanwhile, we suggest you contact FOTILE service center when the product need to be repaired no matter within or exceed the warranty period. FOTILE star-level service goal is to make customers fully satisfied by our tireless efforts.

CONTENTS

Warning and Safety Instructions 1

Usage Specification and Structure 4

Operation Instruction 4

Fire Adjustment 5

Cleaning and Maintenance 6

Normal Malfunction and Trouble Shooting 8

Installation Packing List 9

Installation Methods 10

Warning and Safety Instructions

Special version:

Please properly use the appliance, strictly complying with the user manual. FOTILE company will not bear responsibility for property loss and personal injury due to improper use.

⚠ Warning: it may cause people danger, serious injury or fire, if you ignore the following contents and improperly operate.

Strictly Execute

	The gas stove can be used only in family kitchen. Please donot donot install it in the bath room, bed room, basement or places that are flammable, explosive and corrosive.
	Such works as gas stove installation, refitting, removal, dismantle repair should be done by certificated companies and operated by professional people.
	You must ask gas operating agency for * Gas Usage Safety Manual *, and comply with it. Please check whether the seal ring is airtight when fixing the pressure-reducing valve every time, otherwise, the gas stove will go wrong due to gas pressure abnormality.
	To prevent carbon monoxide poisoning, after installation and before usage, please make a leakage test. Keep the room ventilated when daily use.
	If there is gas leak, please turn off the switch knob and general gas valve soon, open the window, contact FOTILE service center to repair it. At this time, don't touch the power switch or ignite, and don't use mobile phone, fixed-line telephone, etc. to prevent explosion.
	Please don't let the gas stove working at strong wind disturb environment, because it will influence the normal burning, even failed to work.
	If there happens burning due to over high oil temperature, please cover the source of fire with large size metal items, like irony pot cover(please don't use water), and close the general gas valve.

Forbidden

	Please don't dismantle, refit gas stove peronally andprivitely to avoid gas leak. We suggest fix gas leakalarm.
Gas Tj	Please confirm the gas type is the same withnameplate indicate before use. It is forbidden tochange into other gas type, especially the man-madegas which contains CO.
	The gas stove is for heating cook untensil, don't use itfor drying towels, clothes, etc.
	Please don't turn on the gas stove for heating whenthere is no pan or there is no food in the pan. It maydamage the range hood which is above the stove, evenwill burn the grease inside of the range hood andcause fire accident.
	Please don't touch the stove that is off work for a short while, to avoid scalding.
	Please don't place and install any inflammable and explosive substance around the gas stove.
	Please don't place any acidic or alkaline substance on the stove(vinegar, lemon juice, etc).

The glass used in FOTILE products is tempered glass, and the tempering mechanism of glass decides that there is extremely small probability for tempered glass self explosion. Once it happens self explosion not due to improper use, we promise to replace the tempered glass free.

Usage

Specification and Structure

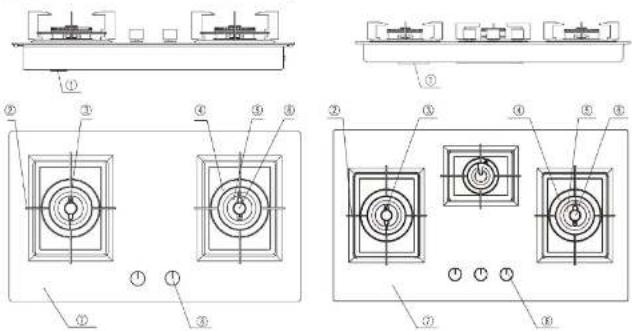

1. Battery box 5. Thermocouple
2.Pan support 6.Internal Flame Cap
3. Ignition pin 7. Panel
4. External Flame Cap 8. Knob

a. Be careful the pot (pan) is too heat to cause fire when cooking with vegetable oil and animal fat oil. When cooking with such kind of oil, please don't leave it alone after you put the food into the pot (pan).
b. The stove will heat when using, please keep it off heating items. Such metal objects as knife, fork, spoon and cover, should not be placed on the stove to prevent heat conduction.

Operation Instruction

There are two operation methods for FOTILE gas stove knob, please refer to Fig. 1 and Fig. 2.

Fig. 1
Fig. 2

First of all, check whether knobs is in the “○” position (refer to Fig. 1 A). Then turn on the gas switch, press the stove knobs, contrarotate 90 degrees (refer to Fig. 1 B), to confirm the flame is lighting up. If the flame extinguishes after your hand off the knobs, then please return the knobs to “○” position, and repeat the above operations.

Fire Adjustment

Mark 1

Mark 2

(Fig. 3)

(Fig. 4)

(Fig. 5)

(Fig. 8)

(Fig. 7)

(Fig. 8)

After the flame burning, please comply with Fig. 4 5 6 7 method to turn Mark 1 knob and comply with Fig. 4 5 6 7 8 method to turn Mark 2 knob. You can adjust big or small fire according to the demands.

If you need to stop stove working, please clockwise turn the knob to "●" position, then the fire will be extinguished (refer to Fig. 3). Then close the general gas valve.

a. The flame failure device can prevent the gas leak accident caused by fire extinguishing, which is due to wind blow or soup overbrim. But it can't avoid gas leak due to other reasons.

b. All FOTILE gas stoves are with flame failure device. Press down the knob when igniting, and anticlockwisely turn to " 🔊" position (refer to Fig. 5). It is ok if the flame will not extinguish after you loosen your hand, which means the flame failure device is working now. When cooking, if the overbrimed food or blowing wind extinguish the flame accidentally, the device will close the gas valve automatically to avoid the gas leak.

Cleaning and Maintenance

⚠ Notice
Before cleaning and maintaining the stove, switch off the general gas valve and wait for it cooling down thoroughly.	When you maintain the following, make sure not disassem-bly the safety device or gas duct parts.	Please contact FOTILE service center if there is abnormality.
■ Check
	The gas link rubber hose must be reliable and avoid any cracks; once you find gas leak, please stop using at once and replace it in time.	[BHY6A] Burners, flame caps and pan supports shall be correctly positioned.
	Please don't stack the inflammable around the gas stove.	The flame should not be irregular.
	Never let the spilth block the burner. Make sure there is no food residua, foreign matter and water touch the ignition and thermocouple head.	Check the interfaces with suds frequently to avoid gas leak.

Please don't wipe the stainless steel panel with sharp material like steel wire ball, etc. It will greatly shorten the stove lifespan.

Maintenance
1.Before cleaning, please take down the pan supports and flame caps.	[THHB]al2. Movable parts of burner like copper flame cap must be washed with warm water and neutral cleanser frequently. Remove the nugget and dry it, then use the stove.
Neutral3.Please use neutral cleanser which is without corrosiveness, to clean the stainless steel panel and burner. Never use chlorine-base cleanser to clean glass.	4.Make sure that there is no carbon in the firehole, and no jam.
Graininess Cleaner Aculeated Articles (Knife etc) Clean Ball5.Please don't use such aculeated articles as graininess abluent (putty-powder), clean ball, knife, etc. to clean the residual stubborn besmirch in the burners. Otherwise, it will make the kitchen countertop go wrong or fray the assembly surface, then influence stove lifespan.	6.After cleaning, dry them well and install them correctly.

Normal Malfunction and Trouble Shooting

Malfunctions	Possible reasons	How to solve
It won't fire	Forget to open the general gas valve	Close the stove knob and open the general gas valve, then ignites
	There is air mixed in the gas pipe	Ignite repeatedly until the air is absolutely ducted
	Rubber hose bend or slave	Unbend or replace the rubber hose
	The ignition pin electrode and electrical insulator are not clean and become damp	Clean it with dry cloth
	Safety valve is not opened	Press the knob to the utmost and turn it to "60" position, to make sure the burner is ignited, and stably press for 3-6 seconds, then loose the hand
	Electron spark is weak, battery power is not enough, loose contact of battery positive and negative charges or opposite fix the battery	Replace the battery or refix the battery
	Ignitor failure or ignition pin electrode is not in the right place	Please contact the FOTILE service center
Gas leak	Rubber hose is chapped or uncorked	Please contact the FOTILE service center to replace the rubber hose
	The joint haven't well connected with rubber hose or other hoses	Correctly connect and check the gas tightness in the hose joint
Unstable flame	Run out of the liquefied gas	Replace a new liquefied gas cylinder
long and short flame, yellow flame	Not cover the flame cap correctly, there is carbon in the firehole or being jammed with dirt	clean the firehole and wipe off the dirt, to make sure the right position of flame cap
Incidentally, there is red fire	Under a certain climate, the gas is with much humidity.	The calcium in the water make the red fire, don't worry

If the gas stove still can't work after getting rid of the above malfunctions, please contact FOTILE service center.

Installation

Packing List

		Complete Appliance	1		D battery(suggest alkaline battery)	1
[WKGW]		User Manual	1		Rubber Hose Buttons	2
		Warranty Card	1		Knobs (back up only for HA1B)	2-3

Installation Methods

⚠️Attentions:

Please don't install the gas stove above the kitchen appliance in poor ventilation environment. Please make sure the gas pipe, which is connected with gas stove, can't touch any active parts in the cabinet.

Before installation, please check whether your family use gas type is the same as the gas type printed in stove nameplate. Any doubts, please contact FOTILE distributor or service center soon.

1. The stove should be installed into durable and horizontal kitchen countertop. The built-in size of the countertop can be referred to Fig.9. Make sure the distance aparting from the inflammable matters (inline) must be more than 150mm, and aparting from noncombustible matters more than 50mm.
2. The distance from FOTILE range hood to FOTILE stove surface should be 650mm to 750mm. If there are other suspenders in the above, the distance from FOTILE stove surface to suspenders should be 1000mm.
3. Please cut out a blowhole about more than 1500mm ^2 (equivalent to 3 circular holes with diameter of 80mm) which is in the kitchen cabinet facade and stove underpart, to keep the normal ventilation inside and outside the kitchen appliance, otherwise, it will cause the explosion due to gas leak and deposition.
4. The battery box is at the bottom of the stove, please fix a D battery in the right direction pole (please refer to page 4: Specification and Structure)
5. Gas rubber hose fixing: (suggest the rubber hose length 1-2 meters)
   (1)Buckle the rubber hose button to the hose, then hitch the hose to stove's air intake joint, till the red mark, and tightly constrict the rubber hose button. (refer to Fig.10)
   (2) Leak test: smear the joint part with tenuous and neutral cleanser(eg soap subs), and open the general gas valve. If there is air bubble, please close the general gas valve soon, and repeat the action (1) and (2) until there is no air bubble.
   (3) If your family gas type is cylinder liquefied petroleum gas (LPG), please choose the qualified pressure reducing valve which is for family use. The gas pressure is 2800 ± 500 Pa.

If using the metal soft hose, please fix it according to metal soft hose user manual.
