USER MANUAL PT4900S-V2 Ikan

Professional 19" SDI High-Bright Beam Splitter Teleprompter

OVERVIEW

Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The teleprompter includes a 65/35 reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-16" threads for mounting to a tripod or pedestal. The monitor includes HDMI, SDI, and VGA video inputs. Its high bright screen ensures clear visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The monitor also features a wide viewing angle.

What's Included

Glass Frame Screws 15mm Rod Clamps 15mm Rods Large Riser
Bracket

Teleprompter Assembly Setup

Step 1

Place the Hood Attachment Frame over the Glass Holder. Then place the glass against the Glass Holder. Make sure the screws pass through the holes on the both the Hood Attachment Frame and the Glass Holder.

Diagram of a mechanical component with red arrows indicating upward force or direction, no text or symbols present

Step 3

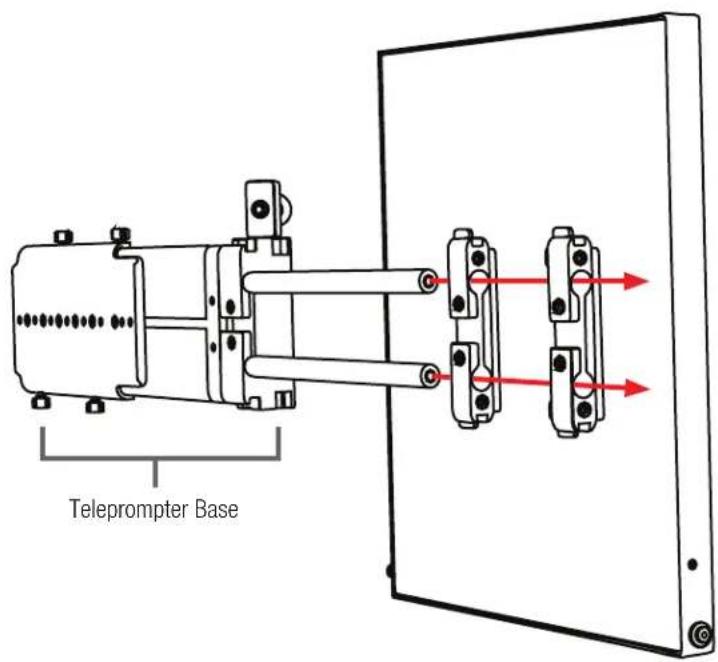

Remove the monitor mounts from the teleprompter base using the included larger 4mm hex key to loosen from the 15mm rods.

Step 2

Secure the Glass Holder by fastening the knurled nuts to the screws as pictured below.

Pure diagram of a rectangular frame with vertical red arrows and black connectors, no text or symbols present

Step 4

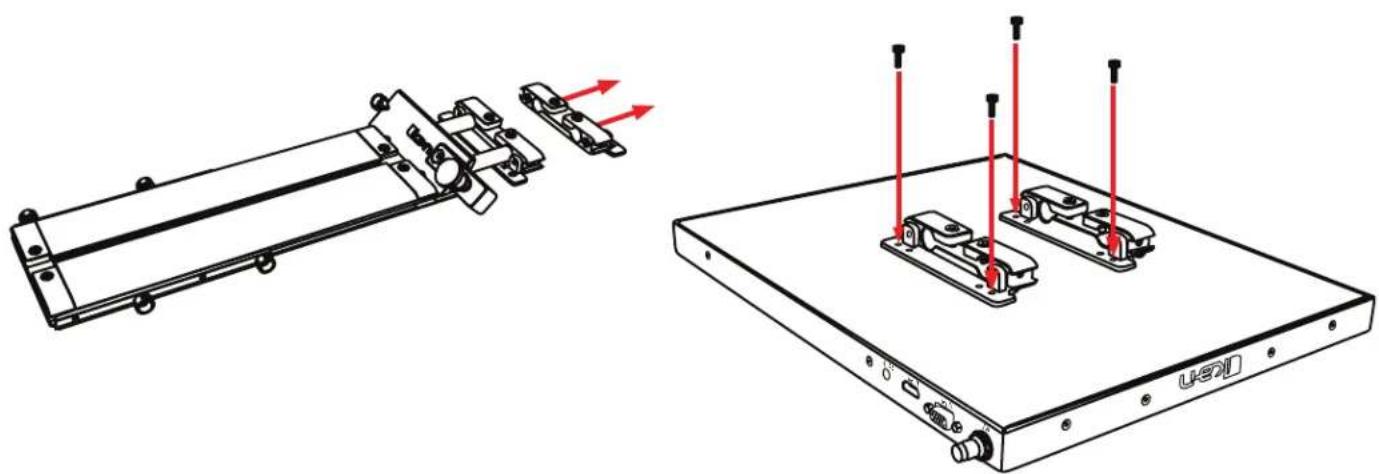

Put the washers on before tightening the screws. The washers and 4 additional screws are inside a bag on the bottom foam.

Technical line drawing showing a mechanical assembly and its internal components (no text or symbols)

Step 5

After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket. Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor. *SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.

Step 6

While sliding the teleprompter bracket into the slot of the Glass Frame Holder Bracket, pull on the red knob to allow the bracket to fully slide in.

Technical line drawing showing two mechanical assembly steps: one with a flat plate and red arrows indicating force or movement, the other with a bracket and red arrow indicating a joint or connection (no text or symbols present)

Step 7

Once the bracket is in place, tighten the side screw to lock in place. Double check and make sure all the screws are tightened with the included hex keys.

Step 8

Fold the flaps of the Hood alongside the edges of the Hood Attachment Frame. The Hood Attachment Frame includes six threaded clinch studs. Make sure to put the holes on the hood through the threaded clinch studs. The flaps of the Hood are magnetic so they will automatically attach and give extra support.

Technical line drawing of a mechanical assembly with red arrows indicating motion or force directions (no text or symbols present)

Step 9

To prevent light from leaking through the hood, seal both zippers down.

Diagram of a mechanical device with red arrows indicating force or movement, no text or symbols present

Step 10

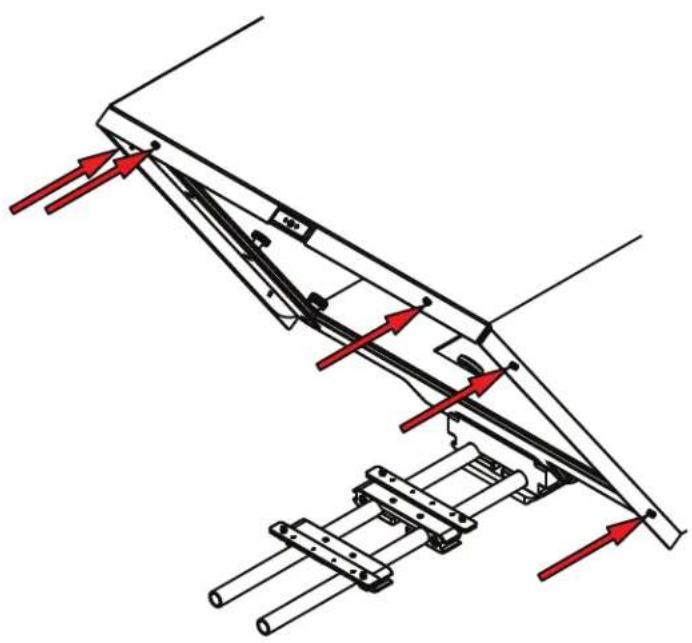

Locate the threaded clinch studs on the Hood Attachment Frame and fasten the included nuts to the clinch studs.

Technical diagram of a mechanical assembly with red arrows indicating force directions (no text or symbols present)

Diagram of a mechanical setup with a red arrow indicating direction, no text or symbols present

Step 11

Fasten all six of the nuts to the threads on the hood frame to secure the hood to the teleprompter.

Technical line drawing of a mechanical assembly with no visible text or symbols

Step 12

If you need to use the Tall Riser Plate, you will need to use the Large Riser Bracket. Insert the Large Riser Bracket through the channel on the Tall Riser Plate The Large Riser Bracket includes a location pin for use with cameras that feature a location pin hole. If your camera does not feature a location pin, you can remove the location pin by unscrewing it.

Technical line drawing of a mechanical component with a red arrow indicating direction (no text or symbols present)

Step 13

Once the Large Riser Bracket is inserted into the channel. Hold it in place and move on to Step 14.

Technical line drawing of a mechanical component with a spring-loaded housing and curved supports (no text or symbols)

Step 14

Place the riser below your camera and fasten the 1/4-20 camera screw to the bottom of your camera to secure it to the riser plate.

Interior view of a car intake tray with a red arrow pointing to the drain (no text or symbols visible)

Step 15

Slide the threaded studs into the channel of the base. Make sure they are aligned to the spacing of the holes on the riser plate.

Mechanical assembly diagram showing a linear motor or conveyor system with red directional arrows indicating motion (no text or symbols present)

Step 16

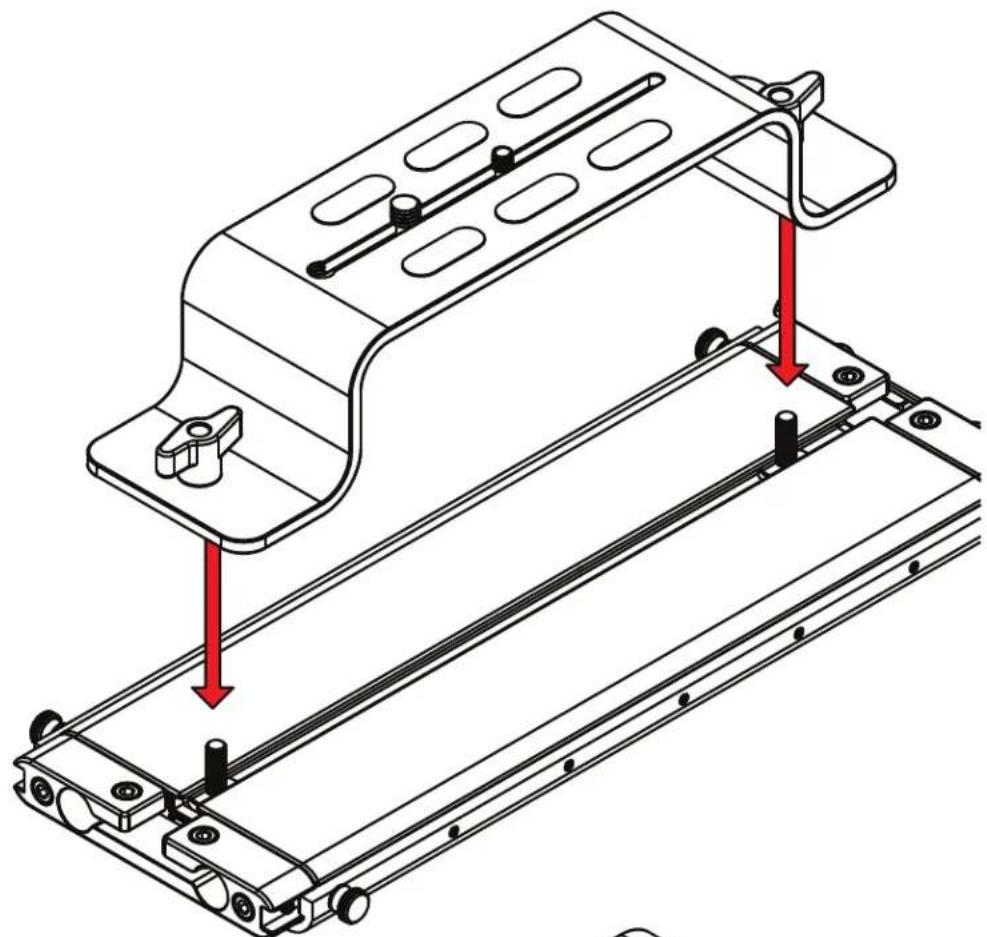

Once the threaded studs are aligned to the holes of the riser plate, put the threaded studs through the holes of the riser plate.

Technical line drawing of a mechanical assembly with red arrows indicating assembly steps (no text or symbols present)

Step 17

Fasten the screws to the threaded studs to secure the riser plate to the base.

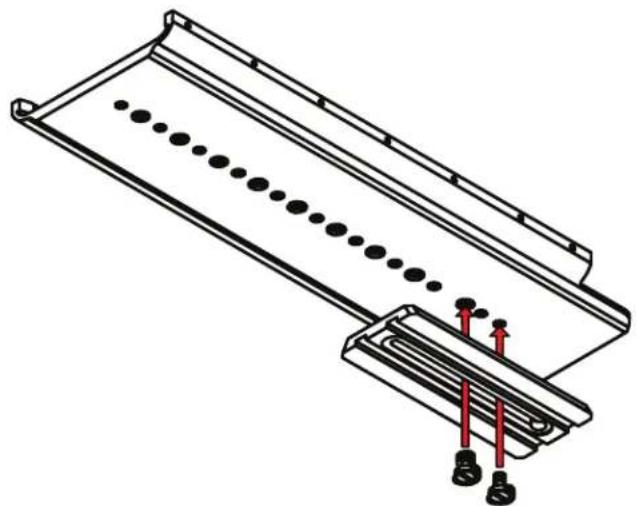

Step 18

Mount your own tripod plate to the sled by aligning the 1/4-20 and/or 3/8-16 screws and fastening them to the Sled. It is recommended that you connect your tripod plate to front of the Sled so that you can balance your teleprompter easier. Once your tripod plate is connected to the Sled, mount the tripod plate to your tripod head.

Technical line drawing of a mechanical assembly with rollers and connectors (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Step 19

Slide the entire teleprompter system into the Sled. Once the teleprompter system is inserted, you can balance it by sliding it along the Sled until the center of gravity is determined.

Step 20

Once the center of gravity has been determined, tighten the thumb screws to keep the base from sliding.

Diagram of a vehicle chassis with a red arrow pointing to a component, no text or symbols present

Technical diagram of a vehicle chassis frame with red directional arrows indicating movement or force (no text or symbols present)

Step 21

To secure your teleprompter system, insert the included headless screws into the threads behind and in front of the Base.

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

Step 22

The headless screws should be inserted to the threads as pictured below.

Technical line drawing of a mechanical assembly with no visible text or symbols

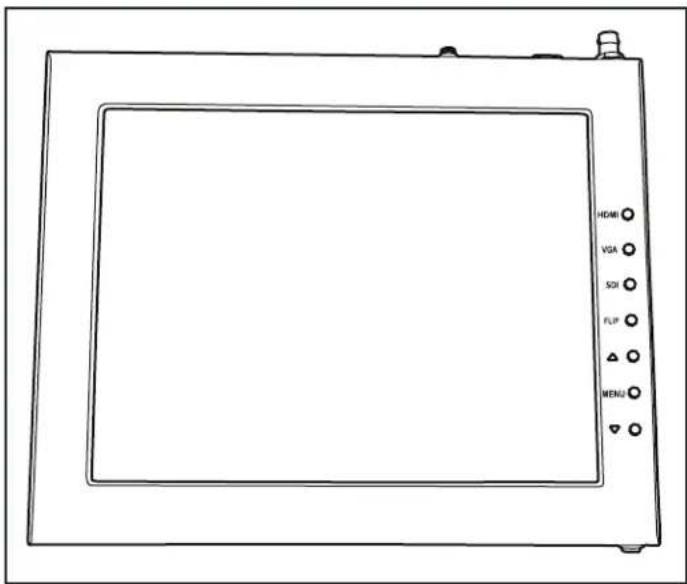

Monitor Ports

SDI - BNC Input

VGA – Video Graphics Array DE15 Connection

HDMI – High-Definition Multimedia Interface Input Connection

Power Port - 12-24v Input

Line drawing of a flat-screen TV or monitor with control buttons (no text or symbols on the screen)

HDMI – Switch HDMI input

VGA – Switch to VGA input

SDI – Switch to SDI BNC input

Flip - Toggle image flip

(Can be set to horizontal, vertical, or both via menu)

Up Arrow – Toggle up to adjust setting

Menu – Access to monitor settings

Down Arrow - Toggle down to adjust setting

Monitor Menu Settings

Video Config

Contrast (White Level)

Brightness (Black Level)

Tint (Chroma Hue)

Chroma (Chroma Saturation)

Sharpness (Detail)

RGB Setup – Manually configure RGB

Return

System Config

Menu Duration – Set duration of how long menu stays

on screen

Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is

native resolution, 16:9 will create black bars)

Flip-H – Assign toggle button to flip image horizontally

Flip-V – Assign toggle button to flip image vertically

Reset - Factory reset

Return

PC Setup (Only available for VGA)

H-Position – Adjust horizontal position

V-Position - Adjust vertical position

Auto - Monitor automatically adjust position

Return

Exit

How to set-up FLIP button feature:

1. Press MENU button

2. Navigate to SYSTEM CONFIG.

3. Navigate to FLIP-V or FLIP-H

4. Change FLIP-V and/or FLIP-H to "ON"

5. Exit MENU

6. The FLIP button should now be activated and can be pressed to mirror the image Horizontally or Vertically

7. When FLIP-H is ON, the image will flip Horizontally

8. When FLIP-V is ON, the image will flip Vertically

9. If both are ON, the FLIP button will toggle both Horizontal and Vertical flip

Watch our VIDEO TUTORIAL on how to assemble PT4900S-V2 Teleprompters:

https://ikancorp.com/pt4900-v2-tutorial-videos/

Specifications
PT4900S-V2

19 in. Teleprompter

Riser Plate Height	Short: 2.06 in./52.5mm | Tall: 5.31 in./135mm | DSLR: 6.29 in./160mm
Length of Rods 15mm x 400mm
Build Material Chassis: Anodized	Aluminum | Rods: Carbon Fiber
Reading Range 25 ft. / 7.62 m
Beamsplitter Ratio 65/35
Beamsplitter Shape Rectangular
Beamsplitter Material Glass
Tripod Mounts 11 x 1/4 in. -20 Female | 9 x 3/8 in. -16 Female
Product Weight w/ Low Plate 29.6 lbs.
Product Weight w/ Medium Plate 30 lbs.
Product Weight w/ High Plate 30.13 lbs.
Product Weight w/ DSLR Plate 29.5 lbs.
Height of Teleprompter 16.1 in./ 411mm

19 in. SDI Teleprompter Monitor

Aspect Ratio 4:3
Maximum Brightness	1000 cd/m2
Screen Size (Diagonal)	19 in.
Mount	VESA 100mm
Video Inputs	SDI, HDMI,VGA
Input Voltage	DC 12v / 4A
Power Consumption 30W
Product Weight	6 lbs.
Product Dimensions 17 in. x 15 in. x 1 in.
Native Resolution	1280 x 1024
Viewing Angle	160° (H) / 170° (V)
Build Material	Aluminum Chassis
Image Flip	Horizontal: Yes |Vertical: Yes

Optional Accessories

PT4U-G

Replacement Glass for PT4900S-V2

M19W-V2

19" Talent Monitor Add On Kit for PT4900S-V2

PT-PEDAL

Teleprompter Foot Control Pedal

PT-CONTROLLER

Teleprompter Rotary Controller

PT-CASE-4U

Rolling Hard Case for PT4900 Teleprompter

Foam Case

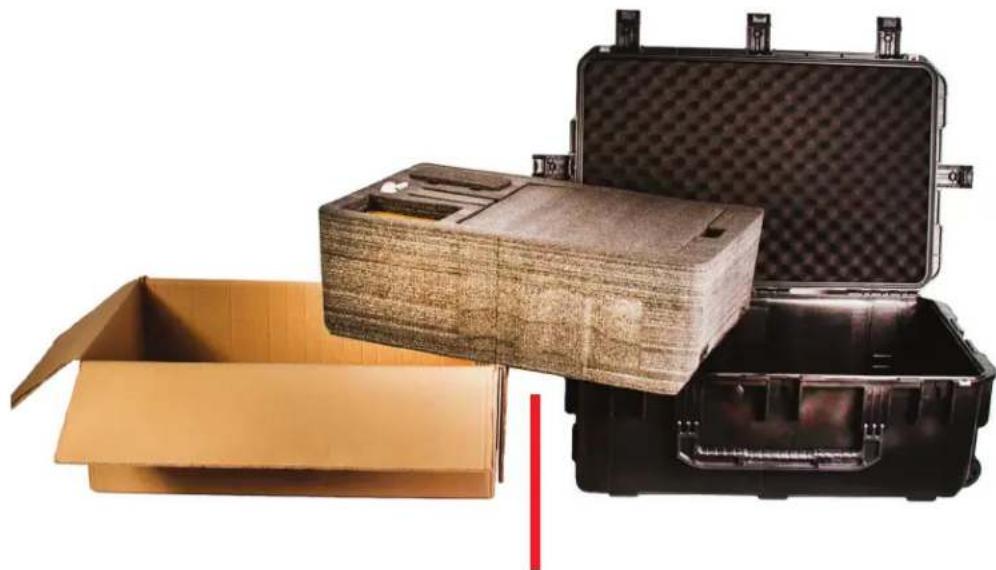

To make your teleprompter more portable, we packed it in a reusable, high-quality foam. The shape and size of the foam was designed to fit into Ikan's PT-CASE-V2.

Stacked cardboard and plastic medical equipment boxes, no visible text or symbols

**DO NOT THROW AWAY FOAM CASE**

Learn More

More dynamic information at official website: www.ikancorp.com

Support

Contact email: [e-mail]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
