Product Type	In-Ceiling Speaker
Brand	SoundTube
Model	RS4-EZ
Driver Size	4 inches (101.6 mm)
Frequency Response	70 Hz - 20 kHz
Power Handling (RMS)	30 Watts
Power Handling (Peak)	60 Watts
Impedance	8 Ohms
Sensitivity	87 dB (1W/1m)
Cutout Diameter	5.5 inches (140 mm)
Mounting Depth	3.25 inches (83 mm)
Grille Included	Yes (white, paintable)
Weight	2.5 lbs (1.1 kg)
Color	White (paintable)
Cone Material	Polypropylene
Surround Material	Rubber
Installation Type	EZ quick-mount system
Application	Background music, paging systems
Cleaning	Wipe with dry cloth; avoid liquids
Safety	Ensure secure ceiling mounting; do not overload amplifier
Spare Parts Availability	Grille and driver available from manufacturer

Frequently Asked Questions - RS4-EZ SoundTube

What is the recommended amplifier power for the RS4-EZ?

An amplifier delivering 30-60 Watts per channel at 8 Ohms is suitable. Using an amplifier too powerful can damage the speaker.

What size hole is needed for installation?

The cutout diameter is 5.5 inches (140 mm). Ensure the ceiling thickness allows for a mounting depth of 3.25 inches.

Can the RS4-EZ be used outdoors?

No, this speaker is designed for indoor use only. Exposure to moisture or extreme temperatures may cause damage.

How do I connect the speaker wires?

Use 16-18 gauge speaker wire. Connect the positive terminal (+) to the amplifier's positive output and negative (-) to negative. Ensure polarity is consistent.

Is the grille paintable?

Yes, the white grille can be painted to match your ceiling. Use a thin coat of latex paint; avoid clogging the perforations.

What is the impedance of the RS4-EZ?

The impedance is 8 Ohms. Multiple speakers can be wired in parallel but ensure total impedance does not drop below amplifier's minimum rating.

Can I install the speaker in a bathroom?

Only if the bathroom is well-ventilated and moisture-free. Prolonged humidity may damage the driver. Consider a weather-resistant model for damp areas.

How do I adjust the sound output?

This model is a passive speaker; sound level is controlled by the amplifier. Some models may have a built-in volume control, but the RS4-EZ does not include one.

What is the warranty period for SoundTube RS4-EZ?

SoundTube typically offers a 5-year limited warranty covering defects in materials and workmanship. Contact customer support for details.

Can I use this speaker for paging systems?

Yes, the RS4-EZ is suitable for paging and background music applications. Its frequency response is optimized for speech clarity.

USER MANUAL RS4-EZ SoundTube

Install Instructions For:

RS4-EZ, RS400i, RS500i, HP590i, RS600i, HP690i, RS800i, RS1201i, HP890i, RS1001i-II, HP129a, & HP1290i speakers

Box contents

1 Speaker
2 SpeedClamps™
1 Release key (small hex wrench)
1 Hanging cable
1 Safety cable
1 Terminal weather boot
1 Euroblock connector
1 Grille-mounted tap switch cover
4 Zip ties

1.435.647.9555

800.647.TUBE

www.soundtube.com

RS400i, RS500i, RS600i, RS800i, RS1001i-II, HP690i and HP890i - UL listed 1480 ©2008 SoundTube Entertainment, Inc. All rights reserved. PN INS-RSI Rev 11.12.18

Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

Warning

Do not spec or install speaker near support beam, ventilation duct or other structure that may interfere with speaker function or dispersion.

1. Select the tap position by removing the rubber plug on grille to access rotary switch. Switch is preset to maximum tap setting in 70.7 V mode. Select desired setting and reinsert rubber plug. Note: The grille-mounted tap switch cover is keyed; be sure flat edge of plug lines up with flat edge of hole in grille.

1. Slip terminal weather boot over signal wire. For environmental applications, put RTV silicone around nipple and base when installation is complete.

1. Connect signal wire to 4-pin Euroblock plug. Tighten unused terminal screws. Use inside positive and negative inputs for either voice coil or distributed systems. For daisy chaining, use outside positive and negative terminals.

1. When daisy chaining, wire the outside terminals to the inside terminals of the next speaker. This step only applies to tap settings using the transformer and not when the speaker is used on bypass.

1. Thread hanging or safety cable through SpeedClamp™ mechanisms as shown.

1. Attach the hanging cable by securing it and safety cable to structure as shown.

1. Thread cable end(s) through SpeedClamp™ mechanisms as shown.

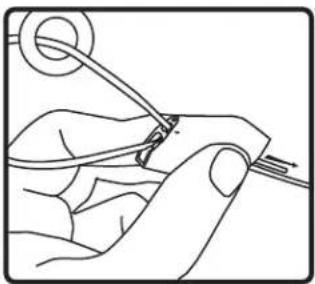

1. Adjust speaker hanging height with SpeedClamp™ mechanism. Pull to tighten & insert release key (small hex wrench) into SpeedClamp™ as shown to loosen or adjust.

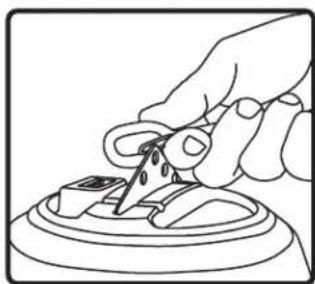

1. Attach hanging cable to the center hole in the speaker hanging bracket.

1. Attach the safety cable to one of the secondary holes in the hanging bracket.

1. Insert 4-pin Euroblock plug into Euroblock jack on rear of speaker. Connectors are keyed for polarity.

1. Use zip or twist-lock ties to secure safety cable & signal wire to main hanging cables. Cable cover available for asthetic applications (SLT-10).
