MACH 20 - Headphones Westone - Free user manual and instructions

Product Type	In-Ear Monitor
Brand	Westone
Model	MACH 20
Driver Configuration	Dual Balanced Armature
Frequency Response	20 Hz – 18 kHz
Impedance	35 ohms
Sensitivity	118 dB SPL/mW
Cable	Detachable, 4 ft (1.22 m) with MMXC connectors
Connector	3.5 mm gold-plated stereo
Weight (per earpiece)	~0.5 oz (14 g)
Noise Isolation	-25 dB
Ear Tips	True-Fit foam and silicone tips (multiple sizes)
Accessories	Monitor vault, cleaning tool, wax guards, shirt clip
Maintenance	Clean with dry cloth; replace ear tips and wax guards regularly
Safety	Avoid moisture; keep volume at moderate level to prevent hearing damage
Replaceable Parts	Cables, ear tips, wax guards, dampers
Wearing Style	Over-the-ear with memory wire for secure fit

Frequently Asked Questions - MACH 20 Westone

How do I insert the Westone MACH 20 properly?

Gently pull your ear upward and outward, insert the earpiece with a slight twist until comfortable. The cable should loop over your ear and the memory wire should conform to your ear shape.

How do I change the wax filters on my MACH 20?

Remove the eartip, then unscrew the old wax guard using the provided cleaning tool. Screw in a new wax guard and reattach the eartip. Replace filters every few months or when sound becomes muffled.

Can I replace the cable on the MACH 20?

Yes, the cable is detachable via MMXC connectors. To replace, firmly pull the cable straight out from the earpiece and plug in a new compatible cable until it clicks.

What is the sound signature of the MACH 20?

The MACH 20 offers a balanced sound with slightly accentuated mids and clear treble. The dual balanced armature drivers provide detailed vocals and instruments with a tight bass response.

Are the MACH 20 headphones suitable for live monitoring?

Yes, the MACH 20 is designed for professional use with high isolation (-25 dB) and accurate sound reproduction, making it ideal for stage monitoring and critical listening.

How do I clean my Westone MACH 20?

Wipe the earpieces with a soft, dry cloth. Clean the eartips with mild soap and water, then dry completely. Do not use alcohol or abrasive cleaners. Regularly check and replace wax guards.

What should I do if I experience discomfort?

Try different sized eartips from the included set. Ensure the cable is correctly routed over the ear and the memory wire is shaped to your ear. If discomfort persists, consult a hearing professional.

How long do the MACH 20 earphones typically last?

With proper care (avoiding moisture, storing in the monitor vault), the MACH 20 can last several years. Replaceable parts like cables and filters extend their lifespan.

Can I use the MACH 20 with my smartphone?

Yes, the 3.5 mm connector works with most smartphones, tablets, and audio players. For devices without a headphone jack, use a compatible adapter or wireless cable.

Where can I find replacement parts for the MACH 20?

Replacement parts such as cables, eartips, wax guards, and dampers are available through Westone's official website or authorized dealers.

USER MANUAL MACH 20 Westone

Close-up of hands adjusting a small black object with a red 'M' mark on the grip (no text or symbols visible)

FIG.1 FIG.2

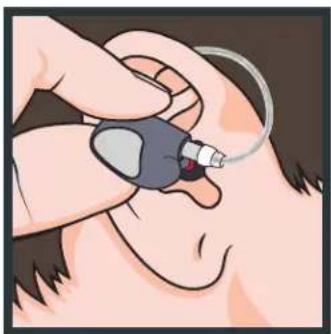

IDENTIFY MONITORS

marked WA for right and WA for left on the inside face

Illustration of a hand holding an electric device on the ear, showing ear anatomy (no text or symbols)

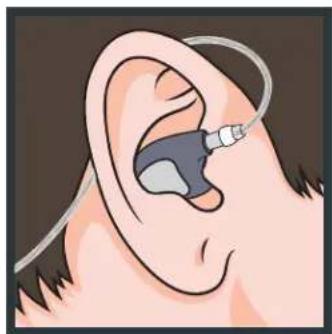

ALIGN MONITORS

at the ear canal, with cord facing forward & slightly downward

Illustration of a human ear with an implanted device (no text or symbols)

FIG. 3

INSERT EARTIP

into ear canal and rotate the monitor backwards & into position

Before inserting the monitor, turn down the volume on your sound source and either drape the cord over your shoulders and down your back, or run the cord down in front. The monitors are marked on the inside face with a red WA logo for the right ear, blue WA logo for the left. If you have selected a foam eartip, compress the foam by rolling it between your fingers (FIG. 1). If using a silicone STAR tip, the instructions are the same except there is no need to compress the tips. With the body of the monitor toward the back of your ear and the cord facing forward, insert the eartip into your ear canal before the foam expands back to its original shape (FIG. 2). If you have trouble inserting the monitor, reach over your head with your opposite hand and gently pull up and back on the top of your ear before inserting the eartip. This helps straighten your ear canal and may allow for easier insertion. The monitor cord should run over and behind your ear. Hold the monitor in place for 5 to 10 seconds to allow the foam to expand and conform to the shape of your ear canal (FIG. 3).

Once the monitors and cords are comfortably in place, slide the cable zipper up to the base of your skull (not too snugly, as this may cause discomfort). This will limit cable movement and help ensure that your monitors stay in place during use.

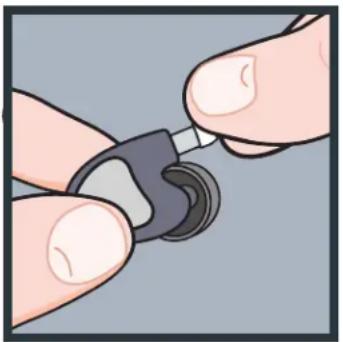

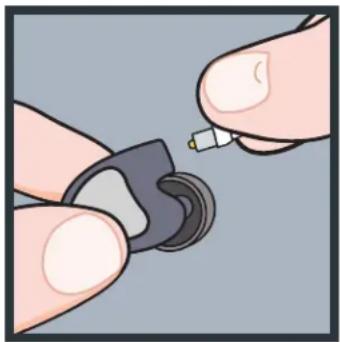

CABLE REMOVAL

Close-up of hands holding a small mechanical component (no text or symbols visible)

Close-up of hands holding a small mechanical component with a small protrusion (no text or symbols visible)

HOLD FIRMLY & REMOVE AT STRAIGHT ANGLE

Hold the monitor and cable firmly with each hand (close to the connection) and remove the cable by pulling at a straight angle from the socket.

Do not pull from the wire!

CABLE REPLACEMENT

Illustration of a hand holding a screwdriver with a yellow tip (no text or symbols)

Close-up of hands using a tool to apply material to a small electronic component (no text or symbols visible)

Close-up of a hand holding a medical or surgical device with a tool, no visible text or symbols

CHECK MATCH INSERT

if the cable is for the left or right monitor

the cable to the appropriate monitor

the cable into the monitor by pushing directly into the socket

Cable Connector

Black = Left

Red = Right

Monitor

WA Blue = Left

WA Red = Right

CARE & MAINTENANCE

Here are a few simple guidelines that can greatly increase your listening enjoyment and the lifespan of your Mach Series monitors:

• Always store your monitors in the provided case.
• In case of poor sound quality due to earwax in the sound bore, use the included wax removal loop to carefully remove the earwax. Never use any other object to attempt to remove the earwax as this may result in damage to the monitors and will void the warranty.
• Do not use the cord to remove the monitors from your ears. This may cause damage to the cord and result in poor performance. Damage of this nature is not covered by the warranty.
• Do not expose your monitors to temperature extremes.
• Avoid strong impacts to your monitors.
• Wipe down your monitors after each use.
• Never immerse your monitors in water.
• You should use extreme caution or temporarily discontinue use in potentially hazardous situations.
• Don't use while operating a motorized vehicle as it may create a traffic hazard & is illegal in many areas.

Please Note: Moisture in your monitors can cause temporary performance issues. Do not insert your monitors if your ears are wet. Always dry your ears completely before inserting your monitors. Should you inadvertently allow water or perspiration into the monitors and they quit working, allow to dry completely before attempting to use again. Minor moisture build-up should dry out and not affect long-term performance. Extended exposure to moisture or submersion will result in permanent damage (not covered by the warranty).

Remember, personal hearing protection is your responsibility!

Please read this important information before using your Westone Audio Mach Series monitors. If everything sounds muffled or you hear ringing or buzzing after using your monitors, your ears are trying to give you a warning! These are symptoms normally associated with a condition known as Temporary Threshold Shift and are an indication of conditions that could lead to permanent hearing loss.

While no two individuals' hearing sensitivity is exactly the same, there are established safety guidelines for sound levels versus time of exposure. The chart (right) is based on OSHA's (Occupational Health and Safety Administration) exposure information for industry. Remember that these guidelines are based on average hearing sensitivity. Your sensitivity may be above or below these levels.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

dB Level	MAXIMUM Exposure Time
85	8hr
90	4hr
95	2hr
100	1hr
105	30mins
110	15mins

WARRANTY

Limited Product Warranty

Westone Audio warrants this product to be free of defects in material or workmanship for a period of two (2) years from the date of original retail purchase. This warranty is available only to the original purchaser, and only if purchased from an authorized Westone Audio distributor or reseller. If your product is found to be defective during the warranty period, Westone Audio will, at its sole option, either repair the product or replace the product with a new or factory reconditioned or substantially equivalent model. This limited warranty does not apply to loss, theft, or any defects attributable to damage beyond the reasonable control of Westone Audio including damage caused by abuse, misuse, misapplication or modifications performed by anyone other than

Westone Audio. This warranty applies only to the external shell of the product, the internal components and cable. The carrying case, cleaning tool, any adapters and other included accessories are warranted for 90 days. Tips are not covered by the warranty.

Repair/Replacement Warranty

This Limited Warranty shall apply to any repair, replacement part or replacement product for the remainder of the original warranty period or for ninety (90) days, whichever period of time is greater. Any parts or product replaced under warranty will become the property of Westone Audio.

Requesting Warranty Support

If your product is not functioning properly, first ensure that the sound bore is not blocked by earwax and that the unit is completely dry. Performing these simple troubleshooting steps could solve the problem and eliminate the need for factory service. Valid warranty claims are generally processed through the point of purchase during the first thirty (30) days after retail purchase.

United States & Canada

If it is necessary to return your product to Westone Audio for warranty or post-warranty service, contact Westone Audio to request a return merchandise authorization (RMA) number. You may call 949-793-8136 or go to www.westoneaudio.com/support/returns to submit a Product Return Request Form. Please note you will be required to submit reasonable proof of purchase date, ownership, and that the product was purchased from an authorized Westone Audio retailer. Once you receive your RMA number, package the product securely to prevent damage in transit, include the documentation, and send prepaid and insured through a trackable shipping carrier to:

Westone Audio, Attn:

Lucid Audio, LLC, 14301 FAA Blvd., Fort Worth, TX 76155 USA

Westone Audio will be responsible for shipping to the consumer after warranty repair/replacement only. The customer is responsible for all shipping/handling charges related to returning the product to Westone Audio.

International

The warranty on this product if it is sold to a consumer outside of the United States and Canada shall comply with applicable law. To obtain warranty service, contact the dealer from which you purchased or the distributor that supplied this product. Additional charges and limitations may apply. If purchased through an international location without a Westone Audio distributor, or an authorized Westone Audio retailer (but not through the local distributor or distributor's network) contact Westone Audio directly (see United States & Canada instructions above).

Limitation of Liability

Westone Audio disclaims any and all implied warranties, warranties of merchantability and fitness for a particular purpose to the maximum extent permissible by law. Westone Audio shall not be liable for any special, incidental or consequential damages caused by the use, misuse, or inability to use this product. If purchased under a government contract, those contract terms supersede terms stated herein. In some locations, implied warranties cannot be limited. Under certain conditions, these limitations or exclusions may therefore not apply to you. This warranty replaces all other warranties for this product.

Register Online Today

Complete your registration card online at: https://westoneaudio.com/product-registration/

WESTONE AUDIO inspired by Lucid Hearing™

Westone Audio values your satisfaction.

If you have any questions, please contact us:

14301 FAA Blvd, Fort Worth, TX 76155 949-793-8136 • [e-mail]

MACH 20

PROFESSIONAL IN-EAR MUSICIANS' MONITORS

Featuring big and punchy low end, MACH 20 offers a quality soundstage and listening experience meant for any audience.

BALANCED-ARMATURE DRIVERS

Dual-driver system with single low, single mid/high

WESTONE AUDIO® TECHNOLOGY

An ergonomic design allows all day use, with no ear fatigue.

linum ^® estron BaX ^TM CABLE

BaX is a true high end reference cable consisting of very thin and ultrastrong silver plated copper cable. BaX conveys music with precision and grace while the lightweight cable disappears on your ear, allowing you to focus on what matters most.

PREMIUM ACCESSORIES

Protect your MACH 20 from the elements in our custom designed, crushproof and watertight mini monitor vault. Also includes five pairs each of Westone Audio's proprietary foam and silicone tips to ensure the perfect seal with maximum comfort.

TECH SPECS

SENSITIVITY: 110dB @ 1kHz

FREQ. RESPONSE: 20Hz-18kHz

IMPEDANCE: 96 Ohms @ 1kHz

DRIVER CONFIGURATION:

Single Balanced-Armature Bass Driver Single Balanced-Armature Midrange/Treble Driver

IN THE BOX

IN-EAR MONITORS

MACH 20 Universal Fit In-Ear Monitors

CABLE: Linum BaX T2 Cable

CABLE LENGTH: 50" (127 cm)

TIPS: 5 Pair Foam + 5 Pair Silicone

ACCESSORIES:

Impact Resistant Monitor Vault Westone Audio Cloth Pouch Cleaning Tool Cable Band

The Westone Audio MACH Series™ combines 35+ years of engineering and performance excellence to deliver sound quality the way it was intended to be heard. Every aspect of the MACH Series was purposely designed for both superior comfort and sound on and off the stage.

Experience music your way; the Westone Audio way and celebrate the artist in you.
