Product Type	4K HDMI and USB 3.0 2×1 KVM Switch
Brand	Rocstor
Model	SolidKVM SK06 (Y10A329-B1)
Dimensions (L×W×H)	7 × 2.9 × 1 in (178 × 75 × 26 mm)
Weight (Net)	12.9 oz (366.3 g)
Material	Metal
Power Supply	External 5V DC, 12W max
Maximum Resolution	3840×2160@60Hz / 4096×2160@60Hz
HDMI Bandwidth	18 Gbps (6 Gbps per channel)
Color Depth	Up to 36-bit (12-bit per channel)
HDR Support	Yes
HDCP Support	HDCP 2.2 / 1.4
3D Support	Yes
KVM Ports	2 × USB 3.0-B (back), 2 × HDMI Female (back)
Console Ports	2 × USB 2.0-A (back), 1 × HDMI Female (back), 2 × 3.5mm stereo (front/back), 2 × 3.5mm MIC (front/back)
USB HUB Ports	2 × USB 3.0-A (front)
Supported Color Formats	RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-10°C to 80°C (14°F to 176°F)
ESD Protection	±8 kV air discharge, ±4 kV contact discharge
Certifications	FCC, CE
Warranty	3 Years Limited Warranty
Included Accessories	Main unit, 5V/3A power adapter, IR remote, IR extender, 2× USB 3.0-B to USB 3.0-A cables, user manual, ear hanger bracket (optional)

Frequently Asked Questions - SolidKVM SK06 Rocstor

How do I switch between PCs on the SolidKVM SK06?

You can switch by pressing the input selection buttons on the front panel, using the IR remote control, or using hotkeys. The hotkey combination is Scroll Lock + Scroll Lock + arrow keys or Scroll Lock + Scroll Lock + [N] to switch to a specific PC.

What resolutions does the SolidKVM SK06 support?

It supports resolutions up to 4K @ 60Hz (3840×2160 or 4096×2160). It also supports RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0, HDR, and 3D.

Does the KVM switch support USB 3.0?

Yes, the KVM ports use USB 3.0-B connectors, and the front USB hub ports are USB 3.0-A. The console keyboard/mouse ports are USB 2.0.

Can I use the switch without the external power adapter?

No, the SolidKVM SK06 requires an external 5V DC power supply (included) to operate. The power button must be pressed to turn it on.

How do I use the mouse traversal switching function?

Place the mouse cursor on the far right edge of the display and continue sliding right for about 2 seconds. The switch will automatically switch to the next PC (PC1→PC2→PC1→...).

What are the hotkey combinations for switching?

Hotkeys are accessed by pressing Scroll Lock twice quickly, then a command key. For example: +→ or +↓ for next port, +← or +↑ for previous port, +[N] for PC N, +S for auto-switch, +I+[N]+Enter to set interval, +B+1/0 for buzzer on/off, and +F+L+A+S+H+Enter to reset defaults.

Does the switch support audio routing?

Yes, it supports microphone and stereo audio via 3.5mm jacks. The front panel has MIC in and audio out, and the back panel has additional ports for each PC.

What type of HDMI cable should I use?

Use High Speed HDMI cables that support 18 Gbps bandwidth to achieve 4K@60Hz with HDR. The switch supports HDCP 2.2.

Is the SolidKVM SK06 compatible with Mac and Linux?

Yes, it supports Windows 2000/XP/Vista/7/8/10, Linux, and Apple Mac OS. No additional drivers are required for basic KVM functions.

How do I perform a factory reset?

Use the hotkey combination Scroll Lock + Scroll Lock + F + L + A + S + H + Enter to restore all hotkey default settings.

USER MANUAL SolidKVM SK06 Rocstor

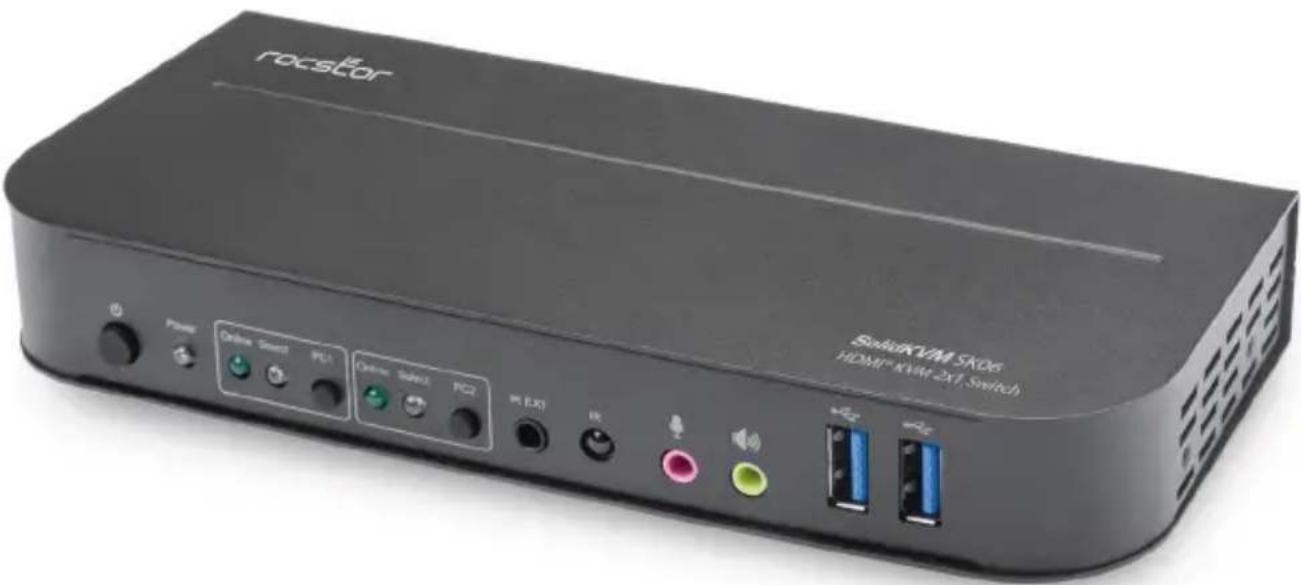

Rocstor SolidKVM SK06 4K HDMI and USB 3.0 2×1 KVM Switch

User Manual

Y10A329-B1

Important Safety Notice

WARNING: Please follow these safety instructions. Failure to do so may result damages or injury. It is normal that the SolidKVM SK06 unit adapter becomes very warm during use.

Please note that:

Continuous contact with warm surfaces for extended time may cause discomfort or injury. In order to reduce the possibility of overheating or heat-related injuries, always allow needed ventilation around the SolidKVM SK06 unit and use care when handling it. Avoid instances where your skin is in extended contact with the hub when plugged into the host computer. It is not recommended to sleep with the adapter when plugged into a host computer. Avoid placing the hub adapter under a pillow, blanket, or your body when connected to a host computer. If you have a medical condition that affects your ability to detect heat against the body, extra care should be used. Never use the adapter in locations with water, such as a sink, bathtub, or shower stall. Never connect or disconnect the adapter with wet hands.

Introduction

Rocstor introduces a high-performance HDMI-KVM switcher. It seamlessly routes high-definition video (in various resolutions up to 4kx2k@60Hz) and audio from multiple sources to display units. This HDMI-KVM switcher features not only key-press switching functionality but also intelligent and hot-pluggable capabilities.

Package Contents

Before utilizing this unit, kindly inspect the packaging to ensure the following items are included:

• Main Unit x1
• 5V/3A Power Adapter x1
• IR Remote Control x1
• IR Extender x1
  • USB 3.0-B Male to USB 3.0-A Male Cable x2
• User Manual x1
• Ear Hanger Bracket x2 (Optional)

Features

• Supports resolution up to 4Kx2K@60Hz
• Supports RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
• Supports KVM function
• Supports a HDMI display and a set of Keyboard and Mouse to control two PCs with HDMI ports
• Supports 6Gbps per channel (18Gbps all channels) bandwidth
• Supports 12bit per channel (36bit all channels) deep color
• Supports HDCP 2.2/1.4
- Supports 3D
• Supports HDR
• Supports infrared remote control function
• Supports for switching LED indications
• Supports Windows 2000/XP/Vista/Win7/Win8/Win10/Linux/Apple Mac OS

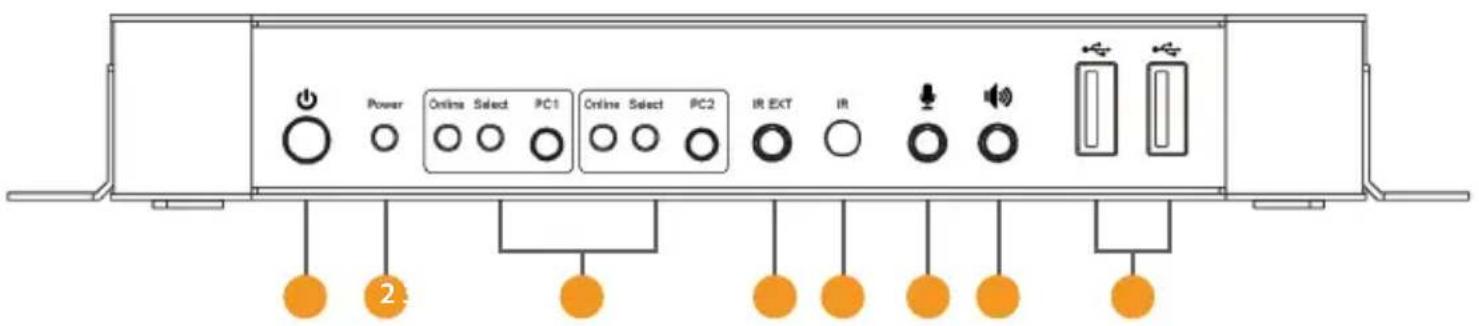

Panel Description (Front Panel)

Front Panel

1 Power Button: Press to turn on/off the unit.
2 Power Indicator: The LED will light up once the DC/5V is provided and the unit is turned on.
3 Input Selection: When PC1/PC2/PC3/PC4 is selected, the corresponding "Select" lights up to indicate input selection("Select" LEDs flash in a loop under automatic switching mode). "Online" LED lights up when the corresponding USB-B port is connected.
4 IR EXT: Connect IR Extender to this port for IR signal reception from the remote control.
5 IR: For IR signal reception from the remote control.
6 ↓ 3.5mm MIC input port.
7 3.5mm stereo output port.
8 USB 3.0 ports, mainly used for connecting to printers, scanners, U-disk, etc.

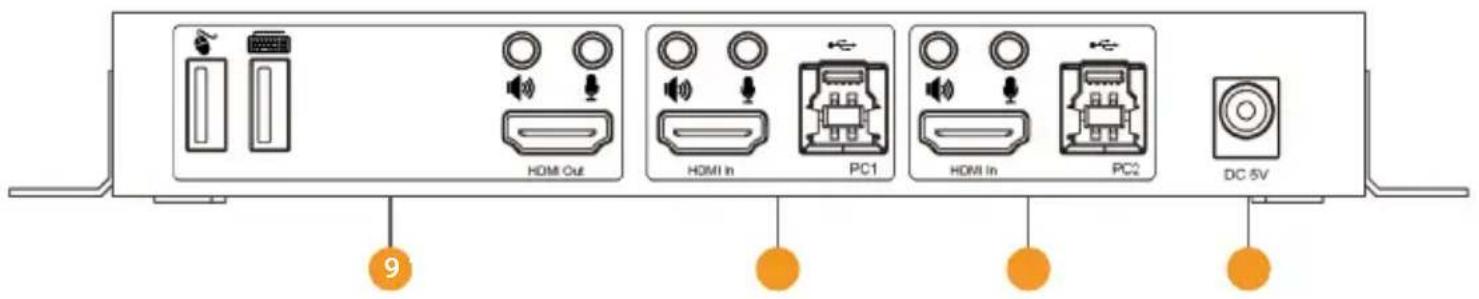

Panel Description (Back Panel)

Back Panel

9 Output ports:

Connect ⚙ to a mouse or a keyboard.

Connect 📄 to a keyboard or a mouse.

Connect 🔵 to an amplifier.

Connect ↓ to a MIC.

Connect "HDMI Out" to HDMI display.

10 PC1 input ports: Respectively connect to HDMI, USB, MIC, stereo ports of PC1.
11 PC2 input ports: Respectively connect to HDMI, USB, MIC, stereo ports of PC2.
12 DC 5V: Plug the 5V DC power supply into the unit.

Specifications

Connectors
Console Connectors	USB 2.0-A x2 (Back)HDMI Female x1(Back)3.5mm Stereo Jack 2x (Green, 1 Front, 1 Back)3.5mm Stereo Jack x2 (Pink, 1 Front, 1 Back)
KVM Connectors USB 3.0-B x2 (Back)	HDMI Female x2 (Back)3.5mm Stereo Jack x2 (Green, Back)3.5mm Stereo Jack x2 (Pink, Back)
USB HUB Connectors USB 3.0-A x2 (Front)
Resolution
Max Resolution	3840x2160@60Hz4096x2160@60Hz
Operating Frequency
HDMI Bandwidth	18G
Mechanical
Material	Metal
Size (L-W-H)	7x2.9x1in - (178x75x26mm)
Weight (Net)	12.9lbs - (366.3g)
Warranty
	3 YearsLimited Warranty
Environmental
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10°C to 80°C (14°F to 176°F)
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply DC 5V
	12WPower Consumption (Max)±8kV (air-gap discharge) & ±4kV (contact discharge)ESD Protection
Regulatory Approvals
Certifications FCC, CE
Power Supply FCC, CE
Accessories
User Manual English Version

Installation Procedures

Operation

1) Begin by establishing connections between your Host Computers and the SolidKVM SK06 Switch. Utilize USB cables to connect the Host Computers to the USB-B ports of the KVM Switch. Subsequently, link the MIC and stereo ports of the Host Computers to the corresponding ports located above the KVM Switch "HDMI In" using 3.5mm audio cables. Complete this step by connecting the Host Computers to the KVM Switch "HDMI In" ports using HDMI cables. Upon completion, the "Online" indicators will light up, confirming successful connections.
2) Proceed to connect peripheral devices. Attach the keyboard and mouse to the USB-A ports located on the back panel of the KVM Switch. Then, respectively connect microphones and amplifiers to either the MIC and stereo ports on the front panel or above the Switch "HDMI Out" using 3.5mm audio cables. For display connectivity, link a display to the Switch "HDMI Out" using an HDMI cable.
3) Power on the KVM Switch by supplying it with DC 5V and pressing the power button. Upon activation, the "Power" indicator will light up, confirming that power is operational. Ensure that the USB-B ports are connected properly, and the "Online" indicators will light up. The "Select" indicator will light up to denote the currently selected Host Computers.
4) Utilize the buttons located on the Switch front panel to select the input source. Upon selection, the corresponding "Select" indicator will light up, and the display will showcase the corresponding image. Subsequently, the selected Host Computers can be controlled using a keyboard and mouse.

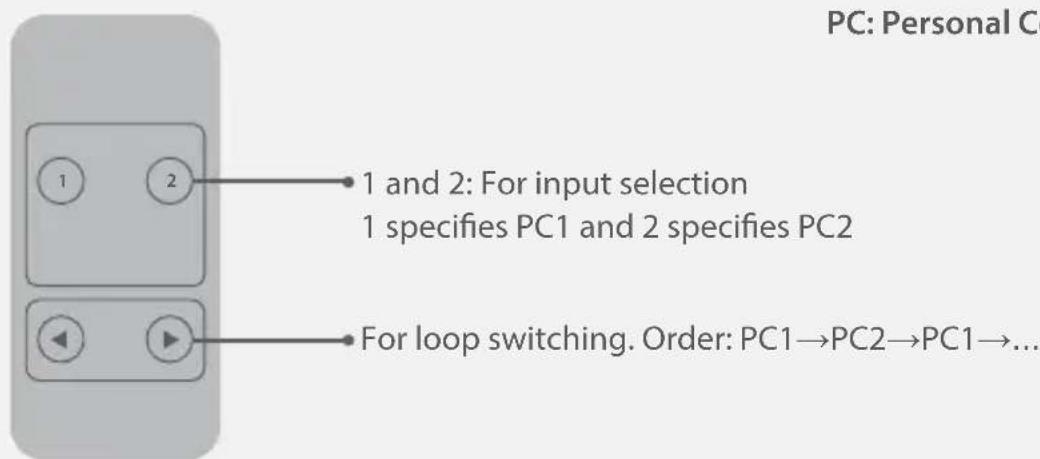

5) The remote control functionality mirrors the manual buttons, facilitating input selection and control with equal efficiency and precision.

PC: Personal Computer

6) For external function, connect printer/scanner/U-disk to the USB-A ports on the Switch front panel.

Special Function Operation

1) Mouse Traversal Function:

Place the mouse on the far right side of the display and continue to slide to the right for 2 seconds, the Switch automatically switches to the next port. Switching order is: PC1→PC2→PC1→...;

2) USB-B detection switching function:

When the KVM Switch detects that a PC is connected to the USB-B port of the Switch, it immediately switches to this PC and the corresponding "Online" and "Select" indicators light up. For instance, if PC1 is already connected and PC2 is subsequently connected to the KVM Switch via the USB-B port, it swiftly switches to PC2.
2 When the current selected PC is powered off or the USB cable is dialed out, the KVM Switch automatically switches to the next PC with the power on and the USB port connected.

3) Hotkey function (It doesn't work on functional keyboard and only the 2 USB-A ports on the back panel can get access to this function.)

Number	Hotkey Combination Function Description
1	Scroll Lock++Scroll Lock +→or↓1	Switch to the next port
2	Scroll Lock++ Scroll Lock +←or↑	Switch to the previous port
3	Scroll Lock++ Scroll Lock +[N]	Switch to PC N
4	Scroll Lock++ Scroll Lock +S	Automatic switching function(Default: 15 seconds)
5	Scroll Lock++ Scroll Lock +I+[N]+[Enter]	Set the automatic switching interval (5~999 seconds)
6	Scroll Lock++ Scroll Lock +B+[1/0]	Buzzer on/off (Default: on)
7	Scroll Lock++ Scroll Lock +F+L+A+S+H+[Enter]	All resume hotkey default mode

Note: Hotkeys are not case-sensitive; Buzzer sounds when switching between PC1 and PC2.

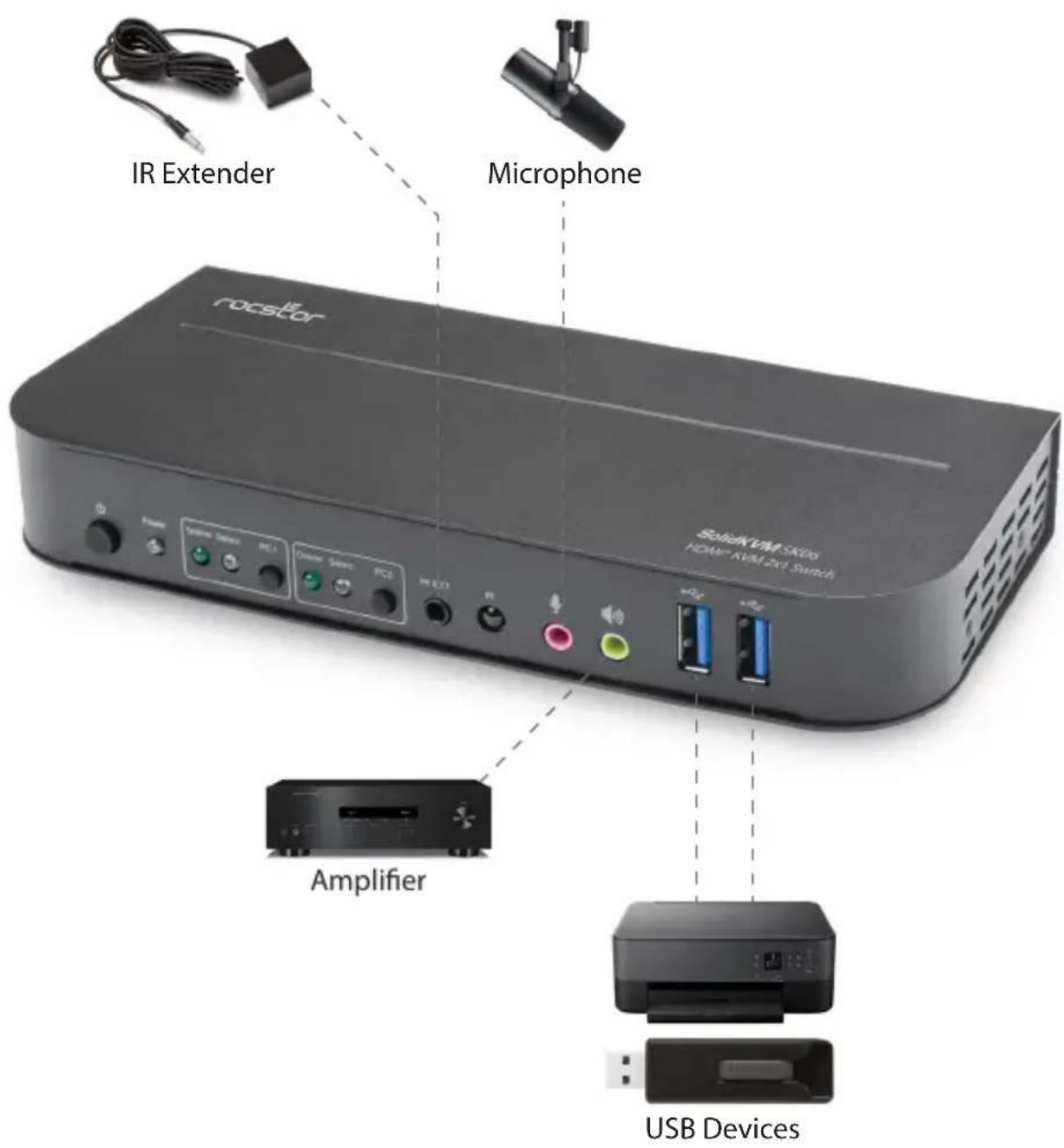

Connection Diagram (Front Panel)

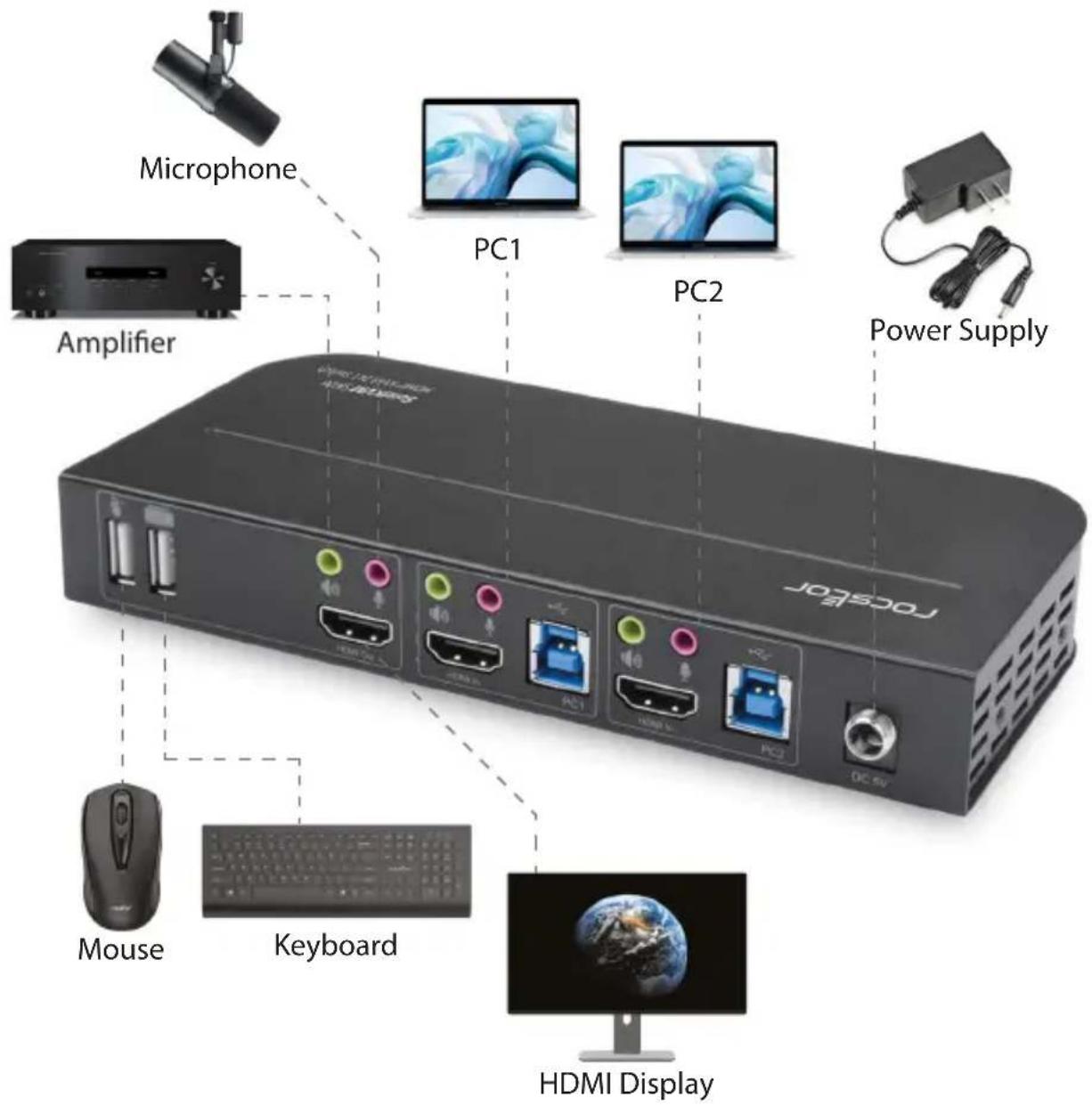

Connection Diagram (Back Panel)
