Product Type	Canister Vacuum Cleaner
Brand	Watson
Model	VM-192-B
Dimensions (L x W x H)	45 x 30 x 25 cm
Weight	4.5 kg
Power Source	120 V, 60 Hz (Standard US plug)
Motor Power	1200 W
Suction Power	200 Air Watts
Dust Capacity	1.5 L
Filtration System	HEPA filter, washable foam filter
Noise Level	78 dB
Cord Length	4.5 m
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Usage Surface	Hard floors, low-pile carpets
Maintenance	Empty dust bin after each use, wash filter monthly
Safety Features	Thermal overload protection, automatic shut-off
Spare Parts Availability	Filters, dust bags, brush rolls (contact Watson support)
Warranty	1 year limited warranty
Color	Black with blue accents

Frequently Asked Questions - VM-192-B Watson

How do I assemble the vacuum cleaner?

To assemble, attach the hose to the main body, then connect the wand and floor nozzle. Refer to the assembly diagram in the manual.

The vacuum loses suction. What should I do?

Check if the dust bin is full, the filters are clogged, or the hose is blocked. Empty the bin, wash the HEPA filter under cold water, and clear any obstructions.

How often should I clean or replace the filters?

Wash the foam filter every month and replace the HEPA filter every 6-12 months. Do not reuse wet filters; let them dry completely.

Can I use the vacuum on hardwood floors?

Yes, the floor nozzle is designed for both carpets and hard floors. For hardwood, ensure the brush roll is turned off to avoid scratches.

The vacuum suddenly stopped working. What could be the issue?

It may have triggered the thermal overload protection. Unplug it, wait 30 minutes for it to cool down, then restart. If it still doesn't work, check the fuse or contact support.

Where can I purchase replacement dust bags?

Replacement dust bags are available online through Watson's official website or authorized retailers. Use only Watson VM-192-B compatible bags.

How do I clean the crevice tool?

Detach the crevice tool and rinse it with water if needed. Use a small brush to remove debris from the tip. Let it air dry before reattaching.

Is the vacuum safe to use on stairs?

Yes, but be cautious with the cord. Use the crevice tool for tight spaces. Always keep the vacuum stable on a level surface when not in use.

The cord does not retract fully. How to fix?

Make sure the cord is not twisted or obstructed. Gently pull it out and let it retract. If the issue persists, there may be an internal jam; contact customer service.

Can I use the vacuum to pick up liquids?

No, this vacuum is not suitable for wet pickup. Using it on liquids can damage the motor and void the warranty.

USER MANUAL VM-192-B Watson

Buddy System Li-ion Battery with LED and 3-Stud or V-Mount

Thank you for choosing Watson Pro

Please read this user manual carefully, and keep it for reference before using the battery.

SAFETY INSTRUCTIONS

• Make sure the battery is fully charged before use.
- When not in use, remove the battery from its device. Some electronic equipment will draw current even when the switch is off.
- Do not short-circuit the terminals. This battery is protected with an internal self-resetting fuse, but short circuits may still cause severe damage to the battery.
- Do not attempt to open the battery case under any circumstances.
- Do not remove the battery from any equipment that is powered on. Always power off your equipment before removing the battery.
- Use the battery under proper environmental conditions: 14°F to 122°F (-10°C to 50°C) with a Relative Humidity (RH) less than 85%.
- The battery may be warm during use or recharging. This is normal.
- The battery should be charged up to 40% for storage longer than one month, and should be charged every 6 months.
- Keep the battery away from fire, heat, and high pressure.
- Do not expose the battery to rain or moisture.
- Do not drop the battery or subject it to strong shocks.
- Keep this unit away from water and any flammable gases or liquids.
- Clean the battery and terminals with only a clean, soft, and dry cloth.
- When operation time has noticeably decreased, the battery may need to be replaced.
- Keep this product away from children.
- Store the battery in a cool, dry place.

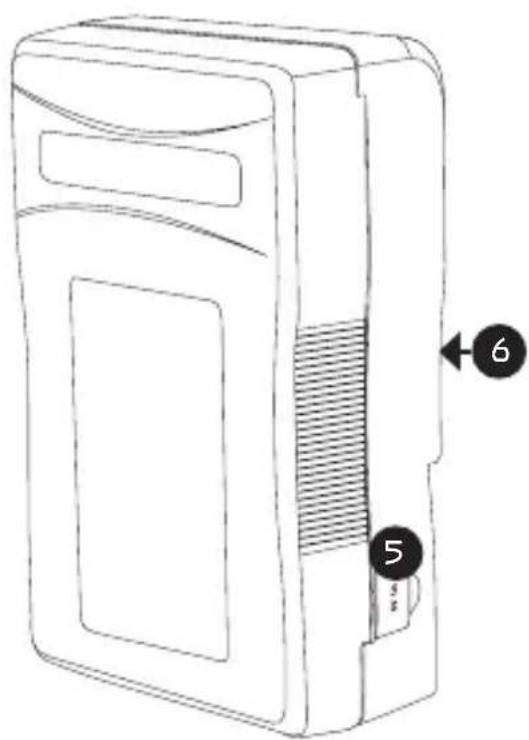

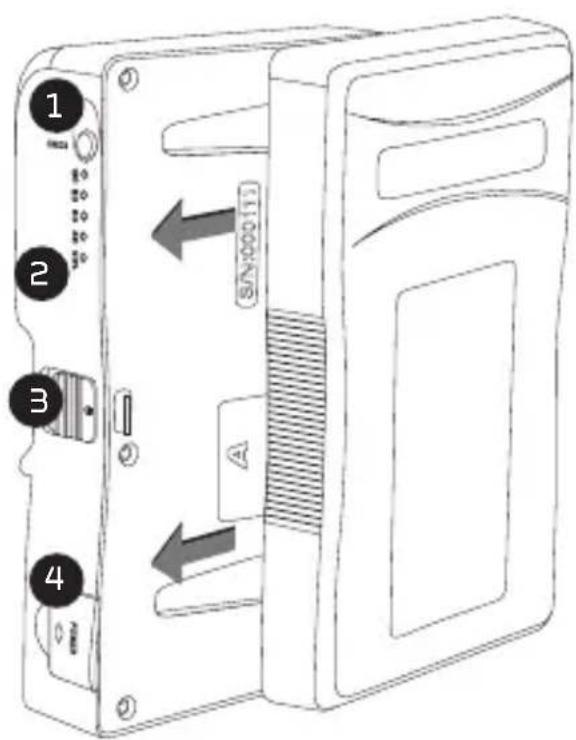

OVERVIEW

1. Battery-level check button
   2 Battery-level LED meter Shows remaining capacity of the battery. When capacity reaches less than 9%, the bottom LED will flash.
   3 Slide lock
   4 D-tap output 12 V, 10 A max
   5 USB output Press the battery-level check button to start charging or to power your USB device.
   6 Mounting interface: 3-stud or V-mount

IMPORTANT

• You must connect both halves of the buddy system battery in order for it to be operational.
• You can only connect the halves of buddy system batteries with matching serial numbers.
  • After assembling the two halves, the 100% battery level LED will light up for three seconds. Then, the battery level will display the current charge amount.

Line drawing of a portable electronic device with labeled parts (no text or symbols beyond labels)

SPECIFICATIONS

Mount type	AM-192-B: 3-StudVM-192-B: V-Mount
Capacity (×2) 6.5 Ah, 96 Wh
Voltage 14.8 V
Max output power 150 W
Max output current 12 A
Average run-time 115 min. @ 100 W
Weight 2.9 lb. (1.3 kg)
Dimensions(H × W × D)	AM-192-B: 6.7 × 3.9 × 2.5 in.(17 × 10 × 6.3 cm)VM-192-B: 6.7 × 3.9 × 2.2 in.(17 × 10 × 5.7 cm)

CHARGING TIME

Battery Single channel Dual channel Four channel
AM-192-BVM-192-B	580 min. 230 min. 460 min.

BATTERY STORAGE

	Up to one month Up	to three months Up to one year
Storage environment	-4°F to 122°F(-20°C to 50°C)	-4°F to 104°F(-20°C to 40°C)	23°F to 86°F(-5°C to 30°C)
Relative humidity	45% to 75% 45%	to 75% 45% to 75%
