USER MANUAL DMX1502 PHONIC

Safety instructions 01

Features 02

Factory settings 03

Installation and connection 04

Cabinet installation 05

Performance graph 06 - 08

Technical performance Specification 09

Service and Repair 10

简体中文 11-20

安全说明 11

功能简介 12

出厂设置 13

安装与连接 14

机柜安装 15

典型性能图 16-18

功率放大器技术性能表 19

服务与维修 20

Phonic preserves the right to improve or alter any information within this document without prior notice

PHONIC

Important safety instructions and safety symbols

1) Please read the use information(user's manual)
2) Please place this user's manual in a secure place during the use period of the amplifier. This user's manual is only a constituent part of the amplifier. The amplifier can only be resold with the user's manual. Please record any change of the amplifier in written form and give it to the buyer for reselling. 3) Please pay attention to all the warnings.
4) Please abide by all the instructions.
5) Do not use the amplifier near the water source(such as the humid indoors or near the swimming pool).
6) Clean it with a piece of dry cloth.
7) Do not block any air vent. Please install it according to the user's manual.
8) Do not install it around the heat source(such as radiator, heat reservoir, furnace and other equipment that can generate heat).
9) Please protect the power supply cord and prevent the damage caused by trampling, squeezing, etc. Pay particular attention to the plug contact and amplifier connector.
10) Please use the amplifier in compliance with the user's manual and abide by all the suggestions before using and in use, particularly the security suggestions listed in detail in the user's manual. The amplifier is used for amplifying the pulse audio signal, which can only be connected to the loudspeaker with indicated average impedance.

PHONIC DMX1502 - Important safety instructions and safety symbols - 1

11) Do not place the amplifier in unsteady cart, table, tripod, support or table top. It may cause the serious human injuries in case of falling or severely damage the equipment.
12) We can only cut off the power supply by unplugging the plug contact. Please place the plug contact in the place with easy access at random. Please unplug the amplifier if it is exposed in the thunderstorm or not use for long.

13) Only qualified personnel can conduct the maintenance work.

Maintenance in case of the following circumstances.

■ Power supply cord or plug damage ■ Liquid or objects splashing or falling into the amplifier
■ Amplifier exposed in rain or humid air ■ Amplifier falling or damage in any other ways
■ Entirely different changes of amplifier to its normal function or performance

Warning: To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture

Note: Any manipulation, adjustment or setting procedure not approved by this manual may generate dangerous electromagnetic radiation.

Only suitable for safe use in areas with an altitude of 2000m and below
For safe use in non-tropical climates only

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Caution - high voltage hazard. Only authorized maintenance personnel can carry out the maintenance work. The lightning symbol with an arrow aims to remind users that there is noninsulated hazardous voltage in the hull of the product.

The lightning symbol with an arrow indicates that there is a high voltage hazard in SPEAKON connector that may threaten life. Caution-electric shock risk-Do not open it. Warning-Do not expose the amplifier in the rain or humid air in order to prevent the risk of fire or electric shock.

The exclamation mark aims to remind users that there are important notes about the maintenance in the attached text materials of amplifier.

DMX802 / DMX1502 / DMX2502 / DMX5002

Introduction to the function of front and rear panel

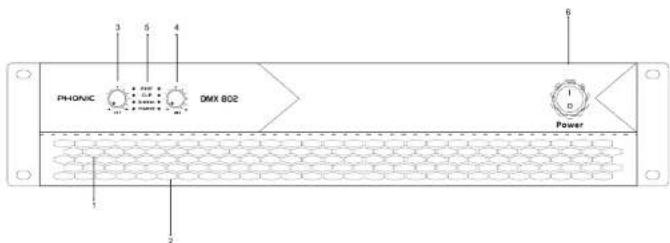

Introduction to the function of front panel
PHONIC DMX 802 Power

1 Channel cooling air inlet vent

2 Detachable air filtration system

3 Volume control channel A

4 Volume control channel B

5 A,B channel function prompt

6 Power switch ON/OFF switch

● "Protection"A,B (Protect) LED

● "Amplitude limit" A,B (Limit) LED

● "Signal level" A, B (-4dB -30dB)

● "Power indicator light"(POWER)

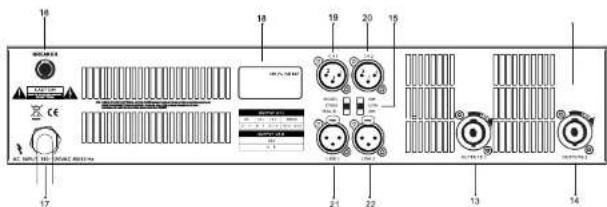

Introduction to the function of rear panel
18 19 20 15 17 18 19 21 22 13 14

13 CH 1 signal output
14 CH2 signal output
15 Dial-up function selection

16 Recoverable AC fuse base
17 AC input wire
18 Serial number

19 CH 1 signal input
20 CH 2 signal input
21 CH 1signal input

22 CH 2 signal input

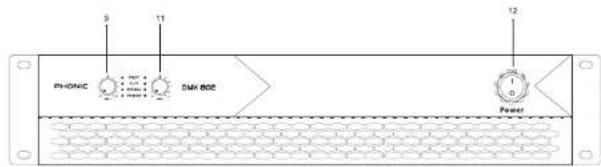

The front panel of amplifier is configured with the factory setting below before delivery.

PHONIC DMX1502 - Introduction to the function of front and rear panel - 3

9 11 PHONIC DMK 800 12 Power

Front panel:

12 ON/OFF switch

Amplifier is in OFF status

9 - 11 Volume control

Volume control is set the minimum value

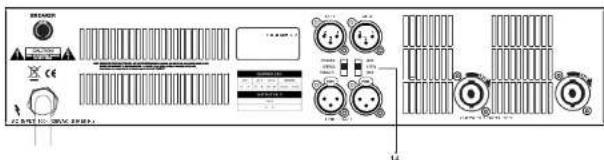

The rear panel of amplifier is configured with the factory setting below before delivery.

Technical diagram of an electronic device panel with labeled components and connectors

Rear panel

14 Function selector

Stereo, 26db

Earth conducting

Diagram

PHONIC DMX1502 - Diagram - 1

Make sure that the ON/OFF setting is the necessary configuration for each special application.

DMX802 / DMX1502 / DMX2502 / DMX5002

Installation and connection

Power supply

Disconnect the power supply for the installation or connection of the amplifier. Please connect the amplifier to the corresponding AC circuit and outlet according to the requirements of second line indication of the nameplate.

PHONIC DMX1502 - Power supply - 1

Applicable to the reference nameplate of 110 V\~50/60 Hz power supply.

Notes: We can only select fixed 220V operation. It is prohibited to use the amplifier for long term beyond the specified range(rated voltage ±10%) because it will affect the overall performance.

Notes: The rated power consumption and supply current consumption is 1/8 of the rated output power, namely, 2 x 150W is measured in circumstance of 800W*2. Pink noise represents the typical music signal. It depends on the valid output power. The power current and power can reach quite high(low) value.

Turn on/off switch

"ON/OFF" switch is rocker switch, which is located in the right side of the front panel. Turn on the amplifier and push the switch upwards. It starts by activating the surge current limiter. Wave clipping and signal LED will be lighted for several seconds during power connection period. Please push the switch downwards in order to turn off the amplifier.

PHONIC DMX1502 - Turn on/off switch - 1
Amplifier in ON status

PHONIC DMX1502 - Turn on/off switch - 2
Amplifier in OFF status

Notes: This switch does not disconnect the amplifier from the power supply cord.

The switch starts by activating the current limiting function. Immediately after the power amplifier is connected to the power supply, a voltage is supplied to the line filter and to the input of the fusible controllable rectifier. The amplifier can only be disconnected from the power supply by physically pulling out the power plug. So the power plug must be easily accessible. Pull the power plug from the amplifier during thunderstorms or when not in use for a long time. Alternatively, you can turn off the amplifier by disconnecting all external electrodes from the power supply.

The amplifier will automatically restart after power restore and maintain all the settings before shutdown if the power supply is disconnected when the amplifier is turned on.

DMX802 / DMX1502 / DMX2502 / DMX5002

PHONIC DMX1502 - Notes: This switch does not disconnect the amplifier from the power supply cord. - 1

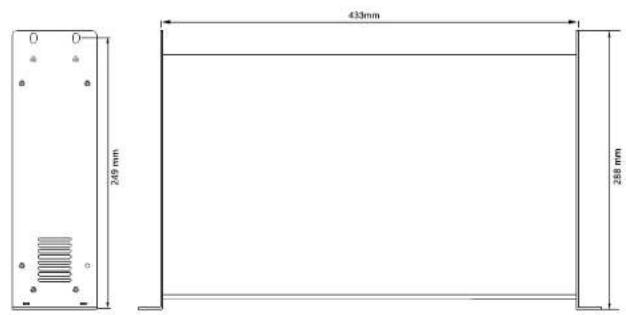

Introduction to cabinet installation

Install the amplifier front rack with four screws and cushion ring. We can use 19" installation component for the fixation of the amplifier because the amplifier is movable.

7,00 mm 10,50 mm 76,20 mm 88,10 mm 465,00 mm

433mm 249 mm 288 mm

DMX802 / DMX1502 / DMX2502 / DMX5002

Typical performance map

PHONIC DMX1502 - Typical performance map - 1

line

| X-Axis (Value) | Y-Axis (Value) | |---|---| | 10 | -6.25 | | 20 | -6.25 | | 30 | -6.25 | | 40 | -6.25 | | 50 | -6.25 | | 60 | -6.25 | | 70 | -6.25 | | 80 | -6.25 | | 90 | -6.25 | | 100 | -6.25 | | 110 | -6.25 | | 120 | -6.25 | | 130 | -6.25 | | 140 | -6.25 | | 150 | -6.25 | | 160 | -6.25 | | 170 | -6.25 | | 180 | -6.25 | | 190 | -6.25 | | 200 | -6.25 | | 210 | -6.25 | | 220 | -6.25 | | 230 | -6.25 | | 240 | -6.25 | | 250 | -6.25 | | 260 | -6.25 | | 270 | -6.25 | | 280 | -6.25 | | 290 | -6.25 | | 300 | -6.25 | | 310 | -6.25 | | 320 | -6.25 | | 330 | -6.25 | | 340 | -6.25 | | 350 | -6.25 | | 360 | -6.25 | | 370 | -6.25 | | 380 | -6.25 | | 390 | -6.25 | | 400 | -6.25 | | 410 | -6.25 | | 420 | -6.25 | | 430 | -6.25 | | 440 | -6.25 | | 450 | -6.25 | | 460 | -6.25 | | 470 | -6.25 | | 480 | -6.25 | | 490 | -6.25 | | 500 | -6.25 |

Gain and frequency (Class D) (Typical performance measured value)

PHONIC DMX1502 - Typical performance map - 2

line

| X | Y | |---|---| | 10 | 0 | | 20 | 0 | | 30 | 0 | | 40 | 0 | | 50 | 0 | | 60 | -1 | | 70 | -1 | | 80 | -2 | | 90 | -3 | | 100 | -4 | | 110 | -5 | | 120 | -6 | | 130 | -7 | | 140 | -8 | | 150 | -9 | | 160 | -10 | | 170 | -11 | | 180 | -12 | | 190 | -13 | | 200 | -14 | | 210 | -15 | | 220 | -16 | | 230 | -17 | | 240 | -18 | | 250 | -19 | | 260 | -20 | | 270 | -21 | | 280 | -22 | | 290 | -23 | | 300 | -24 | | 310 | -25 | | 320 | -26 | | 330 | -27 | | 340 | -28 | | 350 | -29 | | 360 | -30 | | 370 | -31 | | 380 | -32 | | 390 | -33 | | 400 | -34 | | 410 | -35 | | 420 | -36 | | 430 | -37 | | 440 | -38 | | 450 | -39 | | 460 | -40 | | 470 | -41 | | 480 | -42 | | 490 | -43 | | 500 | -44 | | 510 | -45 | | 520 | -46 | | 530 | -47 | | 540 | -48 | | 550 | -49 | | 560 | -50 | | 570 | -51 | | 580 | -52 | | 590 | -53 | | 600 | -54 | | 610 | -55 | | 620 | -56 | | 630 | -57 | | 640 | -58 | | 650 | -59 | | 660 | -60 | | 670 | -61 | | 680 | -62 | | 690 | -63 | | 700 | -64 | | 710 | -65 | | 720 | -66 | | 730 | -67 | | 740 | -68 | | 750 | -69 | | 760 | -70 | | 770 | -71 | | 780 | -72 | | 790 | -73 | | 800 | -74 | | 810 | -75 | | 820 | -76 | | 830 | -77 | | 840 | -78 | | 850 | -79 | | 860 | -80 | | 870 | -81 | | 880 | -82 | | 890 | -83 | | 900 | -84 | | 910 | -85 | | 920 | -86 | | 930 | -87 | | 940 | -88 | | 950 | -89 | | 960 | -90 | | 970 | -91 | | 980 | -92 | | 990 | -93 | | 1000 | -94 |

Phase and frequency (Class D) (Typical performance measured value)

PHONIC DMX1502 - Typical performance map - 3
THD@1 kHz,8Ω and input voltage(Class D) (Typical performance measured value)

PHONIC DMX1502 - Typical performance map - 4
THD and frequency, absorbing wave and below 10dB below clip, 8Ω (Class D) (Typical performance measured value)

DMX802 / DMX1502 / DMX2502 / DMX5002

Typical performance map

English
PHONIC DMX1502 - Typical performance map - 1

line

| X | Y (Series 1) | Y (Series 2) | |---|---|---| | 20 | -100 | -95 | | 18 | -100 | -90 | | 16 | -100 | -85 | | 14 | -100 | -80 | | 12 | -100 | -75 | | 10 | -100 | -70 | | 8 | -100 | -65 | | 6 | -100 | -60 | | 4 | -100 | -55 | | 2 | -100 | -50 | | 0 | -100 | -45 | | 2 | -100 | -40 | | 4 | -100 | -35 | | 6 | -100 | -30 | | 8 | -100 | -25 | | 10 | -100 | -20 | | 12 | -100 | -15 | | 14 | -100 | -10 | | 16 | -100 | -5 | | 18 | -100 | 0 | | 20 | -100 | 5 | | 22 | -100 | 10 | | 24 | -100 | 15 | | 26 | -100 | 20 | | 28 | -100 | 25 | | 30 | -100 | 30 | | 32 | -100 | 35 | | 34 | -100 | 40 | | 36 | -100 | 45 | | 38 | -100 | 50 | | 40 | -100 | 55 | | 42 | -100 | 60 | | 44 | -100 | 65 | | 46 | -100 | 70 | | 48 | -100 | 75 | | 50 | -100 | 80 | | 52 | -100 | 85 | | 54 | -100 | 90 | | 56 | -100 | 95 | | 58 | -100 | 100 | | 60 | -100 | 105 | | 62 | -100 | 110 | | 64 | -100 | 115 | | 66 | -100 | 120 | | 68 | -100 | 125 | | 70 | -100 | 130 | | 72 | -100 | 135 | | 74 | -100 | 140 | | 76 | -100 | 145 | | 78 | -100 | 150 | | 80 | -100 | 155 | | 82 | -100 | 160 | | 84 | -100 | 165 | | 86 | -100 | 170 | | 88 | -100 | 175 | | 90 | -100 | 180 | | 92 | -100 | 185 | | 94 | -100 | 190 | | 96 | -100 | 195 | | 98 | -100 | 200 | | 100 | -100 | 205 | | 128 | -95 | 295 | | 136 | -95 | 345 | | 184 | -95 | 435 | The chart displays a line graph with two data series: one for Series 2 and one for Series 3. The x-axis ranges from '22' to '28', and the y-axis ranges from '22' to '32'. The lines are connected by lines forming a U-shaped curve. The legend indicates 'Series 2' in black and 'Series 3' in gray. The chart is divided into three sections: top-left, bottom-left, and bottom-right. The y-values represent the corresponding data points for each series at each x-coordinate. The chart is labeled with the same axes and the label 'Y' but does not correspond to the data series labels. The chart is saved as a PNG file named 'chart.png'.

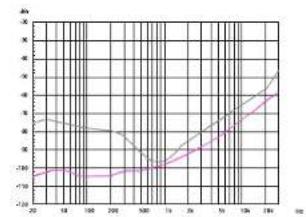

Channel separation and frequency @10W/4Ω Class D (Typical performance measured value)
PHONIC DMX1502 - Typical performance map - 2

line

| x | y | | ---- | ----- | | 0 | 4.0 | | 1 | 3.8 | | 2 | 3.6 | | 3 | 3.4 | | 4 | 3.2 | | 5 | 3.0 | | 6 | 2.8 | | 7 | 2.6 | | 8 | 2.4 | | 9 | 2.2 | | 10 | 2.0 | | 11 | 1.8 | | 12 | 1.6 | | 13 | 1.4 | | 14 | 1.2 | | 15 | 1.0 | | 16 | 0.8 | | 17 | 0.6 | | 18 | 0.4 | | 19 | 0.2 | | 20 | 0.0 | | 21 | -0.2 | | 22 | -0.4 | | 23 | -0.6 | | 24 | -0.8 | | 25 | -1.0 | | 26 | -1.2 | | 27 | -1.4 | | 28 | -1.6 | | 29 | -1.8 | | 30 | -2.0 | | 31 | -2.2 | | 32 | -2.4 | | 33 | -2.6 | | 34 | -2.8 | | 35 | -3.0 | | 36 | -3.2 | | 37 | -3.4 | | 38 | -3.6 | | 39 | -3.8 | | 40 | -4.0 | | 41 | -4.2 | | 42 | -4.4 | | 43 | -4.6 | | 44 | -4.8 | | 45 | -5.0 | | 46 | -5.2 | | 47 | -5.4 | | 48 | -5.6 | | 49 | -5.8 | | 50 | -6.0 | | 51 | -6.2 | | 52 | -6.4 | | 53 | -6.6 | | 54 | -6.8 | | 55 | -7.0 | | 56 | -7.2 | | 57 | -7.4 | | 58 | -7.6 | | 59 | -7.8 | | 60 | -8.0 | | 61 | -8.2 | | 62 | -8.4 | | 63 | -8.6 | | 64 | -8.8 | | 65 | -9.0 | | 66 | -9.2 | | 67 | -9.4 | | 68 | -9.6 | | 69 | -9.8 | | 70 | -10.0 | | 71 | -10.2 | | 72 | -10.4 | | 73 | -10.6 | | 74 | -10.8 | | 75 | -11.0 | | 76 | -11.2 | | 77 | -11.4 | | 78 | -11.6 | | 79 | -11.8 | | 80 | -12.0 | | 81 | -12.2 | | 82 | -12.4 | | 83 | -12.6 | | 84 | -12.8 | | 85 | -13.0 | | 86 | -13.2 | | 87 | -13.4 | | 88 | -13.6 | | 89 | -13.8 | | 90 | -14.0 | | 91 | -14.2 | | 92 | -14.4 | | 93 | -14.6 | | 94 | -14.8 | | 95 | -15.0 | | 96 | -15.2 | | 97 | -15.4 | | 98 | -15.6 | | 99 | -15.8 | | 100 | -16.0 |

DIM intermodulation distortion @8Ω and input level Class D
(Typical performance measured value)

PHONIC DMX1502 - Typical performance map - 3

line

| Frequency (Hz) | Value | |---|---| | 10 | 38 | | 50 | 39 | | 100 | 40 | | 150 | 41 | | 200 | 42 | | 250 | 43 | | 300 | 44 | | 350 | 45 | | 400 | 46 | | 450 | 47 | | 500 | 48 | | 550 | 49 | | 600 | 50 | | 650 | 51 | | 700 | 52 | | 750 | 53 | | 800 | 54 | | 850 | 55 | | 900 | 56 | | 950 | 57 | | 1000 | 58 | | 1050 | 59 | | 1100 | 60 | | 1150 | 61 | | 1200 | 62 | | 1250 | 63 | | 1300 | 64 | | 1350 | 65 | | 1400 | 66 | | 1450 | 67 | | 1500 | 68 | | 1550 | 69 | | 1600 | 70 | | 1650 | 71 | | 1700 | 72 | | 1750 | 73 | | 1800 | 74 | | 1850 | 75 | | 1900 | 76 | | 1950 | 77 | | 2000 | 78 | | 2050 | 79 | | 2100 | 80 | | 2150 | 81 | | 2200 | 82 | | 2250 | 83 | | 2300 | 84 | | 2350 | 85 | | 2400 | 86 | | 2450 | 87 | | 2500 | 88 | | 2550 | 89 | | 2600 | 90 | | 2650 | 91 | | 2700 | 92 | | 2750 | 93 | | 2800 | 94 | | 2850 | 95 | | 2900 | 96 | | 2950 | 97 | | 3000 | 98 | | 3050 | 99 | | 3100 | 100 | | 3150 | 101 | | 3200 | 102 | | 3250 | 103 | | 3300 | 104 | | 3350 | 105 | | 3400 | 106 | | 3450 | 107 | | 3500 | 108 | | 3550 | 109 | | 3600 | 110 | | 3650 | 111 | | 3700 | 112 | | 3750 | 113 | | 3800 | 114 | | 3850 | 115 | | 3900 | 116 | | 3950 | 117 | | 4000 | 118 | | 4050 | 119 | | 4100 | 120 | | 4150 | 121 | | 4200 | 122 | | 4250 | 123 | | 4300 | 124 | | 4350 | 125 | | 4400 | 126 | | 4450 | 127 | | 4500 | 128 | | 4550 | 129 | | 4600 | 130 | | 4650 | 131 | | 4700 | 132 | | 4750 | 133 | | 4800 | 134 | | 4850 | 135 | | 4900 | 136 | | 4950 | 137 | | 5000 | 138 | | Note: The data is already in CSV format, so no changes are needed. The values for 'Value' and 'Rate' columns are estimated based on the provided code. There is only one data series in this case. The values for 'Rate' columns are not explicitly labeled in the chart. Therefore, the values for 'Rate' columns are estimated based on the provided code.

Common mode rejection ratio Class D (Typical performance measured value)
PHONIC DMX1502 - Typical performance map - 4
SMPTE intermodulation distortion (60 Hz and 7kHz) @8Ω and input level Class D
(Typical performance measured value)

PHONIC DMX1502 - Typical performance map - 5

bar

| Impedance | Watt | |---|---| | 4 Ohm | 1000 | | 8 Ohm | 1500 | | 16 Ohm | 800 | | 16 Ohm | 900 | | 16 Ohm | 470 | | 16 Ohm | 480 |

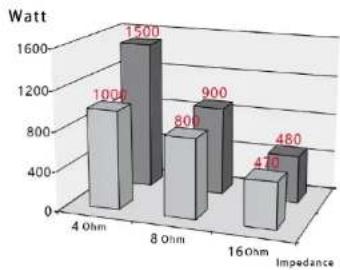

650W*2 (Typical performance measured value)
650W*2 peak power 650W*2 distortion constraint Output power(1%THD)

PHONIC DMX1502 - Typical performance map - 6

bar

| Impedance | Watt | |---|---| | 4 Ohm | 1800 | | 8 Ohm | 2500 | | 16 Ohm | 1300 | | 16 Ohm | 640 | | 16 Ohm | 520 |

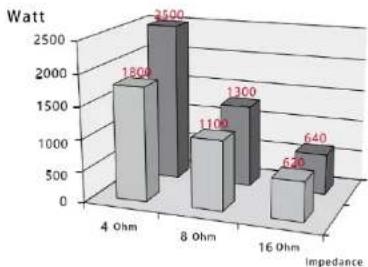

850W*2 (Typical performance measured value)
850W*2 peak power 850W*2 distortion constraint Output power (1%THD)

DMX802 / DMX1502 / DMX2502 / DMX5002

PHONIC

Power amplifier specification performance index list

		DNX 802 DMX	1502 DNX 2502 DMX	5002
Output power (1KHz, THD<1%, all channel drive	8Ω stereo 200M*2	400M2 850M2 1300M*2
	4Ω stereo 320M*2	560M2 1190M2 1850M*2
	2Ω stereo 450M*2	780M2 1490M2 2300M*2
	8Ω Bridge 480M 960W 2010W 3500M
	4Ω Bridge 680M 1350W 2700W 4200M
Amplifier Protection	DC protection	✓ ✓ ✓	✓
	Short circuit protection	✓ ✓ ✓	✓
	Sensitivity overheat management system	✓ ✓ ✓	✓
	Overheating protection	✓ ✓ ✓	✓
	Input overload protection	✓ ✓ ✓	✓
	over load protection	✓ ✓ ✓	✓
	Soft start protection	✓ ✓ ✓	✓
	Limiting protection up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 10V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up to 30V up.
Frequency Response (1W,8Ω,20Hz,20kHz)		(±0.5dB)(±0.5dB)(±0.5dB)(±0.5dB)
Sensitivity (8Ω,1KHz)		0.775v/26dB/32 dB	0.775v/26dB/32 dB	0.775v/26dB/32 dB	0.775v/26dB/32 dB
Connectors	Input/Link XLR XLR	XLR XLR
Connectors	Output SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON SPEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAK ON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKONPEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PEAKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AKON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON PE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VEAK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK ON VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VE AK on VEX AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE A VEX AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE A VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA VEXA AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVE AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO A VO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO Avo AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AFOA AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO AVO ABOA B O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O E O S O S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S/S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S	10V	10V	10V	10V

Statement: This user's manual is only for specification and instruction reference. Our company reserves the right to update the product or specification. Any product or specification update will subject to changes with no prior notice.

DMX802 / DMX1502 / DMX2502 / DMX5002

SERVICE AND REPAIR

For replacement parts, service and repairs please contact the Phonic distributor in your country. Phonic does not release service manuals to consumers, and advice users to not attempt any self repairs, as doing so voids all warranties. You can locate a dealer near you at http://www.phonic.com/where/.

WARRANTY INFORMATION

Phonic stands behind every product we make with a no-hassles warranty. Warranty coverage may be extended, depending on your region. Phonic Corporation warrants this product for a minimum of one year from the original date of purchase against defects in material and workmanship under use as instructed by the user's manual. Phonic, at its option, shall repairor replace the defective unit covered by this warranty. Please retain the dated sales receipt as evidence of the date of purchase. You will need it for any warranty service. No returns or repairs will be accepted without a proper RMA number (return merchandise authorization). In order to keep this warranty in effect, the product must have been handled and used as prescribed in the instructions accompanying this warranty. Any tampering of the product or attempts of self repair voids all warranty. This warranty does not cover any damage due to accident, misuse, abuse, or negligence. This warranty is valid only if the product was purchased new from an authorized Phonic dealer distributor. For complete warranty policy information please visit http://www.phonic.com/warranty/.

CUSTOMER SERVICE AND TECHNICAL SUPPORT

We encourage you to visit our online help at http://www.phonic.com/support/. There you can find answers to frequently asked questions, tech tips, driver downloads, returns instruction and other helpful information. we make every effort to answer your questions within one business day.

support@phonic.com http://www.phonic.com

PHONIC

重要安全说明与安全符号说明

● “限幅”A,B (Limit) LED

● “信号电平”A,B (-4dB -30dB)

● “电源指示灯”(POWER)

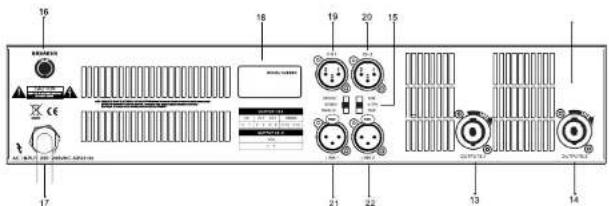

后面板功能简介
Labeled diagram of a device rear panel with ports, connectors, and control panels

13 CH 1信号输出

14 CH 2信号输出

15 拨码功能选择

16 可恢复交流保险管座

17 交流输入电线

18 序号

19 CH 1信号输入

20 CH 2信号输入

21 CH 1信号输入

22 CH 2信号输入

DMX802 / DMX1502 / DMX2502 / DMX5002

出厂设置

放大器在交付时前面板具有如下出厂设置：

PHONIC DMX1502 - 出厂设置 - 1

9 11 PHONE DATA BOX 12 Power

前面板：

Table of contents Click a title to access it

PHONIC
Important safety instructions and safety symbols
Introduction to the function of front and rear panel
Front panel:
Rear panel
Diagram
Installation and connection
Power supply
Turn on/off switch
Notes: This switch does not disconnect the amplifier from the power supply cord.
Introduction to cabinet installation
Typical performance map
SERVICE AND REPAIR
WARRANTY INFORMATION
CUSTOMER SERVICE AND TECHNICAL SUPPORT
重要安全说明与安全符号说明
出厂设置

Manual assistant

Waiting for your message

📷

Product information

Brand : PHONIC

Model : DMX1502

Category : Receiver
