Product Type	Mini Desktop Computer
Brand	AOpen
Model	DE7600
Processor	Intel Core i5-8250U (4 cores, 1.6GHz, up to 3.4GHz)
Memory	8GB DDR4 2400MHz (expandable to 32GB)
Storage	256GB M.2 SATA SSD
Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro (64-bit)
Dimensions (W x D x H)	190 x 190 x 58 mm
Weight	1.5 kg
Power Supply	90W AC adapter (input 100-240V, 50-60Hz)
Power Consumption	Typical 45W, max 65W
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.2
Ports	4x USB 3.0, 2x USB 2.0, HDMI, DisplayPort, Gigabit Ethernet, Audio jack
Expansion Slots	1x M.2 for SSD, 1x M.2 for Wi-Fi, 1x 2.5" drive bay
Cooling	Fanless design (passive cooling)
Chassis Material	Aluminum and steel
Mounting Option	VESA mount compatible (75x75mm and 100x100mm)
Certifications	CE, FCC, RoHS
Maintenance & Cleaning	Wipe with dry cloth. Do not use liquids or solvents. Ensure vents are dust-free.
Safety	Use only supplied power adapter. Do not expose to moisture or heat sources. Keep away from children.
Spare Parts	Available from authorized service centers. Common parts: AC adapter, fan module.
General Information	This device is designed for office, education, and digital signage. It supports up to three displays via HDMI, DisplayPort.

Frequently Asked Questions - DE7600 AOPEN

How do I connect the AOpen DE7600 to a monitor?

Use the HDMI or DisplayPort ports on the back of the device. The DE7600 supports up to three displays simultaneously via HDMI, DisplayPort, and optional USB-C (if equipped).

Can I upgrade the RAM in the DE7600?

Yes, the DE7600 has two SO-DIMM slots supporting DDR4 2400MHz memory. You can upgrade up to 32GB (2x16GB). Ensure you use 1.2V low-voltage modules.

How to clean the DE7600 properly?

Turn off the device and unplug it. Use a soft, dry microfiber cloth to wipe the exterior. For vents, use compressed air to remove dust. Do not use water or cleaning solvents.

What operating system does the DE7600 come with?

The DE7600 typically ships with Windows 10 Pro (64-bit). It also supports Linux distributions and other operating systems.

Is the DE7600 fanless?

Yes, the DE7600 uses passive cooling (fanless design). This ensures silent operation but requires adequate ventilation. Avoid covering the top vents.

Can I mount the DE7600 behind a monitor?

Yes, the DE7600 is VESA mount compatible with 75x75mm and 100x100mm patterns. Use the included bracket to attach it to the rear of a compatible monitor.

What is the power consumption of the DE7600?

Typical power consumption is 45W, with a maximum of 65W under load. The included 90W AC adapter provides sufficient headroom.

How many USB ports does the DE7600 have?

It has 4x USB 3.0 (Type-A) and 2x USB 2.0 (Type-A) ports. One front USB 3.0 supports fast charging for mobile devices.

Does the DE7600 support Wi-Fi and Bluetooth?

Yes, it has Wi-Fi 802.11ac (dual-band) and Bluetooth 4.2. The antennas are integrated into the chassis.

Where can I find spare parts for the DE7600?

Spare parts such as the AC adapter and internal fan (if equipped) are available through authorized AOpen service centers. Visit AOpen's support website for a list of service locations.

USER MANUAL DE7600 AOPEN

Personal Computer User Guide for DE7600 series

Black rectangular electronic device with a circular button and two blue USB ports, no visible text or symbols.

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding.

To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2020 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening: this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

1. Ambient operation temperature: 0 \~ 40 degrees C.

2. Risk of overheating!

- Do not install DE7600 in a closed space. Be sure the ventilation holes in the DE7600 side for at least 1 to 2 inches or 2 to 5cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE7600

In right side and rear side keep space at least 5cm

Don't put operating device inside closed space.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the device and receiver.
■ Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1. Outlook ...... 2
2. Product Specification....4
3. Internal Connectors....5
4. Function introduction....6
5. Packing List.... 8
6. Chassis and Holder Dimension....9

1. Outlook

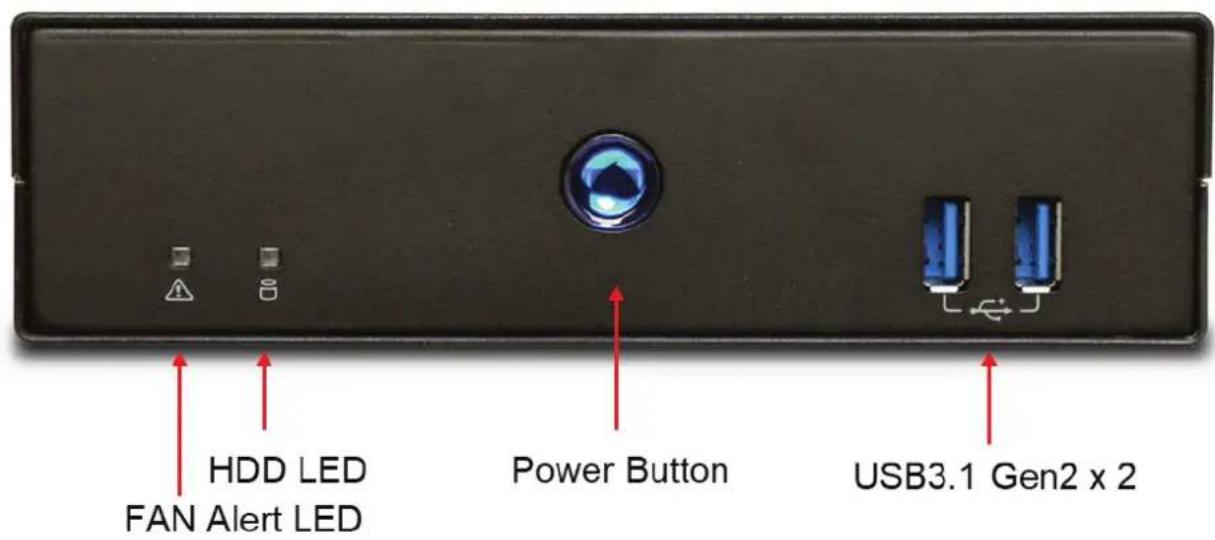

Front IO

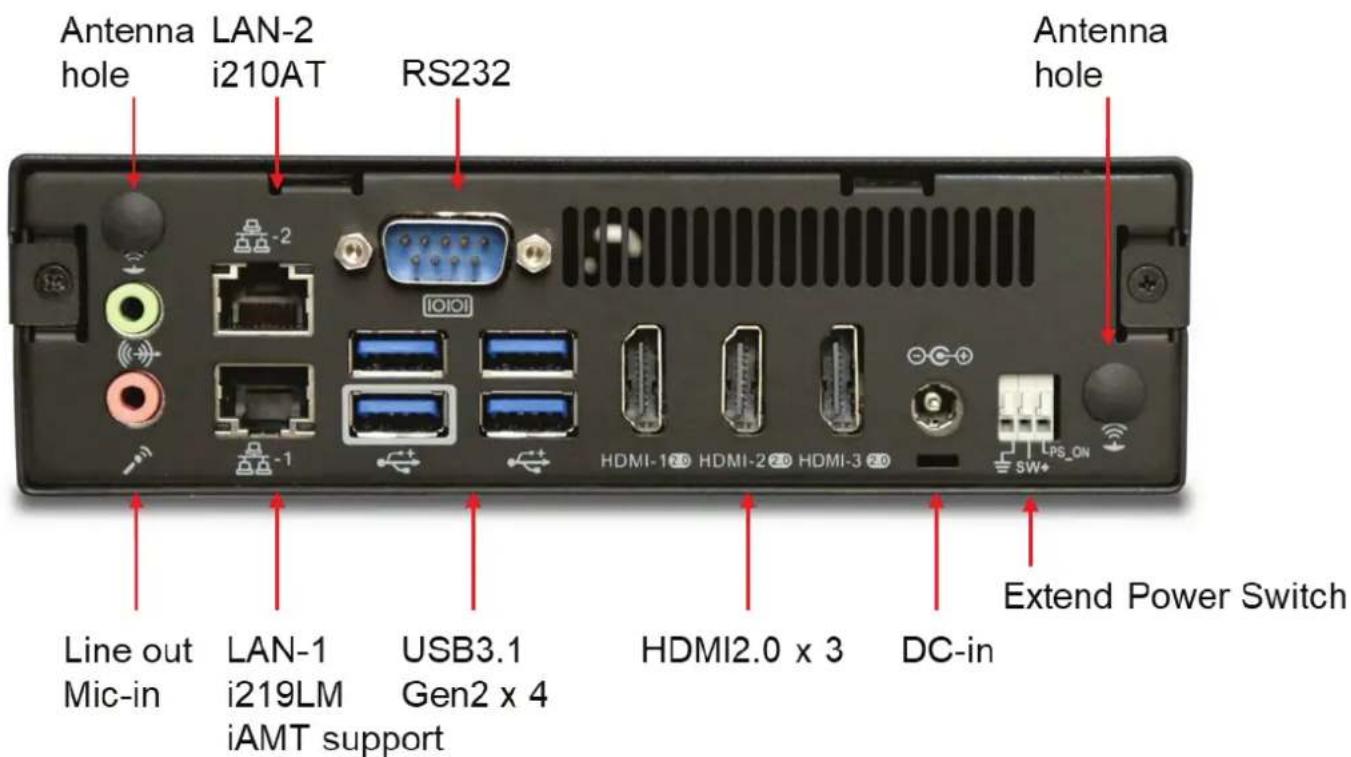

Rear IO

2. Product Specification

CPU	Intel 8th Gen Coffee Lake H Core i processor TDP = 45W
Chipset	Intel QM370 chipset
Memory	Dual Channel Mode, SO-DIMM DDR4 x 2, 2666MHz, Max memory size : 32GB
Graphics	Intel UHD Graphics 630
Expansion Slot	M.2 2230 x 1(key E for wifi), M.2 2280 x 1(key M for SSD)M.2 2242 x 1(key B for AiCU)
Audio	Realtek ALC269Q HD Audio CODEC on-Board.
LAN	Intel GIGA LAN x 2 (i210AT/i219LM)
Front Panel IO	Power Button x 1 (with Power indicator (Blue)), HDD indicator (Blue) x 1, Fan alert indicator (Red) x 1, USB 3.1 Port x 2
Rear Panel IO	DC 19V Jack x 1, HDMI 2.0 Port x 3, RJ45 LAN Jack x 2, USB 3.1 Port x 4, RS232 Serial Port x 1, HD Audio ports x2 (Line out x 1, Mic-in x 1), extend power S.W.
Adapter	90W (19V, 4.74A) AC Power Adapter
Input Voltage	AC 100 ~ 240V

3. Internal Connectors

4. Function Introduction

4.1 Extend power switch

Extend power switch at rear IO of DE7600 can allow customer to extend the power switch by their demand, and customer can decide their own switch specification and cable length just follow the wire gauge and strip length.

Ground & SW+ are for connection to extend power switch, and PS_ON is a signal to present the system power on/off status, when PS_ON signal is low, then system is in power on status when PS_ON signal is high, then system is in power off status

This is a screwless type spring clamp pluggable terminal block, you can insert a wire by press the button on the terminal, please refer to the procedure below.

Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block Step 2 push the button in the end and hold it

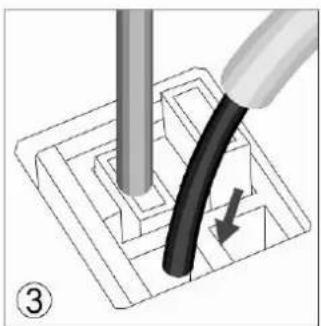

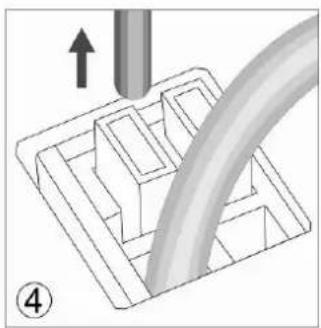

Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted Step 4 release the pin or rod then the wire will clamp by the terminal block

step1

step2

step3

step4

Isometric diagram of a mechanical assembly with a downward arrow and numbered label (1), no readable text or symbols present.

3D diagram of a mechanical component with a cylindrical pin inserted, showing internal structure and an arrow indicating direction (no text or symbols)

Diagram showing a black curved object being inserted into a 3D grid structure with a tool, no text or symbols present.

3D diagram of a mechanical component with an upward arrow, no visible text or symbols

5. Packing List

DE7600

1 x DE7600 system
1 x User Guide
1 x Driver CD
1 x 90W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 - L4 screws
1 x power holder

6. Chassis and Holder Dimension

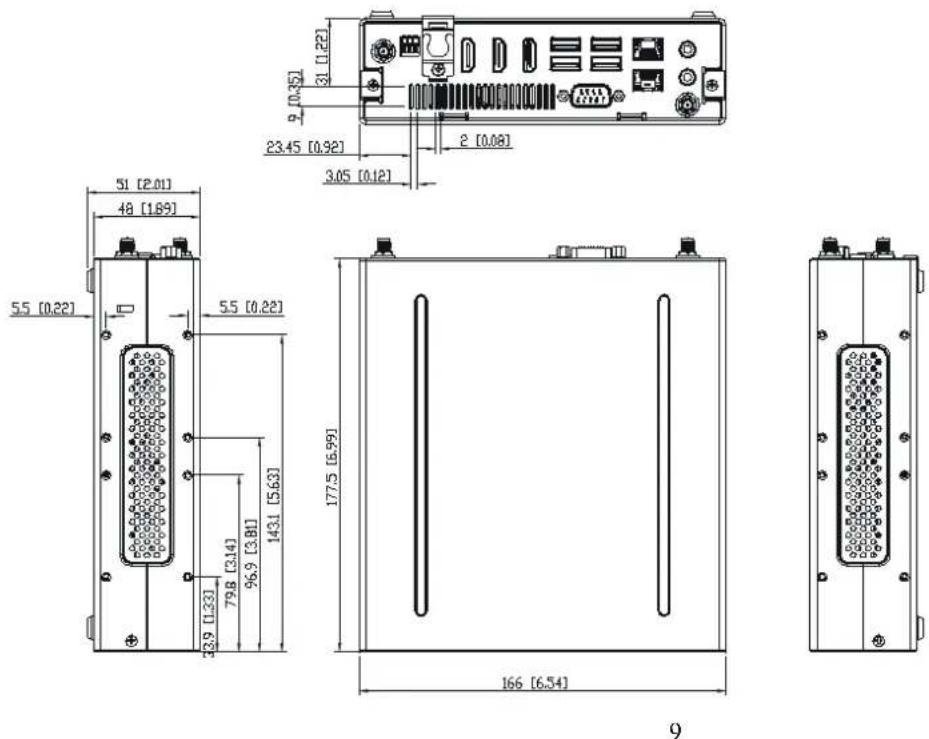

A. Dimension of DE7600 (unit: mm[inch])

B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws)

Dimension of L type Holder. (unit: mm)

(This L type Holder can only lock on horizontal desktop table)

P/N : 49.DEN01.0010
