Product Type	Water Dispenser
Brand	Elkay
Model	DSBSH130UVPC
Dimensions (W x D x H)	12.5 x 12.5 x 36 inches
Weight	28 lbs
Power Supply	120 V, 60 Hz, 5 A
Water Capacity	3 gallons (hot and cold tanks)
Temperature Settings	Hot (190°F), Cold (50°F), Room
Cooling Type	Compressor cooling
Heating Type	Stainless steel heating tank
Installation Type	Countertop, free-standing
Water Connection	Bottle or direct plumbing (adaptable)
Filtration	Optional external filter
Dispensing	Push-button or lever
Safety Features	Child safety lock, auto shut-off
Cleaning	Wipe exterior with damp cloth; descale interior every 3 months
Maintenance	Check hoses, clean drip tray
Spare Parts	Drip tray, faucets, heating element, cooling fan
Repairability	Modular components; user-replaceable parts
Noise Level	< 45 dB
Certifications	ETL, NSF 61

Frequently Asked Questions - DSBSH130UVPC Elkay

How often should I clean my Elkay DSBSH130UVPC water dispenser?

It is recommended to clean the exterior weekly with a soft damp cloth. For interior descaling, perform every 3 months with a descaling solution to remove mineral buildup.

Does the dispenser require a filter?

No internal filter is included. You can connect an external water filter (not supplied) for improved water quality if using direct plumbing.

How do I change the temperature settings?

The hot and cold water temperatures are factory-set and not user-adjustable. The hot water is approximately 190°F and cold around 50°F.

Can I use a water bottle instead of direct plumbing?

Yes, the dispenser is designed for both bottle (top-loading) and direct plumbing installation. An adapter kit may be needed for plumbing.

What is the warranty period?

Elkay offers a 1-year limited warranty on parts and labor. Extended warranty options are available through authorized dealers.

Why is the water not hot enough?

First, ensure the unit is plugged in and the hot tank switch is on. If still cold, the heating element may need replacement. Allow 15-20 minutes for initial heating.

How do I remove mineral deposits from the dispenser?

Mix a descaling solution (vinegar and water 1:3) and run it through the system. Then flush with fresh water. Repeat every 3 months to maintain performance.

The dispenser is making noise. Is this normal?

Some noise from the compressor and cooling fan is normal, especially when cooling. If noise is excessive, check for loose parts or contact support. Normal level is below 45 dB.

What spare parts are available for this model?

Common spare parts include drip tray, faucets, heating element, cooling fan, and thermostat. Contact Elkay or an authorized retailer for genuine parts.

Can I use this dispenser for commercial purposes?

The DSBSH130UVPC is primarily designed for residential use. For commercial environments, consider Elkay's commercial series with higher durability.

USER MANUAL DSBSH130UVPC Elkay

Installation and Maintenance Manual

DSBS130UVPC

Line drawing of a laboratory instrument with control panel and base (no text or symbols)

DSBSH130UVPC

Line drawing of a laboratory instrument with control panel and base (no text or symbols)

Table of Contents

Declaration of Conformity 2

Association 2

Recommendations for Safeguarding the

Environment 3

Explanation of Warning/Safety Icons 3

Introduction 4

Components Guide 5

Product Specifications 6

Before You Begin – Requirements for

Installation 7

Mounting Dimensions 7

Operating Environment 8

Water 8

Electrical 8

Tools You Will Need 9

Unpacking the Kit 9

What's in the Kit 10

Installing the Machine 11

Operating the Keypad 16

Routine Maintenance 17

Troubleshooting 20

Replacement Parts 23

NOTICE: Read the instructions in this manual and retain for future reference.

Declaration of Conformity

Intertek 5000805

Intertek

Materials compliant for contact with drinking water

This unit is intended for the dispensing of drinking water, and so the materials that enter into direct contact with water meet the criteria for food-grade components pursuant to the current legislation. In addition, the unit is manufactured in compliance with Italian Ministerial Decrees 174 of 04/06/2004 and 25 of 02/07/2012.

Electrical safety

This water cooler is designed, manufactured and marketed in compliance with:

the safety objectives of the Low Voltage Directive 2006/95/EC;
the protection requirements of the Electromagnetic Compatibility Directive 2004/108/EC.

The electrical safety of the product is ensured only when it is properly connected to an efficient, legally compliant grounding circuit.

UL standard for safety of drinking water coolers, ANSI/UL 399, Issued: 2008/08/22, Ed: 7, Rev: 2013/10/18

CSA standard for refrigeration equipment, CSA C22.2 No. 120, Issued: 2013/03/01, Ed: 4

Association

International Awards

2015 - BEST PROMOTION OF HEALTH AND HYDRATION

EUROPEAN AQUA AWARDS 2015, ROME

2015 - BEST ENVIRONMENTAL PRACTICE

EUROPEAN AQUA AWARDS 2015, ROME

2014 – BEST PROMOTION OF HEALTH AND HYDRATION

EUROPEAN AQUA AWARDS 2014, BUDAPEST

2013 – BEST PRODUCT INNOVATION

EUROPEAN AQUA AWARDS 2013, BERLIN

2012 – BEST ENVIRONMENTALLY FRIENDLY PRACTICE

EUROPEAN AQUA AWARDS 2012, ISTANBUL

Recommendations for Safeguarding the Environment

Packaging materials

The packaging materials are 100% recyclable. Please follow the local guidelines on waste disposal. For safety reasons keep the packaging material out of the reach and sight of children.

Scrappage

The DSBS130UVPC and DSBSH130UVPC water coolers are made using recyclable material.

These units are marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product is scrapped correctly, you will help to prevent potential negative consequences for the environment and for health. This symbol indicates that the product should not be treated as domestic waste but should be taken to a dedicated recycling center for electrical and electronic equipment. Immediately prior to scrapping, cut off the power cable.

For more information on the treatment, recovery and recycling of this product, please contact the appropriate local office, the waste disposal service or the reseller from which the product was purchased.

These products contain no CFCs or HFCs, which contribute to global warming.

They are the first water coolers on the American market to use natural refrigerant.

The refrigerating system is filled with R134a: a natural gas that does not contribute to global warming and that allows for substantial Energy Savings.

Explanation of Warning/Safety Icons

NOTICE: Indicates an instruction which, if not followed, could result in damage to product or property or poor product performance.

CAUTION: Indicates an instruction which, if not followed, could result in minor or moderate injury.

WARNING: Indicates an instruction which, if not followed, could result in serious injury or death.

Introduction

The DSBS130UVPC and DSBSH130UVPC coolers bring contemporary style and state-of-the-art technology to commercial water dispensers. DSBS130UVPC and DSBSH130UVPC offer light, compact and powerful performance made entirely from stainless steel.

• Multiple dispensing options: cold still water, cold sparkling water, room temperature still water and/or hot water.
• Natural materials throughout: stainless steel, aluminum
• Internal components made entirely of stainless steel
• DRY COOLING technology: a noiseless, low maintenance, and innovative cooling system which allows for great performance and compact size
  ● Made entirely of stainless steel
• Anti-bacterial UV lamp at dispensing point ensures water delivery pure of microbiological contaminants

NOTICE: Due to rigorous testing, product may reasonably be expected to contain traces of sanitizing solution.

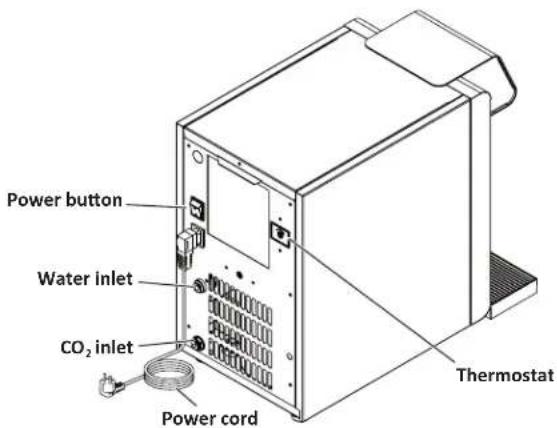

Components Guide

DSBS130UVPC

DSBSH130UVPC

DSBS130UVPC keypad

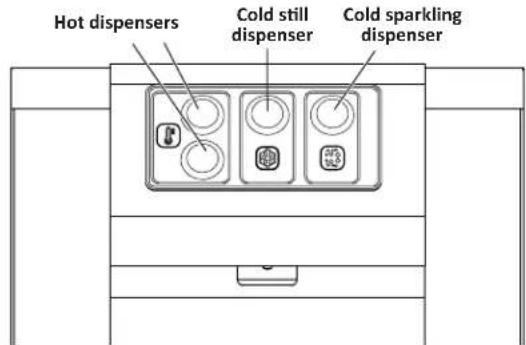

DSBSH130UVPC keypad

Product Specifications

Specification DSBS130UVPC DSBSH130UVPC
Cooling capacity gal/h (lt/h) 1.5 (5.7)	32 6 oz. cups/h	1.5 (5.7)32 6 oz. cups/h
Cold water temperature* 42°F – 50°F	(5.5°C – 10°C)	42°F – 50°F(5.5°C – 10°C)
Cooling technology Aluminium fusion block heat exchanger		Aluminium fusion block heat exchanger
Condensation Ventilated Ventilated
Adjustable cooling thermostat Yes Yes
Refrigerant gas HFC R134a HFC R134a
Pump Professional booster pump Professional booster pump
Max hot water temperature -	185°F (85°C)
Hot water tank capacity gal (lt)	-	0.265 (1)
Heater wattage	-	1000W
Inlet water pipe ø 1/4"	ø 1/4"
Power	110V - 60Hz	110V - 60Hz
Power consumption	200W - 2A	1130W - 9.4A
Working room temperature	Min 41°F – Max 107.6°F(Min 5°C – Max 42°C)	Min 41°F – Max 107.6°F(Min 5°C – Max 42°C)
UNIT WEIGHT lb (kg)	67.5(30.6)	67.5(30.6)
SHIPPING WEIGHT lb (kg)	72(32.6)	72(32.6)
Dimensions W x D x H in (mm)	10.26 x 19.23 x 16.44(261 x 488 x 418)	10.26 x 19.23 x 16.44(261 x 488 x 418)
Dispensing area height in (mm)	10.99 (279)	10.99 (279)
Packaging dimensionsW x D x H in (mm)	14.45 x 23.74 x 27.3(367 x 603 x 694.4)	14.45 x 23.74 x 27.3(367 x 603 x 694.4)
Dispensing	Supply option (sparkling, cold and room temperature water)	Supply option (sparkling, cold and hot water)
Push buttons	Stainless steel push buttons	Stainless steel push buttons
Materials	All robust stainless steel parts	All robust stainless steel parts

* rated at a room temp. of 77°F and inlet water temp. of 68°F

Before You Begin – Requirements for Installation

Mounting Dimensions

Over counter (includes 4" clearance on sides and back)

DSBS130UVPC DSBSH130UVPC

CO _2 cylinder (typical, 20 pound)

Operating Environment

• Install the machine in a clean, dry, well-ventilated room. It is designed to function correctly in environments with a temperature of 16^ to 32^- Climatic Class N, (between 61^ and 90^ ).
• Check that the water cooler is level, that it is on a surface that can support its weight and in an environment suitable for its size and use.
• Do not place the machine near a source of heat.
• To guarantee adequate ventilation, leave at least 4" (100 mm) of space around the unit.
• Take care not to damage the cooling fluid circuit. It is essential to ensure that the tubes of the refrigerant circuit are not damaged.
• The unit is not intended for use by children.
• Keep the areas surrounding the unit dry to avoid the risk of people slipping.
• The unit must not be cleaned with a water jet.

Water

● Always connect the water cooler to a water main that supplies drinking water only.
- Use of 1/4" diameter connections is recommended.
- Turn off the main water inlet tap if the unit is not to be used for a long period.

Electrical

- Check that the voltage shown on the serial number plate corresponds to the voltage being supplied at the installation site.

- Do not use extension cables or multiple-power sockets. The machine must be located close enough to a standard power socket that the supplied power cable reaches without stretching.

- After installation, check that the machine is not standing on its power supply cable.

- Ensure that it is possible to disconnect the power supply either by removing the plug or via a two-pole circuit breaker placed upstream of the plug.

- Before any maintenance or cleaning operation is carried out, remove the plug from the socket or disconnect the power supply.

- If the power cable is damaged, it must be replaced by the manufacturer, by its technical support service or by a qualified technician.

- Do not position other electrical equipment in the immediate vicinity of the water cooler.

Tools You Will Need

Two identical wrench illustrations with black square buttons on their handles (no text or symbols)

(2) 8" adjustable wrenches

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

(1) 12" adjustable wrench

(1) 12" pipe cutter

Line drawing of a pair of pliers (no text or symbols)

(1) 10" adjustable pliers

(1) universal screwdriver

Line drawing of a pair of pliers with metal handles and a central screw (no text or symbols)

(1) wire cutting pliers

Unpacking the Kit

Remove the front panel (labeled FRONT) and cover of the wooden packing case.

Remove the cardboard box and the internal protective packaging by sliding them up and over the top.

Once you have unpacked the machine, check all components to ensure that they are not damaged. Contact the carrier immediately if there has been any damage during shipping.

NOTICE: Ensure that your machine is installed by a qualified technician in compliance with the manufacturer's instructions and the local safety guidelines.

NOTICE: Only qualified technicians should access the internal components of your machine.

What's in the Kit

Line drawing of a modern water dispenser device with control panel and base (no text or symbols)

(1) DSBS130UVPC or DSBSH130UVPC water cooler
PLUS

Line drawing of a laboratory instrument with digital display and base (no text or symbols)

(1) 10' coil water tubing (blue) 1/4" OD

(1) 10' coil water tubing (blue) 3/8" OD

(1) CO_2 regulator

(1) external water filter

(1) supply hose 1/2 ips x 3/8 tube x 12" long

[Unreadable]
(2) 3/8"-quick connect connector

(1) water shutoff valve

(1) water pressure regulator

Pure diagram of a coiled wire or pipe with no text, numbers, or symbols

(1) 10' coil CO₂ tubing (natural) 1/4" OD

(1) 3/8" x 3/8" quick connect connector

NOTICE: CO_2 source is not included and must be supplied separately.

Installing the Machine

CAUTION: Wear safety gloves when handling the machine. Metal edges are sharp, and touching them could result in minor or moderate injury.

1. Install external water filter and CO_2 cylinder.

1. Use (2) Phillips head screws to mount bracket to under-counter wall.
2. Use (4) Phillips head screws to mount filter head to bracket.
3. Remove cap from filter. Insert filter into filter head and turn clockwise (right) until it stops.

When installing external water filler within the DSCABBSH cabinet, please refer to the following mounting instructions:

1. Use 3 Phillips head screws and washers to mount filter bracket to cabinet mounting strip as shown below.

NOTICE: Install CO _2 source per manufacturer's recommendations.

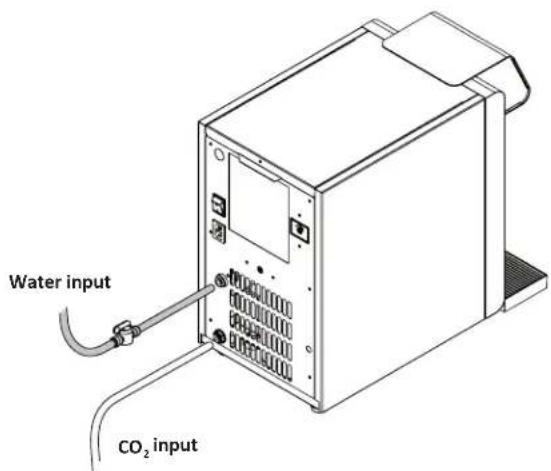

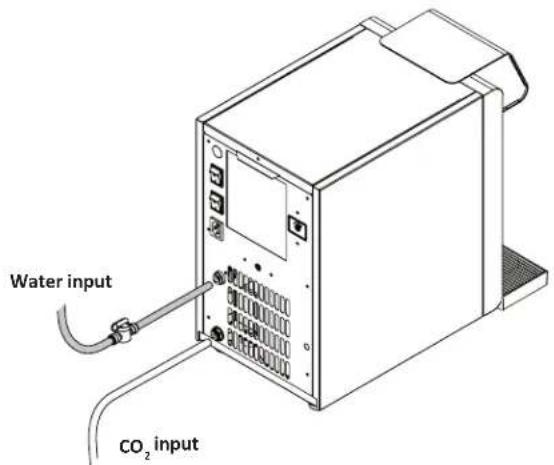

2. Cut, size and connect water and CO_2 piping to fit your installation.

NOTICE: The water pressure entering the machine must be between 14.5 psi (0.10 MPa) minimum and 51 psi (0.35 MPa) maximum. If the inlet water pressure is higher than 51 psi, the water pressure regulator supplied must be used.

NOTICE: An incoming flow rate of >1.0 gallon/minute is recommended for optimal quality of sparkling water.

NOTICE: Check all input piping and connections for leaks before connecting to the machine.

Using the quick connect fittings

To connect:

1. Make clean, 90° cut to piping end.
2. Push piping straight into fitting until it stops.
3. Pull back to check that connection is secture.

To disconnect:

1. Press in the end tab.
2. Pull piping out.
3. Release tab.

Illustration of a hand holding a pen with an arrow indicating direction (no text or symbols)

3. Place the machine in its operating location.

NOTICE: Ensure machine remains level while being lifted into place.

4. Connect external water and CO_2 piping.

DSBS130UVPC

DSBSH130UVPC

5. Plug the machine into the wall socket and turn it on.

1. Connect the power cable to the nearest socket.
2. Flip the power switch at the rear of the machine (A) to the "I" position.

DSBS130UVPC

Line drawing of a computer tower case with labeled ports (no text or symbols beyond label)

DSBSH130UVPC

Technical line drawing of a computer tower case with labeled ports (no text or symbols beyond label)

6. Purge the water lines.

1. Place receptacle beneath tap to catch dispensed water. Discard water as necessary.

1. Allow water to run continuously until flow is clear of air.

2. Repeat for all taps.

7. Turn on the boiler (DSBSH130UVPC only).

NOTICE: Never turn on the boiler unless you have filled the machine with water.

NOTICE: Never turn on the boiler when the inlet water is disconnected.

1. Flip the boiler switch at the rear of the machine to the "I" position.

2. After around 10 minutes, the water reaches the settled temperature.

CAUTION: Hot water reaches 185^ F. Keep children away. Hot, boiling water and steam will scald if spilled on skin. Do not touch the dispensing nozzle to avoid burns.

8. Open the CO_2 valve.

1. Using a screwdriver slowly turn valve screw counterclockwise (left) to open valve.
2. Continue until pressure reads 50 to 58 psi max.

9. Re-purge the line for sparkling water.

NOTICE: The water will flow flat at first, then gradually become more sparkling as the line is purged of still water.

Technical line drawing of a gas regulator with valve and pressure gauge (no text or symbols)

10. Allow machine to complete initial chilldown.

NOTICE: Complete water heating will require around 10 minutes. The machine should not be used as a water dispenser until heating is complete.

Operating the Keypad DSBS130UVPC

To dispense your water serving

Hold down the button for that dispenser.

To stop dispensing your water serving

Release the button for that dispenser.

Operating the Keypad

DSBSH130UVPC

To dispense your water serving

Hold down the button for that dispenser.

Note: For safety reason, to dispense hot water you must press and hold down the 2 hot water buttons at the same time.

To stop dispensing your water serving

Release the button for that dispenser.

Three identical rectangular panels with circular and patterned symbols, no text or labels present.

Three identical rectangular panels with circular and patterned circular elements, no text or symbols present.

Routine Maintenance

Daily

- Clean all external surfaces of the machine, the drip tray and the dispensing nozzles.

NOTICE: It is recommended that all external components of the product be cleaned daily.

It is recommended that you use dish soap, warm water and a clean, soft cloth to clean the product.

DO NOT USE THE FOLLOWING PRODUCTS:

Do not use ... chlorine bleach solutions on the product. Chlorides found in most soaps, detergents, bleaches and cleaners can attack stainless steel. These products can cause surface-pitting.

Do not use ... metal fibers to clean the product. Metal fibers have a tendency to disintegrate and release small metal particles that are embedded in the surface. Metal particles oxidize and give the impression that the surface of the product is rusting.

Do not use ... abrasive cleaners or abrasive pads, as these will scratch the surface of the product.

Do not use ... a water jet.

• To remove limescale, use a slightly acidic product (e.g. citric acid) that has been heavily diluted – excessive acidity may damage the surface of the steel.
• To clean the drip tray, use a diluted limescale cleaner such as citric acid. The drip tray may also be washed in the dishwasher.
• Before cleaning the keypad, turn off the machine to prevent accidentally dispensing water.

Weekly

- Use a vacuum to clean out all vents.

Technical line drawing of a pipe joint with a spring-loaded component (no text or symbols)

Annually

- Replace the water filter after 6000 gallons or a maximum of 1 year, or earlier depending on water quality.

NOTICE: The filter head has an internal shutoff valve that stops the flow of water when the filter is removed. It is not necessary to shut off the water supply.

1. Turn used filter counterclockwise (to the left) 1/4 turn to remove from filter head. Pull filter away from head and remove.
2. Remove the cap from the new filter. Place the cap on the used filter to seal it.
3. Insert the new filter into the filter head and turn the filter clockwise (to the right) until it stops.
4. Place a receptacle under the still water dispenser and dispense continuously for a minimum of two gallons to purge air and fine carbon particles from filter.

- Sanitize the machine

NOTICE: This operation must be carried out by your ELKAY reseller or by a qualified technician.

When required

- Replace the UV lamp

CAUTION: The light emitted by the ultra-violet lamp may cause serious burns to the eyes and skin. Disconnect the electrical source of supply of the UV radiation before opening the machine.

1. Disconnect the unit from its electrical source.
2. Once the unit is shut down, rotate and remove the nozzle and remove the top cover unscrewing the two screws on the sides of the nozzle (A).

3. Disconnect the electrical connector of the UV OUT lamp. Pull the lamp removing it from its fitting holder — handling it carefully.

4. Insert the new lamp and reconnect the connector — handling it carefully.

5. Repeat the procedure for all the dispensing valves.

6. The used UV lamps can be disposed at your local waste management site.

NOTICE: This operation must be carried out by your ELKAY reseller or by a qualified technician.

NOTICE: For the replacement of UV OUT pipe is not necessary to turn water off.

Pure mechanical diagram showing a central component with two labeled points A, no text or symbols present

- Set the thermostat

1. Set the thermostat between 5 and 6 to control the temperature of the cold water.

Troubleshooting

Problem Possible Cause Action To Take

No water dispense The main water valve is closed Open the valve
	The power switch is set to OFF Set the power switch to ON
	Malfunction in the ribbon cable connection/ repair connection to main circuit board spade connectors
	The water inlet solenoid is not working Bypass the solenoid and replace it
	The aluminium fusion block is frozen Defrost the aluminium fusion block Reduce the thermostat setting
	The low voltage transformer is not working Replace the transformer

Problem Possible Cause Action To Take

Low flow dispense The filter is clogged Replace the filter
The main water valve is not fully opened Open the valve
The flow control valve is not fully opened (sparkling water only)	Open the valve
The CO _2 cylinder is empty (sparkling water only)	Replace the cylinder

Problem Possible Cause Action To Take

Sparkling water doesn't come out	The CO_2 cylinder is empty Replace the cylinder
	The pump is not working Force the pump to start	Replace the pump if broken
	The solenoid is not working	Repair or replace the solenoid
	The flow control valve is too tight	Open the valve

Problem Possible Cause Action To Take

Water is not cold enough	The thermostat is not adjusted properly	Adjust the thermostat
	The condenser is dirty	Clean the condenser
	The fan is not working	Replace the fan
	Cold or not warm enough air is blowing through the condenser	Check for faulty compressor or gas leak on the refrigerant circuit and repair
	Malfunction in the over temperature switch/relay	Switch the machine off and wait 5 minute for restartReplace if broken
	The compressor is not working	Replace the compressor
	Leak in the refrigeration system	Refrigeration system requires repair or replacement

Problem Possible Cause Action To Take

Hot water is not hot	The power switch is off Switch on the boiler
	The safety therm-o-disk has tripped	Reset the therm-o-disk
	Disconnected wires to the boiler	Connect the wires

Problem Possible Cause Action To Take

Poor sparkling water quality Incorrect air gap in the carbonator Close the CO	2 cylinder valve, pull up the ring on safety valve (on the carbonator bowl head) until all air gap is out
Use of rinse aid or highly polished glass Avoid excessive use of rinse aid
The CO2 regulator is set low Set the CO	2 regulator between 55-60 psi (3.5-4 bar)
Water is not cold enough Set the thermostat properly
The incoming water pressure is too high Install an inlet water pressure reducer (included)
The carbonator bowl is filled by the inlet high water pressure and not by the pump	Install an inlet water pressure reducer (included)
Incorrect inlet pressure Install an inlet water pressure reducer (included)
The CO2 cylinder is empty Replace the cylinder
The CO2 valve is closed Open the valve
The seal is leaking Tighten regulator connection at CO	2 tank
	Replace seal
The CO2 exit pressure lower than 36 psi (2.5 bar)	Set the pressure between 55-60 psi (3.5-4 bar)
A reset is needed Turn the machine off and back on

Problem Possible Cause Action To Take

Only CO2gas comes out when sparkling water button is pressed	The pump runs for 4 minutes continuously Check why the water is not entering the unit and fix it
	The water valve is closed	Open the valve
	The filter is clogged	Replace the filter
	The main inlet water valve is closed	Open the valve
	The water inlet solenoid is not working	Look for disconnected or loose wires Replace the solenoid
	The aluminium fusion block frozen	Defrost the aluminium fusion block

Problem Possible Cause Action To Take

Dripping water	The solenoid is dirty	Open the solenoid and clean it, use diluted solution for removal of mineral and calcium buildupReplace the solenoid
	There's sparkling water still in the nozzle	Clean the nozzle

Problem Possible Cause Action To Take

Noise/Vibration	The copper tubing is vibrating against the cabinet	Fix the position of the the tubing
	The fan is dirty	Clean or replace it

Installation and Maintenance Manual

Contacting Customer Support

Elkay Manufacturing Company

2222 Camden Court

Oak Brook, IL 60523

800-726-0553

Replacement Parts

DSBSH130UVPC	DSBS130UVPC	DSCABBSH	Part Number	Product Name
x x 1000002622 Motor Fan 120x120x25
x x 1000002623 Booster Pump
x x 1000003890 Level Control
x x 1000002625 General Power Switch
x x 1000003892 Ice Bank Thermostat Dry Cooling K50
x x 1000002627 Feet 4MA
x x 1000002631 Inlet Solenoid Valve
x x 1000003894 Exit Solenoid Valve 2IN-1OUT
x 1000003895 Exit Solenoid Vavle (hot)
x x 1000003896 Flow Control 6mm
x x 1000003897 Flow CONTROL 8mm
x x 1000003898 Transformer 110-24
x 1000002636 Lock with 2 Keys
x x 1000002637 UV OUT Pipe
x x 1000003901 UV OUT Inverter
x x 1000003902 Blusoda DripTray and Grill complet Set
x 1000003904 BOILER TERMODISK 87°
x 1000003905 BOILER SAFETY TERMODISK 110°
x 1000003906 BOILER EVO NO PRESSURE 1 Lt 1000W 110V
x 1000003842 WASHER M4 19x5,7mm
x 1000003840 SCREW PHILLIPS M4x12
x 1000003835 CABINET BASE
x 1000003834 CABINET BODY
x 1000003838 SCREW SOCKET HEAD M10X20
x 1000003841 WASHER M10 x Φ19.5 x 10.7
