PCI2S1P2 - Network card StarTech.com - Free user manual and instructions

Product Type	Serial & Parallel PCI Card
Brand	StarTech.com
Model	PCI2S1P2
Interface	PCI 2.2
Serial Ports	2 x DB9 RS-232
Parallel Port	1 x DB25 IEEE 1284
UART	16C950 compatible
Data Transfer Rate (Serial)	Up to 921.6 Kbps per port
Data Transfer Rate (Parallel)	Up to 1.5 MBps
Dimensions (L x W x H)	120 mm x 65 mm x 20 mm
Weight	55 g
Power Source	PCI bus powered
Operating Systems Supported	Windows XP/Vista/7/8/10, Linux, DOS
Compliance	FCC, CE, RoHS
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety Precautions	Install in an anti-static environment; power off before installation
Spare Parts & Repairability	No user-serviceable parts; contact StarTech.com for warranty support
Included Accessories	Quick start guide, low-profile bracket

Frequently Asked Questions - PCI2S1P2 StarTech.com

What operating systems are compatible with the PCI2S1P2?

The PCI2S1P2 supports Windows XP/Vista/7/8/10, most Linux distributions, and DOS. Drivers are available on the StarTech.com website.

How do I install the PCI2S1P2 card?

Power off your computer, open the case, insert the card into a free PCI slot, secure it, and close the case. Power on and install the appropriate drivers.

Does the card require external power?

No, the PCI2S1P2 is powered entirely by the PCI bus. No external power connection is needed.

What is the maximum baud rate for serial ports?

Each serial port supports baud rates up to 921.6 Kbps, using a 16C950 compatible UART.

Can I use the parallel port for printers?

Yes, the parallel port is IEEE 1284 compliant and works with standard parallel printers and other devices.

Does the card support hot-swapping?

No, the PCI2S1P2 is a standard PCI card and does not support hot-swapping. The computer must be powered off during installation or removal.

What should I do if the card is not detected?

Ensure the card is fully seated in the PCI slot. Try a different slot. Check BIOS settings for legacy devices. Install the latest drivers from StarTech.com.

Is a low-profile bracket included?

Yes, the PCI2S1P2 includes both standard and low-profile brackets for use in small form factor cases.

Can I connect RS-422 or RS-485 devices?

No, the serial ports are RS-232 only. For RS-422/485, consider StarTech.com's industrial serial cards.

How do I clean the card?

Use a soft, dry cloth to gently wipe the card. Avoid using any liquids or solvents as they may damage the components.

USER MANUAL PCI2S1P2 StarTech.com

2S1P PCI Serial Parallel Combo Card with 16C550 UART

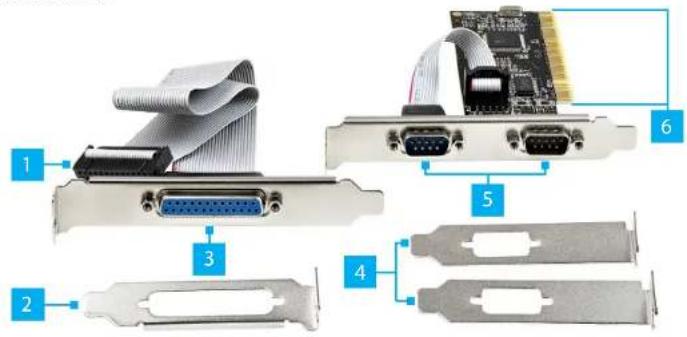

Product Diagram (PCI2S1P2)

Front View

Port Function
1	Parallel Connector	Connect to the Parallel Pins on the PCI Card
2	Low-Profile Bracket (Parallel)	SeeInstalling the Low-Profile Bracket(s)
3	Parallel Port	Connect a Parallel Peripheral DeviceDB-25 Parallel (Female)
4	Low-Profile Brackets (Serial)	SeeInstalling the Low-Profile Bracket(s)
5	Serial Ports	Connect Serial Peripheral DevicesDB-9 Parallel (Male)
6	PCI Connector	Connect the PCI Card to the PCI Slot in the Computer

Package Contents

• PCI Serial Parallel Combo Card x 1
• Full-Profile Bracket (Installed) x 1
- Low-Profile Brackets (for Serial Ports) x 2
- Low-Profile Bracket (for Parallel Port) x 1
- Quick-Start Guide x 1

Requirements

For the latest requirements, please visit: www.startech.com/PCI2S1P2.

• Computer with an available PCI slot (x4/8/16)
- Needle-nose Pliers or 3/16 Nut Driver

Hardware Installation

Warning: PCI Cards can be damaged by static electricity. Make sure that the Installer is properly grounded before they open the Computer Case or touch the PCI Card. The Installer should wear an Anti-Static Strap when installing any computer component. If an Anti-Static Strap is not available, discharge any built-up static electricity by touching a large Grounded Metal Surface for several seconds. Only handle the PCI Card by its edges and do not touch the gold connectors.

Installing the Low-Profile Bracket(s)

By default the Full-Profile Bracket is attached to the Serial/Parallel Port(s). Depending on the system configuration it may be necessary to remove the Full-Profile Bracket(s) to replace with the Low-Profile Bracket(s) (included).

1. Remove the Hexagonal Standoffs from both sides of each Port, using a 3/16 Nut Driver or a pair of Needle-nose Pliers.
2. Remove the Full-Profile Bracket(s) and replace with the Low-Profile Bracket(s).
3. Install the Hexagonal Standoffs removed in step 1. Thread the Hexagonal Standoffs onto each Threaded Post and tighten, using a 3/16 Nut Driver or a pair of Needle-nose Pliers.

Installing the Card

1. Turn off the Computer and any Peripheral Devices that are connected (e.g. printers, external hard drives, etc.).
2. Unplug the Power Cable from the rear of the Computer and disconnect any Peripheral Devices that are connected.
3. Remove the Cover from the Computer Case.
   Note: Consult the documentation that came with the Computer for details about how to do this safely.

4. Locate an open PCI Slot and remove the corresponding Metal Cover Plate from the rear of the Computer Case. In most instances, the Metal Cover Plate is attached to the rear of the Computer Case with a single Screw. Save this Screw for the next step.

5. Gently insert the PCI Card into the open PCI Slot and fasten the Bracket to the rear of the Computer Case, using the Screw from step 4.

6. Locate a second open PCI Slot and remove the corresponding Metal Cover Plate from the rear of the Computer Case. In most instances, the Metal Cover Plate is attached to the rear of the Computer Case with a single Screw. Save this Screw for the next step.
7. Fasten the Bracket (Parallel) to the rear of the Computer Case, using the Screw from step 6.
8. Place the Cover back onto the Computer Case.
9. Reconnect all of the Peripheral Devices that were disconnected in step 2.
10. Connect a Serial Device to the Serial Port on the PCI Card.
11. Connect a SPP/EPP/ECP Peripheral Device to the Parallel Port on the PCI Card.
12. Reconnect the Power Cable to the rear of the Computer.

Software Installation

Driver Installation

This product requires a driver to be installed on the Host Computer. Download the latest Drivers from the StarTech.com website: www.startech.com/PCI2S1P2.

Navigate to the Drivers/Downloads tab to locate the Drivers. Follow the instructions included with the Driver Files.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Warranty Information

This product is backed by a lifetime warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Safety Measures

- If product has an exposed circuit board, do not touch the product under power.
