IRC-1400E - Rice cooker Imarflex - Free user manual and instructions

Product Type	Rice Cooker
Model	IRC-1400E
Brand	Imarflex
Capacity	1.8 L (10 cups uncooked rice)
Power	700 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	Approx. 25 x 25 x 25 cm
Weight	Approx. 2.0 kg
Cooking Functions	Cook, Keep Warm
Inner Pot Material	Non-stick coated aluminum
Accessories Included	Measuring cup, rice paddle, inner pot
Safety Features	Automatic shut-off, overheat protection
Cleaning	Wipe exterior with damp cloth; wash inner pot with mild detergent
Maintenance	Keep heating plate clean; descale periodically
Repairability	Replaceable power cord; professional repair recommended for internal parts
Warranty	1 year limited warranty

Frequently Asked Questions - IRC-1400E Imarflex

How do I cook rice with the Imarflex IRC-1400E?

Measure rice using the provided cup, rinse, add water to the corresponding level, place the inner pot, close the lid, and press the cook switch. The cooker will automatically switch to keep warm when done.

What is the maximum capacity of this rice cooker?

The IRC-1400E has a capacity of 1.8 liters, which can cook up to 10 cups (uncooked) of rice.

Can I cook other grains or soups in this rice cooker?

Yes, it can be used for steaming vegetables, cooking quinoa, oatmeal, soups, and stews. However, avoid overfilling and always monitor the cooking process.

How do I clean the rice cooker?

Unplug and let it cool. Wipe the exterior with a damp cloth. Wash the inner pot, lid (if removable), and accessories with warm soapy water. Do not immerse the base in water.

Why does my rice stick to the bottom?

This may occur if you use too little water or if the non-stick coating is damaged. Ensure proper water-to-rice ratio and avoid using metal utensils that can scratch the coating.

What should I do if the cooker does not turn on?

Check the power cord and outlet. If the cord is damaged, replace it with a compatible one. If the issue persists, contact Imarflex customer service.

Is the inner pot dishwasher safe?

It is recommended to hand wash the inner pot to preserve the non-stick coating. Dishwasher use may cause premature wear.

How can I prevent the rice from burning?

Ensure the heating plate is clean, use the correct water ratio, and do not leave the cooker on keep warm for extended periods (more than 12 hours).

What is the power consumption of the IRC-1400E?

The rated power is 700 W. During cooking, it draws full power; on keep warm, it cycles to maintain temperature with lower consumption.

Where can I find replacement parts?

Contact Imarflex authorized service centers or check online retailers for the IRC-1400E model. Common spare parts include the inner pot, power cord, and measuring cup.

USER MANUAL IRC-1400E Imarflex

1. Read all instructions carefully.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use two-way socket with another appliance.

4. Do not use any appliance with a damaged cord or plug. If the cord is damage it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

5. Do not place the unit near a gas stove, an electric burner, in a heated oven.

6. Place the unit on a stable surface; keep it away from the edge of the counter to avoid accidents.

7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliances by a person responsible for their safety

8. Children should be supervised to ensure that they do not play with the appliance.

9. Extreme caution must be exercised when using an appliance containing hot water in the rice cooker when boiling.

10. Do not allow the cord to touch the hot surface of the unit.

11. For protection against electric shock, do not immerse the unit including the power base in water or any other liquid.

12. Always ensure that the lid is closed and do not lift it while the water in the multi-cooker is boiling. Scalding may occur if the lid is removed during the cooking cycle. Do not touch the hot surfaces of the rice cooker.

13. Allow the unit to cool down before cleaning.

14. Not intended for outdoor use.

15. No parts are dishwasher safe.

16. Do not cook food below the recommended minimum level (55 cups) or above the maximum level (76 cups). Boiling water may come out of the rice cooker.

17. Carry or move the multi-cooker only by its handle.

18. In case of malfunction, please bring the rice cooker to the nearest Authorized Imarflex Service Center.

19. Avoid water spillage into the socket, connector, cord and alike.

20. Rice cooker body may get very hot, be careful when handling.

21. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

22. For household use only, not intended for any business purposes.

23. Do not use this unit other than its intended use.

24. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

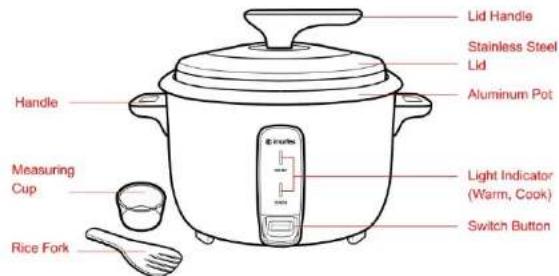

DESCRIPTION OF PARTS:

HOW TO USE:

I - RICE COOKING

1. Put the rice into the inner pot, measure the desired amount of rice using the measuring cup supplied with the unit.
2. Wash the rice several times until the water is relatively clear.
3. Measure water on rice for cooking.

• One cup of rice measures 0.18L (180ml)

• Use water line inside the pot as a cooking guide. The right line corresponds to the cup capacity of the uncooked rice, the left line corresponds to the liter capacity of the water
• The water line on the inner pot cannot be used for cooking congee, you can add more or less water depending on your taste or preference

• Do not cook food below the recommended minimum level (30 cups) or above the maximum level (76 cups). Boiling water may come out of the rice cooker

• Wipe the bottom part of the inner pot and put it inside the unit, turn it slightly from left to right to ensure that the pot is properly fit into the heater plate, and then level the rice.

- Do not heat the inner pot on the top of the stove, otherwise, it will be deformed by the high temperature. Use only the pot supplied with the unit.

1. Plug the unit into the convenience outlet when you're ready to cook rice.
2. Press down the switch. Cook light indicator will lights up and rice will start to cook.

- If the switch knob failed to push down, the "warm" light will light up, the rice will not be cooked

1. When it's done, the switch will pop-up and a click sound will be heard, and the warm light indicator will light up.

- After the cooking cycle, keep the cover closed for about 10 minutes to make the rice fluffier

1. Use only the spatula supplied with the unit to avoid scratches.
2. Unplug the unit after every use.

II - FOOD WARMING

1. Place food inside inner pot or leave cooked rice in the inner pot.
2. Leave the unit in "warm" position.

CLEANING AND MAINTENANCE

1. Always unplug the unit before cleaning. Make sure that the unit temperature cools down before cleaning. Do not clean when it is still hot.

2. To protect from electrical hazards, do not immerse the unit and electric cord in water.

3. Tempered glass lid, steamer, spatula, and inner pot are washable with soap and water.

4. Keep the bottom part of the inner pot and heater plate clean.
5. Do not use abrasive materials to avoid scratches.
6. Wipe the body with damp cloth.
7. Grains of rice or residues may adhere to the heater plate. Make sure that the heater plate is free from residues.

TROUBLE SHOOTING:

TROUBLES	CAUSES	REMEDY
1. The pilot light is OFF: Heating Plate is not hot.2. The rice is half-cooked or cooking time is too long.3. The bottom part of the cooked rice is brown.4. The switch doesn't automatically switch to keep warm.5. Grounded Body.	-Cooker is not properly connected to the convenience outlet.-The lights or resistance are loose or busted.-Not enough water.-Heater plate maybe deformed.-Inner pot maybe deformed.-Dirt in between Inner Pot and Heater.-Thermostat is malfunctioning.-The warm thermostat is malfunctioning.-Soup might have flow to the plug or electrical parts, making the insulation resistance fall.	-Check the switch, outlet, fuse, power cord and plug it properly.-Bring the unit to nearest authorized service center.-Add more water.Turn the Inner Pot slightly from left to right to ensure that the pot is properly fitted into the Heater Plate.-Polish the dirt with sand paper.-Bring the unit to nearest authorized service center.-Bring the unit to nearest authorized service center.-Bring the unit to nearest authorized service center.-Bring the unit to nearest authorized service center.-Bring the unit to nearest authorized service center.

REMINDER: Please do not forget to register your product warranty through

the warranty registration website at

https://imarflex.ph

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China

imarflex®

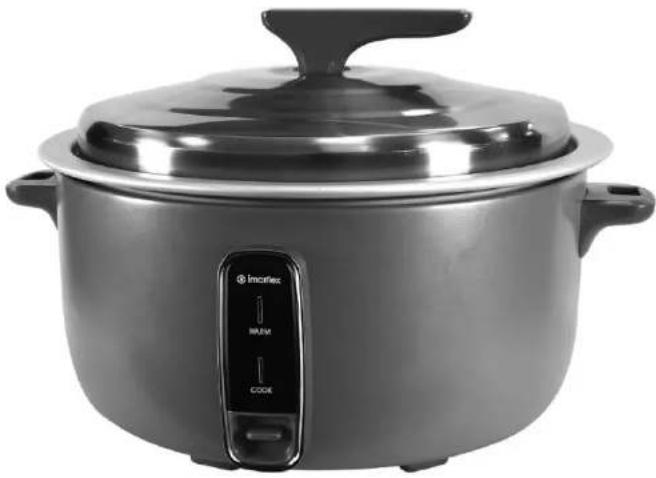

\_\_COMMERCIAL\_\_ RICE COOKER

Exterior view of a modern rice cooker with a lid and control panel (no visible text or symbols)

DUAL THERMOSTAT

MAGNETIC THERMOSTAT & THERMOSTAT SENSOR

+ THERMAL FUSE PROTECTION

Thicker Pot Construction

Monolithic Tough Uni-body

Stainless Steel Lid

2800W Power

14

LITERS

CAPACITY

76 CUPS
