ISB-610 - Blender Imarflex - Free user manual and instructions

Product Type	Blender
Brand	Imarflex
Model	ISB-610
Rated Power	350 W
Voltage	220-240 V, 50/60 Hz
Capacity	1.25 L
Jug Material	Plastic (Tritan)
Blade Material	Stainless steel
Number of Speeds	2 speeds + Pulse
Dimensions (W x D x H)	15 x 15 x 35 cm
Weight	1.2 kg
Cord Length	0.8 m
Safety Features	Locking lid, non-slip feet, overload protection
Cleaning	Removable jug and blade assembly, hand wash recommended
Warranty	1 year

Frequently Asked Questions - ISB-610 Imarflex

How do I clean the blender jug?

To clean the jug, detach it from the motor base and rinse with warm soapy water. For stubborn residue, fill halfway with warm water and a drop of dish soap, then blend on high for 30 seconds. Avoid immersing the motor base.

Can I blend hot liquids?

Do not blend liquids hotter than 80°C to avoid pressure build-up and damage. Allow hot ingredients to cool slightly before blending.

What is the maximum capacity?

The blender jug has a maximum capacity of 1.25 liters. Do not exceed the MAX fill line to prevent overflow.

Why does the blender stop suddenly?

This may be due to overload protection. Unplug the unit, let it cool down for 10-15 minutes, and reduce the load. Check if the lid is properly locked.

Can I crush ice in this blender?

Yes, the ISB-610 is capable of crushing ice. Use pulse function in short bursts for best results. Do not overload with ice.

How do I replace the blade assembly?

The blade assembly is not user-serviceable. If damaged, contact Imarflex customer service for assistance.

Is the jug dishwasher safe?

The jug is top-rack dishwasher safe. However, hand washing with mild detergent is recommended to prolong the life of the plastic.

What does the pulse function do?

The pulse function provides short bursts of power for precise control, ideal for chopping or mixing ingredients that require brief blending.

The motor smells like burning, what should I do?

Immediately unplug the blender. A burning smell indicates overheating. Let it cool completely, then check for blockages. Avoid continuous operation longer than 1 minute.

Where can I find spare parts?

Spare parts like jugs and lids can be ordered through Imarflex's official website or authorized dealers. Check your user manual for part numbers.

USER MANUAL ISB-610 Imarflex

imarflex® In Every Home.

Exterior view of a modern office building (no signage)

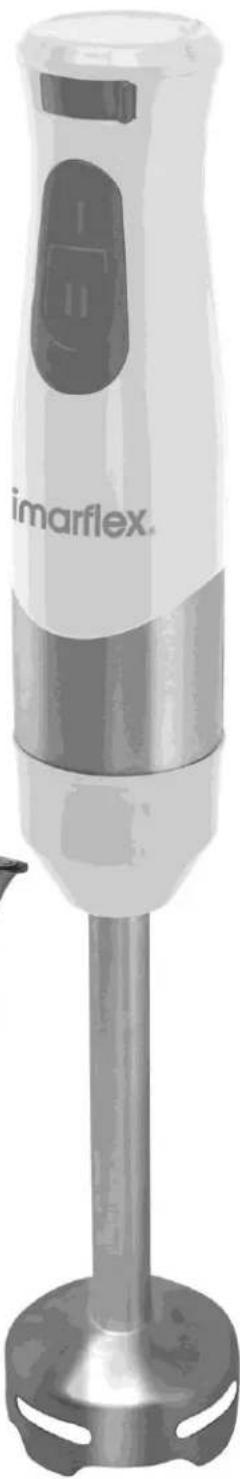

ISB-610

SPECIFICATION:

MODEL NO. : ISB-610

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 150 Watts

BOX DIMENSION : 110x110x400mm

UNIT DIMENSION : 53x53x377mm

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).

3. Do not use a two-way socket with another appliance.

4. Do not abuse the power cord. Never carry the appliance by the power cord or yank it to disconnect from electrical outlet; instead grasp the plug and pull to disconnect.

5. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, has been dropped or damaged in any manner. Return the appliance to any authorized lmarflex Service Center for examination, repair or adjustment.

6. Do not place the unit near gas stove, electric stove or in a heated oven.

7. Put the unit on flat surfaced; keep it away from the edge of counter to avoid accident.

8. Keep hands, hair, clothing, as well as utensils out of container while processing to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but only when the appliance is not running.

9. Children must be supervised in using this appliance to ensure that they do not play with the appliance and to avoid any injuries.

10. This appliance is not intended to be uses by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

11. Be careful when handing the sharp cutting blades, emptying the measuring cup and during cleaning.

12. Do not blend hot liquids, doing so may cause excessive pressure build-up, resulting in risk of the user being burned.

13. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

14. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

15. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

1. Do not use this appliance for anything other than its intended use.

2. This appliance is not intended for outdoor use.

3. To protect against electric shock, do not immerse the unit body in water or any other liquid.

4. The maximum continuous operating time of the blender is one minute only. Do not exceed with the maximum operating time. It may cause damage to the unit.

5. Blade is sharp, handle it carefully.

6. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

7. Do not use the blender if the unit body or accessories is damaged or has a crack.

8. Save this instruction manual for future reference. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

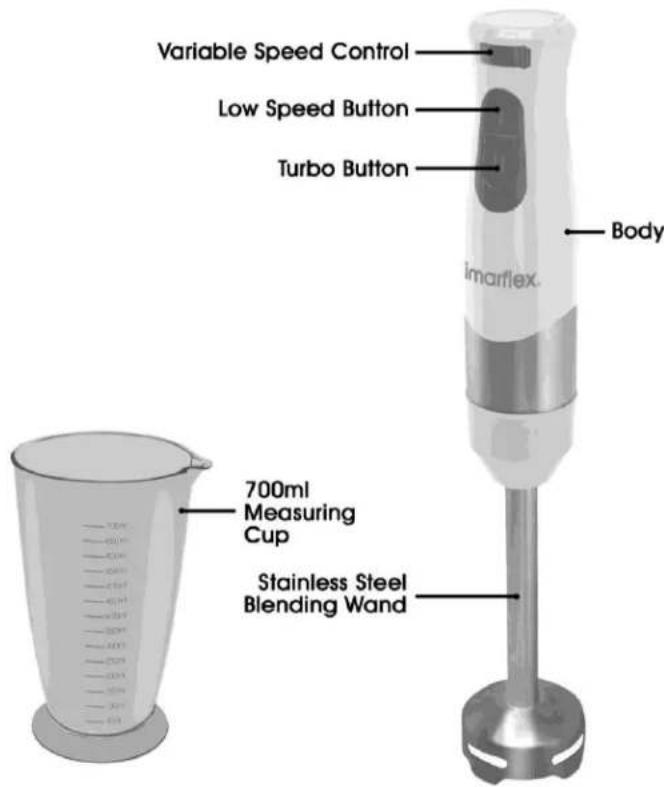

DESCRIPTION OF PARTS:

HOW TO ASSEMBLE:

IMPORTANT: The blades are subject to wear during regular use. Always inspect blades for broken, bent or loose blades. Avoid using the blades if damaged. Contact the Imarflex Authorized Service Center to obtain evaluation and repair.

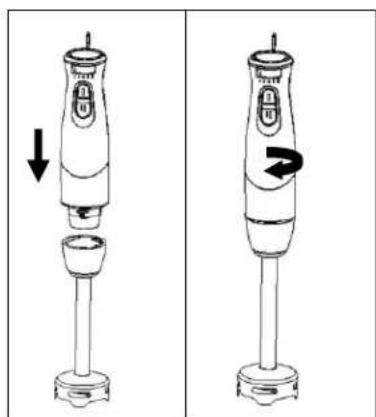

Align the motor body with the blending attachment and turn it clockwise together until you hear and feel the pieces click together.

Diagram of a hairbrush with two views showing the blade and handle (no text or symbols)

HOW TO USE:

1. For initial use, blending wand and measuring cup with soap and water before use.
2. Insert the blending wand into the motor body.
3. Plug the unit into a convenient outlet.
4. Insert blending shaft into the mixture to be blended.
5. Select the desired speed settings and speed function.

Low Speed Button (I) - Function is for blending soft vegetables, soft fruits or any light mixture

Turbo Button (II) - Function is for blending hard vegetables and hard fruits or if you desire to blend smoothie or any alike. The selected speed settings will be disabled once Turbo Button is pressed

Variable Speed Control – Can be selected from minimum to maximum speed

1. Do not hold the speed button longer than 50 seconds at a time.

2. Unplug immediately every after use.

NOTE:

• Some electric smell may be observed on first use.
  • Maximum continuous operation time is 1 minute.

CLEANING AND MAINTENANCE:

1. Turn OFF the unit and wait for the blade and motor to stop.
2. Always unplug the unit every after use and before cleaning.
3. Always clean the immersion blender motor body and blending shaft thoroughly after using.
4. Remove the blending wand from the motor body.
5. Clean the motor body only with a sponge or damp cloth. Do not use abrasive cleaners which could scratch the surface.
6. Never leave the appliance uncleaned for a long period of time.
7. Store the blender on a dry cool place.
8. To clean the blending wand, wash by hand in hot water using mild detergent.
   Note: Blade is sharp, handle it carefully.
9. You may clean the measuring cup and cover by soap and water.

NEVER IMMERSE MOTOR BODY IN WATER OR OTHER LIQUID.

TROUBLE SHOOTING:

PROBLEM	CAUSE	SOLUTION
Motor not working	1. Convenience outlet is not working.2. Damage on the unit	1. Check the outlet where the unit is plug in if it is working.2. Check for any damage.3. Bring the unit to the nearest Authorized Imarflex Service Center
Motor stop during operation	1. Overload protection activated	1. Unplug and let the unit rest for at least 1 minute
Smoke and burnt smell occurred	1. Unit is use for the first time	1. Its normal for the first use
Attachment not functioning	1. Not properly install	1. Turn off the unit and2. check the assembly

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By:

Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
