Product Type	90cm Built-in Electric Oven
Model	EO910TS (Stainless Steel)
Voltage / Frequency	220-240V ~ 50/60Hz
Total Power Output	3200-3800W
Usable Volume	133 L
Total Volume	148 L
Net Weight	51.0 kg
Gross Weight	57.0 kg
Product Dimensions (W x H x D)	894 x 595 x 575.2 mm
Cut-out Dimensions (W x H x D)	900 x 600 x 580 mm
Cooking Functions	Grill, Maxi Grill, Fan Grill, Bake, Fan Assist, Rapid Cook, Fan Forced, Defrost, Light, Easy Steam
Accessories Included	2 Chrome Wire Shelves, 2 Split Baking Trays, 1 Baking Tray Holder, 2 Grill Inserts, 1 Set Telescopic Rails
Oven Light	Yes, 25W G9 halogen, high temperature resistant (300°C)
Cooling Fan	Automatic, continues after cooking until oven cools
Timer / Clock	Digital 24-hour touch control with countdown, automatic and semi-automatic modes
Shelf Positions	5 levels
Door Type	Removable, with inner glass removable for cleaning
Safety Features	Child lock warning, automatic shut-off with timer, cooling fan, anti-tilt (for upright models)
Cleaning Advice	Non-abrasive cleaners; do not use steam cleaners or caustic oven cleaners
Warranty	2 years standard, extendable to 5 years with online registration

Frequently Asked Questions - EO910TS Euromaid

How do I set the clock on the Euromaid EO910TS?

When power is first connected, the screen displays 12:00. Press the OK button (^ or √) to adjust the time. After 5 seconds, the time locks in. To adjust later, press the function button repeatedly until the bar above the clock icon flashes, then use ^/√ to change time.

What is the Easy Steam function and how do I use it?

The Easy Steam function adds moisture for juicier results. Pour 150ml of water into the well on the oven floor when cold, select the Easy Steam mode, set temperature (220-max), preheat for 10 minutes, then place food. Do not open door during steaming except when preheating.

Can I remove the oven door for cleaning?

Yes. Open the door fully, lift and turn the latches on each hinge, close the door about 3/4, then lift the door upward and pull out. To replace, reverse the steps.

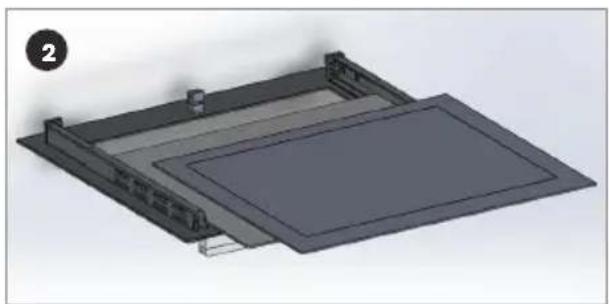

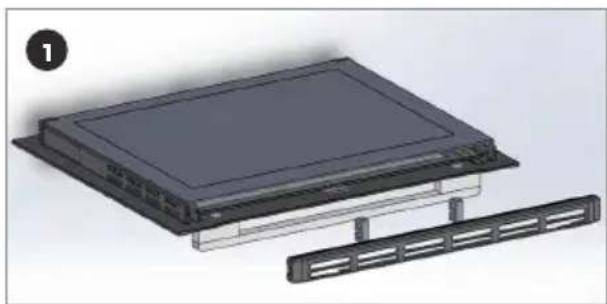

How do I clean the inner glass of the oven door?

Remove the door, then unscrew the two caps on top of the door, gently slide out the inner glass pane. Clean with a non-abrasive cleaner, dry thoroughly, and reassemble in reverse order.

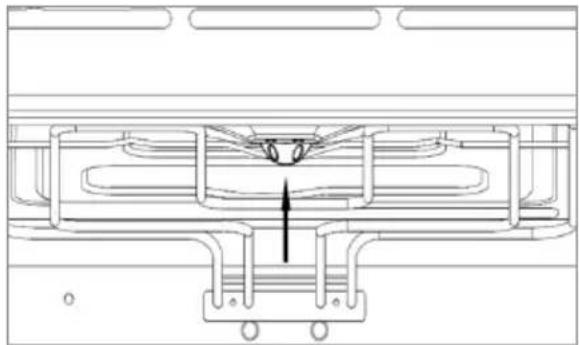

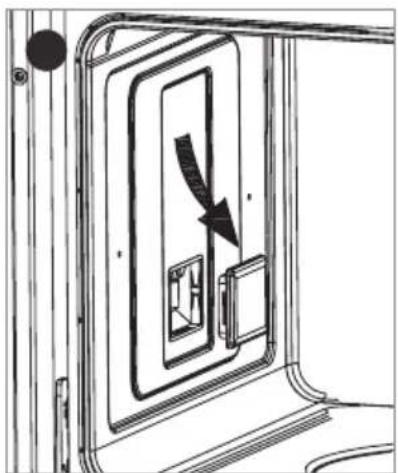

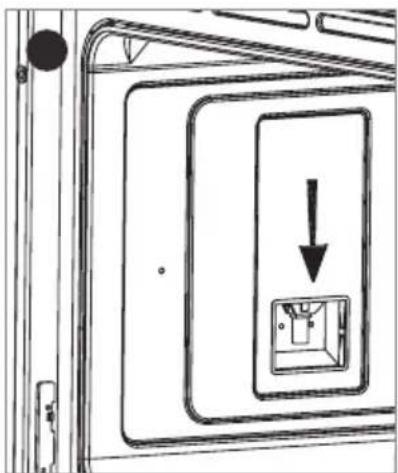

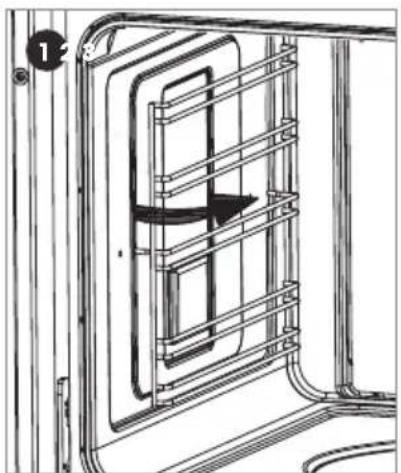

How do I replace the oven light?

Ensure the oven is switched off. Remove the glass cover, replace with a 25W G9 halogen lamp rated for 300°C. For side lamps, remove the side racks, take off the protective cover, pull the bulb downward, replace, and reassemble.

What should I do if the oven doesn't heat up?

Check that the cooking mode and temperature knobs are set correctly. Ensure the timer is not set in automatic mode. If still not heating, contact Glen Dimplex service.

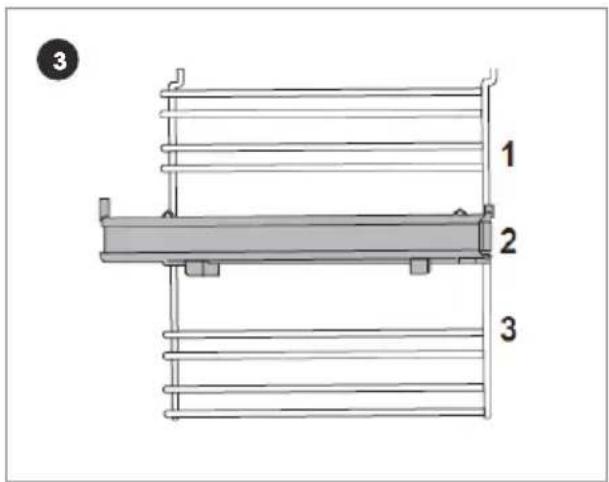

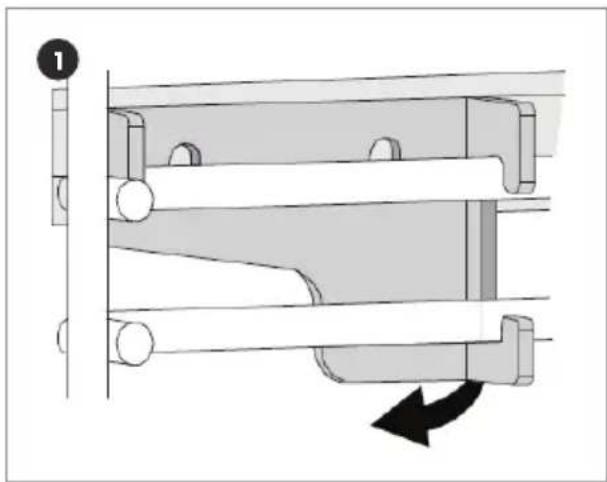

How do I use the telescopic rails?

The telescopic rails can be installed on any shelf level. To unclip for cleaning, apply outward pressure on the underside of the rail. To refit, locate the clip into the top rail and push downward until it clicks into place.

What cooking modes are available on the EO910TS?

The oven has 10 modes: Grill, Maxi Grill, Fan Grill, Bake, Fan Assist, Rapid Cook, Fan Forced, Defrost, Light, and Easy Steam. Each is suited for different types of cooking.

What is the Rapid Cook function used for?

Rapid Cook preheats the oven up to 25% faster than standard bake. It is ideal for oven-frying frozen foods like chips, nuggets, or wedges, achieving extra crispy results.

Where can I find the warranty information?

The warranty is provided by Glen Dimplex. Standard warranty is 2 years, extendable to 5 years if registered online within 90 days. Contact customer care in Australia (1300 556 816) or New Zealand (09 274 8265).

USER MANUAL EO910TS Euromaid

Line drawing of a simple oven or oven unit with two doors and a top lid (no text or symbols)

EO910TS

90cm Built-in Oven

Dear Customer,

Congratulations on the purchase of your new product from Euromaid.

We recommend you please take some time to read the instruction manual thoroughly to familiarise yourself with the functionality and operations to ensure optimum performance of your new appliance.

After reading the manual, please store it in a safe and accessible location for future reference.

Installation

The installation of your new appliance must be carried out by a qualified installer / technician in accordance to local regulations. Please ensure all packaging materials are disposed of correctly.

Customer Care

Our Customer Care centre is available should you wish to learn more about your appliance in relation to how to use it to its best potential, or tips on cleaning as well as available accessories.

For further details please contact our Customer Care Team

Australia

Ph: 1300 556 816

[e-mail]

New Zealand

Ph: 09 274 8265

[e-mail]

Thank you.

Regards,

Euromaid Australia and New Zealand

CONTENTS

Safety Information 4 - 7

Warnings 6

Environment Protection 7

Product Overview 8 - 13

Controls 9

Oven and Accessories 10

Cooking Modes 11

Installation 14 - 16

Cabinet Details 14

Daily Use 17 - 23

Positioning the Oven Trays & Shelves 17

Telescopic Rails 18

How to Use Your Oven 19

Touch Control Digital Timer 20

Hints & Tips 24 - 30

Cooking Advice 24

Cooking Guide 27

Cleaning & Maintenance 31 - 34

How to Remove the Oven Door 32

How to Dismantle the Oven Door for Cleaning 33

Replacing the Oven Lamps 34

Product Information 35

Manufacturer Guarantee 36 - 38

Icon Type Meaning

Warning Serious injury or death risk

Caution Injury or property damage risk

Important / note Operating the system correctly

SAFETY INFORMATION

We recommend that you read the instructions in this owner's manual carefully before use for the best performance and to extend the life of your appliance. It will provide you with all the information you need to ensure its safe installation, use and maintenance. Retain this owner's manual for future reference.

When handling the appliance, we recommend you always use the handles recessed into the sides of the oven to prevent personal injury or damage to the appliance.

To maintain the efficiency and safety of this appliance, we recommend that you do the following:

• Always call the Glen Dimplex service department if there are any faults with your appliance.
  • Always use original spare parts available from Glen Dimplex.
• This appliance is designed for non-commercial, household use and it must not be altered in any way.

⚠ Warning! This appliance is a domestic kitchen appliance suitable for indoor installation. It is not suitable for outdoor installations such as alfresco kitchens or garages unless a qualified, competent installer has deemed the location and installation to be suitable & compliant.

• This appliance can only be used safely when it is correctly connected to an efficient earthing system in compliance with current electrical safety standards.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

⚠ Warning! Accessible parts will become hot when in use.

• To avoid burns and scalds, children should be kept away.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• Do not use a steam cleaner to clean the appliance.

SAFETY INFORMATION

Packaging items such as plastic bags, polystyrene, nails, etc. are potentially dangerous, and therefore appropriate measures must be taken to prevent children and the disabled from coming into contact with them.

Avoid the following:

• Touching the appliance with wet parts of the body.
  • Using the appliance while barefoot.
• Improper or dangerous operation.
• Obstructing the ventilation or heat dissipation slots.
• Allowing power supply cables of other appliances to come into contact with hot parts of the oven.
• Exposing the appliance to atmospheric agents such as rain, or direct sunlight.
  • Using the oven for storage purposes.
• Using flammable liquids near the appliance.

Authorised personnel must be contracted to:

• Install the appliance according to these installation instructions and any local requirements.
- Replace the temperature probe if it is damaged. The probe is part of thermostat. Only use the temperature sensing probe recommended for this oven.

Glen Dimplex Service Department must be contacted:

• If in doubt about the operation of the appliance.
• If in doubt about the soundness of the appliance after removing it from its packaging.
• If the power supply cable has been damaged or needs to be replaced.
• If the appliance requires a service.
  • If you need spare parts.

SAFETY INFORMATION

Warnings

⚠ Warning! Do not steam clean the oven.
Warning! Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
⚠ Warning! Do not install the appliance behind a decorative door in order to avoid overheating.
⚠ Warning! Only use the appliance to cook food and nothing else.
⚠ Warning! Check that the appliance has not been damaged immediately after it has been unpacked.
⚠ Warning! Disconnect the appliance from the electrical mains if it is not functioning properly and before cleaning or performing maintenance.
⚠ Warning! When left unused for a long period, unplug the appliance from the electricity mains.
⚠ Warning! Use oven gloves to place cookware in the oven or when removing it.
⚠ Warning! Always grip the oven door handle in the centre.
⚠ Warning! Make sure the knobs are in the off position when the appliance is not in use.
⚠ Warning! Glen Dimplex will not accept any liability as a result of any damage due to incorrect installation or improper use.

SAFETY INFORMATION

Environment Protection

The appliance shall not be discarded together with the urban refuse and rubbish. The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more details information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging Materials

The materials with the symbol are recyclable.

Dispose the packaging in a suitable collection containers to recycle it.

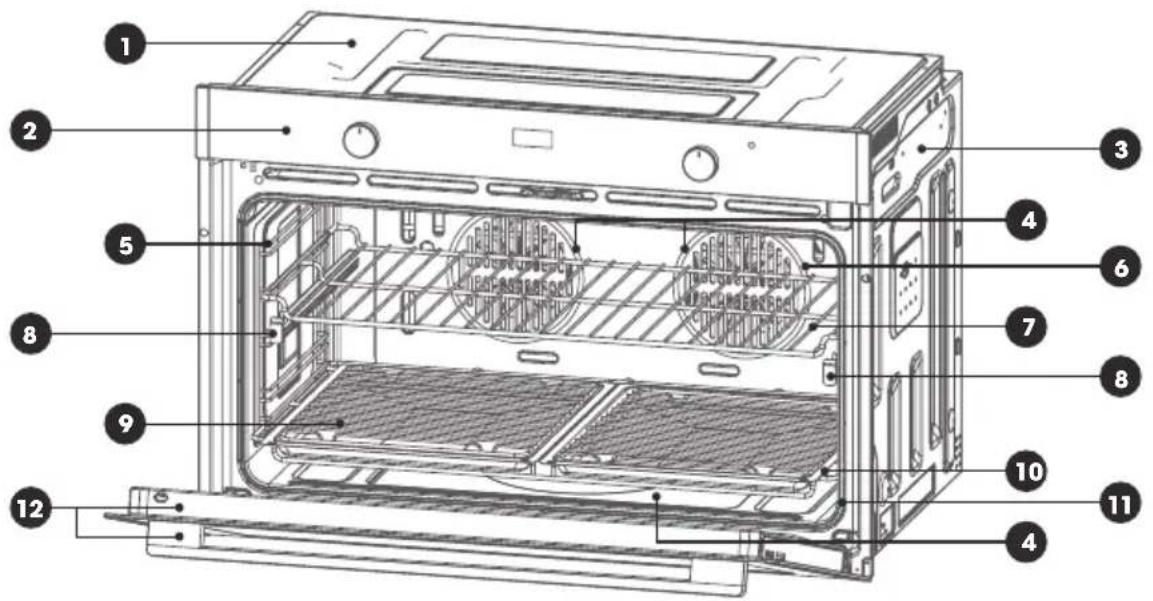

PRODUCT OVERVIEW

1 Top panel Chrome wire shelf	7
2 Control panel Telescopic rails	8
3 Side panel Grill insert	9
410 Element 2x baking trays and holder	○
511 Side racks Door seal	○
○ Fan and element cover Oven door and handle	126

① Note: Above picture is for reference only. The actual appliance may be slightly different.

PRODUCT OVERVIEW

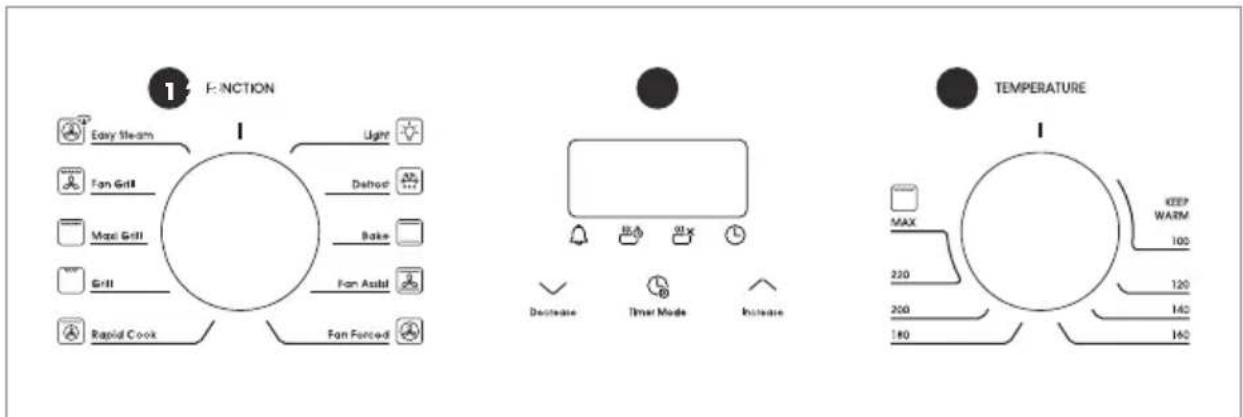

Controls

① Cooking mode selection knob

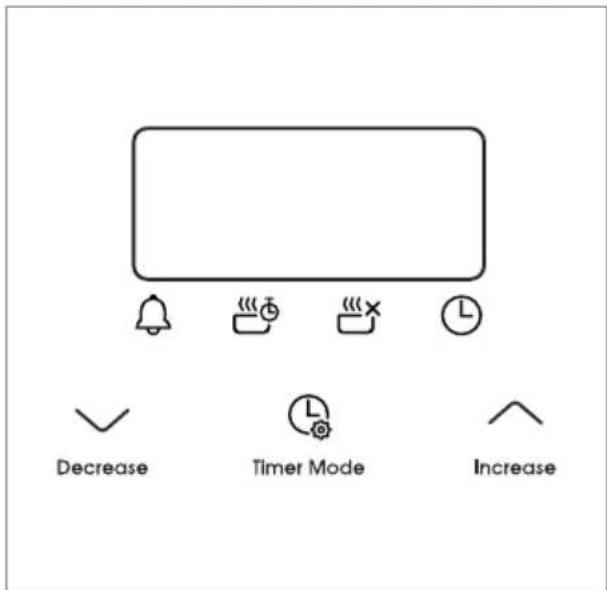

② Electronic clock / timer
③ Cooking temperature selection knob

PRODUCT OVERVIEW

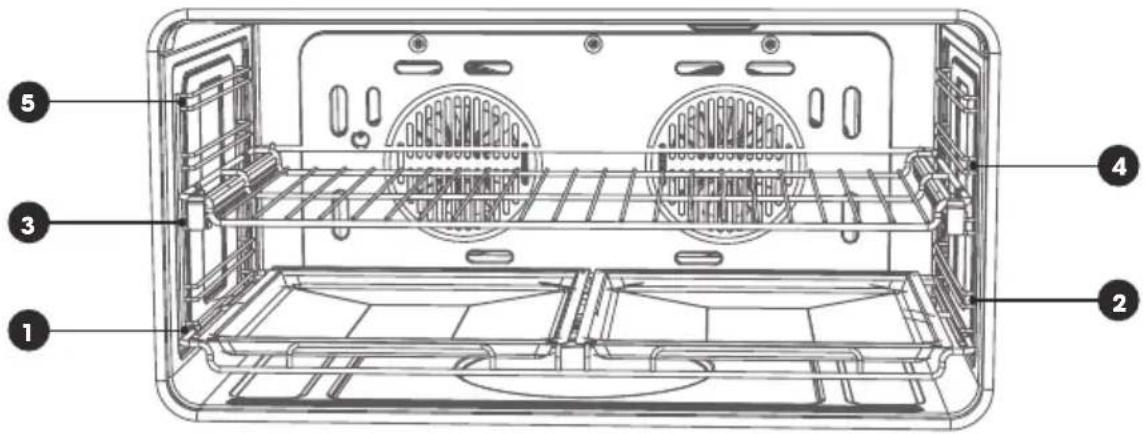

Oven and Accessories

There are five shelf positions in the oven. The oven is supplied with:

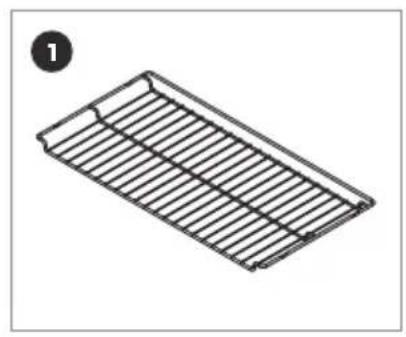

① 2x chrome wire shelf supports

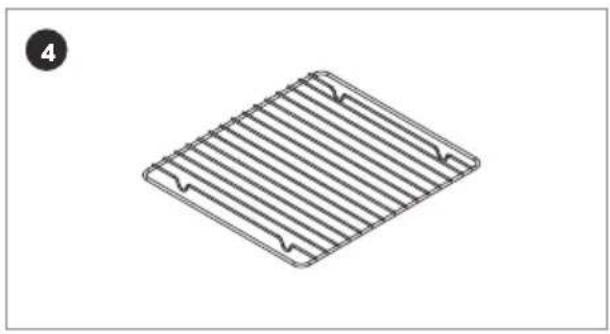

④ 2x grill inserts

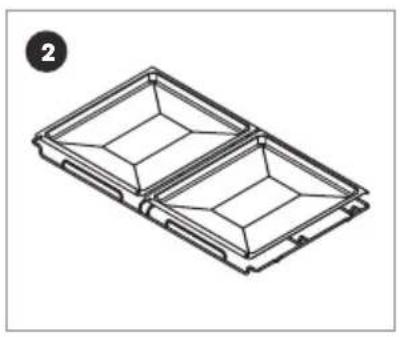

② 2x split baking trays

⑤ 1x set telescopic rails

③ 1x baking tray holder

Isometric line drawing of a rectangular metal grate or rack structure (no text or symbols)

Isometric line drawing of two rectangular plastic trays with internal compartments (no text or symbols)

Isometric line drawing of a rectangular mechanical part with internal divisions (no text or symbols)

Isometric view of a rectangular grid-like structure with parallel lines and mounting holes (no text or symbols)

Two identical gray rectangular mechanical components with mounting holes, shown against a white background (no text or symbols)

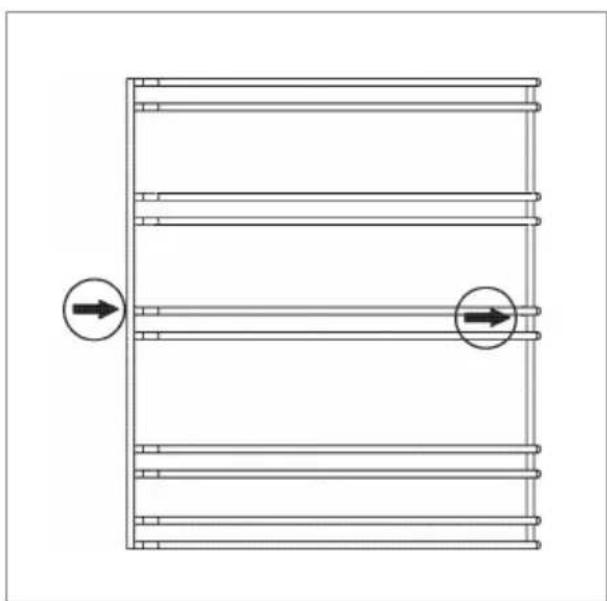

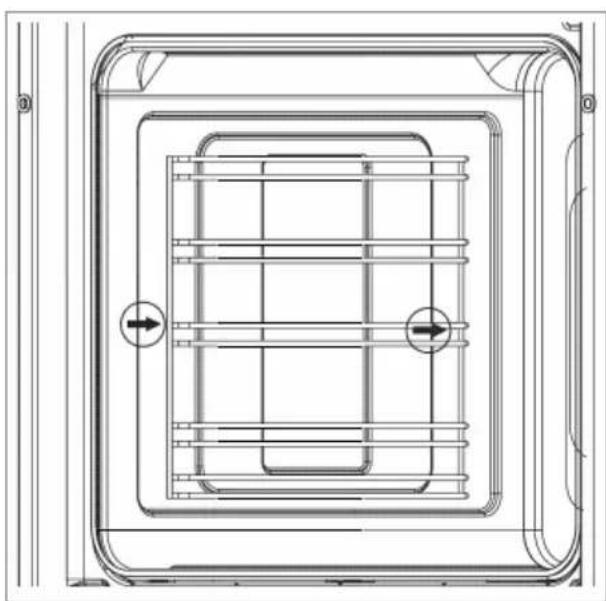

Shelf positions / levels

PRODUCT OVERVIEW

Cooking Modes

Grill

Directs radiant heat from the powerful upper element onto the food. The grill function is best suited for cooking different cuts of meat such as steak, chops, sausages and fish, or for making toasted sandwiches and other quick-cooking foods. For the best results, allow the grill to preheat for 3 minutes before placing food inside. This will help to seal in the natural juices and maintain tenderness of meats. Always grill with the oven door closed.

Maxi Grill

Directs radiant heat from the 2 powerful upper elements onto the food.

Maxi grill allows you to use the full size of the grill tray for cooking larger meals, and will cook faster than the grill function.

Maxi grill is best suited for cooking different cuts of meat such as steak, chops, sausages and fish, or for making toasted sandwiches and other quick-cooking foods. For the best results, allow the grill to preheat for 3 minutes before placing food inside. This will help to seal in the natural juices and maintain tenderness of meats. Always use maxi grill with the oven door closed.

Fan Grill

Generates heat from the upper element which is circulated throughout the cavity by the fan. This combination helps to distribute the heat more evenly onto the food, which helps to avoid burning or overcooking. The fan grill function is ideal for larger cuts of meat which require longer cooking times and will achieve results similar to rotisserie cooked meat. Use the fan grill function with the oven door closed.

Bake

The oven is heated using two elements, one located at the top of the cavity and the other below the floor of the oven. This traditional baking function achieves the best results when cooking on a single oven shelf, to ensure even heat distribution to the food. It is ideal for cooking single trays of biscuits, muffins, cakes and roasts.

PRODUCT OVERVIEW

Fan Assist

The oven is heated using two elements, one located at the top of the cavity and the other below the floor of the oven. The fan circulates the hot air around the cavity for better heat distribution, allowing you to place food in different positions in the oven to cook at the same time. It is suggested to use a maximum of two shelves with the fan assist function and avoid using the bottom shelf to prevent overcooking the base. Food placed on the upper shelf will cook more quickly than the lower shelf.

Rapid Cook

Heat is generated by the upper and fan elements to heat the oven quickly, while the fan distributes the hot air evenly throughout the cavity. This allows you to preheat your oven up to 25% quicker than with standard bake.

The rapid cook function is ideal for oven frying your favourite frozen food such as chips, wedges, nuggets and other similar foods, achieving extra crispy results.

Fan Forced

Uses the rear element surrounding the fan to generate heat. The fan then circulates the hot air to maintain a consistent temperature throughout the oven cavity. This allows you to cook food in different areas of the oven at the same time. Fan forced is a very versatile cooking function which can be used for most types of cooking and baking, and will cook foods faster and at a lower temperature than standard bake functions.

Defrost

Uses the fan to circulate room temperature air around the cavity. This function helps to defrost (thaw) different kinds of food before cooking. Using the defrost function will reduce defrosting times by up to 50%.

Light

Turns on only the oven light, the light remains on when the oven is operating.

PRODUCT OVERVIEW

Easy Steam / Steam assisted cooking

Cooking with steam is a great addition to regular hot air or fan forced cooking functions. Steam helps to bring out the natural flavours of food, cooking it more evenly and retaining more nutrients and goodness. Steam assisting cooking functions, such as Euromaid easy steam, consistently produce juicy, succulent interiors with crispy, golden finishes.

⚠ Warning! Risk of burns or damage to the appliance.

⚠ Warning! Do not open the oven door when the Easy Steam function is in operation, except when preheating.

⚠ Warning! Open the oven door carefully once the steam function has completed.

How to use

① Open the oven door.

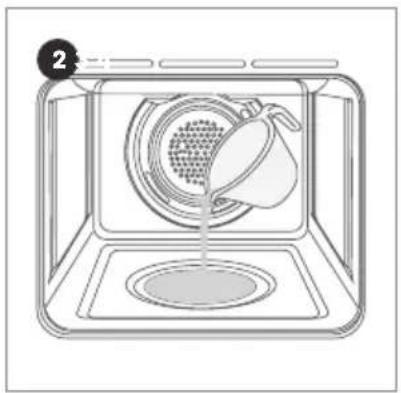

② Add 150ml of water to the well on the base of the cavity while oven is cold.

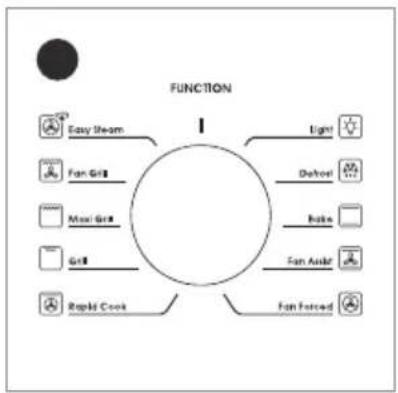

3 Turn the function knob to easy steam mode
④ Turn the temperature knob to select the cooking temperature between 220 and Max.

Diagram of a microwave oven with a lid pouring liquid into the interior (no text or symbols)

⑤ Pre heat for 10 minutes or until the oven has reached the set temperature.
⑥ Place food into the oven and cook as per recipe suggestions.

Caution! Do not refill cavity well with water during cooking or while oven is hot.

⑦ To turn off the oven, turn the function control knob to the 12 o'clock position.
⑧ Once the oven is cool, wipe away any excess water from the cavity well.

INSTALLATION

① Important! Installation, assembly and electrical connections must be carried out by authorised personnel.

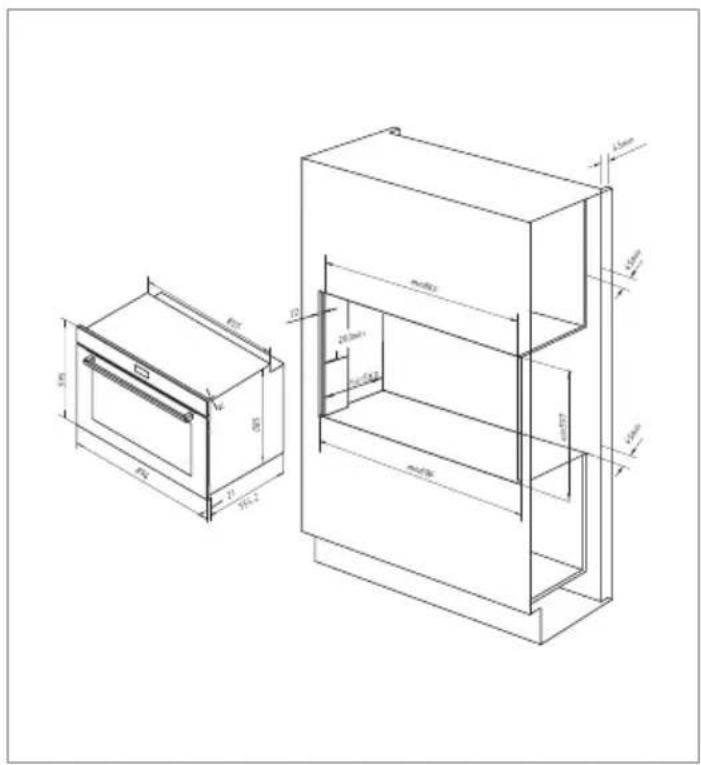

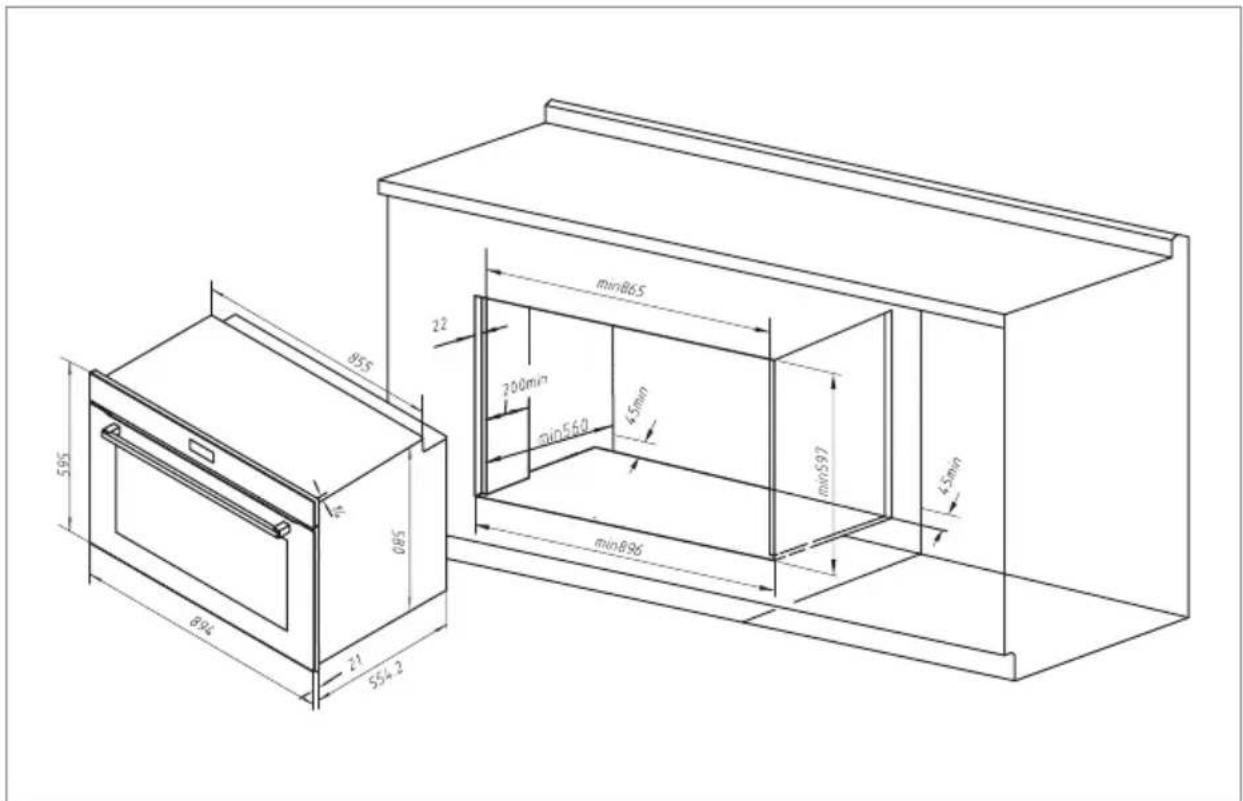

Cabinet Details

In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate. The figure below gives the dimensions of the cut-out for installation under the counter or in a wall cabinet unit.

INSTALLATION

The panels of the adjacent cabinets must be made of heat resistant material. In particular, cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 75^ C.

In compliance with current safety standards, contact with the electrical parts of the oven must not be possible once it has been installed.

All parts, which ensure the safe operation of the appliance, must be removable only with the aid of a tool.

To fasten the oven to the cabinet, open the door of the oven and attach it by inserting the 2 wood screws into the 2 holes located on the perimeter of the frame.

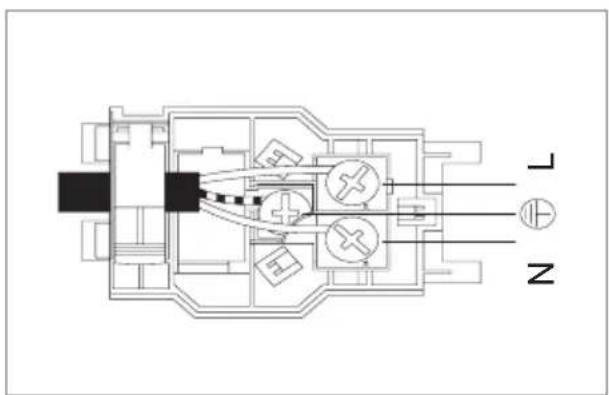

Electrical connection

- The appliance is usually supplied fitted with a power cord and 3 pin plug. Install the cooker so that the plug is easily accessible. Plug the 3-pin plug into a properly earthed, 15A general purpose power outlet preferably on a separate dedicated circuit. The supply cable should be positioned so that it does not reach a temperature of more than 75°C along its entire length.

- If the appliance is not supplied with a plug or if connecting the cable directly to the mains, connection to the electricity supply must be made by an authorised person in accordance with the Wiring Rules AS/NZS3000. The installation must include a suitable isolating switch with a minimum contact opening of 3mm between the appliance and the mains. The isolating switch should be sized according to the load on the data label and should comply with current regulations (the earth wire should not be interrupted by the circuit breaker).

INSTALLATION

Before making the connection

• Check that the switch, wiring and electrical system can support the appliance load (see data plate);
• Check the power supply system has an efficient earthing connection which complies with the provisions of current regulations;
• Check the power outlet or omnipoar circuit-breaker is easily accessible once the cooker has been installed.

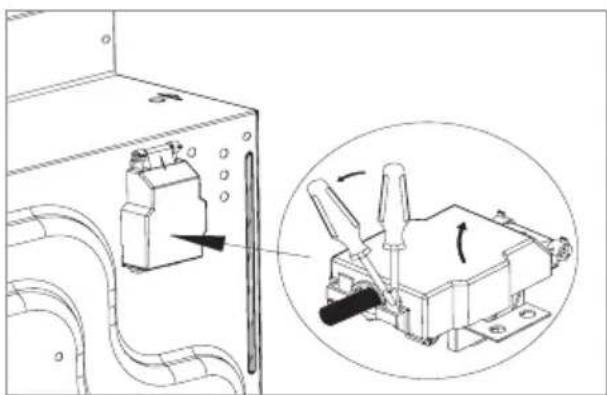

Technical diagram showing a mechanical assembly with a close-up inset of a component being adjusted (no text or symbols present)

Replacing the power supply lead

- If the supply cord or plug is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

⚠ Warning! All electrical connections must be made by a suitably qualified and licenced person in accordance with local regulations. Glen Dimplex will not be held responsible for damages caused to cabinetry due to incorrect installation.

DAILY USE

Positioning the Oven Trays & Shelves

• The Grill Tray or Oven Shelf can be located in any of the five height positions in the oven. Refer to the cooking guide table for the recommended shelf position. When fitting the trays or shelves, ensure they are fitted between the two wires that are closest together as shown below.
• Oven Shelves have a stop so that they are not fully withdrawn by accident. To fully remove the oven shelves, lift the front of the shelf slightly and withdraw fully from the oven.

① Note: that the Baking Tray does not have a stop position and can be fully withdrawn without interruption, so be careful not to accidentally fully withdraw the tray.

- Fit trays and shelves between bars as shown below.

- To remove the oven side racks, push the wire support backwards towards the rear of the oven cavity to release from the locking pin. Once released, the side racks can be removed by gently pulling out of the positioning holes in the oven walls, towards the centre of the oven. To replace the side racks, repeat steps in reverse procedure.

Pure schematic diagram of a multi-level structure with two circular arrows pointing inward, no text or symbols present.

Technical line drawing of a rectangular enclosure with internal grid structure and directional arrows (no text or symbols)

DAILY USE

Telescopic Tails

The oven includes a set of fully-extending telescopic rails which can be positioned on different shelf levels, allowing the oven racks, trays and Air Fry basket to slide in and out effortlessly.

① To un-clip the telescopic rail for cleaning or repositioning purposes you must apply outward pressure on the underside of the telescopic rail to release. (Note: reverse of rail shown).
② To re-fit the telescopic rail, locate the clip into the top rail on the shelf guide and push downward, the rail will clip into place.
③ The telescopic rail is designed to support either a shelf or grill / baking tray and can be installed on any of the shelf positions.

Mechanical assembly diagram showing a roller mechanism with directional arrow (no text or symbols)

DAILY USE

How to Use Your Oven

This fan forced oven is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. The various cooking modes are selected by means of a cooking mode selection knob, located on the control panel.

To operate the oven

• Turn the cooking mode selection knob to the desired cooking mode (explanation of cooking modes is on pages 10 to 11).
• Turn the cooking temperature selection knob to the desired temperature (cooking guide is on page 16) or to Max if Grilling.
• The first time you use your appliance, we recommend that you set the thermostat to the highest setting, set the cooking mode selection knob to a cooking mode and leave the oven on for about half an hour with nothing in it and the oven door closed. Then, open the oven door and allow the oven to cool. Any odour that may be detected during this initial use is due to the evaporation of substances used to protect the oven during storage.

① Note: Place tray on the bottom shelf position of the oven to prevent any spillages from dripping onto the bottom of the oven. Never place anything (including foil and oven trays) on the bottom of the oven when it is in operation because this could damage the enamel. Only place your cookware (dishes, trays, aluminum foil, etc.) on the oven shelves provided with the appliance.

DAILY USE

Touch Control Digital Timer

Button functions
√	Decrease time
^	Increase time
	Timer mode
	Timer
	Set cooking time(amount of time to cook)
	End cooking time(end time for cooking)
	Set the time

This model has a digital display, 24hr clock with 3 control buttons. When the power is connected, the screen displays 12:00 and the bar above the symbol flashes.

Setting the time when power is first connected

- To set the correct time, press the OK button to advance forward or backward until the correct time is displayed. After 5 seconds the time will be locked in.

Adjusting the time

- Press the function button repeatedly until the bar above ⏻shes, then press ^ or √button to set the time. After 5 seconds the time will be locked in.

Manual operation setting

- When power is first connected, the oven will be in manual operation as soon as the time is set. Manual operation will only be cancelled if the power to the oven is switched off or if an automatic cooking time is selected and the bar above ☐ or ☐ is flashing. See next section on automatic setting.

DAILY USE

Automatic setting

- Automatic setting of the oven allows you to select the end time, cooking time, temperature and cooking mode. The oven will switch on, cook according to the selected cooking mode and temperature and then switch o automatically.

① Press the function button repeatedly until the bar above flashes, then press or button to set the time frame for cooking.
② Press the function button repeatedly until the bar above flashes, then press or button to set the time to switch off.
③ Set cooking temperature and cooking mode by turning the thermostat knob and selector knob.

• After these settings, the bars above

indicating that the automatic cooking feature of the oven is set.

For example: if cooking time takes 45 minutes and you want it to finish at 14:00:

① Press the function button repeatedly until the bar above 🎨 crashes and set the cooking time 45 minutes.
② Press the function button repeatedly until the bar above 📄 flashes and set the finish time to 14:00.

• After the above setting, the current time is displayed and the bars above

will flash indicating that the automatic cooking feature is set. When the clock displays 13:15, the oven will start cooking automatically. While cooking the bar will flash.

- When the clock displays 14:00, the oven automatically stops cooking.

The alarm will sound and the bar will flash, press any button to stop the alarm.

DAILY USE

Semi-automatic setting

There are two methods of semi-automatic cooking:

Start cooking now and set cooking time

This semi-automatic setting of the oven allows you to start cooking immediately, set the cooking time (up to 10 hours), select the temperature and cooking mode. The oven will cook according to the selected cooking mode and temperature and then switch o automatically once the cooking time has elapsed.

① Press the function button repeatedly until the bar above flashes, then press or button to set the time frame for cooking.
② Set cooking temperature and cooking mode by turning the thermostat knob and selector knob. The oven starts immediately, the bar above will flash. After the cooking time has elapsed, the oven automatically stops cooking. The alarm will ring and the bar above will flash, press any button to stop the alarm.

B Start cooking now and set the finish time

① Press the function button repeatedly until the bar above flashes, then press ^ or √ button to set the time to finish cooking (up to 23 hours and 59 minutes).

② Set cooking temperature and cooking mode by turning the thermostat knob and selector knob.

③ The oven starts immediately, the bar above will flash. When the finish time is reached, the oven automatically stops cooking. The alarm will ring and the bar above will flash, press any button to stop the alarm.

④ When any button is pressed during semi-automatic cooking, the set cooking time is displayed. If the finish time is set to the current time, the semi-automatic setting will be cancelled.

DAILY USE

Timer

• The digital countdown timer can be set up to 23 hours and 59 minutes maximum.
• To set the timer, press the function button repeatedly until the bar above flashes. Then press or button to set the countdown timer. After 5 seconds, the time will be set and begin to count down. When the set time is reached, disappears and the alarm will sound, press any button to stop the alarm.

① Note: After pressing the function button, timer settings should be done within 5 seconds.

- In case of a power failure, all settings including the time display will be lost. The time and any settings will need to be re-set.

The oven light

- Set the cooking mode selection knob to the symbol to switch on the oven light(s). The oven light(s) remains on when the oven is operating.

Cooling ventilation

• In order to cool down the exterior of the appliance, this model is equipped with a cooling fan, which switches on automatically.
• When the cooling fan is on, you will notice a flow of air exiting between the oven door and the control panel.

① Note: When cooking is finished, the cooling fan continues to operate until the oven cools down and then switches off automatically.

HINTS & TIPS

Cooking Advice

The oven offers a range of settings which allow you to cook any type of food in the best possible way. With time you will learn to make the best use of this versatile cooking appliance and the following directions are only a guideline which may be varied according to your own personal experience.

Preheating

• If the oven needs to be preheated, the rapid cook mode should be selected. This is the most efficient mode, which will reach the desired temperature as quickly as possible using the least amount of energy.
• Once the food has been placed in the oven, the desired cooking mode can then be selected.

Multi shelf cooking

• If you want to cook food on several shelves, select fan assist mode 📁.
- When cooking delicate foods on more than one shelf, use the fan forced mode this mode allows you to cook on 3 shelves at the same time. Refer to the cooking guide table.

Using the grill

• This multi-function oven has 3 different grilling modes.
• Use the grill mode ☐, maxi grill mode ☐ or fan grill mode ☐ with the oven door closed, place the food on the centre of the grill pan, insert and fit the grill pan on either the 3rd or 4th shelf from the bottom.
• When using grill mode 📋, we recommend you set the thermostat to the highest setting.

HINTS & TIPS

Using fan grill

• Use fan grill mode 📁 with the oven door closed. This mode is very useful for grilling foods rapidly, as the distribution of heat by the fan makes it possible not only to brown the surface, but also to cook the bottom of the food.
• It can also be used for browning foods at the end of the cooking process, such as adding that gratin finish to pasta bakes for example.
• When using fan grill mode 📁, place the food on the 2nd or 3rd oven shelf from the bottom, then place a dripping-pan on the 1st rack from the bottom to prevent fat and grease from dripping onto the oven floor. We recommend you set the thermostat to 180°C, as it is the most efficient temperature for fan grill mode 📁.
• However, this does not mean you cannot use other temperatures, simply adjust the thermostat knob to the desired temperature.

① Important! For best results and to save energy, always use the grill functions with the oven door closed.

Baking cakes

• When baking cakes, always place them in a preheated oven. Make sure you wait until the oven has been preheated thoroughly (the indicator light will turn off). To prevent heat loss and the cake from dropping, do not open the oven door during baking.
• In general, if pastry is too dry: increase the temperature by 10^ and reduce the cooking time.
• If pastry has dropped: use less liquid or lower the temperature by 10^ .
• If pastry is too dark on top: place it on a lower shelf, lower the temperature, and increase the cooking time.
• If cooked well on the inside but sticky on the outside: use less liquid, lower the temperature, and increase the cooking time.
• If the pastry sticks to the pan: grease the pan well and sprinkle it with a dusting of flour or use greaseproof paper.
• If I used multi shelf cooking and one shelf is more cooked: use a lower temperature setting next time. It is not necessary to remove the food from all the racks at the same time.

HINTS & TIPS

Cooking pizza

• For best results when cooking pizza, use the fan forced mode
- Preheat the oven for at least 10 minutes.
- Use a light aluminum pizza pan, placing it on the shelf supplied with the oven. Don't use the dripping pan since this will extend the cooking time, making it difficult to get a crispy crust.
- Do not open the oven door frequently while the pizza is cooking;
- If the pizza has a lot of toppings (three or four), we recommend you add the mozzarella cheese on top halfway through the cooking process.
- For best results, only use one shelf at a time, but it you want to cook on two shelves, use the 2nd and 4th racks from the bottom with a temperature of 220^ and swap them halfway through cooking.

Cooking fish and meat

• When cooking white meat and fish, use a temperature setting from 180^ to 200^ .
• For red meat that you want well done on the outside while tender and juicy in the inside, it is best to start with a high temperature setting (200°C-220°C) for a short time, then turn the oven down afterwards.
• In general, the larger the roast, the lower the temperature setting.
• Place the meat on the centre of the shelf and place the dripping pan beneath it to catch the fat.
• Make sure that the shelf is inserted so that it is in the centre of the oven. If you would like to increase the amount of heat from below, use a lower shelf height.

HINTS & TIPS

Cooking Guide

Foods	Weight (kg)	Cooking position*	Preheat time (min)	Temp. setting	Cooking time (min)
Defrost
All frozen food
Grill / Maxi grill
Soles & cuttlefish 1 4 5 Max 8 - 10
Squid & prawn kebabs	1 4 5 Max 6 - 8
Cod fish 1 4 5 Max 10
Grill vegetables	1	3/4	5	Max	10 - 15
Veal steak	1	4	5	Max	15 - 20
Cutlets	1	4	5	Max	15 - 20
Hamburgers	1 4 5 Max 7 - 10
Mackerels	1	4	5	Max	15 - 20
Toasted sandwiches	-	4	5	Max	2 - 3
Fan grill
Grilled chicken	1.5	3	5	200	55 - 60
Cuttlefish	1.5	3	5	200	30 - 35
Pizza (on 2 racks)	1	2 - 4	15	220	15 - 20
Lasagna	1	3	10	200	30 - 35
Lamb	1	2	10	180	50 - 60
Roast chicken + potatoes	1	2 - 4	10	180	60 - 75
Mackerel	1	2	10	180	30 - 35
Plum cake	1	2	10	170	40 - 50

Squid & prawn kebabs	1 4 5 Max 6 - 8
Cod fish 1 4 5 Max 10
Grill vegetables	1	3/4	5	Max	10 - 15
Veal steak	1	4	5	Max	15 - 20
Cutlets	1	4	5	Max	15 - 20
Hamburgers	1 4 5 Max 7 - 10
Mackerels	1	4	5	Max	15 - 20
Toasted sandwiches	-	4	5	Max	2 - 3
[BKGZ] Fan grill
Grilled chicken	1.5	3	5	200	55 - 60
Cuttlefish	1.5	3	5	200	30 - 35
Pizza (on 2 racks)	1	2 - 4	15	220	15 - 20
Lasagna	1	3	10	200	30 - 35
Lamb	1	2	10	180	50 - 60
Roast chicken + potatoes	1	2 - 4	10	180	60 - 75
Mackerel	1	2	10	180	30 - 35
Plum cake	1	2	10	170	40 - 50

*Rack position from the bottom

HINTS & TIPS

Foods	Weight (kg)	Cooking position*	Preheat time (min)	Temp. setting	Cooking time (min)
Fan grill (continued)
Cream puffs (on 2 racks)	0.5 2 - 4 10 190 20 - 25
Biscuits (on 2 racks)	0.5 2 - 4 10 180 10 - 15
Sponge cake (1 cake)	0.5 2 10 170 15 - 20
Sponge cake (2 cakes)	1 2 - 4 10 170 20 - 25
Savory pies	1.5		15	200	25 - 30
Fan forced
Tarts	0.5	3	15	180	20 - 30
Fruit cakes	1	2/3	15	180	40 - 45
Fruit cake	0.7	3	15	180	40 - 50
Sponge cake	0.5	3	15	160	25 - 30
Stuffed pancakes (on 2 shelves)	1.2	2 - 4	15	200	30 - 35
Small cakes (on 2 shelves)	0.6	2 - 4	15	190	20 - 25
Cheese puffs (on 2 shelves)	0.4	2 - 4	15	210	15 - 20
Cream puffs (on 3 shelves)	0.7	1 - 3 - 5	15	180	20 - 25
Biscuits (on 3 shelves)	0.7	1 - 3 - 5	15	180	20 - 25
Meringues (on 3 shelves)	0.5	1 - 3 - 5	15	90	180

*Rack position from the bottom

HINTS & TIPS

Foods	Weight (kg)	Cooking position*	Preheat time (min)	Temp. setting	Cooking time (min)
Bake
Duck 1 3 15 200 65 - 75
Roast veal or beef 1 3 15 200 70 - 75
Pork roast 1 3 15 200 70 - 80
Biscuits (short pastry)	-3 15 180 15 - 20
Tarts 1 3 15 180 30 - 35
Fan assist
Frozen food
Pizza	0.3	2	-	250	12
Courgette & prawn pie	0.4	2	-	200	20
Country style spinach pie	0.5	2	-	220	30 - 35
Turnovers	0.3	2	-	200	25
Lasagne	0.5	2	-	200	35
Golden rolls	0.4	2	-	180	25 - 30
Chicken morsel	0.4	2	-	220	15 - 20
Pre-cooked food
Golden chicken wings	0.4	2	-	200	20 - 25
Fresh food
Biscuits (short pastry)	0.3	2	-	200	15 - 18
Fruit cake	0.6	2	-	180	45
Cheese puffs	0.2	2	-	210	10 - 12

*Rack position from the bottom

HINTS & TIPS

Foods	Weight (kg)	Cooking position*	Preheat time (min)	Temp. setting	Cooking time (min)
Rapid cook
Scotch fillet steak (seared first)	1 3 5 220 8
Frozen chips 1 3 5 220 15
Chicken drumettes / wingettes (with dry rub)	1 3 5 230 15
Fresh barramundi fillet (with crumb)	1 3 5 230 15
Potatoes (cut into wedges)	0.5 3 5 230 14
Frozen food
Chicken nuggets / crumbed fish	1 3 5 230 15
Smashed chats (parboiled)	1 3 4 - 5 220 15

*Rack position from the bottom

① Note: Cooking times are approximate and may vary according to personal taste. When cooking using the grill or fan assisted grill, the dripping pan must always be placed on the 1st oven shelf from the bottom.

CLEANING & MAINTENANCE

• Before cleaning your oven or performing maintenance, make sure that the cooking mode selection knob is set to off and the cooking temperature selection knob is set to off. To extend the life of your oven, it must be cleaned frequently.
• The enamelled or stainless steel parts should be washed with lukewarm water without using any abrasive powders or corrosive substances. If any stainless steel has difficult to remove stains, use cleaners specifically recommended to clean stainless steel. After cleaning any surface, it is advisable to rinse thoroughly and dry.
• The inside of the oven should preferably be cleaned immediately after use, when it is still warm (but not hot), with warm water and soap. The soap should be rinsed away and the interior dried thoroughly. Avoid using abrasive detergents, scourers acidic cleaners such as lime scale remover, etc. as these could damage the enamel. If stains are particularly tough to remove, use cleaners specifically recommended to clean ovens and follow the instructions provided with the cleaner.

① Important! Never use a steam cleaner or caustic oven cleaners for cleaning inside the oven.

• If you operate your oven for an extended period of time, or if you are cooking dishes that contain a lot of water, condensation may form on the oven door. Dry it using a soft cloth and try reducing the cooking temperature.
• There is a seal surrounding the oven opening which is necessary to ensure the correct operation of the oven. Check the condition of this seal on a regular basis. If necessary, clean it but avoid using abrasive products or objects to do so. Should it become damaged, please contact Glen Dimplex Service Department. We recommend you avoid using the oven until it has been repaired.

① Important! Never place anything (including foil and oven trays) on the bottom of the oven when it is in operation because this could damage the enamel.

- Clean the glass door using non-abrasive products or sponges and dry it with a soft cloth.

① Important! Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Use only non caustic oven cleaners purchased from hardware stores or supermarkets.

CLEANING & MAINTENANCE

How to Remove the Oven Door

You can remove the oven door for better access to the oven when cleaning. Proceed as follows to remove the door:

① Open the door fully.
② Lift up and turn the latch A situated on each of the two hinges.
③ Grip the door on the two external sides and close it approximately 3/4 way.
④ Pull the door up towards you, lifting it out of the oven frame.
⑤ To replace the door, repeat the above steps in reverse order.

Four-panel technical illustration showing mechanical assembly steps with labeled components (A, B, C) and numbered callouts (1, 2, 3), no readable text or symbols beyond labels.

CLEANING & MAINTENANCE

How to Dismantle the Oven Door for Cleaning

You can remove the inner door glass for better cleaning. Proceed as follows to remove the inner door glass:

① Remove the cap on top of the door by unscrewing the 2 screws on the left and right sides.
② Gently slide out the inner pane of glass.
③ Clean the glass with an appropriate cleaner. Dry thoroughly and place on a soft surface.
④ Now you can also clean the inside of the outer glass.
⑤ Use the reverse procedure to re-assemble the door glass.

3D rendering of a computer monitor with an attached rack (no text or symbols visible)

3D CAD model of a mechanical assembly with mounting brackets and a rectangular base (no text or symbols visible)

CLEANING & MAINTENANCE

Replacing the Oven Lamps

⚠ Warning! Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Remove the glass cover of the lamp-holder.

Remove the lamp and replace with a lamp resistant to high temperatures (300°C) with the following characteristics:

• Voltage: 220-240V
- Wattage: 25W
- Type: G9

① Note: Replacement lamps are available from Glen Dimplex.

Replace the glass cover and reconnect the oven to the mains power supply.

Replacing the side lamp

① Remove the side racks.
② Take off the protective glass cover.
③ Pull the light bulb down to remove it.
④ After inserting the new bulb, install the glass cover and side racks back to their original position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a train door with an arrow indicating clockwise motion (no text or symbols)

Diagram of a door lock mechanism with a black arrow indicating clockwise motion (no text or symbols)

Diagram of a door frame with an arrow pointing to a small inset box (no text or symbols)

PRODUCT INFORMATION

Model number(s):	EO910TS (Stainless steel)
Voltage & frequency:	220 - 240V ~ / 50 - 60Hz
Usable volume:	133L
Total volume:	148L
Output power:	3200 - 3800W
Net weight (kg):	51.0
Gross weight (kg):	57.0
Product dimensions (mm):	894 (w) x 595 (h) x 575.2 (d)
Cut-out dimensions (mm):	900 (w) x 600 (h) x 580 (d)

MANUFACTURER GUARANTEE

This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460 (Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Euromaid product.

1. Euromaid Express Warranty

Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within:

In the case of Euromaid products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
b The warranty period may be extended by an additional 3 years (5 years total) if the appliance is registered on the Euromaid website (listed below) within 90 days following the date of original purchase.

Australia: euromaid.com.au New Zealand: euromaid.co.nz

In the case of Euromaid products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. Euromaid products are designed and intended for domestic use only; and

All warranty repairs must be carried out by Glen Dimplex or their nominated service agent.

① Note: warranty periods detailed above may vary in line with agreements with select retail and builder partners and may differ between Australia and New Zealand.

The benefits conferred by this express warranty are in addition to the Consumer Guarantees referred to in section 3 and any other statutory rights you may have under the Australian / New Zealand Consumer Law and/or other applicable laws.

MANUFACTURER GUARANTEE

2. Warranty Exclusions

This express warranty does not apply where:

The product has been installed, used or operated otherwise than in accordance with the product manual or other similar documentation provided to you with the product;
The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;
The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement;
d You are unable to provide us with reasonable proof of purchase for the product;
The breakdown occurs after the expiry of the express warranty period set out in section 1 or;
f The product was not purchased in Australia / New Zealand as a brand-new product.

3. Consumer Guarantees

Our goods come with guarantees that cannot be excluded under the Australian / New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

MANUFACTURER GUARANTEE

4. How to Make a Claim

You may make a claim under this warranty through our website, contacting our customer care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of this document.

To make a valid claim under this warranty, you must:

Lodge the claim with us as soon as possible and no later than 14 days after you first become aware of the breakdown;
b Provide us with the product serial number;
Provide us with reasonable proof of purchase for the product. This can take the form of a store receipt, new home handover form or other payment receipt documentation; and
If required by us, provide us (or any person nominated by us) with access to the premises at which the product is located at times nominated by us (so that we can inspect the product).

5. Warranty Claims

If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods. Products are designed and supplied for normal domestic use. We will not be liable to you under this warranty for business loss or damage of any kind whatsoever.

Contact our Customer Care Team

Glen Dimplex Australia Pty Ltd

Ph: 1300 556 816

[e-mail]

www.glendimplex.com.au

Glen Dimplex New Zealand Ltd

Ph: 09 274 8265

[e-mail]

www.glendimplex.co.nz

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING & USING THE APPLIANCE.

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual. In addition, the appearance of the figures reported is also purely indicative.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics. Glen Dimplex constantly seeks ways to improve the specifications and designs of their products. Whilst every effort is made to produce up to date literature, this document should not be regarded as an infallible guide. Actual product only should be used to derive cut out sizes.

All appliances must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and building codes, with compliance being issued as required by state or national legislation.

Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the relevant standards by a licenced installer.

For maximum effectiveness and efficiency all rangehoods should be installed with the use of ductwork, by a licenced installer with adherence to the relevant state and national building codes and regulations.

All Glen Dimplex appliances are for Domestic use only, and must be installed by a licenced installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.

Euromaid

Distributed by

Glen Dimplex Australia Pty Ltd

Ph: 1300 556 816

[e-mail]

www.glendimplex.com.au

Glen Dimplex New Zealand Ltd

Ph: 09 274 8265

[e-mail]

www.glendimplex.co.nz

For service advice, please contact the Customer Care Centre by phone or email above.

For full terms and conditions, or to register your product warranty, please visit our website.

Euromaid

euromaid.com.au | euromaid.co.nz
