Product Type	Rear View Camera System (Camera + Monitor)
Model	PLCMTR92.5
Brand	Pyle
Camera Resolution	720p HD (typical)
Viewing Angle	170° wide angle
Night Vision	Infrared LED, 8-10 lux
Display Monitor Size	4.3 inches (typical)
Power Supply	12V DC (vehicle battery)
Power Consumption	~5W
Connectivity	Wireless (2.4GHz) or wired RCA
Operating Temperature	-20°C to 60°C
Waterproof Rating	IP67 (camera)
Dimensions (Camera)	30 x 30 x 30 mm (approx)
Weight (Camera)	50g (approx)
Mounting Type	License plate or flush mount
Parking Guidelines	Yes, adjustable
Mirror/Flip Function	Yes
Color Mode	Auto (color/b&w)
Maintenance	Clean lens with soft cloth; avoid abrasive cleaners
Safety	Use only with 12V systems; professional installation recommended
Spare Parts	Camera, monitor, cables, mounting brackets available from Pyle
Repairability	Replacement parts user-replaceable; monitor not repairable
General Information	Designed for vehicles to assist reversing; complies with FCC/CE

Frequently Asked Questions - PLCMTR92.5 Pyle

How do I install the Pyle PLCMTR92.5 rear view camera?

Mount the camera on your license plate or using the included bracket. Connect the camera's power to the reverse light (12V). Route the video cable to the monitor inside the vehicle. For wireless models, pair the transmitter and receiver according to the manual.

Why is my camera display black or no signal?

Check power connections: the camera should activate when reverse gear is engaged. Ensure the video cable is securely connected. For wireless, verify channel matching and distance from receiver (max 50 ft). Replace fuse if blown.

Can I use the camera without the monitor?

No, the PLCMTR92.5 system includes a monitor. The camera alone outputs video that must be displayed on the included monitor or another compatible screen with RCA input.

Does the camera work at night?

Yes, it features infrared LEDs for night vision. In low light, the image switches to black-and-white for better clarity. Range is up to 15 feet in total darkness.

How do I adjust the parking guide lines?

On the monitor menu, navigate to 'Guidelines' setting. You can toggle on/off and adjust the horizontal position to match your vehicle's width.

What is the waterproof rating of the camera?

The camera has an IP67 rating, meaning it is dust-tight and can withstand immersion in 1 meter of water for 30 minutes. It is suitable for outdoor mounting.

Can I add a second camera?

The standard system supports one camera. However, you can use a video switch to alternate between two cameras, but it requires additional wiring.

How do I clean the camera lens?

Use a microfiber cloth slightly dampened with water or a mild lens cleaner. Gently wipe the lens to avoid scratches. Do not use alcohol or abrasive products.

My monitor shows interference lines. What should I do?

Ensure the video cable is away from power cables to avoid electrical interference. Check all connections are secure. For wireless, change the channel to reduce interference from other devices.

Is professional installation recommended?

While many users install it themselves, professional installation ensures proper wiring and secure mounting, especially for vehicles with advanced electrical systems.

USER MANUAL PLCMTR92.5 Pyle

Product display of a yellow Pyle PLC/MTR02 road camera with navigation buttons and a black cable cover (no text or symbols on main components)

☆☆☆☆☆☆+×

★☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆

9" Display Monitor (DC 12-24V for Bus, Truck, Trailer, Van)

USER MANUAL

PLCMTR - Commercial Grade Camera System

Please read instructions carefully before installation and use.

Installation should be performed by a professional installer.

To ensure your safety, the driver should not watch videos or operate features on the monitor while driving. There are no serviceable parts in this unit, do not disassemble or try to repair this unit. If the unit malfunctions please return to your vendor or send to a Pyle repair facility. Please observe and obey the local laws and regulations when installing the unit. Upon Installation, please make sure as to not to interfere with any of the vehicle's safety features, wiring, components, etc. We are not responsible for any damages, injury, malfunctions or otherwise noted due to faulty or non-professional installation.

Connection

Connect the camera's threaded locking 4-pin cable connectors into the female receiving connection of the included 4-pin extension cable. The extension cable then connect to your compatible video monitors with 4-pin receiving connector. The threaded locking cable connectors of the camera serve to provide power and video for the camera.

Please remember to disconnect your vehicle's battery prior to any connection / installation. Use the included wiring harness to provide power and video signals to your monitor. There are colored wires to assist in the video camera system setup.

See the wiring diagram for connections between cameras, monitor and your vehicle

When turning the vehicle's ignition key or turning to the accessory or ON position, power is supplied to the camera system through the control box and the monitor will be in stand-by mode.

Versatile Mounting Installation

PLCMTR - Commercial Grade Camera System Wiring & Connection

Camera (4-Pin Connection)

Red: Power 12/24V Black: GND Green: +12V Reverse

*When the Green - Reverse Trigger - is connected, the system will automatically revert to this connection once the vehicle is placed into reverse gear. This is connected to the camera via 4-Pin connection.

*The monitor control allow the user to adjust picture settings horizontal or vertical based on the mounting location of the camera.

*Please note: The monitor may include a 'volume' function in the menu settings. This feature is not available for this model.

*For additional information visit www.PyleAudio.com

PLCMTR - Commercial Grade Camera System

The video monitor is provides power and camera video signals via the video and power wiring harness. From the monitor, you will be able to control Ch. 1, Ch. 2, input video cameras (V1, V2).

The power and video wiring harness includes an RCA (video) connector for you to install an additional video input source.

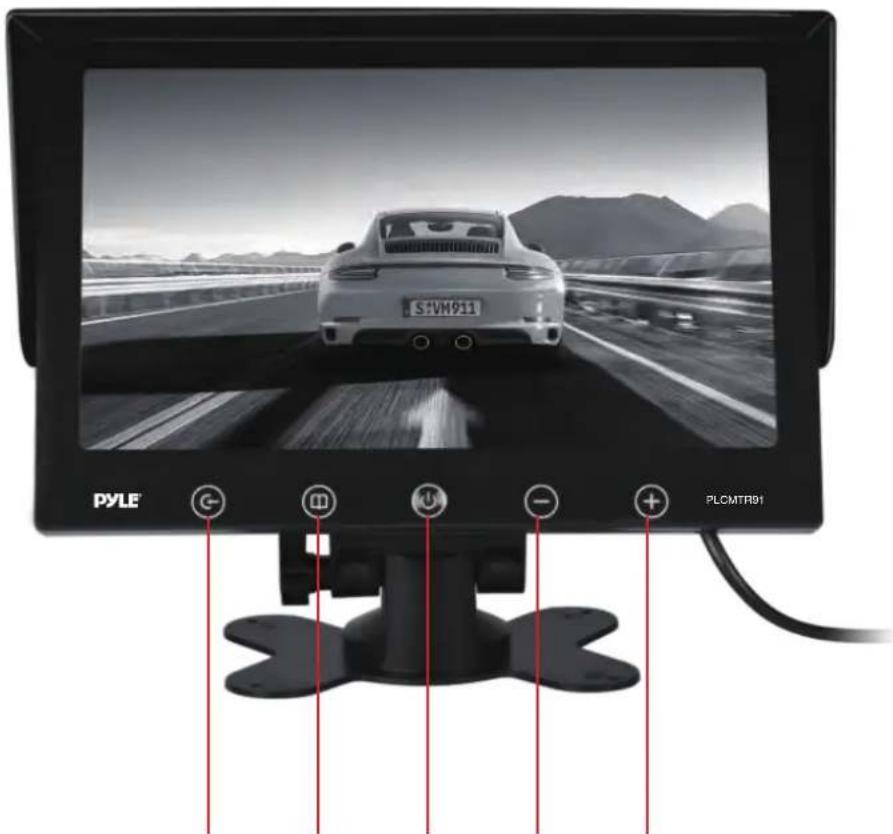

Monitor Controls

1. Video input selection
2. Menu
3. Power on/off
4. Analog variable decrease
5. Analog variable increase

12345

*Please note, in cold weather and low temperatures, the display monitor may require some time to 'warm up' to clearly display a picture on the display.

Monitor Stand Mounting

PLCMTR - Commercial Grade Camera System

1. Set the mount stand in the desired location, then use screws to secure the mount stand into location. Please make sure as to set a location free from vehicle obstruction including any wiring, or location where it may obstruct the driver's view, driving conditions, etc.
2. Attach the metal buckle piece on top of the fan shaped mount stand, and slide it into the receiving slot in back of the display monitor assembly. This metal buckle should slide in and up to the monitor assembly.
3. Set the desired position/height of the buckle into the monitor assembly.
4. Tighten the clamp-style knob in the back of the stand mount to secure the monitor in the desired position.
5. The angle / tilt position of the stand mount is also adjustable. Located toward the base of the stand mount is another clamp-style knob.

*Be sure to mount the video monitor from speakers or other devices which may distort the output display. Keep the monitor away from the speaker's or other device's magnetic field.

*Install the monitor on a surface that can bear the capacity of over 9 lbs.

*Don't install the monitor in the line of ventilation areas (keep away from extreme hot and extreme cold temperatures). *The monitor is not waterproof, avoid exposure to excess liquids or harsh cleaning chemicals/detergents.

*Holes in the back of the display monitor serve as ventilation ducts. To ensure operation of the unit, and protect from overheating, these holes must not be blocked, to reduce risk of electric shock or fire.

PLCMTR92.5

Waterproof Rated Backup Camera & Monitor System

9" Display Monitor (DC 12-24V for Bus, Truck, Trailer, Van)

System Features:

• Commercial Grade Camera & Monitor Video System
- Includes All Necessary Cables & Wiring
- Reverse Image (Backup Camera) Ability
- Designed for Car/Truck use 12 & 24 Volt Systems
• Used for Parking, Reversing, Truck Docking, Driving Safety

Display Monitor:

• 9" -Inch LCD Active Matrix Video Monitor
• DC Reverse 12-24 Volt Trigger with Auto Activation feature
- OSD Menu Control - Contrast, Brightness, Color
- Aspect Ratio: 16:9 Widescreen Format
• PAL/NTSC Video Format Compatible
• Universal Stand & Anti-Glare Sun Visor
• 4-Pin Video Connector
• Resolution: 800 x 480
• Monitor Dimensions (W x H x D): 8.86" x 5.71" x 1.89"

Exterior Camera:

• Includes (1) Universally Mountable Camera
  • Marine Grade Construction, IP-68 Waterproof Rating
  • Weatherproof & Water-Resistant Housing
  • Built-in Night Vision Illumination LEDs
• Low Lux Light Performance
  • Auto Image Adjustment
  • Image sensor: Color CMD
  • Effective Pixels: 580 x 540
  • Resolution: 420 Lines
• Lens Angle: 170 Degree
  • Min. Illumination: 0.2Lux
  • Video Output 1.0V pp-75 Ohm
• Camera Dimensions (W x H x D): 3.18" x 2.95" x 2.17"
