DD78HC-1-S - Beer dispenser Beverage-Air - Free user manual and instructions
Find the device manual for free DD78HC-1-S Beverage-Air in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Beer Dispenser / Kegerator |
| Brand | Beverage-Air |
| Model | DD78HC-1-S |
| Keg Capacity | Two 1/2 barrel kegs (15.5 gallons each) |
| Number of Taps | 2 |
| Temperature Range | 32°F to 40°F (adjustable digital thermostat) |
| Cooling System | Forced air circulation |
| Compressor Power | 1/4 HP |
| Refrigerant | R290 (environmentally friendly) |
| Exterior Dimensions (W x D x H) | 30.25 x 24 x 33.5 inches |
| Interior Dimensions (W x D x H) | 24 x 20 x 30 inches (approx.) |
| Weight | 145 lbs (66 kg) |
| Electrical Requirements | 115V, 60Hz, 3.5 Amps, NEMA 5-15P |
| Exterior Finish | Stainless steel front and sides |
| Drip Tray | Stainless steel, removable for cleaning |
| Insulation | High-density polyurethane foam |
| Warranty | 1 year parts and labor (details in manual) |
| Certifications | ETL, NSF-7 (commercial grade) |
| Included Accessories | CO2 regulator, beer lines, 2 tap handles, keg couplers |
| Maintenance | Clean beer lines every 2 weeks; replace CO2 as needed |

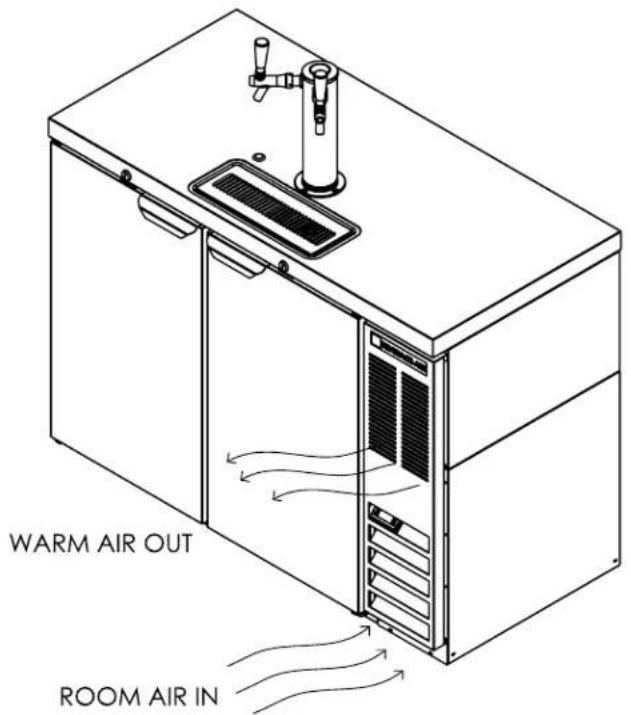

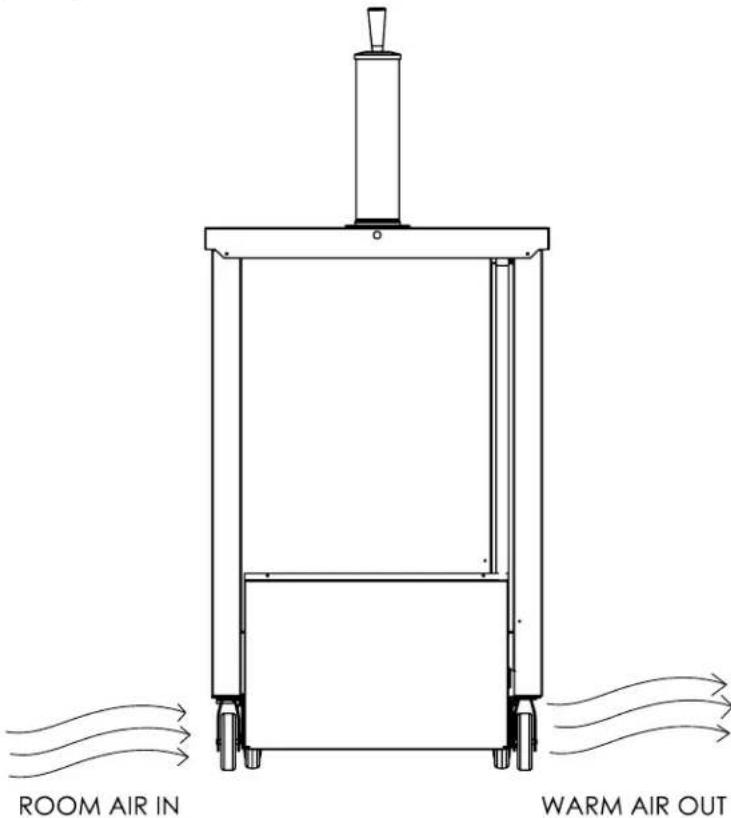

| Safety Features | Auto-defrost, leveling legs, front breathing grille |
| Spare Parts Availability | Through authorized Beverage-Air service centers |
Frequently Asked Questions - DD78HC-1-S Beverage-Air
How do I clean the beer lines on the DD78HC-1-S?
To clean the beer lines, disconnect the keg and flush the lines with a beer line cleaning solution using a hand pump or CO2 pressure. Rinse thoroughly with water. Repeat every 2 weeks to prevent buildup.
What is the optimal serving temperature for this kegerator?
The optimal serving temperature is between 36°F and 38°F. Adjust the digital thermostat to maintain this range for best flavor and carbonation.
How do I change a keg?

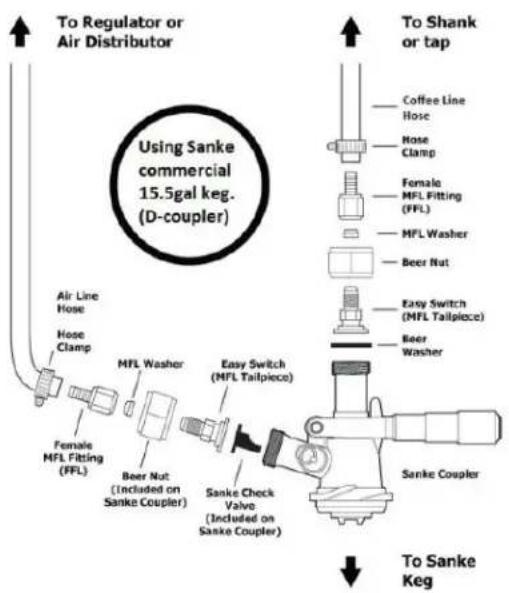

First, relieve pressure by pulling the relief valve on the regulator. Disconnect the beer line and coupler from the empty keg. Remove the empty keg and slide in a full one. Attach the coupler and reconnect the beer line. Open the CO2 tank and check for leaks.
How do I connect the CO2 tank?

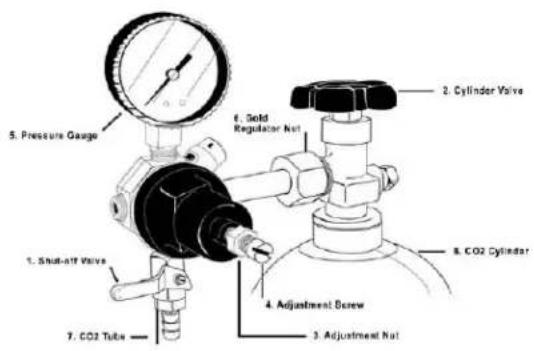

Attach the CO2 regulator to the tank hand-tight. Connect the gas line from the regulator to the keg coupler. Open the tank valve slowly and set the regulator to 10-15 PSI for most beers.
Why is my beer foamy when poured?
Foaming can be caused by several factors: temperature too warm, CO2 pressure too high, dirty lines, or improper glassware. Ensure the beer is at 36-38°F, pressure is correct, and lines are clean.

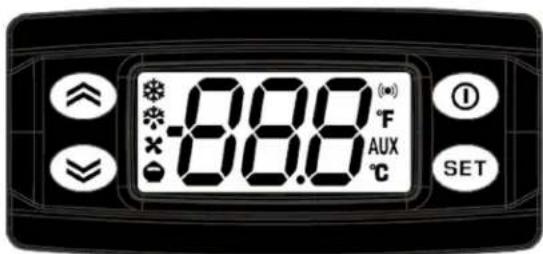

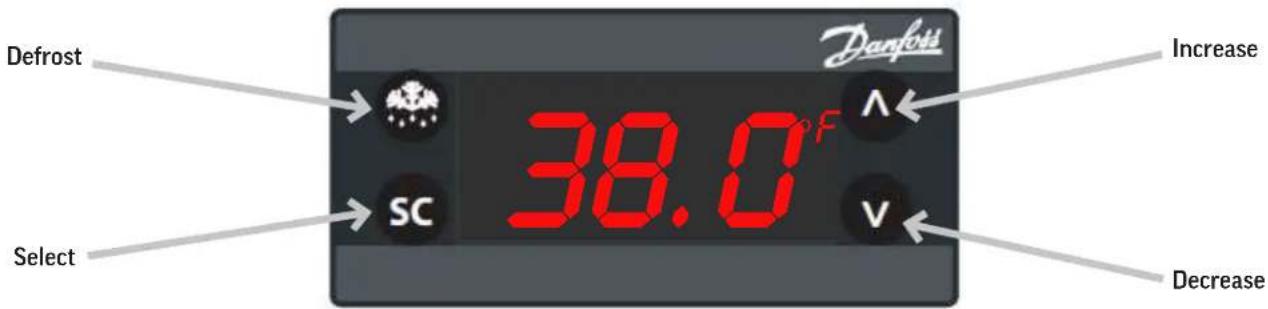

How do I adjust the temperature on the DD78HC-1-S?

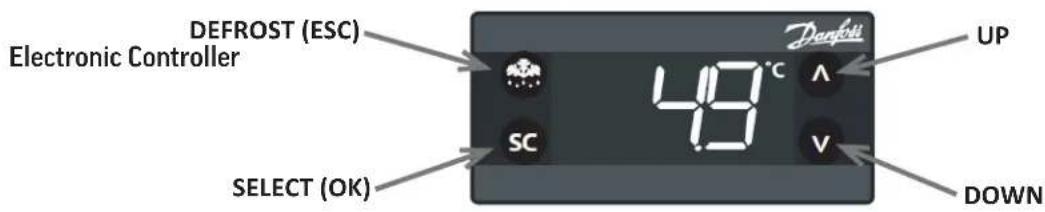

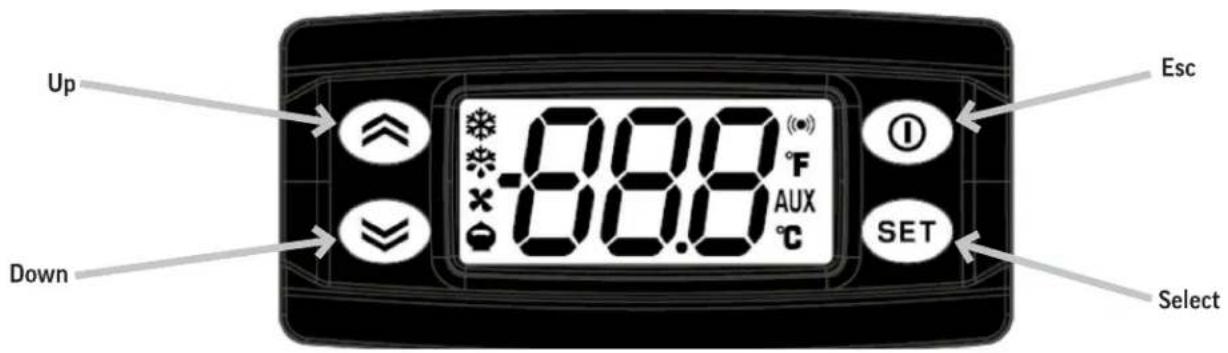

Use the digital control panel located on the front or top. Press the up/down arrows to set the desired temperature. The unit will maintain that temperature within a tolerance of ±2°F.
What are the dimensions of the DD78HC-1-S?

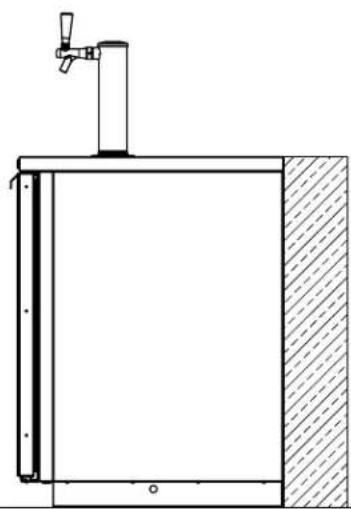

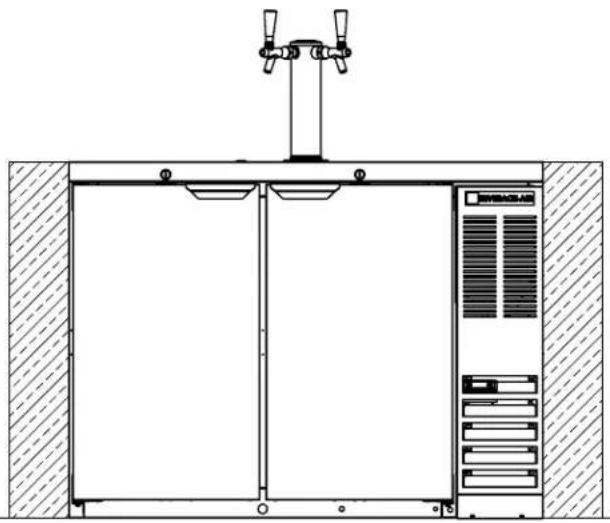

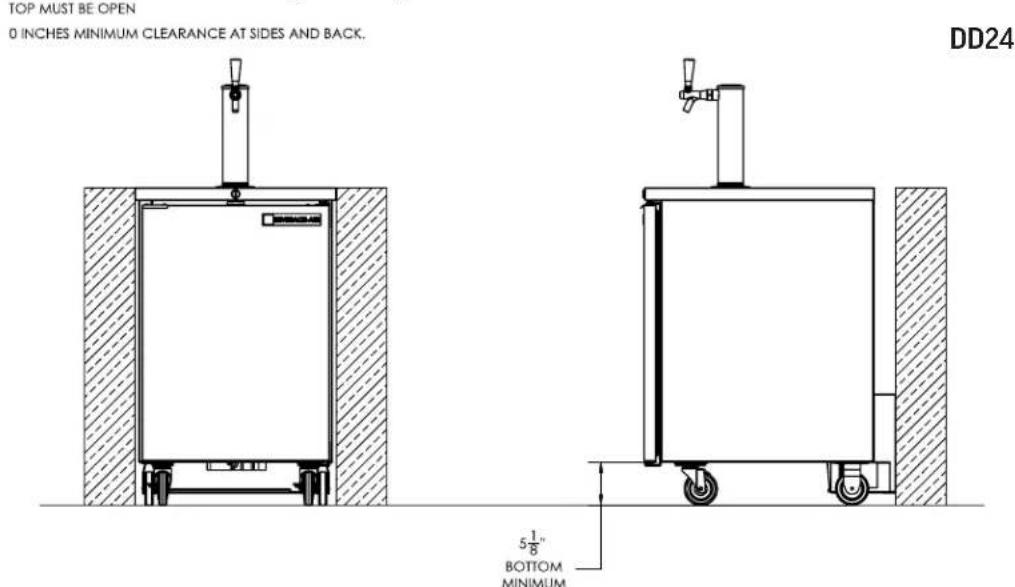

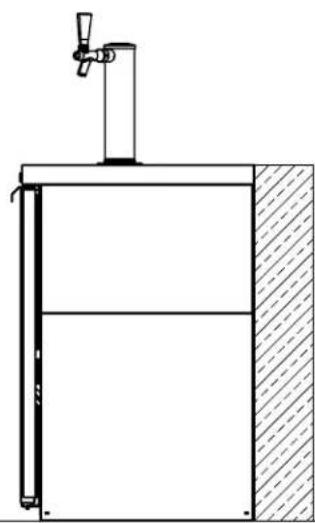

The exterior dimensions are approximately 30.25 inches wide, 24 inches deep, and 33.5 inches high. Ensure adequate clearance for ventilation (2 inches on sides, 4 inches rear).
Does the DD78HC-1-S come with a CO2 tank?
No, a CO2 tank is not included. You need to purchase a standard 5-10 lb CO2 tank separately. The unit includes a regulator and gas lines.
What should I do if the kegerator is not cooling?
First, check the power cord and circuit breaker. Ensure the thermostat is set below room temperature. Clean the condenser coils if dusty. If still not cooling, contact Beverage-Air service.
How do I install the drip tray?
Slide the drip tray into the slots on the front of the unit until it clicks into place. Ensure it is level. For cleaning, pull the tray forward to remove it. Hand wash with mild soap.
User questions about DD78HC-1-S Beverage-Air
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
