| Brand | Air King |
| Model | 9145 / 6C507D |
| Product Type | Clip-on Air Circulator Fan |
| Blade Diameter | 6 inches (15.2 cm) |
| Number of Blades | 3 |
| Motor | 120V, 50/60 Hz, permanently pre-lubricated |
| Speeds | 2 (Low, High) |
| Airflow (CFM) - High | 190 CFM |
| Airflow (CFM) - Low | 90 CFM |
| Power Cord Length | 6 feet (1.8 m) |
| Control Type | Rotary switch (rear of motor housing) |
| Head Adjustment | Adjustable vertical tilt and 360° head pivot |
| Clip Capacity | Fits structures 3/4" to 1-1/8" thick |
| Mounting Options | Clip-on or wall mount (screw not included) |
| Safety Features | ETL listed, OSHA-compliant close mesh guard, Blue Plug™ with fuse |
| Noise Level (High) | 37 dB |
| Noise Level (Low) | 34 dB |
| Power Consumption (High) | 12 Watts |
| Power Consumption (Low) | 8 Watts |
| Warranty | 1 year limited (original purchaser only) |
| Cleaning Instructions | Unplug, use mild soap solution, dry completely |
| Lubrication | Sealed bearings; no lubrication required |
| Certifications | ETL listed (US and Canada) |
| Replacement Parts Available | Yes (see parts list in manual) |
Frequently Asked Questions - 9145 Air King
User questions about 9145 Air King
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Household Fan in PDF format for free! Find your manual 9145 - Air King and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 9145 by Air King.
USER MANUAL 9145 Air King
LISTA DE REPUESTOS
| NO. REF | PARTENO. | DESCRIPCIÓN | CANT. | NO. REF | PARTENO. | DESCRIPCIÓN | CANT. | |
| 1 | 2096067OR | Ornamento 1 | ||||||
| 2 | 020 | 096067 Rejilla | frontal 1 | 7 | 2011330 Sujete Almohadilla | 2 | ||
| 3 | 2011903 | Paletas 1 | 8 | 02090058 Tornillo #8 x 7/16 PTH | 1 | |||
| 4 | 20 | 1790 Rejilla | Trasera 1 | 9 | 2011340 El Clip superior | 1 | ||
| 5 | 2091149BP | Muelle | 1 | 10 | 2011390 | El Túnel de Detent | 1 | |
| 6 | 20 | 1345 Mordaza inferior | 1 | 11 | 02030079WG | Asamblaje del Motor* | 1 | |
= La Asamblea motriz viene completa con Cable, Cambia y Cambia la Perilla
OPERATING INSTRUCTIONS & PARTS MANUAL
6" CLIP-ON AIR CIRCULATOR
MODEL 6C507D/9145D
This Fan is for residential use only.
It is not intended to be used in commercial, industrial or agricultural settings.
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
⚠ WARNING
IMPORTANT SAFETY INFORMATION
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:
Read all instructions before using this Fan.
⚠ WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, ALWAYS FOLLOW THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:
DO NOT use this fan to ventilate areas where flammable liquids or vapors are used, stored or are present, including paints, gasoline, varnishes, floor refinishing products or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products!
ALWAYS be sure the plug fits tightly into the outlet. When plugs fit loosely into outlets, they may slip partially out of the outlet and create a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition should be replaced by a qualified electrician.
ALWAYS unplug the power cord when servicing, cleaning or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in. ALWAYS turn off and unplug the Fan when not in use.
BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or other power source.
The Blue Plug™ on your AirKing fan is a safety feature. It contains a non-replaceable safety device (fuse) that should not be removed or tampered with. To reduce the risk of fire, electric shock and personal injury, DO NOT attempt to remove, replace, repair or tamper with the originally supplied plug. If the Fan has stopped functioning, it may be due to the safety device incorporated in this plug.
The power cord is equipped with a three-prong grounded plug that must be inserted into a matching receptacle. Under no circumstances should the grounding prong be cut off the plug. Where a two-prong wall receptacle is encountered, it must be replaced with a properly grounded three-prong receptacle installed in accordance with the National Electrical Code (NEC) and all applicable local codes and ordinances. This work must be done only by a qualified electrician, using copper wire only. DO NOT USE A THREE-PRONG TO TWO-PRONG ADAPTER. IMPROPER CONNECTION MAY CREATE THE RISK OF ELECTRICAL SHOCK. USE OF SUCH ADAPTERS IS NOT PERMITTED IN CANADA.
WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN INSTALLING OR SERVICING THE FAN. ALWAYS UNPLUG THE POWER CORD.
CAUTION
- AVOID the use of extension cords, power strips, power taps, outlet style air fresheners or other cord connected device, as these devices may overheat and cause a fire hazard.
- DO NOT route power cord under rugs, carpets, runners or furniture. This may damage the cord or cause it to overheat creating a fire hazard. - ALWAYS place the Fan on a stable, flat, level surface while in operation to prevent the Fan from overturning. - NEVER insert or allow fingers or objects to enter grill openings while Fan is in operation or injury and/or damage to the Fan may occur. - DO NOT block, cover or obstruct air flow to or from the fan while in operation.
- DO NOT use this Fan outdoors or near water or wet locations such as a bath tub, pool or hot tub. Use of this Fan in a wet location may create a shock hazard.
- DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
- NEVER use a single extension cord to operate more than one Fan or other electrical device. - DO NOT use this Fan if it has been damaged or is not functioning properly.
- THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008). This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for agricultural buildings.
- THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for hazardous locations.
SAVE THESE INSTRUCTIONS
Rev. R 1/18
2085299A
MODELO 6C507D/9145D
DESCRIPCIÓN
The Air King ^® 6" (15.2 cm) Clip-On Air Circulator features whisper-quiet operation, rotary switch control with adjustable vertical tilt and 360° head pivot. The six-inch (15.2 cm), 3-paddle fan blade is powered by a permanently pre-lubricated motor.
SPECIFICATIONS
Motor.....120V, 50/60 Hz
Blade diameter ....6" (15.2 cm)
Cord 6 ft. (1.8 m), 18/3
Speeds....2
Control ......Rotary Switch
Approvals....ETL listed. Close mesh fan guard meets
OSHA requirements. ASSEMBLY
ASSEMBLY
PACKAGE CONTENTS
Check to see that you have received all of the following parts:
A. Fan Head Assembly B. Clip Assembly
-
Insert the Fan Head Assembly into top of the Clip Assembly until fully seated. (Figure 1)
-
WALLMOUNT USE: Install a Screw (#8 x 3/4" Wood Screw or equivalent - not supplied) i
the wall and hang the Clip Assembly on the Screw. (Figure 2)
OPERATION
-
Clip fan to a structure that is between 3/4" and 1 1/8" thick. Clipping the fan to structures with greater or lesser widths may lead to instability.
-
SPEED: Speed is controlled by the three-position rotary switch located on rear of the motor housing.
0 - OFF
2 - High Speed
1 - Low Speed
-
ANGLE ADJUSTMENT: Loosen knob under fan head. Tilt head to desired air flow position. Retighten knob.
-
POWER SUPPLY CORD: Plug power supply cord into wall outlet (120V AC, 60 Hz).
MAINTENANCE
WARNING
| MODEL | 6C507D/9145D | |
| SPEED | HIGH | LOW |
| CFM | 190 90 | |
| M^3/s | 0.09 0.04 | |
| RPM | 2020 | 1740 |
| Amps | 0.19 0.14 | |
| Watts | 12 | 9 |
| dB A | 37 | 34 |
WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING THE FAN. WARNING: DO NOT IMMERSE FAN IN WATER
CLEANING: Use a soft cloth moistened with a mild soap solution, such as liquid dish washing detergent. Dry ALL PARTS COMPLETELY before reassembling. After any maintenance or servicing, COMPLETELY REASSEMBLE unit as described in this instruction manual before reconnecting to the power supply.
CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners, etc. as they will damage the Fan. NEVER use ALCOHOL OR SOLVENTS.
LUBRICATION: Precision bearings are sealed at the factory for life and will not require any further lubrication. STORAGE: Store the Fan, with these instructions, in a cool, dry place.
DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com®.
LIMITED WARRANTY
Air King America, LLC LIMITED WARRANTY
(VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)
WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials. HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.
WHAT Air King WILL DO: Air King will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Air King America, LLC at customer expense with proof of purchase within the warranty period. Contact the Air King customer service department to obtain a Return Authorization ("RA"). DO NOT return products without an RA or the warranty claim will not be processed.
WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or repair. The warranty is not intended to be made in accordance with the applicable standards of products to Air King for repair or replacement. Air King will pay return shipping charges from Air King following warranty repairs or replacement. ANY AND ALL WARRANTIES EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLED WARRANTY OF MERCHANTABILITY) SHALL NOT BE USED IN ANY OTHER COMPRIMATE THIS WARRANTY. ANY INFORMATION CONTACT THE INFORMATION CONTACTS, IF you want to use this warranty, please contact your respective website at www.har.circuit breakers or receptacles. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL AIR King'S LIABILITY UNDER ANY EXPIRATION OR IMplied WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UP Under THIS WARRANTY. Please refer to the requirements of this warranty.
Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.
Proof of purchase is required before a warranty claim will be accepted.
Rev. R 1/18
3
2085299A
MODEL 6C507D/9145D

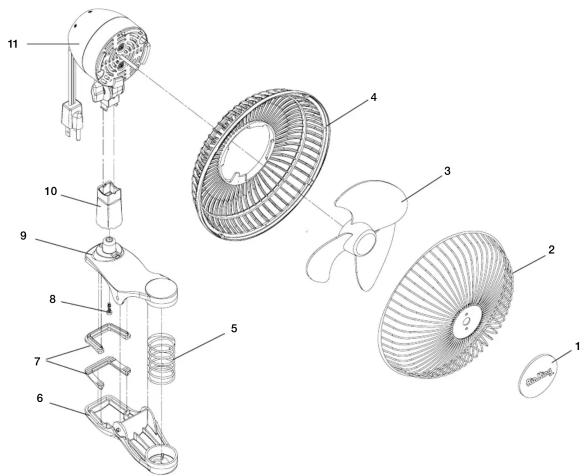

REPLACEMENT PARTS LIST
| REF NO. | PART NO. | DESCRIPTION | QTY. | REF NO. | PART NO. | DESCRIPTION | QTY. |
| 1 | 2096067OR | Ornament | 1 | 7 | 2011330 Clip | Pad 2 | |
| 2 | 02096067 | Front Grill | 1 | 8 020 | 90058 Screw #3 x 7/16" PTH 1 | ||
| 3 | 2011903 | Blade | 1 | 9 201 | 1340 Upper Clip 1 | ||
| 4 | 2011790 | Rear Grill | 1 | 10 | 2011390 Detent Shaft | 1 | |
| 5 | 2091149BP | Spring | 1 | 11 | 02030079WG | Motor Assembly* | 1 |
| 6 | 2011345 | Lower Clip 1 | |||||
= Motor Assembly comes complete with Cordset, Switch and Switch Knob
Manual printed in USA
- OPERATING INSTRUCTIONS & PARTS MANUAL
- 6" CLIP-ON AIR CIRCULATOR
- READ AND SAVE THESE INSTRUCTIONS
- ⚠ WARNING
- IMPORTANT SAFETY INFORMATION
- CAUTION
- SAVE THESE INSTRUCTIONS
- MODELO 6C507D/9145D
- DESCRIPCIÓN
- SPECIFICATIONS
- OSHA requirements. ASSEMBLY
- ASSEMBLY
- OPERATION
- MAINTENANCE
- LIMITED WARRANTY
- MODEL 6C507D/9145D
