Product Type	Belt-Driven Turntable
Model	Fusion CR6041A
Brand	Crosley
Dimensions (W x D x H)	16.5 x 12.5 x 5.0 inches
Weight	8.2 lbs
Power Supply	AC 120V, 60Hz
Power Consumption	15W
Speeds	33 1/3, 45, 78 RPM
Built-in Speakers	Yes, two stereo speakers
Bluetooth	Bluetooth 5.0 for wireless output
USB Recording	Records vinyl to MP3 via USB
Audio Output	RCA line-out, 3.5mm headphone jack
Cartridge	Moving magnetic (MM) cartridge
Stylus	Replaceable diamond stylus
Dust Cover	Removable hinged dust cover
Tonearm	Balanced S-shaped tonearm with hydraulic lift
Anti-Skate	Adjustable anti-skate control
Maintenance	Clean stylus with brush; replace belt every 2-3 years
Safety	Keep away from liquids, direct sunlight, and heat sources
Spare Parts	Stylus, belt, and cartridge are replaceable

Frequently Asked Questions - Fusion CR6041A Crosley

How do I set up the Crosley Fusion CR6041A turntable?

Place the turntable on a stable surface. Remove the packing materials, lift the dust cover, and install the platter and belt carefully. Connect the power adapter and plug into an outlet. Place a record on the platter and select the desired speed.

Can I connect the turntable to external speakers?

Yes, use the RCA line-out jacks on the back to connect to powered speakers or a receiver. You can also use Bluetooth to stream wirelessly to compatible speakers or headphones.

How do I record vinyl to MP3 via USB?

Connect the turntable to your computer using the USB cable. Insert a record and play it. Use recording software (like Audacity) to capture the audio. The turntable converts the analog signal to digital for direct recording.

What speeds does the Fusion CR6041A support?

It supports 33 1/3, 45, and 78 RPM records. Use the speed selector switch on the front panel to change speeds.

How do I replace the stylus?

Gently remove the old stylus by pulling it out of the cartridge. Align the new stylus and push it in until it clicks. Ensure it is properly seated before playing records.

Why is the sound distorted or low volume?

Check if the stylus is clean and properly aligned. Ensure the turntable is on a stable surface. Adjust the tracking force and anti-skate if needed. Also verify that the speakers or external system are working correctly.

Does the turntable have a built-in preamp?

Yes, the Fusion CR6041A has a built-in phono preamp. It allows connection to standard line-level inputs without an external preamp.

How do I maintain the turntable?

Keep the dust cover closed when not in use. Clean the stylus with a soft brush after each use. Replace the belt every 2-3 years. Avoid touching the record grooves and store records in sleeves.

Can I use the turntable with a Bluetooth transmitter?

The turntable already has built-in Bluetooth output, so no external transmitter is needed. Pair it with Bluetooth speakers or headphones directly.

What should I do if the turntable does not power on?

Ensure the power adapter is securely connected to both the turntable and a working outlet. Check for any damaged cables. If the problem persists, contact Crosley customer support for assistance.

USER MANUAL Fusion CR6041A Crosley

Fusion Turntable Combo

Instruction Manual

Line drawing of a rectangular toolbox with a handle and clip (no text or symbols)

Line drawing of a portable stove or gas stove with control panel and fan (no text or symbols)

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storm or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Turntable
• 45 RPM adapter
• Power adaptor

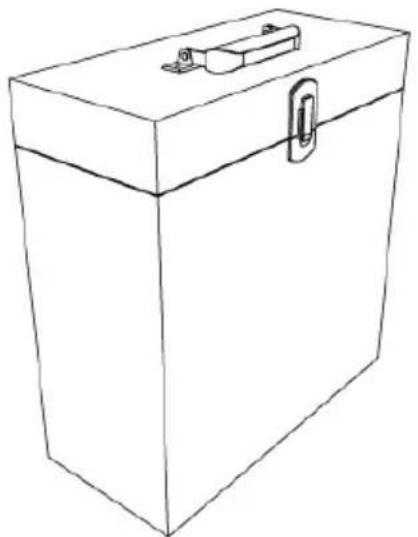

• Record Carrying Case

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power AC power adaptor, DC output 5V 1A

Power consumption 5W

Speaker 4Ω, 5W

Turntable speed 33 ^1/_3 , 45, 78 RPM

Replacement needle Crosley NP6

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

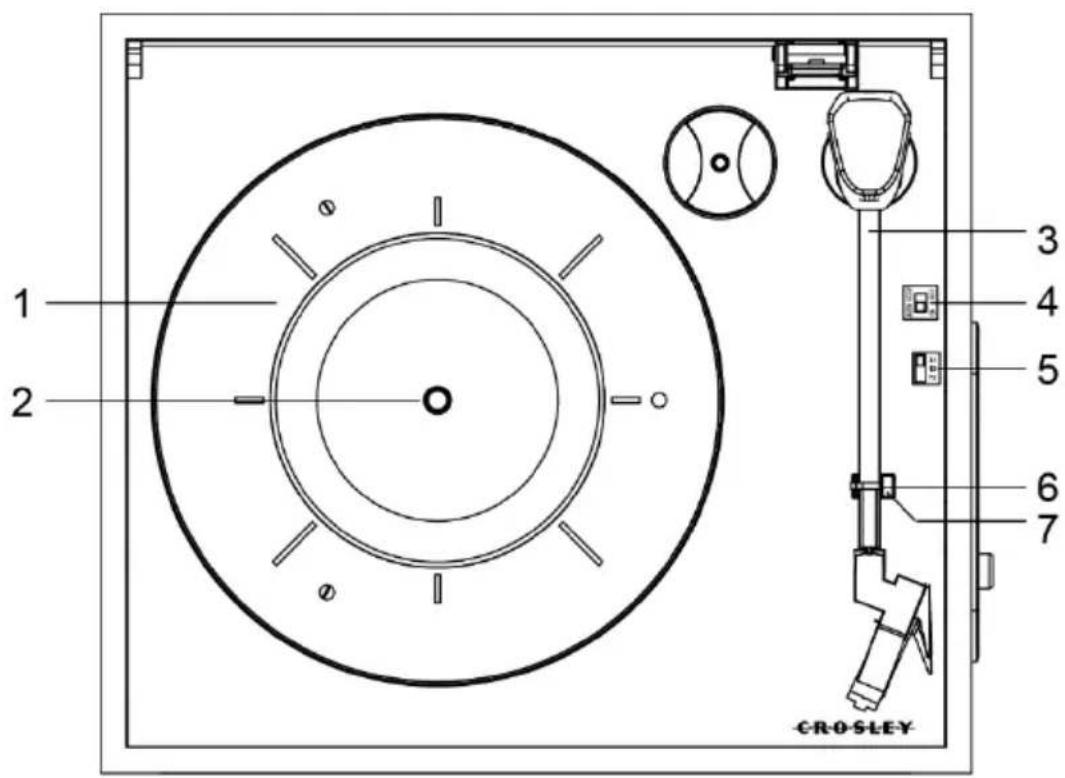

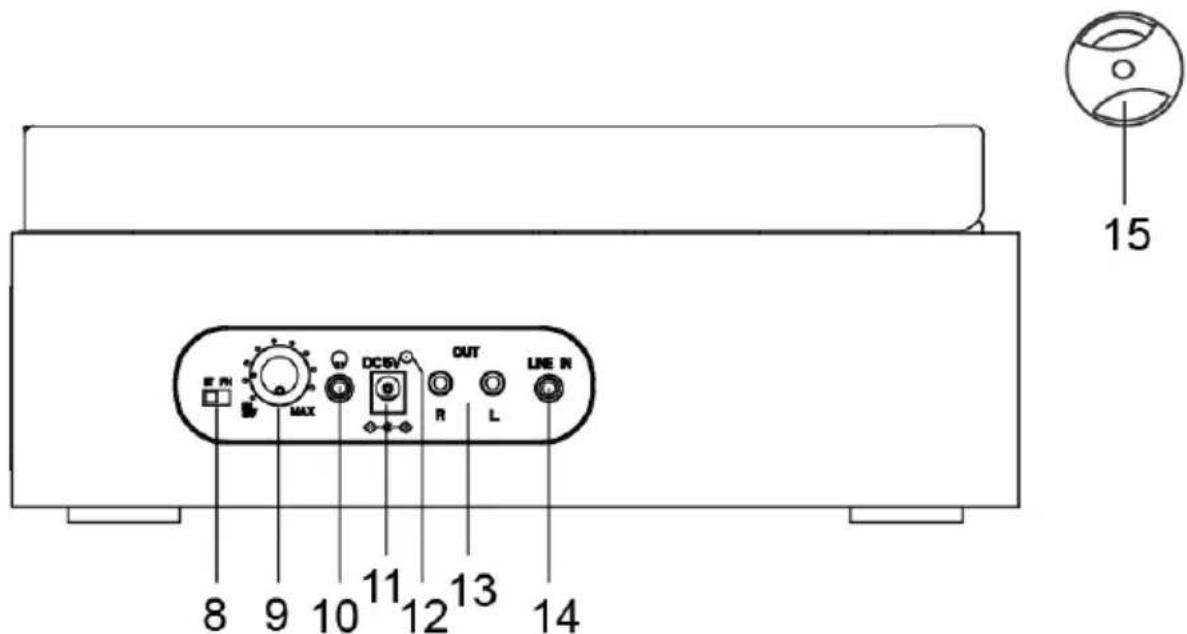

Product Description

1. Turntable Platter
2. Turntable Spindle
3. Tonearm
4. Auto-stop Switch
5. Speed Switch
6. Hold Down Clip
7. Tonearm Rest

8. Function Switch

9. On/Off-Volume Knob

10. Headphone Jack
11. Power Jack
12. Function Indicator
13. RCA Jacks
14. Aux In Jack
15. 45 RPM Adapter

Initial Setup

Essential Setup

1. Remove the unit from the record carrying case.
2. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
3. Remove the tie-wrap that is holding the tonearm.
4. Connect AC adaptor to the Power Jack of the unit.

Note: Do not plug the AC power adaptor to power outlet before all the assembly is completed. Before turning the power on, make sure again all the connection settings are correct. Always turn off the power when connecting or disconnecting.

Stereo System Connection

RCA Jacks

• The RCA Jacks output analog line-level signals and could be connected directly with a pair of active/powered speakers or the appropriate input of your stereo system.
• The Red plug connects with the Right channel and the White plug connects with the Left channel.

Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered speakers. If connected to the passive speakers, the volume level will be very low.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, connect the 3.5mm auxiliary cable between your audio device and the Aux In Jack of this unit and start playing the music.

Note:

The aux in connection will automatically override the turntable and Bluetooth functions. To resume using the turntable or Bluetooth functions, unplug the auxiliary cable from the aux in jack.

The Function Indicator will be purple.

Turntable Operation

1. Rotate the On/Off Volume Knob to turn on the power.
2. Set the Function Switch to PHONO position.
   Note: The Function Indicator will be red.
3. Set the Speed Switch accordingly.

4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.

5. Remove the stylus protector from the stylus assembly.
   Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.

6. Release the tonearm Hold Down Clip.
   Note: when the turntable is not in use, remember to lock back hold down clip.
7. Lift up the Tonearm and move it over the record where play is desired to begin. Gently put down the Tonearm and begin the playback.
8. When the record is finished playing, gently lift up the Tonearm and move it back to the Tonearm Rest.
9. Lock the Tonearm Clip to secure the tonearm.

Platter Auto-stop

If the Auto-stop Switch is set to ON position, the platter will stop spinning automatically when the record plays to the end. In some rare occasion, if the turntable stops playing before the end of the record, set the switch to OFF position the turntable should overcome this issue.

Needle Replacement

Removing Needle

1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.

Diagram of a mechanical component with a red highlighted section and a downward arrow, no text or symbols present.

Diagram of a mechanical tool with a red component and black directional arrow (no text or symbols)

Diagram of a mechanical device with a red component and directional arrows indicating motion (no text or symbols)

Installing Needle

1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the front of the needle upward until it snaps into place.

Diagram of a mechanical component with a red base and a gray handle (no text or symbols)

Technical illustration of a mechanical component with red clamped parts (no text or symbols)

Bluetooth Operation

1. Turn the Function Switch to Bluetooth mode *, you will hear an activation sound from the unit.
   Note: The function indicator will be flashing blue.
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR6041A" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit, and the function indicator will be blue.
4. Play and stream music from your device to the unit.

Note: Bluetooth version - 5.0

Turntable Maintenance

1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record's edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth.

Note: Do not use cleanser other that contains alcohol, benzene or any other harsh chemicals, which might damage the paint and finish of the turntable.

** Crosley offers a product line of different cleaning accessories. Please ask your retailer or check out our website www.crosleyradio.com for more cleaning product information.

Troubleshooting

There is no power

• Power adaptor is not connected correctly.
• No power at the power outlet.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, turn off the power and turn it on again.

Power is on, but the platter does not turn

• Turntable's drive belt has slipped off.
• An aux in cable is plugged into the aux in jack, unplug it.

Turntable is spinning, but there is no sound, or sound not loud enough

• Stylus protector is still on.
• Tone arm is lift up by the lever.
  • Headphone is plugged in.

FCC Statements

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
