Product Type	Freestanding Washer-Dryer
Model	WSD-G69S
Brand	Infiniton

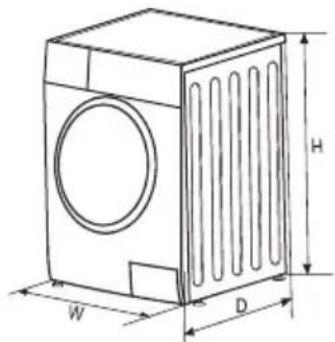

Dimensions (W x D x H)	595 x 475 x 850 mm
Net Weight	65 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	1900 W
Max Current	10 A
Water Pressure Range	0.05 - 1 MPa
Washing Capacity	8.0 kg
Drying Capacity	6.0 kg
Max Spin Speed	1500 rpm
Energy Efficiency Class (Wash)	B
Energy Efficiency Class (Wash & Dry)	E
Water Consumption (Eco 40-60 Full Load)	48 L/cycle
Energy Consumption (Eco 40-60 Full Load)	0.871 kWh/cycle
Programmes	1 Hour W/D, Wash & Dry, Quick 15', Dry Only, Air Wash, Allergy Care, Steam Care, Spin Only, 20°C, Wool, Mix, Synthetic, ECO 40-60, Intensive, Cotton
Key Features	Delay Start (0-24h), Child Lock, Pre-Wash, Extra Rinse, Speed Wash, Anti-Crease, Reload function, Drying levels (Extra/Normal/Gentle/Air Dry)

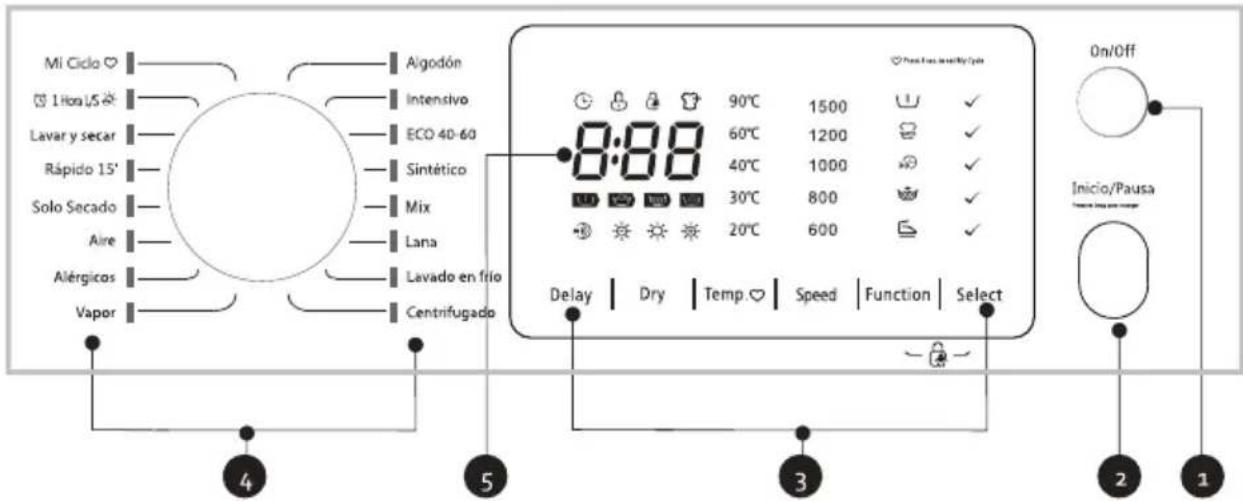

Control Panel	Display with settings, time, and status; rotary dial and touch buttons

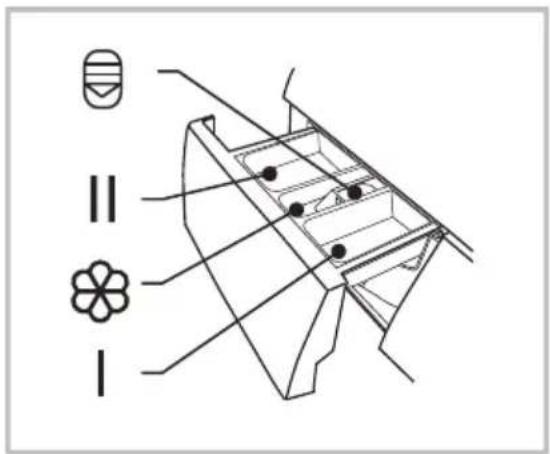

Dispenser	3 compartments: pre-wash, main wash, softener
Cleaning & Maintenance	Clean drum, door seal, detergent drawer, inlet filter, drain pump filter regularly
Safety	Child lock, door lock, hot surface warning, overheat protection
Spare Parts Availability	At least 10 years from purchase
Intended Use	Household only; not for commercial use

Frequently Asked Questions - WSD-G69S Infiniton

How do I install the washer-dryer correctly?

Remove all packaging and transport bolts from the back. Place the machine on a rigid, level surface with at least 2 cm clearance on sides and 10 cm behind. Connect the cold water inlet hose to a tap (0.05-1 MPa) and the drain hose to a trough or standpipe. Ensure the drain hose is not kinked. Adjust the feet to level the machine and tighten the lock nuts. Finally, plug into a grounded outlet.

What should I do before first use?

Run a calibration cycle: empty the drum, plug in, switch on, press Delay and Temp. simultaneously for 10 seconds until 't19' appears, then press Start/Pause. After calibration, run a Cotton 90°C program without laundry or detergent to clean the drum.

How do I set the Child Lock?

Press and hold the Option and Select buttons simultaneously for 3 seconds until a buzzer sounds. When activated, 'CL' and remaining time alternate on the display. To release, repeat the same process. Child Lock locks all buttons except Power and Child Lock.

What does error code E30 mean?

E30 indicates the door is not properly closed. Ensure no clothes are stuck and the door is fully shut. Restart the machine. If the issue persists, contact customer service.

How do I use the Delay Start function?

Select your program, press Delay repeatedly to set a delay time from 0 to 24 hours. Then press Start/Pause. The machine will start at the set time. To cancel, press Delay until 0H shows, before starting the program.

Can I open the door during a cycle?

Yes, use the Reload function: press Start/Pause for 3 seconds until the drum stops and the door unlocks. Add or remove laundry, close the door, and press Start/Pause again. Do not force the door open.

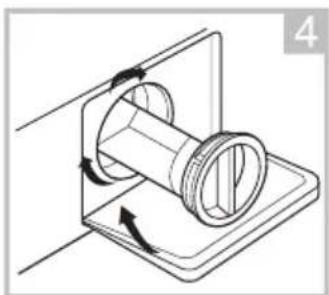

How do I clean the drain pump filter?

Unplug the machine and let the water cool. Open the lower cover cap, turn the filter counterclockwise to remove, and clean out any lint or foreign objects. Reinsert and tighten securely. Check monthly.

What detergents should I use?

Use low-sudsing, machine-wash detergents. For white cotton, use heavy-duty detergent with bleach. For colors, use color detergent without bleach. For delicates and wool, use specialized mild detergents. Always follow the dosage instructions.

Why is the machine vibrating excessively?

Ensure transport bolts are removed. Check that the machine is level on a solid floor. Adjust the feet. Avoid overloading or unbalanced loads. Distribute laundry evenly.

Where can I find spare parts or get repairs?

Spare parts are available for at least 10 years. For service, visit rmablanca.infiniton.es for white goods or rma.infiniton.es for other products. You can also email [e-mail] or call 902 676 518. Provide model and serial number.

USER MANUAL WSD-G69S Infiniton

Simple line drawing of a box with a diagonal X mark on the side, no text or symbols present.

Illustration of a box with an upward arrow and a magnified inset showing a small figure on a platform (no text or symbols)

Hand using a tool to adjust or install a washing machine (no text or symbols visible)

Conecte la manguera de suministro de agua

Advertencia!

Nota!

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

Advertencia!

Simple line drawing of a sweater with a tag and tie, no text or symbols present

Revisa la etiqueta

Line drawing of two backpacks with ropes and a circular design on the cover (no text or symbols)

Simple line drawing of a bag with a bag inside, containing small objects (no text or symbols)

Line drawing of a knitted sweater with pleated design (no text or symbols)

Simple line drawing of a basket with an arrow indicating rotation or folding process (no text or symbols)

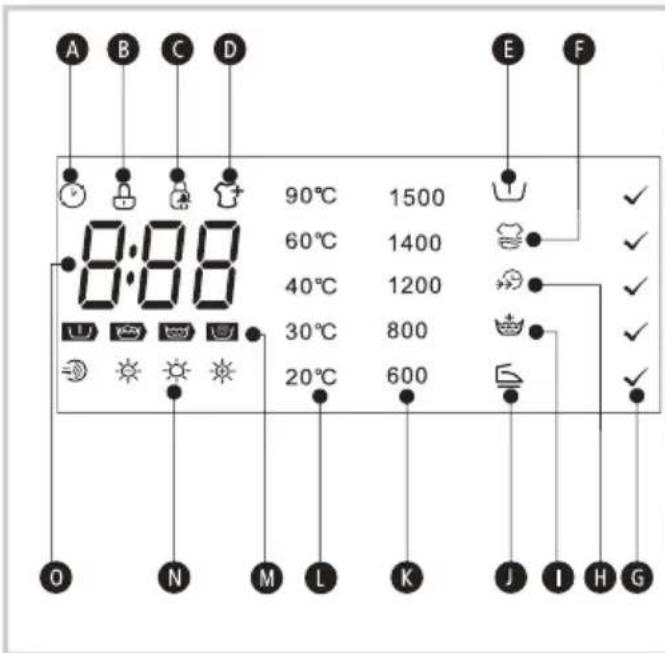

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

Nota!

A Diferido G Confirmar

B Bloq. Puerta H Vel. Lavado

© Bloq. Infantil 1 Extra Rinse

D Recargar J Anti-arrugas

E Prelavado K Centrifugado

F Lav. Extra L Temp.

Line drawing of a hand washing a washing machine with a circular vent (no text or symbols)

Nota!

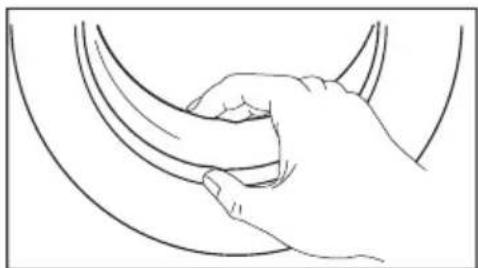

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a mechanical valve or drain with rotating flow arrows indicating motion (no text or symbols)

Line drawing of a hand holding a microphone with a tool inserted (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with a magnified inset showing the mechanical component (no text or symbols present)

Simple line drawing of a tennis racket being inserted into a table (no text or symbols)

Nota!

Technical line drawing of a mechanical component with internal channels and a labeled section (no text or symbols)

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Illustration of a hand using a tool to clean or store contents inside a container (no text or symbols visible)

Technical line drawing of a mechanical component with internal compartments and a handle (no text or symbols)

Line drawing of a hand using a tool to lift a curved component, with arrows indicating direction (no text or symbols)

Hand holding a light bulb with a rotary knob, next to a switch (no text or symbols visible)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Model		Washing Capacity Drying Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
WSD-G68G	WSD-G69S/	8.0/6.okg	595*475*850	65kg	1900W

Supplier's name or trade mark:
Supplier's address (°):
Model identifier: WSD-G68G WSD-G69S/
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (kg)	Rated capacity ( ^b )	6.0	Dimensions in cm	Height	85
	Rated washing capacity ( ^a )	8.0		Width	60
				Depth	47
Energy Efficiency Index	EEI_W(^a)	60.0	Energy efficiency class	EEI_W(^a)	B
	EEI_WD^(b)	82.0		EEI_WD^(b)	E
Washing efficiency index	I_W(^a)	1.031	Rinsing effectiveness (g/kg dry textile)	I_R(^a)	5.0
	J_W^(b)	1.031		J_R^(b)	5.0
Energy consumption in kWh per kg per cycle, for the washing cycle of the household washer-dryer, using the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used	0.545		Energy consumption in kWh per kg per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used	3.768
Water consumption in litre per cycle, for the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	48		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	90
Maximum temperature inside the treated textile ( ^oC ) ( ^a )	Rated washing capacity	38	Remaining moisture content ( ^a ) (%)	53.9
	Half	38
	Quarter	21
Spin speed (rpm) ( ^a )	Rated washing capacity	1500	Spin-drying efficiency class ( ^a )	B
	Half	1500
	Quarter	1500
Eco 40-60 programme duration (h:min)	Rated washing capacity	3:38	wash and dry cycle duration (h:min)	Rated capacity	9:30
	Half	2:48		Half	6:40
	Quarter	2:48

Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity	80	Airborne acoustical noise emission class for the spinning phase for the eco 40-60 programme at rated washing	C
Type	[built-in/free-standing]	free-standing
Off-mode (W)	0.50	Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00	Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier (¢):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found ^(b) :

^(a) for the eco 40-60 programme. ^(b) for the wash and dry cycle ^(c) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369. ^(d) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Note!

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.

CAUTION: HOT SURFACE!

CAUTION: RISK OF FIRE!

SAFETY INSTRUCTIONS

■ Safety Instructions .... 2

INSTALLATION

■ Product Description 9

■ Installation 10

OPERATION

■ Quick Start 13

■ Before Each Washing 15

■ Detergent Dispenser 16

■ Control Panel 18

■ Programmes....19

■ Option....23

MAINTENANCE

■ Cleaning and Care 27

■ Trouble Shooting 30

■ Technical Specifications 31

■ Product Fiche 32

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

⚠ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

① Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  Risk of electric shock!

•The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.
  •Children 3 years and under shall be kept away from the appliance or continuously supervised.
  •Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.

• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.
  •The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer.

• Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
  • This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washer dryer, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
  • Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical specifications" table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

⚠ Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
  •Always pull at the plug, not at the cable.
  •Always unplug the appliance if it is not being used.

WATER CONNECTIONS

- Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.

• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.

• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.

- Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never stop the washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat can dissipate.
• The washer dryer is not to be used if industrial chemicals have been used for cleaning. Risk of explosion.

- Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.

• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.

- Remove all objects from pockets such as lighters and matches before use the appliance.

• Thoroughly rinse items that have been washed by hand.

- Do not dry unwashed items in the appliance.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

- Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine

- Fabric softeners or similar products should be used as recommended in their instructions.

- Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.

- Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

•Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
- Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

•Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person
-Accumulated water shall be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

•This appliance is intended to be used in household and similar applications such as:
-Staff kitchen areas in shops, offices and other working environments;
-Farm houses;
-By clients in hotels, motels and other residential type environments;
-Bed and breakfast type environments;
-Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

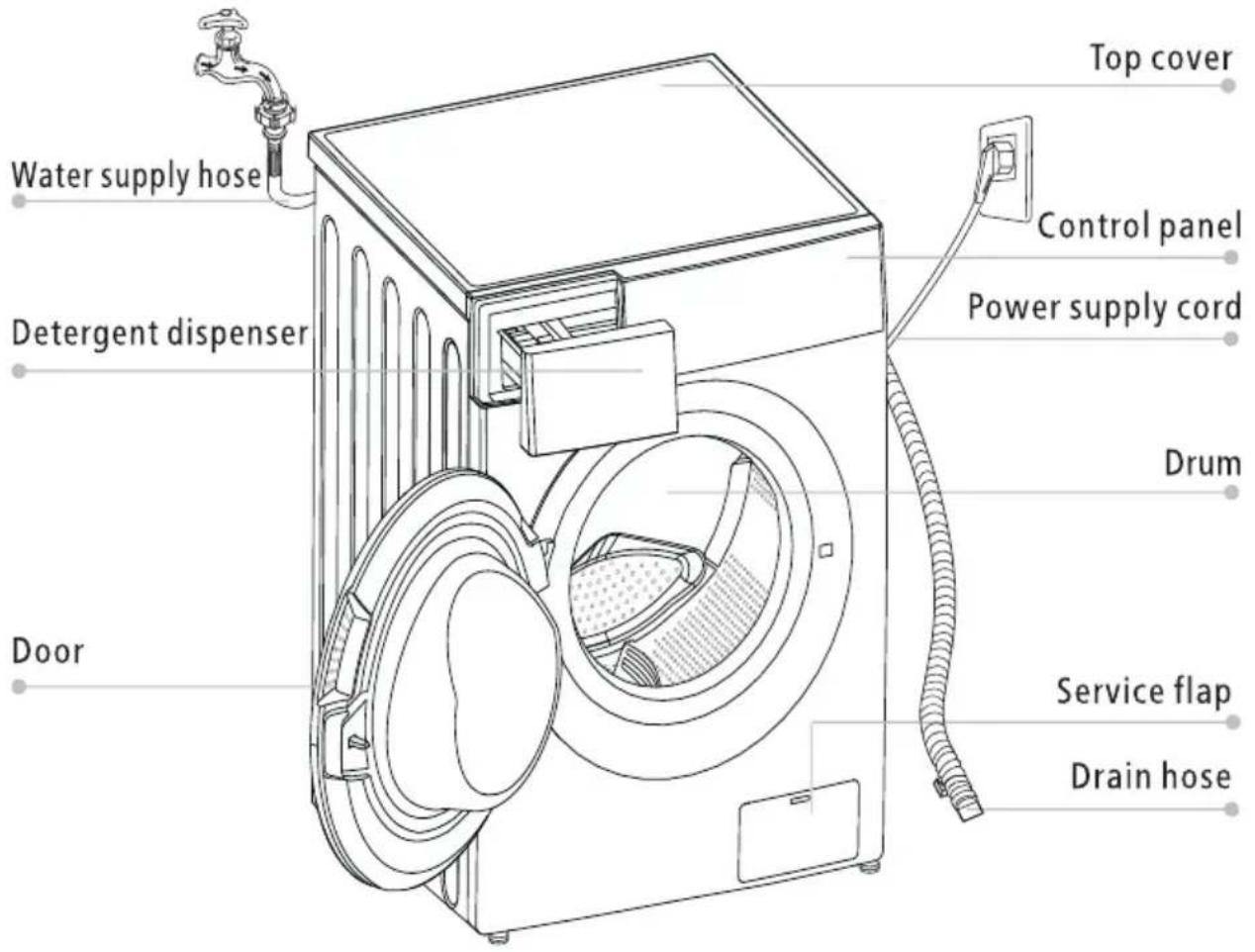

■ Product Description

Note!

- The product picture is for illustration only, please refer to real product as reference.

Accessories

Three-panel image showing 3D head models, a magnifying glass, and an open book (no text or symbols)

4 x Cover caps
1 x Supply hose cold water
1 x Owner's manual

■ Installation

Installation area

⚠ Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation

4. Room temperature is above 0°C

5. Keep far away from the heat sources such as coal or gas burning appliances.

Simple line drawing of a rectangular box with a cross mark on the front face (no text or symbols)

Unpacking the washer dryer

⚠ Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

Diagram of a box with an arrow pointing upward, and a magnified inset showing a small 3D structure labeled 'a' (no text or symbols on the diagram itself)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a mechanical component with a wrench and blue arrow indicating rotation (no text or symbols)

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a blue arrow pointing to a circular feature (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a dark circular object with a blue arrow pointing to it, against a light background (no text or symbols)

Close the holes using the cover caps.

Levelling the washer dryer

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

Close-up of a mechanical component with a blue circular arrow symbol (no text or labels visible)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

⚠ Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify water inlet hose.

Abstract image with two blue arrows pointing outward and a blurred white shape on the left (no text or symbols)

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Close-up of a white mechanical component with blue arrows indicating rotation or movement (no text or symbols)

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

⚠ Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

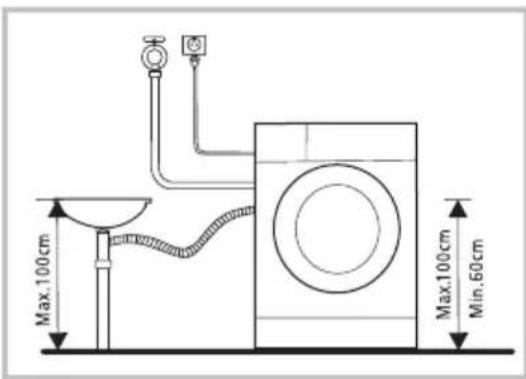

There are two ways to place the end of drain hose:

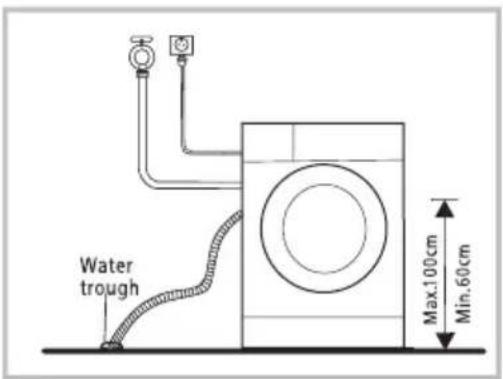

1. Put it into the water trough.

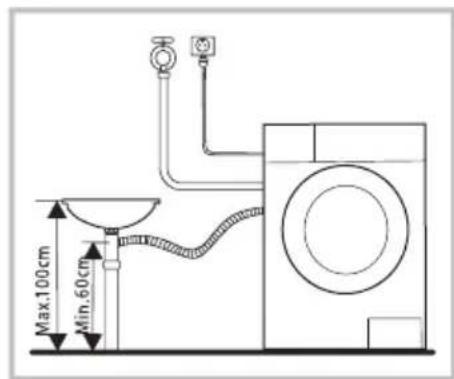

2. Connect it to the branch drain pipe of the trough.

Quick Start

! Caution!

• Before washing, please make sure the washer dryer is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washer dryer, so that provide the best performance.

The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1 - Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washer dryer and press "Delay" and "Temp." simultaneously for 10 seconds until "t19" is displayed;
4- Press [▷II] to start the appliance and wait till "*****" is displayed.

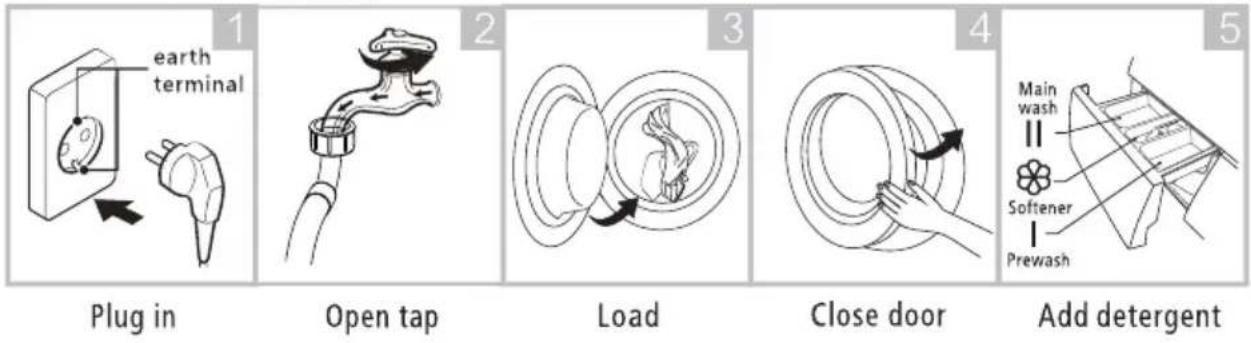

1. Before Washing

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

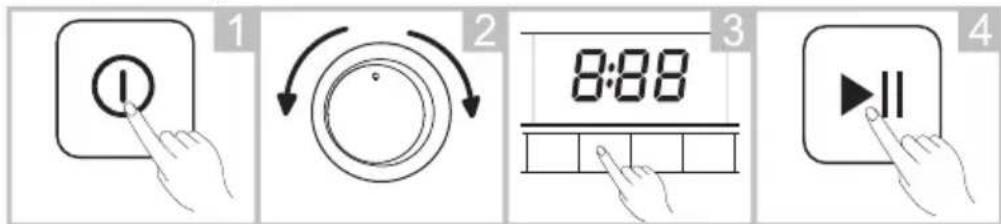

2. Washing

Power on
Select programme
Select function or remain default settings
Press
Start/Pause to start the program

3. After Washing

Buzzer beep and "End" on display.

■ Before Each Washing

• The ambient temperature of the washer dryer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and patterned tie (no text or symbols)

Check the care label

Illustration of a bag being folded into a basket with arrows indicating motion (no text or symbols)

Sort laundry according to color and textile type

Take all items out of the pockets

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

Tie together long textile strips and belts, close zips and button

Simple line drawing of a bag with a bag inside, containing a small object on its side (no text or symbols)

Put small items into a laundry bag

Line drawing of a knitted garment with three arms and textured top (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

⚠ Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

! Caution!

- Detergent only need to be added in "compartment I" after selecting pre-wash function.

Programme	I	II		Programme	I	II
1 Hour W/D		●	○	20°C		●	○
Wash and Dry		●	○	Wool		●	○
Quick 15'		●	○	Mix	○	●	○
Dry Only				Synthetic	○	●	○
Air Wash				ECO 40-60		●	○
Allergy Care	○	●	○	Intensive		●	○
Steam Care	○	●	○	Cotton	○	●	○
Spin Only

● Means must ○ Means optional

Detergent Recommendation

Recommended washing detergent	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	40 / 60 / 90	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	20 / 30 / 40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	20 / 30 / 40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	20 / 30	Delicate textiles, silk, viscose
Special wool detergent	20 / 30 / 40	Wool

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
  • To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
  • Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

Control Panel

1 On/Off

Turn the appliance on and off.

2 Start/Pause

Start or pause your programme.

3 Option

This allows you to select additional functions and will light when selected.

4 Programmes

Available according to the laundry type.

5 Display

The display shows settings, estimated remaining time, options and status messages.

A Delay	G Option Confirm
B Door Lock	H Speed Wash
C Child Lock	I Extra Rinse
D Reload	J Anti-crease
E Pre Wash	K Spin Speed
F Extra Wash	L Temp.
M Rate Of Progress(Pre Wash-Wash-Rinse-Spin)
N Dry level(Air Dry-Gentle Dry-Normal Dry-Extra Dry)
O Wash Time	Delay Time
125	2h
Error	End
E20	End

Programmes

Programme	Load(kg)	Display Time
	8.0	8.0
1 Hour W/D	1.0/1.0	0:58
Wash and Dry	6.0/6.0	5:04
Quick 15'	2.0	0:15
Dry Only	-/6.0	4:14
Air Wash	-/1.0	0:30
Allergy Care	4.0/4.0	2:09
Steam care	4.0/4.0	1:47
Spin Only	8.0	0:12
20°C	4.0	1:01
Wool	2.0	1:07
Mix	8.0/6.0	1:20
Synthetic	4.0/4.0	3:17
ECO 40-60	8.0	3:35
Intensive	8.0	3:48
Cotton	8.0/6.0	3:39

Programmes

Cycle	Nominal capacity in kg	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in mliter//operalling cycle	Highest temperature °C	residual moitsure in % /spin speed
20°C	4.0	1:01	0.15	50	20	65% / 1000
Cotton(60°C)	8.0	3:44	1.498	70	60	53% / 1500
Intensive	8.0	3:48	1.100	70	40	70% / 800
Mix	8.0	1:20	0.75	65	40	70% / 800
Quick 15'	2.0	0:15	0.030	40	Cold	75% / 800
ECO 40-60	8.0	-	0.871	64	38	53%/1500
	4.0	-	0.530	46.3	38	53%/1500
	2.0	-	0.205	33.4	21	53%/1500
Wash and Dry	6.0	-	4.680	108.4	39	0/1200
	3.0	-	2.400	63.5	27	0/1200

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only.
  • Concerning to Regulation(EU) No 1061/2010,
  The EU energy efficiency class is: A
  Energy test program: Intensive;Speed:The highest speed;Temp.: 60°C;
  Other as the default.
  Load for 8.0Kg machine:6.0Kg.
  • Concerning to Regulation(EU) 2019/2023,
  The EU energy efficiency class is: E
  Energy test program: ECO 40-60/Wash & Dry.
  ECO 40-60: as the default
  Half load for 8.0Kg machine:4.0Kg.
  Quarter load for 8.0Kg machine:2.0Kg.
  Wash and dry : dry level: ⚙(Extra Dry), Other as the default.
  Load for 8.0Kg machine:6.0Kg.
  Half load for 6.0Kg machine:3.0Kg.

1) Maximum amount of dry textiles that can be treated in the respective cyle
2) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
3) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
4) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.
5) The Wash and Dry programme, dry level setting "※" Extra Dry is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washer-dryer up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

① Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
1Hour W/D	For small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts).
Wash and Dry	The standard energy program.
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Dry Only	Select it to dry clothes, the temperature is different .The drying time according to the load .
Air Wash	Clothes is roated to remove peculiar smell without water in high temperature.
Allergy Care	Washing machine can effectively kill some allergens and achieve anti-allergic effect by adapting 60°C high temperature for sterilization.
Steam Care	Steam Care is applicable for daily laundries like cotton and synthetics. The steam can deeply penetrate the fiber, which effectively eliminate bacterias and germs, preventing odors and protecting your health.
Spin Only	Extra spin with selectable spin speed.
20°C	20°C default, can choose cold water.
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Mix	Mixed load consisting of textiles made of cotton and synthetics.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
ECO 40-60	Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.
Intensive	To increase the washing effects, washing time is increased
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.

Option

Cycle	Default Temp.(°C)	Default spin speed in rpm	Additional functions
1500
Cotton	40	1500
Intensive	40	800
ECO 40-60	60	1500
Synthetic	40	1200
Mix	40	800
Wool	40	600
20°C	20	1000
Spin Only	--	1000
Steam care	40	800
Allergy Care	60	800
Air Wash	--	--
Dry Only	--	1200
Quick 15'	Cold	800
Wash and Dry	40	1500
1 Hour W/D	Cold	1500

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 and Wash and Dry programs, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Delay

Set the Delay function:

1. Select a programme; 2. Press the Delay button to choose the time (the delaying time is 0-24 H.); 3. Press [Start/Pause] to commence the delay operation

Choose the Programme

Setting time

Start

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should switch off programme to reset a new one.

Pre Wash

The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it.

Extra Wash

Very dirty clothes can choose it, select it can increase the washing time and intensity to increase the washing effect.

Speed Wash

The function can decrease the washing time.

Extra Rinse

The laundry will undergo extra rinse once after you select it.

My Cycle

To memory the frequently used programme.

After choosing the programme and setting the options, press [Temp.] 3 sec. before start to wash. The default setting course is Cotton.

Anti-Crease

Anti-Crease function can be used to reduce the wrinkles of clothes.

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the [Start/Pause] button.

Press[Start/Pause]3sec.

Reload the clothes

Start

Dry

Press the Dry button continuously to choose the dry level: Extra Dry/Normal Dry (Normal)/ Gentle Dry(Soft).

Extra Dry: Need to wear clothes immediately, we can choose this function
Normal Dry(Normal): The normal dry procedure
Gentle Dry(Soft): Only to dry slightly and then is just ok.
Air Dry: Clothes is roated to remove peculiar smell without water in high temperature.

Note!

• Drying hints
• Clothes could be dried after spinning
• To ensure quality dry the textiles, please classify them according to their kinds and the drying temperature.
• Synthetic should be set the proper drying time.
• If you want to iron the clothes after drying, please put them for a while.

• Clothes not suitable for drying

- Particularly delicate items such as synthetic curtains, woolen and silk, clothes with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers, quilts, sleeping bags and duvets must not be dried.

- Clothes padded with foam-rubber or materials similar to foam-rubber must not be machine dried.

- Fabrics containing residues of setting lotions or hair sprays, nail solvents or similar solutions must not be machine dried in order to avoid the formation of harmful vapours.

Temp. Press the button to regulate the temperature(Cold,20°C,30°C,40°C,60°C,90°C)
Function Option Select Select the Pre Wash, Extra Wash, Extra Wash, Speed Wash, Extra Rinse or Anti-crease function.
Select Option Confirm Confirm the selection of the Pre Wash, Extra Wash, Speed Wash, Extra Rinse or Anti-crease function.
Speed Press the button to change the speed. 1500: 0-600-800-1000-1200-1500
Child Lock To avoid mis operation by children.

Press [Function] and [Select] 3 sec. till buzzer beep.

① Caution!

When child lock is activated and program starts, child lock indicator will switch on, and the CL and remaining time on the display are alternately displayed in 0.5s. Press the other buttons will make child lock indicator flash for 3s. when program finish, CL and END alternate for 10s in 0.5s, then the child lock lights flash for 3s

• Only press and hold the two button can release child lock, even power off, switch off and program end
• The "Child Lock" will lock all buttons except Power button and Child Lock button
• Please release child lock before selecting program and staring washing

■ Cleaning and Care

⚠ Warning!

• Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine with a bird flying nearby (no text or symbols)

① Caution!

- Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Diagram showing a mechanical or fluidic system with a valve and shaft, no text or symbols present

Line drawing of a hand holding a microphone with a tool inserted (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with a magnified inset showing the tool's internal structure (no text or symbols present)

Simple line drawing of a tennis racket being inserted into a table lamp (no text or symbols)

Clean The Detergent Dispenser

1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical component with an arrow pointing to a circular feature (no text or symbols)

Press the release and remove the dispenser drawer

Line drawing of a mechanical device with a lever and internal compartments (no text or symbols)

Clean the dispenser drawer and the softener cover under water

Line drawing of a hand inserting a small object into a container (no text or symbols)

Clean the recess with an soft brush

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance

Cleaning the Drain Pump Filter

⚠ Warning!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Hand holding a rotary knob on a device panel, no text or symbols visible

Open the filter by turning to the counter clockwise

Remove extraneous matter

Technical diagram of a mechanical component with rotational arrows indicating movement (no text or symbols)

Close the lower cover cap

① Caution!

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap plates should be inserted aligning to hole plates otherwise water may leak.
• Some machines don't have emergency drain hose, so step 2 and step 3 can be skipped. Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare part for your appliance are available for a minimum of 10 years.

In case of questions please contact our customer service at:

⚠ Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective.
  You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognised!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

■ Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

Model		Washing Capacity Drying Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
WSD-G68G	WSD-G69S/	8.0/6.0kg	595*475*850	65kg	1900W

Supplier's name or trade mark( ^a )' ( ^d ):

Supplier's address( ^a )' ( ^d ):

Model identifier ^(*) : WSD-G68G WSD-G69S/

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (kg)	Rated capacity (°)	6.0	Dimensions in cm (a)·(d)	Height	85
	Rated washing capacity (b)	8.0		Width	60
				Depth	47
Energy Efficiency Index	EEI_W (b)	60.0	Energy efficiency class	EEI_W (b)	B (°)
	EEI_WD (°)	82.0		EEI_WD (°)	E (°)
Washing efficiency index	I_W (b)	1.031	Rinsing effectiveness (g/kg dry textile)	I_R (b)	5.0
	J_W (°)	1.031		J_R (°)	5.0
Energy consumption in kWh per kg per cycle, for the washing cycle of the household washer-dryer, using the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used	0.545		Energy consumption in kWh per kg per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual energy consumption will depend on how the appliance is used	3.768
Water consumption in litre per cycle, for the eco 40-60 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	48		Water consumption in litre per cycle, for the wash and dry cycle of the household washer-dryer at a combination of full and half loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water	90
Maximum temperature inside the treated textile (°C) for the washing cycle of the household washer-dryer, using the eco 40-60 programme	Rated washing capacity	38	Maximum temperature inside the treated textile (°C) for the washing cycle of the household washer-dryer, using the wash and dry cycle	Rated capacity	39
	Half	38		Half	27
	Quarter	21
Spin speed (rpm) (b)	Rated washing capacity	1500	Weighted remaining moisture content (%) (b)	53.9
	Half	1500
	Quarter	1500
Eco 40-60 programme duration (h:min)	Rated washing capacity	3:38	Spin-drying efficiency class (b)	B (c)
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions during the spinning phase for the eco 40-60 washing cycle at rated washing capacity (dB(A) re 1 pW)	80		wash and dry cycle duration (h:min)	Rated capacity	9:30
				Half	6:40
Type	free-standing		Airborne acoustical noise emission class for the spinning phase for the eco 40-60 programme at rated washing capacity	C (c)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (a)' (d):
This product has been designed to release silver ions during the washing cycle			NO
Additional information(a)'(d):
Weblink to the supplier's website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found:
(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.(b) for the eco 40-60 programme.(c) for the wash and dry cycle.(d) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.(e) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.'

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

Remarks:

The energy efficiency class is from A(highest efficiency) to D (lowest efficiency)
2 Energy consumption per year, based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption per year based on 220 standard washing cycles for standard programme at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
4 Spin-drying efficiency class from G (least efficient) to A (most efficient).
5 The standard 60°C programme and the standard 40°C programme are the standard washing programmes. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle emperature.
Please choose the suitable type of detergent for the various washing temperatures to get the best washing performance with less water and energy consumption.

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

• Gama Blanca: rmablanca.infiniton.es
• Gama Marrón: rma.infiniton.es

Alternatively, if they wish, they can request technical assistance via email:

• Gama Blanca: [e-mail]
• Gama Marrón: [e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
• Telephone 1
• Telephone 2
• Full address
• Postal Code
• Population
• Brand
• Product model
• Serial number
• Failure presented by the product

If they wish, they can request technical assistance through the number 902 676 518 or 958 087 169, available only for white range products (except for free-standing microwaves).
