Product Type	Marine Amplifier / Receiver
Brand	MB Quart
Model	Nautic NA360.4
Number of Channels	4
RMS Power (4 ohms)	60W x 4
RMS Power (2 ohms)	90W x 4
Peak Power	360W total
Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	>90 dB
Input Sensitivity	200 mV - 6 V
Dimensions (L x W x H)	250 x 150 x 50 mm
Weight	1.5 kg
Power Supply	14.4 V DC (marine battery)
Protection Features	Short circuit, thermal, overload
Crossover Filters	Low-pass, high-pass with variable cutoff
Bass Boost	0-12 dB at 45 Hz
Remote Control	Included wired remote
Water Resistance	IPX6 (splash proof)
Mounting Type	Universal, DIN compatible
Recommended Impedance	2-8 ohms per channel
Included Accessories	Wiring kit, remote, mounting hardware
Certifications	CE, RoHS

Frequently Asked Questions - Nautic NA360.4 MB QUART

What is the recommended power supply for the Nautic NA360.4?

The amplifier should be connected to a 14.4V DC marine battery. Ensure proper gauge wiring (at least 8 AWG) to handle the current draw.

Can I use this amplifier with 2-ohm speakers?

Yes, the NA360.4 is stable down to 2 ohms per channel, delivering 90W RMS per channel. Ensure the speakers can handle this power.

How do I set the crossover filters?

Use the low-pass filter for subwoofers (typically 80 Hz) and high-pass for full-range speakers (typically 80-120 Hz). Adjust to match your system.

What is the purpose of the remote control?

The wired remote allows you to adjust volume and bass boost from a remote location, ideal for marine installations where the amplifier is not easily accessible.

Is the amplifier waterproof?

It has an IPX6 rating, meaning it is splash-proof. It can withstand water jets but should not be submerged. Mount in a dry, ventilated area.

What size fuse is required?

A 40A fuse is recommended for the main power wire. Use an appropriate holder near the battery.

Can I bridge channels to get more power?

Yes, you can bridge two channels to drive a single subwoofer. Bridged RMS power is typically 180W x 2 at 4 ohms.

Why is my amplifier going into protection mode?

Check for short circuits, speaker impedance too low, overheating, or insufficient voltage (below 10V). Ensure connections are secure.

What is the recommended speaker wire gauge?

Use 14-16 AWG speaker wire for runs up to 20 feet. For longer runs or higher power, use 12 AWG.

How do I clean and maintain the amplifier?

Use a soft, dry cloth to wipe the exterior. Avoid harsh chemicals. Ensure vents are free of dust and salt residue for marine environments.

USER MANUAL Nautic NA360.4 MB QUART

By purchasing an amplifier from MB Quart, you have decided on a product of the highest technical quality. MB Quart wishes you great enjoyment with your amplifier. Should you have any questions about this system or other MB Quart products, please email us at [e-mail]

MB Quart has an incredible Marine amplifier lineup with 2, 4, 5 and 6 channel models available. All NA models feature the following:

• American Boat and Yacht Council compliant Power and Speaker terminals.
• Gold plated Power and Speaker terminals.
• Marine Grade Conformal Coated circuit board to resist corrosion from salt spray and moisture.
• Non-Corrosive Aluminum extrusion.
• UV and salt spray resistant silk screen and paint.

Index

WARRANTY	1
INSTALLATION INSTRUCTIONS
General Instructions	2
Settings for Best Performance	3
TROUBLE SHOOTING	4
NA180.2 2-Channel Amplifiers	5
NA360.4 4-Channel Amplifiers	6
NA710.5 5-Channel Amplifiers	7
NA540.6 6-Channel Amplifiers	8
TECHNICAL DATA	9

WARRANTY

As the manufacturer of MB QUART car audio products, Maxxsonics USA Inc. warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one(1) year from the date of purchase.

This product meets the current EU minimum warranty requirements, if purchased in countries of the EU.

To ensure your warranty policy, keep your original receipt proving date of purchase.

All other parts and accessories sold with this product are warranted to be free from defects in materials and workmanship for one(1) year from the date of purchase. Maxxsonics will repair or replace at it's option and free of charge during the warranty period, any system component that proves defective in materials and workmanship under normal installation, use and service provided that the product is returned to the authorized MB QUART dealer from where it was purchased.

A photo copy of the original receipt must accompany the product being returned. In the absence of the above, the warranty is one(1) year from the date of manufacture.

There is no warranty for Unauthorized Internet Sales.

Any damage to the product as a result of misuse, abuse, accident, incorrect wiring, improper installation, alteration of the date code or bar code labels, revolution, natural disaster, or any sneaky stuff because someone messed up, repair or alteration outside of our factory or Authorized Service Centers and anything else you have done that you should not have done is NOT covered.

This warranty is limited to defective parts and specifically excludes any incidental damages connected therewith. This warranty is not construed as an insurance policy.

Warranty on installation labor, removal, re-installation and freight charges are not the responsibility of Maxxsonics USA Inc.

Please keep your purchasing slip for warranty reasons. Bitte bewahren Sie Ihren Kaufbeleg für Garantiezwecke auf. Veuillez conserver le reçu de caisse pour la garantie. Por favor conserve su comprobante de compra a efectos de garantía. Conservate la ricevuta di acquisto ai fini della garanzia.

General Instructions

General:

Run the wiring so that RCA cables are at least 18" away from power and speaker cables. Keep RCA cables away from electrical devices in the vehicle that can cause electrical noise, such as electric fuel pumps, emission control modules and other on-board electronic modules.

Power and ground connections:(See table below)

Use a sufficient gauge power cable and ground cable using the chart below as reference to what size wire you require. NAUTIC series amplifiers require at least 4 gauge power wire. In a multi amplifier system, add the total value of the manufacture recommended fusing to get your total system amperage. Some applications may require multiple runs of power wire to meet the system requirements. In multi amplifier systems it is advisable to mount a large enough fuse right at the battery, and run one or multiple +12 volt power cables to a fused distribution block near the amplifiers. It is then a simple matter to connect the +12 volt terminal of each amplifier to the distribution block. During this process, please ensure that the main power fuse is removed to avoid shorting the electrical system. The main fuse must be within 12" of the vehicles battery.

Ground each amplifier with as short a ground lead as possible directly to the vehicle chassis using at least 4 gauge wire or equivalent to the size of the amplifiers' power wire. Use a ground distribution block, if you wish, but it is extremely important to keep the main ground lead from this distribution block to the chassis as short as possible, not more than 12". The ground connection integrity to the chassis is very important, and the best way to achieve a good, solid electrical and mechanical contact is to use a large round crimp lug, crimped and soldered to the ground cable. The next step is to scrape the paint off the vehicle chassis, slightly larger than the ground lug, at the connection point. Drill a clearance hole in the chassis, the same size as the lug hole, and use a bolt, spring washer and nut to securely fasten the ground lug. Use petroleum jelly to coat the bolt/lug connection, to prevent oxidization with time.

TIP: Use the same approach when installing head units, equalizers or any audio equipment for that matter - run short individual grounds from each piece directly to the vehicle chassis, to minimize ground loops and system noise. All power, ground and speaker connections should be crimped and soldered for reliability. Make sure that none of the cable insulation can chafe against exposed metal in the vehicle, causing short circuits to the chassis.

Safe connection sequence:

After all cables are run, connect speaker wires to the speakers and amplifiers, then run and plug in RCA cables. Next, connect all power, ground, and remote turn on leads. Now connect all +12 volt cables to the amplifier/s and distribution blocks and fuse holders. Finally, connect the main +12 volt cable to the battery, with the main fuse removed, and we are almost ready to power up the system.

Power up the system:

The following procedure may seem like overkill, but there is nothing more frustrating when turning on a system for the first time, and it does not work properly immediately.

First, make sure the head unit is off, and turn all level controls to minimum (counterclockwise), including the head unit volume control. Set all equalizers to 0 dB (no boost), and all crossover frequency controls at approximate frequencies, as recommended by the loudspeaker manufacturer. Set all input selector and crossover switches as required for the application. Remove all amplifier fuses, and insert the main fuse at the battery. If the fuse does not blow, you can insert the fuse in one of the amplifiers, and we are ready to turn on the system. Turn the head unit on, insert a CD, or select a radio station, and increase the head unit volume control. If the system sounds fine, turn off the head unit, and install fuses in the remaining amplifiers, one by one, till the complete system is powered up and functioning properly.

WIRE LENGTH

SYSTEM AMPERAGE	7-10 ft. 10	13 ft. 13-16 ft.		16-19 ft. 19	22 ft. 22-28 ft.
35-50	8	6	4	4	4	4
50-65	6	4	4	4	4	2
68-85	4	4	2	2	2	0
85-105	4	2	2	2	2	0
105-125	4	2	0	0	0	0
125-150	2	0	0	0	0	0

WIRE GAUGE

INSTALLATION INSTRUCTIONS

MBQUART

Settings for Best Performance

NA180.2 / NA360.4 / NA710.5 / NA540.6

General:

At this point you are ready to get more specific on the settings for your amplifier.

Filter Adjustments (Crossover)

High:

-When in High Pass operation, this setting acts as a low frequency cut off for your system reproduction. The point that you set it at cuts off any frequencies from reproduction beyond this point. The 12 o'clock position is a great starting point. EXAMPLE: If you adjust the Frequency to 100Hz, the amplifier will not play frequencies below 100Hz but will play frequencies from 100Hz to the highest frequency the amplifier is capable of reproducing.

Low:

The Low Pass adjustment acts as a ceiling and doesn't allow frequencies to the right of the desired setting to be reproduced. Turning the Frequency all the way to the right is a great starting point. EXAMPLE: If you adjust the Frequency to 120Hz, the amplifier will not play frequencies above 120Hz but will play frequencies from 120Hz to the lowest frequency your amplifier can reproduce.

Flat:

The Flat adjustment bypasses the crossover and allows all frequencies to be sent from the amplifier to your speakers and subwoofers.

Bass EQ:

This setting is a fixed bass boost at 45Hz that is variable. NA710.5 is 0-10dB on the 5th channel while the NA180.2/NA360.4/NA540.6 are 0-9dB. This feature provides impact to your bass, but if not adjusted correctly, it can be over used and cause damage to your speakers and amplifiers. It is best to slowly turn this setting clockwise until the desired punch is felt. It is not recommended to exceed the 12 o'clock position unless listening at a low volume or a low recording quality as this can result in high distortion and possibly clipping.

Level Control Setup:

Ensure that the Level is turned completely to the left prior to turning the system on. Next you should insert a CD or cassette that you are familiar with to use as a reference, and turn the head unit volume control to about 80% of its full setting. The system sound level will of course be very low, and the following procedures will help you to match the amplifier input sensitivities properly to the head unit output signal level.

It is important to match the amplifier LEVEL input sensitivity to the Radio/CD output sensitivity. This can be located in the Radio/CD manual. If the Radio/CD output sensitivity is 2 volts, then adjust the amplifier LEVEL input to 2 volts.

If you are not sure what the Radio output sensitivity is, follow these general guide lines:

Turn the level control up slowly, till you hear distortion, then back off a few degrees on the control. If at any point your amplifier goes into protection, you will need to turn the Level to the left a bit and then try again. If you reach a point where the output does not increase, stop turning the Level control to the right as the amplifier/speaker combo has reached its maxx output in this application.

The key to finding the problem in a misbehaving sound system is to isolate parts of that system in a logical fashion to track down the fault.

Description of the Diagnostic system built into all MB Quart amplifiers

The diagnostic system will shut down the amplifier, until reset by turning the head unit off, and back on. This state of affairs will be indicated by the front panel PROTECT LED lighting up under the following conditions:

1 - A short circuit on the loudspeaker leads.
2 - An internal amplifier fault that causes a DC offset on the loudspeaker output.

Should the amplifier go into diagnostic mode, simply disconnect all RCA and speaker leads, while keeping +12 volt, power ground and remote leads connected.

1. Now turn the amplifier back on, and if the diagnostic LED lights, the amplifier has an internal fault.
2. If not, plug the RCA cables back, and reset the amplifier. If it goes into diagnostic now, the fault lies in the input, either with bad cables or source unit.
3. If the amplifier seems fine with RCA cables plugged in, connect the speakers, one at a time, and if one of the speakers or its wiring is faulty, it will activate the diagnostic system.

Amplifier heatsink overheating

The amplifiers will shut down when the heatsink temperature reaches 80 degrees centigrade, and turn back on once the unit has cooled down below that point.

Causes of overheating:

1 - Inadequate cooling - relocate or remount to provide better natural airflow over the fins.
2 - Driving high power levels into low impedances - back off on the volume control, and/or make sure you are not loading the amplifier with less than the recommended loudspeaker impedance.

Low output power

1 - Check that level controls have been set up properly.
2 - Make sure that the battery voltage, as measured at the amplifier's +12 volt and ground terminals, is 11 volts or more.
3 - Check all +12 volt and ground connections.

Fuses blowing

1 - The use of loudspeaker impedances below the recommended minimums will draw more current - check.
2 - A short on the main +12 volt cable from the battery to ground will cause the main fuse to blow.

System does not turn on

1 - Check all fuses.
2 - Check all connections.

3 - Measure the +12 volt and remote turn on voltages at the amplifier terminals. If these are non existent or low, take voltage measurements at fuse holders, distribution blocks, the head unit's +12 volt and remote leads to localize the problem.

Noise problems

System noise can be divided into two categories, hiss, and electrical interference.

Hiss, or white noise

1 - High levels of white noise usually occurs when amplifier level controls are turned up too high - readjust according to the procedures in section "Setting up systems after installation for best performance"
2 - Another major problem that can cause excessive hiss, is a noisy head unit - unplug the amplifier input RCA cables, and if the hiss level reduces, the source unit is at fault.

Electrical interference

The inside of an boat is a very hostile electrical environment. The multitude of electrical systems, such as the ignition system, alternator, fuel pumps, air conditioners, to mention just a few, create radiated electrical fields, as well as noise on the +12 volt supply and ground. Remember to isolate the problem - first unplug amplifier input RCA cables, if the noise is still present, check the speaker leads, if not, plug the RCA's back, and investigate the source driving the amplifier, one component at a time.

A ticking or whine that changes with engine RPM:

1 - This problem could be caused by radiation pickup of RCA cables too near to a fuel pump or a distributor, for instance, - relocate cables.
2 - Check that the head unit ground is connected to a solid ground.
3 - Try to supply the head unit with a clean +12 volt supply directly from the battery +, instead of using a supply from the in dash wiring/fusebox.

A constant whine:

This type of noise can be more difficult to pinpoint, but is usually caused by some kind of instability, causing oscillations in the system.

1 - Check all connections, especially for good grounds.
2 - Make sure that no speaker leads are shorting.
3 -RCA cables are notorious for their problematic nature, so check that these are good, in particular the shield connections.

NA180.2

MBQUART

2-Channel Amplifier

FEATURES:

• 1 Set of RCA inputs
• LEVEL: Variable sensitivity from 0.2V to 6V
• BASS EQ: Adjustable 45Hz bass boost from 0dB to 9dB
• X-OVER: Selects internal crossover functions
• FLAT: Bypasses all crossovers for full frequency operation
• LOW: Selects the built in LOW PASS filter
• HIGH: Selects the built in HIGH PASS filter

2 Channel Full Range Stereo:

Interconnect cable checklist:
- Connect the two inputs of the amplifier to a Radio/CD with quality RCA cables.
Switch setting checklist:
- 1/2CH X-OVER: FLAT

• POWER LED: Indicates the powered up and turned on condition
• PROTECTION LED: Indicates a high voltage, low voltage, short circuit, hard clip, over heating or DC fault condition.
• LINE OUTPUT: Full range RCA pass through.

Control checklist:

- Refer to the section "Settings for Best Performance"

Minimum final loudspeaker impedances:

Bridged for Subwoofer Application:

Here we show how to use the 2 channel amplifiers to power a subwoofer by taking advantage of the mono bridging capability of all MB Quart amplifiers.

Interconnect cable checklist:

- A MONO signal source is suggested to bridge channels 1/2, such as would be available from the mono sub bass output of an active crossover, whether standalone, or built into a head unit or equalizer. If you only have 1 set of RCA outputs from your headunit, you can simply connect those to the inputs for CH1-2 and the amplifier will auto sum the signal and provide mono output.

Important: Do not be tempted to connect the hot, or positive outputs, from any source together to obtain a mono signal, as this could very well damage the output stage of that source.

- Connect the mono speaker positive terminal to the CH1 +, and its negative terminal to CH2 - as shown.

Switch setting checklist:

-X-OVER: LOW

Control checklist:

- Refer to the section "Settings for Best Performance"

Minimum final loudspeaker impedances:

• 2 ohm per channel in stereo mode.
• 4 ohm mono bridged.

4-Channel Amplifiers

FEATURES:

• 2 Sets of RCA inputs
• LEVEL: Variable sensitivity from 0.2V to 6V
• X-OVER: Selects internal crossover functions
• FLAT: Bypasses all crossovers for full frequency operation
• LOW: Selects the built in LOW PASS filter
• HIGH: Selects the built in HIGH PASS filter

• BASS EQ: Adjustable 45Hz bass boost from 0dB to 9dB
• POWER LED: Indicates the powered up and turned on condition
• PROTECTION LED: Indicates a high voltage, low voltage, short circuit,
  hard clip, over heating or DC fault condition.
• MODE: "2" indicates one set of RCA's are being used. This will also pass signal to channels 3/4 through 1/2 inputs.
  "4" indicates connecting 2 sets of RCA's to 1/2 and 3/4 inputs.
• LINE OUTPUT: Full range RCA pass through.

4 Channel Full Range Stereo:

Interconnect cable checklist:

• Connect the four inputs of the amplifier to a Radio/CD with quality RCA cables.
  Switch setting checklist:
• 1/2CH X-OVER: FLAT
• 3/4CH X-OVER: FLAT

MODE: "4" since 2 sets of RCA's are connected.

Control checklist:
- Refer to the section "Settings for Best Performance"
Minimum final loudspeaker impedances:
- 2 ohm per channel.

2 or 3 Channel System:

Here we show how to use the 4 channel amplifiers as a 3 channel unit by taking advantage of the mono bridging capability of all MB Quart amplifiers. In order to create

a 2 channel system, simply follow the example to also mono bridge channel pair 1/2. Interconnect cable checklist:
- Connect the inputs of channel pair 1/2 to a suitable stereo source, e.g. a head unit with good quality RCA cables.
- A MONO signal source is suggested to bridge channel pair 3/4, such as would be available from the mono sub bass output of an active crossover, whether standalone, or built into a head unit or equalizer. If you only have 1 set of RCA outputs from your headunit, you can simply connect those to the inputs for ch 1/2 and switch the MODE to 2. The amplifier will auto sum the signal and provide mono output for bridged channels 3/4.

Important: Do not be tempted to connect the hot, or positive outputs, from any source together to obtain a mono signal, as this could very well damage the output stage of that source.

• It is necessary to feed the SAME signal to both left and right inputs via a Y-adapter RCA cable.
• Connect the mono speaker positive terminal to the CH3 +, and its negative terminal to CH4 - as shown.

Switch setting checklist:

• 1/2CH X-OVER: FLAT
• 3/4CH X-OVER: LOW

Control checklist:

• Refer to the section "Settings for Best Performance"
  Minimum final loudspeaker impedances:
• 2 ohm per channel in stereo mode.
• 4 ohm mono bridged.

5-Channel Amplifiers

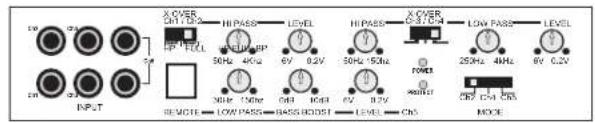

FEATURES:

• 3 Sets of RCA inputs
• LEVEL: Variable sensitivity from 0.2V to 6V
• BASS BOOST: Adjustable 45Hz bass boost from 0dB to 10dB

• X-OVER: Selects internal crossover functions

• FULL: Bypasses all crossovers for full frequency operation

• BP: Selects the built in LOW PASS filter
• HP: Selects the built in HI PASS filter

5 Channel Discrete Operation:

You can use this configuration simply as 4 discrete full range channels, with a 5th low pass channel. All of the crossovers are bypassed, except the LOW PASS on channel 5.

Interconnect cable checklist:

Connect channel 1&2 inputs to the front output, channels 3&4 to the rear output, and channel 5 to the mono subwoofer output of a head unit or in dash equalizer.

Switch setting checklist:

• CH 1 / 2 X-OVER: FULL
• CH 3/4 X-OVER: FULL

• POWER LED: Indicates the powered up and turned on condition
• PROTECTION LED: Indicates a high voltage, low voltage, short circuit, hard clip, over heating or DC fault condition.
• MODE: "2" indicates one set of RCA's are being used. This will also pass signal to channels 3/4 and 5 through 1/2 inputs. "4" indicates connecting 2 sets of RCA's to 1/2 and 3/4 inputs. "5" indicates connecting 3 sets of RCA's to channels 1/2, 3/4 and mono signal to channel 5 inputs.

MODE: "5" since 3 sets of RCA's are connected.

Control checklist:

- Refer to the section "Settings for Best Performance"

Minimum final loudspeaker impedances:

• 2 Ohms per channel for channels 1-4
• 2 Ohms on channel 5

Single Set of Stereo RCA's

We will use the same basic setup on the speaker and subwoofer connections as above to illustrate an installation that only has 1 set of stereo RCA's to connect to this amplifier. By switching the amplifier to 2CH on the INPUT MODE, you now provide signal to all channels on the amplifier. You sacrifice the ability to fade front to rear though.

Interconnect cable checklist:

Connect Stereo Left and Right RCA's from headunit to CH1&2 RCA Inputs.

MODE: "2" since 1 set of RCA's are connected.

Control checklist:

- Refer to the section "Settings for Best Performance"

Minimum final loudspeaker impedances:

• 2 Ohms per channel for channels 1-4
• 1 Ohm on channel 5

Switch setting checklist:

• CH 1/2 X-OVER: FULL
• CH 3/4 X-OVER: FULL

6-Channel Amplifiers

FEATURES:

• 3 Sets of RCA inputs
• LEVEL: Variable sensitivity from 0.2V to 6V
• BASS BOOST: Adjustable 45Hz bass boost from 0dB to 9dB
• X-OVER: Selects internal crossover functions
• FLAT: Bypasses all crossovers for full frequency operation
• LOW: Selects the built in LOW PASS filter
• HIGH: Selects the built in HI PASS filter

• POWER LED: Indicates the powered up and turned on condition
• PROTECTION LED: Indicates a high voltage, low voltage, short circuit, hard clip, over heating or DC fault condition.
• MODE: "2" indicates one set of RCA's are being used. This will also pass signal to channels 3/4 and 5/6 through 1/2 inputs. "4" indicates connecting 2 sets of RCA's to 1/2 and 3/4 inputs. "6" indicates connecting 3 sets of RCA's to channels 1/2, 3/4 and 5/6.

6 Channel Full Range Stereo

1. Interconnect cable checklist: 3. Crossover frequency control checklist: Connect the 6 Inputs of the amplifier to a Radio/CD with quality RCA cables.

2. Filter Switch: 4. Line Level:

3. 1/2CH:FLAT

4. 3/4CH: FLAT
   -5/6CH: FLAT

N/A for full range operation.

Refer to section "Setting up systems after installation for best performance."

5 Channel Operation 2. Filter Switch:

This illustration shows how to use your 6 channel amplifier as a 5 channel unit by taking advantage of the mono bridging capability on all NAUTIC amplifiers. - 3/4CH: FLAT

- 1/2CH: FLAT

1. Interconnect Cable Checklist:

• 1/2CH & 3/4CH: Connect the Inputs of channel pair 12 to a suitable stereo source with quality RCA cables. Repeat these steps for 3/4CH. 4. Line Level:
• 5/6CH: Connect a mono line Input via Y-adapter from a mono source or single
  Left or Right RCA from a stereo source. This has been detailed on previous pages for reference.

IMPORTANT: Do not connect Left and Right stereo signals together to achieve a mono signal as this will damage the output stage of the source and possibly the input stage of the amplifier therefore voiding your warranty.

- 5/6CH: LOW

1. Crossover frequency control checklist:

N/A for full range operation. 5/6CH set to 80Hz.

Refer to the section "Setting up systems after installation for best performance."

5.Speaker Connections:

Connect the subwoofer - to Ch6- and the subwoofer + to Ch5+. Connect the remaining speakers in standard stereo wiring to CH1/2 & CH3/4.
IMPORTANT: Minimum final loudspeaker impedance presented to the amplifier is
4-Ohms in mono operation and 2-Ohms in stereo operation.

FEATURES	2-CHANNEL	4-CHANNEL	5-CHANNEL	6-CHANNEL
	NA180.2	NA360.4	NA710.5	NA540.6
RMS Output Power Rating
4-Ohms Stereo	60 x 2	60 x 4	60 x 4 + 200 x 1	60 x 6
2-Ohms Stereo	90 x 2	90 x 4	90 x 6 + 350 x 1	90 x 6
Mono Bridge at 4-Ohms	180 x 1	180 x 2	180 x 2	180 x 3
Power Supply	PWM	PWM	PWM	PWM
Output Power Circuit Configuration	Mosfet	Mosfet	Mosfet	Mosfet
Miscellaneous Spec
Soft Start Sound	Yes	Yes	Yes	Yes
Frequency Response-3dB	10Hz - 45KHz	10Hz - 45KHz	10Hz - 45KHz	10Hz - 45KHz
Damping Factor	>180	>180	>180	>180
S/N Ratio(A-Weight)	>93dB	>93dB	>93dB	>93dB
THD & N	0.05%	0.05%	0.05%	0.05%
Channel Separation	>80dB	>80dB	>80dB	>80dB
Variable Input Level Control	0.2V-6.0V	0.2V-6.0V	0.2V-6.0V	0.2V-6.0V
Input Impedance	47kΩ	47kΩ	47kΩ	47kΩ
Diagnostic Indicator(power: green / protect: red)	Power/Protect	Power/Protect	Power/Protect	Power/Protect
Protection(DC, Short, Thermal, Overload)	Yes	Yes	Yes	Yes
Crossover Operation
Filter for CH1&CH2	LOW/FLAT/HIGH	LOW/FLAT/HIGH	HP/FULL	LOW/FLAT/HIGH
Variable Hi-Pass	250Hz - 4KHz	250Hz - 4KHz	50Hz - 4KHz	250Hz - 4KHz
Variable Low-Pass	40Hz - 250Hz	40Hz - 250Hz	N/A	40Hz - 250Hz
Bass EQ at 45Hz	0 ~ 9dB	0 ~ 9dB	N/A	0 ~ 9dB
Filter for CH3&CH4	N/A	LOW/FLAT/HIGH	HP/FULL/BP	LOW/FLAT/HIGH
Variable Hi-Pass	N/A	250Hz - 4KHz	50Hz - 150Hz	250Hz - 4KHz
Variable Low-Pass	N/A	40Hz - 250Hz	250Hz - 4KHz	40Hz - 250Hz
Bass Boost at 45Hz	N/A	0 ~ 9dB	N/A	0 ~ 9dB
Filter for CH6&CH6	N/A	N/A	N/A	LOW/FLAT/HIGH
Variable Hi-Pass	N/A	N/A	30Hz - 150Hz	250Hz - 4KHz
Variable Low-Pass	N/A	N/A	N/A	40Hz - 250Hz
Bass Boost at 45Hz	N/A	N/A	0 ~ 10dB	0 ~ 9dB
Line Output	Full Range	Full Range	Full Range	Full Range
Others
Power Terminal	8-GA	4-GA	4-GA	4-GA
Speaker Terminal	12-GA	12-GA	10-GA	10-GA
Fuse Size	15 Amps x 2	25 Amps x 2	50 Amps x 2	70 Amp
Dimensions Length x Width x Height (inches)	8.94 x 9.45 x 2.23	13.68 x 9.45 x 2.23	17.95 x 9.45 x 2.23	17.01 x 9.45 x 2.23
Note: Features subject to change with out notice

MAXXLINK®

Tested Tough! That's the foundation for every product. Hours of design and testing go into each part to ensure that they not only meet but far exceed industry standards for performance and durability.

MAXXLINK accessories are developed by the mobile audio professionals at Maxxsonics. Since 2001 Maxxsonics has developed some of the most powerful and best sounding mobile audio equipment you can choose. Hifonics, MB Quart, Crunch and Autotek are brands that are known throughout the world and have decades of experience dealing with the harshest environments on the road.

MAXXLINK is built around a simple labeling system. These labels will help you choose which package will fit your application. The simplest codes to look for are V3, V2 and V1 with their matching performance level icons. 10, 7, 5. It is easy to choose based on the total power of the system.

MAXXTECH

THE SYSTEM

MAXXLINK PRODUCTS & WARRANTY

Biggest POWER systems

V3 Products, Level 10 Performance + 1 Year Warranty

Moderate POWER systems

V2 Products, Level 7 Performance + 6 Month Warranty

Smaller POWER systems

V1 Products, Level 5 Performance

Maxxsonics is so confident in the reliability of the MAXXLINK accessories, that when any of the Hifonics, MB Quart, Crunch or Autotek amplifiers are matched with a V3 level amplifier kit the customer can extend the amplifier warranty for ONE FULL YEAR. When the customer chooses V2, they can extend the warranty for a full six months. The process is simple, the customer simply registers their amplifier on

MAXXWarranty.com/MAXXLINK.

FACEBOOK

INSTAGRAM

WEBSITE

Check out our videos of new products, events and technical tutorials at www.youtube.com/maxxsonicsusainc
