Carveasy Twinblade EK6000 - Kitchen Appliances SUNBEAM - Free user manual and instructions

Product Type	Electric Carving Knife
Model	Carveasy Twinblade EK6000
Brand	Sunbeam
Power Rating	150 W
Blade Material	Stainless Steel
Blade Type	Twin Blades
Handle Design	Non-slip Ergonomic Handle
Safety Features	Blade Lock, Trigger Safety Switch
Cord Length	2 m
Weight	1.0 kg
Product Dimensions (L x W x H)	38 x 8 x 7 cm
Blade Length	20 cm
Dishwasher Safe Parts	Blades only, detachable
Cleaning Instructions	Hand wash handle, detachable blades can be rinsed
Functions	Carving meat, poultry, bread, and vegetables
Power Source	Mains powered
Replacement Blades Available	Yes, spare blades sold separately
Storage	Storage case included

Frequently Asked Questions - Carveasy Twinblade EK6000 SUNBEAM

Can the Sunbeam Carveasy Twinblade EK6000 be used to carve frozen meat?

No, this electric carving knife is designed for thawed or cooked meat. Using it on frozen food may damage the blades or motor.

Are the blades dishwasher safe?

Yes, the stainless steel blades are detachable and dishwasher safe. However, the handle should be wiped clean with a damp cloth only.

How do I attach the blades?

Align the blade slots with the prongs on the handle and push until they click into place. Ensure the blade lock is engaged before use.

What is the cord length?

The power cord is approximately 2 meters long, providing ample reach for most kitchen setups.

Can I replace the blades?

Yes, replacement blades are available. Contact Sunbeam customer service or check online retailers for Carveasy Twinblade spare blades.

Is the knife suitable for left-handed users?

Yes, the ergonomic handle and blade design are ambidextrous, making it comfortable for both left and right-handed users.

How do I clean the handle?

Unplug the knife and remove blades. Wipe the handle with a damp cloth and mild detergent. Do not submerge the handle in water.

What safety features does it have?

It includes a blade lock to secure blades during storage and a trigger safety switch to prevent accidental activation.

Can I carve bread with this knife?

Yes, the twin blades are effective for slicing bread, roasts, poultry, and even soft fruits like tomatoes.

How do I store the carving knife?

After cleaning, lock the blades, and place the knife in the included storage case to protect the blades and prevent accidents.

USER MANUAL Carveasy Twinblade EK6000 SUNBEAM

Carveasy™ Twin Blade Electric Knife

User Guide

Exterior view of a Sunbeam electric shaver tool (no text or symbols visible on body)

Contents

Sunbeam's Safety Precautions 1

Features of your Sunbeam Carveasy™ Twin Blade 2

Using your Sunbeam Carveasy™ Twin Blade 3

Slicing Hints 4

Care and Cleaning 5

Important instructions – retain for future use.

Sunbeam's Safety Precautions

SAFETY PRECAUTIONS FOR YOUR SUNBEAM ELECTRIC KNIFE.

- Caution is necessary when handling the blades.

- Serrated edges of the blades are very sharp.

- Do not allow children to play with blades.

Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• Read carefully and save all the instructions provided with an appliance.
• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug when the appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The temperature of accessible surfaces may be high when the appliance is operating.

• Never leave an appliance unattended while in use.

• Do not use an appliance for any purpose other than its intended use.

• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
• Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.
• For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
• Do not immerse the appliance in water or any other liquid unless recommended.
• Appliances are not intended to be operated by means of an external timer or separate remote control system.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

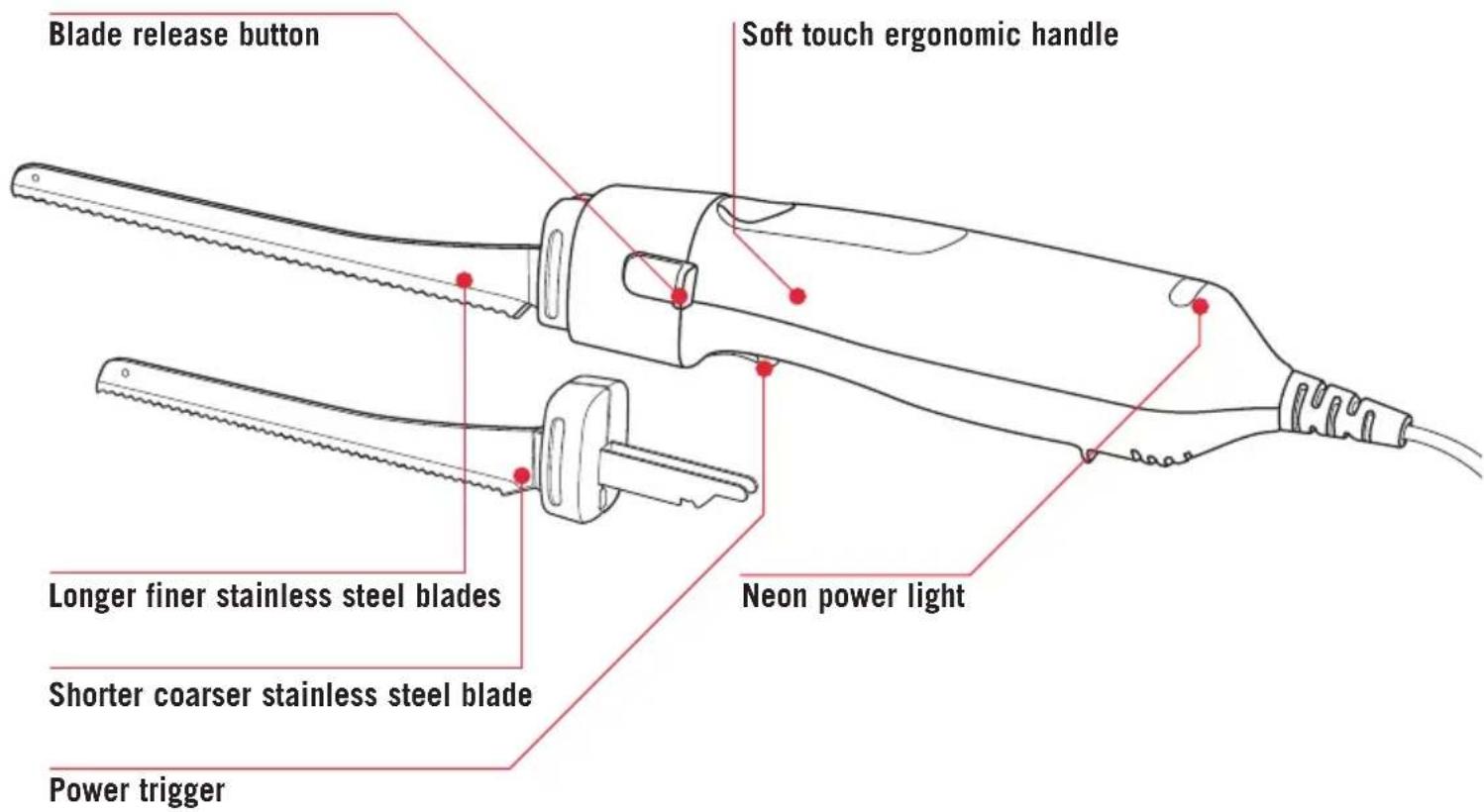

Features of your Sunbeam Carveasy™ Twin Blade

Micro serrated stainless steel blades

Serrated stainless steel blades are durable and sharp for efficient slicing and carving.

Safety guards

For safe fitting and removal of blades.

Shorter coarser blade

A shorter coarser blade set is ideal for meats, standard breads & small foods.

Longer finer blades

A longer finer blade set is ideal for cakes, artisan breads & more delicate foods.

Blade release button

Conveniently located at the front of handle.

Power trigger

Located under the handle for ease of operation, the index-finger trigger action, allowing the most comfortable position for carving.

Neon power light

The neon power light indicates when the Carveasy™ Twin Blade is plugged in and switched on.

Handle

Convenient and simple to operate. The ergonomic design provides comfort, versatility and control when carving both vertically and horizontally.

Using your Sunbeam Carveasy™ Twin Blade

1. Select coarser or finer blade set depending on type of foods to be sliced
2. Interlock blades together before inserting into the appliance. To assemble blades, grasp shaft ends below the safety guards and slip the rivet on the tip of the other blade. See Figure 1. Bring blades together ensuring tips remain together.

Note: Always use both blades when operating the Carveasy ^™ .

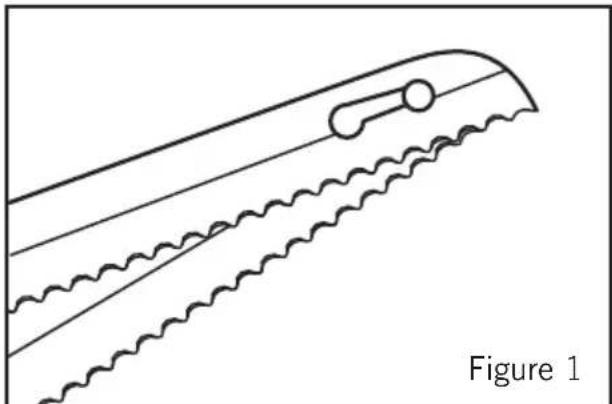

Diagram of a mechanical tool with zigzag grooves and a handle, labeled Figure 1 (no text or symbols on the diagram itself)

1. Hold assembled blades by the safety guards and slide shafts gently into the blade slot until clipped into position. See Figure 2.

Warning: Only when blades are fitted should the cord be connected to the power outlet.

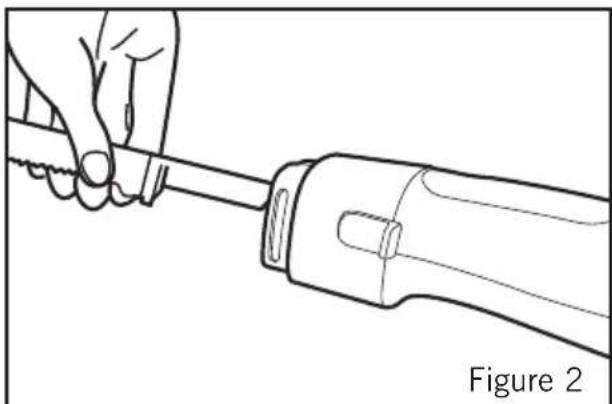

Line drawing of a hand holding a tool next to a cylindrical device, labeled 'Figure 2' (no text or symbols on the diagram itself)

1. Insert the plug into a 230-240 volt (AC only) power outlet and ensure the cord is well away from the blades. Holding the knife with one hand, slide and press the double movement power trigger positioned under the handle to activate the motor. Releasing the switch will automatically stop the motor.

Warning: Avoid contact with moving parts. Keep hands, hair, clothing and other utensils away from moving blades during operation to prevent personal injury and/or damage to the knife.

1. When slicing is completed, turn the power off at the power outlet and remove the plug. Slide back the Blade Release, hold the blades by the safety guards with the cutting edge facing downward and pull the blades out of the slots. See Figure 3.

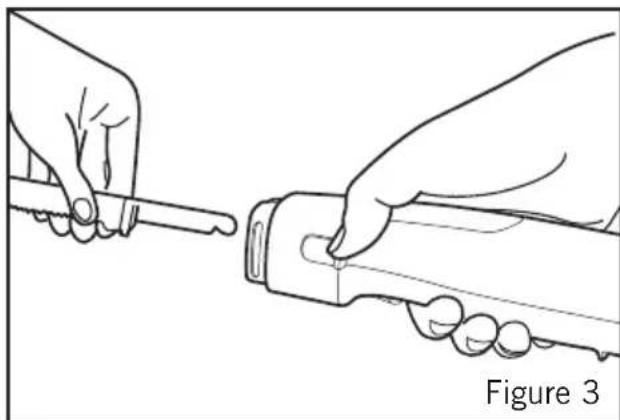

Illustration of two hands using a tool to interact with a mechanical device, labeled Figure 3 (no text or symbols on the diagram itself)

Warning: The blades of your Sunbeam Carveasy™ are sharp! Handle with extreme care. We recommend using the guard sleeve provided when handling the blades. Do not fit or remove blades whilst the knife is connected to the power outlet. Do not allow children to operate the appliance.

Slicing Hints

• Always place food to be sliced on a wooden or plastic cutting board.
• Do not slice food on china; metal or bench tops, as scratching may occur.
• Guide blades through food.
• A sawing action is not necessary.
• Do not force blades through food.
• To maintain the sharpness of blades, do not cut through bones, fruit pips or stones or any other hard substances.

• For best results when carving meat and chicken allow cooked meat to stand for 10-15 minutes before slicing, this allows the juices to set and makes carving easier and neater.

• Before carving meat or chicken, remove skewers.

• If desired, string may be left around the meat whilst carving.
• The use of a carving fork to steady the meat assists in carving straight, even slices.
• Do not attempt to sharpen blades.
• We recommend when slicing foods like bread, a light smear of cooking oil, margarine or similar, on the inside of the blades will reduce the friction.

Care and Cleaning

Warning: Ensure the unit is switched off and the plug removed from the power outlet before removing the blades and/or cleaning.

Unlock the blades by sliding apart. Always hold blades by the shaft end, behind the safety guard, when handling and cleaning. Wash the blades in hot soapy water with a soft cloth or sponge. Rinse thoroughly and dry completely. Do not use abrasive scouring pads or powders on blades. After cleaning, always store blades in plastic sleeves. To clean motor housing wipe with a soft damp cloth.

Before storing your knife, a light smear of cooking oil or similar on the inside of the blade is suggested.

Notes

Notes

Notes

12

Month

Replacement

Guarantee

This Sunbeam product is covered by a 12 month replacement or repair warranty, which is in addition to your rights under the Australian Consumer Law (if your product was purchased in Australia) or New Zealand Consumer Guarantees Act (if your product was purchased in New Zealand).

Should you experience any difficulties with your product during the warranty period, please contact our customer service line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand.

Australia

www.sunbeam.com.au

1300 881 861

Units 5 & 6,

13 Lord Street,

Botany NSW 2019

Australia

New Zealand

www.sunbeam.co.nz

0800 786 232

Level 6, Building 5,

Central Park,

660-670 Great South Road,

Greenlane, Auckland

New Zealand

Upon receipt of your claim, Sunbeam will seek to resolve your difficulties or, if the product is defective, advise you on how to obtain a replacement or refund.

To assist us in managing warranty claims, we recommend you register your product as soon as practicable after purchase by creating a MySunbeam account on our website and uploading a copy of your original receipt.

In order to make a claim under our warranty, you must have the original proof of purchase documentation for the product and present it when requested (if not already uploaded to our website).

Should your product develop any defect within 12 months of purchase because of faulty materials or workmanship, we will replace or repair it, at our discretion, free of charge. A product presented for repair may be replaced by a refurbished product of the same type rather than being repaired. Refurbished parts may be used to repair the product.

Our replacement or repair warranty only applies where a defect arises as a result of faulty material or workmanship during the warranty period. Your warranty does not cover misuse or negligent handling (including damage caused by failing to use the product in accordance with this instruction booklet), accidental damage, or normal wear and tear.

Your warranty does not:

• cover freight or any other costs incurred in making a claim, consumable items, accessories that by their nature and limited lifespan require periodic renewal (such as filters and seals) or any consequential loss or damage; or

• cover damage caused by:

- power surges, power dips, voltage supply problems, or use of the product on incorrect voltage;

- servicing or modification of the product other than by Sunbeam or an authorised Sunbeam service centre;

- use of the product with other accessories, attachments, product supplies, parts or devices that do not conform to Sunbeam specifications; or

- exposure of the product to abnormally corrosive conditions; or

- extend beyond 3 months if the product is used in commercial, industrial, educational or rental applications.

The benefits given to you by our warranty are in addition to other rights and remedies under law in relation to the product.

In Australia our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Our goods also come with guarantees that cannot be excluded under the New Zealand Consumer Guarantees Act.

If your warranty claim is not accepted, we will inform you and if requested to do so by you, repair the product provided you pay the usual charges for such repair. You will also be responsible for all freight and other costs.

Should your product require repair or service after the warranty period, contact your nearest Sunbeam service centre. For a complete list of Sunbeam's service centres, visit our website or call our customer service line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand.

Need help with your appliance?

Contact our customer service team or visit our website for information and tips on getting the most from your appliance.

Australia | visit www.sunbeam.com.au

phone [phone]

mail Units 5 & 6, 13 Lord Street,

Botany NSW 2019 Australia.

New Zealand | visit www.sunbeam.co.nz

phone [phone]

mail Level 6, Building 5, Central Park,

600-670 Great South Road,

Greenlane, Auckland, New Zealand.

Sunbeam Corporation Limited | ABN 45 000 006 771

Sunbeam Corporation is a division of GUD Holdings Limited.

Sunbeam is a registered trademark.

Carveasy ^® is a trademark of Sunbeam Corporation

Made in China to Sunbeam's specification.

Due to minor changes in design or otherwise,

the product you buy may differ slightly from the one shown here.

Approved by the appropriate electrical regulatory authorities.

©Copyright Sunbeam 2014.
