USER MANUAL AT-GAIN-120 Atlona

Version Release Date Notes
1 4/18 Initial release

Welcome to Atlona!

Thank you for purchasing this Atlona product. We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware. Atlona product registration is voluntary and failure to register will not affect the product warranty.

To register your product, go to http://www.atlona.com/registration

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.877.536.3976 (US Toll-free)

Office: +1.408.962.0515 (US/International)

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

http://www.atlona.com/

International Headquarters

Atlona International AG

Ringstrasse 15a

8600 Dübendorf

Switzerland

Office: [phone]

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit http://www.atlona.com/product/AT-GAIN-120 for the latest firmware updates and User Manual.

Atlona, Inc. ("Atlona") Limited Product Warranty

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

- repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping.

OR

- replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products.

OR

- refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona products is the purchaser's exclusive remedy and Atlona liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013.
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013.
• Lifetime Limited Product Warranty for all cable products.

Limited Product Warranty Terms - Refurbished (B-Stock) Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June 1, 2013.

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packaging or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

Atlona, Inc. ("Atlona") Limited Product Warranty

• Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com.

Important Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Statement

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference

to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Table of Contents

Introduction 8

Features 8

Package Contents 8

Panel Description 9

Installation 10

Audio Connectors 10 ANALOG IN / LINE OUT 10 4 / 8 Ω OUT 10 70V / 100V OUT 11

Trigger 11

Connection Instructions 12

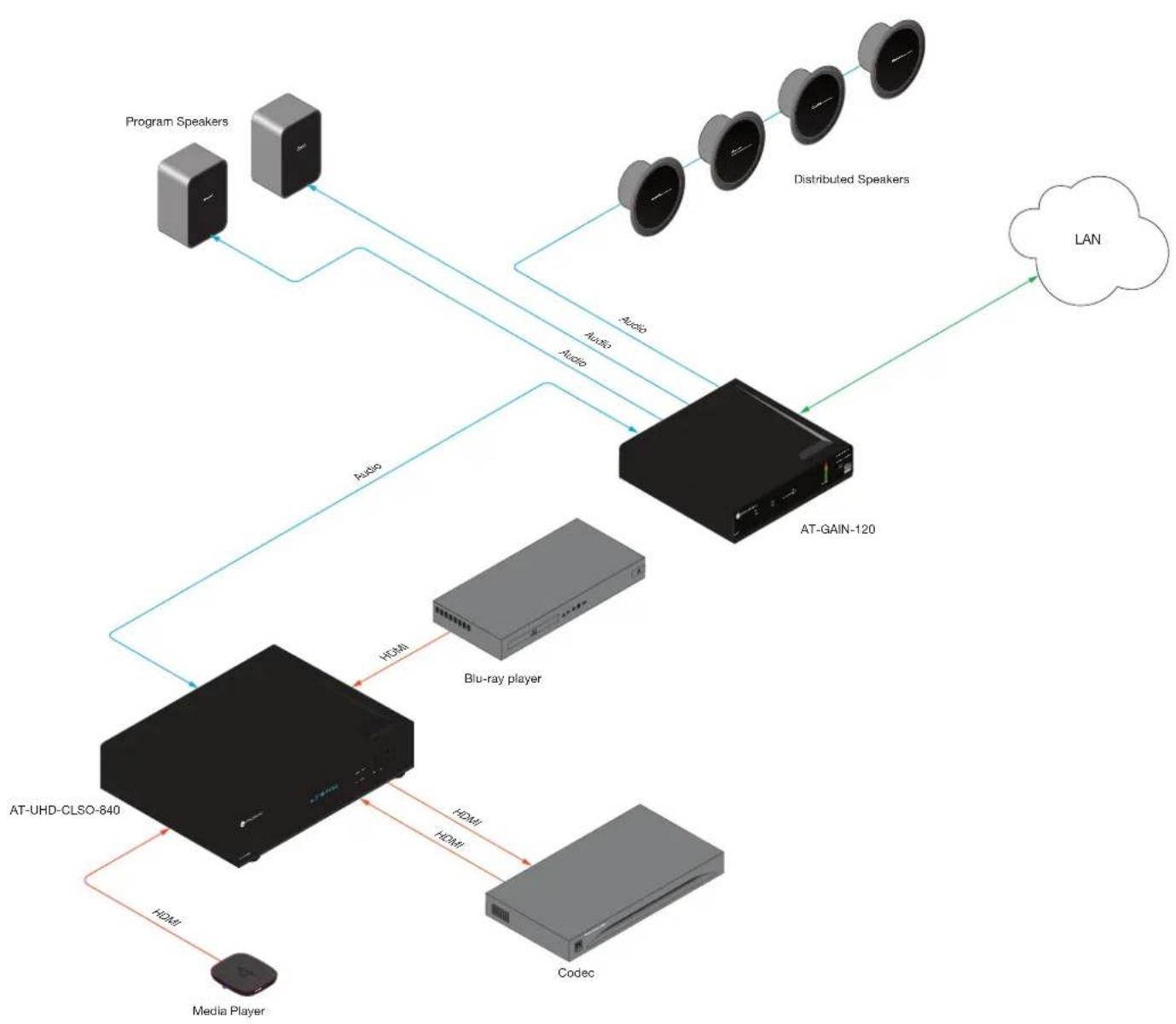

Connection Diagram 13

Basic Operation 14

IP Configuration 14 Using the Rear Panel 14 Using Commands 15 Using the Web GUI 16

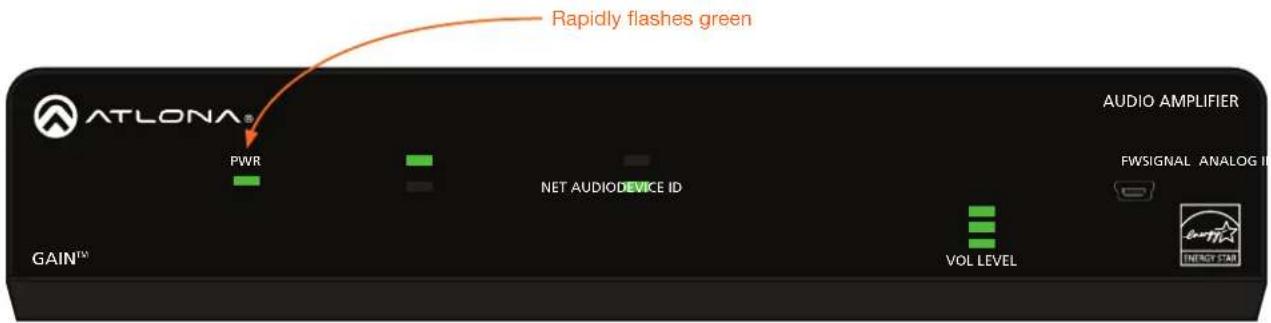

LED Indicators 18

Power Modes 19
Powering On or Off 19
Auto Power Down mode 19
Hibernation mode 20

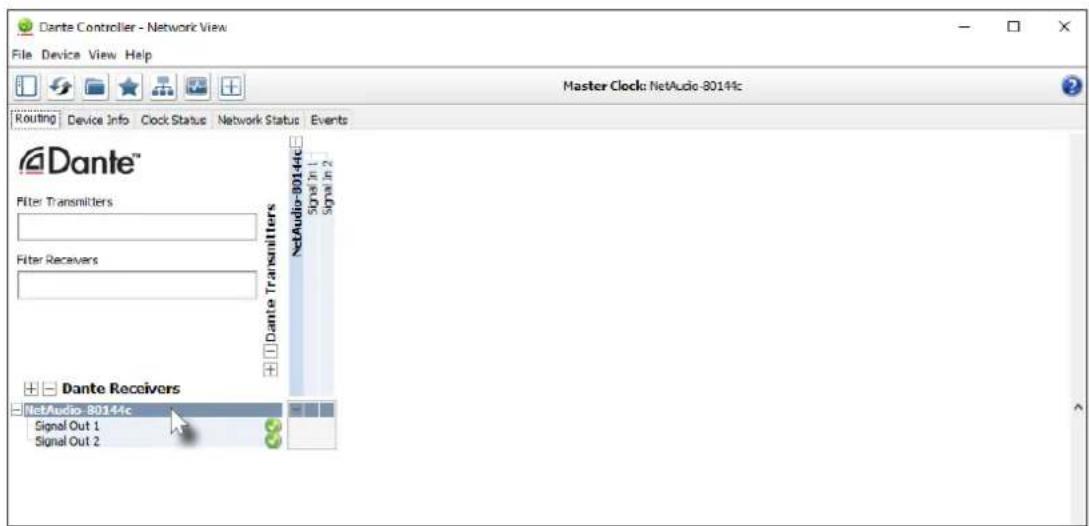

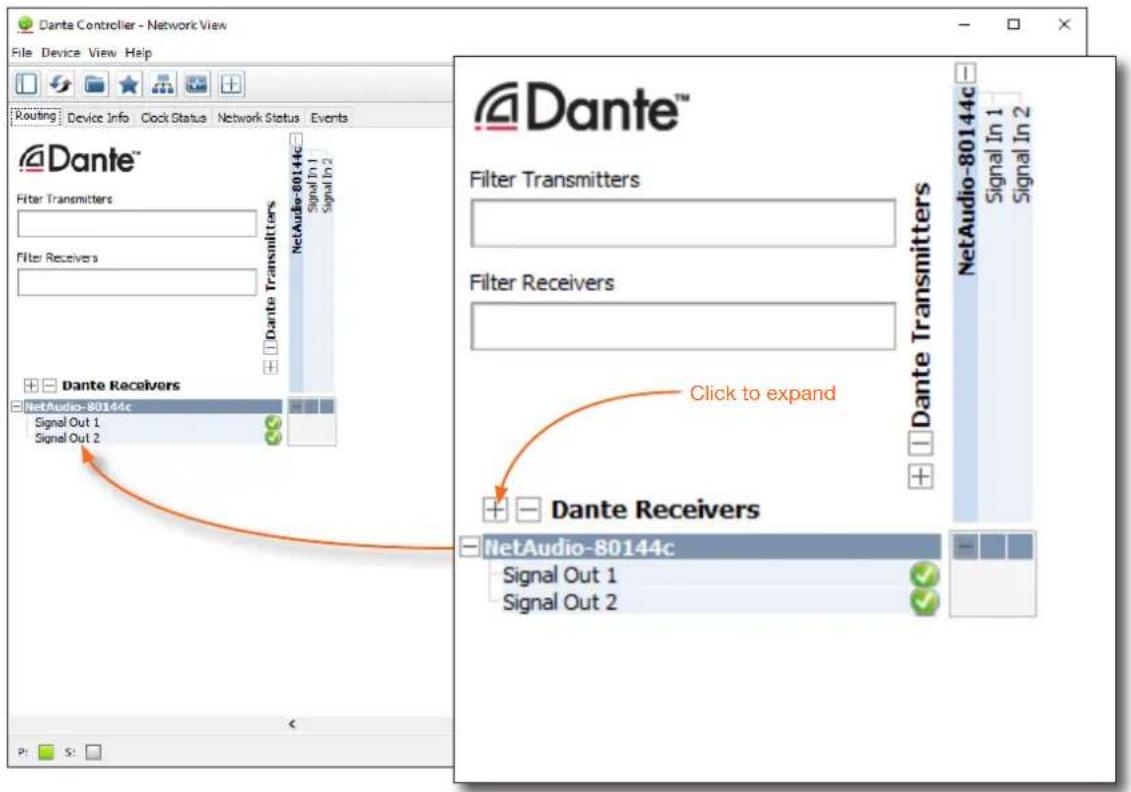

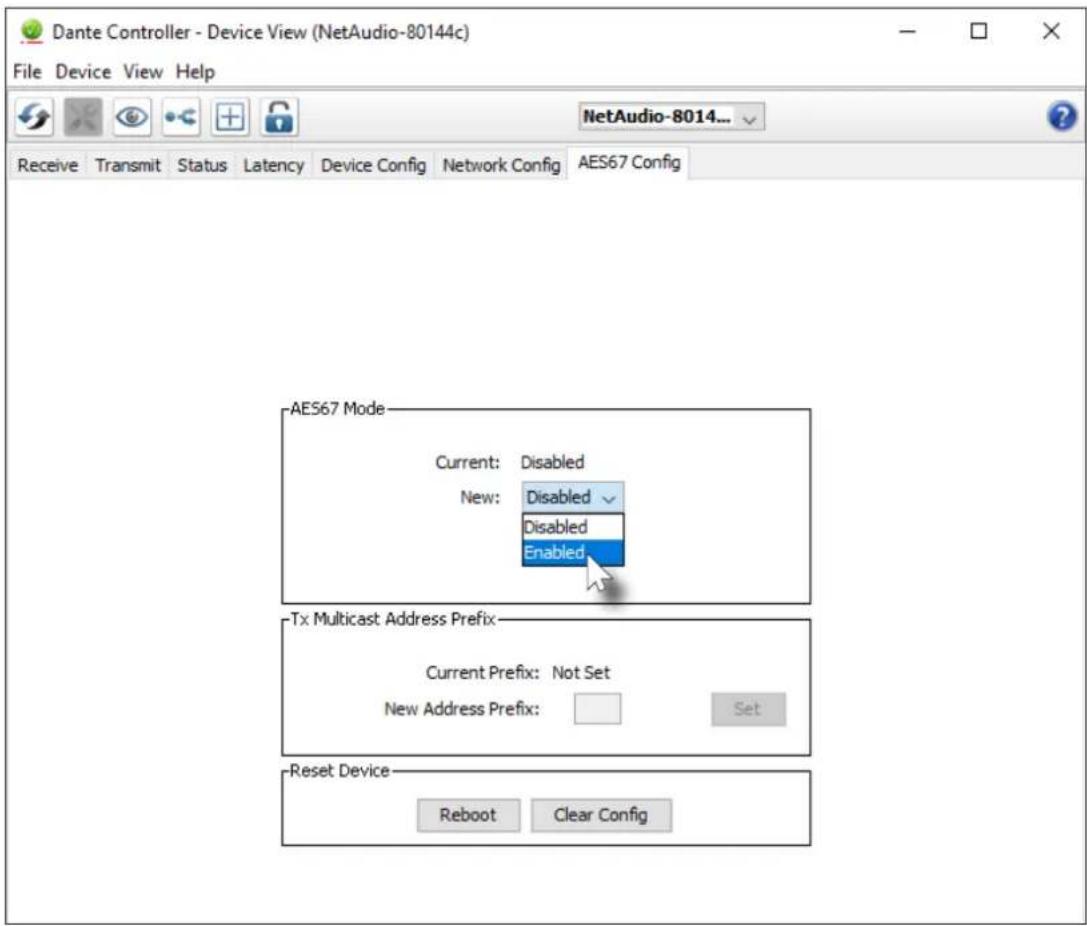

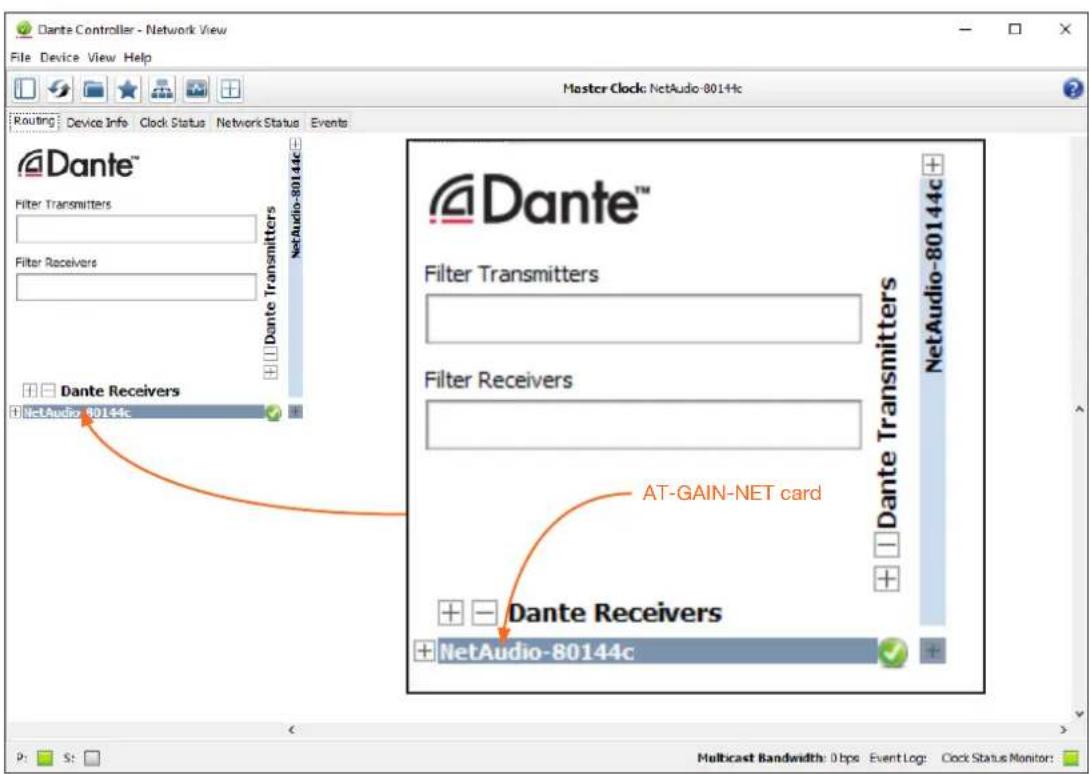

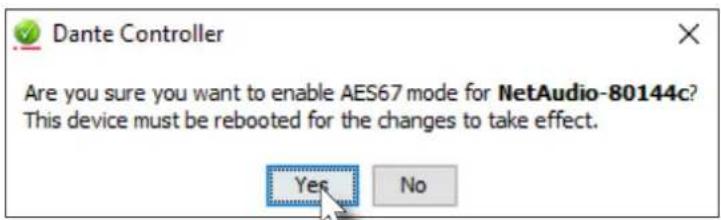

Network Audio 21 Dante Software Configuration 21 Enabling AES67 Support 22

Volume Control 24
Factory Reset 24

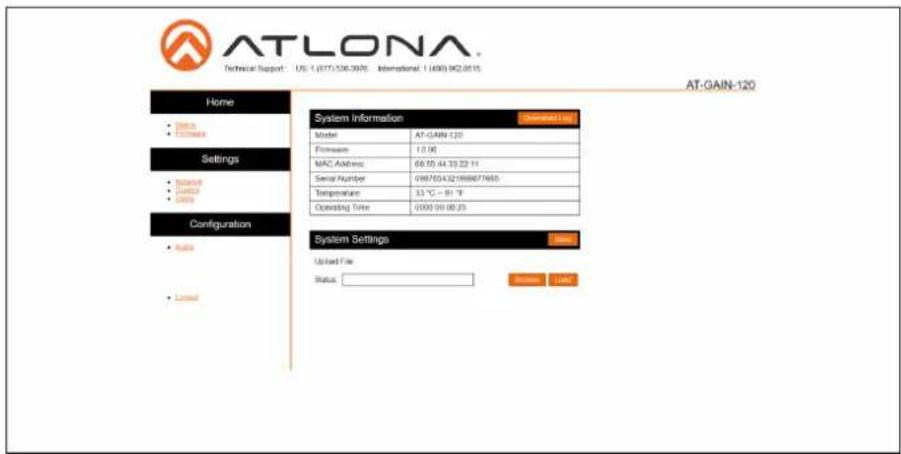

The Web GUI 25

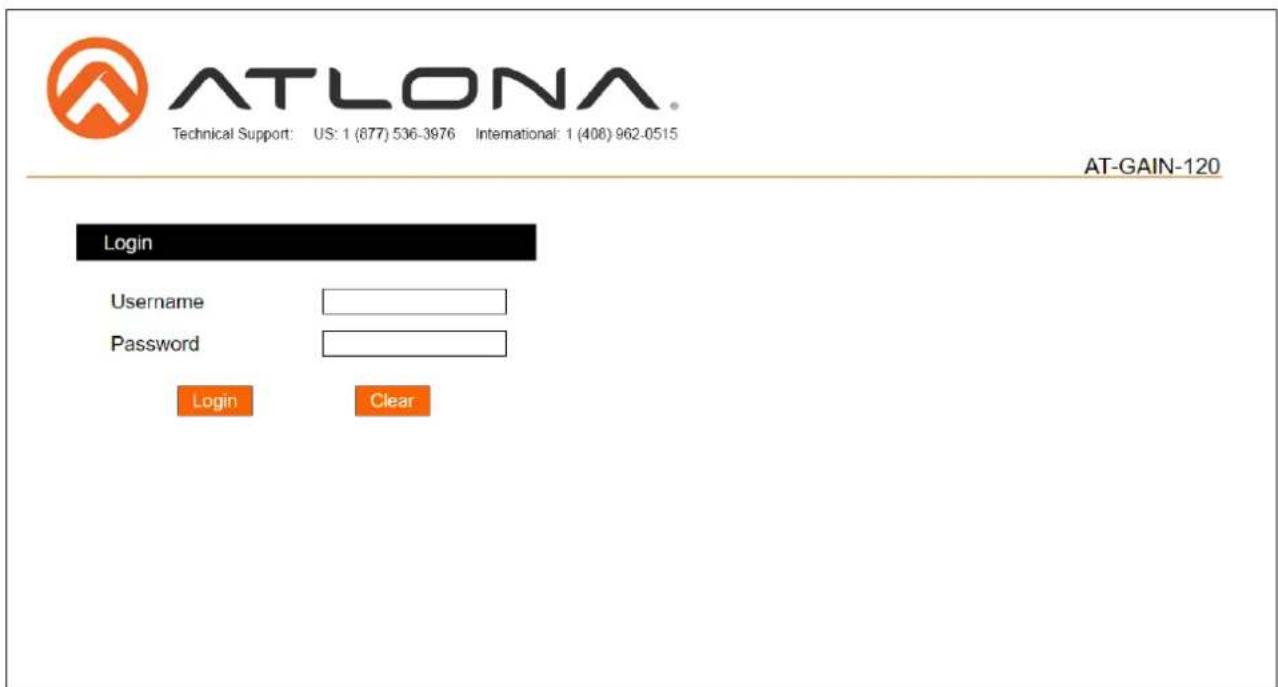

Introduction to the Web GUI 25

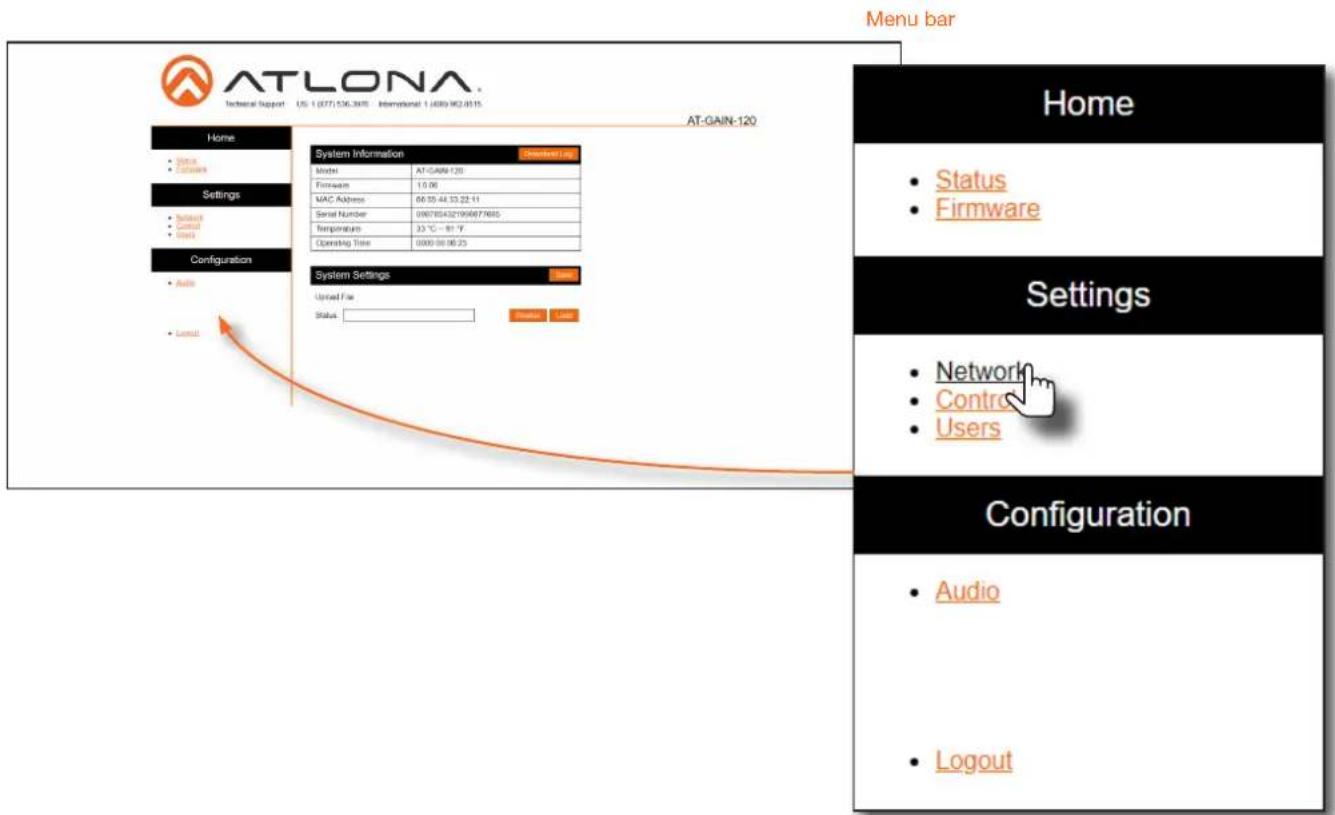

Menu Bar 26

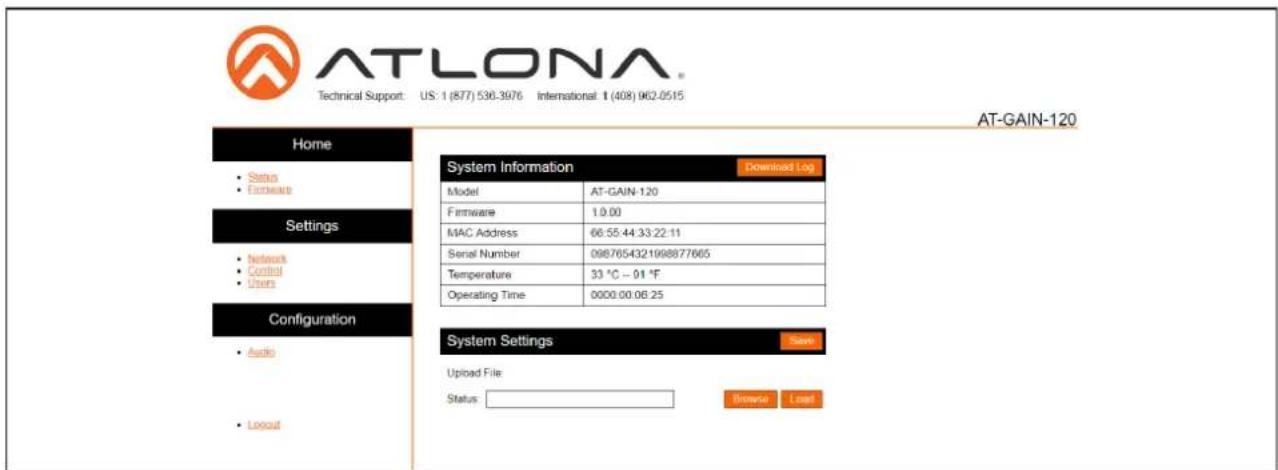

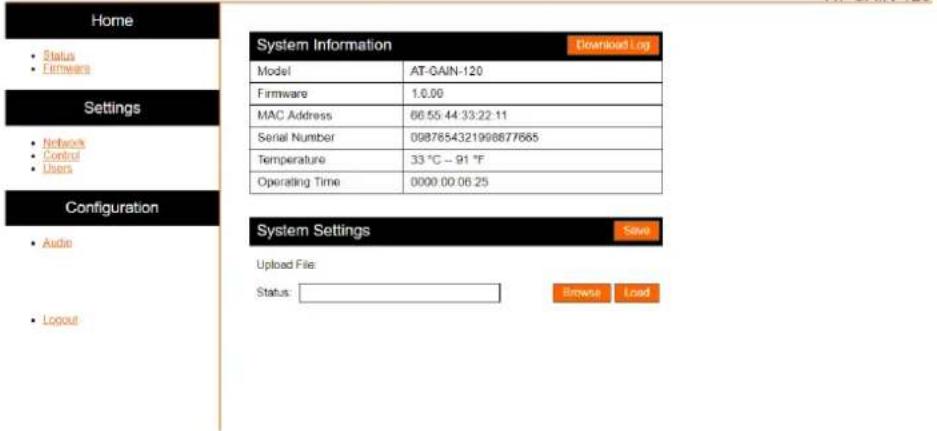

Status page 27

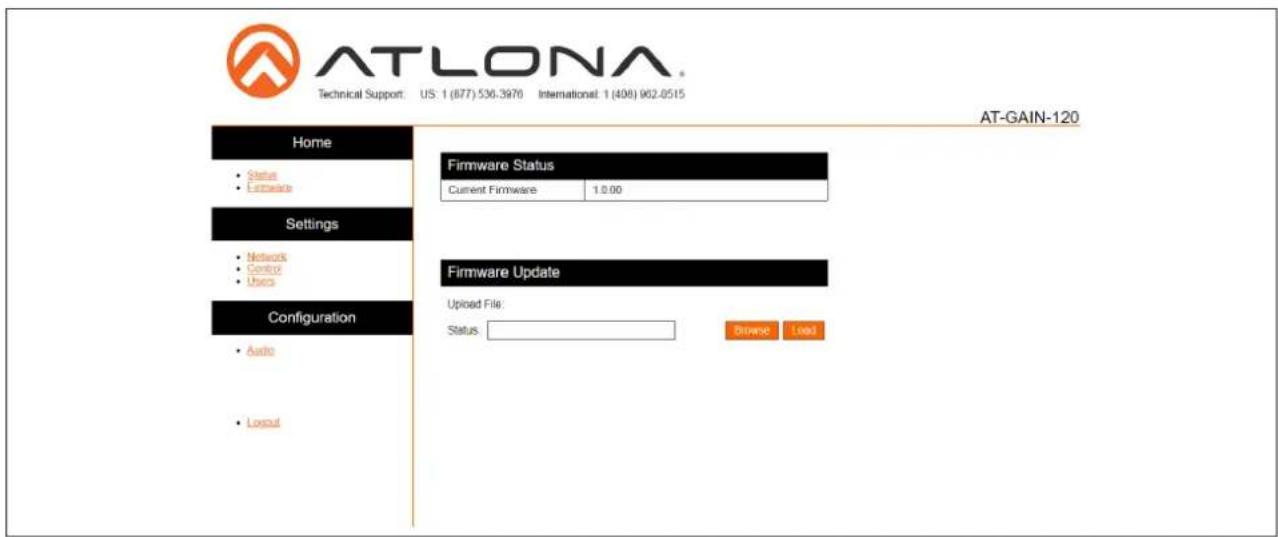

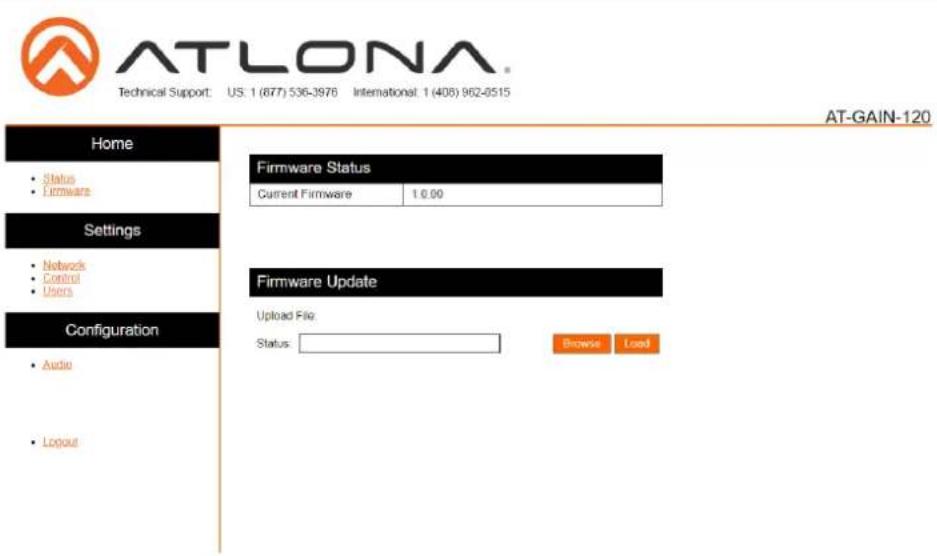

Firmware page 28

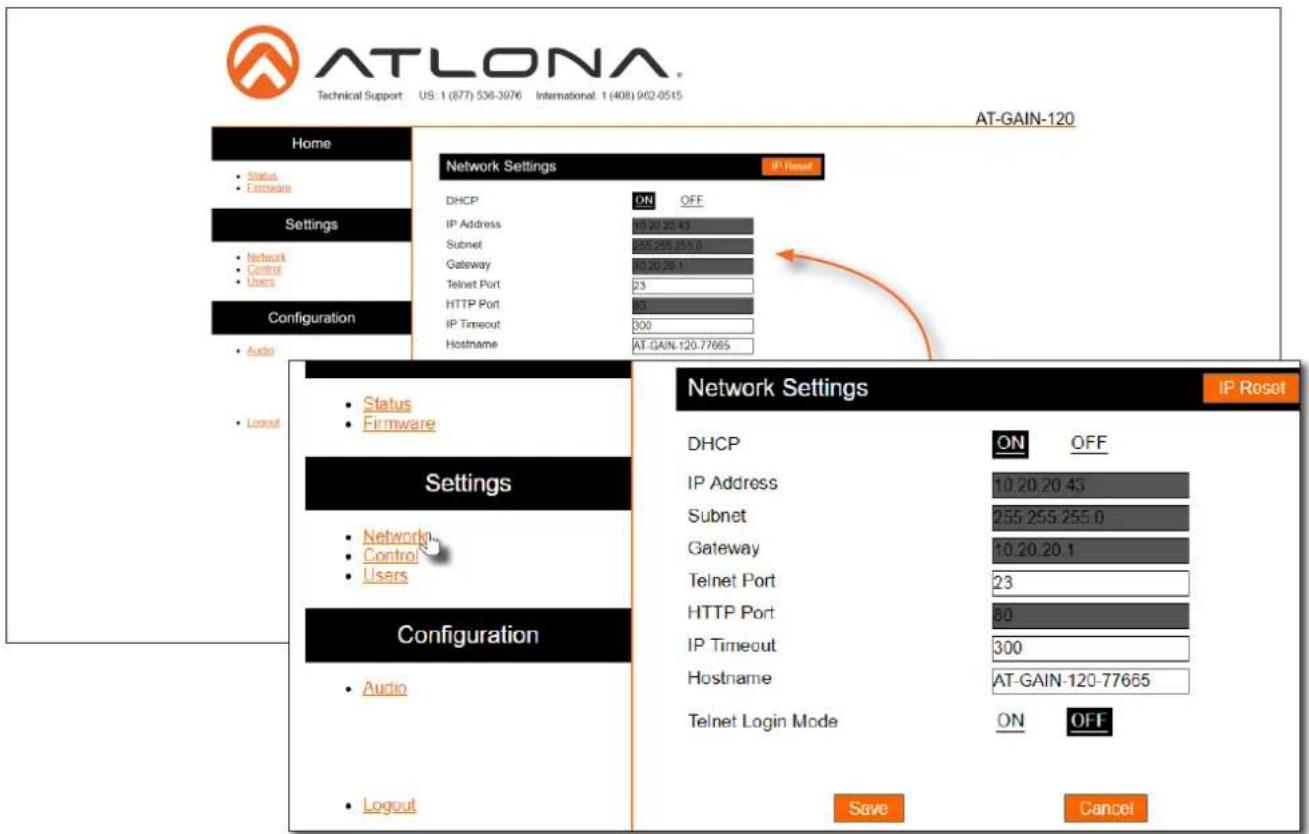

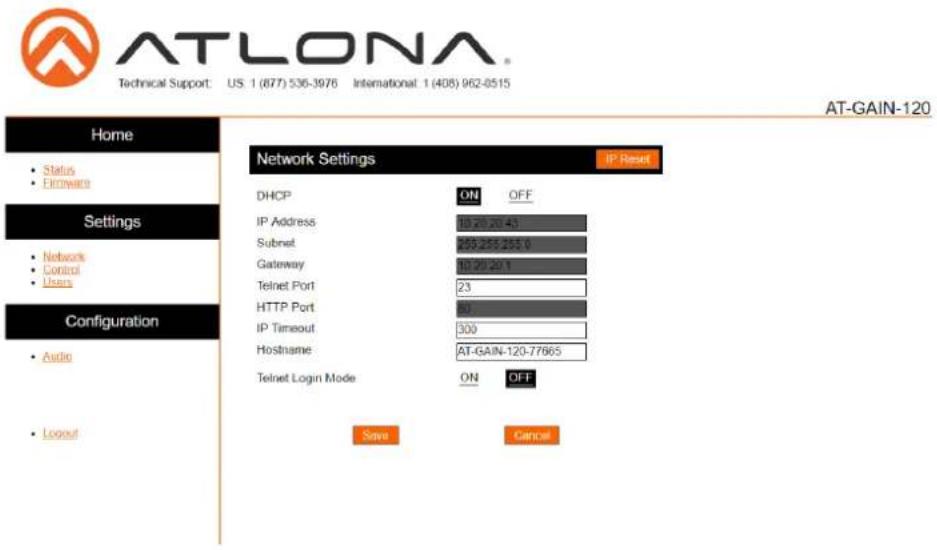

Network page 29

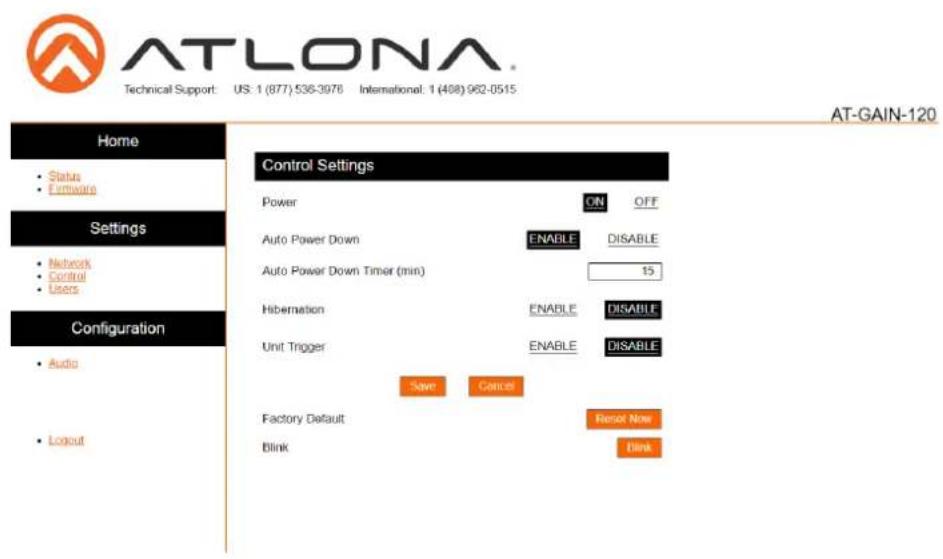

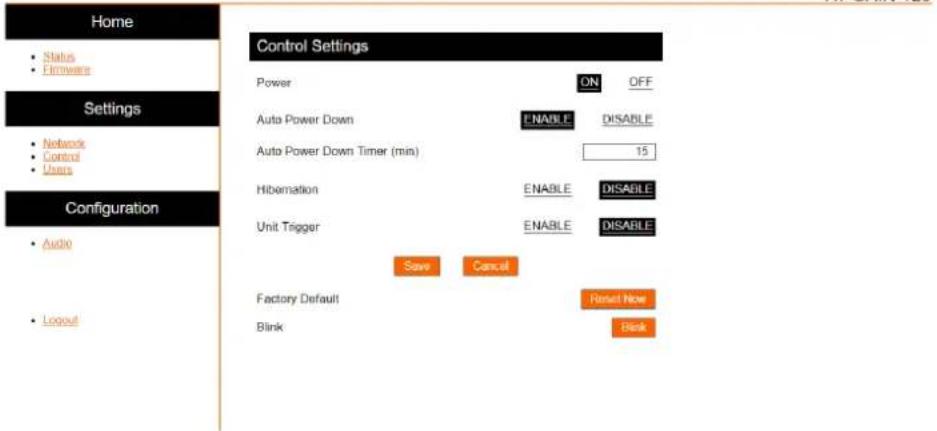

Control page 30

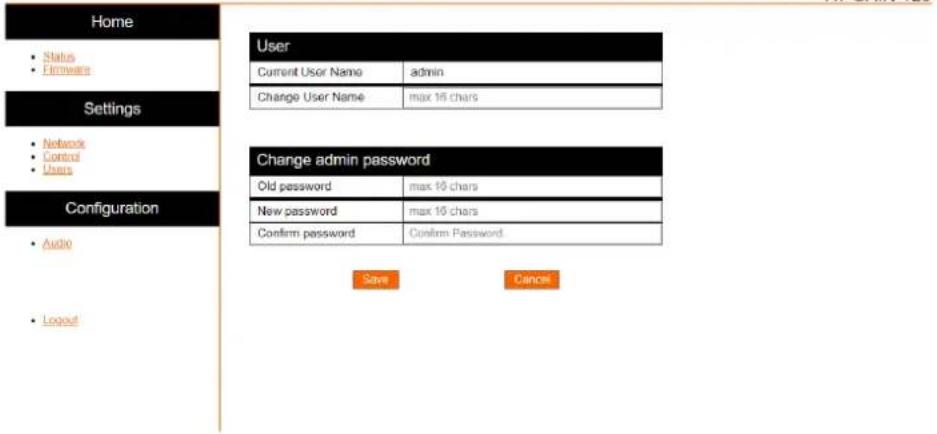

Users page 31

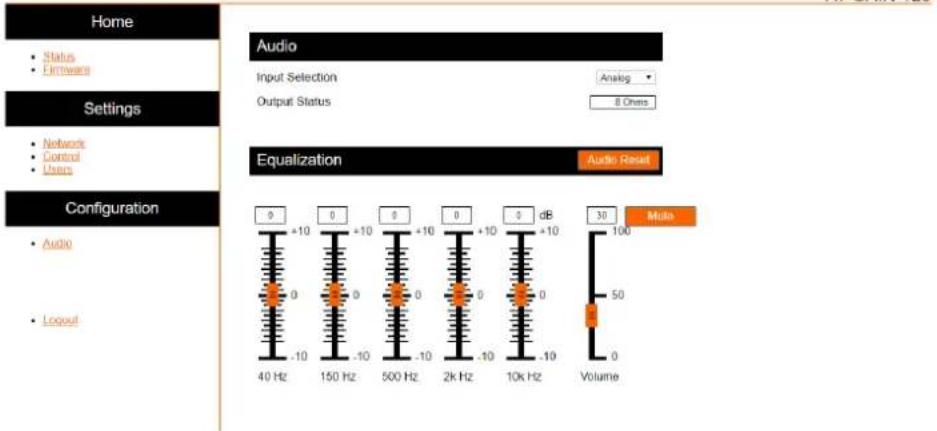

Audio page 32

Appendix 33

Updating the Firmware 33
Web GUI 33
USB 35

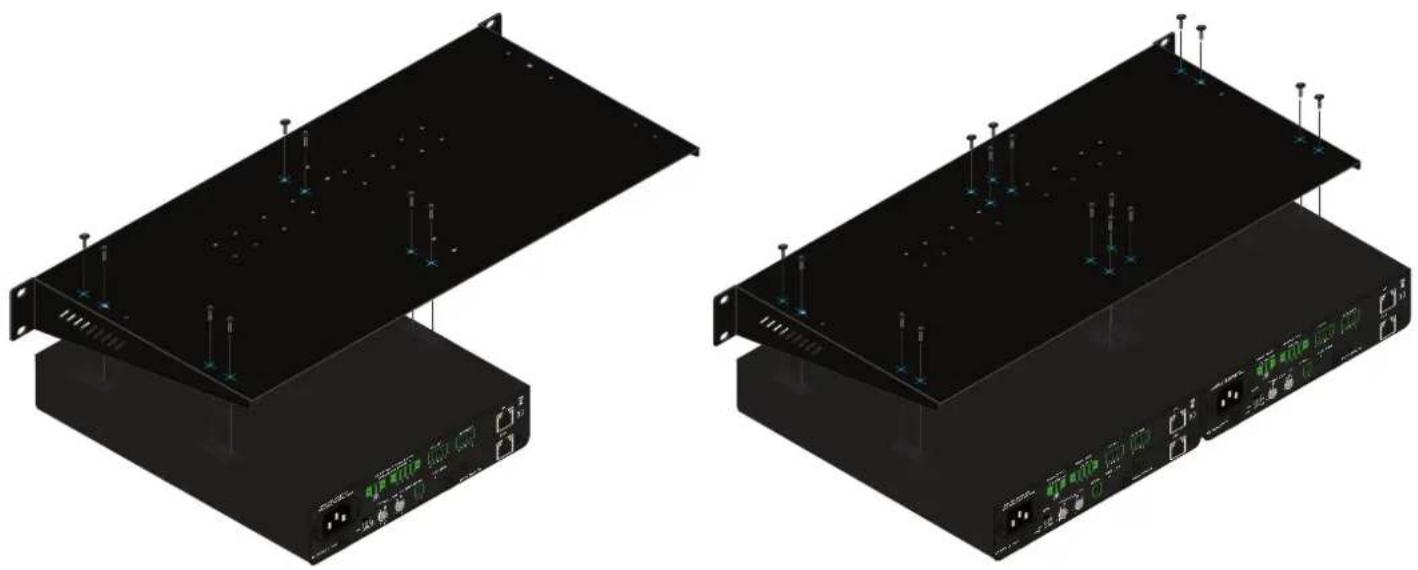

Rack Mount Installation 36
Network Audio Card Installation 37
Default Settings 40
Specifications 41

Index 43

Introduction

The Atlona Gain™ 120 (AT-GAIN-120) is a compact power amplifier designed for low or high impedance applications. A mode selector switch allows it to deliver two channels of 60 watts each into 4 or 8 ohms, or a single channel of 120 watts at 70 or 100 volts. This Class-D amplifier is energy efficient, ENERGY STAR® qualified, and is also convection-cooled to allow installation in conference rooms and quiet installation environments without the need for fans. In addition to the amplified speaker output, a line level audio output allows the incoming audio to be fed into an additional amplifier or audio system. The Gain 120 is controllable via TCP/IP or external trigger, and can be integrated with Atlona AV switchers and HDBaseT™ receivers for a wide variety of sound reinforcement applications.

Features

- Selectable low or high-impedance operation.

» 2 x 60 watts @ 4 or 8 ohms.

» 1 x 120 watts @ 70 or 100 volts.

• Class-D efficient amplifier design.

• ENERGY STAR® qualified.

- Convection cooled – no need for fans.

- Available AES67 / Dante™ networked audio interface (AT-GAIN-NET) – receives two-channel audio from OmniStream AV encoders or compatible audio devices.

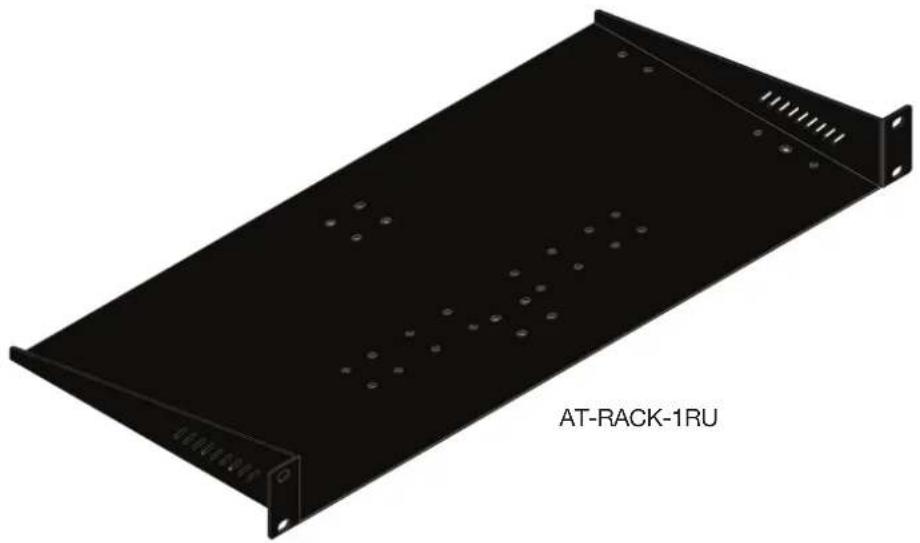

- Optional AT-RACK-1RU rack shelf highly recommended for rack installation.

• Automatic standby after 25 minutes of inactivity to minimize power consumption.

- Rear panel input level controls for setting audio system gain staging.

- Integrated protection circuitry automatically activates in the event of clipping, short circuit, thermal overload, and more.

- Low inrush current to prevent audible "thumps" when multiple amps are powered on simultaneously.

• Balanced analog audio output for pass-through to an additional amplifier or audio system.

- Integrated five-band equalizer.

• TCP/IP control of volume level, muting, and EQ.

- Ideal for IP-based control from Atlona Velocity Control System.

- Trigger port ideal for occupancy sensor to remotely power down amplifier or wake from standby.

- Front panel signal status LEDs for power, signal presence, real-time volume level, device identification, and internal protection activation.

- Rack-mountable 1U, half rack width enclosure.

- Includes installation guide, power cable (US), and captive screw connectors.

Package Contents

1 x AT-GAIN-120

2 x Captive screw connector, 2-pin

1 x Captive screw connector, 4-pin

2 x Captive screw connector, 5-pin

1 x IEC power cord

1 x Installation Guide

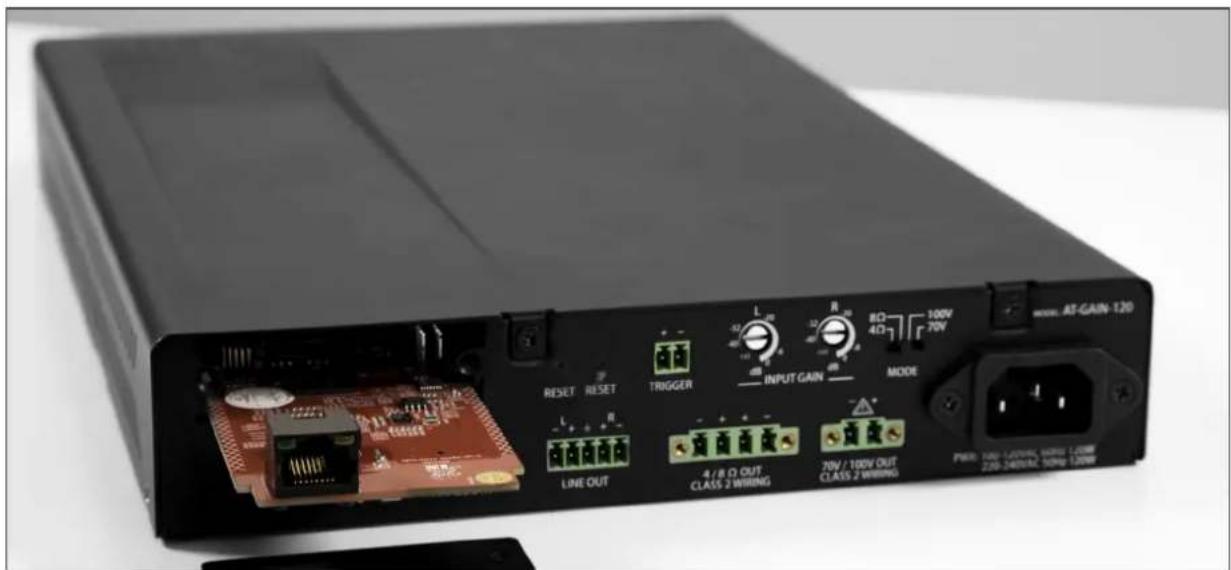

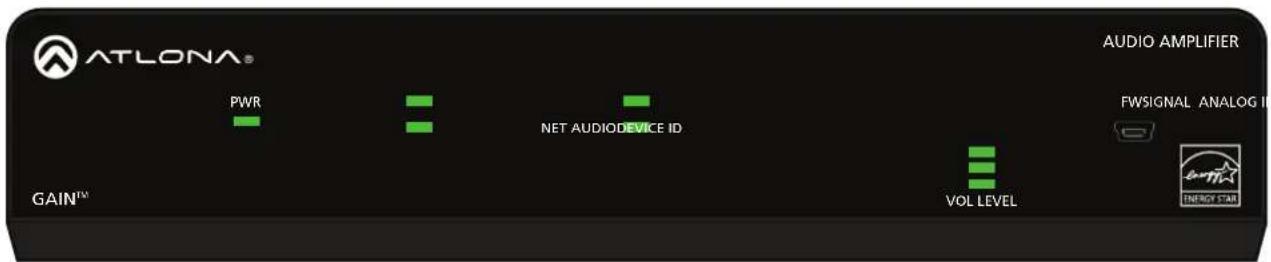

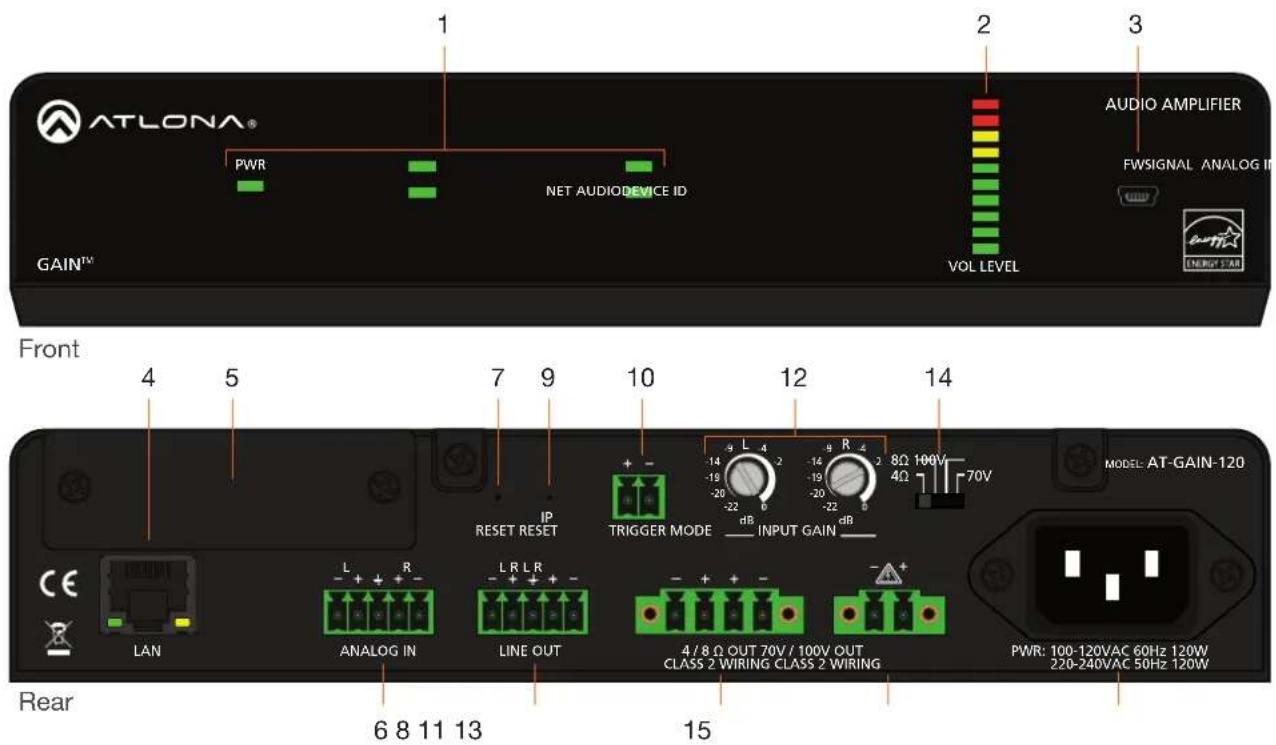

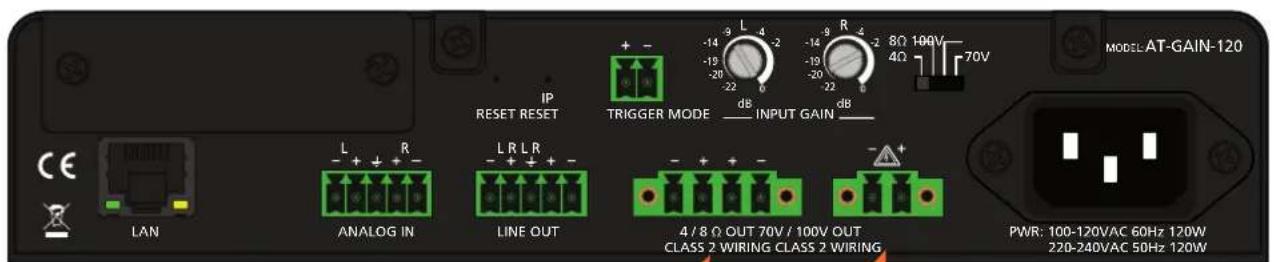

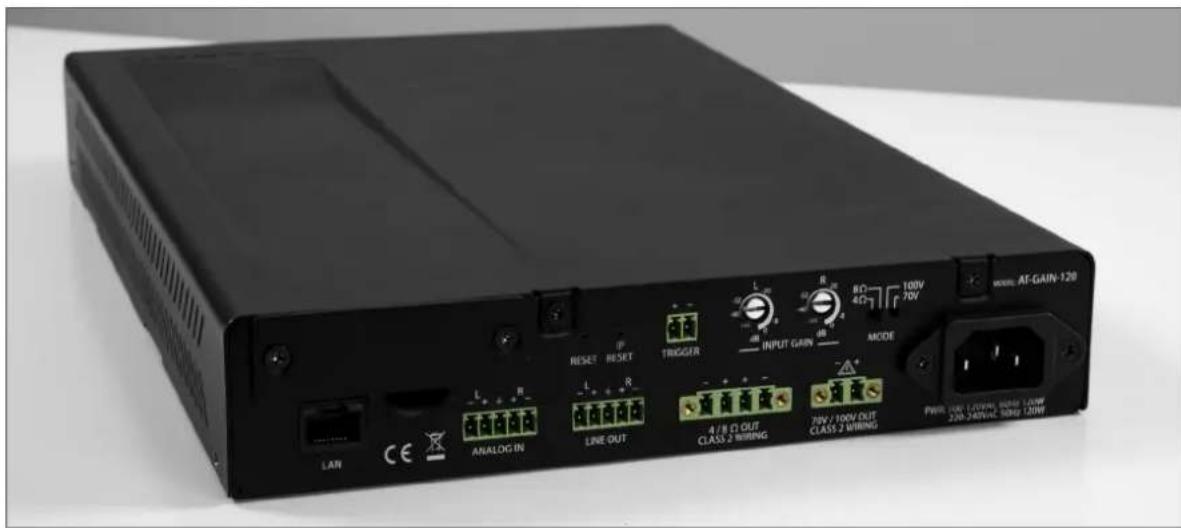

Panel Description

1 LED indicators

Displays the current state of the unit. Refer to LED Indicators (page 18) for more information.

2 VOL LEVEL

Displays the output audio level.

3 FW

Connect a USB-to-mini USB cable to this port from a computer for firmware updates.

4 LAN

Connect an Ethernet cable from this port to the Local Area Network (LAN).

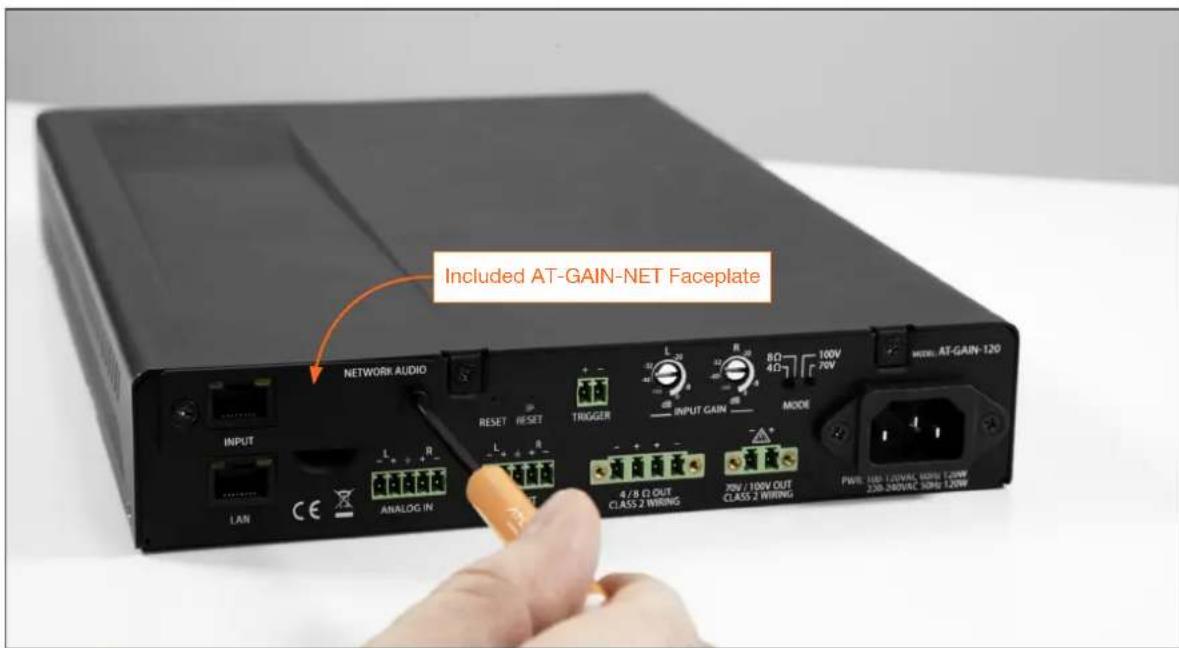

5 Removable Faceplate

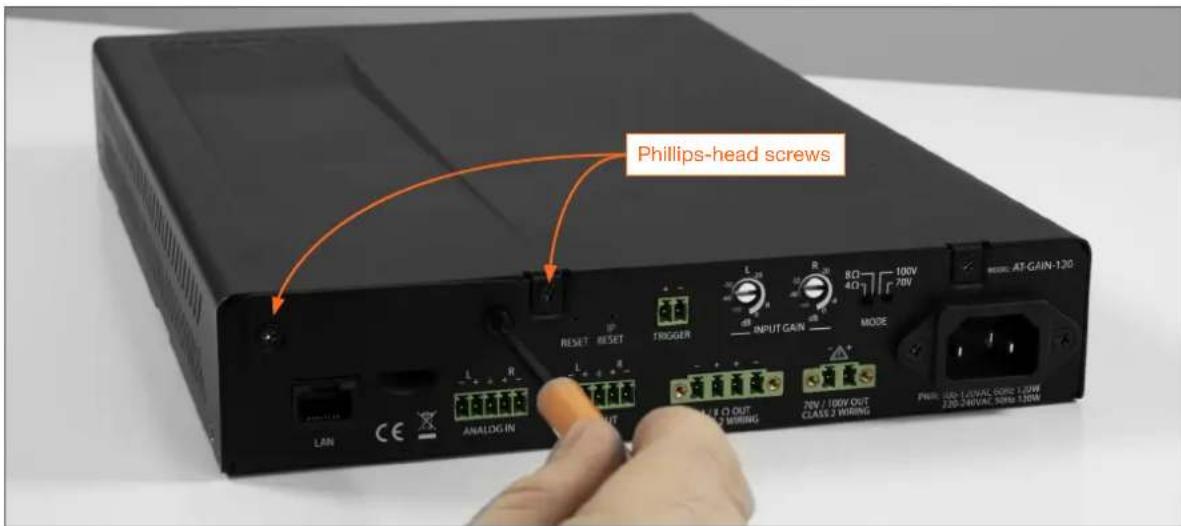

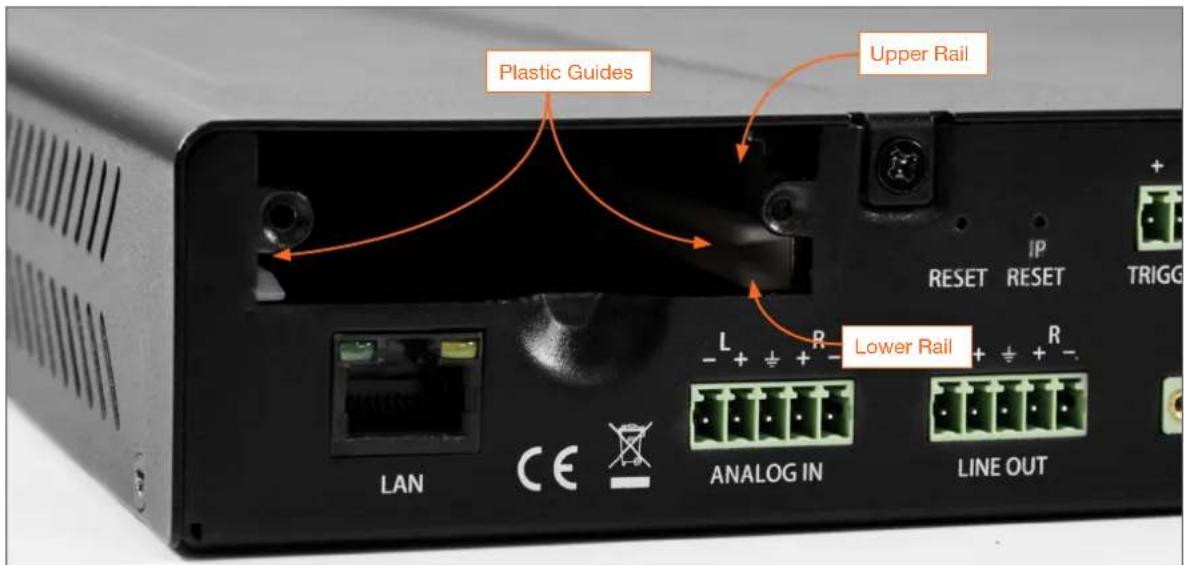

Remove this faceplate to install the AT-GAIN-NET (not included) card. Refer to Network Audio Card Installation (page 37) for more information.

6 ANALOG IN

Connect an audio source to this port using the included 5-pin captive screw connector. Refer to Audio Connectors (page 10) for wiring information.

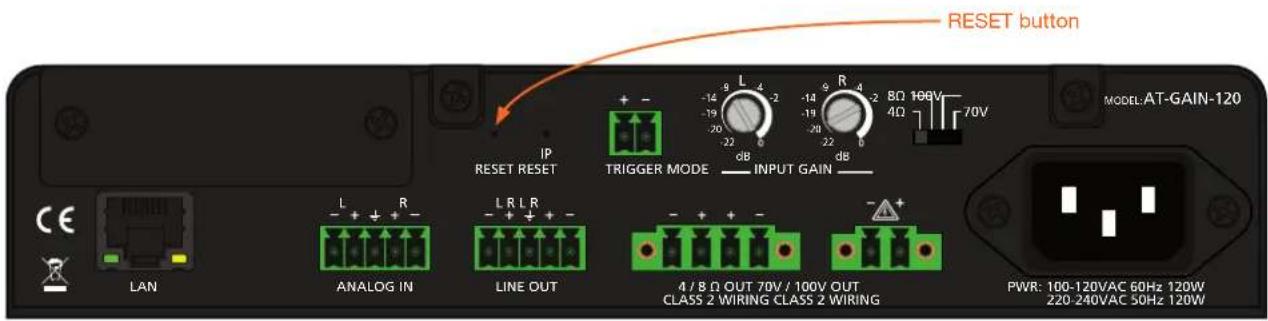

7 RESET

Press and hold this button for 10 seconds to reset the unit to factory-default settings. Refer to Factory Reset (page 24) for more information.

8 LINE OUT

Use the included 5-pin captive screw connector to connect to another AT-GAIN-120, audio DSP, or audio mixer. Refer to Audio Connectors (page 10) for more information.

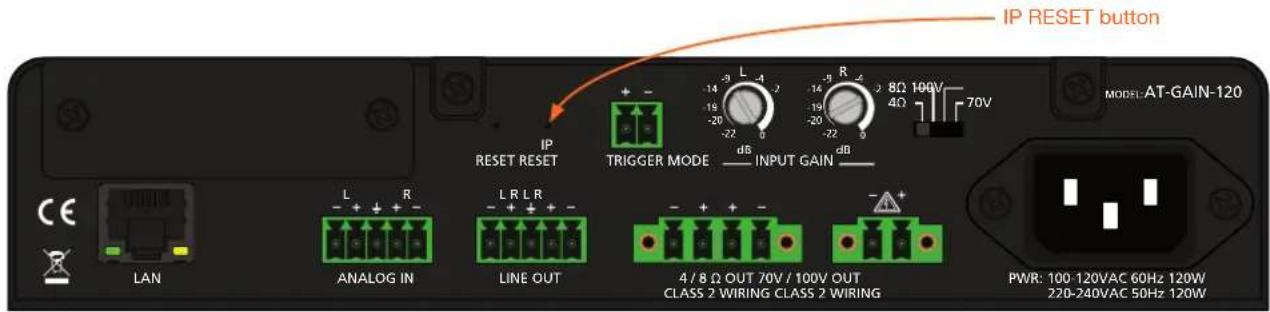

9 IP RESET

Press and hold button this button for 10 seconds to switch between DHCP and static IP mode. Refer to IP Configuration (page 14) for more information.

Also press and hold for 3 seconds to bring the unit out of hibernation mode. Refer to Power Modes (page 19) for more information.

10 TRIGGER

Use this port to toggle the unit between on and standby or awaken the unit from hibernation mode.

11 4/8Ω OUT

Connect a pair of 4 or 8 ohm speakers (low-impedance) to this port using the included 4-pin captive screw connector.

12 INPUT GAIN

Use a regular screwdriver to adjust the input gain level for left and right channel.

13 70V / 100V OUT

Connect a distributed speaker system (high-impedance) to this port using the included 2-pin captive screw connector.

14 MODE

Slide the switch to select between 4Ω, 8Ω, 70V, or 100V modes.

15 PWR

Connect from a power source to the AT-GAIN-120 using the included IEC power cord.

Installation

Audio Connectors

The AT-GAIN-120 provides two audio ports which provide analog audio input and output. The ANALOG IN port can be used to connect an audio digital signal processor (DSP) or other audio source device. Balanced or unbalanced wiring is supported.

The LINE OUT port can be used to connect an audio output device or daisy-chain to another amplifier.

NOTE: The LINE OUT port only outputs analog audio. This port cannot be used to output digital audio from the optional AT-GAIN-NET card. Also, volume mute, using the web GUI or the VOUTMute command, will mute the LINE OUT pass-through.

1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16" (5 mm) from the insulation of each wire.
3. Connect the wires as shown, using either balanced or unbalanced wiring.

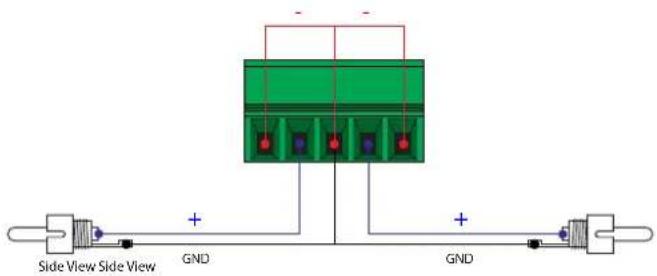

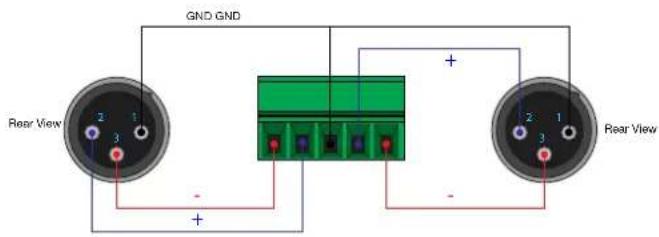

ANALOG IN / LINE OUT

The wiring for the ANALOG IN and LINE OUT ports, support either balanced or unbalanced audio, as shown below. Both ports use the included 5-pin captive screw connectors.

Green 3D model of a green electrical connector with multiple slots and mounting holes (no text or symbols)

Balanced audio using XLR connectors Unbalanced audio using RCA connectors

NOTE: The LINE OUT port is a fixed-level analog output, only. There is no D/A conversion when using the optional AT-GAIN-NET card.

4 / 8 Ω OUT

Connect program/stereo speakers to the included 4-pin captive screw connector, then connect the terminal block to the 4/8Ω OUT port. When connecting program / stereo speakers, set the MODE switch to either 4 Ω or 8 Ω, depending upon the speakers impedance.

Green 3D mechanical component with multiple slots and threaded connectors (no text or symbols visible)

70V / 100V OUT

Connect a distributed speaker system to the included 2-pin captive screw connector, then connect the terminal block to the 70V / 100V OUT port. When connecting program / stereo speakers, set the MODE switch to either 70V or 100V, depending upon the speakers.

Green 3D mechanical component with circular ports and threaded base (no text or symbols)

Trigger

The AT-GAIN-120 provides a TRIGGER port allowing the AT-GAIN-120 to be connected to an occupancy sensor.

Voltage levels for this port are as follows:

Voltage level Function

Voltage is 0 or less than 3 V Off

Voltage is 3 V or greater (30 V max.) On

1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16" (5 mm) from the insulation of each wire.
3. Connect the wires as shown.

Green 3D mechanical component with two circular holes (no text or symbols)

Pure electrical circuit lines without any symbols

Connection Instructions

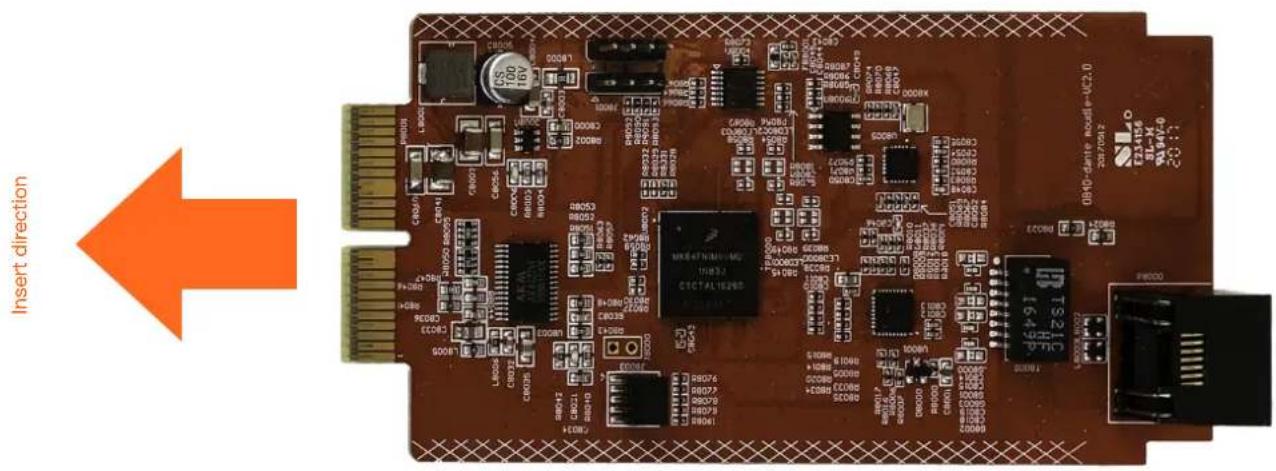

The AT-GAIN-120 can be used with an optional network audio card, which supports Dante and AES76 audio streams. If this card will be installed, refer to Network Audio Card Installation (page 37) for more information before continuing with the following instructions. This network card is sold separately and is available from Atlona.

1. Connect an analog audio source, using the included 5-pin captive screw connector, to the AUDIO IN port. Use the desired wiring configuration, on the previous page. Both balanced and unbalanced wiring are supported.
2. Connect an analog audio output device, using the included 5-pin captive screw connector, to the LINE OUT port. Use the desired wiring configuration, on the previous page. Both balanced and unbalanced wiring are supported.

NOTE: Analog or NET audio (with optional card), are selectable from the web GUI, Atlona Velocity™, or thrid-party control using the API. Refer to the Stereo / Mono Audio Power Amplifier 120 Watts Application Programming Interface, on the Atlona web site for more information. In addition, the LINE OUT port only outputs analog audio. This port cannot be used to output digital audio from the optional AT-GAIN-NET card.

1. Determine the use-case scenario of the AT-GAIN-120. The AT-GAIN-120 can be configured as either one of the following. Only one type of speaker connection is permitted at a time.

• Distributed speaker system (high impedance)

Set the MODE switch to the required voltage setting: 70V or 100V. This mode is used for commercial applications and longer speaker cable runs.

• Program speakers / stereo (low impedance)

Set the MODE switch to the impedance setting of the speakers being connected: 4Ω or 8Ω. This mode is used for consumer applications and shorter speaker cable runs.

Program / stereo speakers (low impedance)

Distributed speakers (high impedance)

1. Connect the speakers to the proper port on the AT-GAIN-120, based on the selection made in the previous step.
2. Set the MODE switch to the proper setting, based on the type of speaker connection that is being used.
3. Connect the LAN port to a network switch for set up and control of the unit.
4. OPTIONAL: Connect the included 2-pin captive screw connector from the TRIGGER port to an automation control system.
5. Connect the included IEC power cord to the power receptacle.
6. Connect the IEC power cable to an available electrical outlet.

Installation

Connection Diagram

IMPORTANT: When connecting speakers, either use a distributed speaker system or program/stereo speakers. The AT-GAIN-120 does not support simultaneous distributed and program speaker connections.

Basic Operation

IP Configuration

The AT-GAIN-120 is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Execute the arp -a command at the Windows command line or use an IP scanner to locate the AT-GAIN-120 on the network.

If the AT-GAIN-120 is unable to detect a DHCP server, within 15 seconds, then the unit will be assigned the following IP configuration:

• IP address 192.168.1.254
- Subnet mask 255.255.0.0
• Gateway 192.168.1.1

If a static IP address is desired, the unit can be switched to static IP mode. Use one of the following procedures to switch between DHCP and static IP mode. 192.168.1.254 is the default static IP address.

Using the Rear Panel

1. Make sure the AT-GAIN-120 is powered.
2. Press and hold the IP RESET button for approximately 10 seconds.

1. Release the IP RESET button once the PWR LED indicator on the front panel begins to flash. The number of flashes will indicate the currently selected IP mode.

POWER LED flashes	Description
Two	Static IP mode
Four	DHCP mode

1. Once the unit has changed IP modes, the unit will shut down. To restart the unit, disconnect then reconnect the power cable.
2. The unit is now set to the new IP mode and ready for use.

Using Commands

Use the IPStatic and IPDHCP commands to switch between DHCP and static IP mode using Telnet. Refer to the Application Programmers Interface documentation for more information. All commands and their arguments are case-sensitive.

- Setting static IP mode

1. Connect to the AT-GAIN-120 using Telnet.
2. At the command line, execute the IPDHCP command using the off argument, as shown.

IPDHCP off

1. Execute the IPStatic command. This command requires three arguments: the desired IP address of the AT-GAIN-120, the subnet mask, and the gateway address. All arguments must be entered in dot-decimal notation. The following is an example:

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1

1. Power-cycle the AT-GAIN-120.
2. The unit is now set to static IP mode and ready for use.

- Setting DHCP mode

1. Connect to the AT-GAIN-120 using Telnet.
2. At the command line, execute the IPDHCP command using the on argument, as shown. All characters are case-sensitive.

IPDHCP on

1. Power-cycle the AT-GAIN-120
2. The unit is now set to DHCP mode and will be assigned an IP address by the DHCP server (if present).

Using the Web GUI

The Network page (page 29) in the web GUI allows the option for the AT-GAIN-120 to use either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-GAIN-120 must be known.

1. Open the desired web browser and enter the IP address of the AT-GAIN-120.
2. Log in, using the required credentials. The factory-default username and password are listed below:

Username: admin

Password: Atlona

1. Click the Network tab, located on the side menu bar.

- Setting static IP mode

a. Click OFF, next to DHCP.
b. Enter the required information in the IP Address, Subnet, and Gateway fields.

- Setting DHCP mode

a. Click ON, next to DHCP.

1. Click the Save button to save the changes.

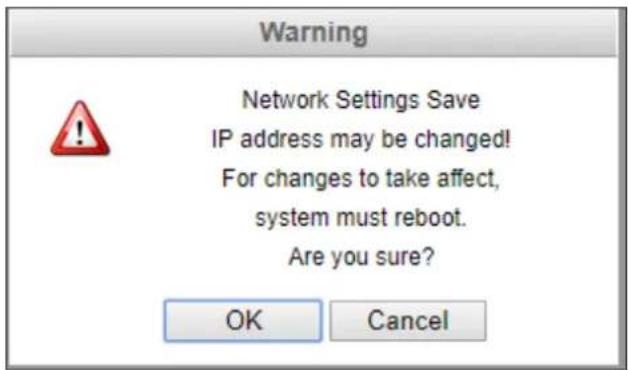

2. The following message box will be displayed:

1. Click OK to accept the changes or click Cancel to abort changes and return to the Network page.

LED Indicators

The LED indicators on the front panel, provide information on the current state of the AT-GAIN-120. Refer to the table below for more information.

LED Indicator State Description
PWR	Solid greenOffRapid flashing green	Unit is powered.Unit is not powered.Check the power cable between the AT-GAIN-120 and the electrical outlet.Make sure that the electrical outlet is live.Firmware update is in progress. Refer to Updating the Firmware (page 33) for more information.
SIGNAL	Solid green	An active signal is present on the selected input.
DEVICE ID	OffFlashing green	Unit is not in device ID mode.Unit is in “blink” mode. This LED indicator will flash once each second, and can be used to help physically identify the unit in a rack shelf.
ANALOG IN	Solid greenOff	The ANALOG IN port is the active input.The ANALOG IN port is not the active input.
NET AUDIO	Solid greenOff	The INPUT port on the network card is the active input. This LED indicator is only functional when the optional AT-GAIN-NET card is installed. Note that this LED indicator does not indicate the presence of an audio signal.The INPUT port is not the active input.
VOL LEVEL	Solid greenSolid amberSolid red	Acceptable range for output volume.Output volume level is approaching audio clipping.Audio clipping.

Power Modes

The following section discusses the power mode features which have been integrated into the AT-GAIN-120. Power modes are located under the Control tab within the web GUI.

1. Open the desired web browser and enter the IP address of the AT-GAIN-120.
2. Log in, using the required credentials. The factory-default username and password are listed below:

Username: admin Password: Atlona

1. Click the Control tab, located on the side menu bar. The Control Settings section will be displayed.

Powering On or Off

Click the OFF option to power-off the AT-GAIN-120. When powered-off, audio output is disabled but both the LAN port and INPUT port (AT-GAIN-NET audio card, only) will remain active. To power-on the AT-GAIN-120, after it has been powered-off, any one of the following methods may be used:

• Press and hold the IP RESET button for a minimum of 3 seconds, but not more than 5 seconds.
  • Pull the TRIGGER port from low to high. Unit Trigger must be enabled for this to function.
• Set Power to the ON setting, in the web GUI.
  • Route Dante / AES67 audio.

Auto Power Down mode

Enabling this mode will automatically power-down the AT-GAIN-120 if no audio input signal is present on either the INPUT port (AT-GAIN-NET audio card, only) or the ANALOG IN port, after the specified time interval. When the AT-GAIN-120 enters Auto Power Down mode, the Power option will be set to OFF and the front-panel LED indicators will turn off. In Auto Power Down mode, power consumption is limited to 2.2 W. By default this feature is enabled.

Note that when this mode is enabled, the AT-GAIN-120 only monitors the existence of an audio input signal, not the physical audio connection. Refer to the next page for instructions.

1. Click the ENABLE option, if it is not selected.
2. Set the time interval, which must elapse, before the AT-GAIN-120 powers-down. The default setting is 15 minutes.
3. Click the Save button.

Hibernation mode

Enabling this mode will place the AT-GAIN-120 into a very-low power mode where power consumption is limited to 0.5 W. When in hibernation mode, there will be no audio output or network communication. The PWR LED indicator will blink once every second to indicate that the AT-GAIN-120 is in hibernation mode. By default this feature is disabled.

To wake the AT-GAIN-120 from hibernation mode, use one of the following methods:

• Press and hold the IP RESET button on the rear panel for approximately 3 seconds, but no longer that 5 seconds, using the end of a paper clip or other pointed object.

• Pull the trigger high using a control system such as Atlona Velocity. Note that even if the Unit Trigger option is set to DISABLE, this method will still wake the AT-GAIN-120.

• Click the ENABLE option, if it is not selected. The following dialog will be displayed:

Are you Sure?

Hibernation will begin in 14 seconds...

CANCEL

Warning!

To exit hibernation mode use either of the methods below: -

1. Press and hold the IP Reset button for more than 3 seconds.
2. Cycle the Trigger input signal from Low to High.

(See User Manual for further details)

WARNING: If exiting hibernation mode, do not hold the IP RESET button for longer than 5 seconds. If this occurs, then the AT-GAIN-120 will switch IP modes.

To cancel, before entering hibernation mode, click the CANCEL button. Otherwise, once the dialog time expires, the AT-GAIN-120 will be placed in hibernation mode. To wake the AT-GAIN-120, use one of the methods listed above.

Network Audio

The AT-GAIN-120 supports Dante and AES67 audio streams with the addition of the optional AT-GAIN-NET audio card, which can be purchased from Atlona. Refer to Network Audio Card Installation (page 37) for information on card installation.

For setup and control of Dante / AES67 audio routing and configuration, refer to the Audinate Dante Controller software. AMS 2.0 and the web graphical interface of the AT-GAIN-120 supports basic network, control, and audio level adjustments.

IMPORTANT: The AT-GAIN-120 must be connected within the same network segment as the Dante Controller, in order to utilize mDNS.

Dante Software Configuration

1. Download the Audinate Dante Controller software from the following URL:

https://www.audinate.com/products/software/dante-controller

NOTE: The AT-GAIN-120 was tested using Audinate Dante Controller software v4.0.6.5 and Java v1.8.0. Atlona recommends using Audinate Dante Controller software v4.0.6.5 or higher.

1. Make sure that an Ethernet cable is connected from the INPUT port on the rear panel to the network.
2. Launch the Dante Controller software.

The AT-GAIN-NET network audio card will appear as NetAudio-xxxxx, where xxxxx refers to the last five hexadecimal digits of the network card MAC address.

1. Click the + icon, next to the NetAudio-xxxx card, under Dante Receivers, to view the channels. The AT-GAIN-NET audio card has a maximum of two channels of audio. Refer to the Dante Controller User Guide for details on operation.

Enabling AES67 Support

In order to route AES67 audio over IP, both the transmitter and receiver must support AES67 and have this option enabled.

1. Double click the network card, under Dante Receivers

1. A separate window will open. Click the AES67 tab.
2. Click the New drop-down list and select Enabled.

1. A message box will be displayed prompting to confirm AES67 is to be enabled. Click Yes.

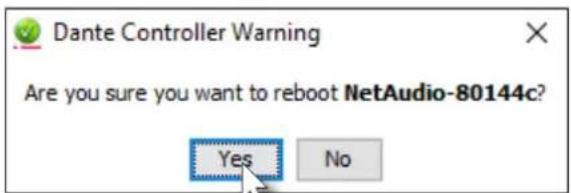

1. Another message box will be displayed. In order for AES67 to be enabled, the card must be rebooted. Click Yes to reboot the network card.

1. AES67 is now enabled.

Volume Control

Output audio level is controlled through the built-in web GUI. Volume control only affects the 4 / 8 Ω OUT and 70V / 100V OUT ports. Adjusting the audio output volume does not affect the LINE OUT port, as this port is a fixed-level output. The LINE OUT port is designed to be connected to a pre-amp device.

1. Log in to the web GUI. Refer to Introduction to the Web GUI (page 25) for more information.
2. Click the Audio menu.
3. Use the Volume slider, under the Equalization section, to adjust the output volume.
4. Click the slider controls on the 5-band graphic equalizer to adjust the audio frequency output, if desired. By default, the graphic equalizer produces a "flat" response.

Factory Reset

If necessary, the AT-GAIN-120 can be reset to factory-default settings. Note that the AT-GAIN-120 will be placed in DHCP mode, as part of the reset procedure. The AT-GAIN-120 can also be reset through the web GUI. Refer to the Control page (page 30) for more information.

1. Make sure the unit is powered-on.
2. Press and hold the RESET button for 10 seconds, using the end of a paper clip or other pointed object.
3. Release the RESET button.

The Web GUI

Introduction to the Web GUI

The AT-GAIN-120 includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-GAIN-120, as it provides intuitive management of all features.

The AT-GAIN-120 is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. Use an IP scanner to determine the IP address of the AT-GAIN-120. If a static IP address is desired, refer to IP Configuration (page 14). The default static IP address of the AT-GAIN-120 is 192.168.1.254.

1. Launch a web browser.

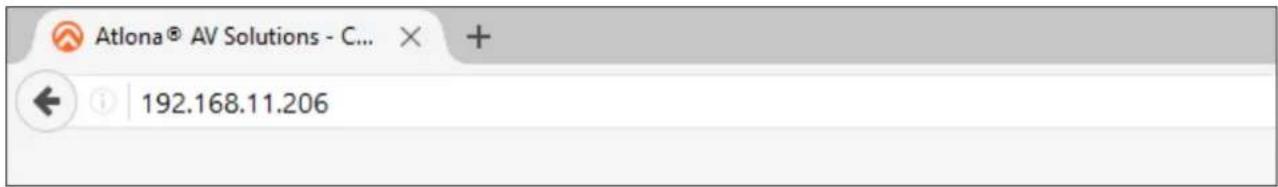

2. In the address bar, type the IP address of the AT-GAIN-120.

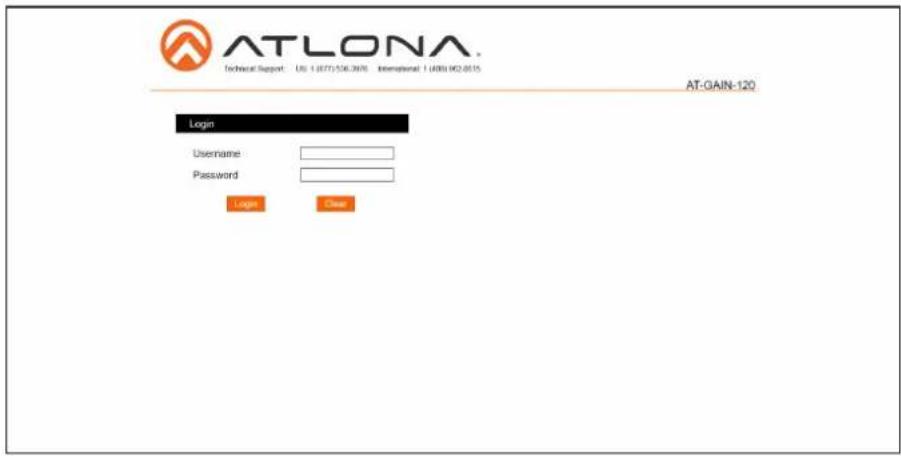

3. The Login page will be displayed.

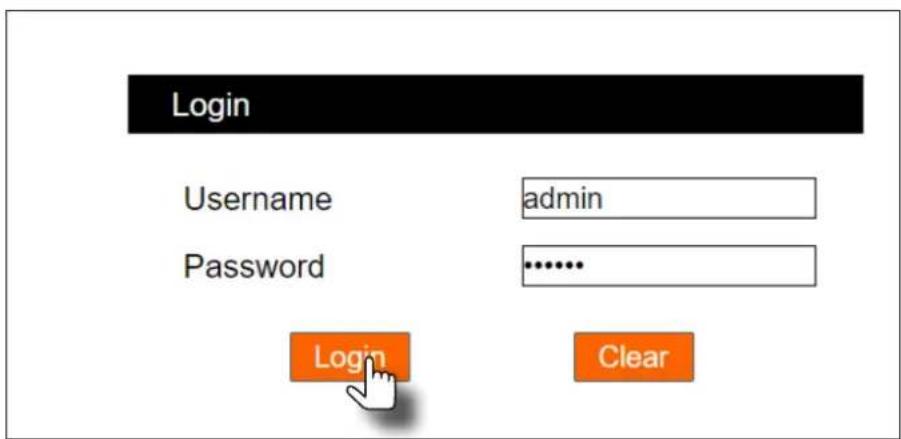

1. Type admin, using lower-case characters, in the Username field.

2. Type Atlona in the Password field. This is the default password. The password field is case-sensitive. When the password is entered, it will be masked. The password can be changed, if desired. Refer to Users page (page 31) for more information.

3. Click the Login button or press the ENTER key on the keyboard.

1. The Status page will be displayed.

1. To logout of the web GUI at any time, click Logout on the side menu bar. Once logged out, the AT-GAIN-120 will display the login screen.

Menu Bar

The window on the left side of the screen is the menu bar. The menu system is divided into three sections:

Home, Settings, and Configuration. When the mouse is moved over each menu item, it will be highlighted in black.

Click the menu item to go that page.

Status page

ATLONA

Technical Support: US: 1 [phone] International: 1 [phone]

AT-GAIN-120

Download Log

Click this button to download a log of command events to the computer's hard disk.

Model

The SKU of this product.

Firmware

The current firmware version installed.

MAC Address

The MAC address of the AT-GAIN-120.

Serial Number

The serial number of the AT-GAIN-120.

Temperature

The current internal ambient temperature of the AT-GAIN-120.

Operating Time

The time in which the unit has been in the “on” state since it was last rebooted.

Save

Click this button to save the system settings to a local file. System settings files are saved in .bin (binary) format. The default system settings filename is systemsettings.bin. It is recommended to save the system settings before performing a firmware update.

Status (progress bar)

Displays the status of saving and loading system settings files.

Browse

Click this button to select the desired system settings file. Click the Load button to upload the settings file to the AT-GAIN-120.

Load

Click this button to upload the selected settings file to the AT-GAIN-120. While the system settings file is being loaded, the Status progress bar will display the current progress.

Firmware page

Current Firmware

The current firmware version installed.

Status (progress bar)

Displays the status of loading new firmware during a firmware update procedure.

Browse

Click this button to select the firmware file. Click the Load button to begin the update procedure. Refer to Updating the Firmware (page 33) for more information.

Load

Click this button to upload the selected firmware file to the AT-GAIN-120. While the system settings file is being loaded, the Status progress bar will display the current progress.

Network page

After pressing the Save button, a reboot message will appear at the top of the web GUI. The AT-GAIN-120 must be rebooted when any of the network settings have changed.

DHCP

Click the ON button to enable DHCP. Click the OFF button to enable static IP mode. In static IP mode, the IP Address, Subnet, and Gateway fields can be modified.

IP Address

Enter the IP address of the AT-GAIN-120 in this field. This field can only be changed when DHCP is set to OFF.

Subnet

Enter the subnet mask in this field. This field can only be changed when DHCP is set to OFF.

Gateway

Enter the gateway (router) IP address in this field. This field can only be changed when DHCP is set to OFF.

Telnet Port

Enter the Telnet listening port in this field. The default port is 23.

HTTP

Enter the HTTP listening port in this field. The default port is 80. This field cannot be modified.

IP Timeout

Enter the time-out interval (in seconds) in this field. This field represents the time interval before the TCP/IP connection times out.

Hostname

Enter the desired hostname in this field. By default, the hostname is the product (SKU) plus the last five digits of the unit serial number.

Telnet Login Mode

Click the ON button to prompt for username and password credentials. Username and password credentials are the same as the web GUI login credentials. Click the OFF button to create an open Telnet session that does not require login credentials. The default setting is OFF.

Save / Cancel

Click the Save button after any changes have been made. Click the Cancel button to abort changes.

Control page

ATLONA

Technical Support: US 1 [phone] International: 1 [phone]

AT-GAIN-120

Power

Click the ON button to power-on the AT-GAIN-120. Click the OFF button to power-off the unit.

Auto Power Down

Enables or disables auto power down mode. Refer to Auto Power Down mode (page 19) for more information.

Auto Power Down Time (min)

Specify the time interval before the AT-GAIN-120 goes into auto power down mode. Refer to Auto Power Down mode (page 19) for more information.

Hibernation

Enables or disables hibernation mode. Refer to Hibernation mode (page 20) for more information.

Unit Trigger

Enables or disables the trigger.

Save / Cancel

Click the Save button to apply changes. Click the Cancel button to abort changes.

Factory Default

Click this button to reset the AT-GAIN-120 to factory-default settings.

Blink

Click the Blink button to start blinking the DEVICE ID LED indicator. This feature is useful to identify the unit when multiple units are being used.

Users page

ATLONA

Technical Support: US 1 [phone] International: 1 [phone]

AT-GAIN-120

Current Username

The administrator username. This field cannot be changed.

Password

Enter the password for the administrator in this field. Special characters (e.g. #, %, @, &, etc.) are not permitted.

Change Admin Password

• Old password
  Enter the current password in this field. The default password is Atlona.
• New Password
  Enter the new password in this field.
• Confirm Password
  Verify the new password by entering it in this field.

Save / Cancel

Click the Save button to apply all changes. Click the Cancel button to abort changes.

Audio page

ATLONA

Technical Support: US 1 [phone] International: 1 [phone]

AT-GAIN-120

Input Selection

Click this drop-down list to select the audio input: Analog or Net Audio. The Net Audio selection will only be available if the optional AT-GAIN-NET card is installed. This card is available from Atlona.

Output Status

Displays the current output impedance setting.

Equalization (Graphic, 5-band)

Click and drag each of these sliders to adjust the output frequency range. Each band has a range from -10 dB to +10 dB. The following table provides a general breakdown of each frequency in the audio spectrum.

Slider Description General Range
40 Hz Sub-bass frequency	20 Hz - 50 Hz
150 Hz Bass frequency	50 Hz - 200 Hz
500 Hz Upper-bass to lower midrange	200 Hz - 800 Hz
2 kHz Midrange to upper midrange	800 - 4 kHz
10 kHz “Brilliance” frequency	7 kHz - 12 kHz

Auto Reset

Click this button to reset all equalizer bands to their default settings. Refer to Default Settings (page 40) for more information.

Mute

Click this button to mute the audio output. Note that clicking this button will mute all audio output ports: LINE OUT, 4 / 8 Ω OUT, and 70V / 100V OUT.

Volume

Click and drag this slider to adjust the output volume. This volume slider only affects the output volume on the speaker outputs. It does not affect the audio volume of the LINE OUT port, as this port is a fixed-level port. Note that the volume range for this slider is not measured in decibels.

Appendix

Updating the Firmware

The AT-GAIN-120 can only be updated either through the web GUI or using the mini-USB port on the front panel.

IMPORTANT: As of this writing, Google Chrome is the only browser that is supported for firmware updates. Other browsers will be supported in future versions of firmware.

Web GUI

Required items:

• Firmware
  • IP address of the AT-GAIN-120
  • Computer on the same network as the AT-GAIN-120

• Username and password to access the web GUI

• Verify that an Ethernet cable is connected between the AT-GAIN-120 and the network. The computer used to access the web GUI must be on the same network as the AT-GAIN-120.

• Type the IP address of the AT-GAIN-120 into the web browser, as shown in the example below.

1. The login screen will be displayed. Login using the username and password. The default login credentials are:

Username: admin

Password: Atlona

Appendix

1. Click Status in the menu bar on left side of the screen.
2. Click the Save button.

1. The Save As dialog box will be displayed. Select the folder where the file will be saved. Click the Save button to save the file. The file is saved in .bin format and uses the default name of systemsettings.bin.
2. Click Firmware on the left side of the screen.

1. Click the Browse button to select the firmware file.
2. Click the Load button to begin the upgrade process and the PWR LED indicator will flash rapidly. A progress bar will be displayed during the update process. Once the update has been completed, re-login to the webGUI.

WARNING: Power must not be disconnected or interrupted during the firmware update process.

USB

Required items:

• Firmware
  • USB Type A to Mini-USB Type B cable
  • Computer with USB port

• Download the latest firmware from the Atlona web site.

• Disconnect the power from the AT-GAIN-120.

• Connect the USB cable from the FW port on the front panel to the computer with the firmware.

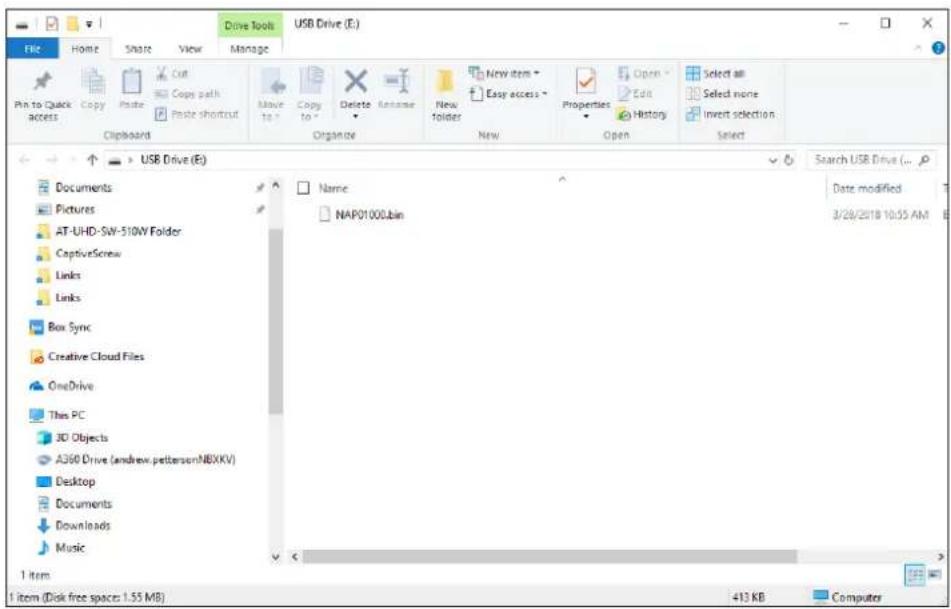

• Reconnect the power to the AT-GAIN-120. After a few seconds, a drive folder will be displayed.

1. Delete all existing files on this drive.
2. Drag-and-drop the firmware file on the computer to this folder. Wait for the file to be copied.
3. Disconnect both the USB cable and power cable from the AT-GAIN-120.
4. Reconnect the power to the AT-GAIN-120. The PWR LED indicator on the front panel will rapidly flash green, indicating that the firmware upgrade is in process; this should take only a few seconds.

1. The firmware upgrade process is complete.

Rack Mount Installation

The AT-GAIN-120 can be mounted in different ways, based on the number of units that are being installed. When installed into a standard 19" rack, the AT-RACK-1RU will need to be purchased from atlona.com.

The AT-RACK-1RU can be used to either mount a single AT-GAIN-120 unit or it can be used to mount multiple half-rack Atlona products, such as a AT-GAIN-120 and a AT-UHD-SW-510W.

IMPORTANT: Before mounting the AT-GAIN-120 to the AT-RACK-1RU, remove the rubber feet from the bottom of the unit.

Black metal rack-mounted device labeled AT-RACK-1RU, showing mounting flanges and perforated slots (no text beyond label)

1. Place the AT-GAIN-120 on a flat surface, upside down.
2. Turn the AT-RACK-1RU upside down, placing it on top of the AT-GAIN-120, as shown, and align the holes of the AT-RACK-1RU, marked in blue, with the mounting holes on the AT-GAIN-120.
3. Use the included 7 mm screws to secure the AT-RACK-1RU to the AT-GAIN-120.

IMPORTANT: To prevent possible damage to the device, rack, and/or screws, do not overtighten or use high-torque devices when securing the devices to the rack.

Two black server rack units with indicator lights and connectors, shown from different angles (no text or symbols visible)

Network Audio Card Installation

The AT-GAIN-NET is an optional audio card which allows Dante and AES67 audio streams to be used with the AT-GAIN-120. Follow the instructions below to install the AT-GAIN-NET audio card.

WARNING: To prevent the risk of electrocution or electric shock, always disconnect the power cord from the AT-GAIN-120 before installing or removing the AT-GAIN-NET network card.

1. Disconnect the power cord from AT-GAIN-120.
2. Set the AT-GAIN-120 on a flat surface, free of obstructions. Position the AT-GAIN-120 as shown in the picture below.

1. Using a small Phillips-head screwdriver, remove the two screws holding the faceplate in place. After the faceplate is removed, set it aside. Keep the two screws to attach the included faceplate with the INPUT card.

Appendix

1. Locate the plastic guides on either side of the expansion slot.

1. Carefully position the card between the upper and lower rail of each guide, and gently push the AT-GAIN-NET network card forward, until it locks in place. The card will make a small snapping sound, once the card is in place.

IMPORTANT: When handling the card, avoid touching the components. Always hold the card by the edges. Electrostatic discharge can damage components and the card.

Appendix

1. Locate the included AT-GAIN-NET faceplate with the INPUT port and install the faceplate using the screws from Step 2, as shown below. Do not over-tighten the screws using high-torque devices, as this may cause damage to the screws or the faceplate assembly.

1. Card installation is complete.
2. Connect the power cable to the AT-GAIN-120.
3. Connect an Ethernet cable, with an encoded digital audio stream, to the INPUT port. Refer to the Network Audio (page 21) for information on using Dante and AES67 audio streams.

Default Settings

The following table lists the factory-default settings for the AT-GAIN-120.

Feature Settings
Network DHCP		ON
	Static IP address	192.168.1.254
	Subnet	255.255.0.0
	Gateway	192.168.1.1
	Telnet Port	23
	HTTP Port	80
	IP Timeout	300
	Hostname	AT-GAIN-120-[last five digits of serial number]
	Telnet Login Mode	OFF
Control Power		OFF
	Auto Power Down	Enabled
	Auto Power Down Timer (min)	15
	Hibernation	Disabled
	Unit Trigger	Disabled
	Blink	Disabled
Users Admin username		admin
	Admin password	Atlona
Audio Input Selection		Analog
	Equalization bands
	40 Hz	0
	150 Hz	0
	500 Hz	0
	2 kHz	0
	10 kHz	0
	Volume	30

Specifications

Connectors, Controls, and Indicators
INPUT 1 - RJ45 (AT-GAIN-NET network audio card, only), 100 Mbps
LAN 1 - RJ45
ANALOG IN 1 - 5-pin captive screw, balanced: 20 kΩ, unbalanced: 10 kΩ
LINE OUT 1 - 5-pin, 3.5mm
TRIGGER 1 - 2-pin captive screw
4 / 8 Ω OUT 1 - 4-pin, 5.08 mm lock-down screw connector
70V / 100V OUT 1 - 5-pin, 3.5mm
FW 1 - mini-USB, type-B
INPUT GAIN 2 - Rotary pots, L/R channel
MODE 1 - Slider switch, 4-pole, 4 Ω / 8 Ω / 70 V / 100 V
RESET 1 - Push button, tact-type
IP RESET 1 - Push button, tact-type
Power 1 - IEC power receptacle
PWR 1 - LED indicator, green
SIGNAL 1 - LED indicator, green
DEVICE ID 1 - LED indicator, green
ANALOG IN 1 - LED indicator, green
NET AUDIO	1 - LED indicator, green
VOL LEVEL	1 - Multi-LED indicator

Input Signal
Analog Input	Balanced: 20 kΩ, unblanced: 10 kΩ
CMRR	51 dB / 58 dB
Detection Threshold	0 dBV = 2.218 dBu

Output Signal
Distributed speakers (mono)	70 V / 100 V
Program speakers (stereo)	4 Ω / 8 Ω, line-level
Power 70 V = 120 Vrms (bridge mode)	100 V = 120 Vrms (bridge mode)4 / 8 Ω = 60 W per channel

Audio Processing
D/A Conversion	24-bit, selectable sampling rate
Audio Formats	24-bit uncompressed, selectable at 44.1, 48, 88.2, and 96 kHz sampling rate
Latency	2 ms
Signal Processing	Volume, Auto on/off signal sensing, 80 Hz HPF
Network Audio Transport	Dante, AES67
Equalization	5-band, adjustable: 40 Hz, 150 Hz, 500 Hz, 2 kHz, and 10 kHz bandsRange: -10 dB to +10 dB

Appendix

Audio Performance
Frequency Response 20 Hz - 20 kHz, ±2 dB @ 4 Ω load
THD + N < 0.1% @ 1kHz, 3 db below clipping
SNR > 90 dBA WTD
Damping Factor < 90 @ 8 Ω
Amplifier Type Class D

Temperature Fahrenheit Celsius
Operating 32 °F to 122 °F 0 °C to 50 °C
Storage -40 °F to 158 °F -40 °C to 70 °C
Humidity (RH) 90% RH, non-condensing

Power
Standby Mode Powers down after 5 - 25 minutes (adjustable) of no signal; complies with ENERGY STAR power consumption limits of < 0.5 W in standby mode
Consumption 120 W (max.)
Standby Consumption	normal standby < 0.5 Wnetwork standby < 2 W
Supply	100 - 240 V AC, 50/60 Hz, 120 W

Dimensions	Inches	Millimeters
H x W x D	1.69 x 8.66 x 12.99	43 x 220 x 330

Weight	Pounds	Kilograms
Device	19.84	9

Certification
Device	CE, RoHS, WEEE, FCC, ENERGY STAR®

Index

A

Appendix 33

Audio

connectors 10

distributed speakers 10

impedance 10

Auto power-down. See Power modes: auto power-down

C

Configuration

IP. See IP configuration

Connection

diagram 13

instructions 12

Contents

package 8

Customer support 3

D

Default settings 40

Description

front / rear panel 9

E

Equalizer

adjusting 24, 32

frequency spectrum 32

F

FCC statement 6

Features 8

Firmware

displaying 27, 28

updating using the web GUI 33

updating using USB 35

H

Hibernation mode. See Power modes: hibernation mode

|

Installation 10

IP configuration

using commands 15

using rear panel 14

using the web GUI 16

L

LED indicators 18

M

Mode switch

settings 12

N

Network audio

AES67 support 22

card installation 37

Dante configuration 21

O

Operating notes 3

P

Panel descriptions 9

Password

changing 31

default 25

Power modes

auto power-down 19

hibernation mode 20

powering on/off 19

R

Rack mount

installation 36

Resetting

to factory-default 24

S

Safety information 6

Speakers

distributed 12

program/stereo 12

Specifications 41

T

Trigger

voltage levels 11

U

Users

primary user name 25

Index

V

Volume

adjusting 24, 32

W

Warranty 4

Web GUI 25
