XSPRO-RGB - Gaming Chair KeepOut - Free user manual and instructions

Product Type	Gaming Chair
Model	XSPRO-RGB
Brand	KeepOut
Overall Height	50 - 55 inches (127 - 140 cm)
Seat Width	20 inches (51 cm)
Seat Depth	18 inches (46 cm)
Backrest Height	33 inches (84 cm)
Weight Capacity	300 lbs (136 kg)
Net Weight	45 lbs (20.4 kg)
Material	PU Leather, High-density Foam
Base Material	Nylon (5-star base)
Armrests	2D Adjustable (Height & Rotation)
Recline Angle	90° - 135°
Rocking Function	Yes, with tension adjustment
RGB Lighting	USB-powered, multiple color modes
Power Source	USB (5V, 0.5A)
Warranty	1 year limited
Care Instructions	Wipe with damp cloth; avoid solvents
Assembly Required	Yes (tools included)
Recommended User Height	5'4" - 6'2" (163 - 188 cm)

Frequently Asked Questions - XSPRO-RGB KeepOut

How do I assemble the KeepOut XSPRO-RGB gaming chair?

Assembly is straightforward. Unpack all parts, attach the base to the gas lift, then mount the seat to the lift. Finally, attach the backrest to the seat using the provided bolts and Allen key. Detailed steps are in the manual.

How do I adjust the RGB lighting?

The RGB lighting is controlled via a button on the side of the seat. Press to cycle through colors and modes (static, breathing, strobe). It requires USB power from a computer or adapter (5V).

What is the maximum weight capacity?

The maximum weight capacity is 300 lbs (136 kg). Exceeding this may damage the chair or cause injury.

Can I recline the chair while sitting?

Yes, the chair reclines from 90° to 135°. Use the lever under the seat to unlock the recline and lean back. Lock it at your desired angle.

How do I clean the PU leather?

Wipe with a soft, damp cloth. Use mild soap if needed. Avoid harsh chemicals or solvents as they may damage the material. Dry with a lint-free cloth.

The chair rocks too much. Can I adjust it?

Yes, there is a tension knob under the seat. Turn it clockwise to increase resistance and reduce rocking, or counterclockwise for easier rocking.

Are replacement parts available?

KeepOut offers replacement parts such as casters, gas lifts, and armrests. Contact customer support or check the official website for spare parts.

Does the chair come with a warranty?

Yes, the chair comes with a 1-year limited warranty covering manufacturing defects. Normal wear and tear are not covered.

What tools are needed for assembly?

All necessary tools are included: an Allen key and a screwdriver. You do not need additional tools.

Is the chair suitable for tall people?

The chair is recommended for users between 5'4" and 6'2" (163-188 cm). The adjustable armrests and seat height help accommodate different body sizes.

USER MANUAL XSPRO-RGB KeepOut

Keep Out Gaming. C/ Tecnología 5, Gelves, Sevilla, Spain. CP: 41120.

EU DECLARATION OF CONFORMITY SIMPLIFIED.

Hereby, APPROX IBERIA S.L. declares that the radio equipment XSPRO-RGB is in compliance with Directives 2014/53/EU, 2001/95/EC and 2011/65/EU its amendment (EU) 2015/863.

The full text of the EU declaration of conformity is available at the following internet address: www.keepoutgaming.com.

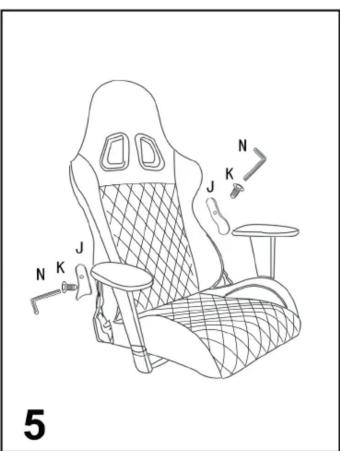

Follow the steps indicated in the instructions for mounting the chair.

Connect a power bank (not included) to the USB connector of the chair to be powered.

To turn the chair lighting on or off, press the ON / OFF button on the remote control included on the back of the chair.

To change effects / colors press the different buttons for this purpose on the remote control.

Reciclado:

AEE REI-RAEE 5548 In this manual, the container (bin) symbol indicates that the product is subject to the European directive 2002/96/EC, electrical and electronic products, batteries, and batteries and other accessories must necessarily be subject to a selective collection.

At the end of the life of the device, make use of the recycling bins. This gesture Will help reduce the health risks and preserve the environment.

Municipalities and distributors, Will provide essential details on recycling your old device. If this device carries an internal battery, it must be removed and deposited separately for proper management.

Safety and maintenance instructions.

Attention: Follow the steps in the user guide for ensemble the chair. When tightening the screws do it crosswise.

No key objects have been introduced into the skin to preserve it. There is no type of liquid type on the unit.

Always keep the product at room temperature, maximum 30°C. The product is designed for indoor use.

Do not exceed the maximum weight 120 kg.

Clean the product with a soft, dry cloth. Do not use abrasive liquids! Follow local ordinances to recycle of the product.

Especificaciones técnicas / Technical specifications:

Please more information about the installation and configuration of this product go to our website www.keepoutgaming.com.

Soporte Técnico:

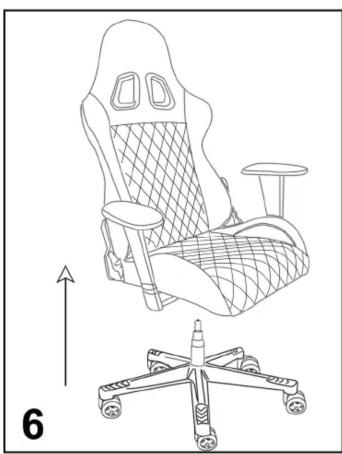

Line drawing of an office chair with a checkered pattern and a vertical arrow indicating upward motion (no text or symbols)

Technical line drawings of an office chair with labeled components including seat, cable, and connector (no text or symbols present)
