MS-CL602 - Loudspeaker Fusion - Free user manual and instructions

Product Type	Marine Speaker
Brand	Fusion
Model	MS-CL602
Speaker Size	6.5 inches
Impedance	4 ohms
Power Handling (RMS)	50 Watts
Power Handling (Peak)	100 Watts
Sensitivity	90 dB
Frequency Response	50 Hz - 20 kHz
Material	UV-resistant polymer
Waterproof Rating	IPX5 (splash-proof)
Installation Type	Flush mount
Cutout Diameter	5.5 inches
Mounting Depth	2.5 inches
Weight	0.5 kg
Connection Type	Screw terminals
Included Accessories	Grille, mounting hardware
Recommended Amplifier	2-8 ohm stable stereo amplifier
Warranty	2 years
Usage	Outdoor / Marine environments

Frequently Asked Questions - MS-CL602 Fusion

How do I install the Fusion MS-CL602 speaker?

Cut a 5.5-inch diameter hole in your mounting surface, ensuring a minimum depth of 2.5 inches. Connect the speaker wires to the screw terminals, then secure the speaker with the provided mounting hardware and attach the grille.

Is the MS-CL602 waterproof?

Yes, it has an IPX5 rating, meaning it is protected against water splashes from any direction. It is suitable for marine and outdoor use, but not fully submersible.

What amplifier should I use with this speaker?

Use a stereo amplifier that delivers 50-100 Watts RMS per channel at 4 ohms. Ensure the amplifier is stable at 4 ohms for optimal performance.

What is the recommended cutout size?

The cutout diameter is 5.5 inches (140 mm). Make sure the mounting depth is at least 2.5 inches (64 mm) to accommodate the speaker.

Are grilles included with the speaker?

Yes, each speaker comes with a protective grille and all necessary mounting hardware for installation.

Can I use the MS-CL602 in a boat?

Absolutely. This marine-grade speaker is designed for boats, RVs, and other outdoor vehicles. It resists UV rays and moisture.

What is the sensitivity rating of this speaker?

The sensitivity is 90 dB, which means it produces moderate volume levels with standard amplifier power. For louder sound, use a more powerful amplifier.

Does the MS-CL602 include a tweeter?

Yes, it is a coaxial speaker with an integrated tweeter for high-frequency reproduction, ensuring clear sound across the full range.

How should I clean the speaker?

Use a soft, damp cloth to wipe the grille and surface. Avoid harsh chemicals or abrasive materials. Ensure the speaker is turned off during cleaning.

What is the warranty period for the Fusion MS-CL602?

Fusion offers a 2-year limited warranty against manufacturing defects. Keep your receipt as proof of purchase for warranty claims.

USER MANUAL MS-CL602 Fusion

USER / INSTALLATION MANUAL

FUSON®

MS-CL602

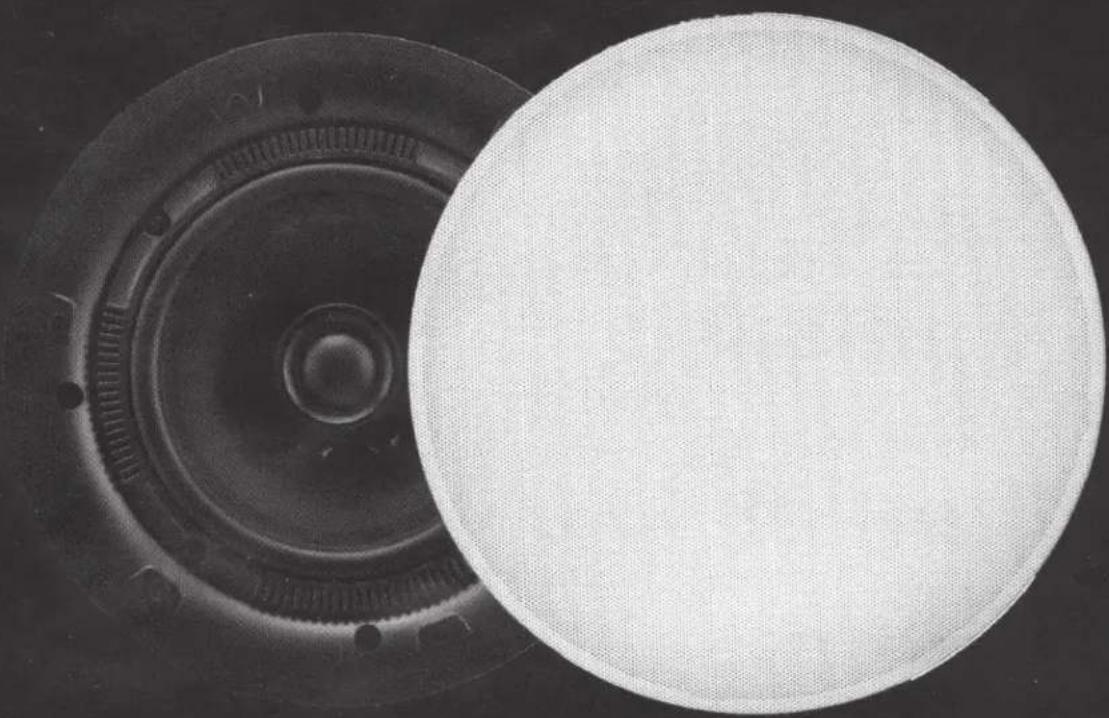

2 WAY FULL RANGE IN-CEILING SPEAKERS

REGISTER YOUR PRODUCT ONLINE:

For your own peace of mind, register your product purchase online at

www.fusionelectronics.com

RECORD YOUR PRODUCT DETAILS HERE:

SERIAL NUMBER:

DATE OF PURCHASE: ____

AFFIX RECEIPT HERE:

CONTENTS OF THE BOX:

2 x MS-CL602 In-Ceiling Speakers

Mounting Template

Manual

Warranty Card

SPECIFICATIONS

Woofer Size: 165mm 6.5"

Cone Material: Polypropylene with Rubber Surround

Tweeter Size: 25mm 1"

Tweeter Type: Silk Dome

Peak Power (watts): 120

Rated Power (watts): 40

Efficiency (1W/1M): 89 db

Frequency Response: (-3dB / -10dB) 50Hz-20kHz / 85Hz - 20kHz

Impedance: 6 Ohm

Weight (Net): 1.65kg 3.6 lbs

Dimensions: Speaker Diameter: 232.2mm 9-1/8"

Depth (including Grille): 79.3mm 3-1/8"

Depth (Excluding Grille):75.6.3mm 3"

Mounting Depth: 77.6mm 3-1/16"

Hole cutout Diameter: 203.5mm 8"

INSTALLATION GUIDE

1. Check mounting position for adequate space (see caution)
2. Trace mounting template onto ceiling, then proceed to cut the outline. Important Note: Prior to cutting any holes in the ceiling, check the plans for your vessel to locate any electrical cables running through the ceiling and ensure there is adequate space to mount the speaker flush.
3. Remove the protective cap and insert speaker wires into the positive and negative terminals (ensuring the correct polarity is observed), then replace protective cap.
4. Place speaker into the mounting hole, ensure that the mounting tabs are not protruding thus obstructing speaker placement.
5. Proceed to tighten screws whilst holding the speaker in place, as you tighten the screws the mounting tabs will rotate and grip to the ceiling, which will hold the speaker in place.
6. Affix magnetic grille to speaker frame, this does not require additional screws or adhesive.

CAUTION: When tightening the screws on the MS-CL602 speakers please use a low torsion electric screwdriver or screw by hand.

INSTALLATION TIPS

Any speaker will only perform to its best capabilities, when correctly placed in the listening area. FUSION Engineers recognise that unlike a home or motor vehicle installation, there are an extremely wide range of marine environments where speakers may be placed.

FUSION MS-CL602 speakers have a listening angle of 90 degrees

Positioning speakers

TROUBLESHOOTING

Before you contact your FUSION dealer or service centre, FUSION requires that you do some simple troubleshooting to help diagnose or resolve the problem.

PROBLEM	SOLUTION
No Sound	Check all connections from the source unit/amplifier to the speaker terminals are connected correctly.
System lacks in bass	Check the connections from the source unit/amplifier to the speaker. Check Polarity.
System lacks in high frequencies:	Check PolarityCheck the bass / treble control settings on the source unit.
Distorted sound	Check all wiringCheck that it is not the surrounding panels of the craft rattling. Check connections from the source to the speaker.

PUBLISHED BY FUSION ELECTRONICS LIMITED. Copyright 2013 by FUSION Electronics Limited. All rights reserved. Specifications and design are subject to change without notice.

YOU CAN HELP PROTECT THE ENVIRONMENT

Please remember to respect the local regulations. Hand in the non-working electrical equipment to an appropriate waste disposal centre.

FUSION Electronics New Zealand	09 369 2900
FUSION Electronics Australia	1300 736 012
FUSION Electronics Europe	[phone]
FUSION Electronics USA	623 580 9000
FUSION Electronics Pacific	[phone]

WWW.FUSIONELECTRONICS.COM

FUSGN®

MS-CL602 MOUNTING TEMPLATE
