NT-1308 - Television Naxa - Free user manual and instructions

Product Type	LED Television
Model	NT-1308
Display Size	32 inches (diagonal)
Display Resolution	1366 x 768 pixels (HD)
Refresh Rate	60 Hz
Power Consumption	60 W (typical)
Standby Power	< 0.5 W
Weight (with stand)	5.0 kg
Dimensions (with stand)	730 x 435 x 185 mm
Dimensions (without stand)	730 x 435 x 85 mm
Inputs	HDMI (x2), USB (x1), VGA, Composite AV
Audio Output	2 x 8 W stereo speakers
Remote Control	Included (batteries not included)
VESA Mount	200 x 200 mm
Energy Efficiency Class	A+
Operating Voltage	100-240 V, 50/60 Hz
Tuner	ATSC (North America) / DVB-T2 (depending on region)

Frequently Asked Questions - NT-1308 Naxa

How do I connect my Naxa NT-1308 TV to external devices?

Use the HDMI ports for high-definition devices (game consoles, streaming boxes) or the USB port for media playback. For older devices, connect via VGA or Composite AV inputs.

How can I reset the TV to factory settings?

Press the Menu button, go to Settings, then select Reset or Factory Default. Confirm with OK. Note that all personal settings will be erased.

What should I do if the TV displays 'No Signal'?

Check that the correct input source is selected via the Source button on the remote. Ensure the connected device is powered on and the cable is securely attached. Try a different HDMI cable if possible.

How to clean the TV screen safely?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use any chemical cleaners or water directly on the screen. For stubborn marks, slightly dampen the cloth with water.

Can I mount the Naxa NT-1308 on a wall?

Yes, the TV is VESA compatible with a 200x200 mm mounting pattern. Use a suitable wall mount kit (not included) and follow the instructions carefully to ensure secure installation.

How do I update the firmware on my NT-1308 TV?

This basic model may not support firmware updates. Check the Naxa support website for any available updates via USB. If supported, download the update file, copy it to a USB drive, and use the USB Update option in the settings menu.

Why is my remote control not working?

First, replace the batteries with new ones (AA or AAA as required). Ensure the remote's infrared sensor on the TV is not blocked. If the problem persists, try pressing the Power button directly on the TV to rule out a remote malfunction.

How do I adjust picture settings like brightness and contrast?

Press the Menu button on the remote, navigate to Picture settings. You can adjust Brightness, Contrast, Color, Sharpness, and select picture modes like Standard, Movie, or Dynamic.

How can I enable or adjust subtitles on my Naxa TV?

During playback of a program, press the Subtitle button on the remote (if available). Alternatively, access the Menu and look for Closed Caption or Subtitle settings. You can turn them On/Off and select language if available.

How do I play media from a USB drive?

Insert a USB drive with compatible file formats (e.g., MP4, AVI, JPEG) into the USB port. Press Source and select USB. Use the remote to browse and select the file to play.

USER MANUAL NT-1308 Naxa

	13.3” WIDE SCREEN HD LED TVMODEL NO.: NT-1308Instruction Manual
USER’S MANUAL	PLEASE READ CAREFULLY BEFORE USE

Safety Information

Warning

To prevent fire and/or electric shock, do not use this plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. Do not expose this appliance to rain or moisture.

CAUTION! RISK OF ELECTRIC SHOCK DO NOT OPEN

AVIS RISQUE DE CHOC ELEC TRIOUE/NE PAS OUVRIR

Important Safety Instructions

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions

Please, unplug the TV power cord when the following conditions occur:

-When there is a thunderstorm (Please, pull out the power cord and antenna).

-When cleaning the TV set.

-When the TV set is not used for a long time.

Do not use corrosive depurative when cleaning the TV set.

Do not put the TV set under direct sunlight or near heat.

Do not put a heat source, such as a candle or heater, on top of or near the TV set.

Leave plenty of space (al least 10cm) around the TV set for ventilation

Place the TV set away from where it can be ruined by rain or water (such as near a

window).

Don't put a container with liquid (such as a vase) on top of the TV set.

Do not move the TV set when the power is on

Do not touch, push or scratch the surface of the TV set with hard materials or items.

When TV surfaces are dirty, please use a wet cotton cloth or soft cloth with non-

corrosive cleaners to clean it carefully. Don't use acetone, toluene or alcohol to

clean the TV set

Be aware and careful of moisture, which can damage inner electronic components.

When condensed moisture is present, the TV screen may appear blurry or spotty.

It is recommended that a technician install the TV set on a wall, if such placement is

desired.

An incorrect wall installation will be unsafe and hazardous.

Do not let children climb on or play around the TV set to avoid falls, collisions.

damages and injuries.

Do not hit the TV panel with hard objects to prevent damages

Do not cover the TV set with blankets or other objects when it is connected to a

power source to prevent overheating and fire.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Mains plug is used as disconnect device from the mains, the disconnect

device shall remain readily operate.

Apparatus with class I construction shall be connected to a mains socket

outlet with a protective earthing connection.

Important Safety Precautions

Safety

Please, immediately pull out the AC power plug from adaptor if there is an abnormal sound or smell or the LED TV has sound but no picture, and contact after sales support.

The LED TV should be kept free from rain, moisture and dust to prevent electrical shock and short circuits. Do not cover the ventilation openings with table clothes, curtains, newspapers, etc.

The LED TV should be kept from high temperature heating sources or direct sunlight. Good ventilation is required. Allow 10 cm. between the LED TV and other appliances or built-in cabinet walls.

When you wipe the front cabinet, please make sure the power plug is pulled out and use a soft, dry, lint-free cloth and handle it with care. Do not repeatedly wipe the panel, nor scrape, tap or strike the panel with a hard object.

Do not wipe the LED TV with any petrol, chemical or alcohol based solvents as it will lead to product damage of the panel and cabinet.

Important Safety Precautions

Safety

Do not place the LED TV on an unstable surface.

Do not place the power cord or other cables across a walkway in case it is trampled on. Do not overload the power cord or power socket. When the power plug is used to disconnect and connect the device, it should easily into the power source.

Do not disassemble the back cover, as it contains high voltages inside and will cause electric shock. Only qualified professionals should conduct internal adjustments, maintenance, and checks.

The TV set should not be subjected to water droplets, vapor, or splash. This equipment should not be placed on objects filled with liquids. Do not place flame sources, such as lit candles, on or near the LED TV. Please, pull out the power plug and contact after sales support if there are abnormal objects or water in the TV.

Pull out the power cord and antenna cable during electrical storms so the LED TV is not damaged by electrical surges. Keep all people away from the antenna cable during electrical storms.

ENERGY STAR® Qualification.

This product has earned the ENERGY STAR ^® for meeting U.S. Federal energy efficiency guidelines as set by the Department of Energy and Environmental protection agency. The ENERGY STAR ^® program exists to provide energy saving guidelines and help promote energy efficient products and practices. Changes to certain features, settings and functions of this TV can change and/or increase its power consumption. As-shipped mode is the mode in which the product qualifies for ENERGY STAR ^® .

Table of Contents

Introduction

Features	2
Specifications	3

Accessories

General Description 4-7

Overview of front panel 4

Overview of back panel 5

Overview of remote control 6

Installing Batteries in the remote control 7

Antenna connection 7

External Connection 8-12

Connecting VCR 8

Connecting Digital Audio System 9

Connecting DVD Player/Set-Top Box via HDMI 10

Connecting PC 11

Connecting a Headphone/USB 12

Supporting signals 12

Basic operation 13

Turning the TV On and Off 13

OSD Menu Operations 14-21

INPUT SOURCE SELECTION 14

BASIC OPERATION 14

FIRST TIME INSTALLATION 14

PICTURE 15

SOUND 16

TIME 17

SETUP 17-18

LOCK 19

CHANNEL 20

PC SETTINGS 21

USB Operation 21-22

Troubleshooting 23

Picture defects and the reason 24

Introduction

Features

• TV adopts TFT LED display screen
● HDTV Compatible( 480p, 480i, 720p, 1080i, 1080p)
● Support American TV Standard 8V\$B/Free 64/256QAM,NTSC System, ATSC System
- Connect to computer directly to realize TV/monitor combo.
● Zero X radiation complies to green environment protection requirement
● Advanced Chroma Processing
● Closed captioning/Program Control
- SAP/STEREO/MONO; ATSC.
- HDMIinput
- USB input

Input terminals used for external equipment connection

One computer VGA/PC input One PC Audio input

One AV input One HDMI input

One EARPHONE output One USB input

One ANTENNA input One Coaxial output

Introduction

Specifications

Display screen type	Color active matrix LED display
Model	NT-1308
The maximum resolution	1366X768
Image control	Fine digital control
Power supply	DC 12V
TV receive system	NTSC System, ATSC System
Frequency range	Antenna: 2~69; Cable: 2~125
Antenna input impedance	75Ω (Unbalance)
Sound output	2×3W
Power supply for remote controller	DC 3V (Two AAA size batteries)
Power consumption	24 W
Dimensions (LXWXH)	12.5×4.6×10.4 inch
Weight (Net weight)	1.2 kg
Operation environment temperature	0°C-40°C

Note:

Design and specification modification maybe made at any time without prior notice; all data and dimensions are approximations.

Accessories

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

Remote Control &

Batteries (AAAx 2)

Owner's

Instructions

Adapter

General Description

Overview of front panel

1 SPEAKER

② REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

③ POWER INDICATOR

Blue: In power on mode.

Red: In standby mode.

4 SOURCE

Toggles between all the available input sources (TV, AV, HDMI, VGA, USB).

⑤ MENU

Press to see an on-screen menu of your TV's features.

6 CH+/-

Press to change channels.

In the on-screen menu, use the CH +/- buttons as up/down arrow buttons.

⑦ VOL+/-

Press to increase or decrease the volume. In the on-screen menu, use the VOL +/- buttons as left/right arrow buttons.

8 POWER

Press POWER button to toggle between normal and standby mode.

General Description

Overview of back panel

Technical line drawing of a computer monitor rear panel with mounting base (no text or symbols)

1. Power input

2. USB

USB Input

1. HDMI

Connect to the HDMI jack of a device with a HDMI output.

1. VGA/PC IN

Connect to the video output jack on

your PC

1. PC AUDIO

Audio input for external devices.

1. AV input

Video input for external devices, such as

a camcorder or VCR.

1. Antenna Input

Connect to an antenna or cable NTSC & ATSC.

1. EARPHONE

Connect a set of phone for private listening.

1. COAXIAL

Connect to a Digital Audio device.

General Description

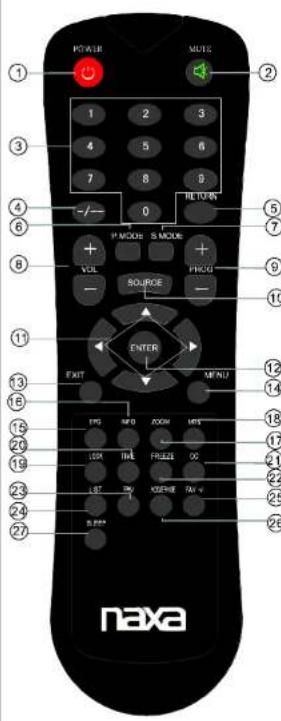

Overview of remote control

1. POWER: Switch a LED TV when at standby mode or vice versa

2. MUTE: Press to mute the sound. Press again or press VOL+ to unmute.

3. Number key(0-9): Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 3 seconds.

4. -: Press this button to enter a program number for multiple program channel such as 2-1, etc.

5. RETURN: Return to the previous channel viewed.

6. P.MODE: Press repeatedly to cycle through the available video picture modes.

7. S.MODE: Press to cycle through the different sound settings.

8. VOL +/-: Press to increase/decrease the sound level

9. PROG +/-: Press to scan through channels.

10. SOURCE: Press to change input source.

11. ARROW BUTTONS ( ▲ ▼ ◀ ▶ )' Use to move cursor up/down/left/right.

12. ENTER: Validation key

13. EXIT: Press to exit all menu.

14. MENU: TV system setup

15. EPG: Press to display the EPG menu.

16. INFO: Displays the channel information.

17. ZOOM: Press to change the screen scale.

18. MTS: Press to select the audio channels.

19. LOCK: Press to display the Lock menu.

20. Time: Press to display current time.

21. CC: Press to display the closed caption.

22. FREEZE: Press to freeze the screen.

23. FAV: Selects favorite channels.

24. LIST: Press to display the TV program list.

25. FAV +/-: Press this button +/- the favorite program list.

26. ADD: Add this program to the favorite channels list. ERASE: Delete this program from the favorite channels list.

27. SLEEP: Set the sleep timer.

General Description

Installing Batteries in the Remote Control

Installing Batteries

1 Open the battery compartment cover on the back side.

2 Insert two 1.5V AAA size batteries in correct polarity. Don't mix old or used batteries with new ones.

+ Point the remote towards the remote control sensor of the wireless TV and use it within 7 meters.
Put the used batteries into the recycling bin since it can negatively affect the environment.
3 Closed the cover.

Note:

• One loading of batteries will last for 1 year under normal use.
- If you do not intend to use the remote controller for a long period of time, remove them to avoid damage due to leakage.
• Do not use old and new batteries together.
- The batteries shall not be eposed to excessive heat such as sunshine fire of the like.

External Connection

Antenna connection

Antenna input impedance of this unit is 75ohm. VHF/UHF 75ohm coaxial cable can be connected to the antenna jack directly, if the antenna cable is 300ohm parallel flat feeder cable, you need to use the 300ohm/75ohm converter to connect the antenna cable to the antenna jack. For details Please refer to the following drawing.

Antennas with 30ohm flat twins Leads

Antennas with 75ohm Round Leads

External Connection

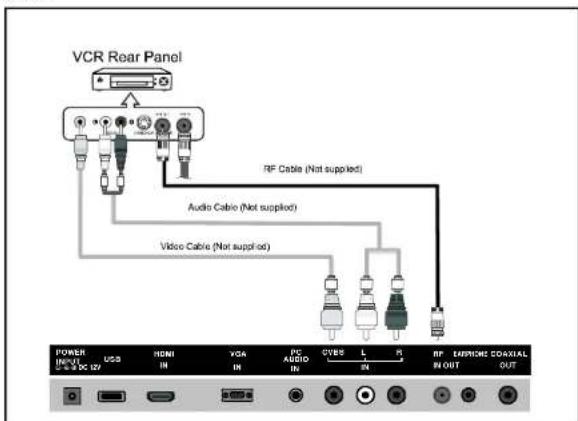

Connecting VCR

These instructions assume that you have already connected your TV to an antenna or a cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable system.

Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape. Each VCR has a different back panel configuration.

When connecting a VCR, match the color of the connection terminal to the cable. We recommend the use of cables with a Ferrite Core.

1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the VIDEO IN jack on the TV.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AUDIO L and AUDIO R jacks on the TV.
6. If you have a mono (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCR is stereo, you must connect two cables.

External Connection

Connecting Digital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV.

5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.
We recommend the use of cables with a Ferrite Core.
1. Connect a COAXIAL Cable between the SPDIF jacks on the TV and the Digital Audio Input jacks on the Digital Audio System. When a Digital Audio System is connected to the SPDIF terminal: Decrease the gain (volume) of the TV, and adjust the volume level with the system's volume control.

External Connection

Connecting DVD Player/Set-Top Box via HDMI

This connection can only be made if there is a HDMI Output connector on the external device.

What is HDMI.

HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.

Multimedia interface is a more accurate name for it especially because it allows multiple channels of digital audio (5.1 channels).

The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP(High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

Each DVD player/STB has a different back panel configuration.

We recommend the use of cables with a Ferrite Core.

1. Connect an HDMI Cable between the HDMI connector on the TV and the HDMI connector on the DVD player/Set-Top Box.

External Connection

Connecting PC

Each PC has a different back panel configuration.
The HDMI jacks do not support PC connection.
We recommend the use of cables with a Ferrite Core.

1. Connect a D-Sub Cable between RGB/PC IN connector on the TV and the PC output connector on your computer.
2. Connect the PC audio input jack on the TV.

External Connection

Connecting a Headphone/USB

Plug headphone connector into headphone jack on the TV. Then the TV speaker will be muted.

Connect a USB 2.0 memory device into USB slot of this TV for multimedia files playback.

1. This USB slot only supports Music and Photo multimedia files playback.
2. This TV is compatible with most USB devices in the market. However, we cannot guarantee the compatibility of all USB devices, due to multiple technology standards used.

Supporting signals

VGA/PC	Up to 1366×768@60Hz
HDMI	480i, 480p, 720p, 1080i, 1080p

Basic Operation

Turning the TV On and Off

How to turn the TV on or off

1. Insert the power cord plug into a polarized AC outlet.
2. Press ⬆ button on remote control or POWER button on the LED TV.
3. Normal picture will be displayed on the screen after 6 seconds. If no signal input, "No Signal" will be displayed on the screen.
4. If temporary POWER off is required, press ⬆ button on remote control or POWER button on the LED TV.
5. If you want to completely switch off the power for this unit, unplug the power cord plug for this unit.
6. After switching off the unit, you should turn on the TV again at least 5 seconds later. Status indication lamp

Blue: In power on mode.

Red: In standby mode.

Auto power off

If there is no signal input in TV mode, the TV will automatically access the standby state in about 10 minutes.

Memory before turning TV off

The settings of picture and the preset channels will be memorized at turning off the unit. When being started up again, the unit will work according to the mode set before being turned off.

OSD Menu Operations

INPUT SOURCE SELECTION

Press SOURCE button to display the input source list;

Press ▼/▲ button to select the input source you want to watch;

Press ENTER button to enter the input source;

BASIC OPERATION

• Press MENU button on unit top or remote control to display the main menu.
• Press LEFT or RIGHT navigation button to select Picture/Audio/Time/Setup/Lock/Channel.
• Press DOWN navigation button to enter submenu page.
• Press UP or DOWN navigation button to select the option that want to adjust.
• Press LEFT or RIGHT navigation button to adjust selected option to desired value.
• Press RIGHT navigation button or ENTER button to enter next menu page.
• Press MENU button to return to previous menu page.
  ● Press EXIT button to exit menu page.

FIRST TIME INSTALLATION

If this is your first time turning on this TV, Setup Wizard will appear on the screen.

• Press UP or DOWN navigation button to select preferred item.
• Press LEFT or RIGHT navigation button to adjust the value.

Menu Language

To choose your menu language.

Air/Cable

To choose your signal type: Air, Cable.

Cable System

To choose your Cable System: AUTO, STD, IRC, HRC.
NOTE: Cable System is adjustable only when your signal type is set to Cable.

Auto Scan

Highlight Auto Scan, press ENTER to search and store all available channels.

OSD Menu Operations


1. Picture Mode

Available options: User, Standard, Dynamic, Mild.

2. Contrast

The value of Contrast can be adjusted from 0-100.

3. Brightness

The value of Brightness can be adjusted from 0-100.

4. Color

The value of Color can be adjusted from 0-100.

5. Tint

The value of Tint can be adjusted from -50 to 50.

NOTE: Tint is adjustable only in certain TV system.

6. Sharpness

The value of Sharpness can be adjusted from 0-100.

NOTE: If the value of Contrast, Brightness, Color, Tint or Sharpness has been changed, the picture mode will turn to User automatically.

7. Color Temp. (Color Temperature)

Available options: Normal, Warm, Cool.

OSD Menu Operations

AUDIO

1. Sound Mode

Available options: User, Music, Movie, Standard.

2. Bass

The value of Bass can be adjusted from 0-100.

3. Treble

The value of Treble can be adjusted from 0-100.

4. Balance

The value of Balance can be adjusted from -50 to 50.

NOTE: If the value of Bass, Treble, or Balance has been changed, the sound mode will turn to User automatically.

5. Surround

This item is used to turn on/off Sound Surround function.

6. AVC (Auto Volume Control)

Available options: On, Off

7. SPDIF Type

This item is used to select preferred SPDIF audio output type.

Available options: RAW, PCM

8. Audio Language

This item is used to select preferred audio language.

NOTE: This item is adjustable only for digital programs.

OSD Menu Operations

TIME

1. Sleep Timer

Available options: Off, 5 min, 10 min,

Available options: Eastern, Central

Mountain, Pacific, Alaska, Hawaii, Atlantic.

3. Daylight Saving Time

Available options: On, Off

NOTE: This item is adjustable only for digital programs.

4. Clock

When an available digital program is present, this unit will get Date and Time information automatically from current program. And it's not user adjustable.

SETUP

1. Menu Language

This item is used to select preferred OSD menu language.

2. Transparency

This item is used to turn on/off Transparent OSD menu.

3. Zoom Mode

This item is used to select preferred zoom mode of display screen.

Available options: Normal, Wide, Zoom, Cinema

NOTE: The available zoom mode may be different for different input source.

4. Noise Reduction

Available options: Off, Weak, Middle, Strong.

5. Advanced

This item is adjustable only for PC/VGA input signal.

6. Closed Caption

CC Mode

Available options: CC on Mute, Off, On.

Basic Selection

Available options: CC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.

OSD Menu Operations

SETUP

Advanced Selection

Available options: Service1, Service2, Service3, Service4, Service5, Service6.

Option

Mode

Available options: Default, Custom.

Font Style

Available options: Default, Font 0, Font 1, Font 2, Font 3, Font 4, Font 5, Font 6, Font 7.

Font Size

Available options: Default, Normal, Large, Small.

Font Edge Style

Available options: Default, None, Raised, Depressed, Uniform, Left Shadow,

Right Shadow.

Font Edge Color

Available options: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.

FG Color

Available options: Default, White, Red, Green, Blue, Yellow, Magenta, Cyan.

BG Color

Available options: Default, Black, Red, Green, Blue, Yellow, Magenta, Cyan.

FG Opacity

Available options: Default, Solid, Flashing, Translucent, Transparent.

BG Opacity

Available options: Default, Solid, Flashing, Translucent, Transparent.

7. DLC

This item is used to turn on/off Dynamic Luminance Control.

8. Restore Default

This item is used to reset to factory default settings.

OSD Menu Operations

LOCK

- Input the password by pressing number buttons on remote control. NOTE: The factory default password is 0000.

1. Change Password

- Press RIGHT navigation button or ENTER button to enter it.

- Press number buttons to input the new password and input it again to finish password changing.

2. System Lock

This item is used to turn on/off system lock.

3. US

TV

- Press RIGHT navigation button or ENTER button to enter it.

- Press navigation buttons to move the cursor.

- Press ENTER button to block or unblock it.

MPAA

Available options: N/A, G, PG, PG-13, R, NC-17, X.

4. Canada

Canada English

Available options: E, C, C8+, G, PG, 14+, 18+

Canada French

Available options: E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.

NOTE: US, Canada, RRT Setting and Reset RRT items are adjustable only when System Lock is On.

5. RRT Rating

This item is available only when viewing programs which contain related Advance Rating information.

6. Reset RRT

This item is used to reset RRT Rating.

OSD Menu Operations

CHANNEL

1. Air/Cable

This item is used to select preferred signal receiving type.

2. Auto Scan

-Press RIGHT or ENTER button to enter it.

2.1 Cable System

This item is used to select preferred cable system.

Available options: AUTO, STD, IRC, HRC.

NOTE: This item is adjustable only when your signal type is set to Cable.

2.2 Start to Scan

- Press RIGHT or ENTER button to start auto scanning.

- Press MENU or EXIT button to exit auto channel searching.

3. Favorite

- Press RIGHT or ENTER button to enter it.

- Press UP or DOWN navigation button to select preferred channel.

- Press ENTER button to label the selected channel as a favorite one or not.

4.Show/Hide

- Press RIGHT or ENTER button to enter it.

- Press UP or DOWN navigation button to select preferred channel.

- Press ENTER button to show or hide the selected channel.

5. Channel No.

- Press LEFT or RIGHT navigation button to select preferred channel number.

6. Channel Label

- Press RIGHT or ENTER button to enter it.

- Press LEFT or RIGHT navigation button to move the cursor.

- Press UP or DOWN navigation button to adjust the value

NOTE: If no available channel is present, Favorite, Show/Hide, Channel No., and Channel Label will not be adjustable.

7. DTV Signal

This item is not user adjustable.

OSD Menu Operations

PC SETTINGS

• Press SOURCE button on unit top or remote control to set the unit in VGA mode.
• Press MENU button to display the main menu and select Setup item. Then press DOWN navigation button to enter Setup menu page.
• Press UP or DOWN navigation button to select Advanced and press RIGHT navigation button or ENTER button to enter it.

1. H-POS (Horizontal Position)

Available range: 0-100.

2. V-POS (Vertical Position)

Available range: 0-100.

3. Clock

Available range: 0-100.

4. Phase

Available range: 0-100.

5. Auto

If this item is entered, it will adjust the PC screen automatically.

USB

USB Operation

● Before following operations, insert a USB memory device first, which contains Photo and Music files.
- Press SOURCE button on unit top or remote control to set the unit in USB mode.

• Press LEFT/RIGHT navigation button to select Photo/Music in the main menu.
• Press UP/DOWN navigation button to select preferred file.

OSD Menu Operations

USB Operation

Photo Playback

• Select Photo item in the main menu.
• Press UP/DOWN navigation button to select preferred folder/file and press ENTER button to enter a folder or play selected file.

During normal playing:

• Press UP/DOWN navigation button to play previous/next photo.
• Press LEFT/RIGHT navigation button to rotate a photo counterclockwise/
  clockwise.
• Press EXIT button to return to file selecting page.

Music Playback

• Select Music item in the main menu.
• Press UP/DOWN navigation button to select preferred folder/file and press ENTER button to enter a folder or play selected file.

During normal playing:

- Press INFO button to display/hide the tool bar.

- Press LEFT/RIGHT navigation button to select preferred option and press ENTER button to confirm it.

Troubleshooting

If you have any problem, check the countermeasures for each symptom listed below. The following symptoms may have caused by inappropriate adjustment rather than actual malfunction of the unit. If the trouble persists, contact the service center.

Symptoms	Possible solutions
No power	Please check the power cord is plugged in. Unplug the power cord and plug it after 60 seconds and restart the TV.
No picture	Please check antenna connection. Station may experience problems, please tune to another station. Please adjust the settings of contrast and brightness.
Good picture but no sound	Please increase the volume. Please check TV is under mute mode, press MUTE button on the remote control. Please check sound settings.
Good sound but abnormal color or no picture	Please check the antenna connection.
No remote control	Batteries of remote control may have been exhausted, if necessary, please change the batteries. Clean the remote control lens. The distance between LED TV and remote control should be within 8m.
Full screen flickering under VGA	V-HEIGHT value may be set too big, restart computer and enter safe mode, then set monitor parameters to correct value according to adjustment description.
Horizontal stripes under VGA	Sample phase may be deflected, adjust phase according to picture position.
Colored dots may be present on the screen	This product is the high resolution LED display device and a few cell defects can occur in the manufacture of the LED. Several colored dots visible on the screen would be acceptable. in line with other LED manufacturers and would not mean that the LED is faulty. We hope you will understand that it could not be changed or refunded.

Picture defects and the reason

Snowy Picture

Snowy picture is usually due to weak signal. Adjust antenna or install an antenna amplifier.

Double Image or Ghosts

Double images are usually caused by reflections from tall buildings. Adjust the direction of the antenna or raise it.

Radio Wave Interference

Wave patterns are moving on the screen, which are usually caused by nearby radio transmitters or short-wave receiving equipment.

High Temperature Electrothermal Interference

Diagonal or herringbone patterns appear on the screen or part of picture is missing. This is probably caused by high temperature electrothermal equipment in a nearby hospital.
