USER MANUAL HC20W Campomatic

Black and silver Campomatic I-clip hair curler with water droplets, no visible text or symbols on the device itself.

Made in China

INSTRUCTION MANUAL

Caution: Read and follow all safety and operating instruction before first use of this product.

Campomatic S.R.L. Via Configliachi 5/B . 35031, Abano Terme (Padova), ITALIA

WWW.CAMPOMATIC.COM

TABLE OF CONTENT

English 3

عربي 14

▶ Beard Trimmer Great forbeards for any length.

Close-up of a person using a hairdryer to apply a product to their neck (no visible text or symbols)

▶ Beard Trimmer Great for Short, Medium or Long Styles

Black-and-white photo of a person receiving a medical or cosmetic procedure from a toothbrush (no visible text or symbols)

▶ Ergonomic Grip You can cut your own hair with ease

Close-up of a person's ear with a small object inserted into the ear (no visible text or symbols)

▶ Requires no additional combs Set the dial and start trimming

Black-and-white photo of a child receiving a haircut, no visible text or symbols

WASHABLE HAIR CLIPPER

INTENDED USE:

This hair trimmer is designed to shorten and trim hair and beards.

CHILD SAFETY HAZARDS:

Keep children away from this product.

Small parts can be highly dangerous if swallowed, therefore, keep the hair trimmer and accessories out of the reach of children.

ELECTRICAL HAZARDS:

Clean the shaving head by rinsing it off under tap water. However the hair trimmer itself must not be immersed in water. The power cord and mains adaptor must not come into contact with either water or other liquids; as there is risk of electric shock.

Never use the hair trimmer over a filled sink or while taking a shower.

If the trimmer or charging station should fall into the water, immediately pull the mains adaptor out of the socket.

Unplug the trimmer if it malfunctions; during thunderstorms and when cleaning it.

Do not use if power cord or mains adaptor show any signs of damage.

Do not attempt to open the appliance.

Only have repairs made by an authorized Campomatic dealer.

Only use the main adaptor supplied with the trimmer or an adaptor with the same technical features, otherwise the appliance could be damaged.

Only plug the mains adaptor into a properly installed socket.

OTHER CAUSES OF INJURY:

The appliance includes a double rechargeable battery pack. It must not be dismantled, exposed to an open flame or short-circuited.

Risk of injury! Caution-damage to the hair trimmer:

Only use original accessories. Never attempt to sharpen the cutting head.

Only cut natural hair with the trimmer.

Do not expose the trimmer to temperatures below -10c or higher than +40c for long periods of time.

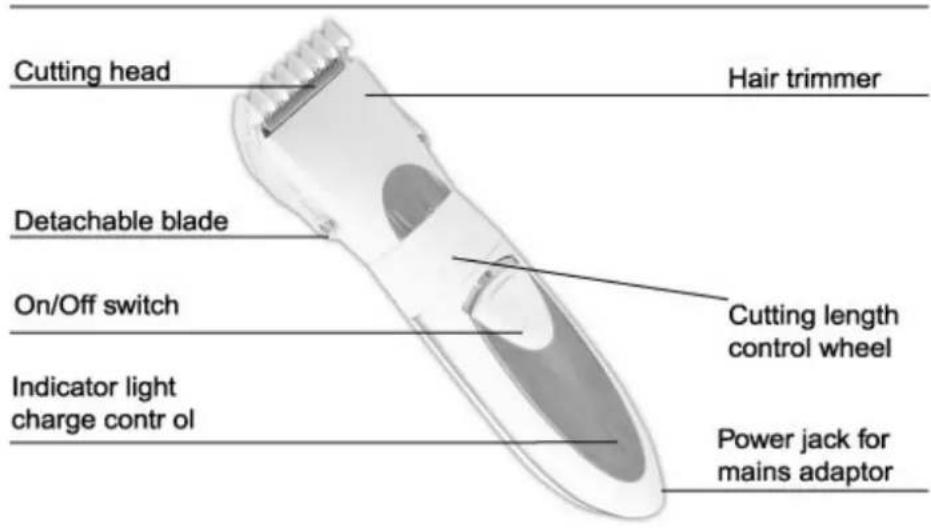

FEATURES AT A GLANCE

LOADING THE RECHARGEABLE BATTERY

Before using your hair clipper for the first time, the battery must be fully charged.

1. Slide the On/Off switch downwards.
2. Insert the plug of the mains adaptor into the power jack of the hair trimmer.
3. Plug the mains adaptor into a power socket outlet. The indicator light will not go out when the rechargeable battery is loaded.

Close-up of a metallic object with a curved, pointed feature (no visible text or symbols)

NOTE ABOUT THE RECHARGEABLE BATTERY

The rechargeable battery does not have its full capacity from the start. To obtain the maximum charge capacity, the battery should be fully charged prior to being used for the first time and then the hair trimmer should be used until the batteries are completely flat. The batteries should then be fully recharged. To increase the life of the rechargeable batteries, repeat this charging and discharging procedure.

You can also directly start using the hair clipper by plugging it into an electrical socket. Unplug the adaptor after use.

TIPS AND HINTS CONCERNING USE

The hair must be clean and dry.

Only cut small amounts of hair progressively until you reach the desired length. The cutting head will jam if you try to work too quickly or try to cut too much hair at once. Let the appliance run for a short time before starting to use it.

The cutting head allows you to finely trim your beard even in the hard to reach places around your chin and neck.

THINNING OUT FUNCTION

This function evens out randomly distributed hairs

GUIDE COMB

Close-up of a hand holding a white handheld hairbrush (no visible text or symbols)

Use the guide comb to shorten hair evenly to a length Of 3-15 mm. To set the desired length, press the closure latch of the guide comb and slide it either upwards or downwards The set length is indicated on the hair clipper.

SHAPING THE BEARD AND SHAVING THE BACK OF THE NECK CAN BE DONE WITHOUT ATTACHMENTS.

1. Remove the attachment
2. Draw the cutting head at a low angle along your skin without applying pressure.

CLEANING AND CARE

1. Remove the comb attachment
2. Press the shaving head towards the back and remove it.
3. Brush out the shaving head insert (it is the area behind the shaving head when it has been removed)
4. Reinsert the shaving head by inserting the head latch into the groove of the casing.
5. Press the shaving head back into the casing until it locks.

OILING THE SHAVING HEAD

Oil the shaving head from time to time if you use the trimmer regularly. Use non-corroding oil.

1. Remove the comb attachment.
2. Apply one to two drops of oil between the cutting teeth.
3. Turn the trimmer briefly on and then off again to spread out the oil.
4. Remove any excess oil by wiping with a cloth.

Close-up of a hand holding a white object, possibly a device or tool, with no visible text or symbols.

Top-down view of a medical or laboratory device with internal components (no visible text or symbols)

Close-up of a hand holding a flexible electronic component (no visible text or symbols)

Close-up of a mechanical component with fluid flow, no visible text or symbols

REPLACING THE SHAVING HEAD

Only use original accessories such as the shaving head, mains adaptor and comb attachments. They are available at specialist shops. Never attempt to sharpen the shaving head yourself.

DISPOSAL

Disposal of the packaging in the proper manner:

If you wish to dispose of the appliance, turn out the screws and remove the double rechargeable battery pack. Special containers are provided for the disposal of rechargeable batteries at public collection points. The other parts of the appliance can be disposed of according to your local regulations.

Details are available at your local authority.
