| Product Type | Portable Fan Heater (PTC Ceramic) |
| Brand | Saivod |
| Model | PTC-902 |
| Power Supply | 220-240V ~ 50Hz |
| Power Output | 2000W (estimated) |
| Heating Settings | Low, High, Fan Only |
| Thermostat | Adjustable temperature control |
| Tip-Over Switch | Yes, automatic shut-off |
| Overheat Protection | Yes (tip-over and thermal cut-off) |
| Dimensions (HxWxD) | 250 x 200 x 150 mm (estimated) |
| Weight | 1.5 kg (estimated) |
| Cord Length | 1.5 m (estimated) |
| Material | Plastic housing |
| Suitable Room Size | Up to 20 m² (estimated) |
| Cleaning | Wipe with dry cloth, vacuum grilles |
| Maintenance | Unplug before cleaning |
| Included | Heater, user manual |
| Guarantee | 2 years legal guarantee |
Frequently Asked Questions - PTC-902 Saivod
User questions about PTC-902 Saivod
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual PTC-902 - Saivod and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PTC-902 by Saivod.
USER MANUAL PTC-902 Saivod
m = 311
Always read this instruction manual before installing or using your appliance and always keep for future reference.
Safety requirements for all portable heaters
WARNINGS
- Children under 3 years old must be kept away from the appliance unless they are under permanent supervision.
- Children from 3 years old and under 8 years old can only swift on/off the appliance provided that it has been installed in its expected normal running position and that they are supervised or have recieved instructions related to the use of the appliance in a safety way and that they are not standardised. The appliance is being used for 3 years old and under 8 years old cannot plug in, adjust or clean the appliance or do any maintenance operation.
-
This appliance can be used by children aged 8 years old and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall be made by children without supervision. Keep appliance and could out of reach from children aged 8 or under*.
-
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
WARNING: To avoid overheating, do not cover
the heating appliance.
- Do not use this heating appliance in the immediate surroundings of a bath, shower or swimming pool.
Tip-over switch
INSTALLATION
Your appliance shall be used as portable appliance only (thanks to respect all the safety warnings given below)
Let a minimum distance of 1m between any side of your appliance and any obstacle (furniture or walls, for example) to allow a good circulation of the airflow.
Always direct the airflow in order to optimize the heating of the room Avoid the corners, small volumes, wood floors, ceiling, etc INDOOR USE ONLY

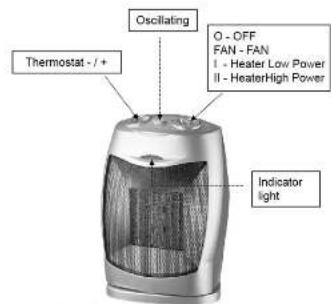

HOW TO USE
- Plug the appliance to a 220-240V\~50Hz socket
- To start the heater, put the switch on the position I (Low power) or on the position II (High power).
- Put the switch on the fan position to start this function
- Set the temperature with the switches -
To stop the heater, put the switch on O the position
- There is a tip-over switch under the base of the heater: it will disconnect the heater automatically if this one falls on the ground.
CLEANING & MAINTENANCE
- Always disconnect appliance from the main when you clean it
- In order to avoid any hazard, only clean the appliance with a dry rag lightly
humidised. NEVER IMMERSE THE HEATER TO CLEAN IT
NEVER IMMERSE THE HEATER TO CLEAN IT
- to avoid any electrical hazard, clean your appliance with a soil and clean rag to remove the dust. You can also use a vacuum cleaner to clean the air openings. - Clean your appliance regularly
- Clean your appliance regularly
- Royal Decree-Law 1/2007, of 16 November, grants goods of a durable nature a legal guarantee of 2 years. - Damage or faults caused by the following are excluded from the guarantee:
Incorrect installation (voltage, gas or water pressure, electrical or water connections), reinstallations or housings made by the consumer without applying the correct instructions.
Accidental causes such as falls, knocks, contact with liquids, insertion of foreign bodies, or any other cause of force majeure.
Negligent, inadequate or non-domestic use, such as appliances installed in hairdressers, bars, restaurants, hotels, etc.
Manipulation by technical services other than the official ones of the brand.
Corrosion and/or rust caused by the normal wear and tear of the appliance or accelerated by adverse environmental conditions.
Use of accessories or consumables which are not the original ones of the brand.
- The following are also excluded from the guarantee: Components exposed to wear and tear due to normal use (light bulbs, seals, insulators, tubes, drains, etc.), from the sixth month, save manufacturing defects. Non-electromechanical components, aesthetic, plastic glass or folding components, soap dishes, shelves, grilles, etc.
Conservation services, cleaning, unblocking, change of direction of door, removal of foreign bodies, obstructions, recalibration or fine-tuning, etc.
Computer products: Elimination of viruses, restoration of programs for this reason, or the reinstallation of the hard disk because it has been wiped.
Brand : Saivod
Model : PTC-902
Category : Heating
