BF1200 - Household Fan Campomatic - Free user manual and instructions

Product Type	Domestic Fan
Brand	Campomatic
Model	BF1200
Speed Settings	3 speed stages (1-2-3)
Timer	120 minutes with automatic shut-off
Oscillation	Yes, with louver switch
Power Supply	Rated voltage (refer to rating label)
Housing Material	Plastic
Blade Material	Plastic
Control Type	Mechanical switches (speed, louver, timer)
Safety Features	Stable base; no finger insertion; child supervision required; damaged cord replacement by qualified person
Cleaning Method	Remove louver; clean with soft cloth and soapy water; no solvents
Maintenance	Store in cool dry place; use vinyl bag after cleaning
Country of Origin	Made in China
Manufacturer	Campomatic S.R.L., Via Configliachi 5/B, 35031, Abano Terme (Padova), ITALY
Suitable Environment	Indoor use only; avoid damp places like bathrooms
Package Contents	Fan, instruction manual

Frequently Asked Questions - BF1200 Campomatic

How do I turn on the Campomatic BF1200 fan?

To turn on the fan, set the SPEED STAGE SWITCH to position 1, 2, or 3. To turn it off, set it to 'O'.

How do I use the timer function?

Turn the TIME SWITCH dial to the desired minute setting (up to 120 minutes). The fan will automatically shut off after the preset time. For continuous operation, keep the indicator at 'ON' position.

How do I clean the fan?

First, remove the LOUVER CAP by turning it to the left. Then remove the LOUVER. Clean with a soft cloth soaked in soap water, wipe dry. Do not use solvents like thinner or gasoline.

Can I use the fan in a bathroom?

No, the fan should not be placed in a damp place or where humidity is high, such as in a bathroom, to prevent risk of fire and electric shock.

Does the fan oscillate?

Yes, press the LOUVER SWITCH to start or stop the oscillation (louver movement).

What should I do if the fan does not start?

Check that the power cord is plugged into a working outlet, the TIME SWITCH is not set to 'OFF' (set to 'ON' for continuous operation), and the SPEED STAGE SWITCH is set to 1, 2, or 3.

Is the fan safe for children to use?

This appliance is not intended for use by persons (including children) with reduced capabilities without supervision. Children should be supervised to ensure they do not play with the fan.

How should I store the fan when not in use?

Clean the fan, then pack it into a vinyl bag and store it in a dry, cool place.

What voltage does the fan require?

Use only with the rated voltage indicated on the rating label of the fan. Check the label on the product for exact voltage.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard. Do not use the fan until repaired.

USER MANUAL BF1200 Campomatic

Front view of a white portable air conditioner with a circular fan and grid grille (no visible text or symbols)

Made in China

INSTRUCTION MANUAL

Caution: Read and follow all safety and operating instruction before first use of this product.

Campomatic S.R.L. Via Configliachi 5/B . 35031, Abano Terme (Padova), ITALIA

WWW.CAMPOMATIC.COM

READ AND SAVE THESES INSTRUCTIONS.

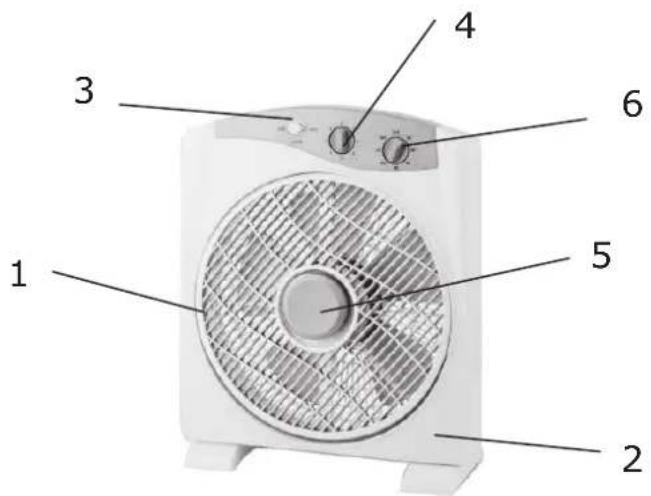

PARTS INDENTIFICATION:

1. LOUVER
2. FRONT CASIN
3. LOUVER SWITCH
4. SPEED STAGE SWITCH
5. LOUVER CAP
6. TIME SWITCH

Only applicable to model with timer.

CAUTION:

1. Do not plug line cord into outlet until fan has been completely assembled.
2. Use only with rated voltage.
3. Do not attempt to force the louver to turn.
4. Never insert fingers, pencils or any other object through the grille when the fan is running.
5. To prevent risk of fire and electric shock, do not use the unit near windows.
6. Power plug must be removed from power socket before cleaning. Servicing, maintenance and move from one location to another.
7. The fan should be placed on a flat and stable surface when operating to avoid overturning.
8. The fan should not be placed in a damp place or where humidity is high (such as in a bathroom).
9. No responsibility will be accepted for any damage which may occur during transport or by improper installation or voltage fluctuation or if any portion of the product has been altered or modified.

1. This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they do not play with the appliance.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SPEED CONTROL

To turn on the fan, simply turn any on the SPEED STAGE SWITCH

(1-2-3) To turn it off, turn to the "O"

LOUVER CONTROL

Press the LOUVER SWITCH for stop or move.

120 MINUTES TIMER

The fan stops automatically at the preset timer,

"OFF" position the fan will not operate even if you switch it on.

So, keep the indicator at "ON" position.

CLEANING

To clean the louver, first turn the louver cap to the left and remove it. Then remove the louver.

MAINTAINANCE

1. Keep this unit in cool dry place.
2. Keep the fan clean. Use a piece of soft cloth soaked with soap water to clean off the dust and stains, wipe dry to keep in a fresh appearance. Must not attempt to use solvents. Like thinner gasoline, etc.
3. After the fan is cleaned then pack it into a vinyl bag and store it in a dry place.

Front view of a white portable air conditioner with a circular fan grille and control knobs (no visible text or symbols)
