Product Type	LED Television
Screen Size	22 inches (55.88 cm)
Resolution	1920 x 1080 pixels (Full HD)
Display Technology	LED
Aspect Ratio	16:9
Contrast Ratio	3000:1 (Dynamic)
Brightness	200 cd/m²
Viewing Angle	178° horizontal / 178° vertical
Refresh Rate	60 Hz
Audio Power	2 x 8W
Audio Features	Dolby Digital, Equalizer
Connectivity	2 x HDMI, 1 x USB, 1 x VGA, 1 x AV, 1 x RF, 1 x CI Slot, 1 x Headphone
Wireless	Wi-Fi (802.11 b/g/n), Bluetooth (optional)
Smart Features	Built-in digital tuner (DVB-T2/C/S2), Media player
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	35W (typical), <0.5W (standby)
Dimensions (without stand)	510 x 310 x 78 mm
Dimensions (with stand)	510 x 340 x 160 mm
Weight	2.8 kg (without stand), 3.2 kg (with stand)
VESA Mount	75 x 75 mm
Environment	Operating temperature: 0°C to 40°C; Humidity: 20% to 80%
Cleaning	Wipe with a soft, dry cloth. Do not use abrasive cleaners.
Safety	Class II, double insulated; CE, RoHS compliant
Repairability	Modular design; user-replaceable mains cable; serviceable by authorized technicians
Warranty	2 years (EU)

Frequently Asked Questions - 22SUN19D Sunstech

How do I connect my Sunstech 22SUN19D to Wi-Fi?

Press the Menu button on the remote, go to Network settings, select Wireless, choose your Wi-Fi network, and enter the password using the on-screen keyboard.

What is the screen resolution of the 22SUN19D?

The TV has a Full HD resolution of 1920 x 1080 pixels, providing sharp and clear images.

Can I mount this TV on a wall?

Yes, the 22SUN19D supports VESA mount standard 75 x 75 mm. Use a compatible wall mount bracket and follow the mounting instructions.

Why is there no sound from the TV?

Check if the TV is muted or volume is low. Ensure external audio devices are properly connected. Go to Settings > Audio and verify the audio output is set to TV Speaker.

How do I update the firmware on my Sunstech TV?

Download the latest firmware from the Sunstech support website to a USB drive. Insert the USB into the TV, go to Settings > About > Software Update, and select Update from USB.

What ports are available on the 22SUN19D?

It includes 2 HDMI, 1 USB, 1 VGA, 1 AV input, 1 RF antenna input, 1 CI slot, and 1 headphone jack.

How do I reset the TV to factory settings?

Go to Settings > System > Reset. Enter the PIN (default is 0000) and confirm. This will erase all personal data and restore factory defaults.

Can I use a soundbar with this TV?

Yes, connect a soundbar via the HDMI ARC port (HDMI 1) or the digital audio output if available. You may need to enable ARC in the audio settings.

The remote control is not working. What should I do?

First, replace the batteries. Ensure there are no obstructions between the remote and the TV's IR sensor. If the problem persists, try resetting the remote by removing batteries and pressing any button for 5 seconds.

How do I clean the TV screen safely?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth to gently wipe the screen. For stubborn stains, slightly dampen the cloth with distilled water. Never use alcohol or abrasive cleaners.

USER MANUAL 22SUN19D Sunstech

IMPORTANT

Please read this manual carefully before installing and operating the TV.

Keep this manual handy for further reference

Table Of Contents

Preparations Guide

Safety Information....2

Important Safety Precautions....3

Installed And Connected TV

TV Bracket assemble....4

TV Buttons And Terminal Interface....5

External device connection diagram.... 6

Install And Connect TV....7

TV Stand installation Instructions....7

Remote Control

Remote Control....8

DTV MENU

Picture Menu....10

Sound Menu....11

Channel Menu.... 15

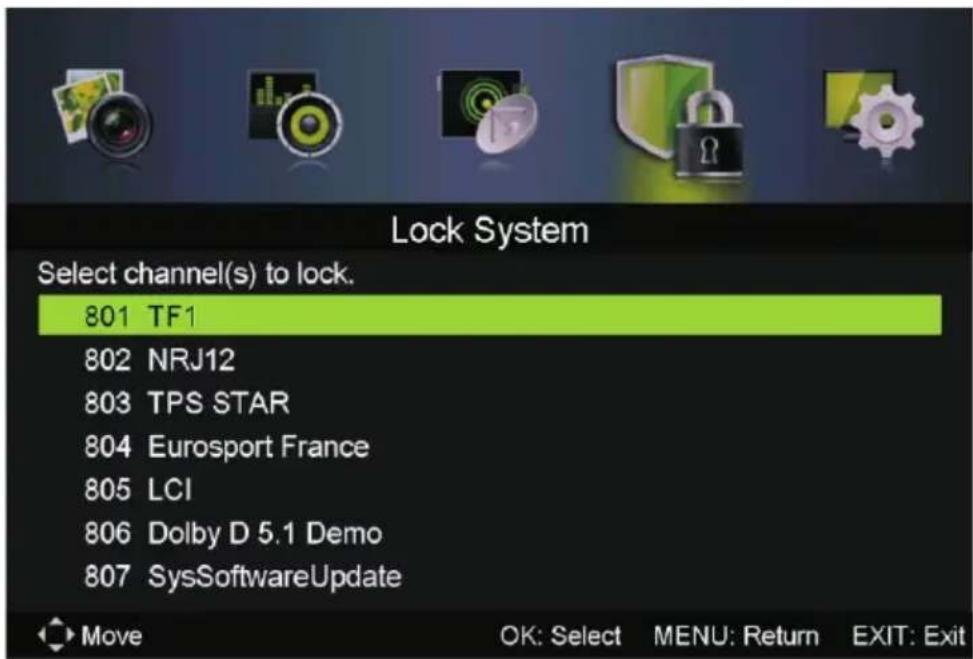

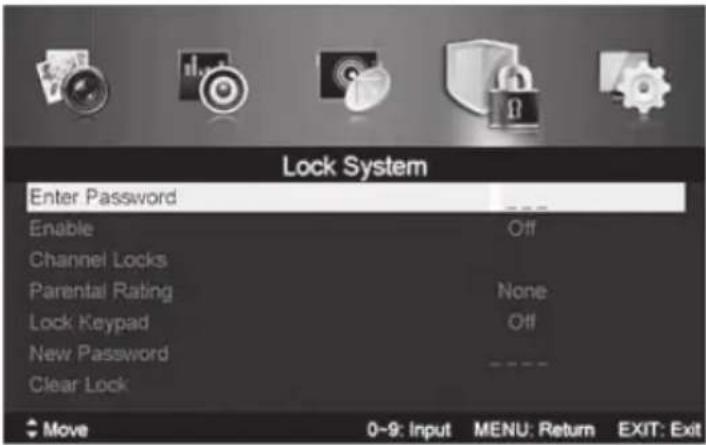

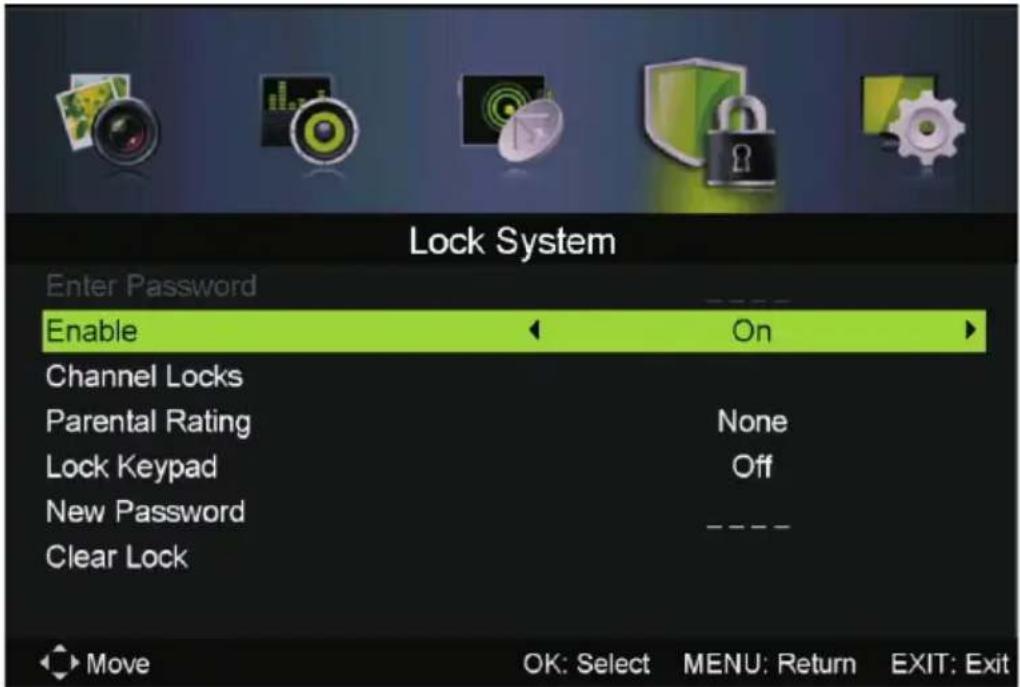

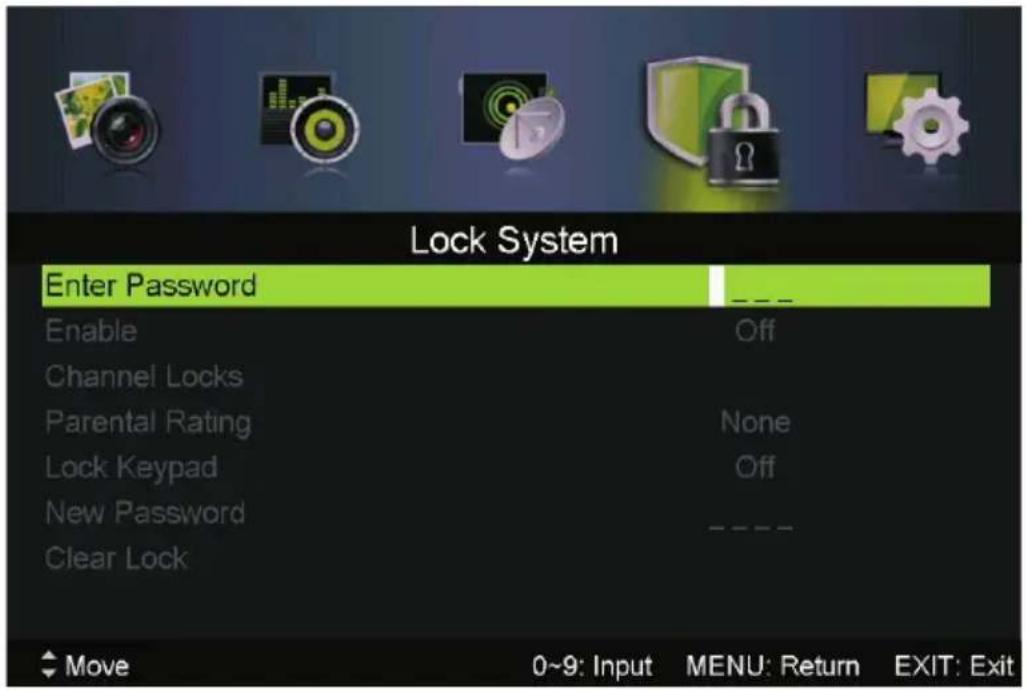

Look System Menu....21

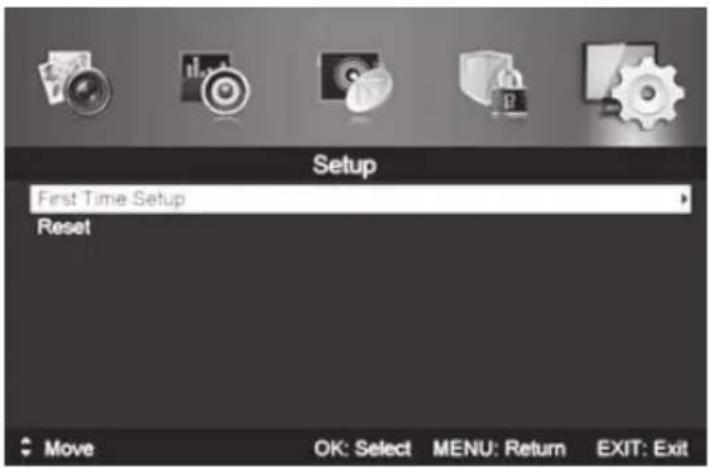

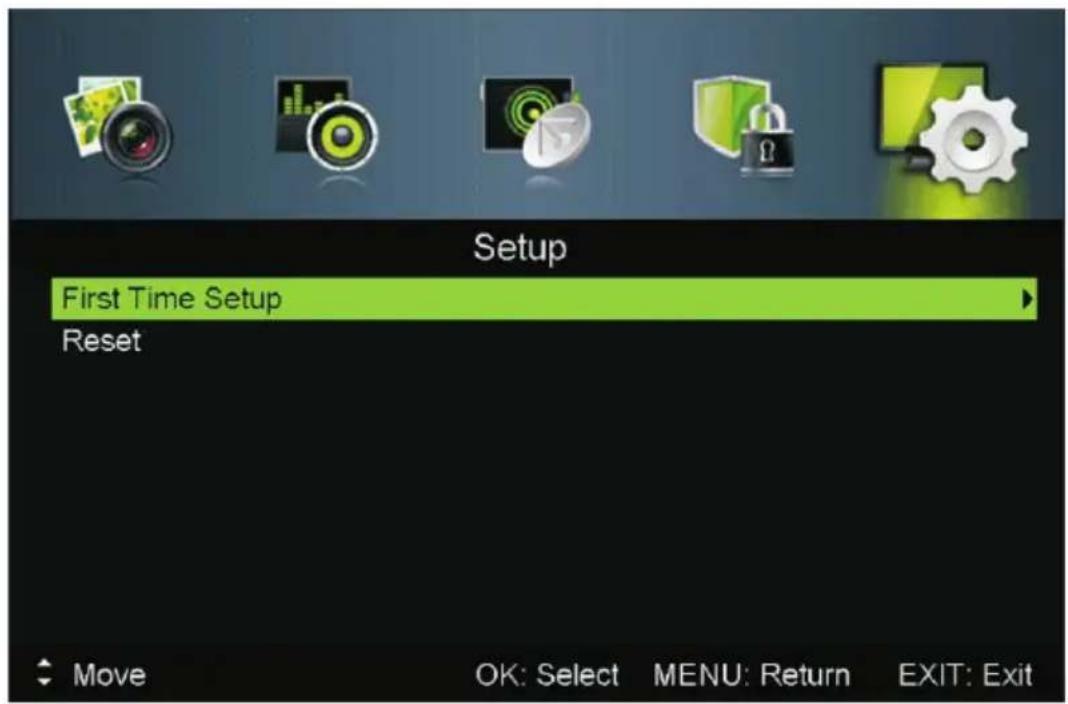

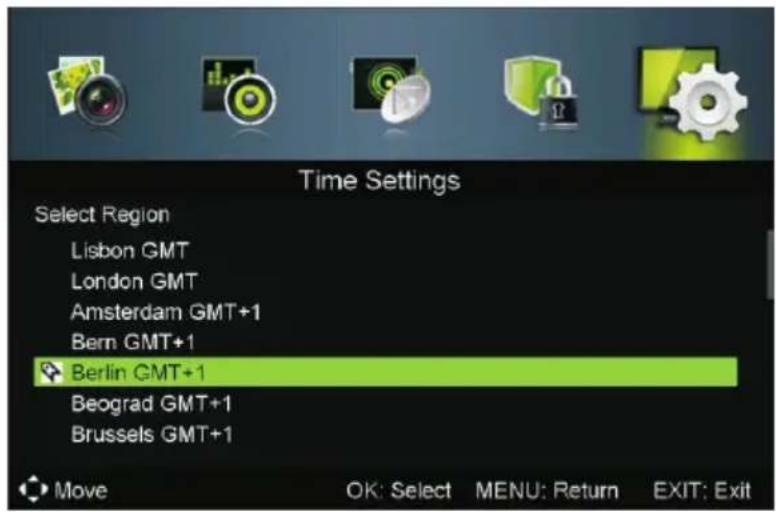

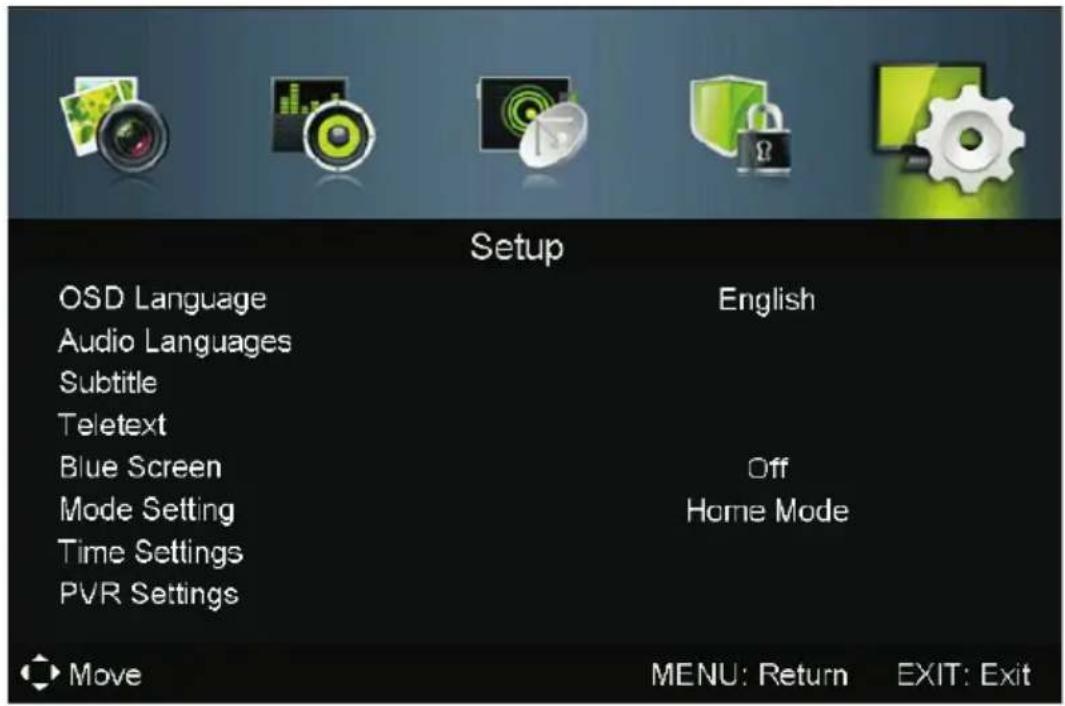

Setup Menu.... 23

EPG Menu 27

Time shift....29

PC

PC Setting Menu....30

USB OPERATION

Music....32

Movie....33

Text....35

Other Information

Help....35

Specifications....36

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

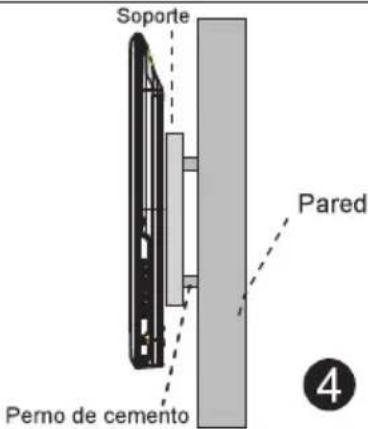

TV Bracket assemble

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.

2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1). And take off the bottom stand (please take off the screws and bottom stand carefully).

3. Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.

4. Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts)

5. according to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

Top-down schematic of a computer monitor layout showing front, top, and side views (no text or labels)

1

Top-down schematic of a computer room layout with no visible text, labels, or symbols

2

3

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

Important Safety Precautions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments /accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

Caution:

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

16) The socket-out shall be installed near the equipment and shall be easily accessible.

17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.

18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21)

Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions. unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth

25) The maximum using environment temperature is 45 degrees. The Maximum using altitude is 2000 meters

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

(●):Turn ON/OFF Power.

SOURCE: External Signal Input Selection.

MENU: Display Main MENU And Confirm MENU Item Selection.

CH+/-:Selecting Channel.

VOL+/-:Adjusting Volume.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input AndRelevant Rith/Left Sound Channel		EARPHONE outputWhen earphones are plugged in,speakers are disabled
	AV outputExternal AV Signal output AndRelevant Right/Left Sound Channel(Some models without this interface)		USB inputonly for software upgrade.
	Y Pb Pr inputConnect to the composite terminal of your DVD/VCR(Some models without this interface)		COAXIAL outputConnect the SPDIF receiver.
	HDMI inputDigital signal input from HDMI video connector.		CI SLOTThe card reader input CI(common interface) this requires CAM (conditional access module) used for pay TV.
	ANT 75Connect the antennal/cadle tv input (75/VHF/UHF)		SCART inputstandard, it supports composite and RGBsignal input. It is a connection for european (Some models without this interface)

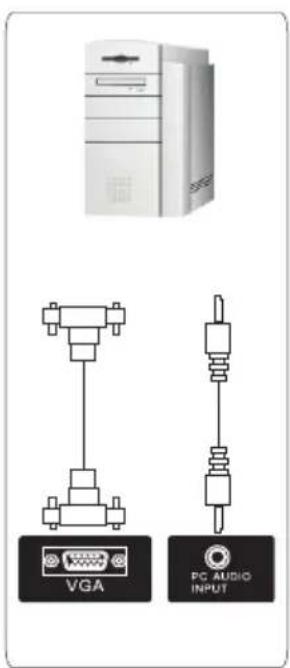

	VGA inputPC analog signal input
	PC AUDIO INPUTVGA input and audio input when VGA input

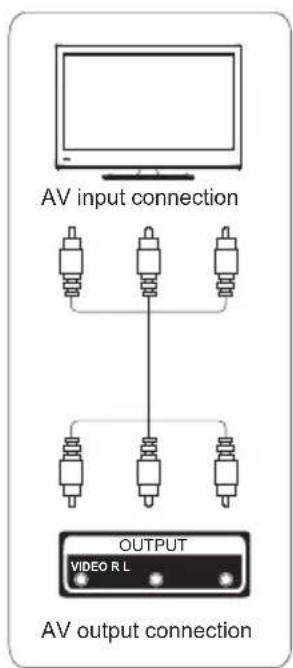

External device connection diagram

Install And Connect TV

3

2
1

Set your TV

To put your TV in a firm place which can bear the weight of the TV.
To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

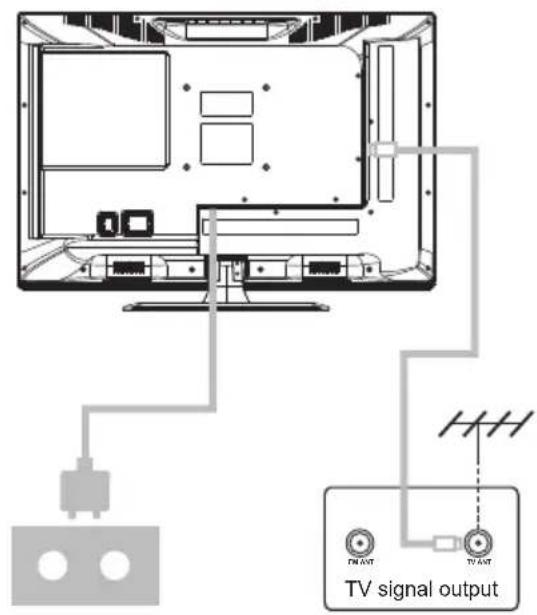

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV (AC 100-240V\~50/60Hz).

Turn on TV

1. Press the power button of the TV the indication light will turn to green. if it is on standby mode (the light is red), press the power button on the remote control to turn on the TV.

Note:

Picture for reference purposes only.

TV Stand Installation Instructions

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. To avoid the damage of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress.
3. Clip base on card slot as the direction of arrow shown.
4. The installation is completed.

Remote Controller

1. POWER : Set your TV to power on or standby mode.
2. MUTE : Press to mute the sound. Press again or press VOL+ to unmute.

3. 0-9: Press 0\~9 to select a TV channel directly while watching TV. The channel will change after 2 seconds. Applicable for entering page number in teletext mode and so on.

4. DTV/ATV: Switch between Analog and Digital TV

5. Return to the previous viewed program.

6. S.MODE: Press to cycle through the different sound settings

7. SLEEP: Select amount of time before TV turn itself off automatically.

8 MTS : Press to search the NICAM modes.

1. P.MODE: Press to cycle through the different picture settings

2. MENU: Allow you to navigate the on-screen menus.

3. SOURCE: Open the main menu, press to list the sources

4. ▲▼◀▶ ENTER: Allow you to navigate the on-screen menus and adjust the system settings to your preference.

5. EXIT: Exit from the menu or sub-menu and cancel the function in process (if applicable)

6. DISPLAY: Press to display the source and channel's info.

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries. Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

Remote Controller

1. VOL+/VOL-: Press to increase / decrease the sound level.

2. TV/RADIO : When watching channel, allows you to switch between TV and Radio modes

3. GUIDE: 1. Launches the EPG (Electronic Program Guide) 2. Fast reverse in PVR or Media Player mode.

4. TIME SHIFT : 1.DTV channel time shift Function. 2.play on PVR or Media Player mode.

5. CANCEL:1. When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found, the page number will appear at the top of the TV picture, press the CANCELkey to return to the mode of text for you to browse this page.

6. Previous chapter in PVR or Media Player mode

7. INDEX:1. Request the Index page in Teletext mode.

8. Exit the playing function in PVR or Media Player mode.

9. SIZE: Change the size of display in Teletext mode.

10. REVEAL: Reveal or Hide the hidden words.

11. COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu.

12. CH+/CH- : Press to scan through channels.

13. FAV/LIST: press to open the favorite list. then you can select the favorite channel.

14. ASPECT: 1. Select picture scale.

15. fast forward in PVR or Media Player mode.

16. FREEZE: press to freeze the picture

17. SUB . PG 1. Press to access sub page.

18. Next chapter in PVR or Media Player mode.

19. SUBTITLE: To show and set the language of current DTV.

20. HOLD: HOLD On or Off for current page display.

21. TEXT: Switch the teletext on and off.

22. RECLIST : Show the recorded list.

23. REC: Record begin in PVR mode.

DTV Menu

Picture Menu

Press MENU button to display the main menu.

Press <b/ontbutton select PICTURE in the main menu, then p

ENTER / ▼

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press Enter/◄//► button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu.

DTV Menu

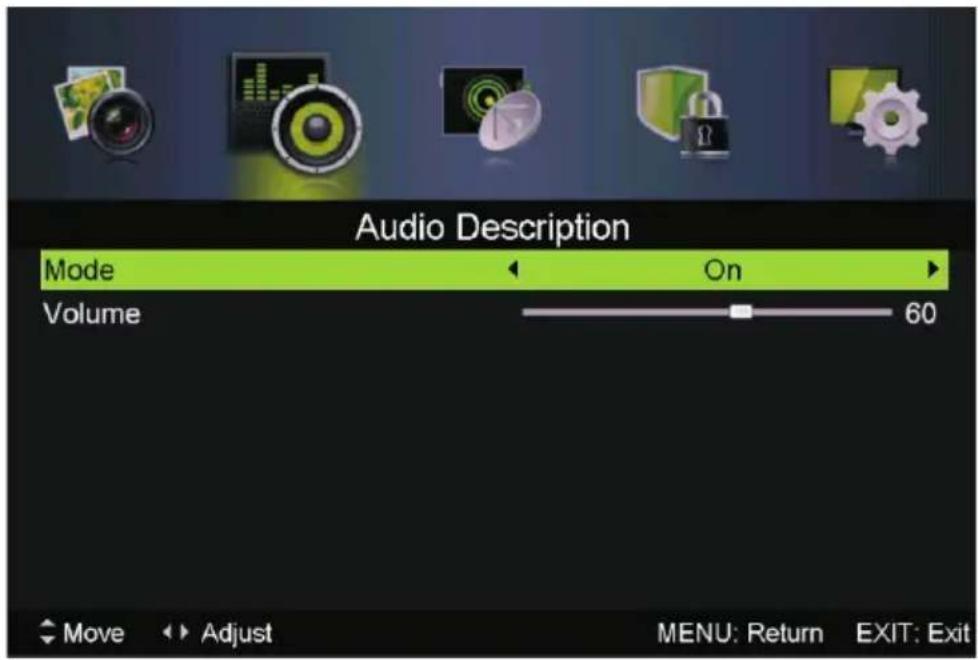

Sound Menu

Press MENU button to display the main menu.

Press ◄b/ontbutton select SOUND In the main menu, then p

ENTER/▼

1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.
2. Press Enter/◄/► button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu menu.

DTV Menu

Picture MODE

Press ▼ / ▲ button to select Picture Mode, then press ◀ / ▶ button to select.

TIPS: You can press PMODE butt on to change the Picture Mode directly.

Brightness/Contrast/ Sharpness/Saturation/Hue

Press ▼ / ▲ button to select option, then press ◀ / ▶ button to adjust.

Brightness Adjust the visual perception output of the entire picture, it will effect the iuminousness of the picture.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Sharpness Adjust the peaking in the detail of the picture.

Saturation Adjust the saturation of the color based on your own like.

Hue Use in compensating color changed with the transmission in the NTSC mode.

Color Temp

Change the overall color cast of the picture.

Press ▼ / ▲ button to select Color Temp, then press ◀ / ▶ button to select Standard/Cool/Warm.

Standard Produces a vivid image.

Cool Produces a gentle blue-hued image.

Warm Produces a red-hued image.

Aspect Ratio

Press ▼ / ▲ button to select Aspect Ratio, then press ◀ / ▶ button to select.

Full/4: 3 /Zoom1/Zoom2 To select the available display format.

Advanced Settings

Adjust advanced video features to fi ne tu ne th e picture.

P r e s a n v e d S e t t i t i o n to select , then press Enter / ▶ button to enter sub-menu.

NR

Set options to reduce video noise.

Press ▼ / ▲ button to select , then press ◀ / ▶ button to select .

Off Select to turn off video noise detection.

Weak Dete ct and re duce low video noise.

Medium Detect and reduce modera te video noise.

Stro ng Detect and reduce enhanced video noise.

Dynamic Contrast

Automatically adjust picture detail and brightness.

Press ▼ / ▲ button to select Dynamic Contrast , then press ◀ / ▶ button to select .

DTV Menu

Sound Mode

Press ▼ / ▲ button to select Audio Mode, then press ◀ / ▶ button to select.

TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.

Standard	Produces a balanced sound in all environments.
Music	Preserves the original sound.Good for musical programs.
Personal	Select to customize picture settings.
Movie	Enhances treble and bass for a rich sound experience.

Treble/Bass/Balance

Press ▼ button to select option, then press ◀ / ▶ button to adjust.

Treble Adjust the treble effect.Increases or decreases high-pitched sounds.

Bass Adjust the bass effect.Increases or decreases lower-pitched sounds.

Balance Adjust the balance between left and right speakers to adapt to your listening position.

Surround Sound

Press ▼ / ▲ button to select Surr ound Sound, then press◀ / ▶ button to select On or Off.

EQ Setting

Adjust the curve of 7 bands equalizer.

Press ▼ / ▲ button to select EQ Setting , then press Enter / ▶ button to enter sub-menu.

AVL

Automatically reduces sudden volume changes, for example, when switching between the channels.

Press ▼ / ▲ button to select AVL, then press ◀ / ▶ button to select On or Off.

SPDIF

Press ▼ / ▲ button to select Digital Output, then press ◀ / ▶ button to select Off / Auto/PCM.

DTV Menu

Audio Descrip tio n

Paedia Description to select sub-menu.

, then press Enter / ▶ button to enter

Mode

Press ▼ / ▲ button to select Mode, then press ◀ / ▶ button to select On or Off. When the mode is On, Volume can be adjust by users.

Sound Type

Press ▼ / ▲ button to select Sound Type, then press ◀ / ▶ button to select.

NOTE:

Balance: This item can adjust the speaker's output, it enables you to listen to best at your position.

AVL: This item uses for reducing the difference between channel and program's volume automatically.

it made the overall water to be even. This function will also reduce the fluctuation of the sound.

DTV Menu

Channel Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select CHANNEL in the main menu, then press ENTER/.

1. Press ▼ / ▲ button to select the option that you want to select in the CHANNEL menu.
2. Press Enter button to enter sub-menu.
3. Press MENU button to return back to the previous menu.

Tuner Type

Press ▼ / ▲ button to select Tuner Type, then press ◀ / ▶ button to select Antenna or Cable.

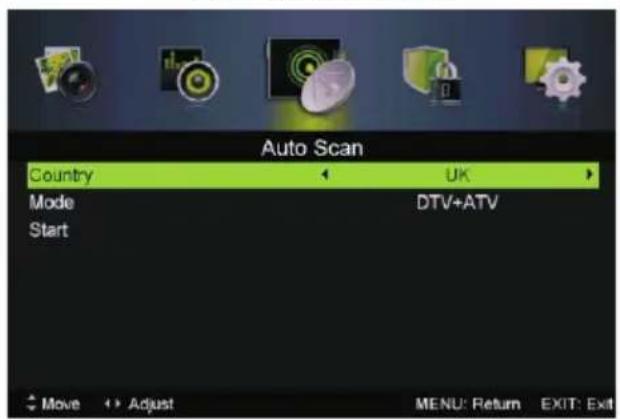

Auto Scan

ApoesStah▲ button to select , then press Enter / ▶ button to enter sub-menu.

Tuner type is Antenna

Tuner type is Cable

DTV Menu

Country

Press ◀ / ▶ button to select country

Mode

Press ◀ / ▶ button to select Mode: DTV+ATV, DTV, ATV.

Scan Type

Press ◀ / ▶ button to select Scan Type: Advanced, Quick, Full.

Network ID

Press ◀ / ▶ button to select Network ID: Auto or enter digital numbers.

Frequency

Press ◀ / ▶ butto n to select Frequency:Auto or nter digital numbers.

Symbol Rate

Press ◀ / ▶ button to select Symbol Rate: Auto or enter digital numbers.

Start

Press / ▶ button to start the auto searching.Enter

It will search digital channels first, then analog channels.

- Before execute auto channel search, please confirm your antenna type is Antenna or Cable.

Wrong setting of Signal Type maybe cause finding no channel.

DTV Menu

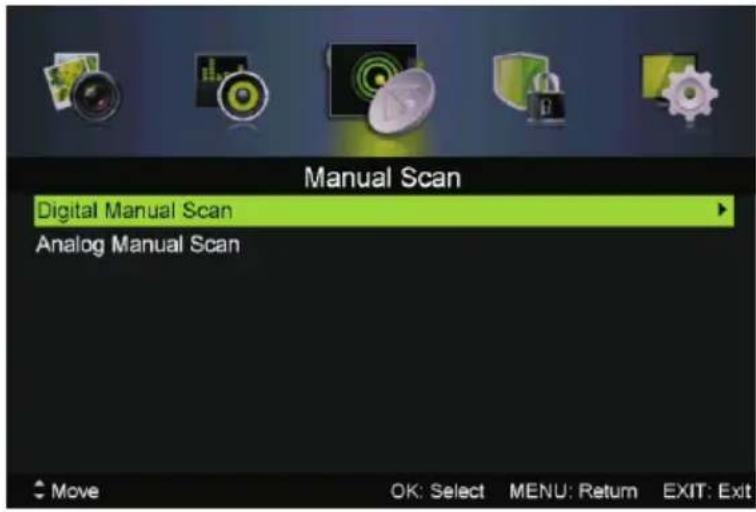

Manual Scan

Search for the channels manually.

RmannaScarbutton to select

, then press Enter / ▶ button to enter sub-menu.

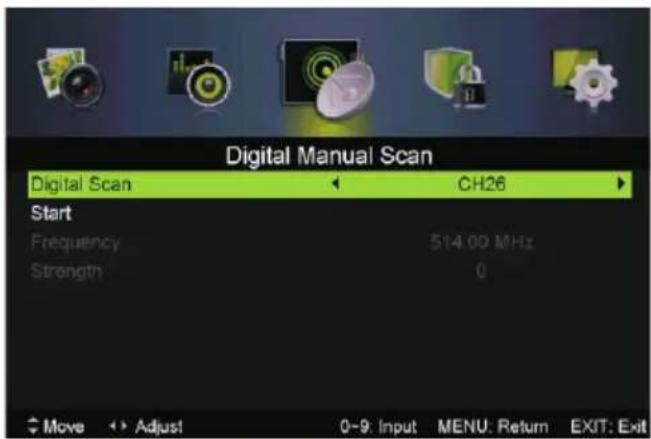

Digital Manual Scan

Press ▼ / ▲ button to select Digital Manual Scan, then press Enter / ▶ button to enter sub-menu.

Tuner type is Antenna

Tuner type is Cable

Network ID

Press ◀ / ▶ button to select Network ID: Auto or enter digital numbers.

Frequency

Press ◀ / ▶ button to select Frequency: Auto or enter digital numbers.

Symbol Rate

Press ◀ / ▶ button to select Symbol Rate: Auto or enter digital numbers.

Modulation

Press ◀ / ▶ button to select Modula tion:Auto, 16QAM,32QAM,64QAM,128QAM,256QAM.

Start

Press Enter / ▶ button to start the channel searching.

DTV Menu

Analog Manual Scan

Press ▼ / ▲ button to select Analog Manual Scan, then press Enter / ▶ button to enter sub-menu.

Analog Scan

Press ◀ / ▶ button to select Analog Scan.

Channel to Save

Press ◀ / ▶ button to select Channel to Save.

Color System

Press ◀ / ▶ button to select Color System: Auto, PAL or SECAM.

Sound System

Press ◀ / ▶ button to select Sound System :Auto,DK,BG,I or L.

AFC

Auto Frequency control.

press◀ / ▶ button to select On or Off.

Start

Press Enter / ▶ button to start the channel searching.

DTV Menu

Channel Edit

Press ▼ / ▲ button to select Channel Edit, then press Enter / ▶ button to enter sub-menu.

The three colored key are the shortcut key for programming the channels.

First press ▼ / ▲ to highlight the channel you want to delete or move or skip, then:

Press the Reton to delete the channel.

Press the Gatten to skip the select channel.

(Your TV set will skip the channel automatically when using CH+/- to view the channels.)

Press the Blue button to to set the channel to moving state. then press ▼ / ▲ to move it to the position you want to put, and press but Bon again to done the move operation.

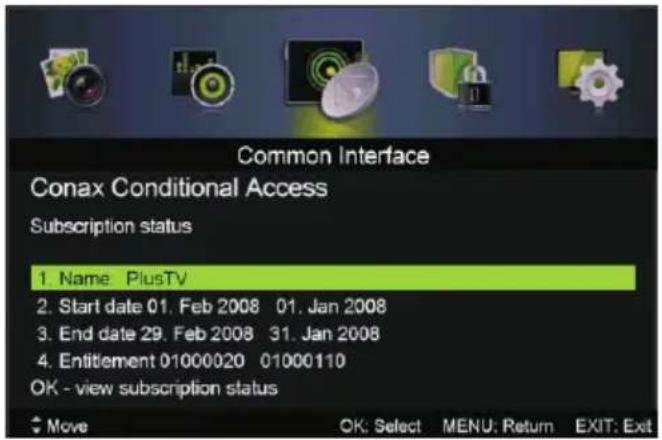

Common interface

Press ▼ ▲ buttertsusheen Common interface, the Only available when there is CI card under DTV.

n press Enter button to

DTV Menu

Signal Information

Press ▼ / ▲ button to select Signal Information, then press the Enter button to see the detail information about the signal. Only available when there is signal under DTV.

DTV Menu

Lock System Menu

Press MENU button to display the main menu.

Press ◄b/◆inteutton select LOCK SYSTEM in the main menu,then p

ENTER/▼

1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK SYSTEM menu.
2. Press Enter/◄//► button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu.

Default password is 0000, and if forget what you set, please call the service center.

DTV Menu

Enable

Press ▼ / ▲ button to select Enable then press ◀ / ▶ button to select On or Off.

Channel Locks, Parental Rating and Lock Keypad are available when Enable is On.

Channal Locks

PChannel/Lockbutton to select , then press Enter / ▶ button to enter sub-menu.

Parental Rating

Press ▼ / ▲ button to select Parental Rating, then press ◀ / ▶ button to select.

Lock Keypad

Set to prevent it from being used by young children, or other unexpected usage.

Precks Keypad button to select then press ◀ / ▶ button to select On or Off.

New Password

Press ▼ / ▲ button to select New Password nthen4-digital number you want to set twice.

Clear Lock

Press ▼ / ▲ button to select Clear Lock.

DTV Menu

Setup Menu

Press MENU button to display the main menu.

Press ◀d/ ▶nteutton select SETUP in the main menu, then p ENTER / ▼

1. Press ▼ / ▲ button to select the option that you want to adjust In the SETUP menu.
2. Press Enter/◄/► button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

DTV Menu

OSD Language

Select an OSD menu language can be displayed. Default English is selected as menu language.

Press ▼ / ▲ button to select OSD Language, then press ◀ / ▶ button to select.

Audio Languages

Select an audio language can be displayed. D efa ult English is selected as audio language.

Press ▼ / ▲ button to select Audio Languages, then press Enter button to enter sub-menu.

Press ▼ / ▲ / ◀ / ▶ button to select the Audio Primary Language and Audio Secondary Language.

Subtitle e

Select a subtitle language can be displayed. D efa ult English is selecte d as subti tl e language.

Press ▼ / ▲ button to select Subtitle, then press Enter button to enter sub-menu.

Mode

Press ▼ / ▲ button to select Mode, then press ◀ / ▶ button to select On or Off.

Press ▼ / ▲◀ / ▶ Print on tandem Second Subtitle Language Subtitle

Language.

Hearing Impaired

Press ▼ / ▲ button to select Hearing Impaired, then press ◀ / ▶ button to select On or Off.

DTV Menu

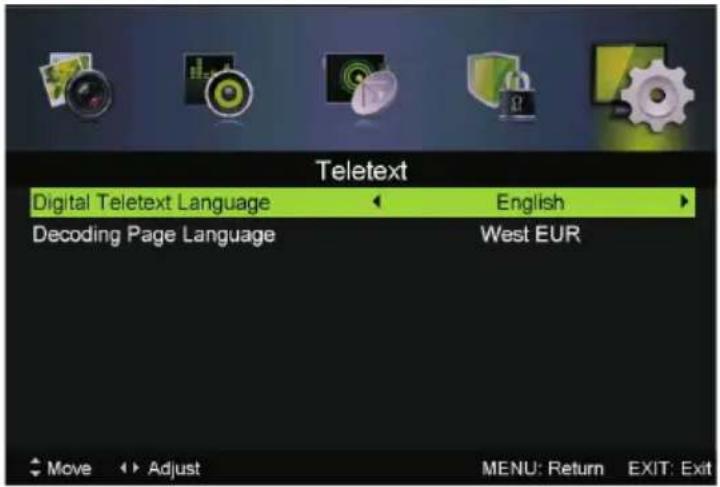

Teletext

Adjust Teletext settings. Only available under DTV, ATV, AV, SV and SCART source

Press ▼ / ▲ button to select Teletext, then press Enter / ▶ button to enter sub-menu.

Under DTV source, press ◀ / ▶ button to select Digital Teletext Language and Decoding Page Language.

Under ATV, AV, SV and SCART source, press ◀ / ▶ button to select Decoding Page Language.

Mode Setting g

Rides Setting button to select

Time Settings

Press ▼ / ▲ button to select Time Settings, then press Enter / ▶ button to enter sub-menu.

DTV Menu

OSD Time

Press ▼ / ▲ button to select OSD Time ,press ◀ / ▶ button to select.

(A)DaTime:Off,10seconds,20seconds,30seconds,60seconds).

Sleep Timer

Set a timer for the TV to turn off automatically.

PStep ▼/▲ button to select ,press ◀ / ▶ button to select. (AvailabTimer:Off,5mins,15mins,30mins,60mins,90mins,120mins,240mins).

Auto Sleep

Press ▼ / ▲ button to select Auto Sleep ,press ◀ / ▶ button to select Off,3 hours,4hours or 5 hours.

Time Zone

Select your time zone.

Press ▼ / ▲ button to select Time Zone, then press Enter / ▶ button to enter sub-menu.

Time

Press ▼ / ▲ button to select Time, then press Enter / ▶ button to enter sub-menu.

Set Auto Sync to Off, then you can set the time manually.

Note: In the case of loss of power, the clock setting will be lost.

DTV Menu

PVR Settings

Press ▼ button PVR Settingsteerepress-Eeter button to . It will check the USB .

Press ◀ / ▶ button to select File Manager, then press Enter button to enter sub-menu.

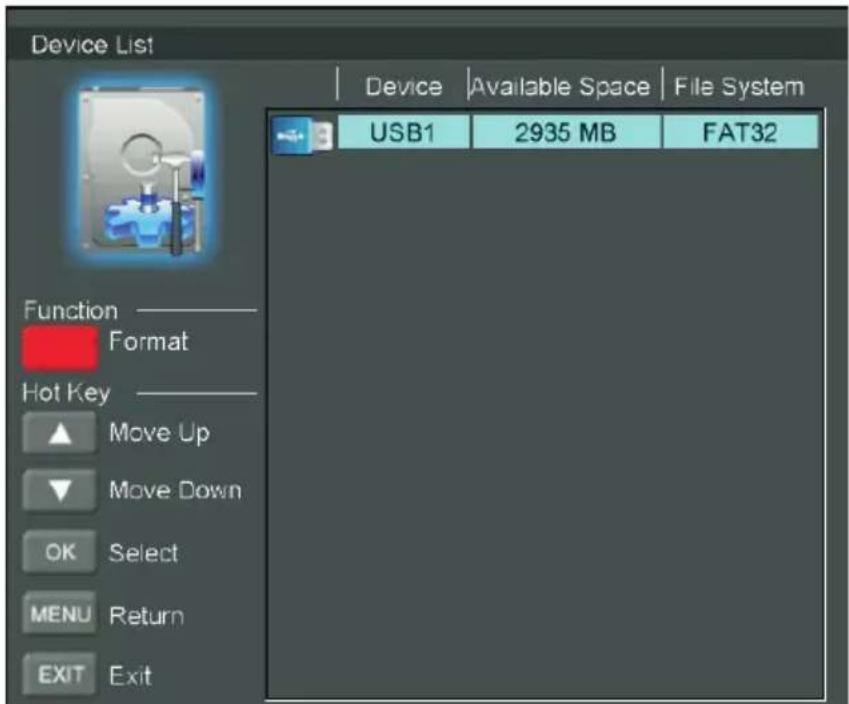

Press ◀ / ▶ button to select Device List, then press Enter button to enter sub-menu.

DTV Menu

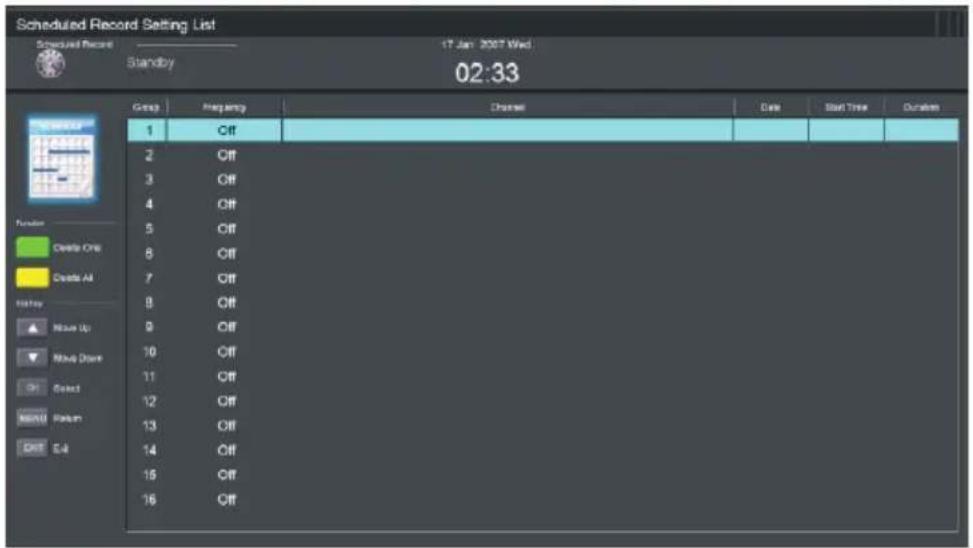

Press Scheduled Record, select enter sub-menu.

then press Enter button to

First Time Setup

Press ▼ buttonEnterselect First time Setup, then press button to enter.

Reset

Press ▼ buttonReselEnt then press button to enter sub-menu.

If you are sure to reset, press to reset. Yes

DTV Menu

EPG Menu

Press the button EPG in the remote control to enter EPG menu.

Press the REDD to display previous date.

Press the 📄 button to display next date.

Press the button to see the setting you have done before.

Press the Button to set the time you want to remind the program you want to see.

Timeshift

Press Pause key when the program is playing under the DTV Source to start Timeshift.

The white bar indicated the recording progress.

The blue bar indicated the playback progress.

PC

PC Setting Menu

Press INRdTo Reect the remote control

Press MENU button to diphate the menu.

Press ◀ / ▶ button on the remote control to select PC SETTING In the main menu.

1. Press ▼ / ▲ button on the remote control to select the option that you want to adjust in the PC SETTING menu.
2. Press Enter button on the remote control to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu menu.

Auto Adjust

Press Enter/ ▶ button to adjust the screen automatically to the optimal position of the picture.

H Position.

Adjust the horizontal position of the picture.

V Position.

Adjust the vertical position of the picture.

Phase

Adjust the horizontal interfering lines.

Clock

Adjust the vertical interfering lines.

\*Notes:

1. Sharpness, Saturation and Advanced Settings in PICTURE are invalid.
2. Audio Description and Sound Type in SOUND menu are invalid.
3. Channel Locks and Parental Rating in LOCK menu is invalid.
4. Audio Languages, Sub title, Teletext and PVR Settings in SETUP menu is invalid.
5. Mode has no CHANNEL menu.

USB

USB OPERATION

Note: Before operating USB menu, Plug in USB device, then press INPUT button to set the Input Source to USB. Press ◀ / ▶ button to select USB in the Source menu, then press Enter button to enter.

Press ◀ / ▶ button to select the option you want to adjust in the main USB menu, then press button to enter. Enter


Press ◀ / ▶ button to select PHOTO in the main menu, then press Enter button to enter. Press ▼ / ▲ button to select drive disk you want to watch, then press Enter button to enter. Press ▼ / ▲ button to select return option to back to the previous menu.

Tropical beach scene with lush green palm trees against a clear blue sky (no text or symbols visible)

USB

Music

Press ◀ / ▶ button to select MUSIC in the main menu, then press Enter button to enter.

Press ▼ / ▲ button to select drive disk you want to watch, then press Enter button to enter.

Press button to select return option to back to the previous menu.

When highlighting the option you select, the file information will appear on the right.

Press to play or pause.

Press to play the previous song.

Press to play the next song.

Press to play backward.

Press to play faster.

Press to stop.

Press CH+/- to switch operation focus between File List and Player.

USB

Movie

Press ◀ / ▶ button to select MOVIE in the main menu, then press Enter button to enter.

Press ▼ / ▲ button to select drive disk you want to watch, then press Enter button to enter.

Press ▼ / ▲ button to select return option to back to the previous menu.

Press to play or pause.

Press to view the previous movie.

Press to view the next movie.

Press to play backward.

Press to play faster.

Press to stop and back to the previous folder.

USB

Text

Press ◀ / ▶ button to select TEXT in the main menu, then press Enter button to enter.

Press ▼ / ▲ button to select drive disk you want to watch, then press Enter button to enter.

Press ▼ button to select return option to back to the previous menu.

When highlighting the option you select, the file information will appear on the right.

Help

No Power	Check the AC cord of TV is plus in or not. If still no power, please Pull out the plug and replug in after60 seconds. And open the TV again
Signal receive not properly	To cause double image or phantom if there has high building or high mountain round TV. You can adjust image effect by manually operation: consult instruction of vernier regulation or change the direction of external antenna.If you use the indoor antenna . under certain circumstance, receive will be more difficult .So you can change the direction of the antenna to adjust the image effect . If can't change image receiving effect either , you have to use external antenna.
No picture	Check the antenna at the back of TV is connected properly or not.Try to select other channels and check whether the TV problem itself or not.
but,Video is ok without audio	Increase the volume.Check the TV is in mute mode or not , and please press the mute button to make sound resume.
Audio is ok, but color error or no picture.	Increase contrast and brightness.
snow statics picture and noise	Check the antenna at the back of TV is connected or not.
Level broken line	vacuum, such as hair drier, Maybe has electrical appliance interfere:please turn off these kinds of electrical appliance, cleaner and so on.
Image or-Dual "simulacrum" The TV no response with the Remote.	Perhaps the location for the antenna is not good. Use the tall beamed antenna can be improved quality of the display image.Operate the remote direct to the remote sensor on the TV. If still no response for the TV, please check if the plastic bag on the remote take or not. And check if the location for the battery is correct. Change the new battery.The TV will shift to the STAND BY if no response from the remote in the few minutes.
.NO Video In (PC Mode)	Please check if the display cable connect to the VGA correcte.Please check if there has the bend on the display cable.
Vertical twinkling (PC Mode)	Enter the main menu, Use the clock regulator for the Video display noise to eliminate the vertical line.
horizontal ripping (PC Mode)	Adjust the Audio sound horizontal in the main menu to clear the horizontal ripping line.
The screen is too bright or too dark (PC Mode)	Adjust the contrast ratio or brightness in the main menu.
PC Function no response	Check the computer setting in the state of compatible display resolution
Ripping line in RCA connecting	Please use good quality connecting cable.
Problem still exist	Unplug the power cable and wait for 30 seconds, then connect. If there is some problem with our TV, do not repair it by yourself, please contact with the customer service center.

There will be complete picture and the brightness will come down if the TV is in: Note So please do not keep the TV in a state of same, the static picture for too long time Menu or same picture that has much difference in brightness and contrast ratio for too long time.

Machine Technical Specifications

Screen Size	power Consumption	Main accessories
16"	24W	User's manual x1Remote controller x1Power cord x1AAA Batteries x2
20"	30W/36W
22"	30W/36W
24"	36W/48W
28"	36W
32"	56W/65W/100W
39"/40"	60W/70W/76W
42"	67W/70W/95W/100W
43"	65W/80W
50"	100W/108W/135W
55"	100W/135W/140W/160W
65"	159W/165W/195W

LIFE TIM : 60,000 HrsE

LED TV

GUIA DEL

USUARIO

Technical line drawing of a mechanical or electrical enclosure with no visible text, numbers, or symbols.

1

Technical line drawing of a mechanical or electronic component assembly (no text or symbols visible)

2

3

Nota:

Modo Hotel

Habilitar

Subtítulos

Modo

Ajustes de hora

Black-and-white beach scene with palm trees and a sandy shore (no visible text or symbols)

Música

For you. For everyone.
