Product Type	Moving Head LED Wash Light
Model	TM WASH70 by Karma
Light Source	7 x 10W RGBW LEDs
Pan Range	540°
Tilt Range	270°
Beam Angle	45°
Power Consumption	80W
DMX Channels	9 or 14 (selectable)
Operating Modes	Auto, Manual, Music, DMX
Connectors	XLR 3-pin (Input & Output)
Mounting	Ceiling bracket (original bracket required)
Color	Black
Display	Yes, with mode/enter/up/down buttons
Power Supply	110–230V~, 50–60Hz
Dimensions (LxWxH)	177 x 177 x 240 mm
Weight	2.8 kg
Fuse	Replaceable, type as per rating (check manual)
Cooling	Ventilated housing; do not obstruct vents
Cleaning	Use a damp cloth only; no solvents or detergents
Safety	Class I, requires earth ground; not for outdoor use
Warranty	2 years for consumers, 1 year for commercial (with invoice)
Country of Origin	Made in China

Frequently Asked Questions - TM WASH70 Karma

How do I set the DMX address for the TM WASH70?

Press the MODE/ESC button until the display shows 'd'. Then use UP/DOWN to set the address (001–512) and press ENTER to confirm.

What is the difference between 9-channel and 14-channel DMX modes?

In 9-channel mode, channels control PAN, TILT, DIMMER/STROBE, RED, GREEN, BLUE, WHITE, SPEED, and RESET. In 14-channel mode, additional channels provide fine control for PAN and TILT, plus color selection, color speed, auto/sound effects, and reset.

Can I use this fixture without a DMX controller?

Yes, you can use auto or sound-activated modes. In auto mode, the fixture runs built-in effects. In sound mode, it responds to music via the internal microphone. Select these modes from the menu.

How do I activate the strobe function?

Set the DIMMER & STROBE channel (channel 3 in 9-channel, channel 6 in 14-channel) to a value between 135 and 239. The strobe speed ranges from 0 Hz to 40 Hz depending on the exact value.

What is the maximum ambient temperature for safe operation?

Do not expose the fixture to temperatures above 40°C. Ensure adequate ventilation and keep away from heat sources.

How do I replace the fuse?

Disconnect the power cord from the mains. Then pull out the fuse holder from the power socket (item 8). Replace the fuse with one of the same type and rating. Only do this when the unit is unplugged.

Why is the fixture not reacting to DMX?

Check that the DMX address is correctly set and does not overlap with other fixtures. Verify the DMX cable connections (XLR 3-pin) and ensure the controller is transmitting data. The cable length should not exceed 100 meters.

How do I clean the TM WASH70?

Use only a damp cloth to wipe the exterior. Do not use solvents, detergents, or abrasive cleaners. Ensure the fixture is cool and disconnected from power before cleaning.

What should I do if the fixture falls or is damaged?

Stop using it immediately. Do not attempt to repair yourself. Contact the authorized technical service center. Repairs by unskilled persons can cause serious damage or injury.

Is this fixture suitable for outdoor use?

No, it is for indoor use only. Do not expose to rain, humidity, or high temperatures. Always install in a dry, ventilated area.

USER MANUAL TM WASH70 Karma

Mini testa mobile wash

Mini wash moving head

• OTROS IDOMAS •
  • OUTRAS LINGUAS •

Simple black-and-white icon of a radio button with a circular lens (no text or symbols)

TESTA MOBILE Moving head

Simple black electrical plug and socket symbol on white background (no text or labels)

CAVO ALIMENT. Power cable

Icon of an open book with a gear symbol, no text or symbols present

MANUALE Manual

When you open the package check that product is in good condition and that all the parts are present. Immediately notify the seller if any part is damaged or missing.

SPECIFICHE TECNICHE - TECHNICAL SPECIFICATIONS

Type of effect	Wash
Led type	7 X 10W RGBW
PAN 540°
TILT 270°
Beam angle	45°
Power consumption	80W
DMX channels	9 or 14
Operating modes	Auto / manual / music / DMX
Connectors	XLR 3 pins
Bracket	For ceiling
Colour	Black
Display	Yes
Power supply	110 - 230V ~; 50 - 60Hz
Dimensions	177 x 177 x 240 mm
Weight	2,8 Kg

IT

EN

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

GRAZIE PER IL VOSTRO ACQUISTO

1) LED RGBW

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time.

The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety.

Please read this manual carefully before starting using the device in order to take advantage of its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we in you to visit our website www.karmaitaliana.it where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

- Read and follow strictly the instructions contained in this manual.

- Keep this manual for future reference and include it if you give the product to another user.

- This device works with dangerous 110 - 230V mains power. Do not open, do not disassemble and don't try to operate inside it. In case of wrong use an electric shock may occur.

- The installation of the product must be carried out exclusively by specialized technicians. In case of wrong installation or connections, the manufacturer doesn't take any responsibility for damages to people or objects.

- Make sure that your power outlet voltage matches with the voltage set on the product. A wrong voltage would seriously damage the fixture.

- To avoid the risk of dangerous electric shocks, before turning on the product always check that it is connected to a circuit with suitable earth ground. Never cut internal or external ground wires.

- Before making any connection with other devices, check that all the fixtures are disconnected from the power source.

- If you need to suspend the product use only the original bracket. Make sure that the structure where it is mounted can support its weight and fasten it firmly, using also a safety cable.

- The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40^ ), rain or humidity.

- Do not allow flammable liquid, water or metal objects to enter the product.

- Don't touch the product with wet hands.

- Do not place any recipients filled with liquids, such as vases, on top of or directly next to the appliance.

- Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.

- Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.

- If the product doesn't turn on, check the fuse and if necessary replace it with one of the same type and rating, after disconnecting the fixture from power.

- In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.

- Avoid direct eye exposure to the light source.

- Do not turn the product on and off at short intervals, it may reduce the life of the device.

- Disconnect the unit from power when it is not used.

- Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.

- Wait for the product to cool before cleaning or maintenance.

- To clean the product, use only a damp cloth, avoiding solvents or detergents of any kind.

- If the product is used in the presence of children they must be supervised.

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product case.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the material making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

WARRANTY CONDITIONS

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it.

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
• Damages caused by negligence or wrong use of the device are not covered by warranty.
• The warranty is no longer effective if the item is modified or disassembled by not authorized people.
• This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.
• If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to save it.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

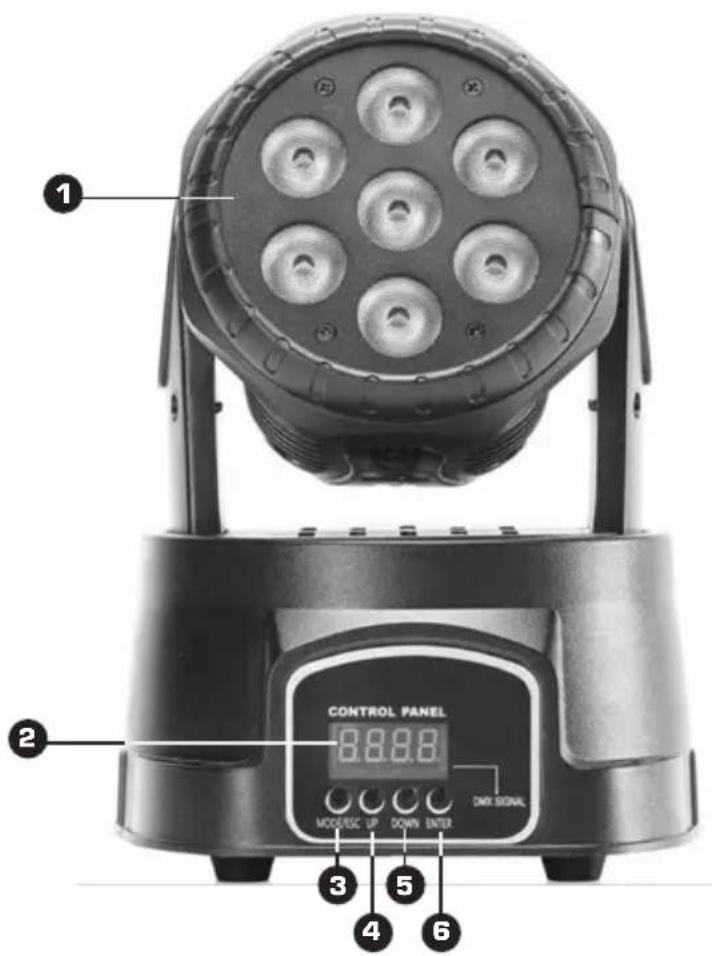

1) RGBW LEDS

It's the the moving part that can rotate or tilt to project the light beam in any direction.

2) DISPLAY

It shows main information and settings selected by means of the buttons (3-6).

3) MODE/ESC BUTTON

Used to select the setting you need to change. Press it repeatedly to skip from a function to another. Once completed the changes press it again to exit.

4) UP BUTTON

When pressed it increases the value shown on the display.

5) DOWN BUTTON

When pressed it decreases the value shown on the display.

6) ENTER BUTTON

To confirm the settings selected by means of the UP/DOWN(4-5) keys.

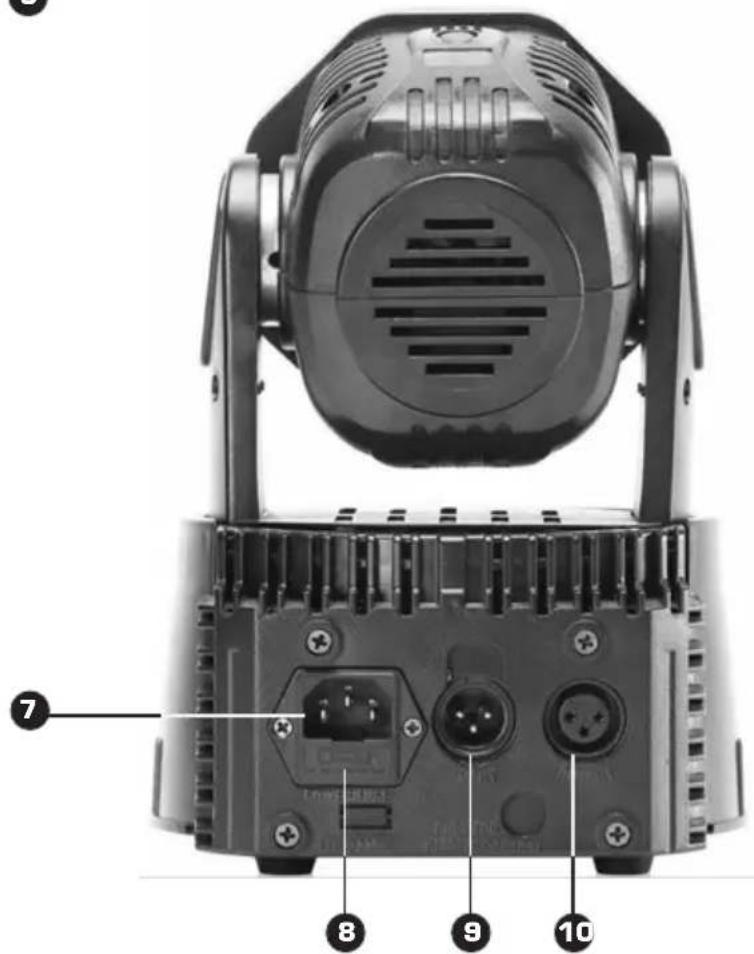

7) POWER SOCKET

Connect here the power cord, which is to be connected on the other side to a 110/220V power outlet.

8) FUSE

If the fixture doesn't turn on disconnect the power cord from the socket [7], then pull out the protection fuse from the small housing. If necessary replace the fuse with one of the same amperage.

Warning: This operation is to be made only with the power cord disconnected, to avoid risks of electric shock.

9) INPUT SOCKET

Connect here the 3 pin DMX input cable.

10) OUTPUT SOCKET

Connect here the 3 pin DMX output cable

INTRODUCTION TO DMX CONNECTIONS

In a DMX 512 connection there are 512 available channels. Each DMX fixture uses one or more channels to manage its functions. The user must assign a starting address to each DMX fixture connected to the system. This address will indicate the first channel used by the controller. You have to plan the starting address choice in order to avoid the channels' overlapping. Otherwise the fixture wouldn't work correctly.

Example: If you need to connect 3 DMX fixtures, each with 10 channels, the first unit is to be set on address 1, the second unit on address 11 and the third one on address 21. Anyway you can set the same starting address on more devices if you wish them to operate in synchrony. DMX devices are conceived to receive data through a serial Daisy Chain connection. With this kind of connection the data output of a fixture is connected to the data input of the following one. The connection order of the devices is not important and it doesn't affect on how the controller interacts with each of them. We suggest to put them in the easiest and most direct sequence for cable connection. The signal cable length should not be more than 100 m to avoid interferences with other signals or electric devices. To set the address you want to assign to the fixture (from 001 to 512), press the MODE (3) key until the display shows the symbol "d". Then, by means of the UP and DOWN keys, set the address and confirm with ENTER.

To operate correctly with DMX systems it is necessary to know the number of channels available on each connected fixture and the function of these channels.

Chart 1 shows the functions related to the fixture's channels in 9 or 14 channel mode.

It is possible to choose from the menu between 9 or 14 channel operation.

Chart 2 shows the functions of each of the 9 channels' possible values (from 0 to 255).

Chart 3 shows the functions of each of the 14 channels' possible values (from 0 to 255).

Before using the fixture it would be advisable to take a specific course on DMX systems for full understanding of its potential and functions.

CHART 1
# CH	9 CHANNELS 14	CHANNELS
1 PAN	PAN
2 TILT	PAN FINE
3 DIMMER & STROBE TILT
4 RED	TILT FINE
5 GREEN PAN/TILT SPEED
6	BLUE DIMMER & STROBE
7 WHITE		RED
8	SPEED	GREEN
9	RESET	BLUE
10		WHITE
11		COLOUR
12		COLOR SPEED
13		AUTO/SOUND
14		REST

CHART 2 (9 CHANNEL DMX)
# CH	VALUE	FUNCTIONS
1	0-255	PAN
2	0-255	PAN FINE
3	0-7 Blank
	8-134	Dimmer
	135-239	Strobe from OHz to 40Hz
	240-255	Open
4	0-255	Red
5	0-255'	Green
6	0-255	Blue
7	0-255	White
8	0-255	Speed
9	0-255	Rest
CHART 3 (14 CHANNEL DMX)
# CH	VALUE FUNCTION
1 0-255 PAN
2 0-255 PAN FINE
3 0-255 TILT
4 0-255' TILT FINE
5 0-255		PAN/TILT SPEED(from fast to slow)
6	0-7 Blank
	8-134 Dimmer
	135-239 Strobe from 0 Hz to 40Hz
	240-255 Open
7 0-255 Red
8 0-255		Green
9 0-255 Blue
10	0-255	White
11	0-7 Blank
	8-21 White
	22-34 Red
	35-49	Dark green
	50-63 Dark blue
	64-77 Light blue
	78-91	Magenta
	92-105	Yellow
	106-119	Purple
	120-134	Orange
	135-147	Light green
	148-161	Pink
	162-175 Brown
	176-189	Gold
	190-203-	Crimson
	204-217	Violet
	218-231	Dark purple
	232-255	Color change
12	0-255	Color speed
13	0-7 Blank
	8-22	Auto effects1
	23-37	Auto effects 2
	38-53	Auto effects 3
	54-67	Auto effects 4
	68-82	Auto effects 5
	83-97	Auto effects 6
	98-112	Auto effects 7
	113-127	Auto effects 8
	128-142	Sound activated effects 1
	143-157	Sound activated effects 2
	158-172	Sound activated effects 3
	173-187	Sound activated effects 4
	188-202	Sound activated effects 5
	203-217	Sound activated effects 6
	218-232	Sound activated effects 7
	233-255	Sound activated effects 8
14	150-200	Rest
