Product Type	Industrial Enclosure
Dimensions (H x W x D)	600 x 380 x 210 mm
Weight	15 kg
Material	Sheet steel, powder coated
Color	RAL 7035 (light gray)
Protection Rating	IP66
Locking Type	Double-bit lock (3 mm)
Door Opening Angle	180°
Mounting Plate Included	Yes, galvanized steel
Max Load on Mounting Plate	50 kg
Permitted Ambient Temperature	-15 °C to +40 °C
Maintenance	Clean with mild detergent and soft cloth; lubricate hinges annually
Safety	Handle edges with care; ensure grounding
Spare Parts	Keys, hinges, sealing gaskets available from Rittal
Repairability	Modular design; door and lock replaceable

Frequently Asked Questions - 2460.000 Rittal

What are the dimensions of the Rittal 2460.000 enclosure?

The dimensions are 600 mm height, 380 mm width, and 210 mm depth.

What material is the enclosure made of?

It is made of sheet steel with a powder-coated finish, typically RAL 7035 light gray.

What is the IP rating of this enclosure?

The enclosure has an IP66 rating, meaning it is dust-tight and protected against powerful water jets.

Does the enclosure come with a mounting plate?

Yes, a galvanized steel mounting plate is included.

How do I clean the enclosure?

Use a mild detergent and a soft cloth. Avoid abrasive cleaners. Rinse with clean water and dry.

What type of lock does it use?

It uses a double-bit lock with a 3 mm bit.

Can I replace the lock or door?

Yes, the lock and door are replaceable. Spare parts are available from Rittal.

What is the maximum weight the mounting plate can hold?

The mounting plate can support a maximum load of 50 kg.

What temperature range is the enclosure suitable for?

The permitted ambient temperature is -15 °C to +40 °C.

How should I maintain the hinges?

Lubricate the hinges annually with a suitable oil to ensure smooth operation.

USER MANUAL 2460.000 Rittal

Exterior view of a modern office building (no signage)

SZ 2307.000

SZ 2455.000

SZ 2435.000

SZ 2456.000

SZ 2450.000

SZ 2460-2469.000

SZ 2451.000

SZ 2452.000

DK 7200.810

SZ 2453.000

KS 1490.000

SZ 2454.000

CS 9785.030

Montageanleitung

Assembly Instructions

Notice de montage

Montage-instructie

Montageanvisning

Contents	Page
Principal dimensions	3
Removal of locks from steel doors	4
Fittings Ergoform-S in steel doors	4
Removal of lock from glazed doors and swing frames	5
Fitting Ergoform-S in glazed doors and swing frames	5
Removal of lock from plastic doors (KS)	6
Fitting Ergoform-S (KS 1490) in plastic doors	6
Fitting of lock inserts SZ 2463 (ASSA)	7
Fitting lock inserts in lock adaptors	7
Fitting of roady assembled inserts and locks, SZ 2467 - SZ 2469 and semi-cylinders in handle adaptors	8
Fitting profile semi-cylinders (45 mm) in handle adaptors	9
Fitting handle adaptors to glazed and steel doors	10
Fitting cover panel on single door enclosures (PS, ES, EL)	11

Ergoform-S Principal dimensions

Ergoform-S Dimensions-cotes

Removal of locks from steel doors

Fitting Ergoform-S in steel doors

Removal of lock from glazed doors and swing frames

Technical line drawing of a mechanical assembly with exploded view and component labels (no text or symbols)

Fitting Ergoform-S in glazed doors and swing frames

Removal of lock from plastic doors (KS)

Fitting Ergoform-S (KS 1490) in plastic doors

Fitting of lock inserts SZ 2453 (ASSA)

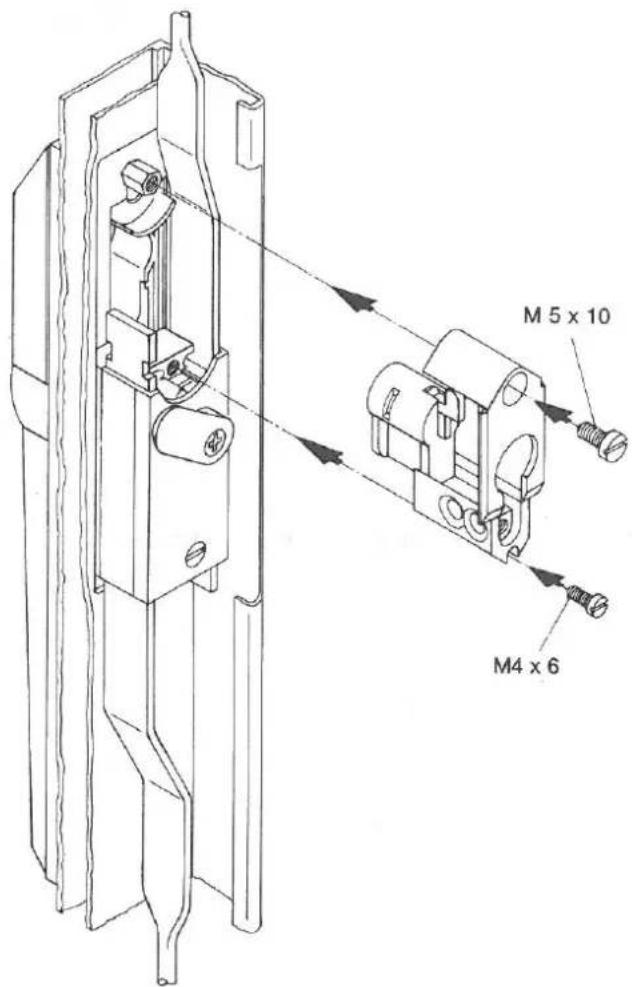

Fitting lock inserts in lock adaptors

Fitting of ready assembled inserts and locks, SZ 2467 - SZ 2469 and semi-cylinders in handle adaptors

Fitting profile semi-cylinders (45 mm) in handle adaptors

Fitting handle adaptors to glazed and steel doors

Montage Abdeckung

Fitting cover panel on single door enclosures (PS, ES, EL)
